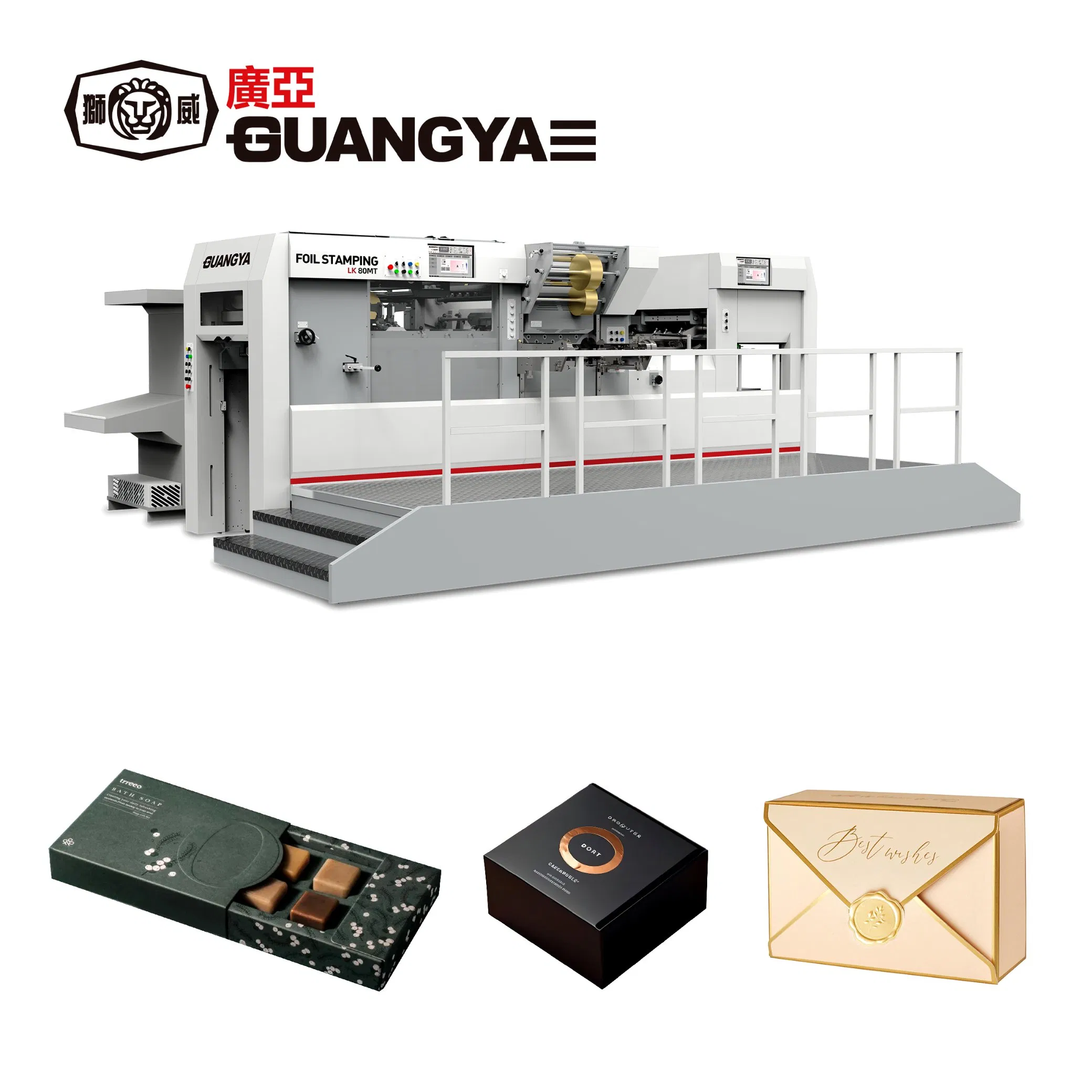

Automatic Hot Foil Stamping Machine and Die Cutting Machine for Smaller Paper Size (800*620mm)
Automatic Hot Foil Stamping Machine and Die Cutting Machine for Smaller Paper Size (800*620mm)
Automatic Hot Foil Stamping Machine and Die Cutting Machine for Smaller Paper Size (800*620mm)
Automatic Hot Foil Stamping Machine and Die Cutting Machine for Smaller Paper Size (800*620mm)
Automatic Hot Foil Stamping Machine and Die Cutting Machine for Smaller Paper Size (800*620mm)
1 / 5
Automatic Hot Foil Stamping Machine and Die Cutting Machine for Smaller Paper Size (800*620mm)
Automatic Hot Foil Stamping Machine and Die Cutting Machine for Smaller Paper Size (800*620mm)
Automatic Hot Foil Stamping Machine and Die Cutting Machine for Smaller Paper Size (800*620mm)
Automatic Hot Foil Stamping Machine and Die Cutting Machine for Smaller Paper Size (800*620mm)
Automatic Hot Foil Stamping Machine and Die Cutting Machine for Smaller Paper Size (800*620mm)

Automatic Hot Foil Stamping Machine and Die Cutting Machine for Smaller Paper Size (800*620mm)

Classification: Continuous Stamping Machine
Plate Type: Letterpress
Color & Page: Multi Color
Send Inquiry

Product Description

📊 Basic Information
Model NO.LK80MT-B
Suitable MaterialPaper
Automatic GradeAutomatic
ApplicationLeather Heat Transfer, Business Card, Plastic Flexible Packaging, Arts and Crafts, Electronic, Labels and Tags, Cap, Toy, Apparel
UsageLabel Printer, Paper Printer
Hot Stamping Pressure FactorHot Stamping Temperature
Decisive FactorPressure
Transport PackageVacuum Packing
SpecificationCE
OriginChina
HS Code84439119
Production Capacity10 Sets Per Month
⚙️ Technical Parameters
Max. paper size800×620mm
Min. paper size350×290mm
Max. cutting size790×610mm
Inner chase size880×628mm
Max. foil diameter¢250mm
Max working speed8000s/h
Max stamping speed7000s/h
Foil pulling shaftsLongitudinal 3, Transversal 2
Cutting precision±0.075mm
Pressure200T
Paper range90-2000g
Gripper9-17mm
Machine weight17T
Max. feeding pile height1350mm
Max. delivery pile height1200mm
Main motor power7.5kw
Total machine power48kw
Zones individually heated10 zones
Air requirements0.6MPa, >0.37m3/min
Overall dimension6880×3950×2350mm
🌟 Main Features

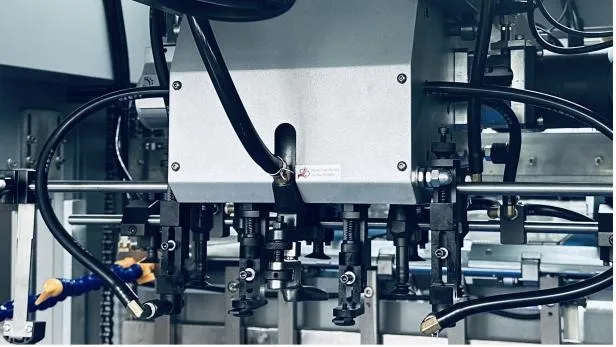

Non-stop Feeder
Non-stop Feeder
  • Imported Non-stop High-Speed Feeder
  • Feeder anti-collision protection
  • Synchronous belt drive for feeding accuracy
  • Left and right movement function of pile tray
  • Adjustable paper feeding side blowers
  • Pre-stacking and non-stop paper feeding function

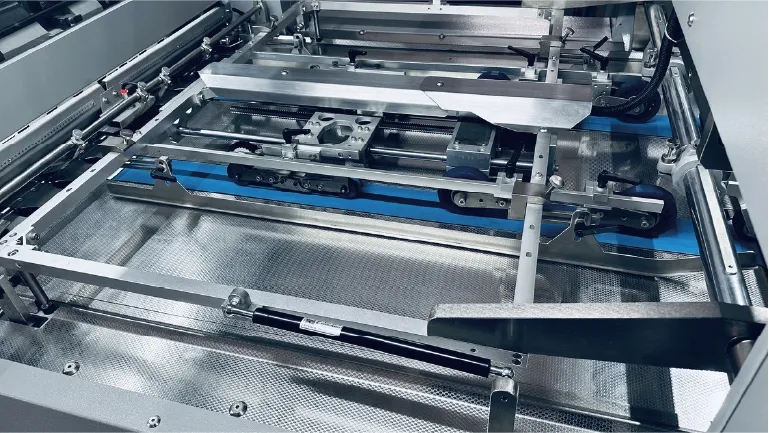

Feed Table
Feed Table
  • Imported belts with automatic tightening
  • Adaptive pressure wheel
  • Electrical front lays
  • Push-pull integrated side guides
  • Imported Antistatic pattern stainless steel
  • Ultrasonic double sheet detector (optional)

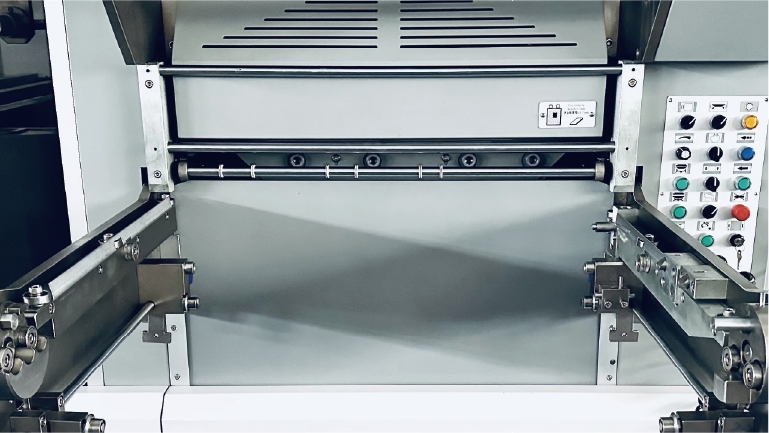

Host Station & Structure
Host Station
  • Electrically pressure adjustment function
  • Automatic pressure keeping and reduction
  • Imported intermittent mechanism
  • Two-way one button locking device
  • Anti-drop protection for chase and plate
  • Steel plate imported from Germany

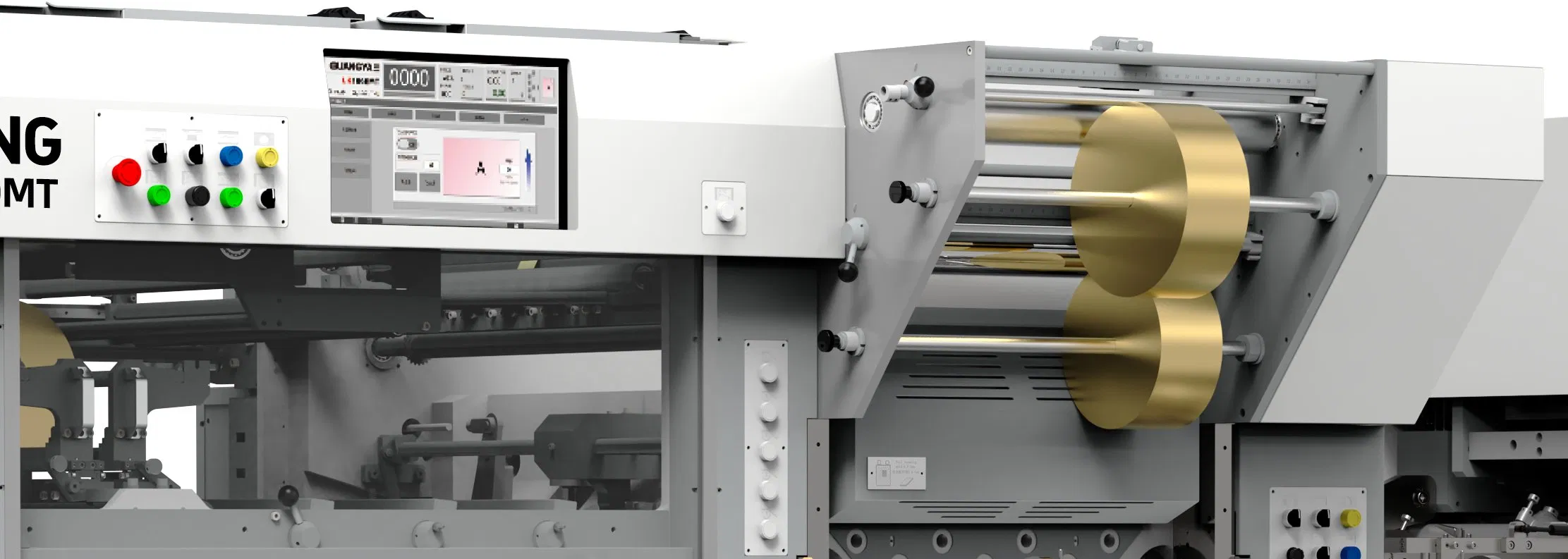

Foil Stamping Station
Foil Stamping Station
  • Exclusive innovative foil stamping structure
  • 3 longitudinal and 2 transverse foil shafts
  • 6 independent temperature zones
  • Preheating function to save time
  • Hot stamping memory function for recipes
  • Holographic foil stamping (optional)

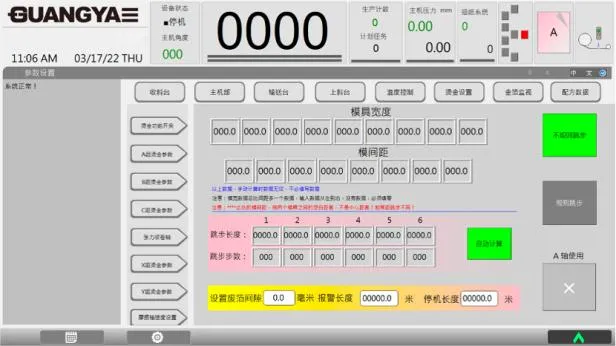

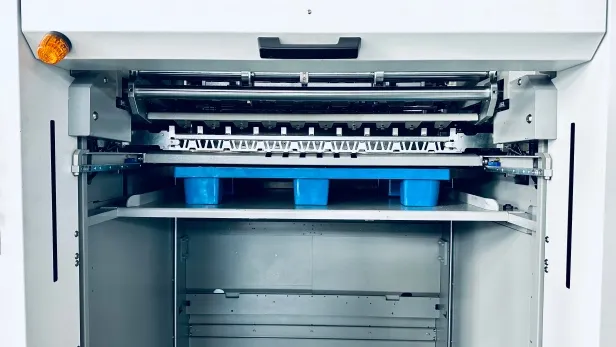

Foil System & Delivery
Foil System Delivery System
  • Automatic foil stepping calculation and optimization
  • Sensitive foil break detection system
  • Non-stop sampling function
  • Servo-controlled braking brush with motorized adjustment
  • Paper delivery fan system with variable speed
  • Automatic intermittent lubrication system

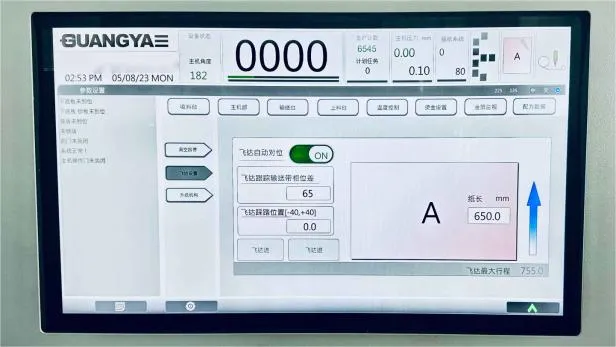

Control System
Control System
  • 24-inch industrial large color touch capacitive screen
  • Visualized functions and production monitoring
  • Data statistics and automatic screen off function
  • Imported motion control system (Ethercat bus)
  • Modular electrical design with imported components
  • Remote module for fast maintenance
🖼️ Product Samples
Samples
📜 Certificates
Certificate

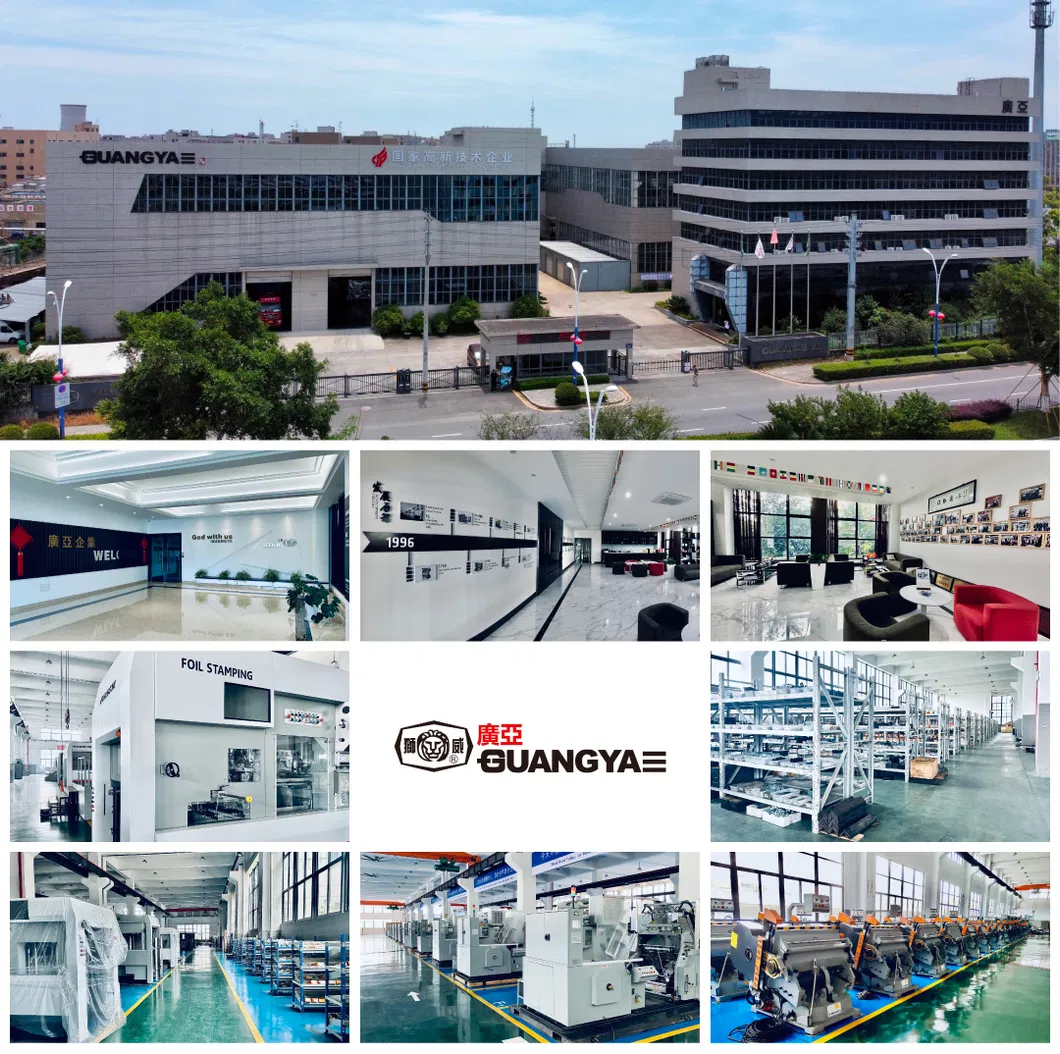

🏭 Workshop & Exhibition

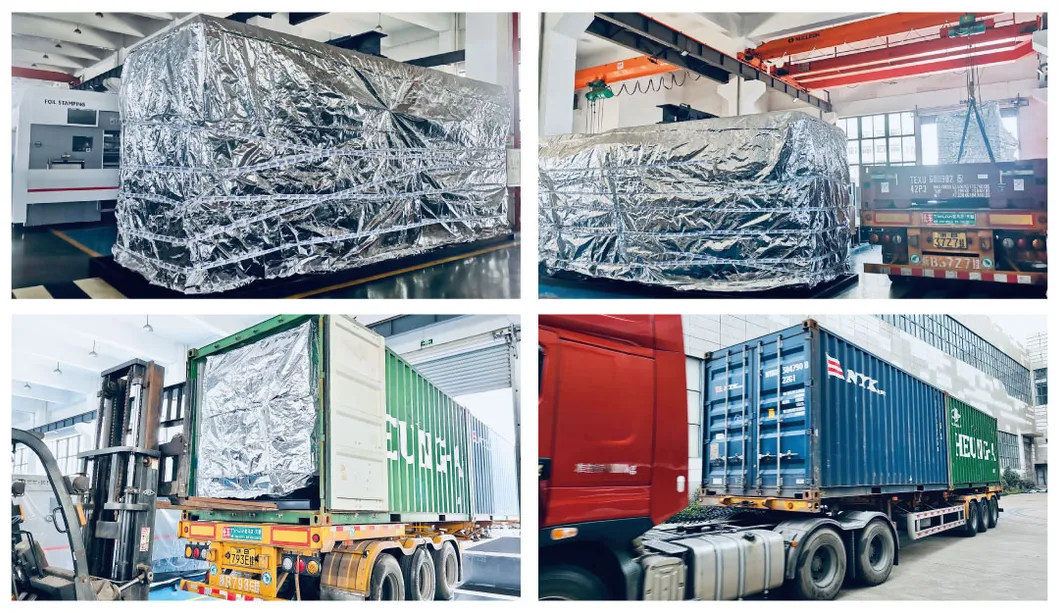

Delivery Exhibition Workshop

Professional Service System:

We provide professional sales and engineering support, ready to dispatch emergency repair parts within 24 hours and standard wear parts within 5 days. Our service includes year-round support, personal training, and technical guidance to ensure customer success and value creation.

❓ Frequently Asked Questions
Q1: What is the maximum paper size supported by the LK80MT-B? A: The machine supports a maximum paper size of 800×620mm and a minimum size of 350×290mm.
Q2: What is the maximum stamping speed of this machine? A: The LK80MT-B can reach a maximum stamping speed of 7000 sheets per hour, with a general working speed up to 8000 sheets per hour.
Q3: How many heating zones are available for foil stamping? A: The machine features 10 individually heated zones to ensure precise temperature control and avoid interstitial differences.
Q4: What materials can be processed with this equipment? A: It is primarily designed for paper ranging from 90g to 2000g, suitable for business cards, labels, tags, and various packaging materials.
Q5: Does the machine include a foil break detection system? A: Yes, it features an independently developed foil break detection system with on-screen operation to reduce waste of foil and paper.
Q6: What is the total power requirement and weight of the machine? A: The total machine power is 48kw (main motor 7.5kw) and the total machine weight is approximately 17T.
