Imago Printer
Imago Printer
| Model NO. | LK60MT | Suitable Material | Paper |
| Automatic Grade | Automatic | Application | Leather Heat Transfer, Business Card, Plastic Flexible Packaging, Arts and Crafts, Electronic, Labels and Tags, Cap, Toy, Apparel |
| Usage | Label Printer, Paper Printer | Pressure Factor | Hot Stamping Temperature |
| Decisive Factor | Pressure | Transport Package | Vacuum Packing |
| Production Capacity | 10 Sets Per Month | HS Code | 84439119 |

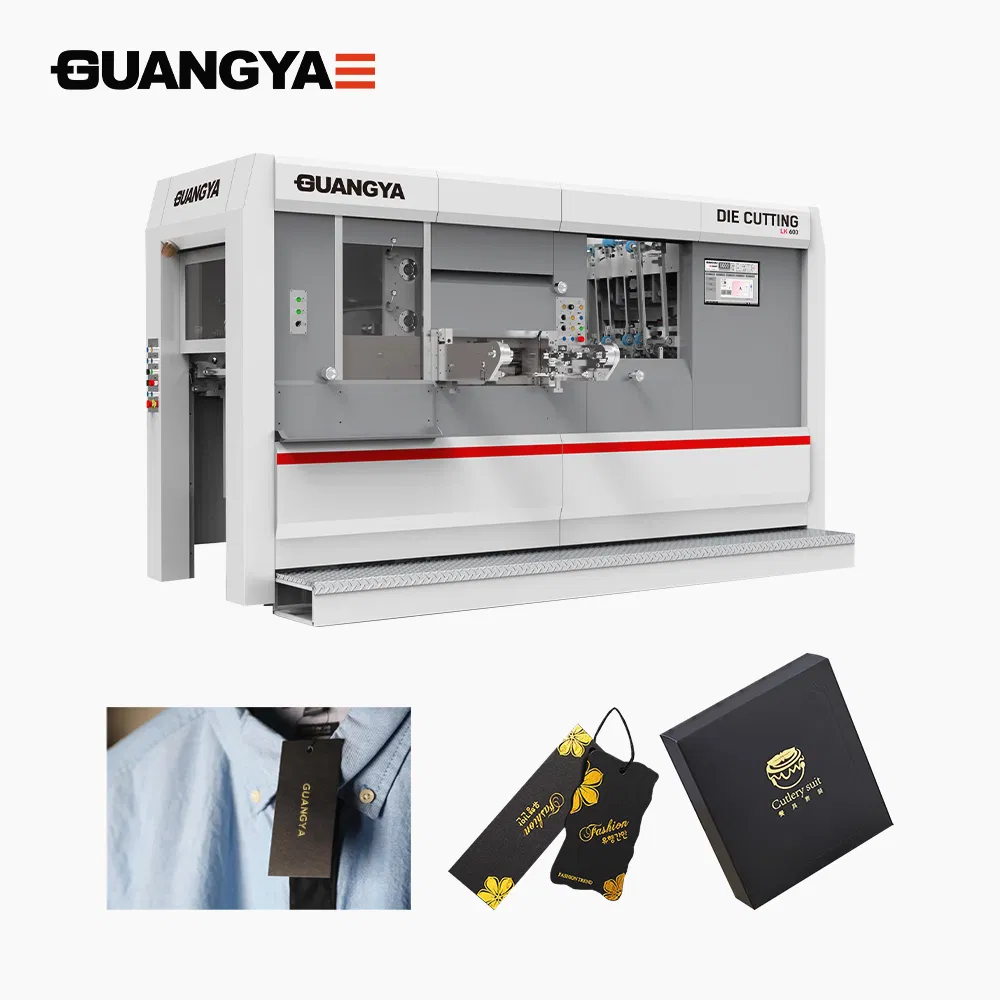

The LK60MT is a small format hot foil stamping and die cutting machine. This machine is great for producing short run die-cutting work, such as presentation folders and irregular shaped direct mail pieces. With a maximum format size of 450 × 600 mm (17.72 × 23.62 in), it can also hot foil and emboss folding cartons. It is widely recognized for its efficiency in tag-related work.
Due to precise design and manufacture, the die cutting working speed can reach 7000s/h, and the foil stamping speed can reach 6500s/h. The machine is designed for flexibility, allowing for the addition of foil stamping functions even after initial installation.
| Parameter | Specification |
|---|---|
| Max. paper size | 600×450mm |
| Min. paper size | 290×210mm |
| Max. cutting size | 595×430mm |
| Chase size | 630×450mm |
| Max. foil diameter | ¢220mm |
| Max working speed | 7000s/h |
| Max stamping speed | 6500 s/h |
| Foil pulling shafts | Longitudinal 2 |
| Cutting precision | ±0.075mm |
| Pressure | 200T |
| Paper range | 90-2000g |
| Main motor power | 7.5kw |
| Total machine power | 25kw |
| Zones individually heated | 6 zones |
| Overall dimension | 3690×1560×2100mm |
| Machine weight | 7.5T |

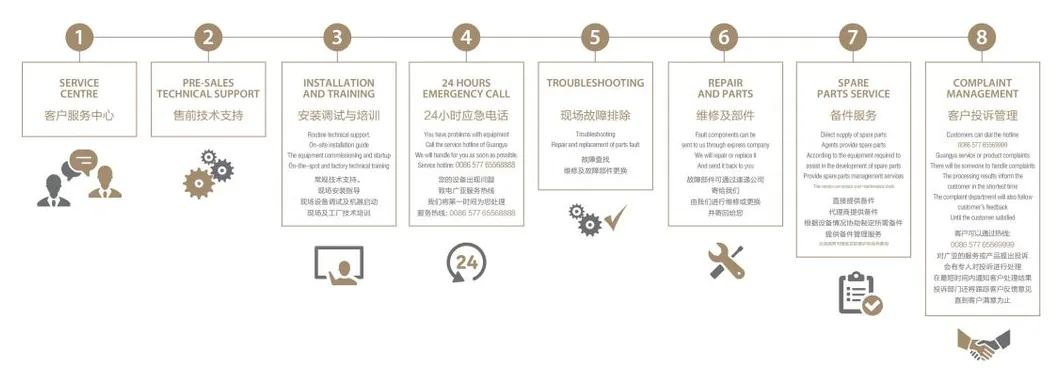

Professional Sales Service System: We provide professional knowledge and are ready to send emergency repair parts within 24 hours. Our focus is on customer success, providing solutions for product selection, technical guidance, and operating training.
The machine supports a maximum paper size of 600×450mm and a minimum size of 290×210mm.
The maximum die cutting speed is 7000 sheets per hour (s/h), and the maximum foil stamping speed is 6500 s/h.
It is ideal for paper ranging from 90-2000g, as well as leather, plastic flexible packaging, labels, and tags.
Yes, it features 6 independent temperature zones to avoid temperature differences and ensure energy efficiency.
Yes, the machine is designed so that the foil stamping function can be easily added even at your factory location.
The machine provides a maximum pressure of 200T, suitable for high-quality embossing and stamping.
