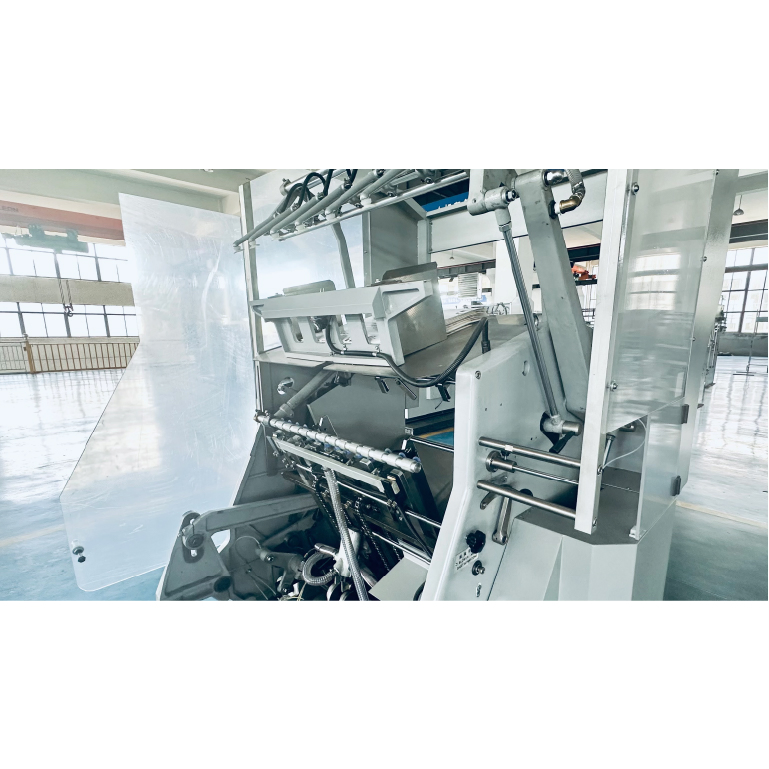

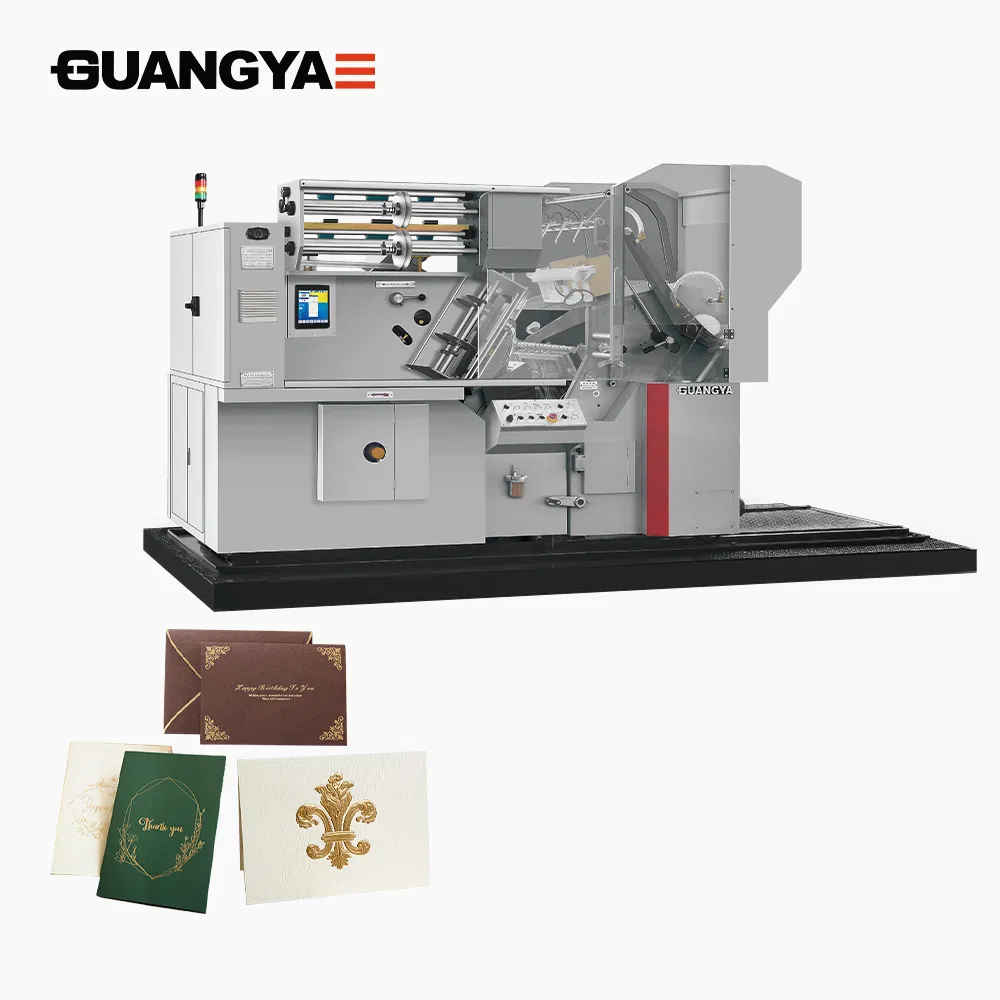

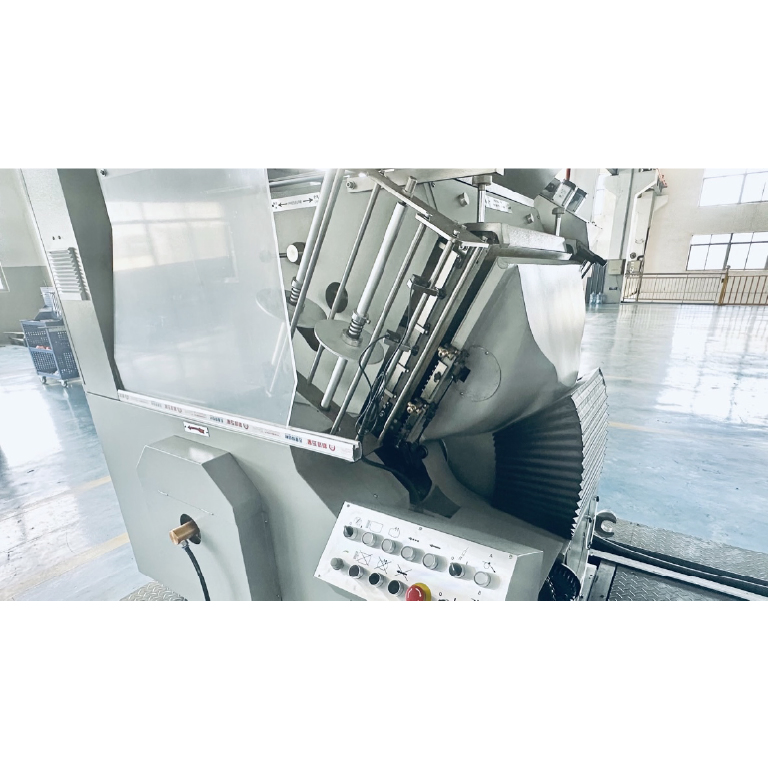

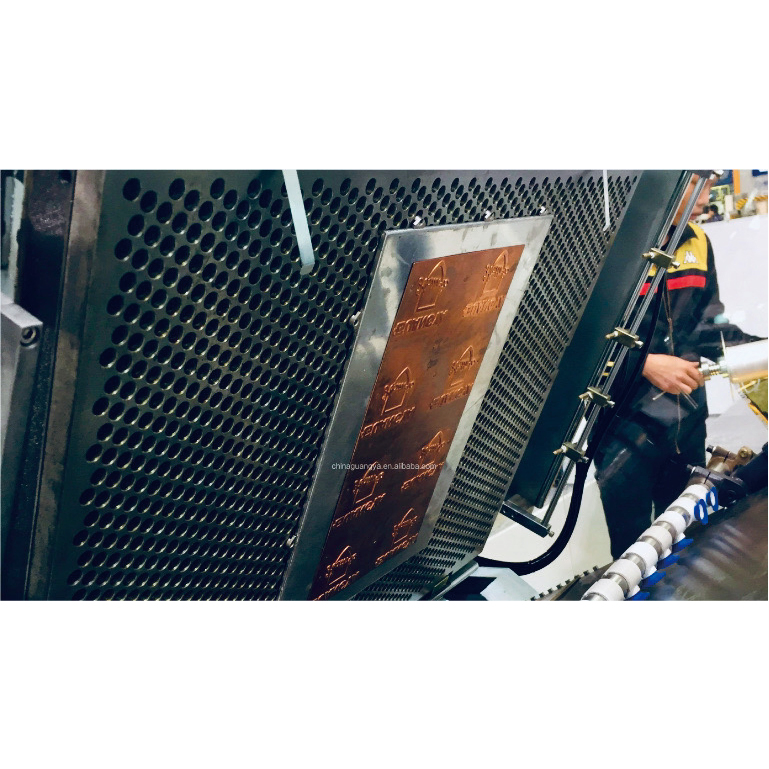

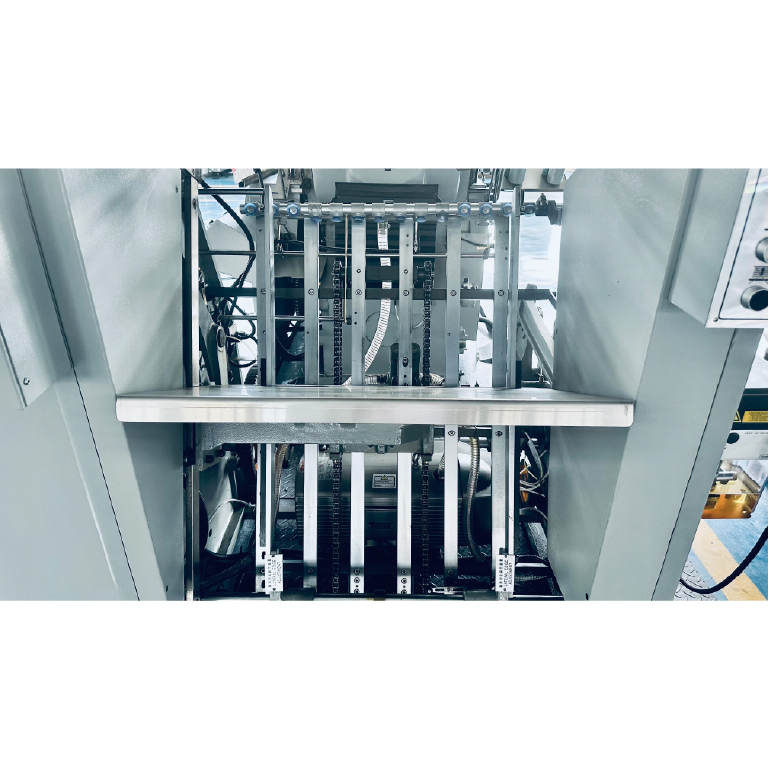

In order to meet the various needs of the printing and packaging market, especially for those customers who have a lot short term but various kinds jobs, we designed the TL780 Automatic Hot Foil Stamping Machine, which is the newest equipment with the latest technical development.
Since it has quickly change-over system and smarter design, this machine can be easy to change from job to job or from foil stamping to die cutting, two horizontal, cross pull foil feeds are fully programmable to provide maximum versatility and excellent foil economic.

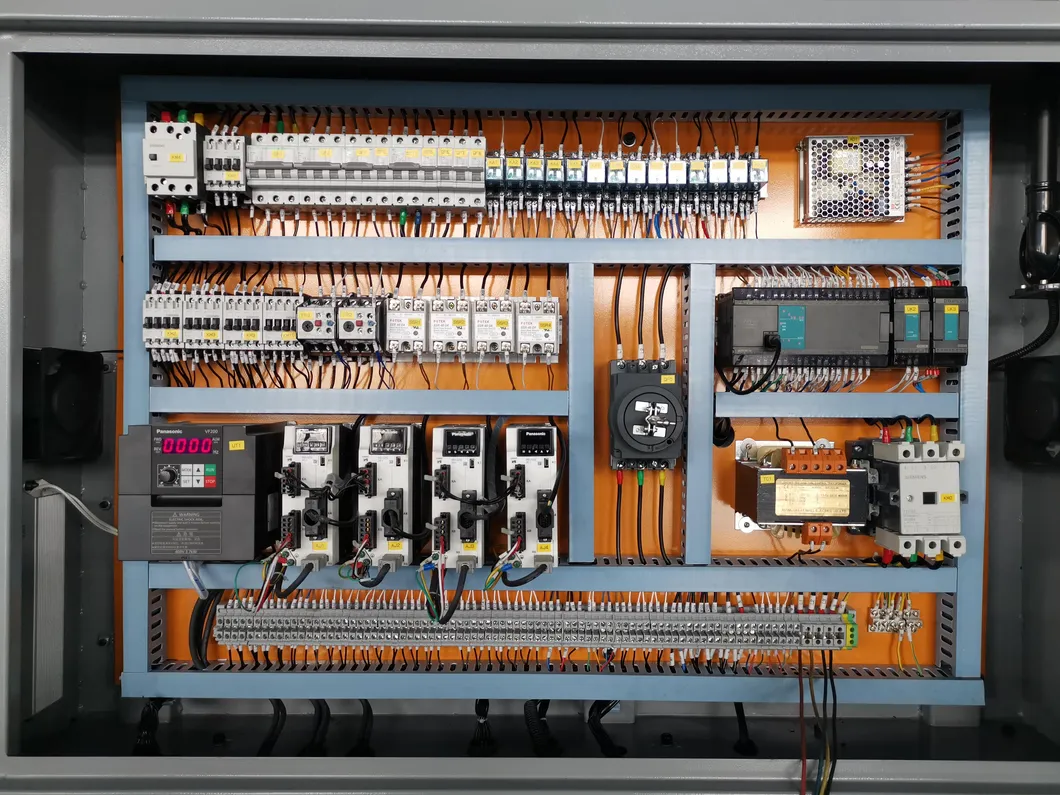

TL 780 Automatic Foil Stamping Machine adopts many advanced pneumatic and servo drive processing technologies. After strict assembly quality control, the operation is simple, safe and reliable.
It can die-cut, stamp and emboss on different printing and packaging products, such as paper above 90gsm, cardboard, corrugated paper below 4mm, adhesive paper, laminated paper, plastic card, PVC and so on.
| Model | TL780 |
| Max. sheet size(mm) | 780×560 |
| Min. sheet size(mm) | 280×220 |
| Max. feeding pile height (mm) | 800 |
| Max. collect pile height (mm) | 160 |
| Paper range(g/m²) | 100 - 2000 |
| Max. mechanical speed (s/h) | 1500s/h (paper < 150g/m²) / 2500s/h (paper > 150g/m²) |
| Max. working pressure(N) | 110T |
| Heating capacity(kw) | 8 |
| Machine weight(kg) | 5500 |
| Overall dimensions(mm) | 3700×1910×2200 |

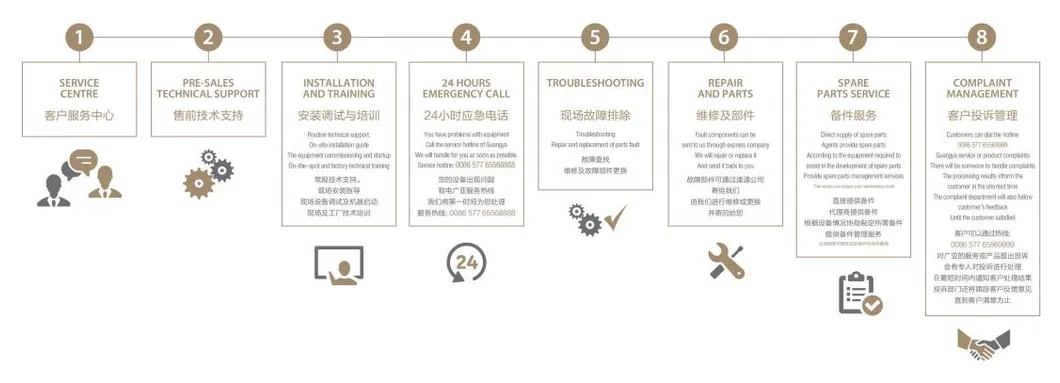

Professional Sales Service System:
Professional engineers are ready to provide technical support and parts delivery. We focus on customer success through comprehensive pre-sales guidance, operation training, and technical support to create lasting value.
