Imago Printer Imago Printer

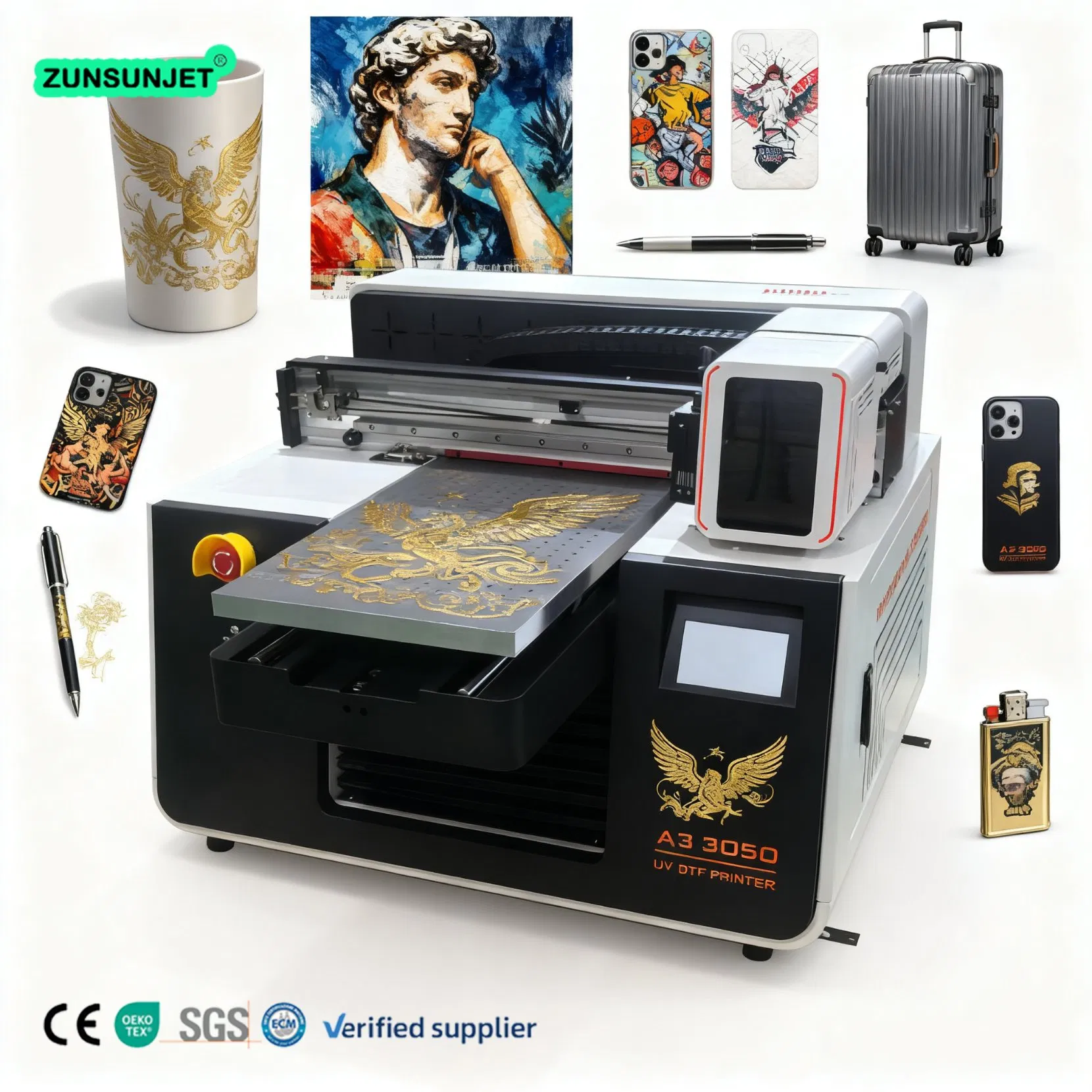

Direct Printing CCD A3 UV Drf Sticker Printer

Still deciding? Get samples of $ !
Order Sample

Product Description

📋

Basic Information

Model NO.ZS-A3 UV Flatbed Printer
Color & PageMulti-Colour Printing Press
UsagePaper, Label, Card, Cloths, Phone Case
Automatic GradeAutomatic
Printing InterfaceUSB3.0/1000base-T
Printing Speed6.7CPI
System SupportedWindows
Rip SoftwareMaitop/Photprint
Resolution720*2440dpi
Voltage850W / 110/220V 50-60Hz
Specification84*64*61 CM 76kg
🚀

Product Description

The 3050UV flatbed printer combines high precision, efficiency, and versatility, making it an ideal solution for precise and customizable printing on small items.

Key Advantages
  • High-Precision Printing: Equipped with a visual positioning system, achieving 0.1 mm accuracy.
  • Dual Printhead Configuration: Utilizes two XP600 printheads for high-quality output.
  • Robust Construction: Full aluminum alloy frame enhances stability and durability.
  • Versatile Material Compatibility: Accommodates various sizes with a 300×500 mm print area.

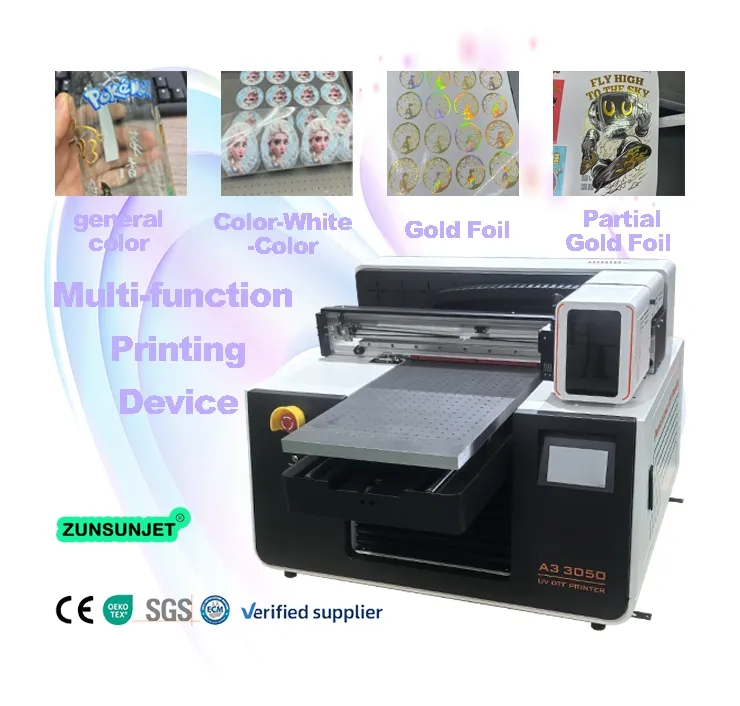

UV Printer Overview

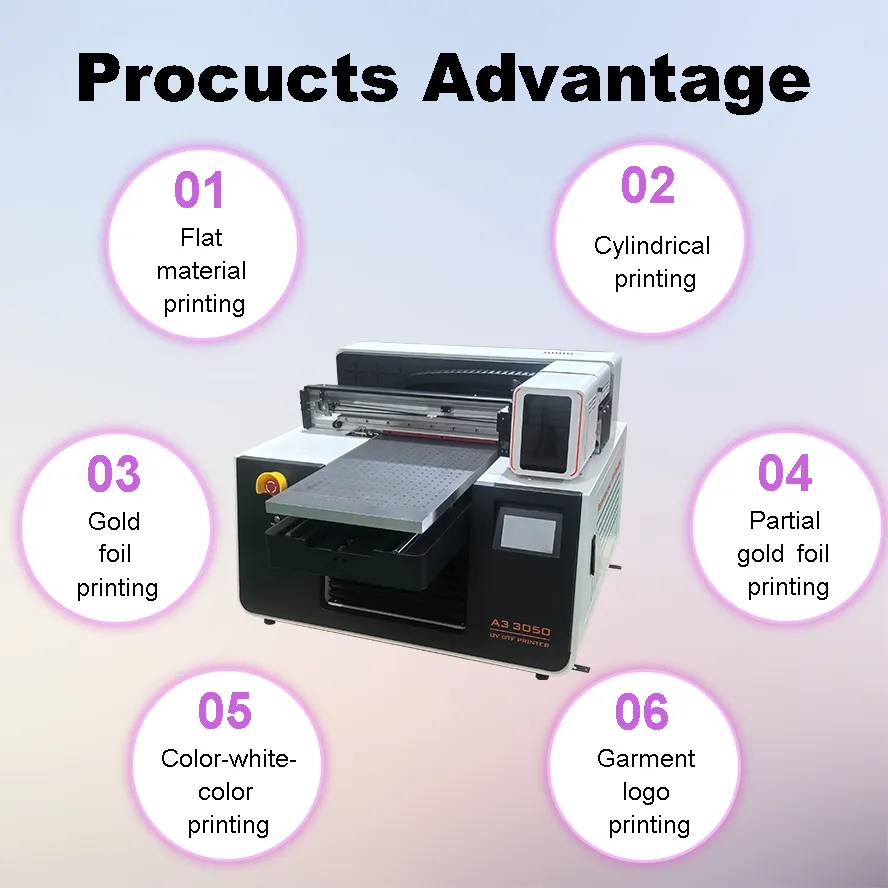

UV Printer Detail

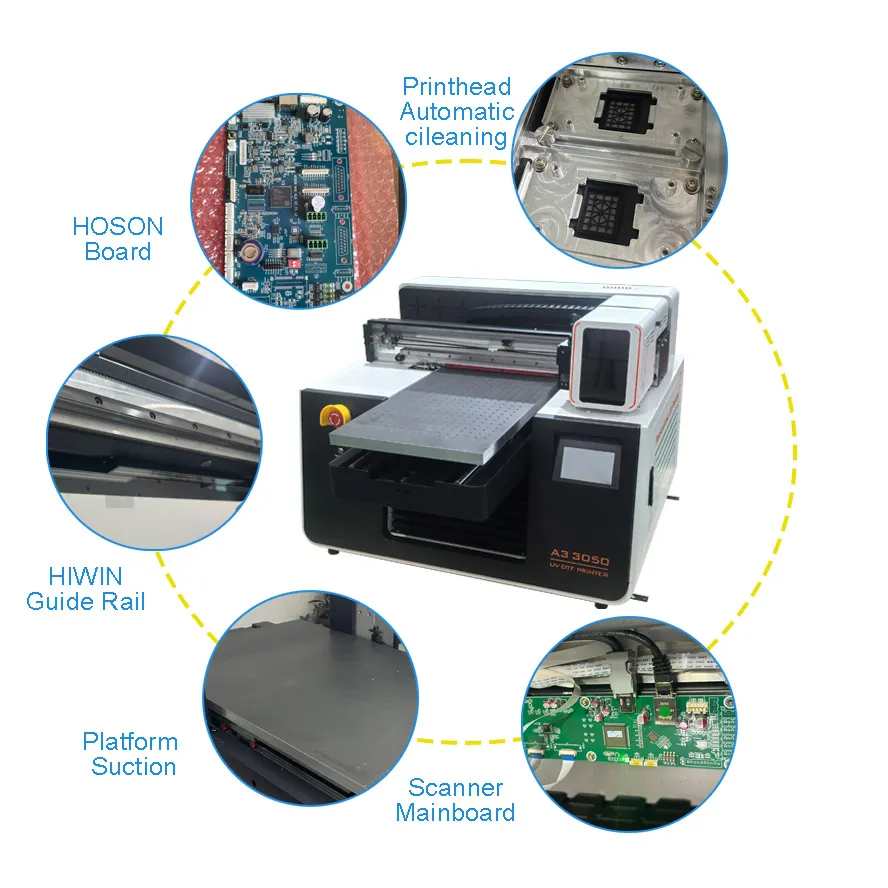

Printing Process
Printer Components

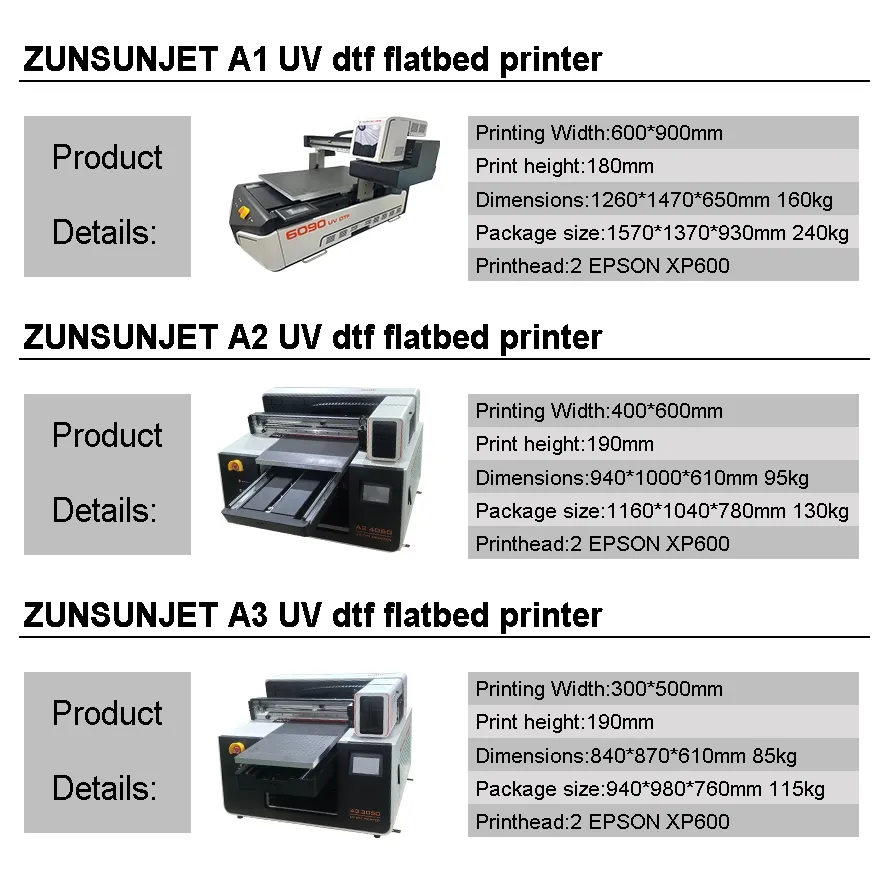

Sample Output
⚙️

Technical Specifications

TypeA3 UV DTF Sticker Flatbed Printer
Printhead2-3 pieces XP600/I3200 printheads
ColorCMYK + White + Varnish
Printing Accuracy1440DPI / 2880DPI
Media Thickness19 cm (max)
Printing Size30*50CM
Ink TypeUV Hard/Neutral/Soft UV curing ink
Cooling SystemWater circle cooling UV system

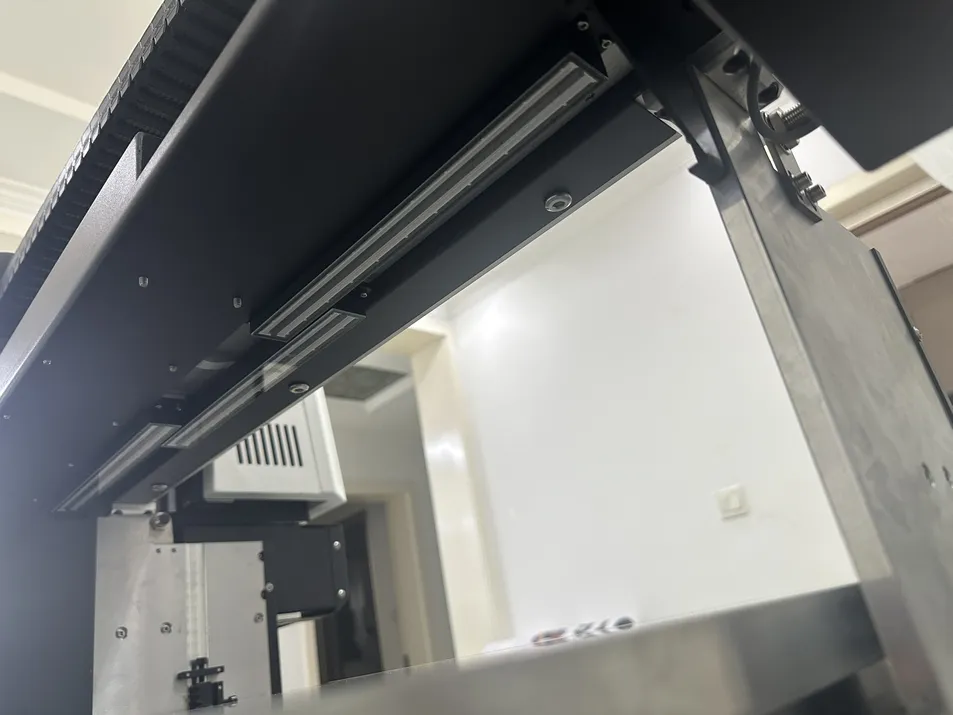

Visual System

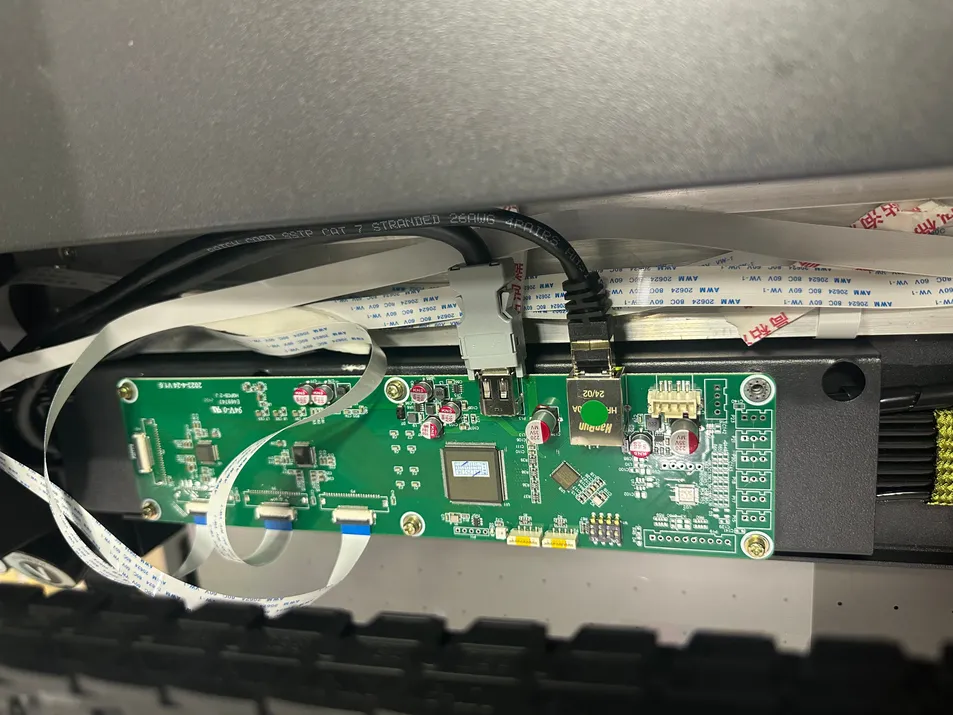

Motherboard
💎

Core Features

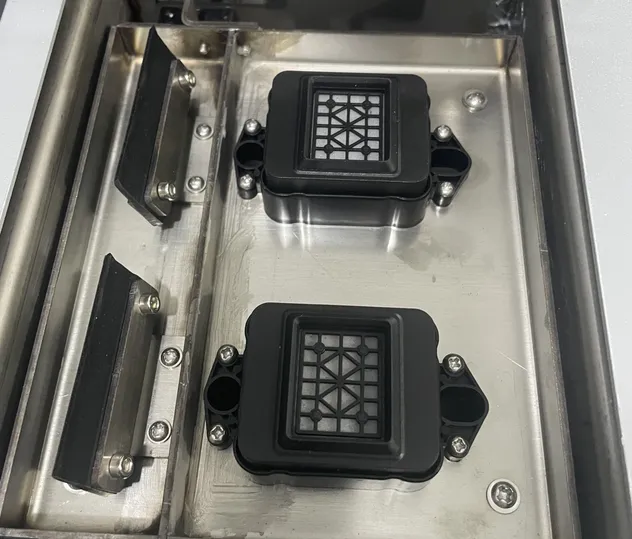

Print Heads

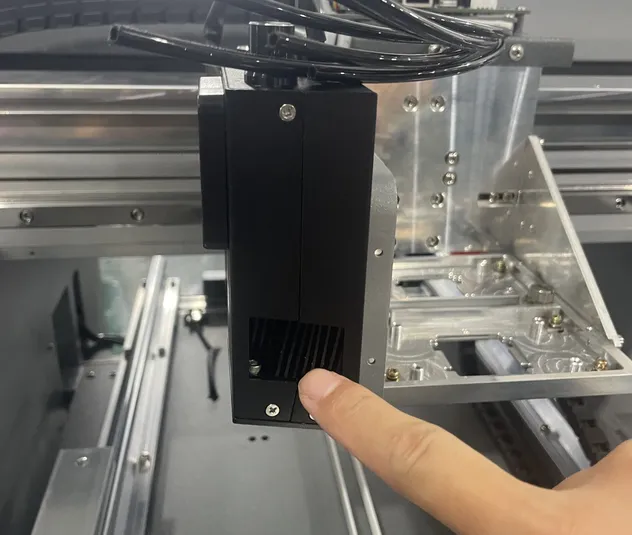

UV Lamp

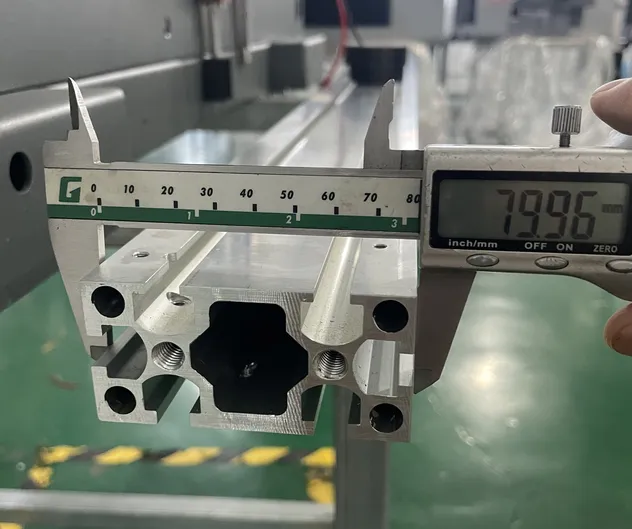

Aluminum Beam
Advanced Hardware

Equipped with Hiwin linear guides to ensure the carriage runs perfectly and stably, achieving high-resolution quality printing. The waste ink cartridge features an alarm system to remind users when it is full.

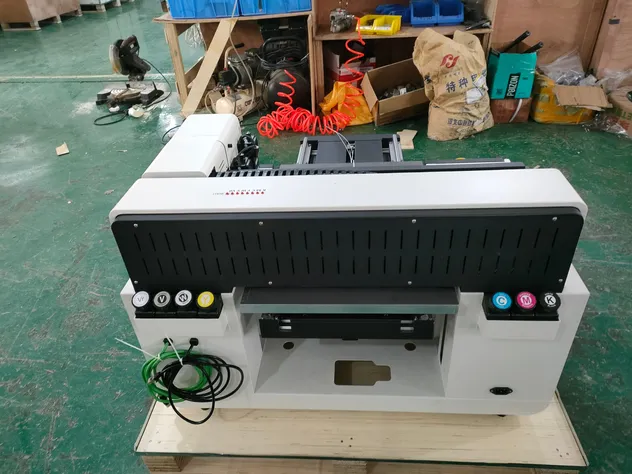

Color Gamut

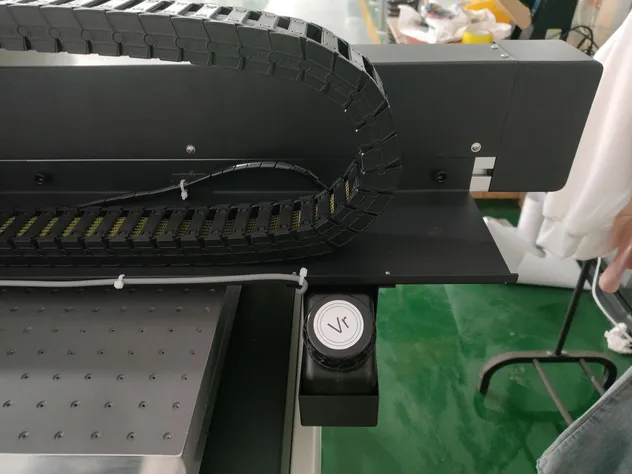

Varnish Effect

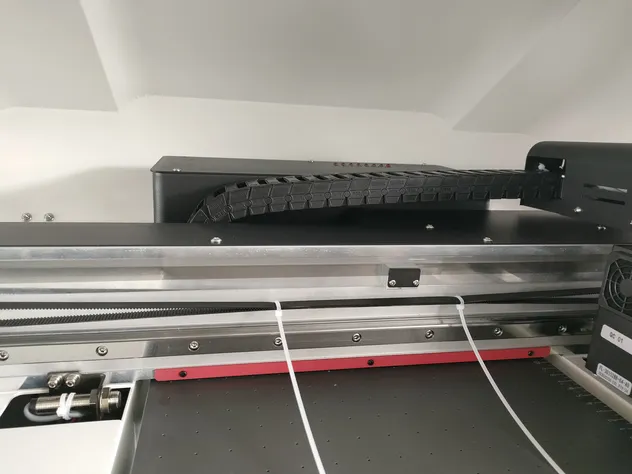

Linear Guides
🎨

Applications

This UV inkjet flatbed printer breaks through the bottleneck of digital printing, requiring no plate-making. It supports almost unlimited materials:

  • Shapes: Flat, cylindrical, cambered, and irregular shapes.
  • Materials: Plastic, glass, ceramics, metal, leather, wood, and more.
  • Products: Pens, phone cases, mugs, USB drives, key rings, and luggage.
Application Sample 1
Application Sample 2
Full Application Range
📦

Packaging & Shipping

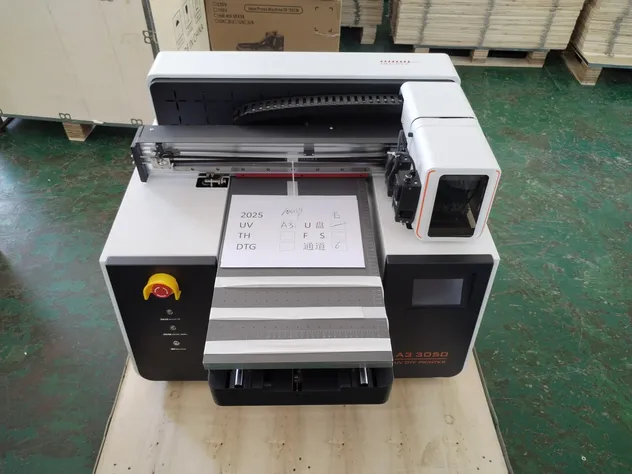

Wooden Box Packing
Shipping Preparation
Secure Delivery

1. Standard wooden box packing for maximum protection.
2. Sea, air, and land transportation options available.
3. Free logistics insurance provided for safety during transit.

Frequently Asked Questions
Q1: What materials can this UV printer print on?
It can print on almost any material including plastic, glass, ceramics, metal, leather, wood, PVC, ABS, acrylic, and even irregular shapes like bottles and mugs.
Q2: What is the maximum printing size and height?
The maximum printing area is 300x500 mm (A3 size), and it can accommodate materials up to 190 mm in height.
Q3: Does the printer support varnish and white ink?
Yes, it supports CMYK + White + Varnish printing simultaneously, allowing for embossed effects and glossy finishes.
Q4: How accurate is the visual positioning system?
The integrated visual positioning system achieves an accuracy of 0.1 mm, making it perfect for batch production of small, precise items.
Q5: What software is compatible with this printer?
The printer supports professional RIP software such as Maitop and Photoprint, and is compatible with standard Windows operating systems.
Q6: What kind of maintenance does the ink system have?
It features an automatic ink suction and cleaning system, along with a waste ink cartridge alarm that notifies you when it needs attention.
