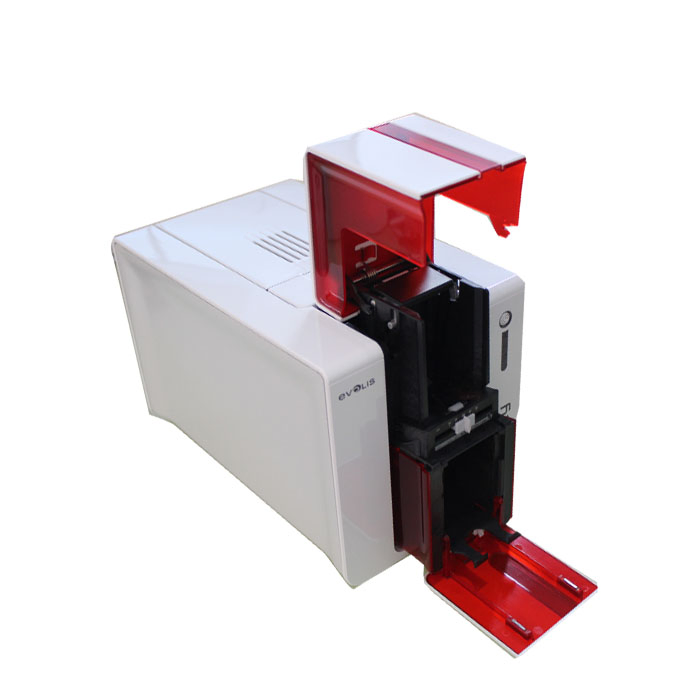

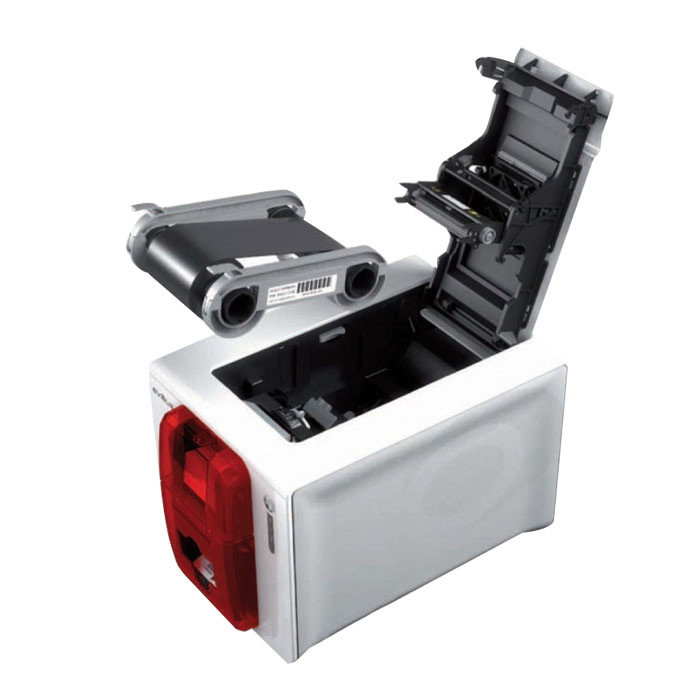

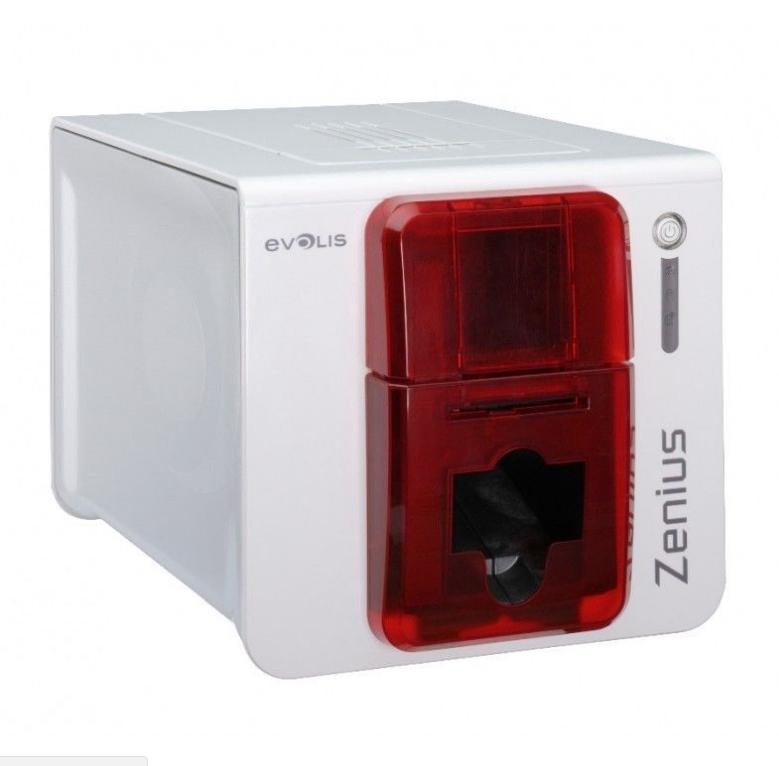

Dye sublimation business driver license card printing Zenius plastic PVC card printer

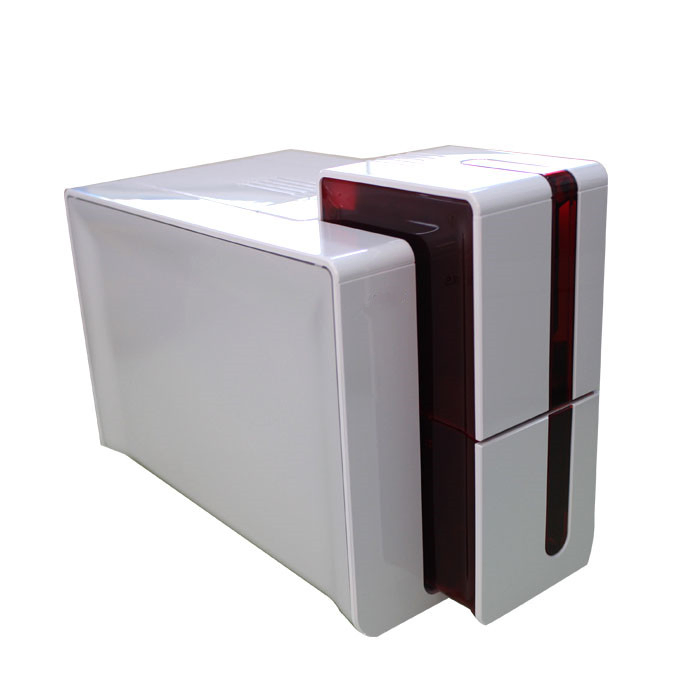

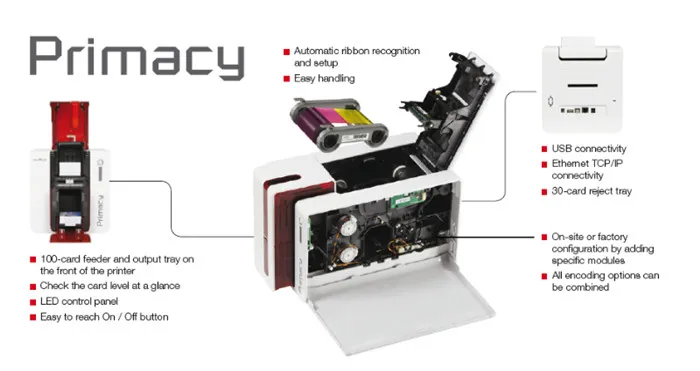

The CLM (Card Lamination Module) is associated with the Primacy printer and is an all-in-one system for printing, encoding, and laminating cards that need to be secure and/or protected.
• The CLM is connected to the printer through infrared, forming a single system. It can easily be equipped with a lamination station. The CLM also connects directly to a PC via a USB cable.
• The films are installed intuitively and all the laminates are automatically recognized by CLM and Primacy.
• CLM and Primacy encode the cards (magnetic stripe, contact or contactless smart cards).
• The printing and lamination modules work in parallel and produce up to 215 printed and laminated single-sided cards or 110 double-sided cards per hour.
| Detailed Parameters | |
| Print Technology | Direct to card (Dye sublimation) |
| Single-Sided Printing | Color (YMCKO): 190 - 225 cards/hour; Black: 800 - 1000 cards/hour |
| Dual-sided printing | 140 cards / hour (YMCKO-K) |
| Print Resolution | 300 dots per inch, 256 shades per color panel |
| Hopper Capacity | Input: 100 cards; Output: 100 cards; Waste slot: 30 cards |
| Card Thickness | 0.25 to 1.25 mm (10-50 mils) |
| Card Type | PVC, Composite PVC, PET, RPET, ABS, special paint card |
| Dimensions | 247mm x 205mm x 381mm |
| Weight | 4.1 KGS |
| Interface | USB (1.0, 1.1, 2.0, 3.0), Ethernet TCP-IP 10BaseT, 100BaseT, Wireless optional |
| Power Supply | 100-240 volts AC, 50-60 Hz, 1.8 A |
