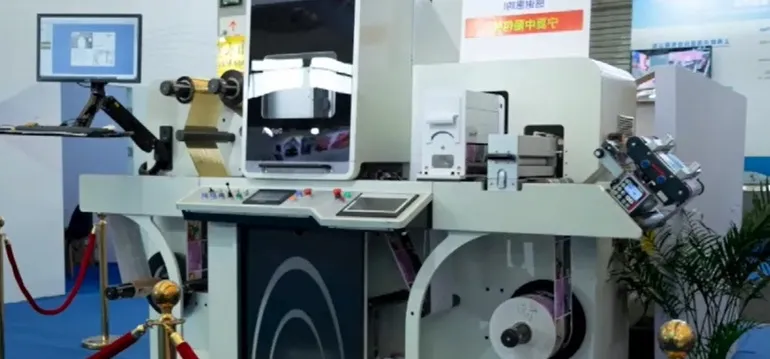

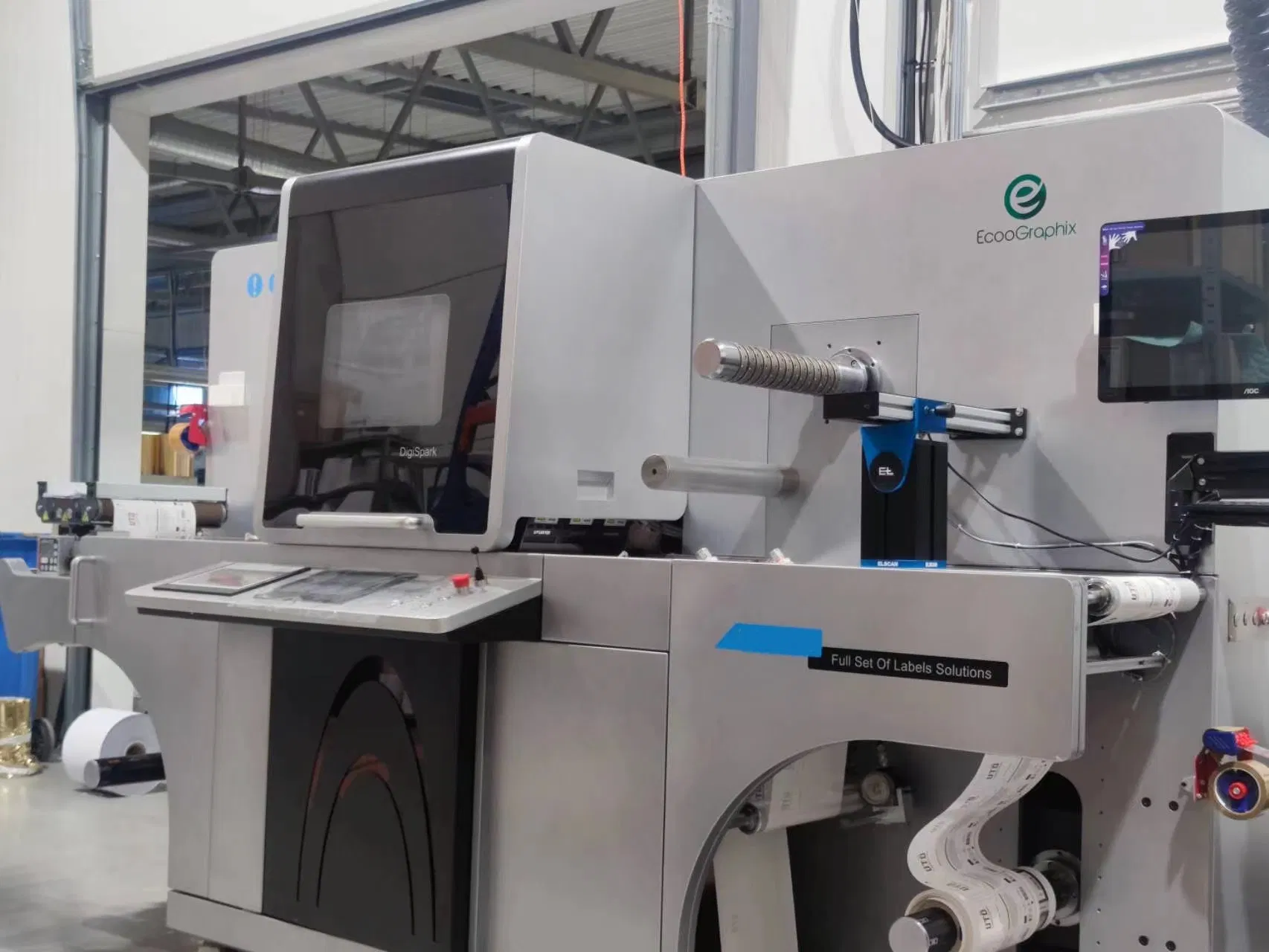

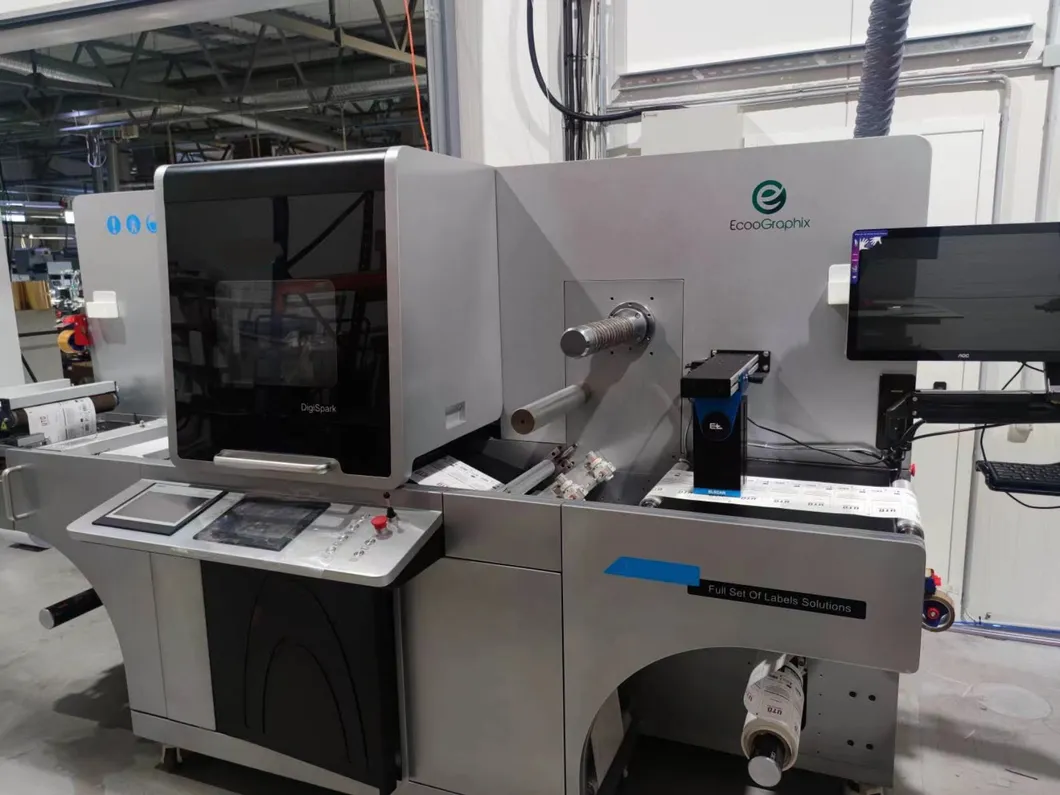

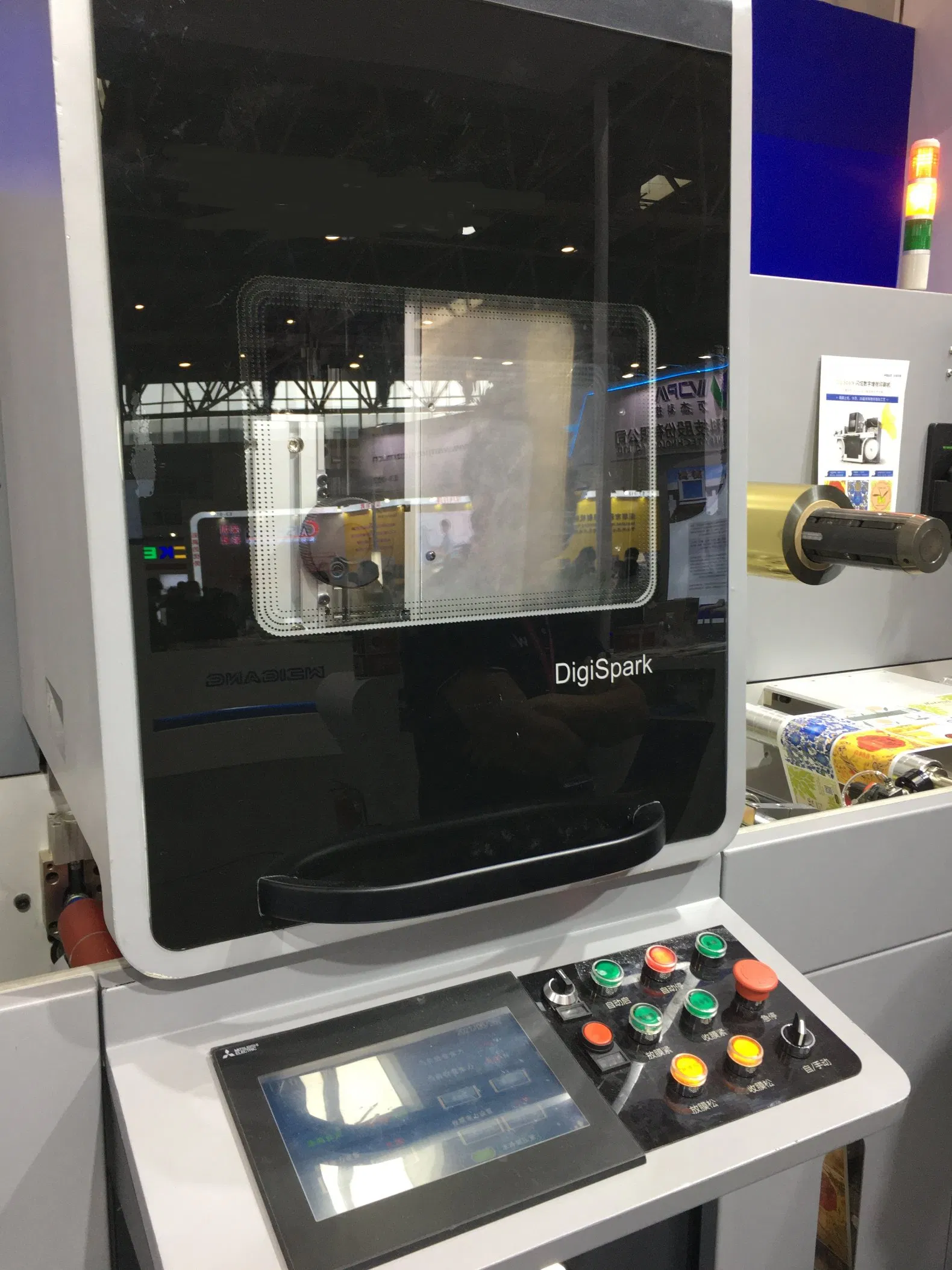

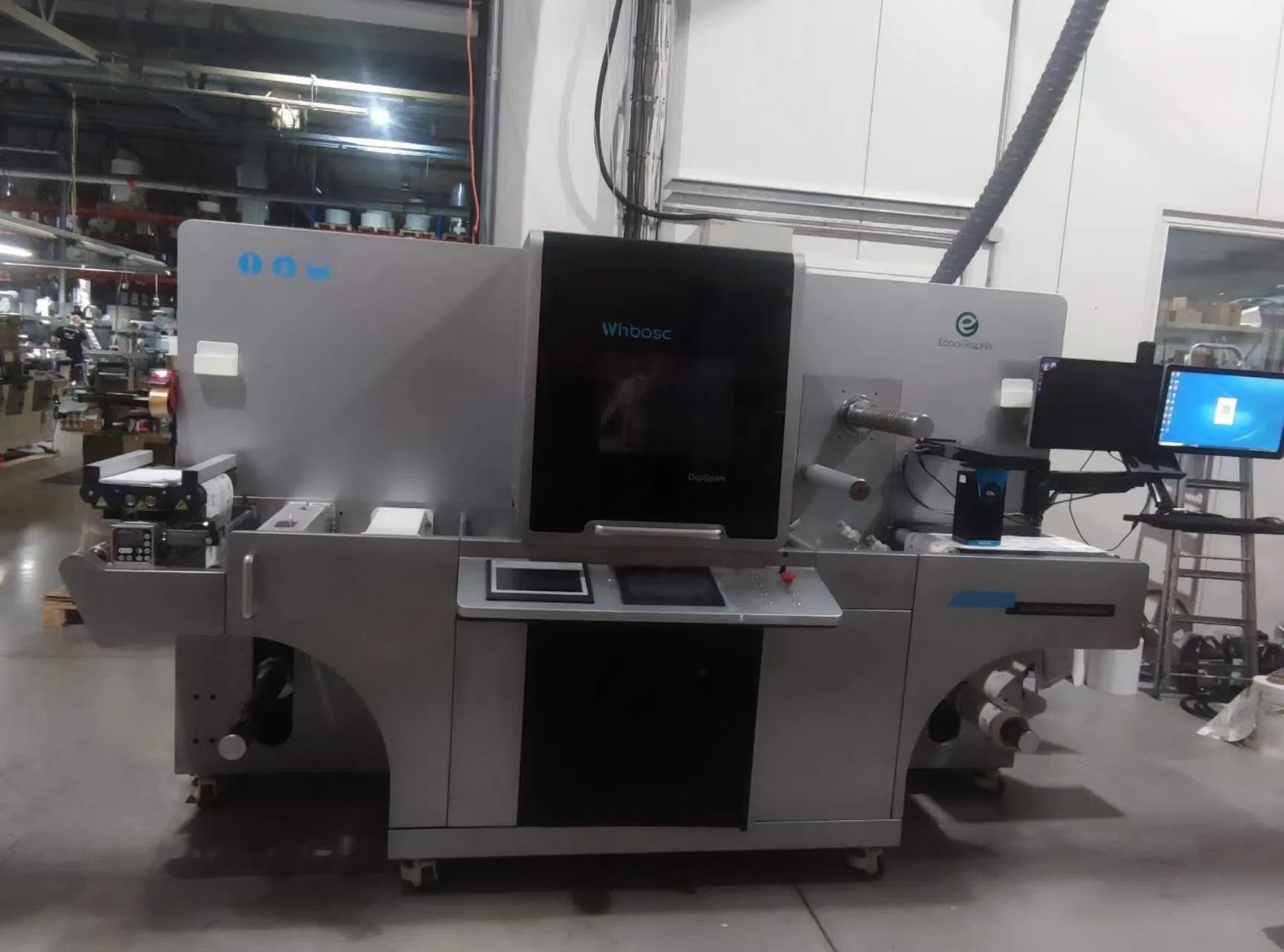

Imago Printer
Imago Printer

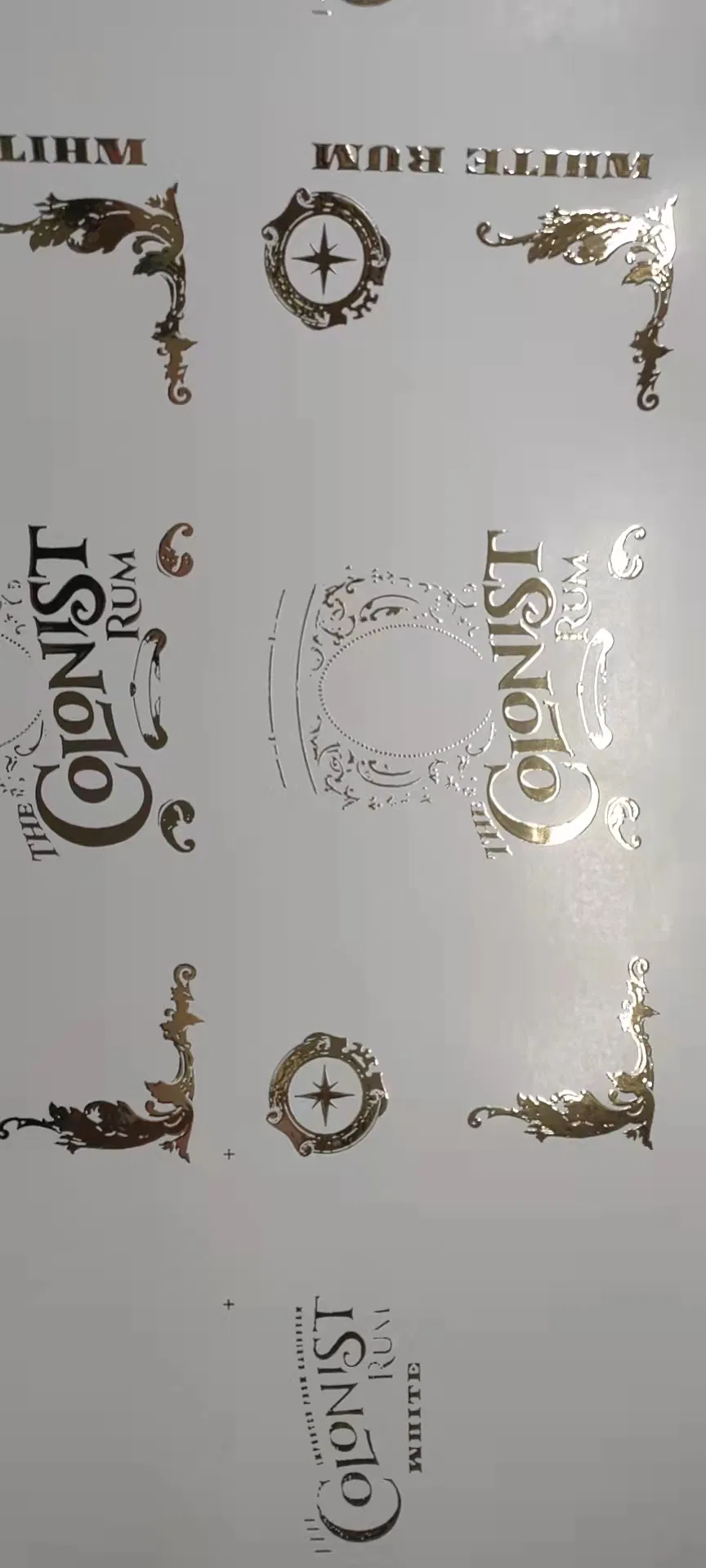

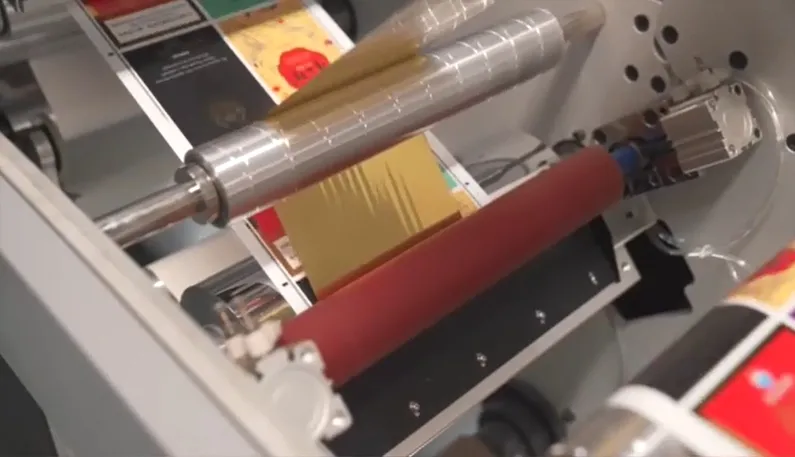

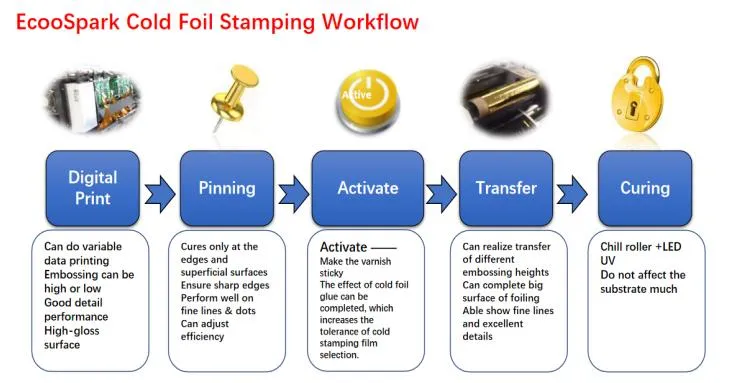

The newly developed digital printing machine realizes digital synergistic processes such as digital varnish, 3D crystal bright, partial glazing, cold stamping, embossing, etc., without the need for plate making. It reduces costs and instantly realizes unique visual effects. This digital post-press equipment creates new profit points and enhances digital efficiency.
| Parameter | Details |
|---|---|
| Printing Technology | UV piezo dod-inkjet |
| Resolution | 360*360 dpi, up to 1440*360 dpi |
| Printing Speed | 6m/min - 50m/min (depend on polymer thickness) |
| Substrates | Offset, digital, plastics, laminated and coated substrates |
| Printing Image Width | 288mm (extendable to 330 mm) |
| Polymer Layer Thickness | From 10 up to 250 microns |
| Ink Curing | Inter UV-LED pre-curing / Full curing by UV-LED |
| Unwinder/Rewinder Diameter | Max. 700mm, core 76mm |
| Substrates Thickness | 30-400 microns |

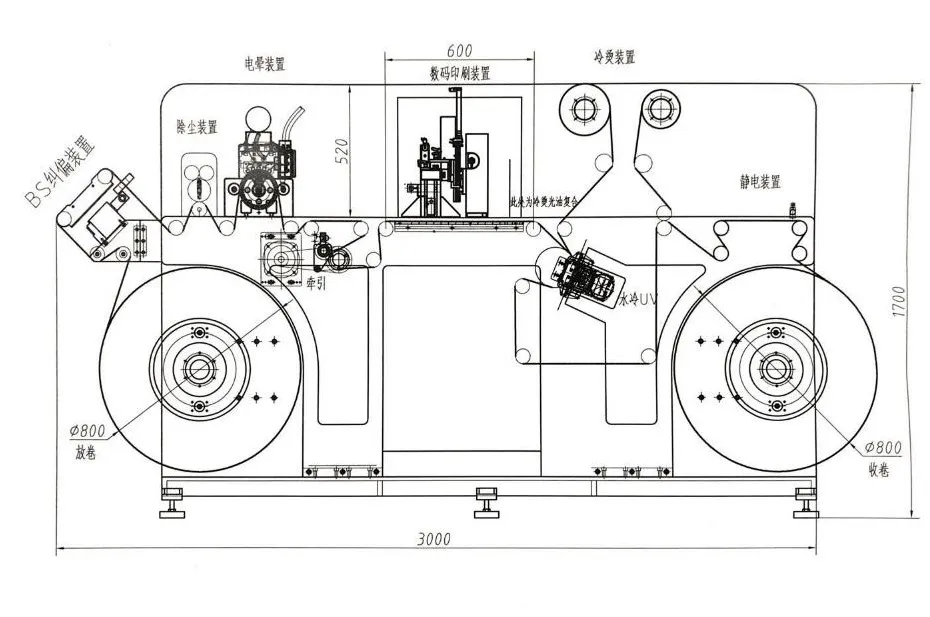

| Machine Dimensions | 3500mm * 1900mm * 1800mm |
| Weight | 2800kg |
Careful attention to every detail from production to delivery to guarantee product quality.
