High Speed Automatic Box Die Cutting and Foil Stamping Machine with Deep Embossing Excellent 1500TNT
High Speed Automatic Box Die Cutting and Foil Stamping Machine with Deep Embossing Excellent 1500TNT
High Speed Automatic Box Die Cutting and Foil Stamping Machine with Deep Embossing Excellent 1500TNT
High Speed Automatic Box Die Cutting and Foil Stamping Machine with Deep Embossing Excellent 1500TNT
High Speed Automatic Box Die Cutting and Foil Stamping Machine with Deep Embossing Excellent 1500TNT
1 / 5
High Speed Automatic Box Die Cutting and Foil Stamping Machine with Deep Embossing Excellent 1500TNT
High Speed Automatic Box Die Cutting and Foil Stamping Machine with Deep Embossing Excellent 1500TNT
High Speed Automatic Box Die Cutting and Foil Stamping Machine with Deep Embossing Excellent 1500TNT
High Speed Automatic Box Die Cutting and Foil Stamping Machine with Deep Embossing Excellent 1500TNT
High Speed Automatic Box Die Cutting and Foil Stamping Machine with Deep Embossing Excellent 1500TNT

High Speed Automatic Box Die Cutting and Foil Stamping Machine with Deep Embossing Excellent 1500TNT

Customization: Available
Warranty: Confer
Certification: CE
Send Inquiry

Product Description

Basic Specifications
Model
EXCELLENT 1500TNT
Application
Machinery & Hardware, Alcohol
Driven Type
Electric
Automatic Grade
Automatic
Max. Sheet Size
1500*1100mm
Min. Sheet Size
550*450mm
Max Die Cutting Size
1480*1080mm
Paper Thickness
Cardboard 0.1-2.0mm
Max Speed
5000 S/H
Pressure
900t
Origin
China
Production Capacity
4 Sets/Month
Product Description

Automatic Die Cutting and Foil Stamping Machine With Deep Embossing

Automatic Die Cutting Machine

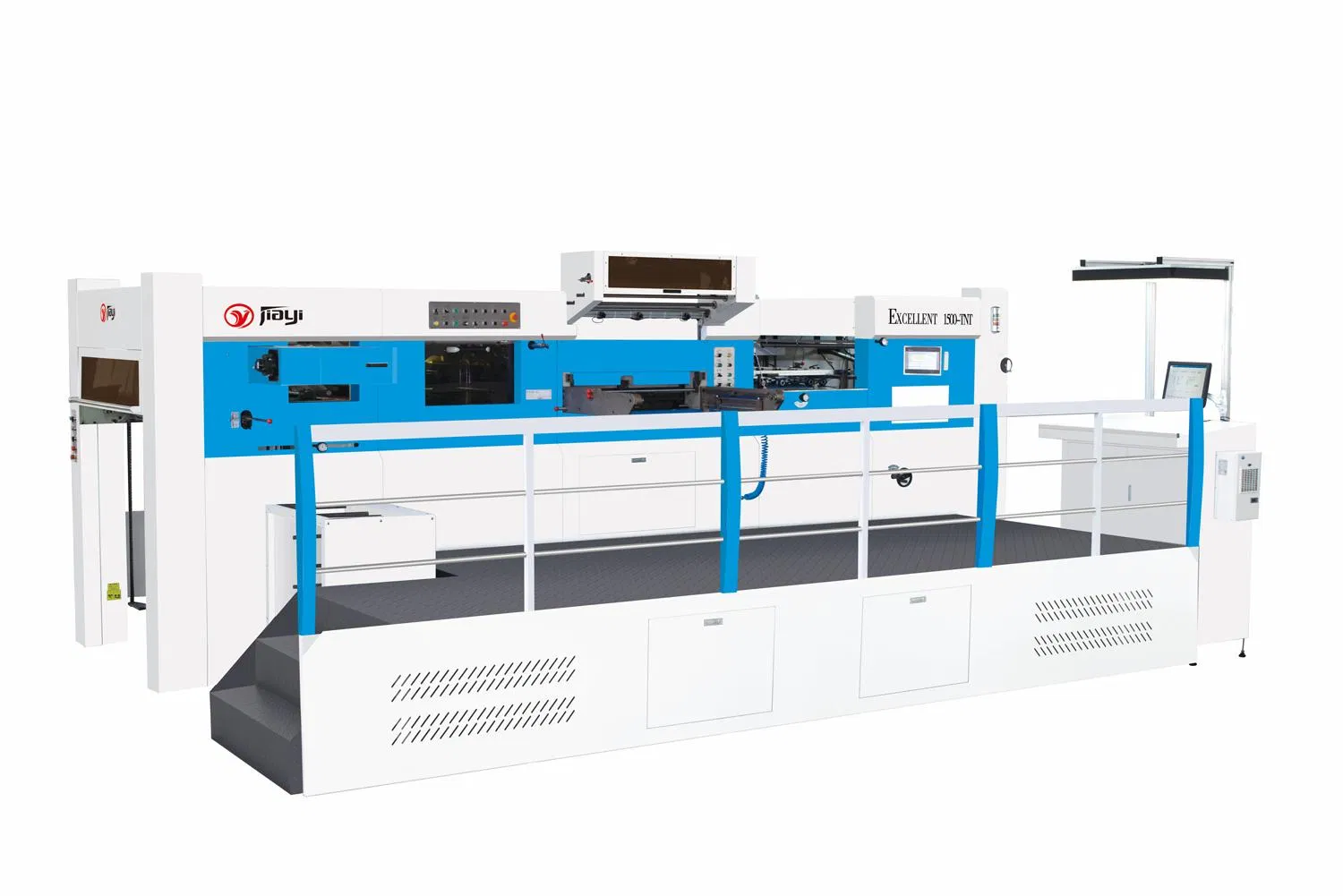

The EXCELLENT 1500TNT automatic die-cutting and hot foil stamping machine with deep embossing represents a new generation of post-press equipment. Designed for extensive packaging enterprises, it offers a stable, durable, and safe solution for high-precision manufacturing. It strictly follows EU CE safety certifications and automates the entire process from paper feeding to receiving.

Technical Parameter Specification Details
Max. Sheet Size1500 x 1100mm
Min. Sheet Size550 x 450mm
Paper ThicknessCardboard 0.1-2.0mm / 80g-2000g/SM; Corrugated Board ≤4mm
Die Cutting Precision≤±0.10mm
Max Speed5000s/h
Total WeightAbout 36000KG
Total Power36Kw
Pressure900T
Standard Configuration & Functions
Feeder Unit
Die Cutting Unit

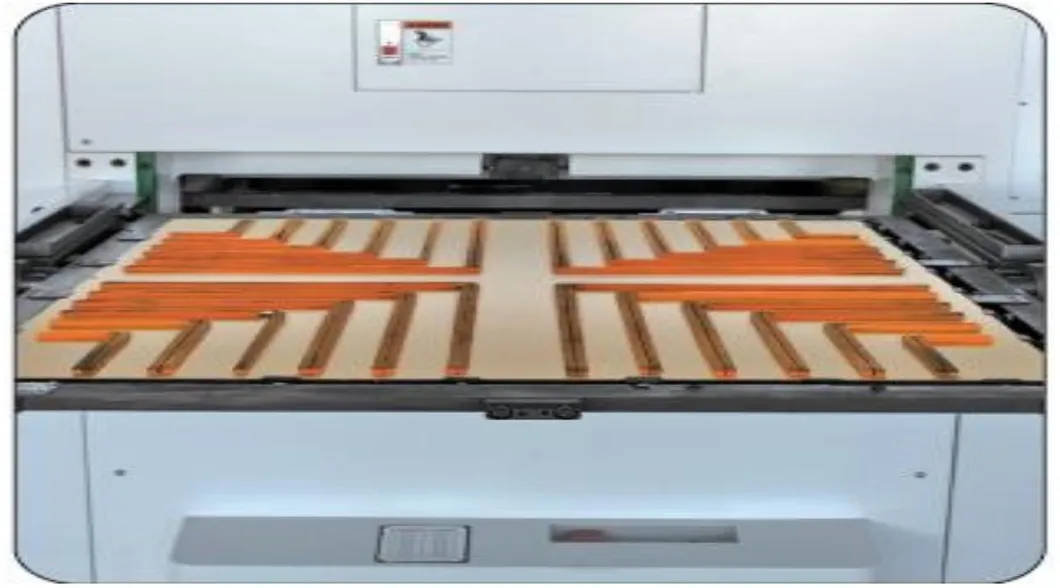

Internal Mechanism

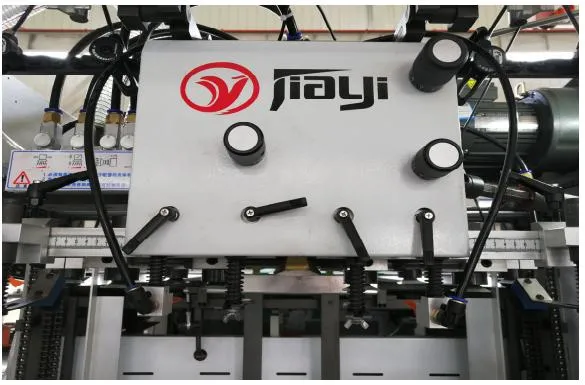

🚀 High Speed Feeder

  • Fish scale paper feeder, Max speed > 125 sheets/min
  • Powerful 4 suction and 6 delivery head
  • Preloading paper device & anti-collision sensors
  • Double sheet detection controller

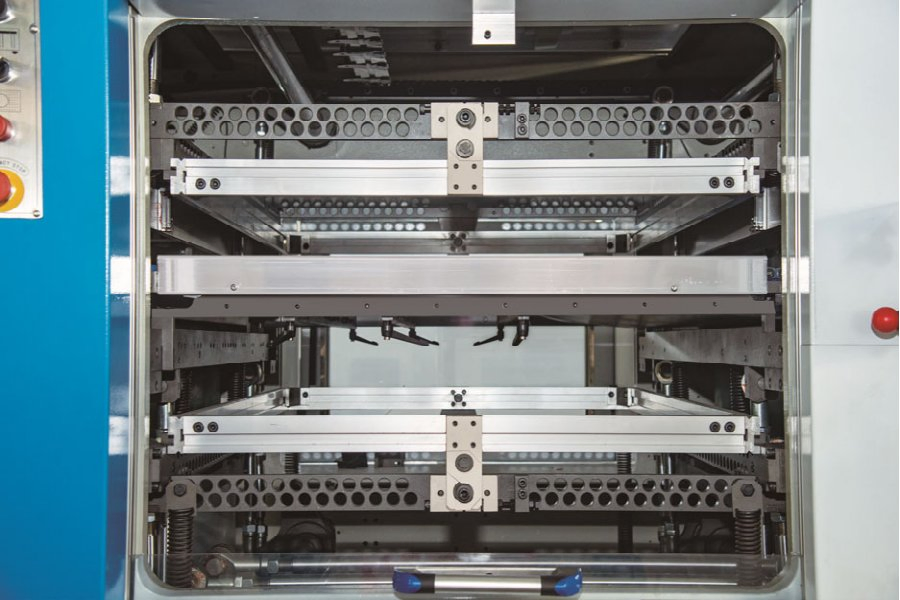

💎 Die Cutting Unit

  • Precise pressure regulating system
  • German SEW wear-resistant worm gears
  • Super-high-strength 4-toggle design
  • Automatic cooling and lubrication system

✨ Foil Stamping Unit

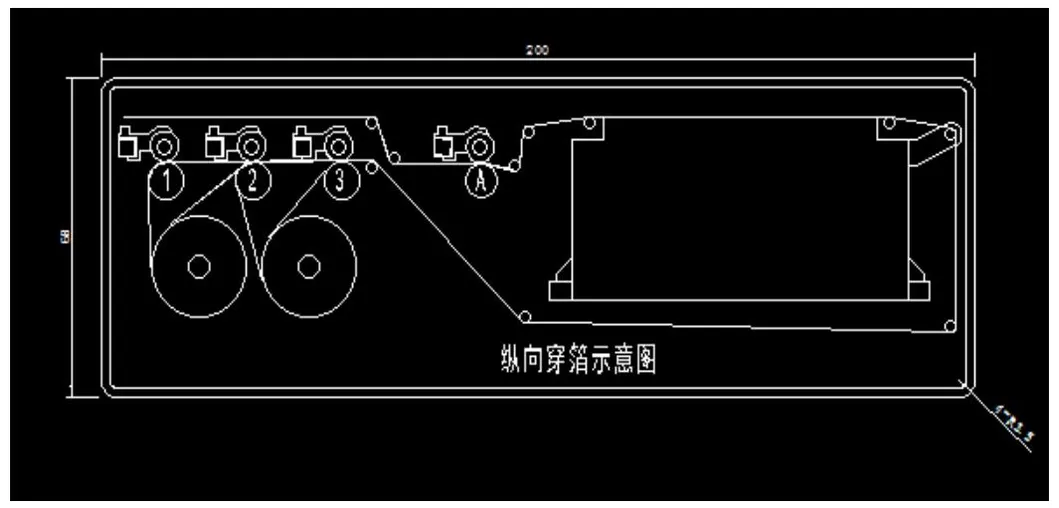

Equipped with 3 sets of longitudinal electrochemical aluminum foil step rollers and 2 horizontal rollers, all controlled by AC servos. Features a 24-zone independently controlled heating plate (up to 200°) and rapid foil-paper separation devices.

Foil Stamping Unit
Main Electrical Components
Part Name Brand Origin

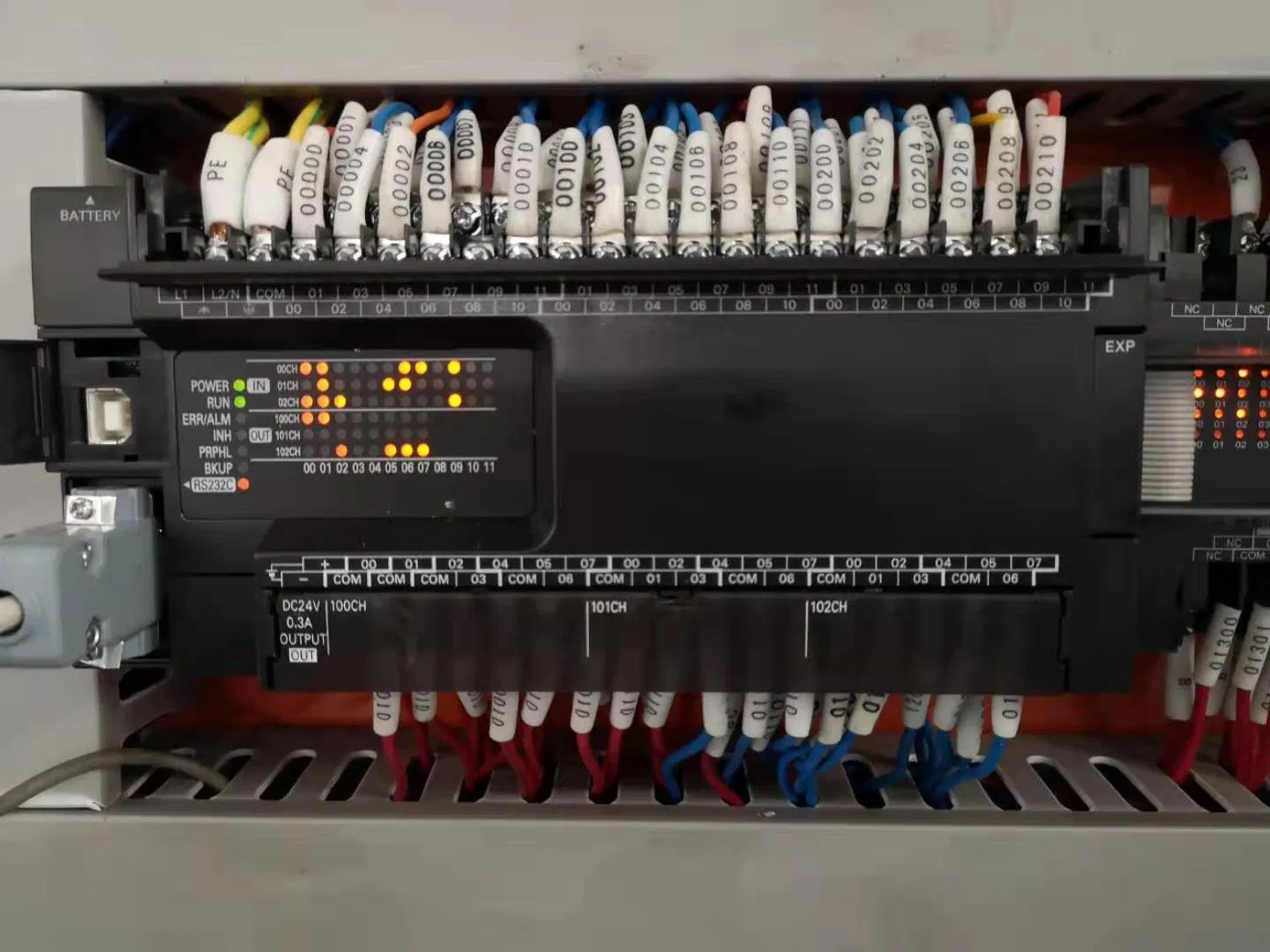

PLC / Sensors / EncoderOMRONJapan
Servo MotorYASKAWAJapan
Air PumpBECKERGermany
Main ChainRENOLDEngland
Pneumatic ClutchYUYIItaly
BearingsSKF/NSKJapan/Sweden
HMITAIDATaiwan
Frequently Asked Questions
Q: What is the maximum production speed of the EXCELLENT 1500TNT? A: The machine can reach a maximum production speed of 5000 sheets per hour (S/H).
Q: What range of paper thickness can this machine handle? A: It is compatible with cardboard from 0.1mm to 2.0mm (80g/SM-2000g/SM) and corrugated board up to 4mm thick.
Q: How many heating zones are available for the foil stamping process? A: The electric heating plate is divided into 24 separate temperature control areas for precise thermal management.
Q: What safety certifications does the machine have? A: The machine has fully passed the EU CE safety certification, featuring safety relays and multiple detection sensors.
Q: What is the maximum die-cutting pressure? A: The machine provides a powerful maximum die-cutting pressure of 900 tons.
Q: What is the typical lead time for fabrication? A: The fabrication period is approximately 120 days after the advance payment is received.
