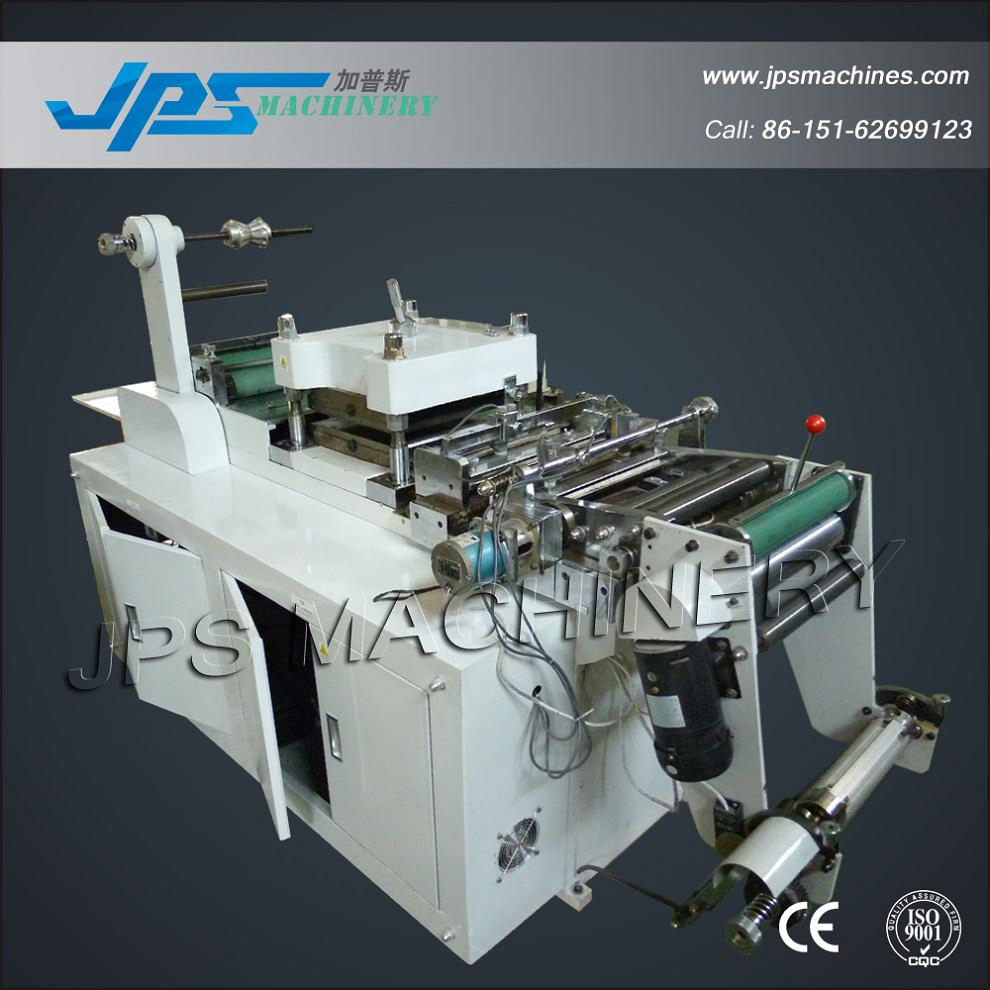

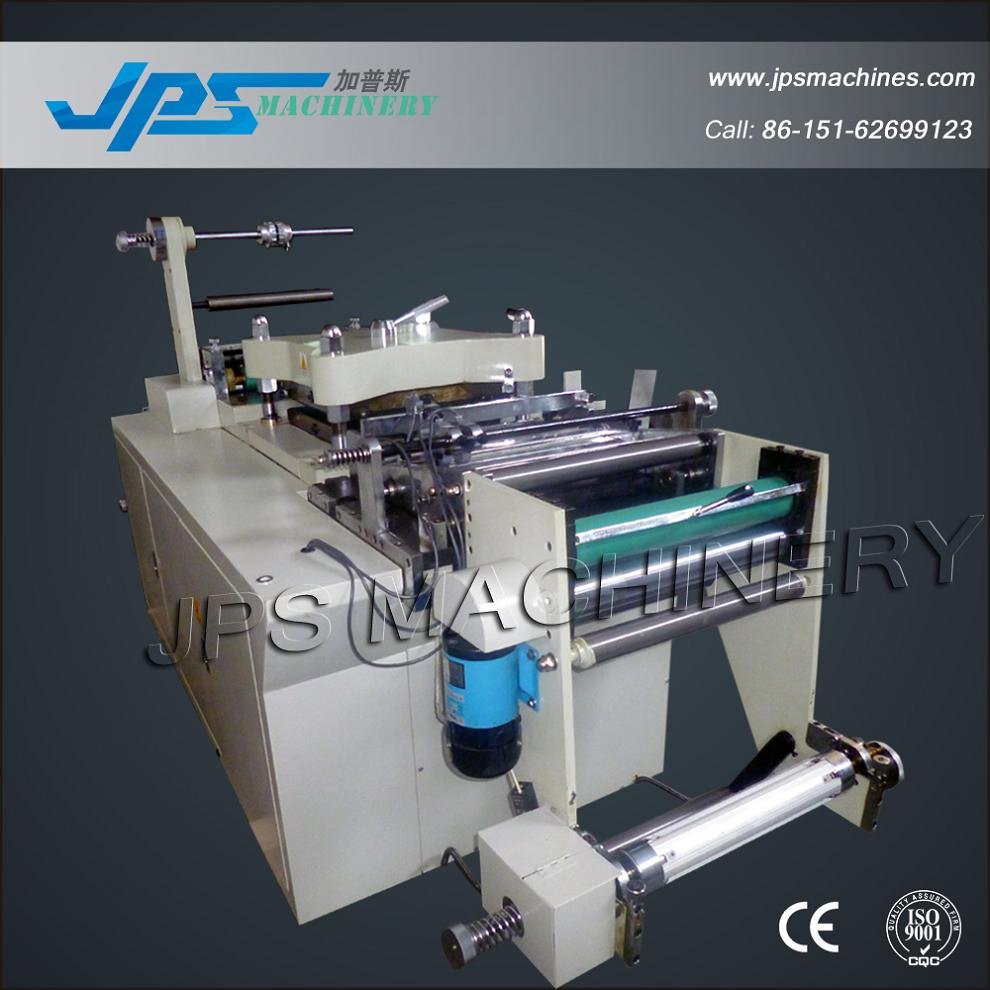

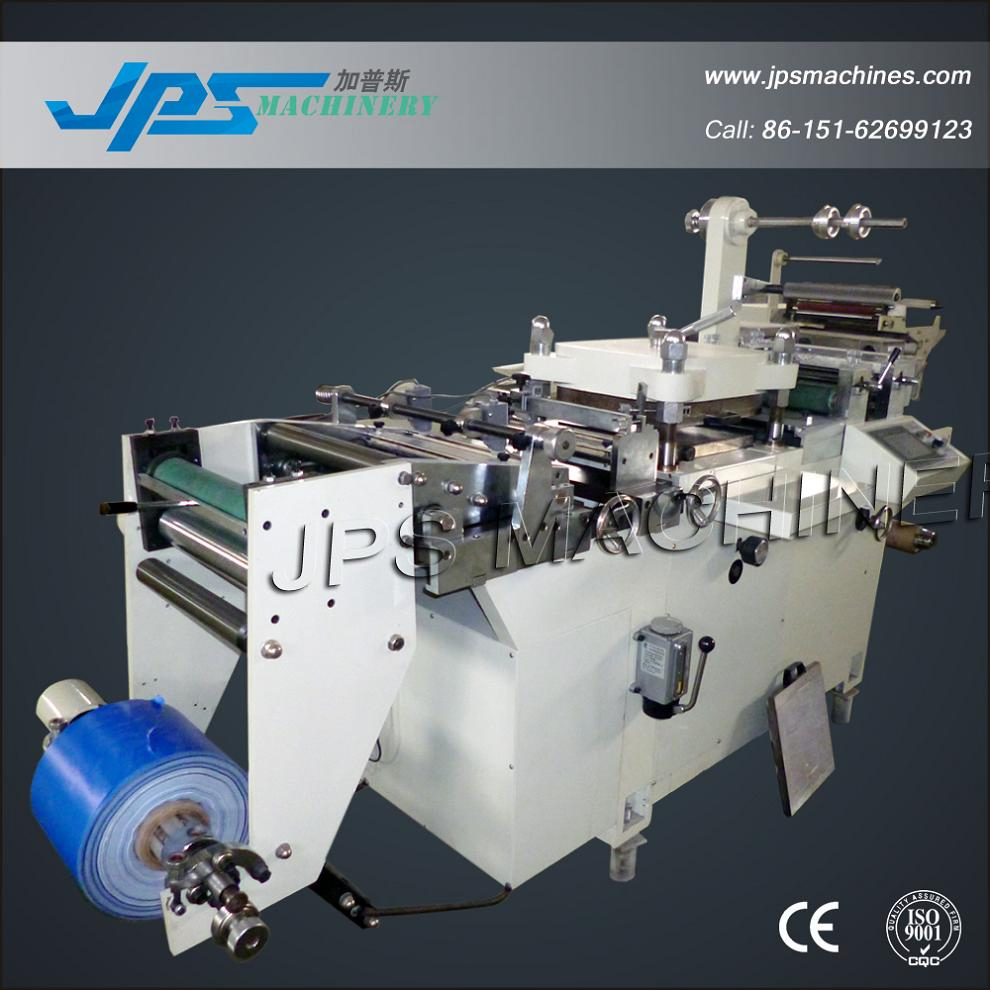

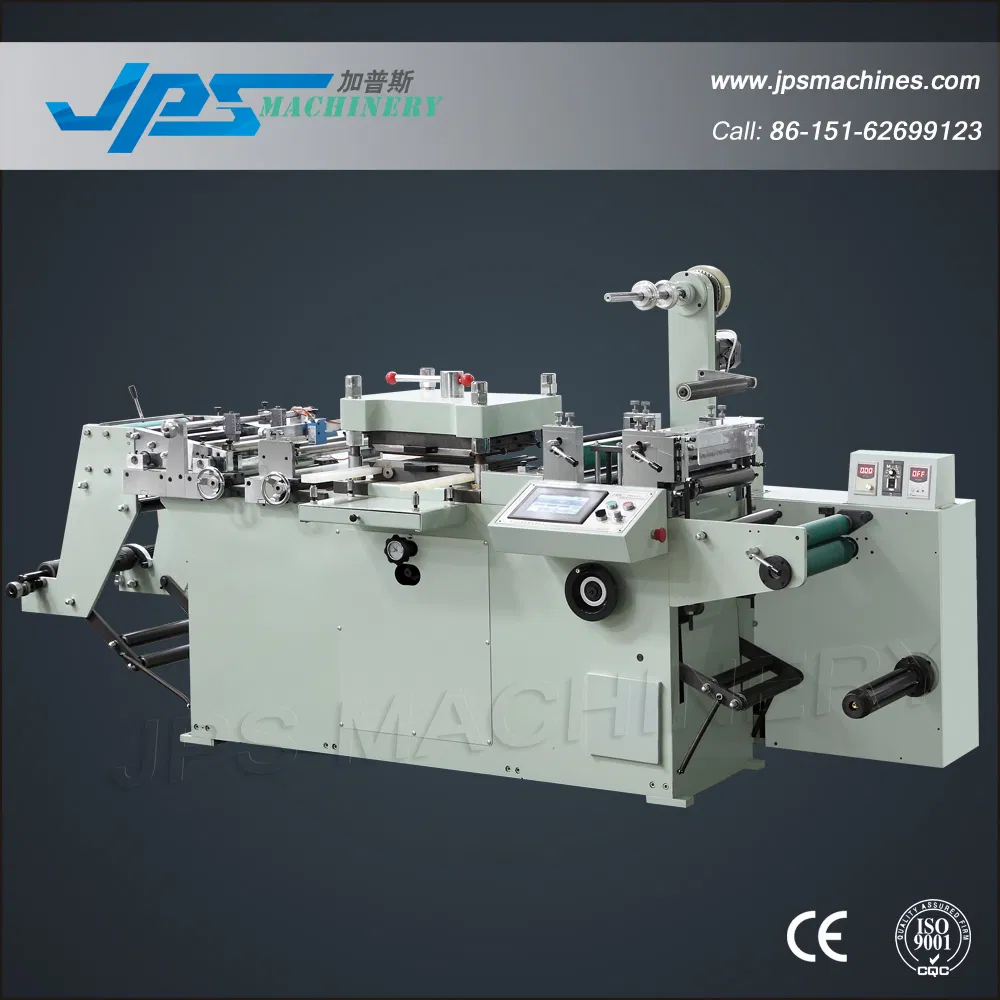

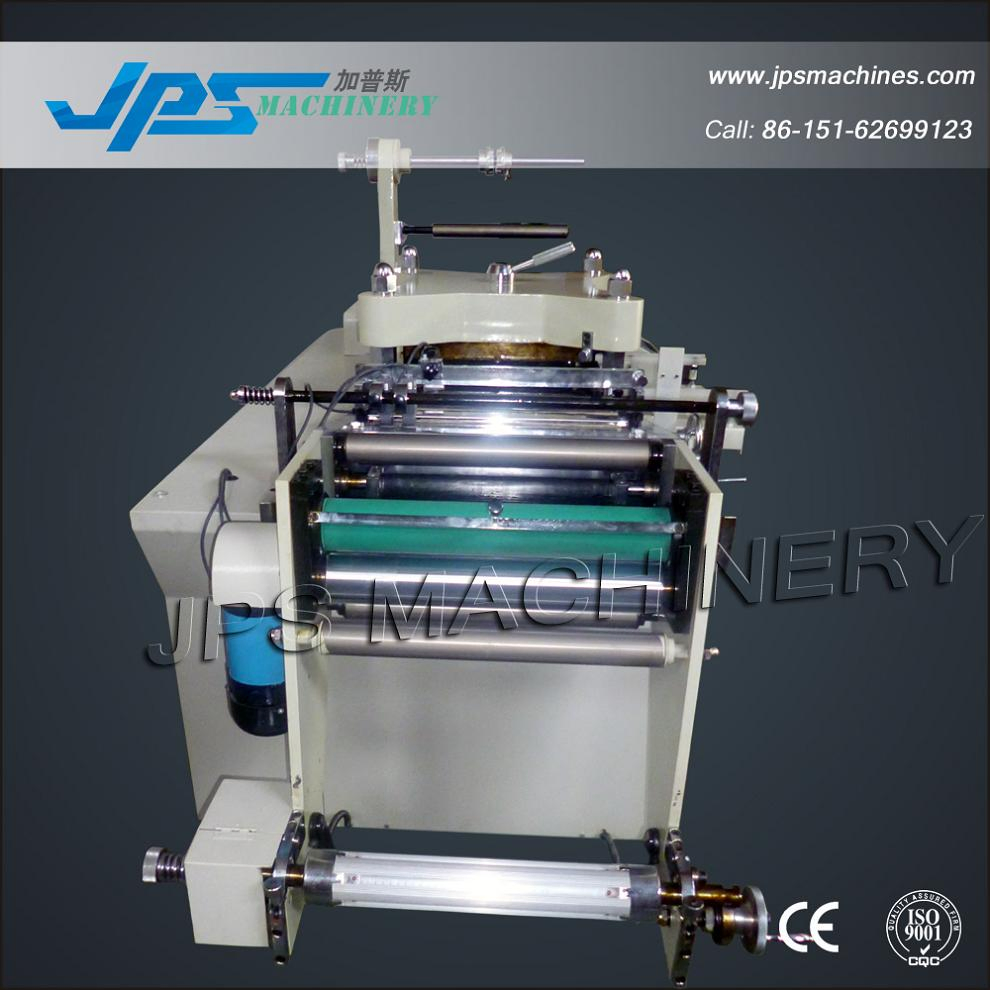

High Speed Flatbed Die Cutter/ Cutting Machine / Sheeter for Label Paper, Film, Foam, Sticker Roll (300 times/min)
High Speed Flatbed Die Cutter/ Cutting Machine / Sheeter for Label Paper, Film, Foam, Sticker Roll (300 times/min)
High Speed Flatbed Die Cutter/ Cutting Machine / Sheeter for Label Paper, Film, Foam, Sticker Roll (300 times/min)
High Speed Flatbed Die Cutter/ Cutting Machine / Sheeter for Label Paper, Film, Foam, Sticker Roll (300 times/min)
High Speed Flatbed Die Cutter/ Cutting Machine / Sheeter for Label Paper, Film, Foam, Sticker Roll (300 times/min)
1 / 5
High Speed Flatbed Die Cutter/ Cutting Machine / Sheeter for Label Paper, Film, Foam, Sticker Roll (300 times/min)
High Speed Flatbed Die Cutter/ Cutting Machine / Sheeter for Label Paper, Film, Foam, Sticker Roll (300 times/min)
High Speed Flatbed Die Cutter/ Cutting Machine / Sheeter for Label Paper, Film, Foam, Sticker Roll (300 times/min)
High Speed Flatbed Die Cutter/ Cutting Machine / Sheeter for Label Paper, Film, Foam, Sticker Roll (300 times/min)
High Speed Flatbed Die Cutter/ Cutting Machine / Sheeter for Label Paper, Film, Foam, Sticker Roll (300 times/min)

High Speed Flatbed Die Cutter/ Cutting Machine / Sheeter for Label Paper, Film, Foam, Sticker Roll (300 times/min)

Customization: Available
Species: Flatbed Die Cutting
Imprinting Type: Flatbed
Send Inquiry

Product Description

📊

Basic Information

Model NO.
JPS-320A
Automatic Grade
Automatic
Computerized
Computerized
Cutting Speed
300m/Min
Max Web Width
320mm
Orientation Accuracy
+/-0.10mm
Power Voltage
380V+/-10%
Production Capacity
300sets/Month
⚙️

Product Description

JPS-320A High Speed Flatbed Die Cutter / Sheeter is a high-precision solution for label paper, film, foam, and sticker rolls, operating at speeds up to 300 times/min. Controlled by a high-performance servo motor, it ensures extreme accuracy for complex cutting tasks.

Key Features:

  • Flat-bed die cutting with high precision servo motor control.
  • Triple photoelectric eyes for advanced web guiding and tracking.
  • Integrated process: Die cutting, laminating, waste rewinding, and sheeting/rewinding in one pass.
  • Ideal for adhesive paper labels, Dacron film labels, and laser anti-counterfeit labels.
  • Perfect auxiliary equipment for flexo, silk-screen, and rotogravure printers.
📋

Main Technical Parameters

Model JPS-320A JPS-420A
Die Cutting Speed300m/min300m/min
Max Putting Diameter550mm550mm
Max Web Width320mm420mm
Max Die Cutting Width300mm400mm
Max Die Cutting Length320mm420mm
Positioning Precision0.10mm0.10mm
Total Power2.5kw4kw
Machine Weight1800kg2000kg
🛠️

Optional Configurations

  • Hot Stamping System
  • Hole Punching Unit
  • Advanced Laminating Function
  • Conveyor Belt Addition
  • Full-cut Capability for Die Cutting
🖼️

Product Visuals

Machine Version & Molds

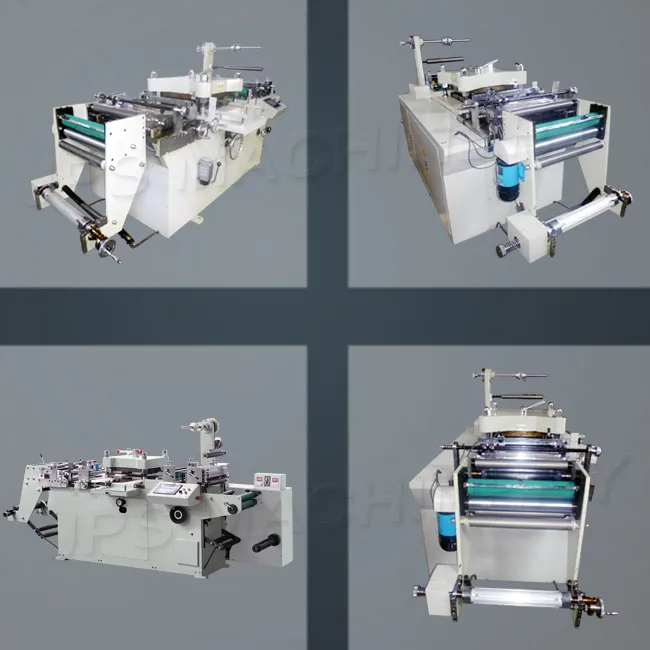

Machine Version

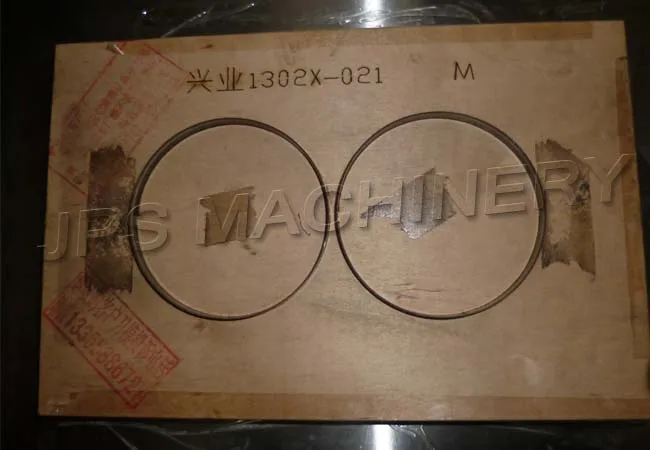

Machine Mold 1

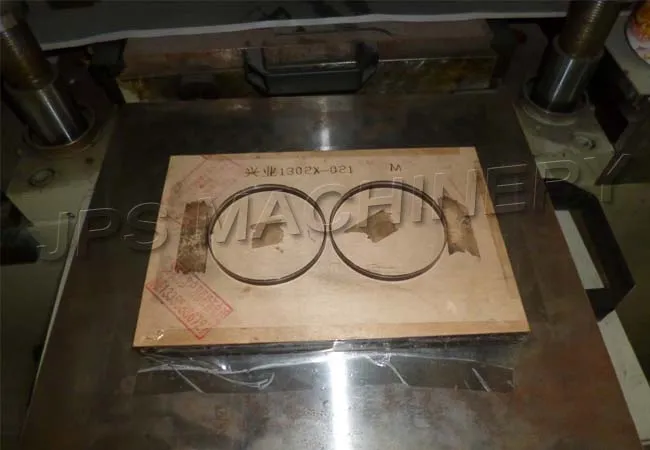

Machine Mold 2

Configuration & Applications

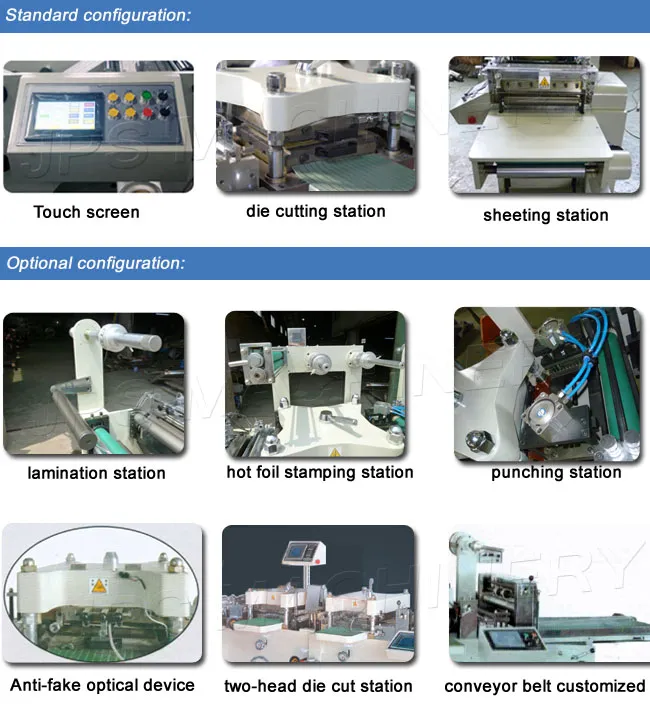

Machine Configuration
Application Field
Global Customer Show
❓

Frequently Asked Questions

What materials is the JPS-320A suitable for?
It is ideal for paper packaging materials, stickers, heat insulation materials, insulating materials, dust-proof materials, EMI shielding materials, non-woven fabrics, copper foil, and various films.
How accurate is the positioning of this machine?
The machine features a high-precision servo motor and three photoelectric eyes for web guiding, achieving an orientation accuracy of +/-0.10mm.
Can it perform multiple functions in one process?
Yes, the JPS-320A can complete die cutting, laminating, waste rewinding, and sheeting (or rewinding) in a single continuous process.
What are the available optional functions?
Optional configurations include hot foil stamping, hole punching, adding a conveyor belt, and full-cut capabilities for specific die-cutting needs.
What kind of after-sales support is provided?
We provide a 12-month warranty for the machine, a guaranteed reply to service inquiries within 24 hours, and free training at the factory prior to delivery.
What is the maximum production speed?
The JPS-320A can reach a high-speed performance of up to 300 times per minute (300m/min).
