High-Speed Flat Bed UV A1 6090 Digital One UV Sticker Printer Machine for Small Business

1 / 5

High-Speed Flat Bed UV A1 6090 Digital One UV Sticker Printer Machine for Small Business

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

ℹ

Basic Information

Model NO.

ZS-A1 UV Flatbed Printer

Type

Ink Jet Type

Color & Page

Multi-Colour Printing Press

Usage

Label, Paper, Card, Cloths, Phone Case

Automatic Grade

Automatic

Printing Accuracy

1440dpi / 2880dpi

UV Lamp Type

Water Circle Cooling UV System

Printing Size

60*90cm (23.6in*35.4in)

Media Thickness

18 cm (Max)

Rip Software

Photoprint / Riprint

📦

Packaging & Delivery

Package Size

138.00cm * 158.00cm * 92.00cm

Gross Weight

250.000kg

Lead Time

14 days (1-1 Pieces)

⚙

Product Description

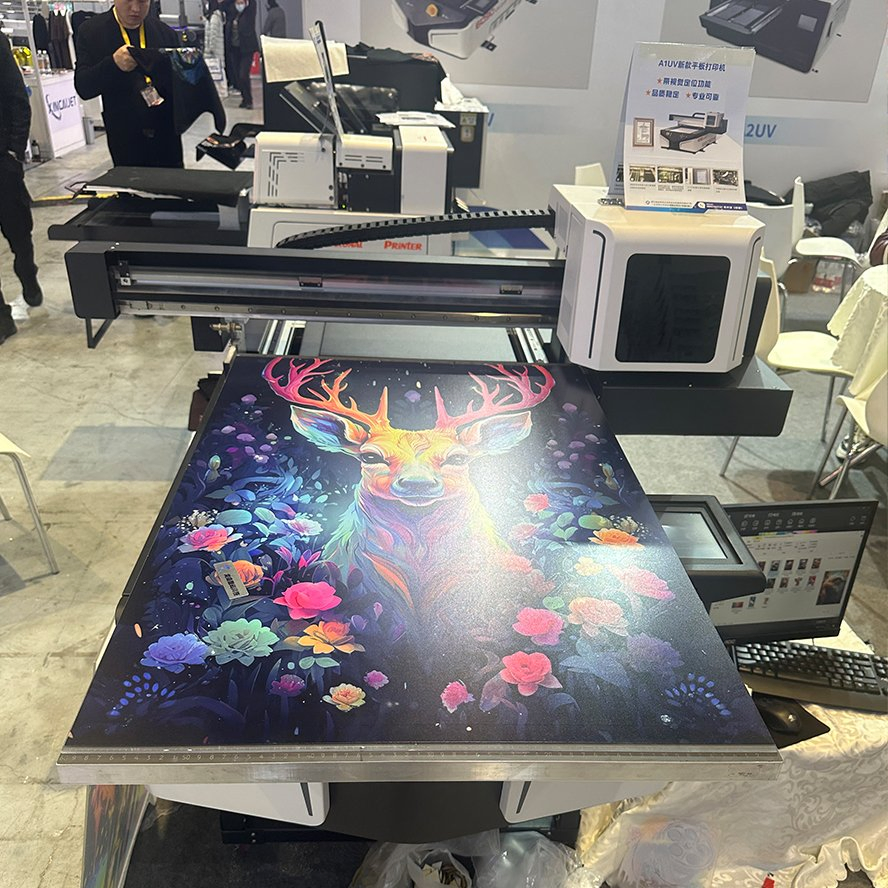

The 6090UV flatbed printer combines high precision, efficiency, and versatility, making it an ideal solution for precise and customizable printing on small items.

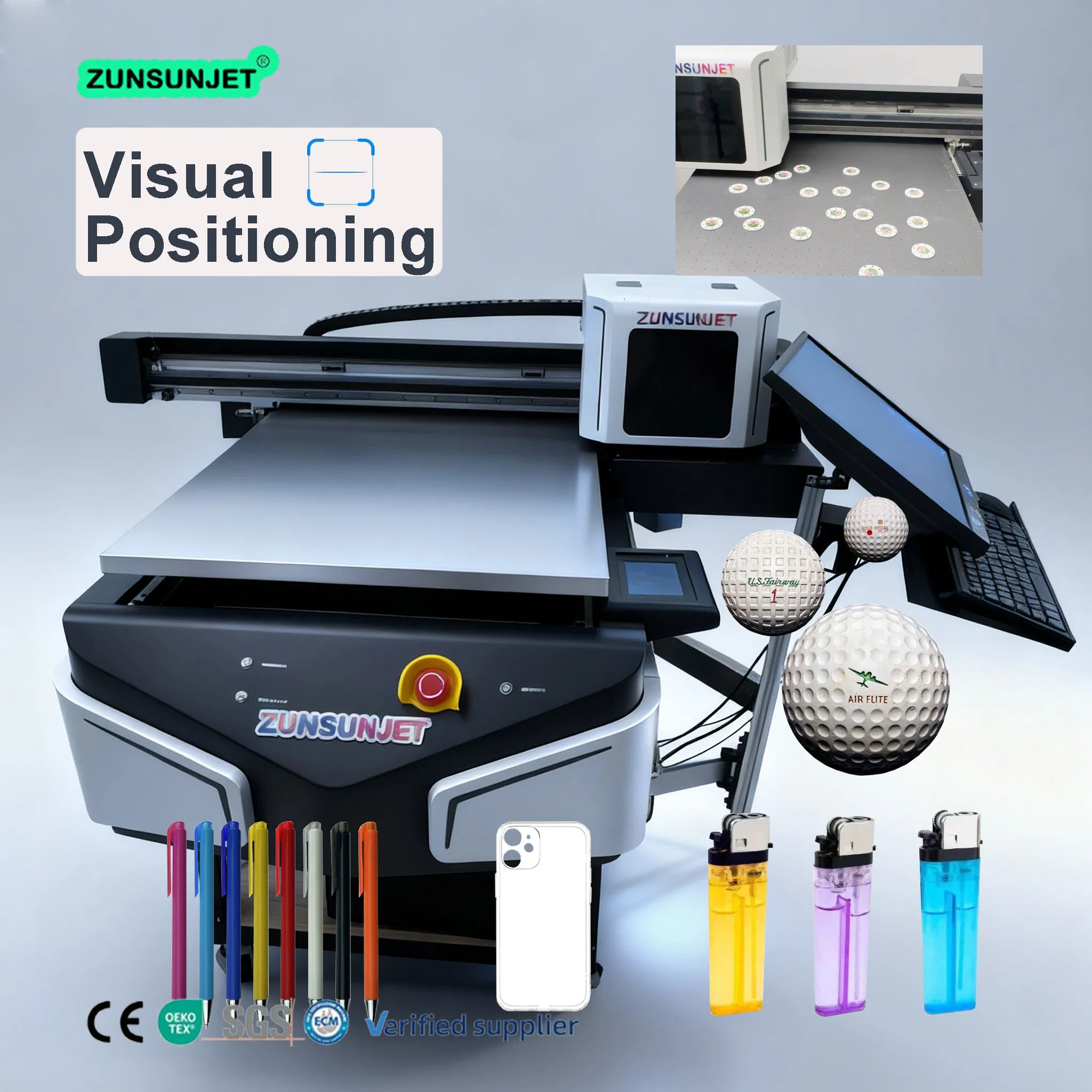

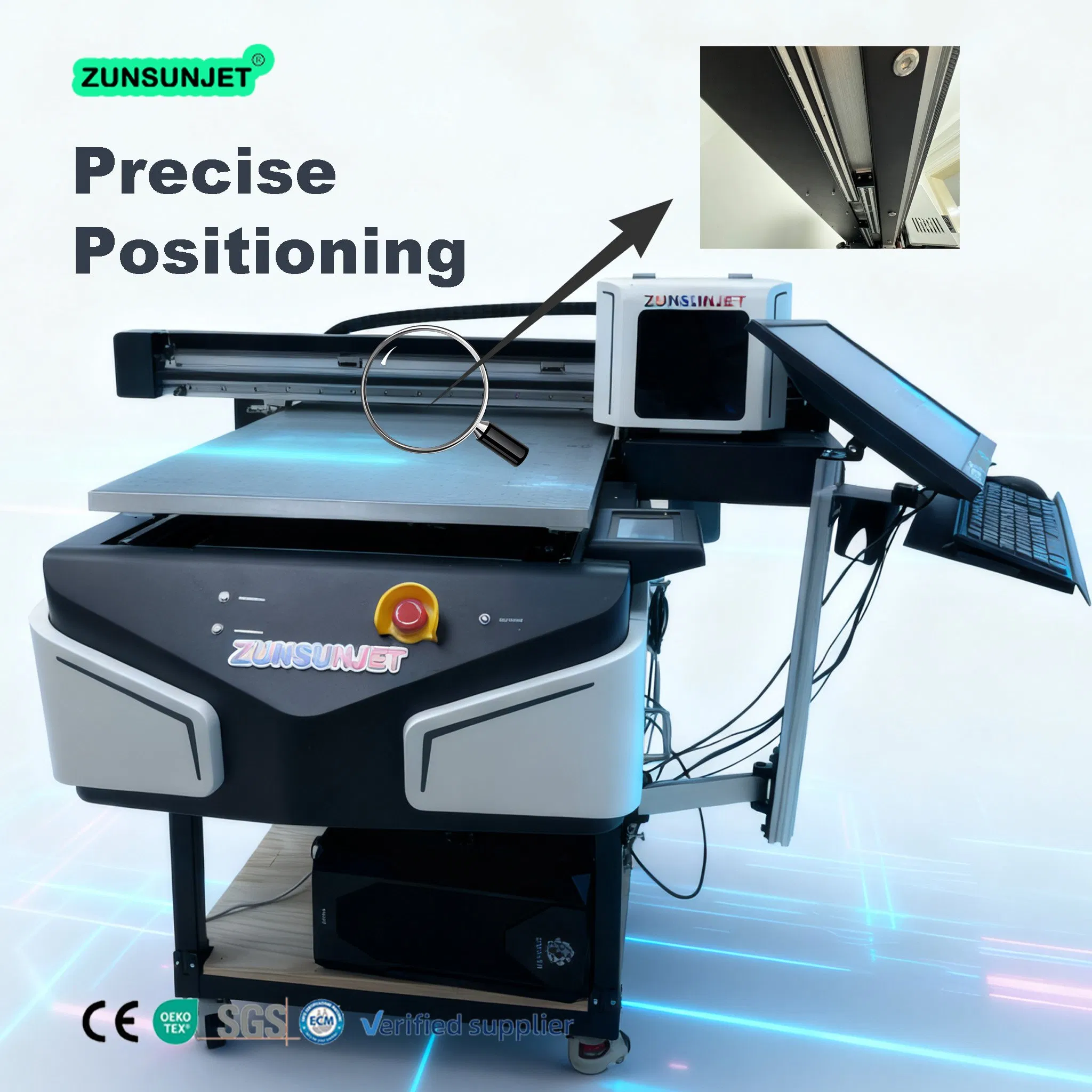

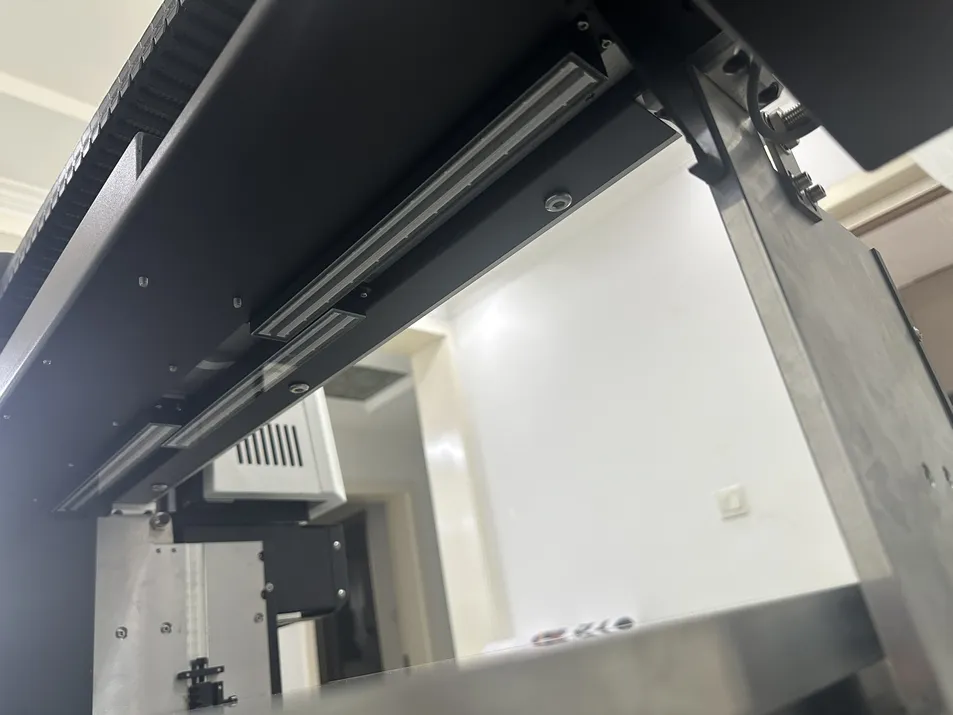

✨ High-Precision Printing Equipped with a visual positioning system, it achieves a positioning accuracy of 0.1 mm, ensuring detailed print quality.

🚀 Dual Printhead Configuration Utilizes two XP600 printheads, delivering high-quality output to meet diverse printing needs.

💎 Robust Construction Full aluminum alloy frame enhances stability and durability for reliable long-term operation.

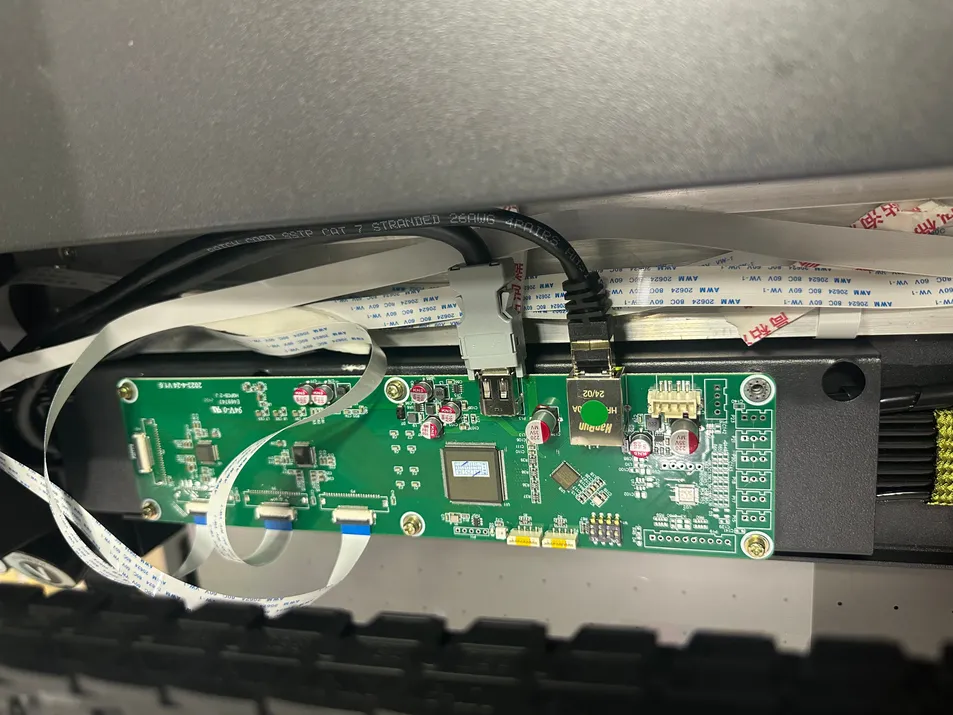

🖥️ Advanced Control System Features a high-end Hoson control board, improving control precision and performance.

Key Advantages:

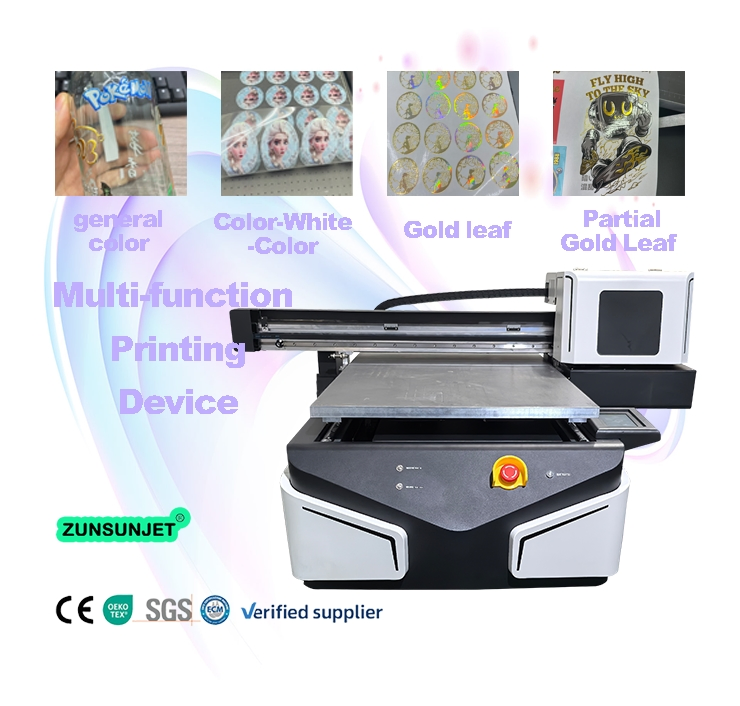

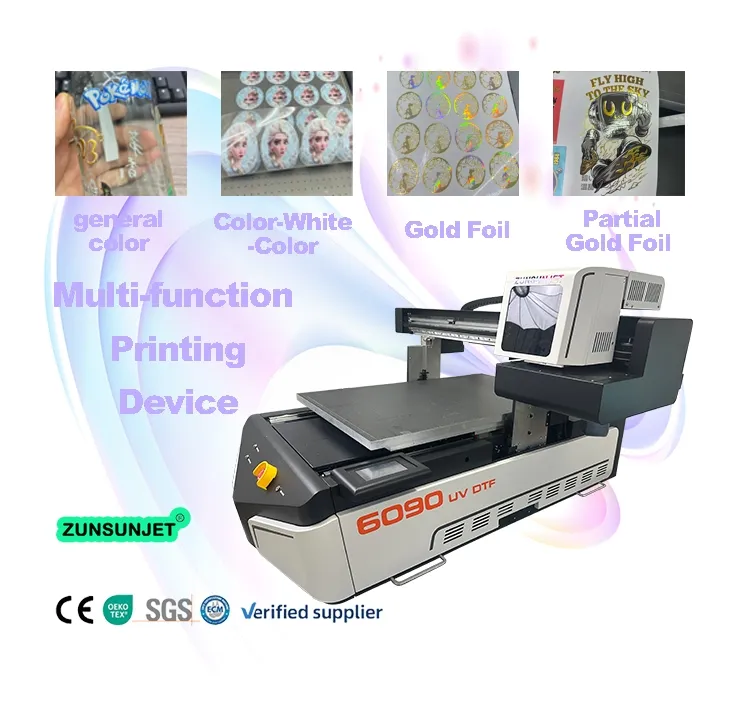

• Multi-Functional: Supports both UV direct printing and UV DTF sticker printing.
• Efficient Production: Visual positioning system boosts efficiency and reduces manual intervention.
• Varnish Support: Tilted UV lamp design ensures smoother varnish results without unwanted texture.

📊

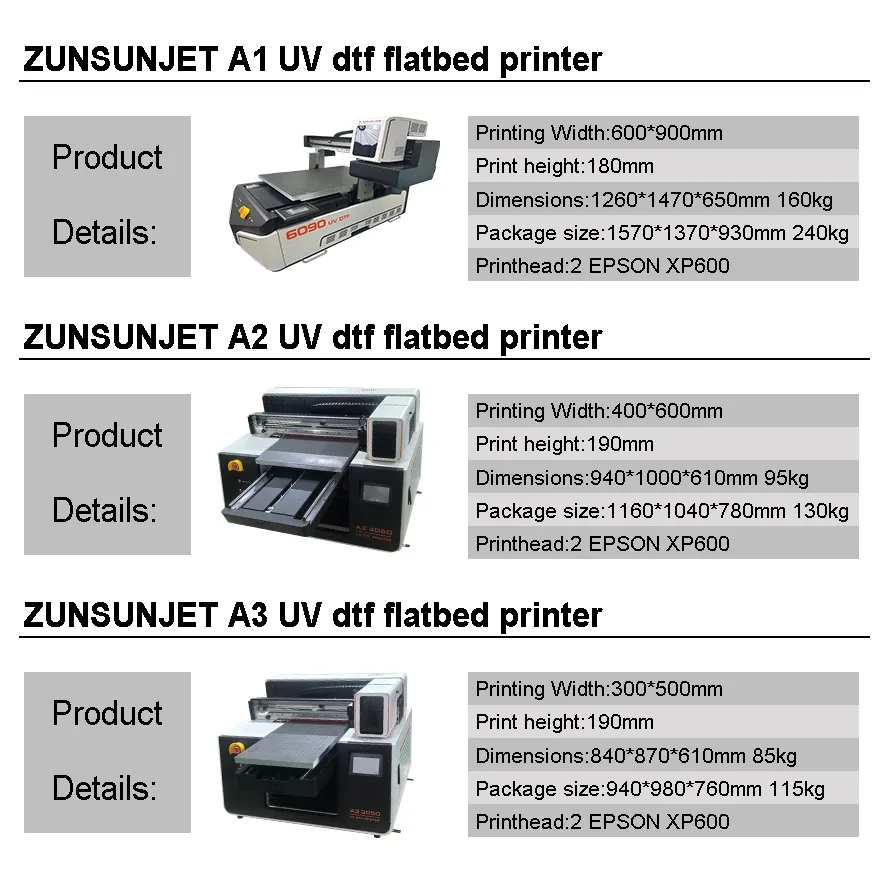

Technical Specification

Type	A1 UV DTF Sticker Flatbed Printer
Printhead	2-3 pieces XP600/I3200 printheads
Color	CMYK + White + Varnish
Accuracy	1440DPI / 2880DPI
Print Media	PVC, glass, plastic, leather, rubber, metal, wood, porcelain, acrylic, ceramic tile, marble, crystal PET Film etc.
Voltage	1200W / 110/220V 50-60HZ
UV Lamp	Water circle cooling system
Media Thickness	18 cm (max)
Ink Supply	500 ml bottle for ink supply
Adsorption	Aluminum alloy Vacuum suction platform
Ink Consumption	15 ML/SQM

📱

Applications

This UV inkjet flatbed printer reaches the level of full-color image printing at one time without plate-making. It adopts stable platform technology and advanced stepper motor drive mode, combining infrared laser positioning and efficient cooling systems.

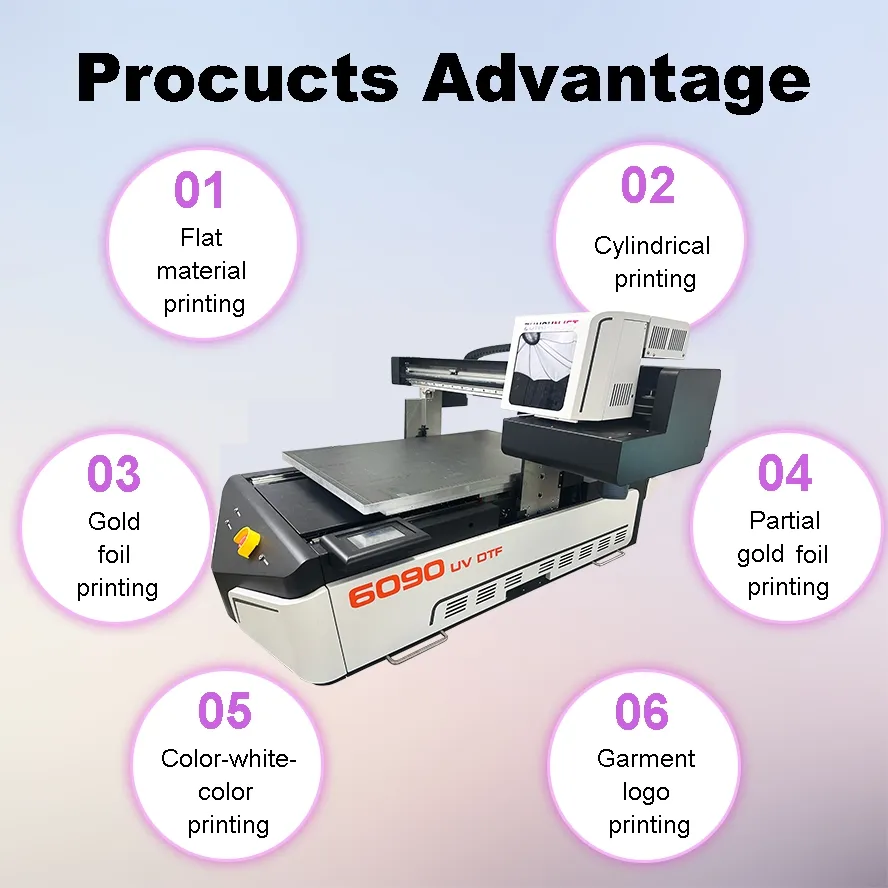

Versatile Shapes Supports flat, cylindrical, cambered, rhombic, and other irregular shapes.

Diverse Materials Pens, notebooks, phone cases, mugs, packing boxes, USB flash disks, suitcase, key rings, and more.

🏢

Service & Shipping

• Package: Standard wooden box packing for maximum protection.
• Logistics: Sea, air, and land transportation options with free insurance.
• Service: 24 hours online after-sales support and free sample printing services.

❓

Frequently Asked Questions

What materials can this UV printer print on?

The printer is compatible with a wide range of materials including PVC, glass, plastic, leather, metal, wood, porcelain, acrylic, ceramic tiles, and even crystal PET films.

What is the maximum printing size and height?

The maximum printing area is 60*90cm (23.6in*35.4in), and it can accommodate objects up to 18 cm in height.

How accurate is the visual positioning system?

The integrated visual positioning system achieves a positioning accuracy of 0.1 mm, making it perfect for high-precision printing on small or irregular items.

Does the printer support white ink and varnish?

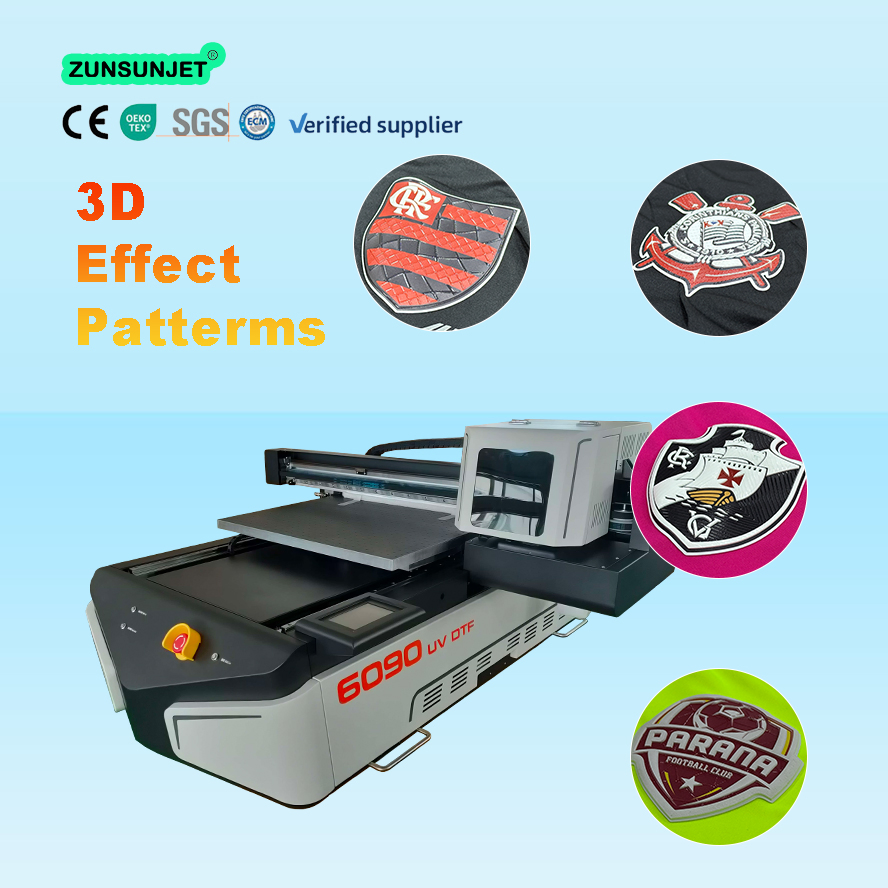

Yes, it supports CMYK + White + Varnish. This allows for vivid color printing, embossed effects, and smooth glossy finishes in a single pass.

What kind of maintenance features are included?

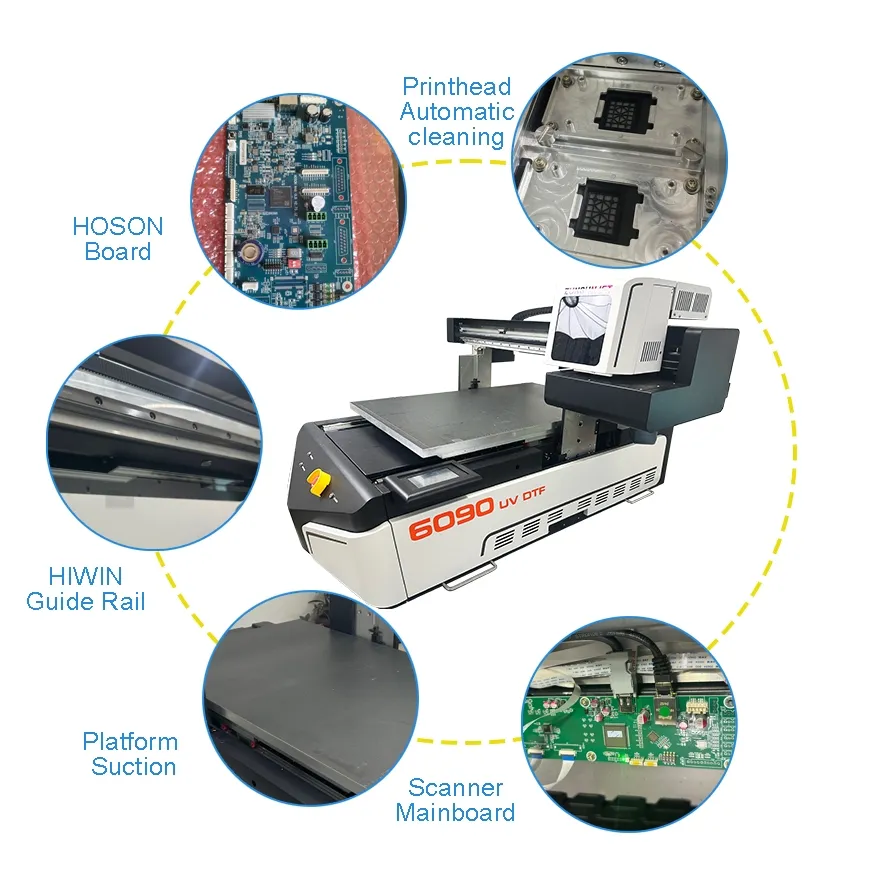

The machine features an automatic ink suction and cleaning system, a waste ink cartridge alarm system, and high-precision Hiwin linear guides for stable long-term operation.

What type of cooling system does the UV lamp use?

It utilizes a water circle cooling UV system which ensures the lamps stay at an optimal temperature for continuous, high-speed production.
