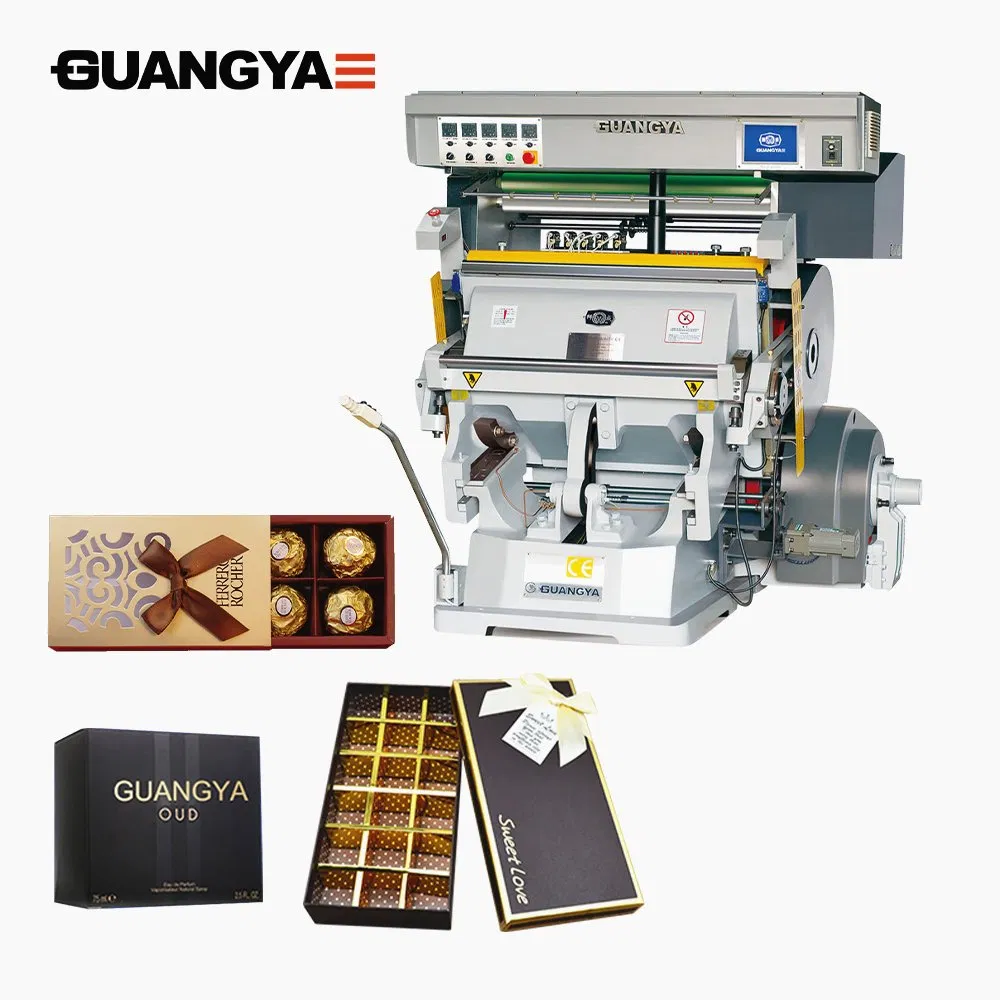

Hand Feed Hot Foil Stamping and Die Cutting Machine (TYMC-1100)

1 / 5

Hand Feed Hot Foil Stamping and Die Cutting Machine (TYMC-1100)

Classification:	Intermittent Stamping Machine
Plate Type:	Letterpress
Suitable Material:	Paper

Send Inquiry

Product Description

📋 Basic Information

Model NO.

TYMC-1100

Automatic Grade

Semi-Automatic

Application

Leather Heat Transfer, Business Card, Plastic Packaging, Arts, Electronics, Labels

Usage

Paper Printer

Pressure Factor

Hot Stamping Temperature

Decisive Factor

Pressure

Origin

China

Production Capacity

20 Sets Per Month

🚀 Product Features

The manual hot foil stamping and die-cutting machine is ideal equipment for stamping and die-cutting various materials including paperboard, leather, and plastic. It is a fundamental choice for sampling and customizing products in printing factories.

Key Advantages:

Versatile functions: hot stamping, die cutting, creasing, and concave-convex forming.
LCD display system for enhanced productivity.
Annealed castings to reduce machine wear.
PLC microcomputer control with stepper motor drive for precision.
Heating plate divided into 4 or 5 independently adjustable zones.

📊 Technical Parameters

Model	TYMC 1100
Max. Effective Plate Area	1100×800mm
Max. Stamping Size	1100×800mm
Groups of Foil Collecting	3
Max Foil Feeding Length	800mm
Leapfroging Scope	0-99
Heating Plate Zones	5
Heating Power	15kw
Main Motor Power	5.5kw (6 pole)
Total Power	20.5kw
Speed	23±2 sheets/min
Machine Weight	4900kg
Dimensions	2080×1950×2200mm

🛠️ Main Features Detail

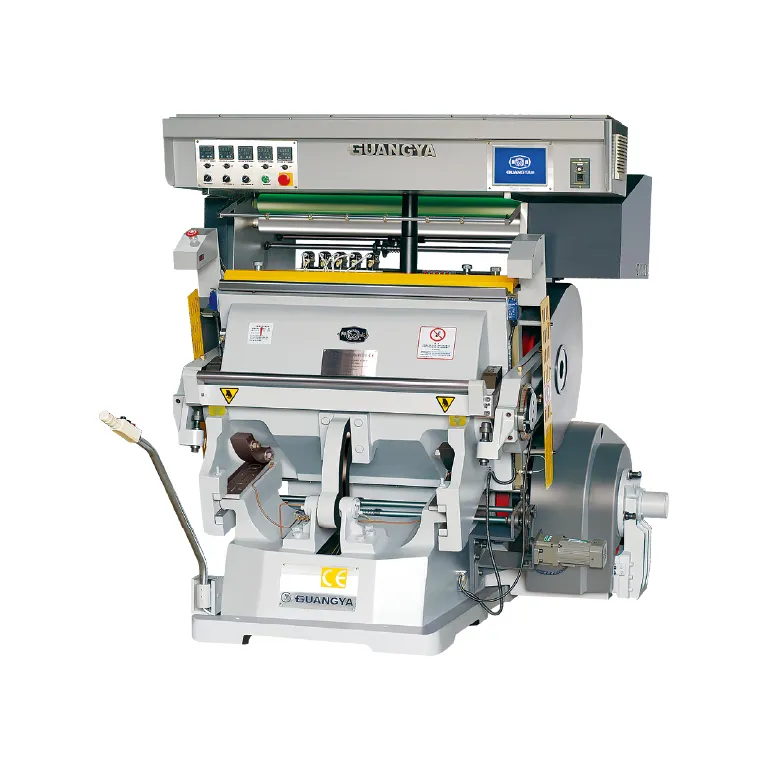

Main Host

Highest strength casting iron, stable and sturdy.
Annealed castings for reduced wear.
Pressure micro adjustment device.
Quality assurance workmanship.

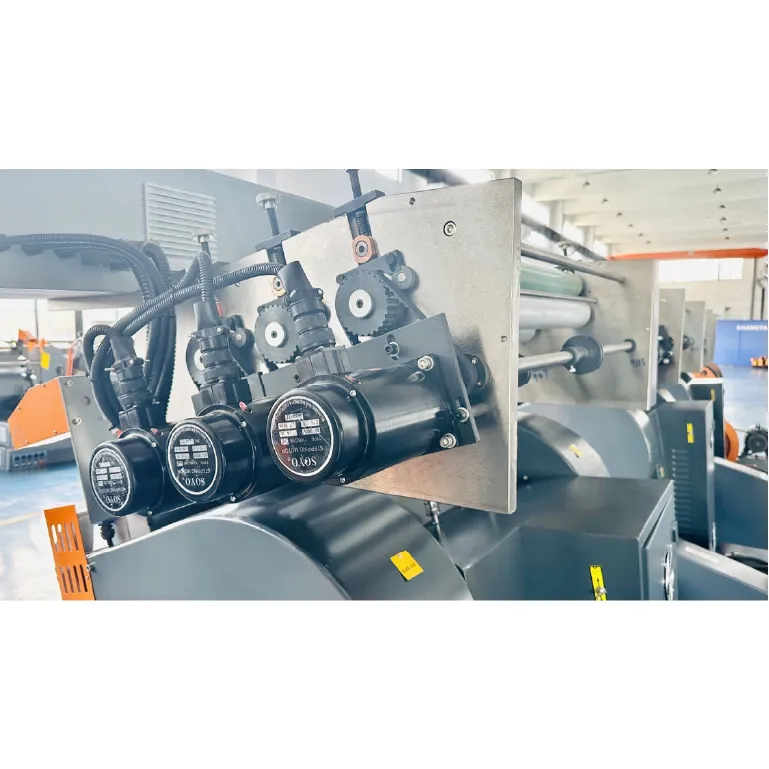

Foil Stamping System

2 foil shafts for easy setup.
4 independently controlled stamping zones to save energy.
Constant temperature control with real-time display.
Up to 99 foil stepping scope for efficiency.

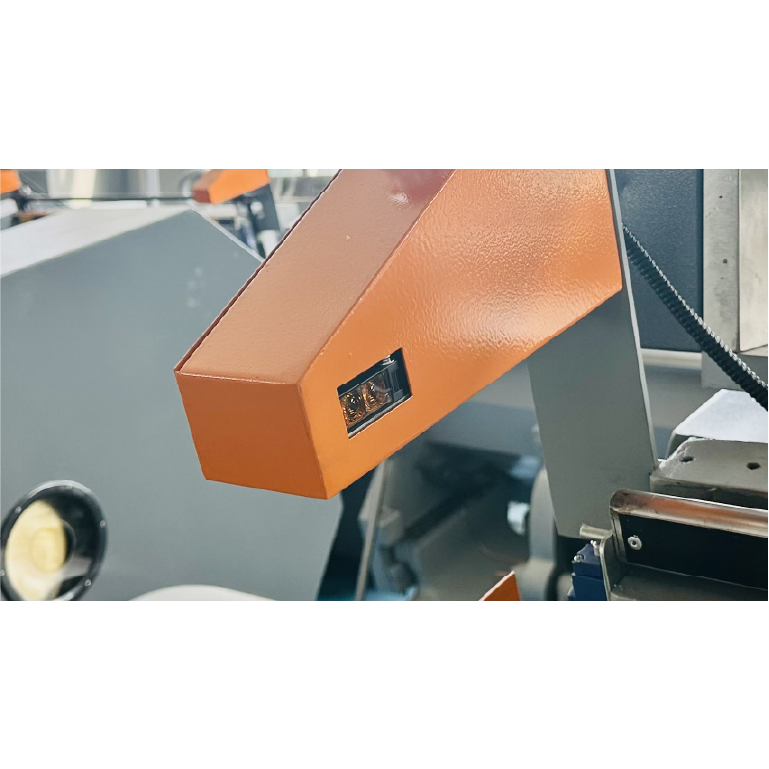

Safety System

Infrared sensors for operator protection.
Quick-response multi-sensor stop mechanism.
Optional safety door available.

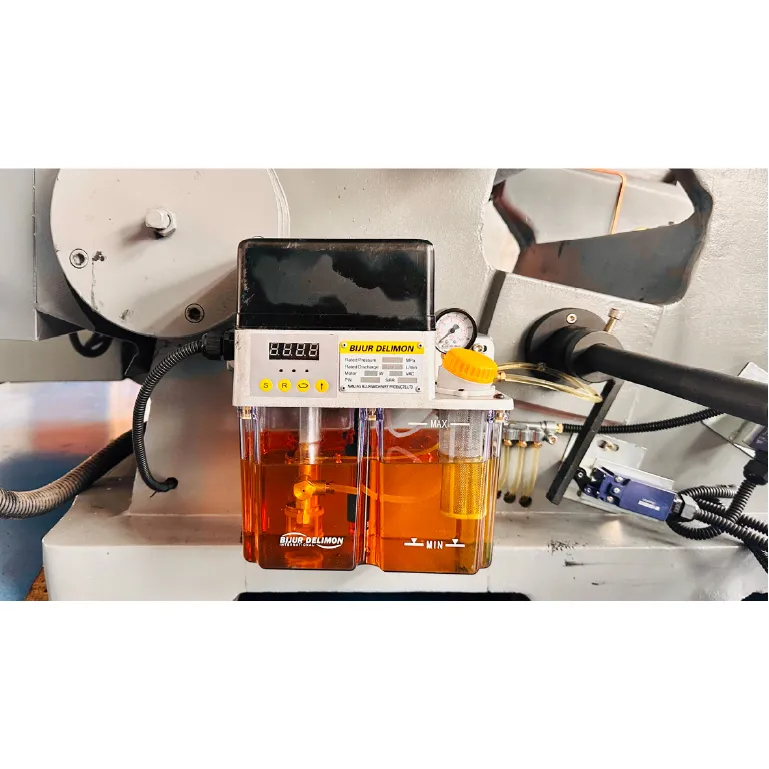

Lubrication System

Automatic centralized lubrication.
Adjustable lubrication frequency.
Simplified maintenance process.

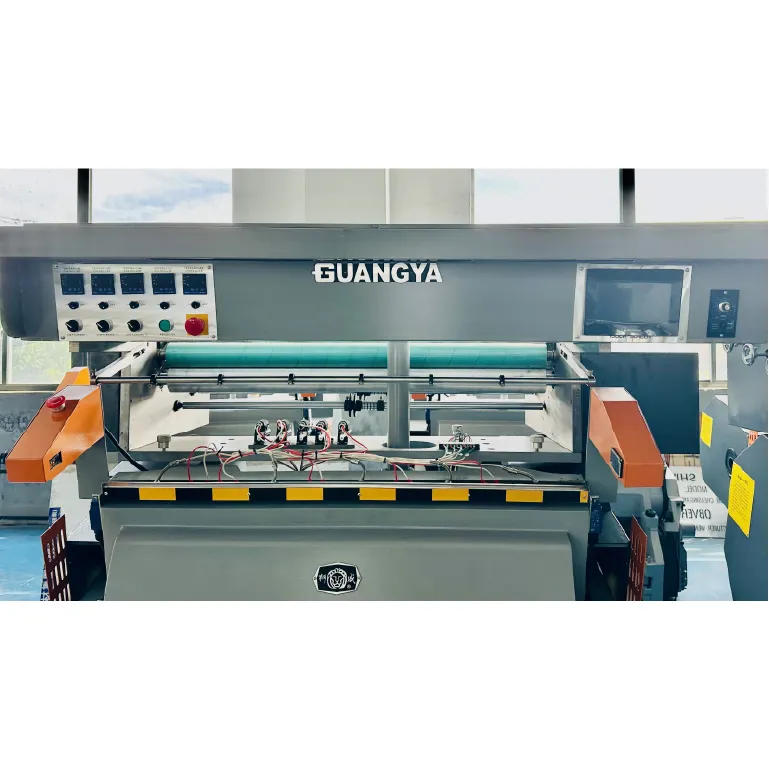

Operating & Electrical System

LCD screen for user-friendly operation.
Precision delay function for creasing time.
Modular electrical design (CE Standard).
Imported high-quality electrical components.

🖼️ Samples & Quality

📜 Certificate

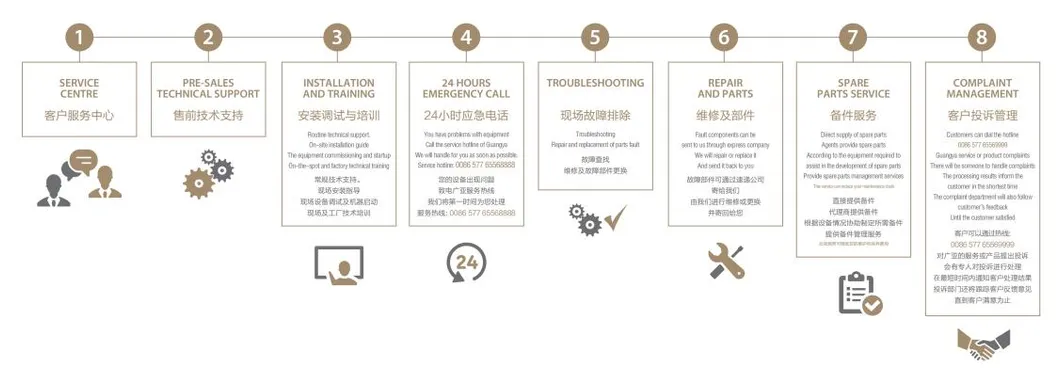

📦 Delivery & Support

Our service system includes professional engineers, emergency repair parts delivery within 24 hours, and comprehensive technical guidance and operating training.

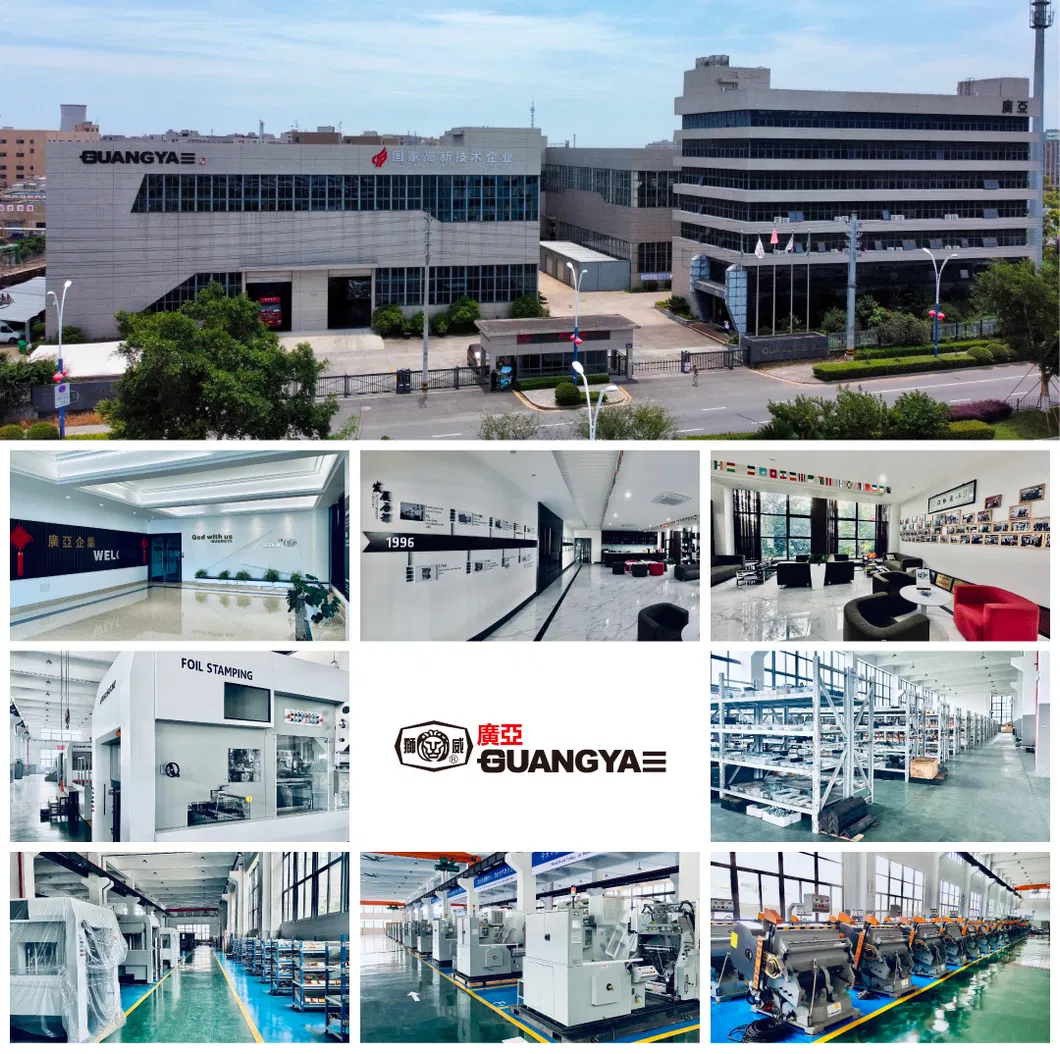

🏭 Factory & Exhibition

❓ Frequently Asked Questions

What materials can the TYMC-1100 machine process?

It is designed for stamping and die-cutting various types of paperboard, leather, semi-rigid plastics, and corrugated boards.

Is the machine fully automatic?

The TYMC-1100 is a semi-automatic manual feed machine, making it ideal for specialized sampling and customized production runs.

How does the heating system work?

The machine features a heating plate divided into 4 or 5 independent zones. Each zone can be adjusted separately via the PLC control for precise temperature management.

What safety measures are in place for the operator?

The machine is equipped with sensitive infrared sensors and multiple emergency stop sensors to ensure quick response and operator safety.

What are the main functions of this equipment?

It is a versatile machine capable of hot foil stamping, die cutting, creasing, and concave-convex (embossing) forming.

How is the machine maintained?

It includes an automatic centralized lubrication system where the frequency of lubrication can be adjusted, making daily maintenance simple and efficient.
