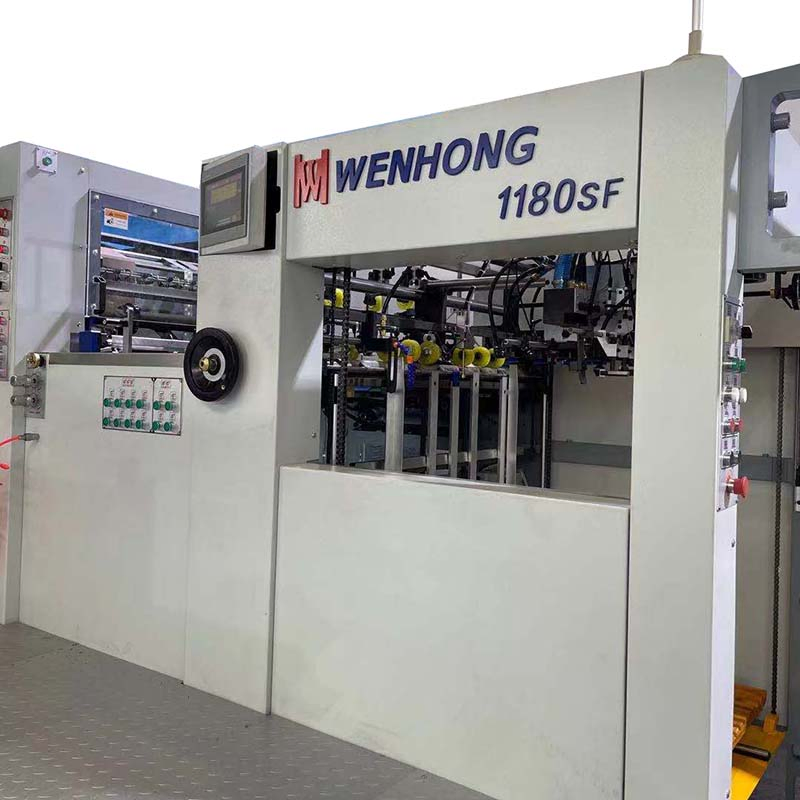

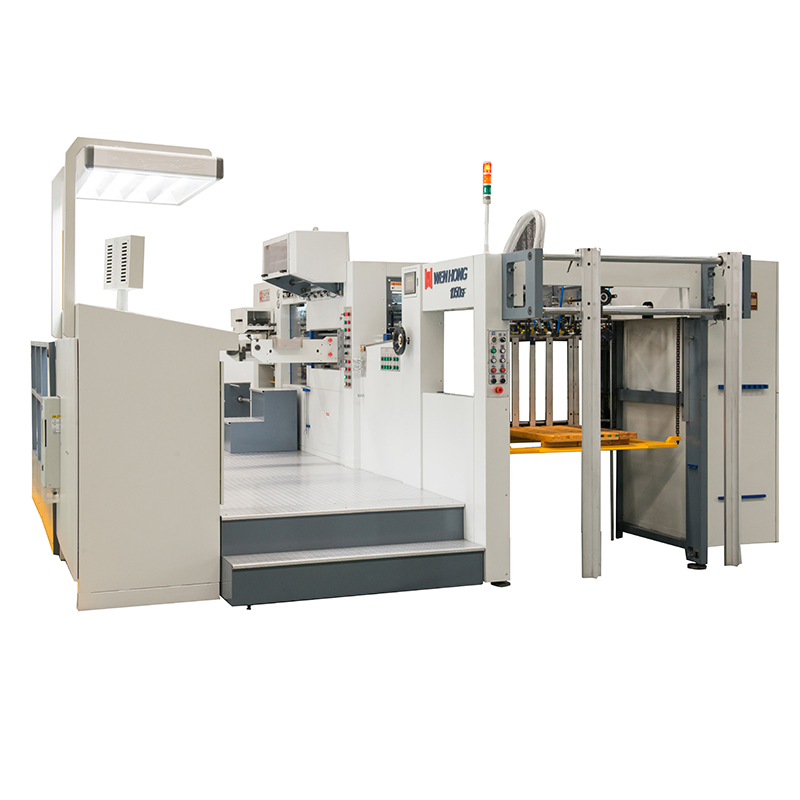

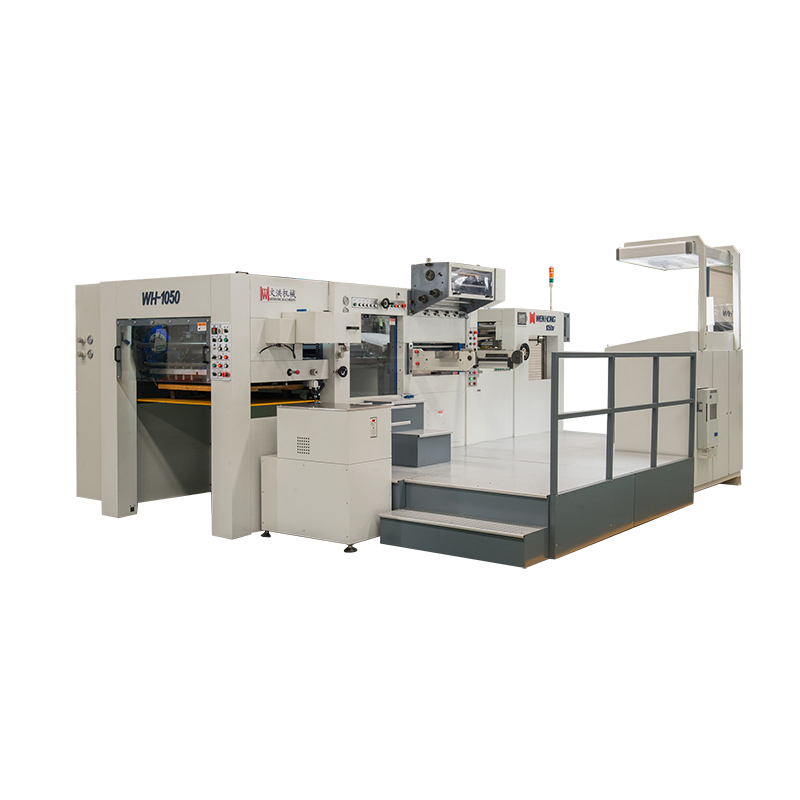

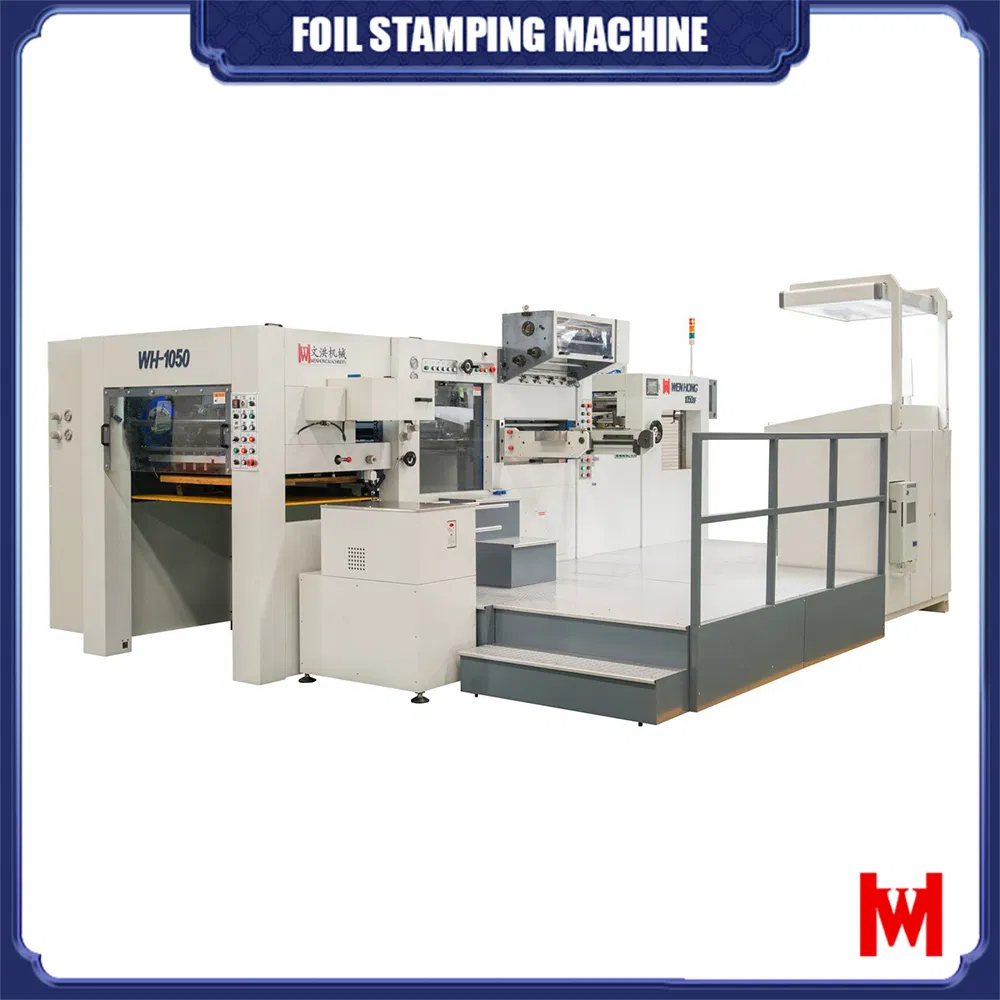

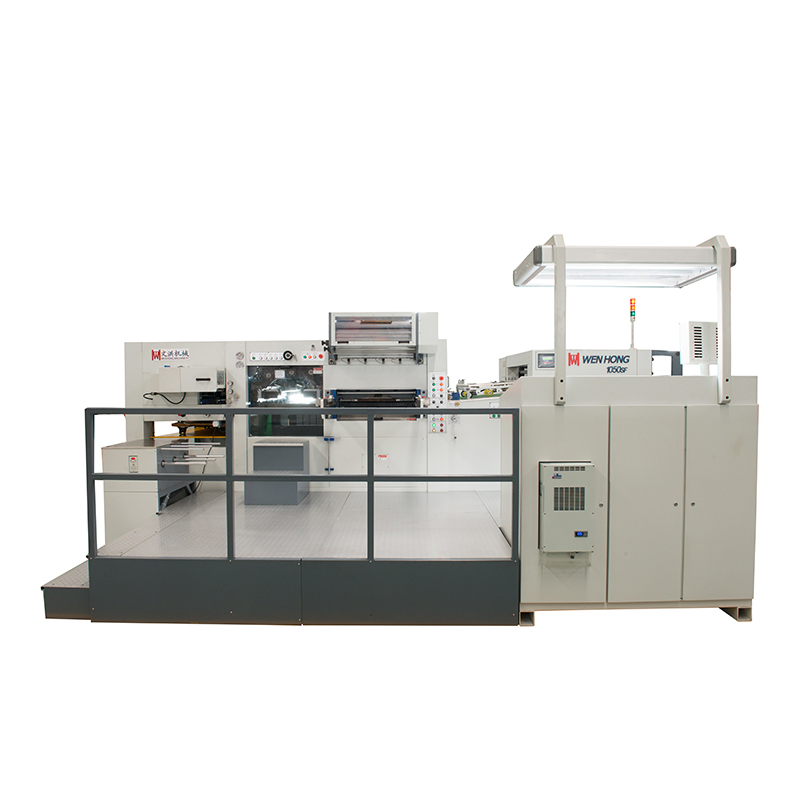

Industrial Hot Foil Stamping and Die Cutting Machine for Cartons

Customization:	Available
After-sales Service:	1 Year Free Service and Life Time Service
Warranty:	1 Year

Basic Specifications

Model NO.

WH-1050SF

Classification

Intermittent Stamping Machine

Plate Type

Flatbed Printer

Suitable Material

Paper / Cardboard

Automatic Grade

Automatic

Max. Sheet Size

1050X750 mm

Max. Cutting Size

1040X720 mm

Production Capacity

80 - 100 Sets/Year

Gross Weight

17500.000kg

Product Description

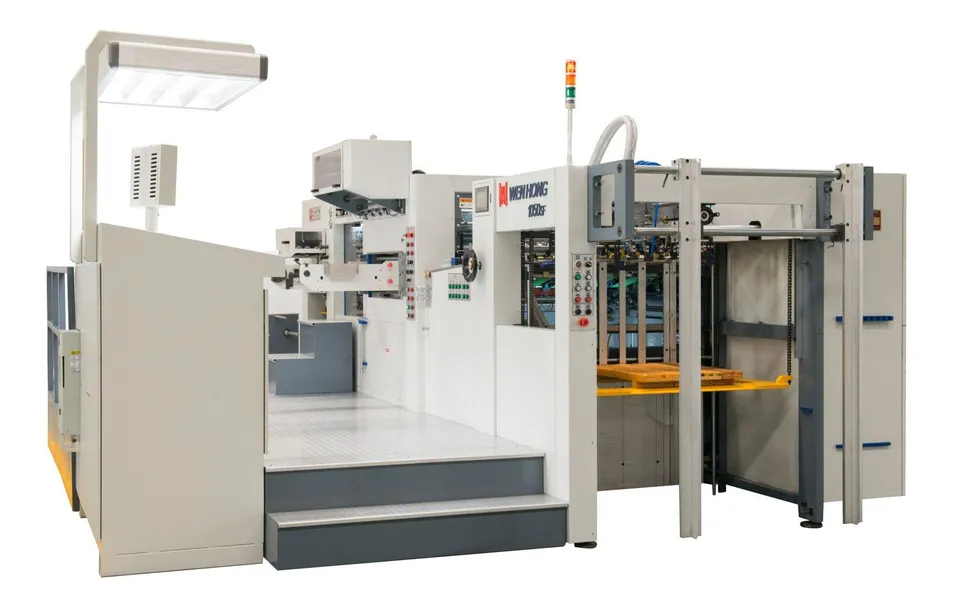

Automatic Hot Foil Stamping & Die Cutting Machine

The side positioning adopts the pull and push dual-purpose side lay device, selected according to the paper type for simple switching.
Turbine crank drives the elbow bar type high-precision plane die cutting lower workbench.
World-class foil stamping control system.
Stamping section shafts equipped with high-power servo motor drives, supporting independent programming for gold foil step running or skip feed.

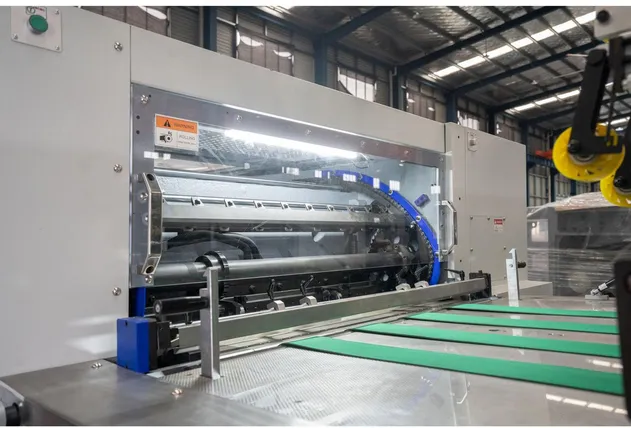

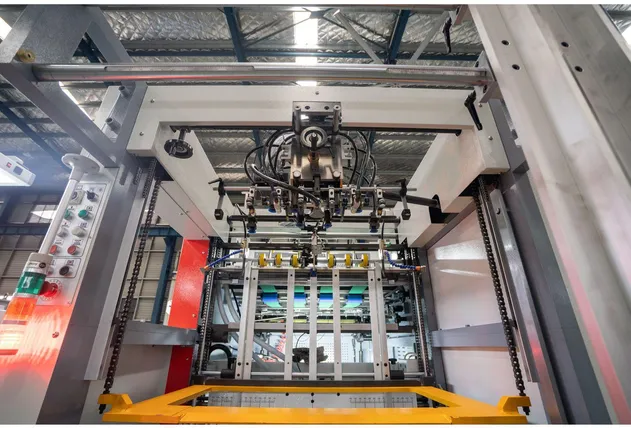

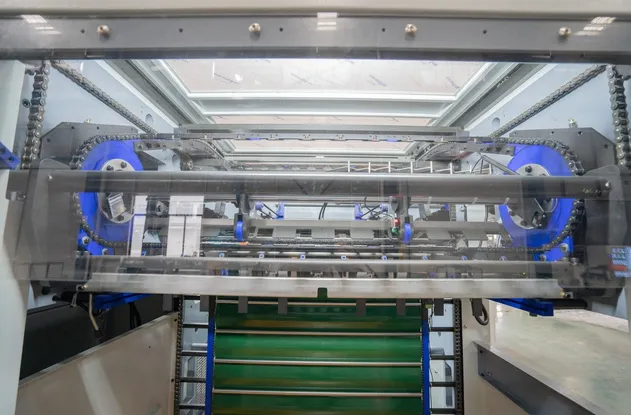

Detailed Photos

Technical Specifications

Model No.	WH-1050SF	WH-1180SF	WH-1300SF	WH-2105FSS
Max. Sheet Size	1050x750 mm	1180x900 mm	1300x1050 mm	1050x750 mm
Max. Cutting Size	1040x720 mm	1150x885 mm	1290x1000 mm	1040x720 mm
Feeding Materials	80-2000 g/m² cardboard	100-2000 g/m² cardboard	100-2000 g/m² cardboard	80-2000 g/m² cardboard
Mechanical Speed	7500 Sheets/hr	6800 Sheets/hr	6000 Sheets/hr	7000 sheets/hr
Power Required	55.0 kw	55.0 kw	75.0 kw	55.0 kw
Registration Accuracy	≤ ±0.075 mm	≤ ±0.075 mm	≤ ±0.075 mm	≤ ±0.01 mm
Machine Weight	17 Ton	20 Ton	24 Ton	38 Ton

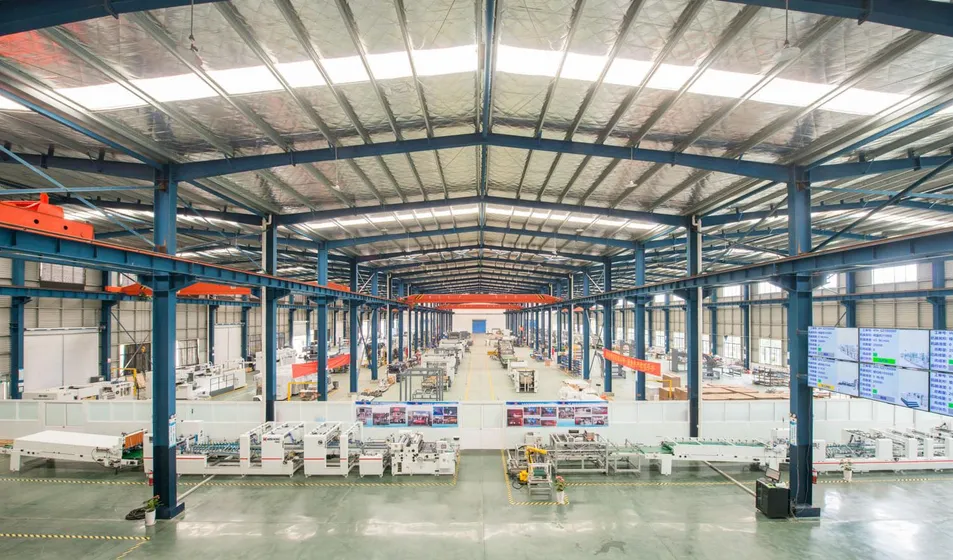

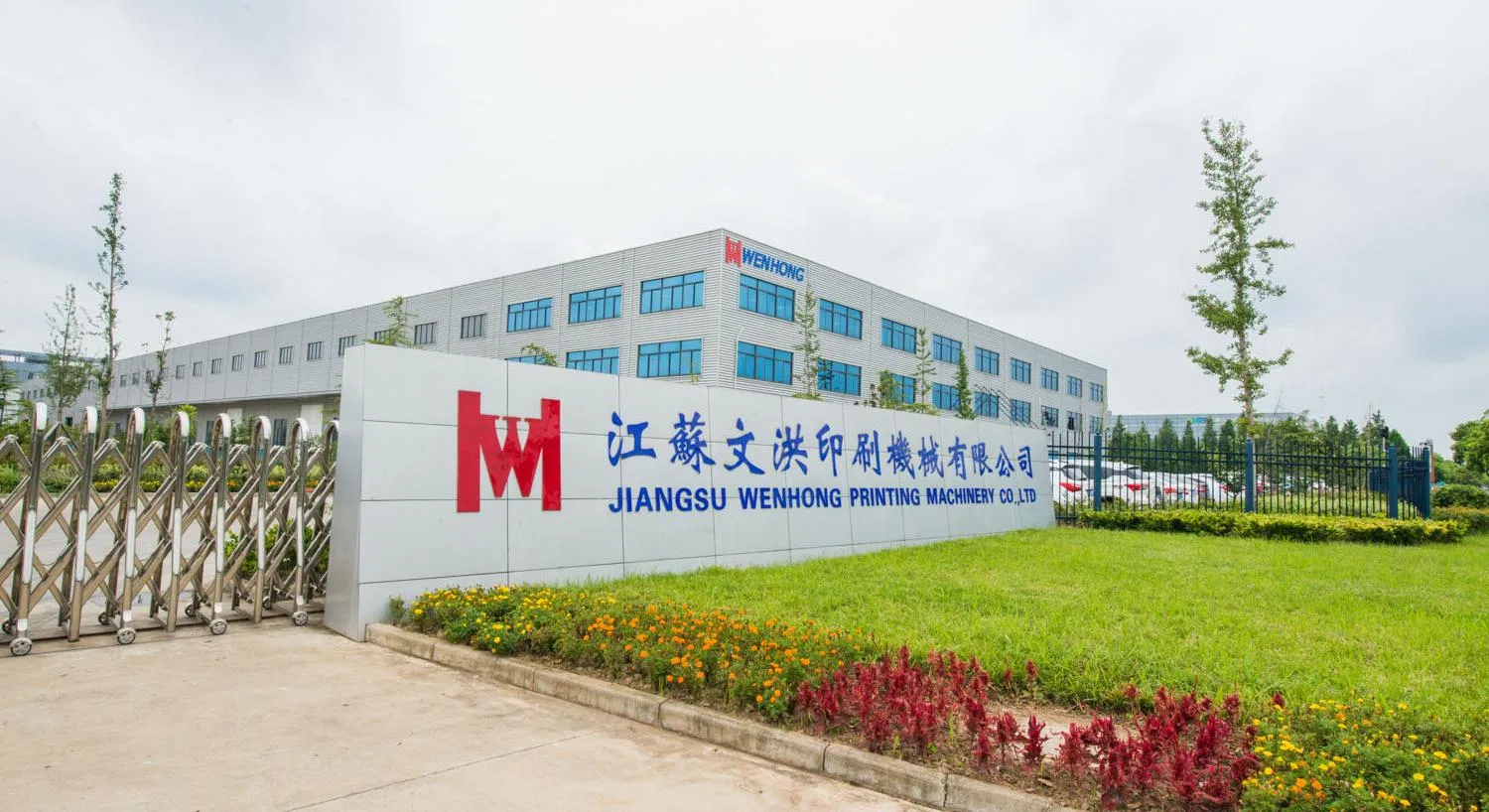

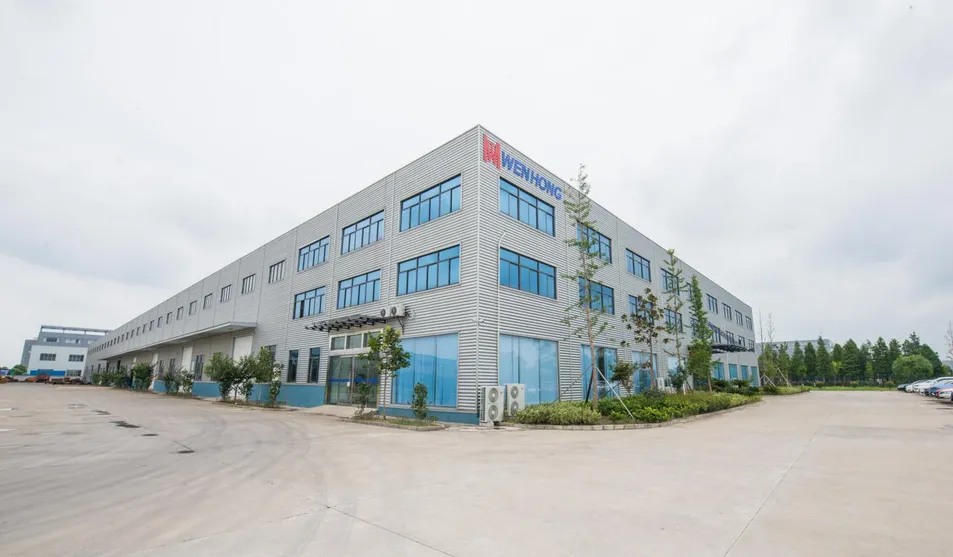

Production Capabilities

Providing specialized carton converting equipment including automatic die cutters, flute laminators, folder gluers, and window patching machines. With over 25 years of experience, the production system offers comprehensive solutions for professional carton converting.

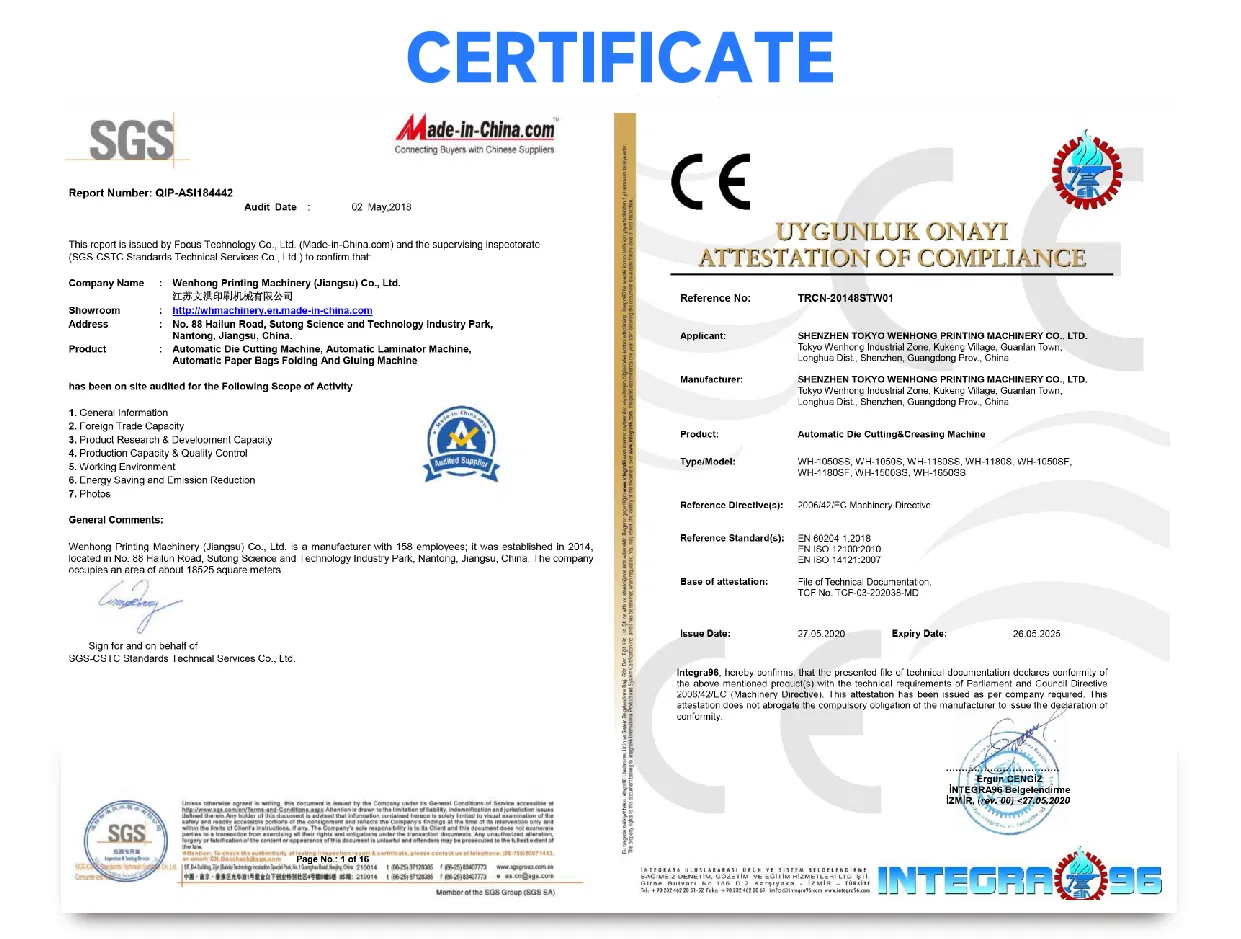

Certifications & Global Reach

The sales network covers key global markets including Malaysia, Thailand, Indonesia, Brazil, Italy, and more. Installed capacity has reached approximately 4,000 units worldwide across Europe, Southeast Asia, and South America.
