Imago Printer
Imago Printer
| Model NO. | TYMC-1100 | Classification | Continuous Stamping Machine |
| Plate Type | Flatbed Printer | Color & Page | Any Colors |
| Suitable Material | Paper | Automatic Grade | Semi-Automatic |
| Application | Arts and Crafts | Usage | Paper Printer |
| Working Size | 1100*700 | Foil Axis | 3 Groups |
| Function | Foil Stamping & Die Cutting | ||

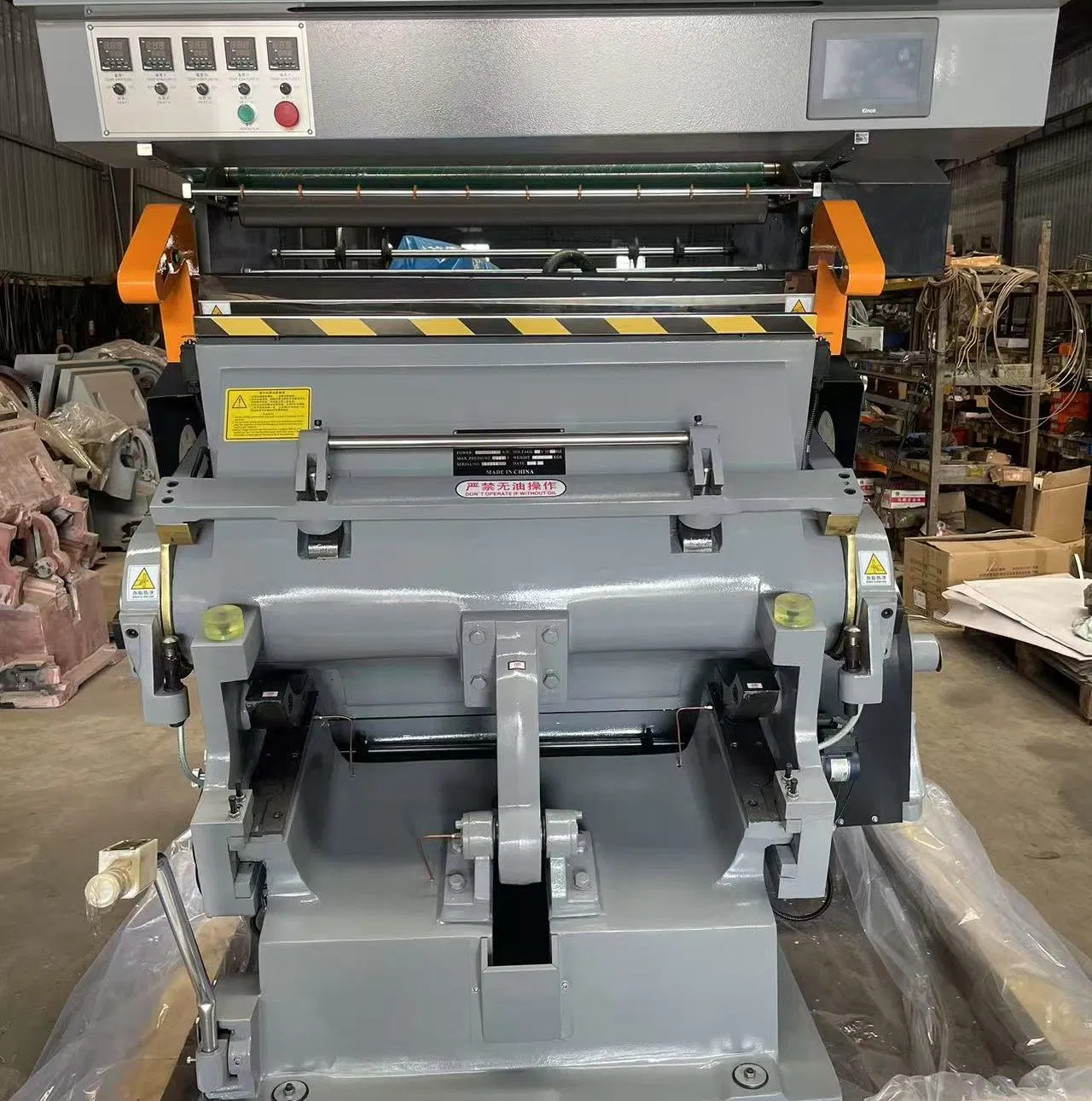

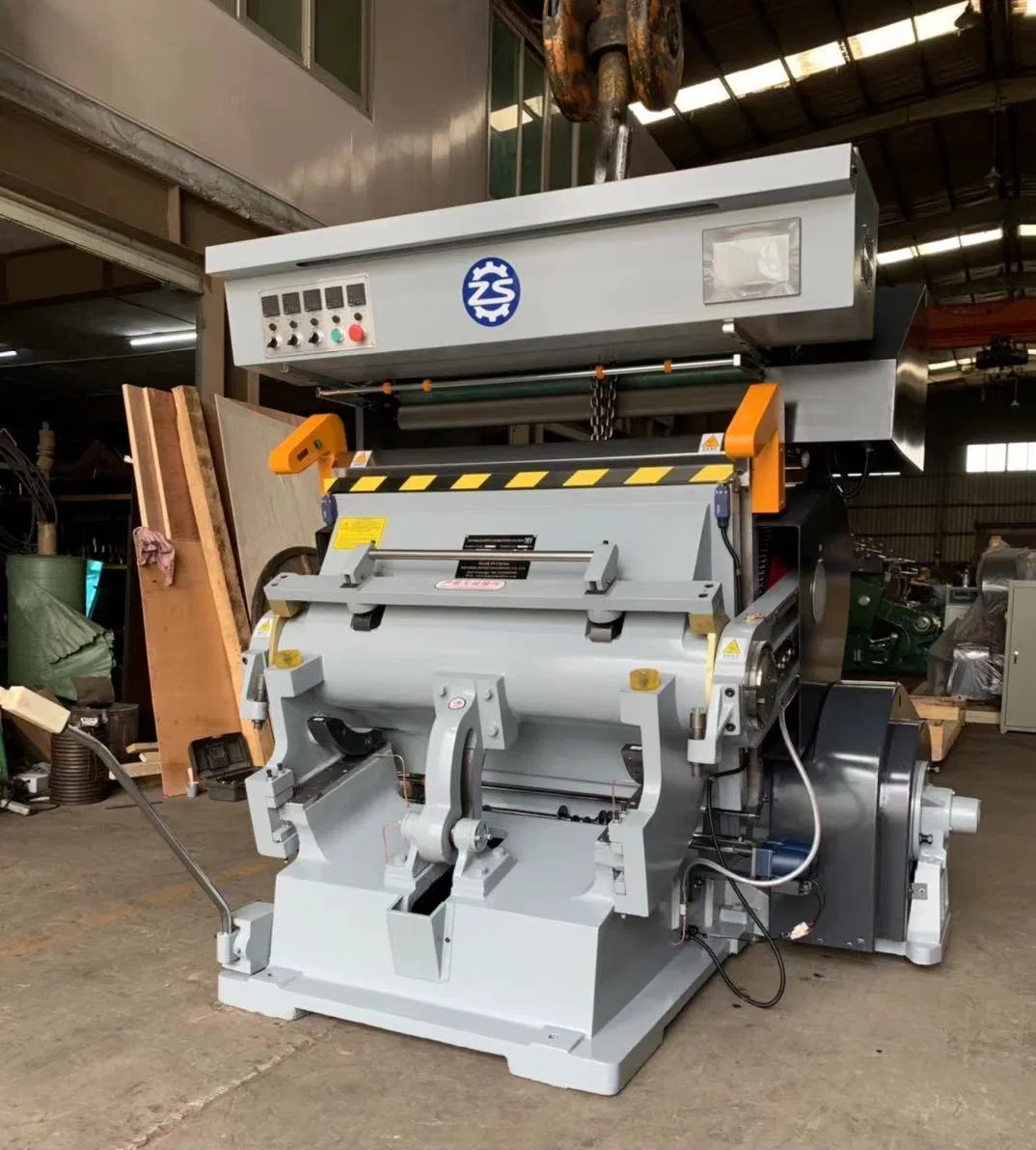

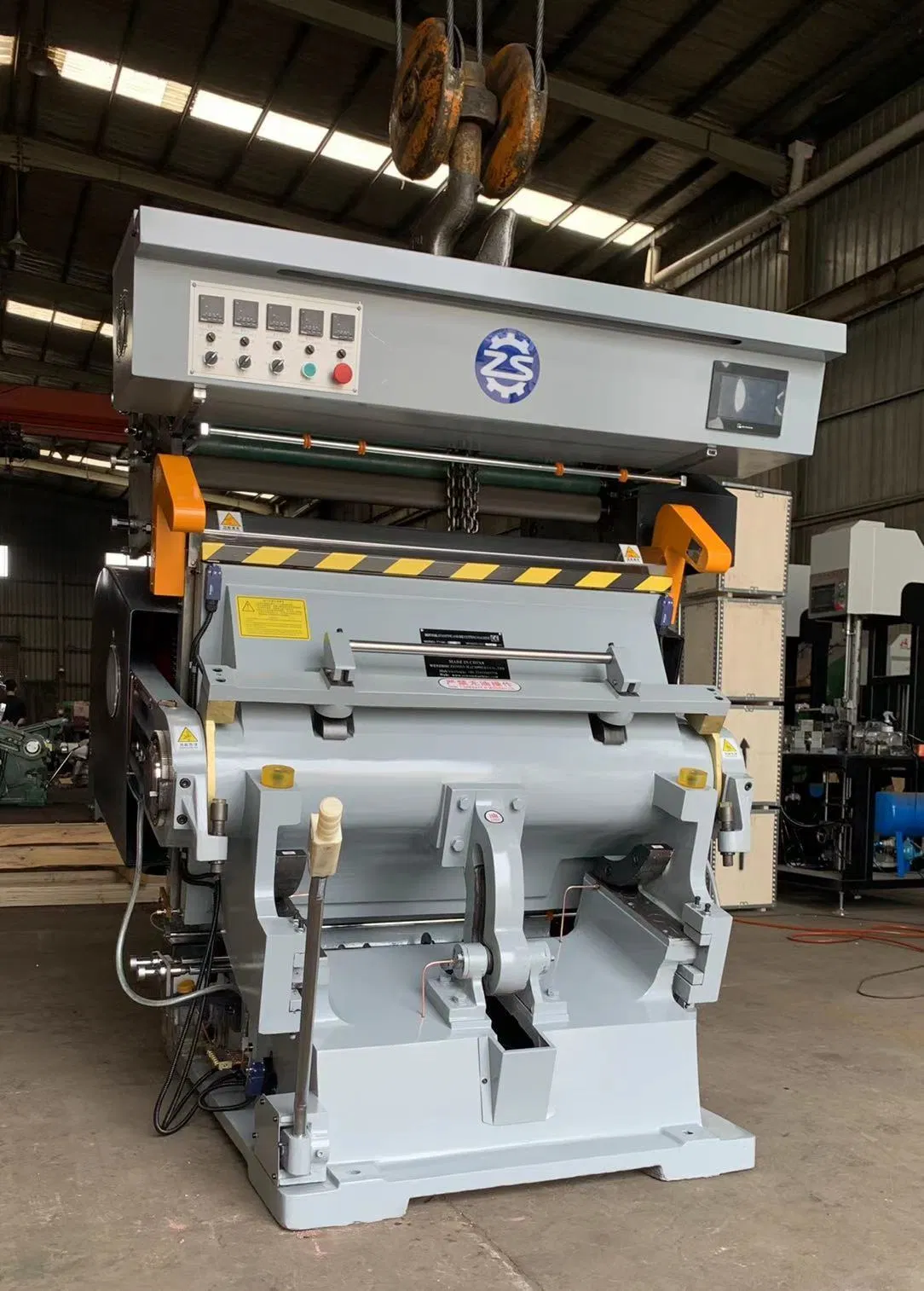

The manual hot foil stamping and die cutting machine is the ideal equipment for stamping and die cutting all kinds of paperboard, leather, and plastic. It is a fundamental equipment choice for printing factories.
This Manual Foil Stamping Machine is a versatile model designed for sampling and customized production. Key features include accurate temperature control, easy stamping plate replacement, simple operation, and a comprehensive protection system. It is also an excellent model for embossing and creasing, suitable for various weights of cardboard.
| Technical Specifications | |
|---|---|
| Model | TYMC-1100 |
| Max. inside chase size (mm) | 1100 × 800 |
| Max. stamping size (mm) | 1100 × 800 |
| Speed (sheets/min) | 23 ± 2 |
| Groups of feeding foil | 3 |
| Max. foil advance (mm) | 800 |
| Leapfrog frequency | 0-99 |
| Adjustable temperature (ºC) | 10-200 |

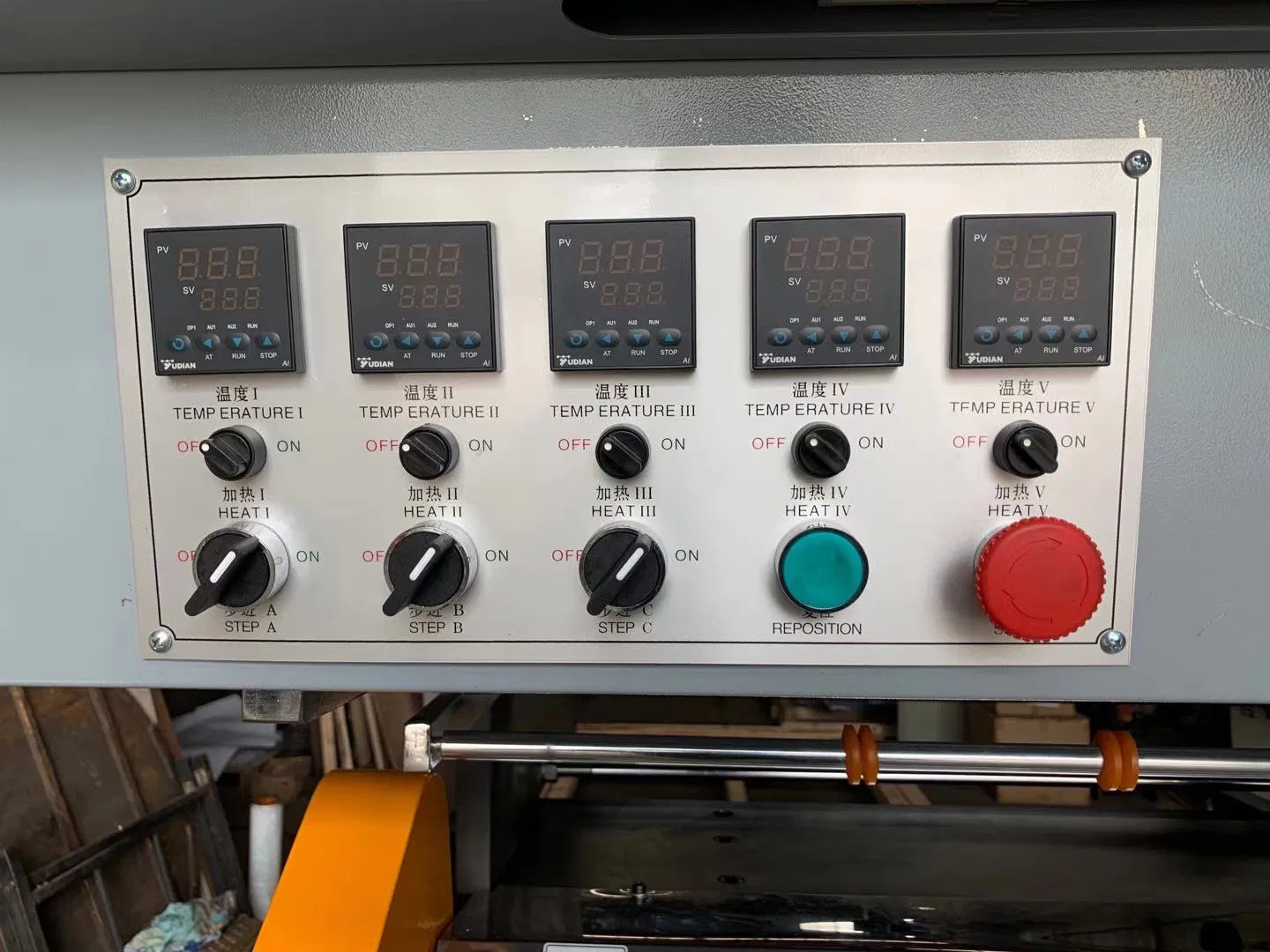

| Zones individually heated | 5 |
| Heating capacity (kw) | 15 |
| Total power (kw) | 20.5 |
| Motor power (kw) | 5.5kw |
| Gross weight (kg) | 5000 |
| Dimensions (L×W×H) (mm) | 2050 × 2050 × 2100 |

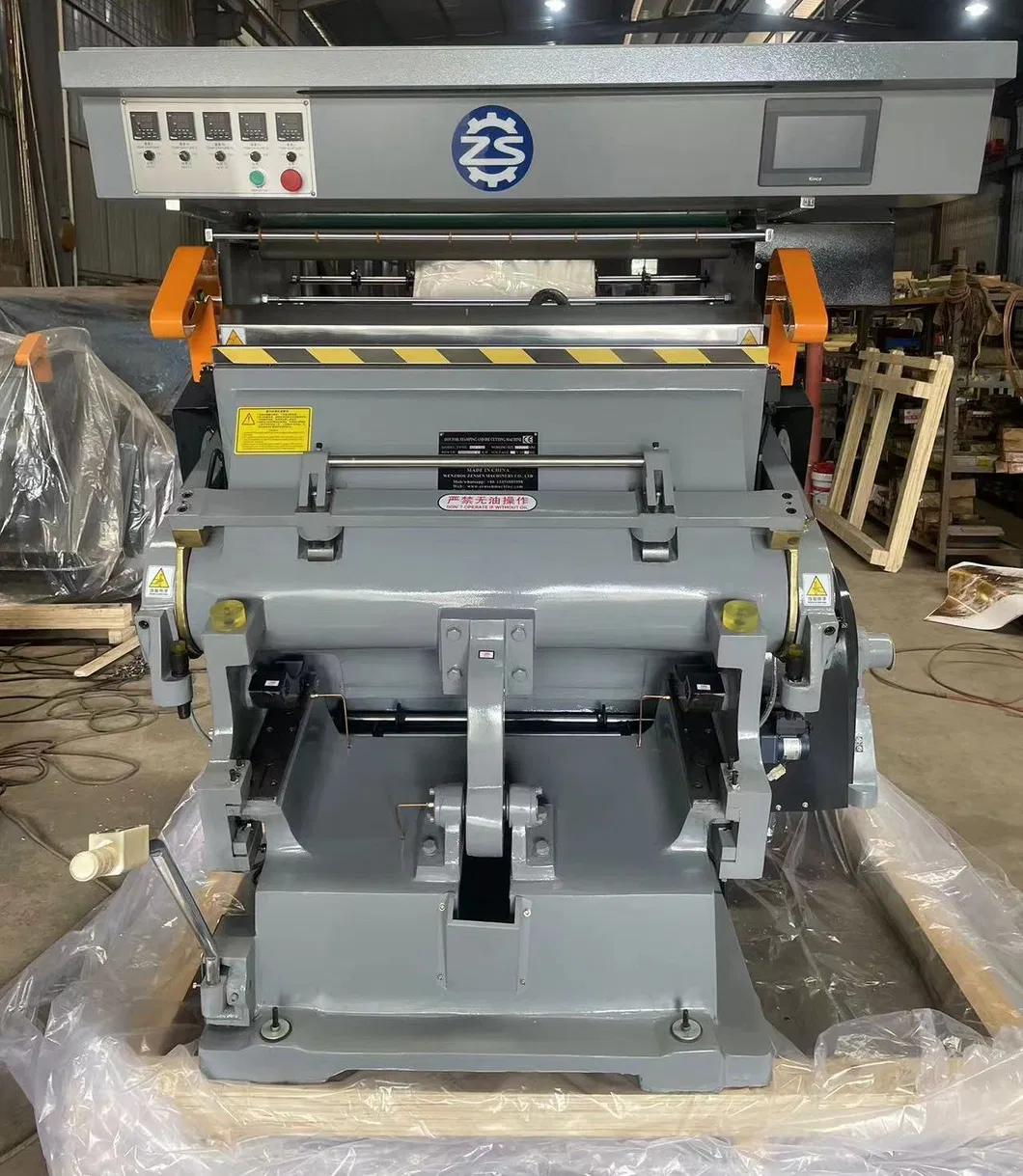

Robust Construction
Highest strength casting iron body with 3 shafts transmission ensures high working pressure and durability.

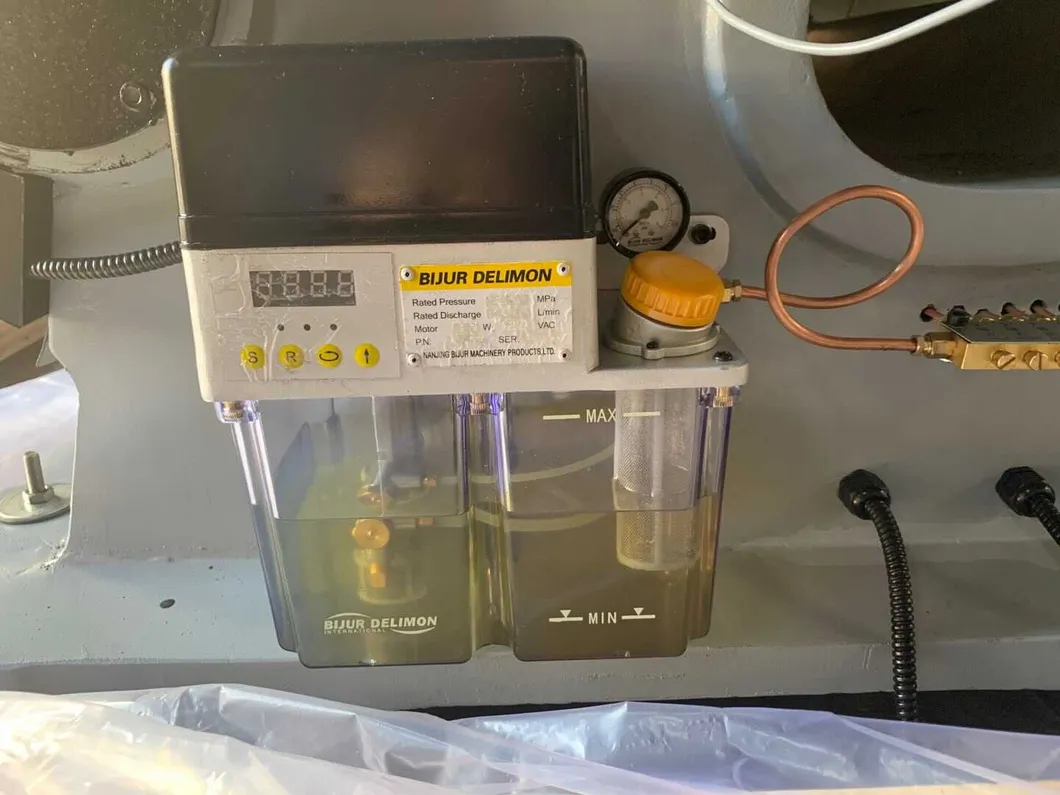

Advanced Lubrication
Automatic centralized lubrication system with memory function. The oil distribution valve allows the frequency of lubrication to be adjusted according to your workload, ensuring a long lifetime and easier maintenance.

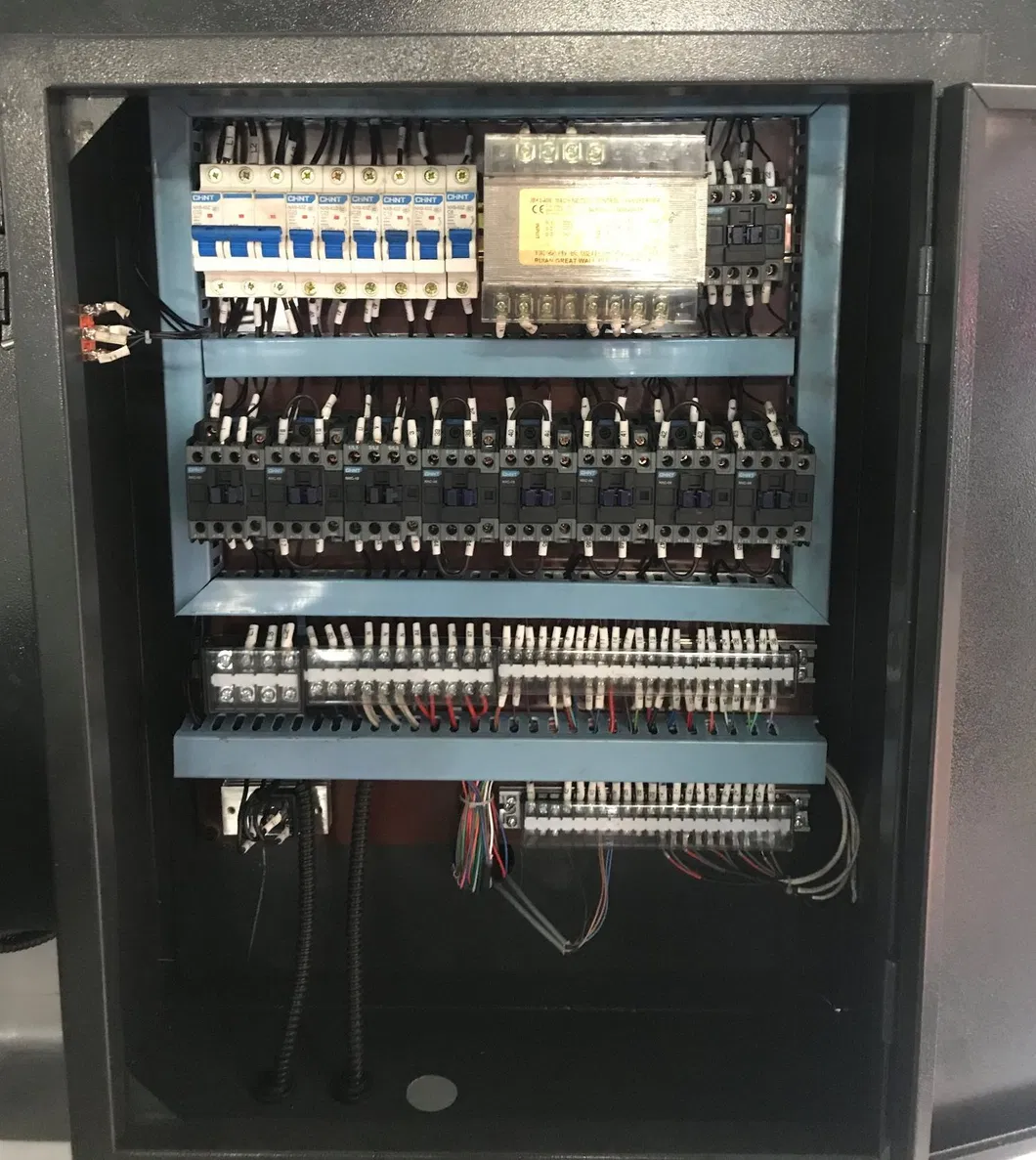

Premium Electrical Components
CE standard electric system featuring components from world-famous suppliers such as Siemens, Panasonic, and Omron.

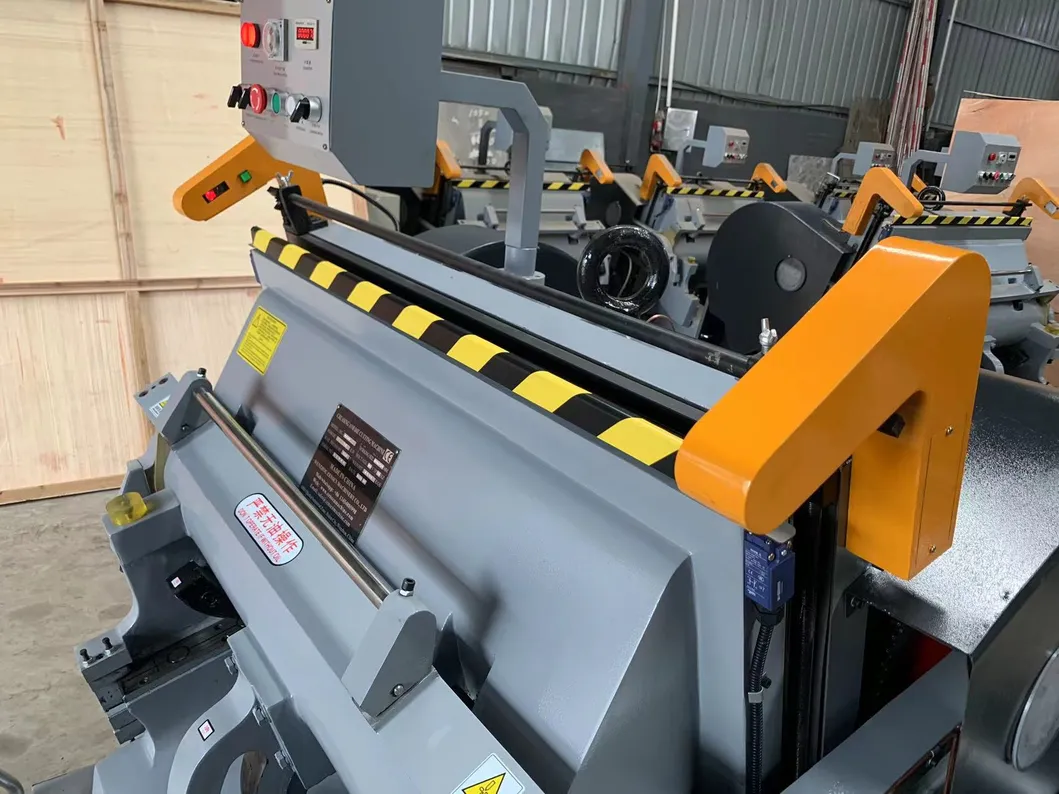

Safety & Control
Equipped with Omron Infrared sensors to protect operator safety. The system is highly sensitive and reliable. Includes a vertical overhead electrical cabinet to save space.
As a professional printing and packaging machines manufacturer established in 2003, we bring more than 15 years of experience in post-press die cutting, hot foil stamping, and laminating machinery. The organization consists of Technical Development, Manufacturing, Sales, and After-Sales Service departments, supported by a dedicated team including 30 senior engineers in the R&D center.

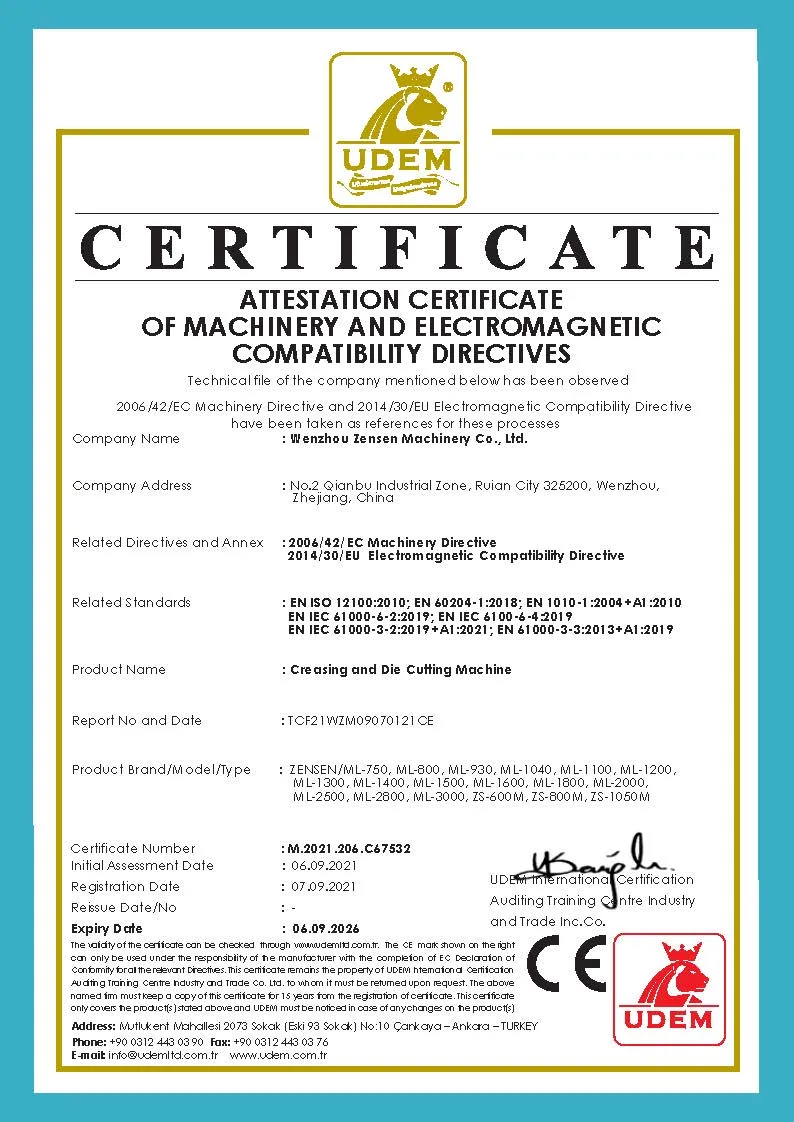

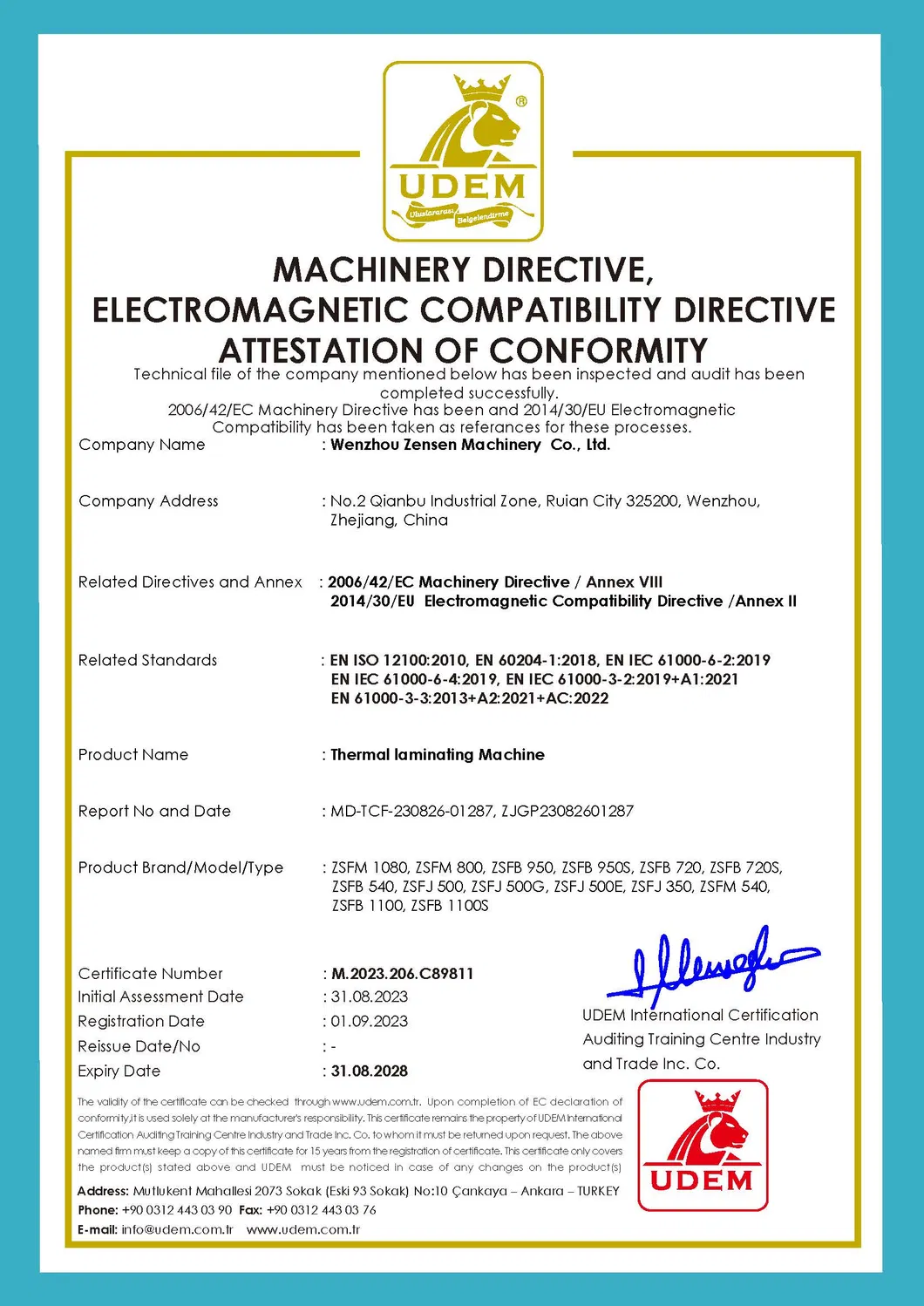

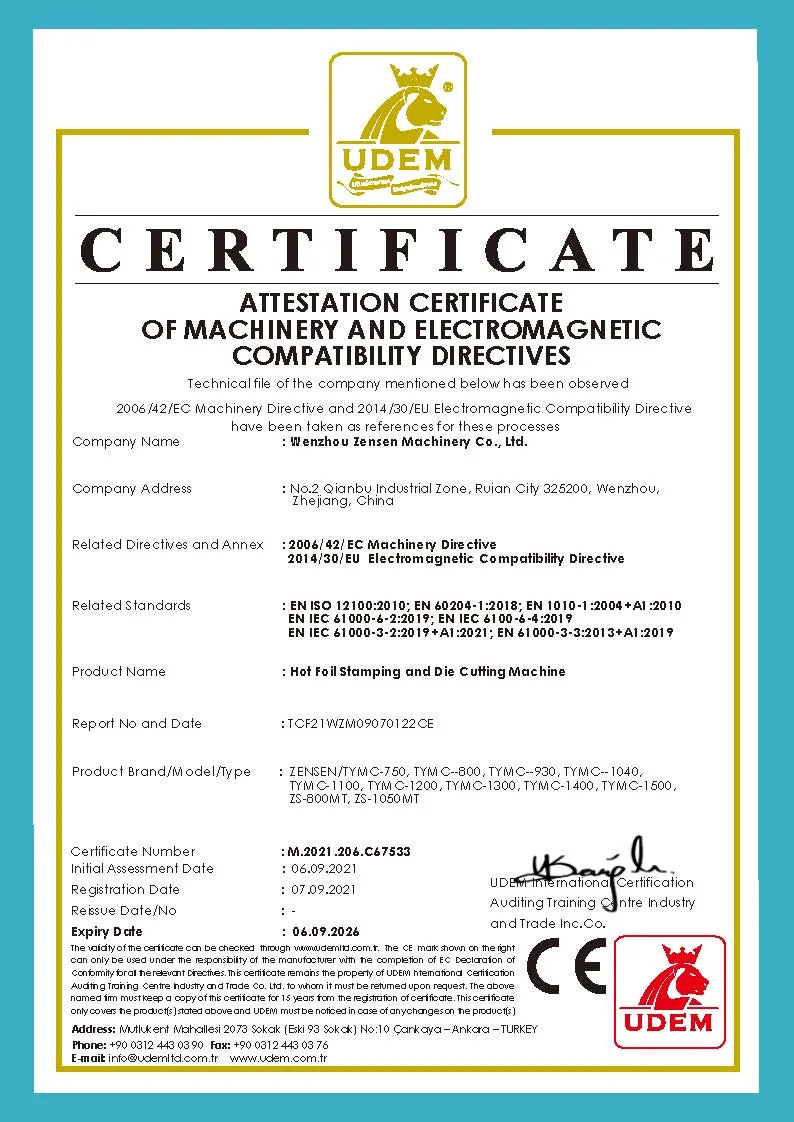

We are committed to the R&D of high and new technologies, combining advanced foreign techniques with rich domestic manufacturing experience to launch high-efficient printing equipment. Every machine is quality-proved and tested for performance, productivity, and durability before leaving the factory. We have successively passed ISO9001 and CE certifications, with products selling well across America, Europe, Asia, the Middle East, and Africa.
