2023 Torch Semi Automatic Stencil Screen Printer T1100
2023 Torch Semi Automatic Stencil Screen Printer T1100
2023 Torch Semi Automatic Stencil Screen Printer T1100
2023 Torch Semi Automatic Stencil Screen Printer T1100
2023 Torch Semi Automatic Stencil Screen Printer T1100
1 / 5
2023 Torch Semi Automatic Stencil Screen Printer T1100
2023 Torch Semi Automatic Stencil Screen Printer T1100
2023 Torch Semi Automatic Stencil Screen Printer T1100
2023 Torch Semi Automatic Stencil Screen Printer T1100
2023 Torch Semi Automatic Stencil Screen Printer T1100

2023 Torch Semi Automatic Stencil Screen Printer T1100

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications

Model NO.
T1100
Style
Screen-process Printing Press
Structure
Platen Press
Color & Page
Double Faced Single Color
Application
Printed Circuit
Print Interface
USB2.0
Maximum Print Area
220 × 180mm/ 220× 240mm (Optional)
Squeegee
Drive by Micro Motor
Scraper Material
Stainless Steel
Dimension
740× 554× 400mm
HS Code
8442500000
Production Capacity
500 PCS/ Year

Product Description

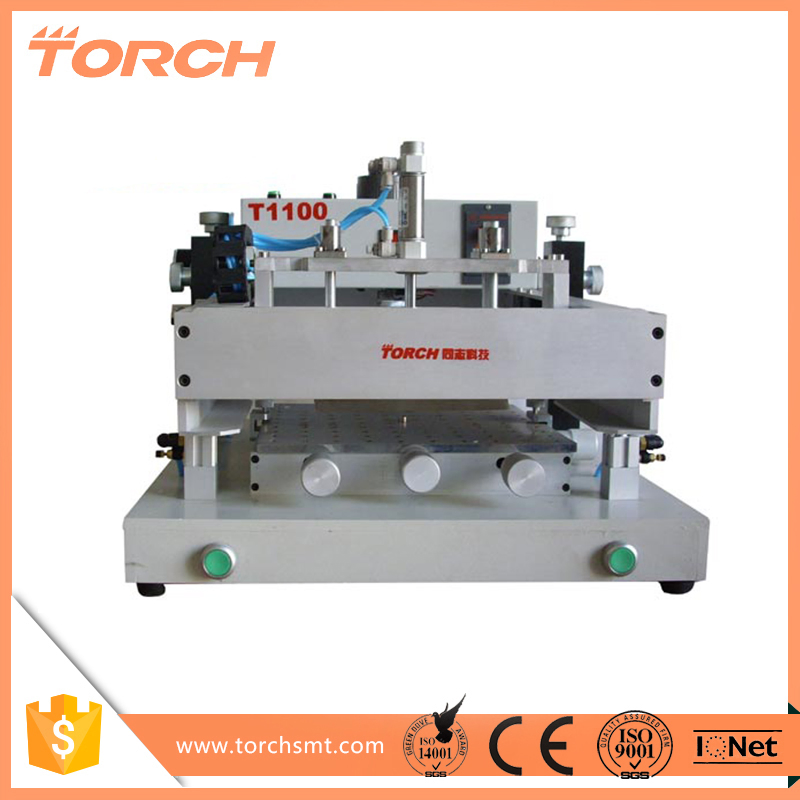

Semi-Automatic Stencil Printer T1100

Stencil Screen Printer T1100

The T1100 provides dual squeegee and stencil auto lift for high efficient and automatic production with fine pitch printing of solder paste under fine X, Y, Z, and θ Adjustments.

  • Double-sized PCBs print support with magnetism thimble to fix PCB.
  • Dual squeegee with unique adjustable angle-of-attack for precise single or dual direction printing.
  • Stencil lift and squeegee's up-and-down drive controlled by speed control valve of cylinder.
  • Squeegee drive powered by micro motor for consistent movement.
  • PLC control system ensures high precision and low fault rates.
  • High-quality linear guides assure smooth squeegee motion.
  • Fine X, Y, Z, and θ Adjustments for exact stencil-to-board alignment.

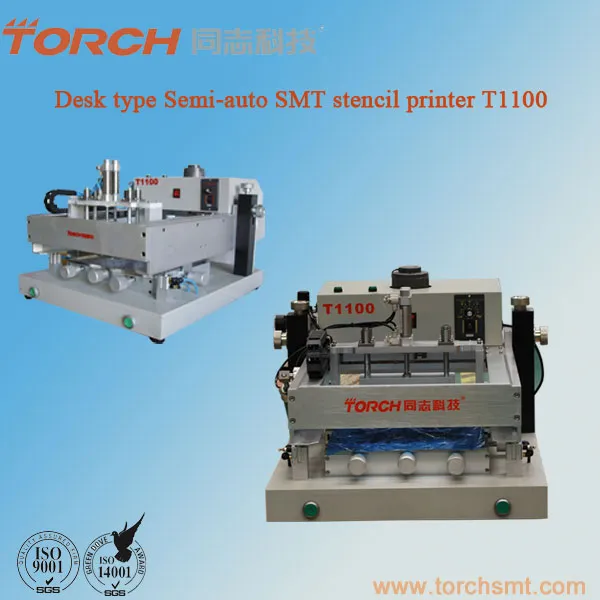

Printer Detail 1 Printer Detail 2
Max print area220 ×180mm; 220×240mm (optional)
Max steel seat size350x400mm
Frames size400*350mm
Adjustable dual squeegee pressure/speedControl by valve of cylinder
Adjusting stencil size/thickness350×400mm / 20mm
Squeegee driveMicro motor
Squeegee materialStainless steel
Automatic power frame liftYes
Magnetism thimble for double-sized PCBsYes
X & Y adjustment+/-10mm
Z axis adjustment15mm
Θ adjustmentCounter rotating dual knobs +/-5 ºC
Repeat accuracy<0.03mm
Ideal Max print accuracy0.4mm IC, BGA with ball diameter > 0.3mm
Power supply / Max powerAC220V, 50Hz / 60W
Air pressure requirement0.4-0.7 Mpa

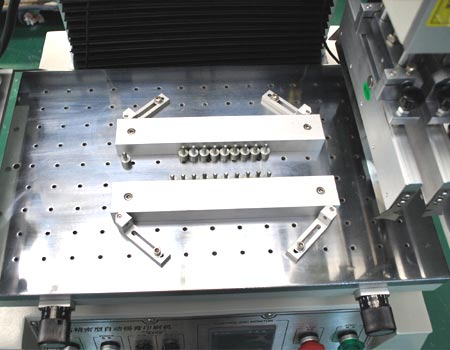

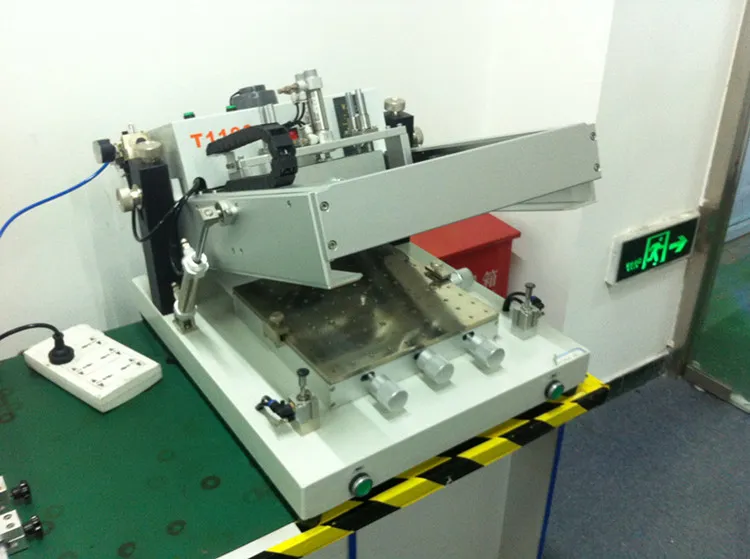

Operating View 1 Operating View 2 Operating View 3

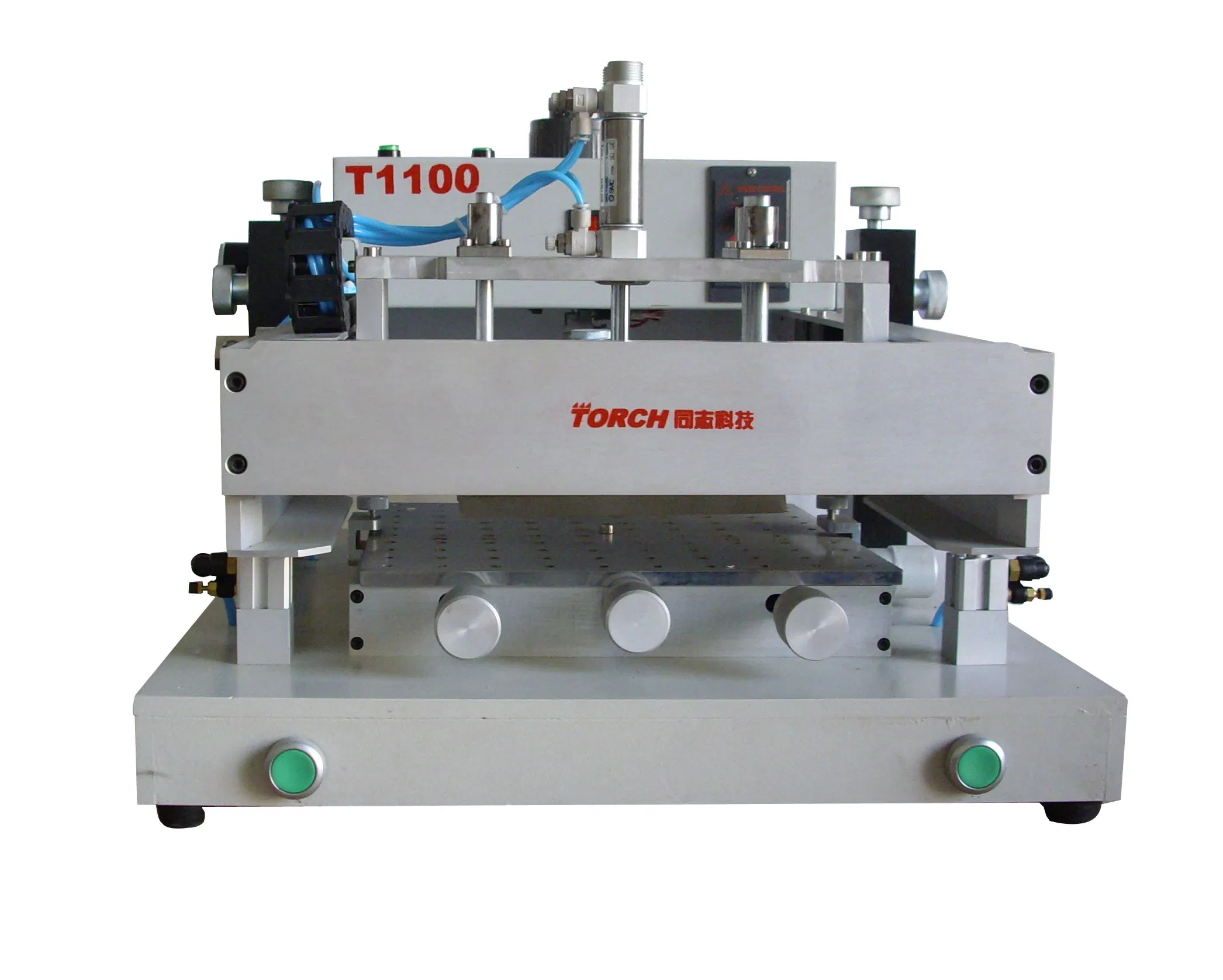

Full Product View Component View Size Diagram

Frequently Asked Questions

What is the printing accuracy of the T1100?
The T1100 offers a repeat accuracy of less than 0.03mm and an adjustable accuracy of less than 0.01mm, making it ideal for 0.4mm IC and BGA printing.
Does this machine support double-sided PCB printing?
Yes, it features a magnetism thimble support system specifically designed to fix and support double-sized PCBs during the printing process.
How is the squeegee controlled?
The squeegee is driven by a micro motor and its up-and-down movement is controlled by a speed control valve of the cylinder. The pressure and speed are fully adjustable.
What kind of control system does the printer use?
The machine utilizes a PLC (Programmable Logic Controller) system to ensure high precision, stability, and a low failure rate during operation.
What are the adjustment capabilities for alignment?
It includes fine X, Y, Z (+/-10mm to 15mm) and θ (counter-rotating dual knobs +/-5 ºC) adjustments for exact stencil-to-board alignment.
What is the required air pressure for operation?
The printer requires an external air supply with a pressure range between 0.4 and 0.7 Mpa.
