Imago Printer
Imago Printer

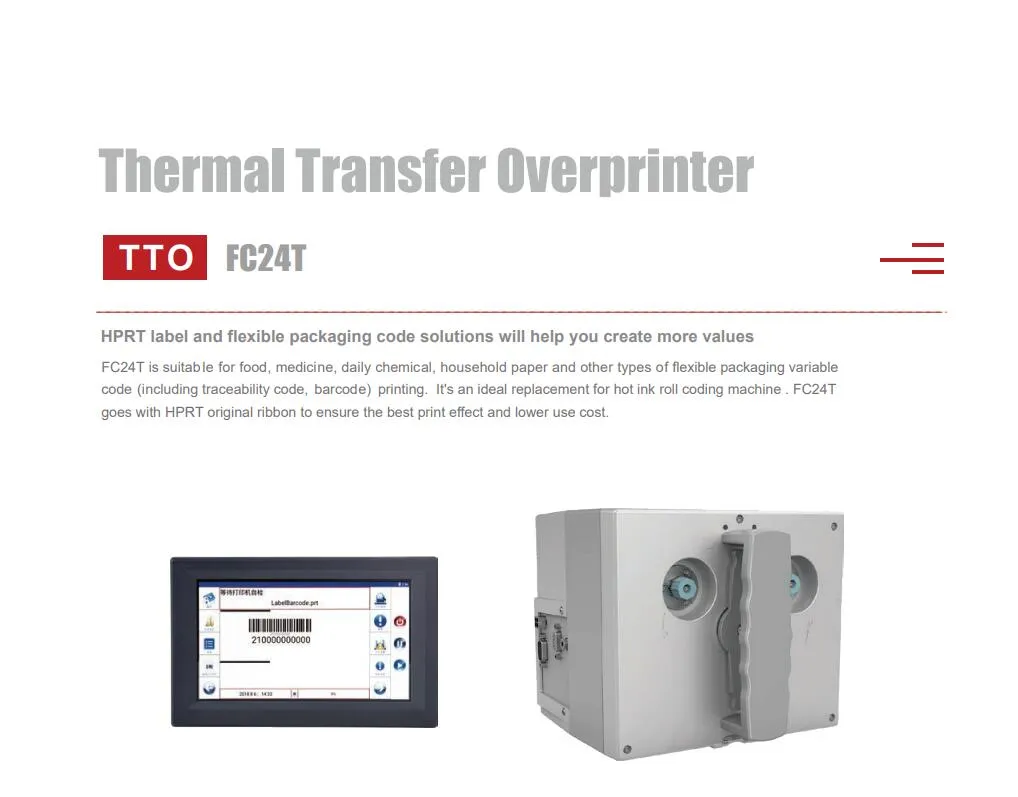

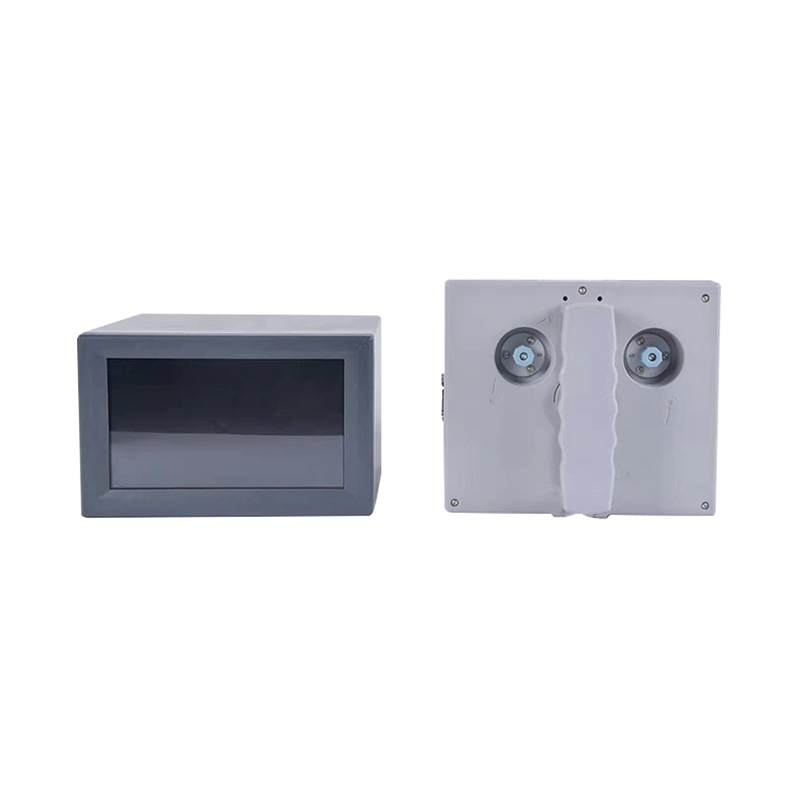

FC24T Thermal Transfer Overprinter
What is TTO?
Thermal Transfer Overprinting (TTO) is a technology that creates messages in resolutions up to 203dpi 300 dpi by pushing a ribbon into contact with a substrate using a printhead. The printhead is made up of a series of miniature print elements under a ceramic coating and a layer on the thermal printer ribbon is covered with a coloured wax and/or resin mixture. The mixture on the ribbon melts as small areas of it come into contact with the elements that are heated, this transfers and adheres colour to the surface of the substrate as it moves under the printhead.

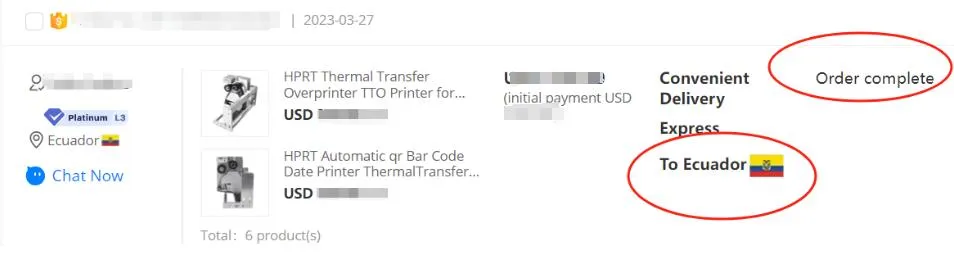

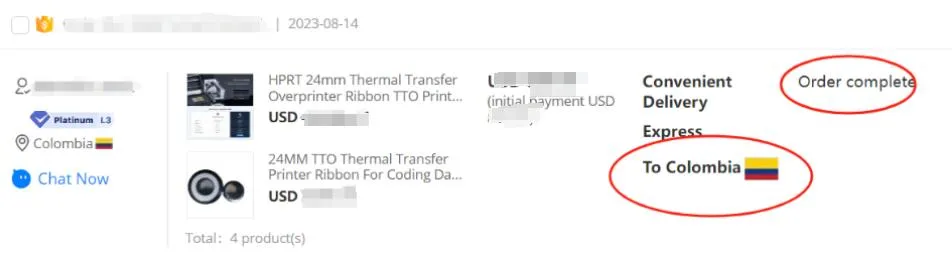

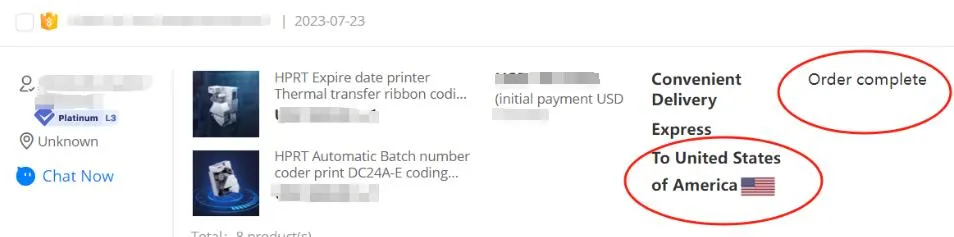

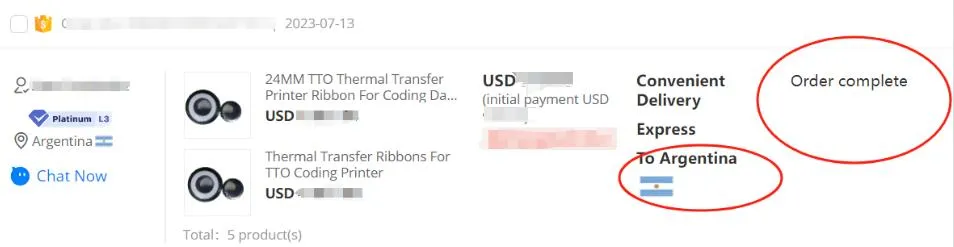

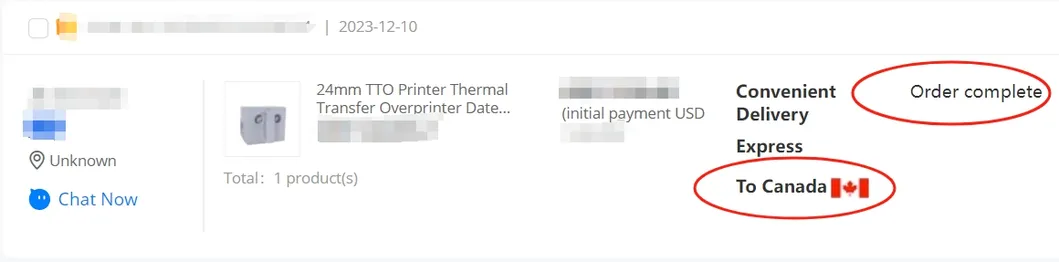

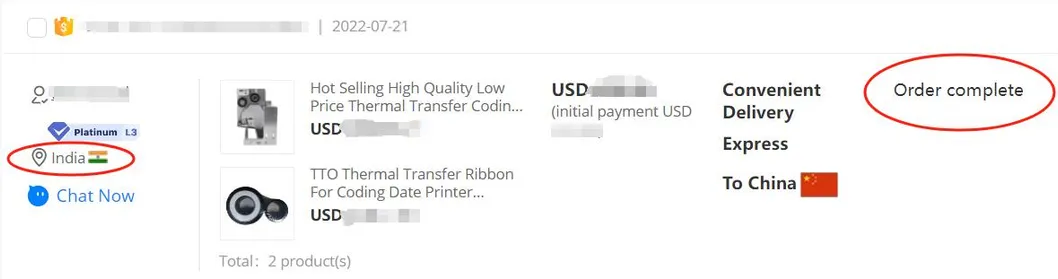

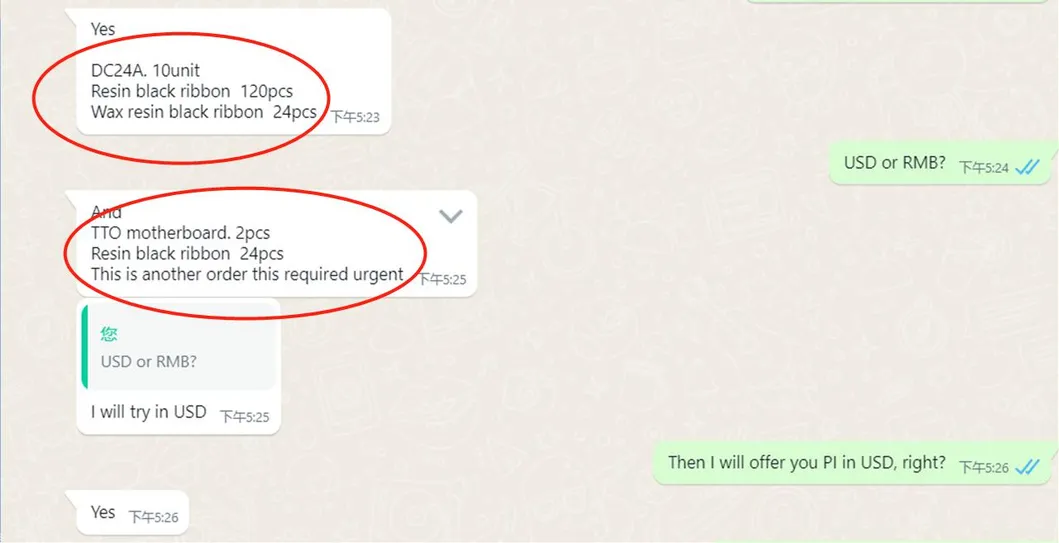

Customers who have recently purchased our tto printers:

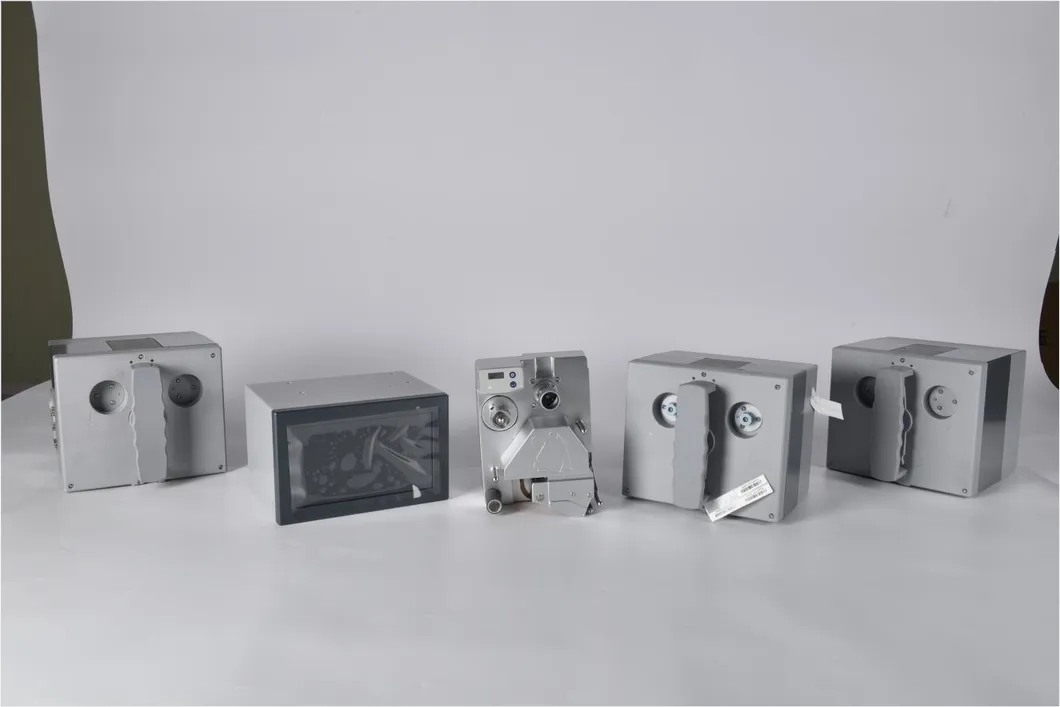

Exhibition Display:
| Structure | Semi-metal structure |
|---|---|
| Printing Method | Thermal Transfer Printing |
| Resolution | 203dpi (8 dots/mm) |
| Printing Speed | 50-500mm/s |
| Printing Width | 24mm |
| Print Area | 24*50mm |
| ROM / RAM | 8GB / 1GB |
| Soft Package Material | PVDC, PET, PE, NY, CPP, OPP, BOPP, BOPET, BOPA, VMPET, VMCPP and other films |
| Ribbon Capacity | Maximum length of 500 meters |
| Airflow Consumption | As low as 4 ml / print at 2.5 bar |
| Ethernet Interface | RJ-45 connector, IEEE802.3 10/100BASE-T |
| Power Supply | AC90V-264V, 47/63 Hz; 150 VA |

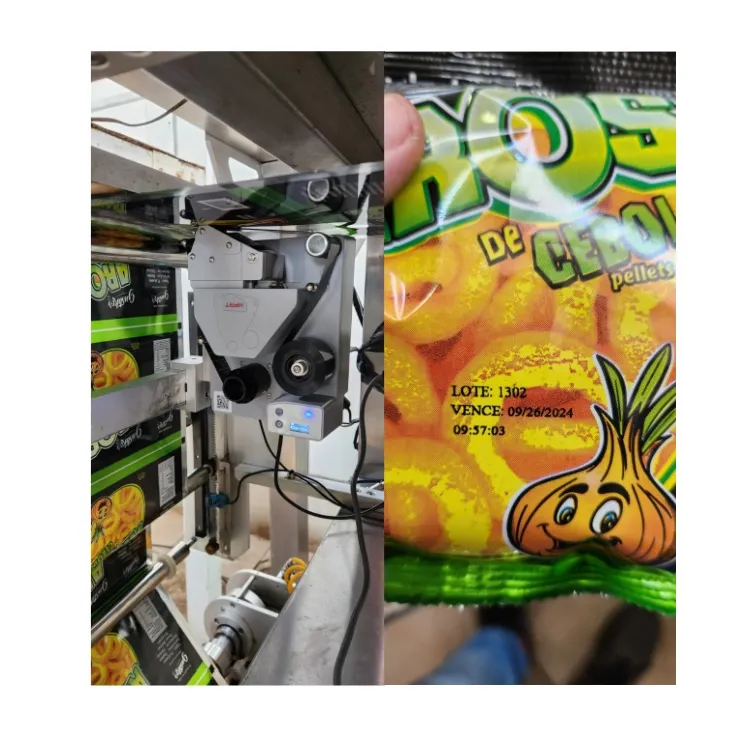

DC24A / DC24A-E TTO Printer
Designed for leapfrog upgrade of traditional TTO. Ideal for production date, shelf life, and QR code printing on VFFS/HFFS packaging machines.

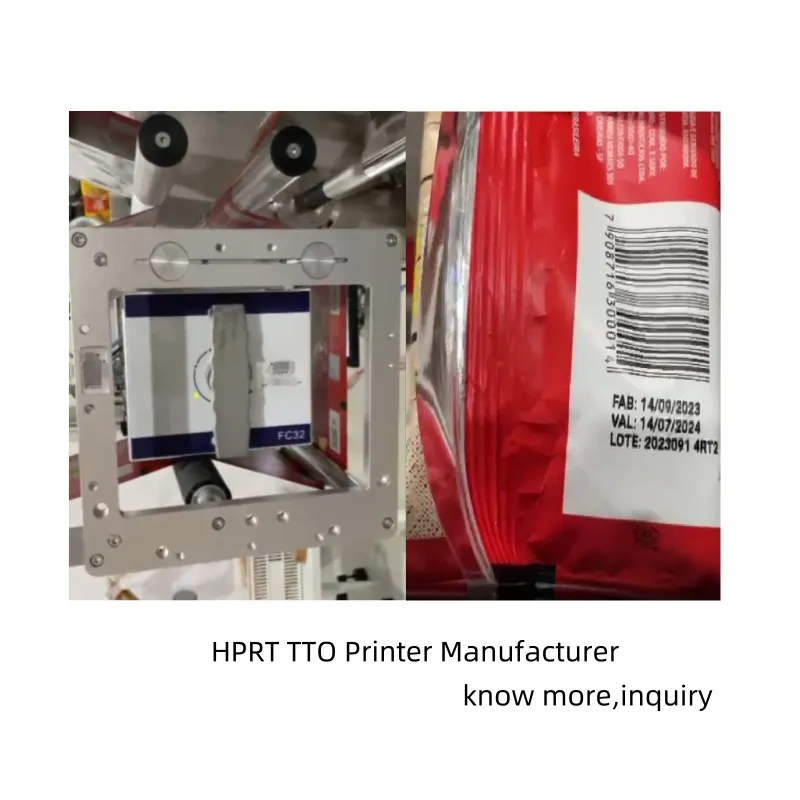

FC32 TTO Printer (32mm)
High-resolution batch coding machine perfect for fast-moving production lines with 203dpi or 300dpi capabilities.

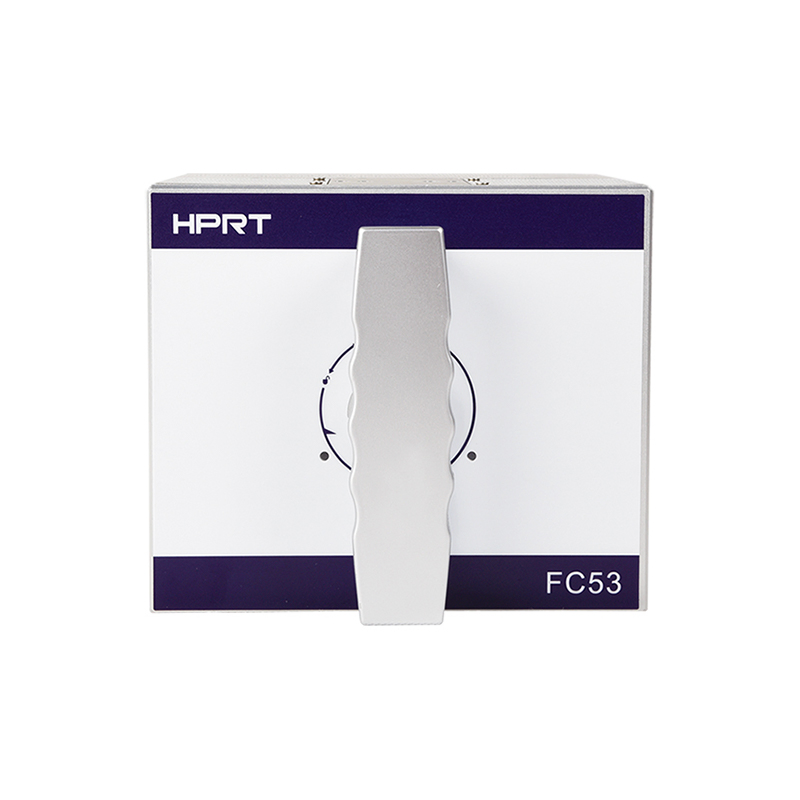

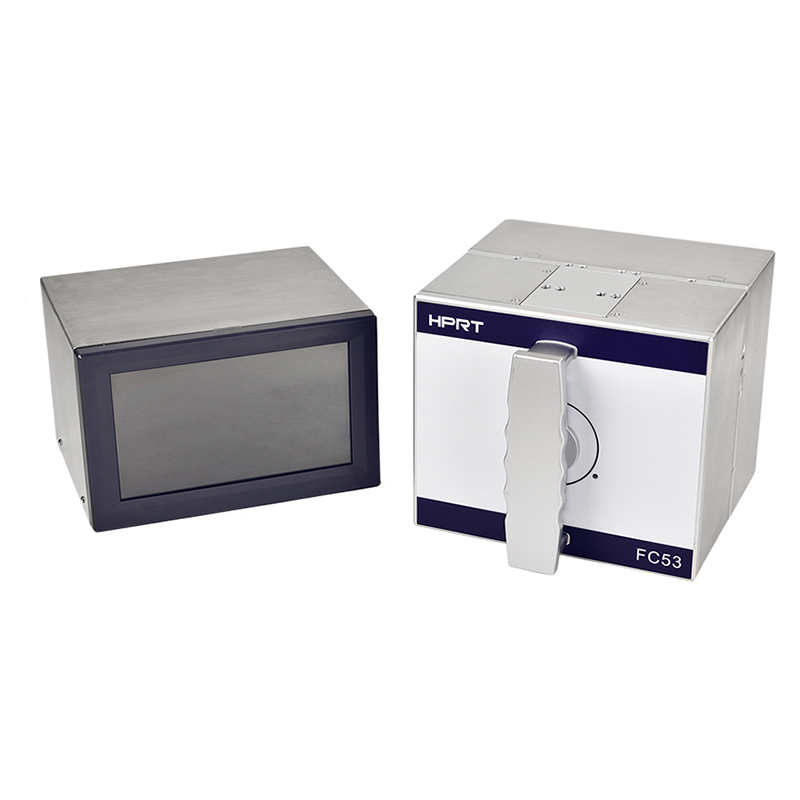

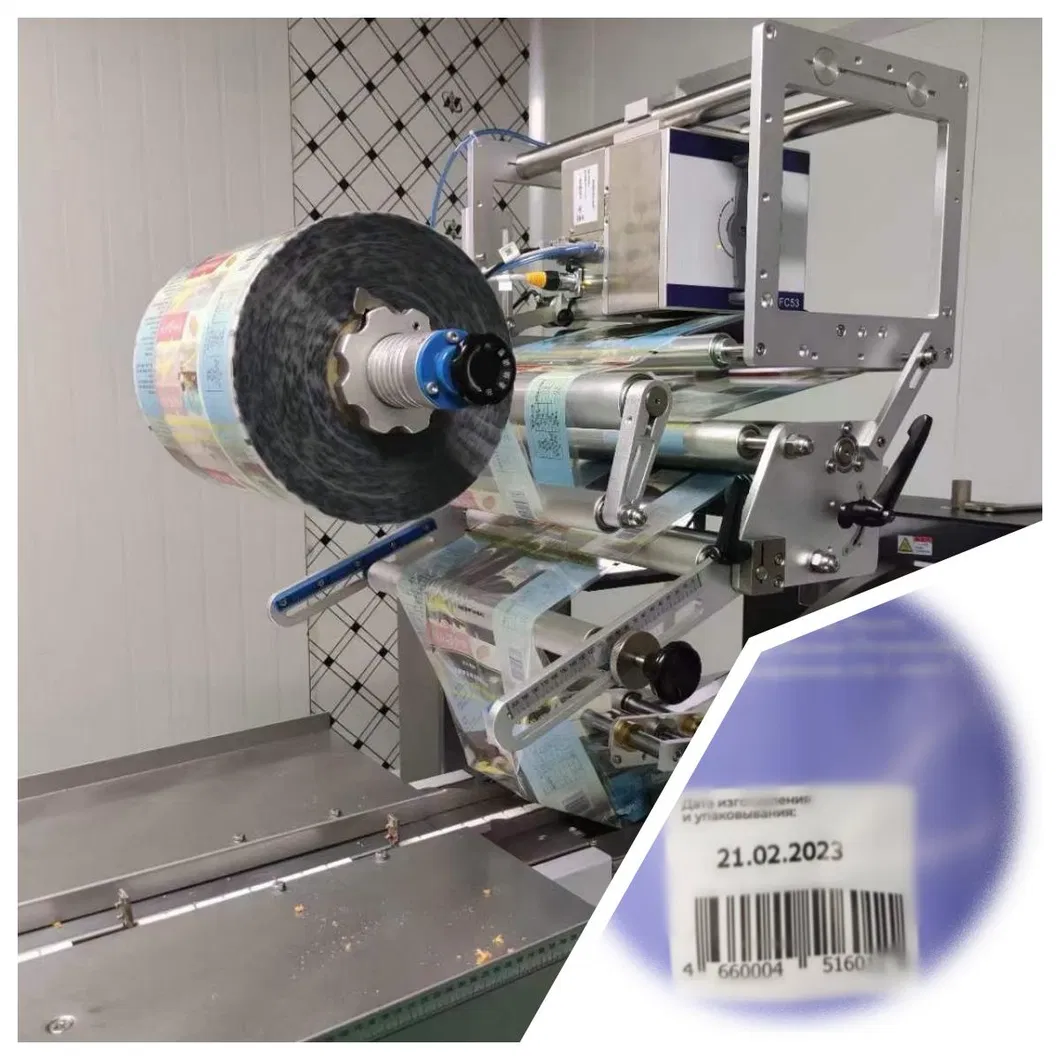

FC53 TTO Printer (53mm)
The best solution for pouch batch coding in candy and confectionery production lines, offering cost-effectiveness and high quality.
It is compatible with a wide range of soft package materials including PVDC, PET, PE, NY, CPP, OPP, BOPP, and various composite films.
The FC24T supports a high printing speed ranging from 50mm/s up to 500mm/s, suitable for fast production lines.
It features a patented ribbon saving design and uses an ultra-wide ribbon (20mm-26mm) to optimize usage and minimize waste.
Yes, it provides real-time detection for ribbon status, broken dots, and thermal head position to ensure consistent print quality.
The machine uses an internal switching power supply module compatible with AC90V-264V, 47/63 Hz.
Absolutely. With a resolution of 203dpi, it can clearly print barcodes, QR codes, logos, and intricate ingredient lists.
