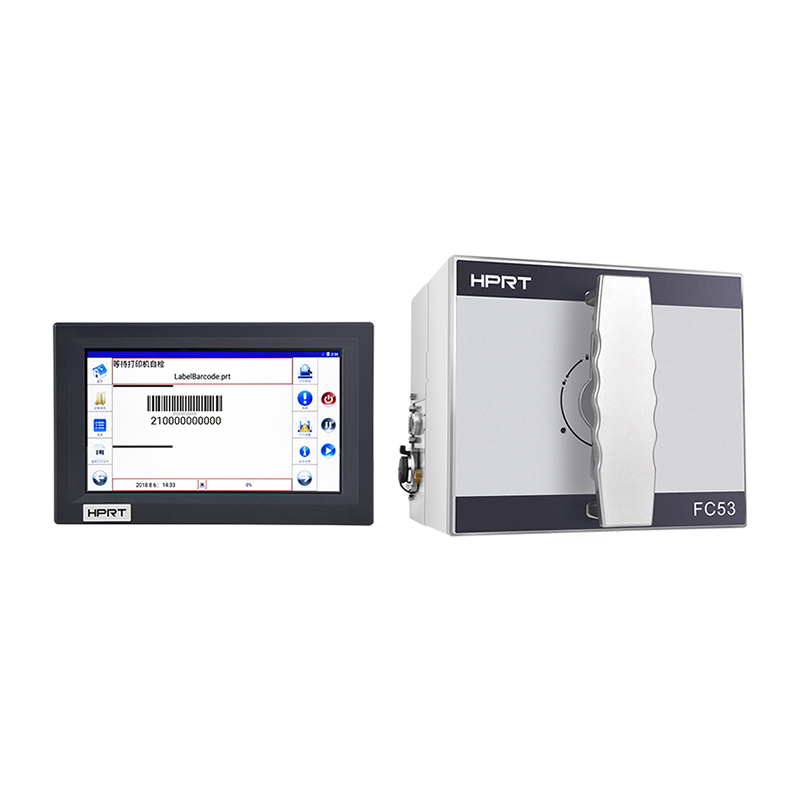

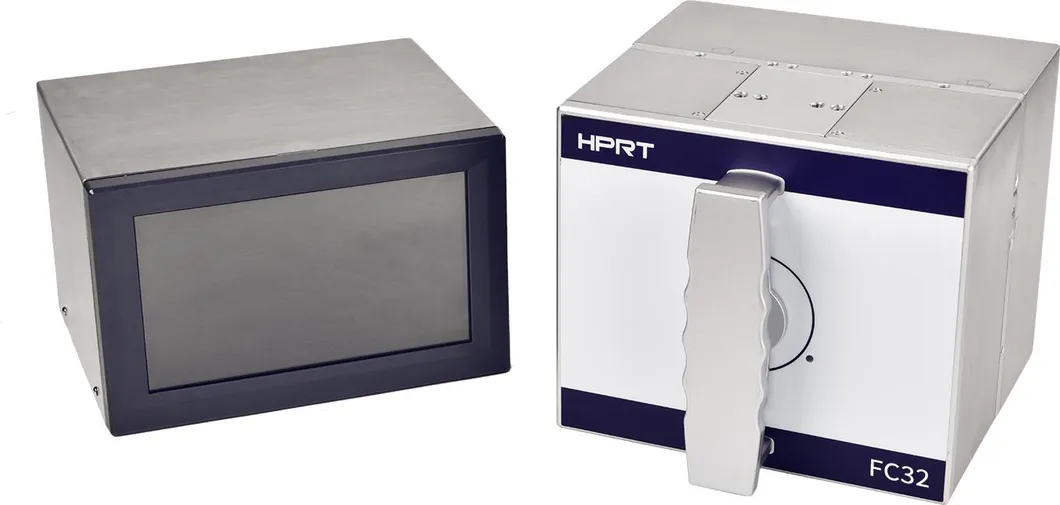

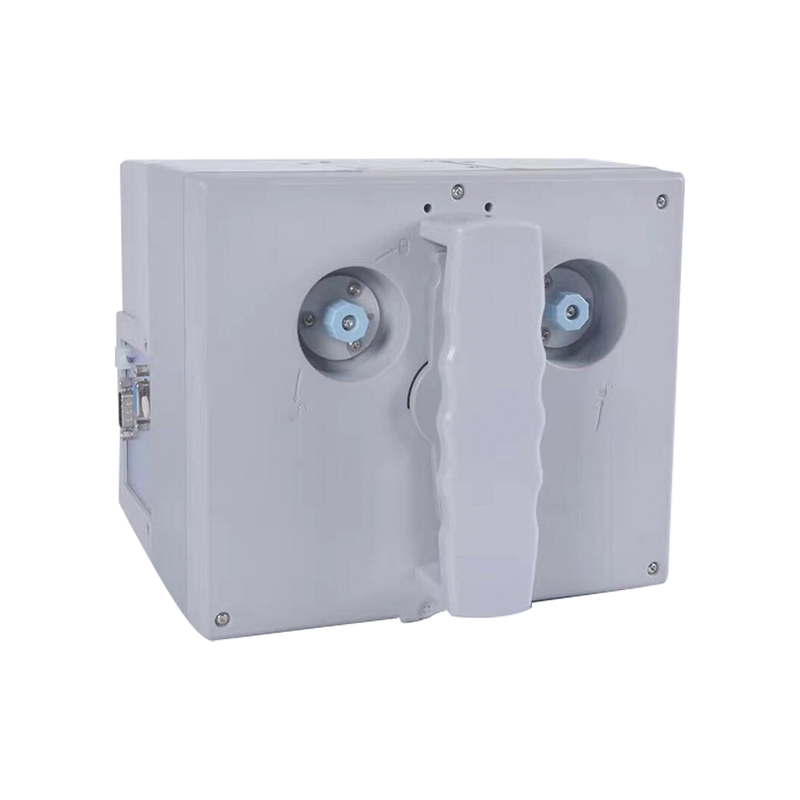

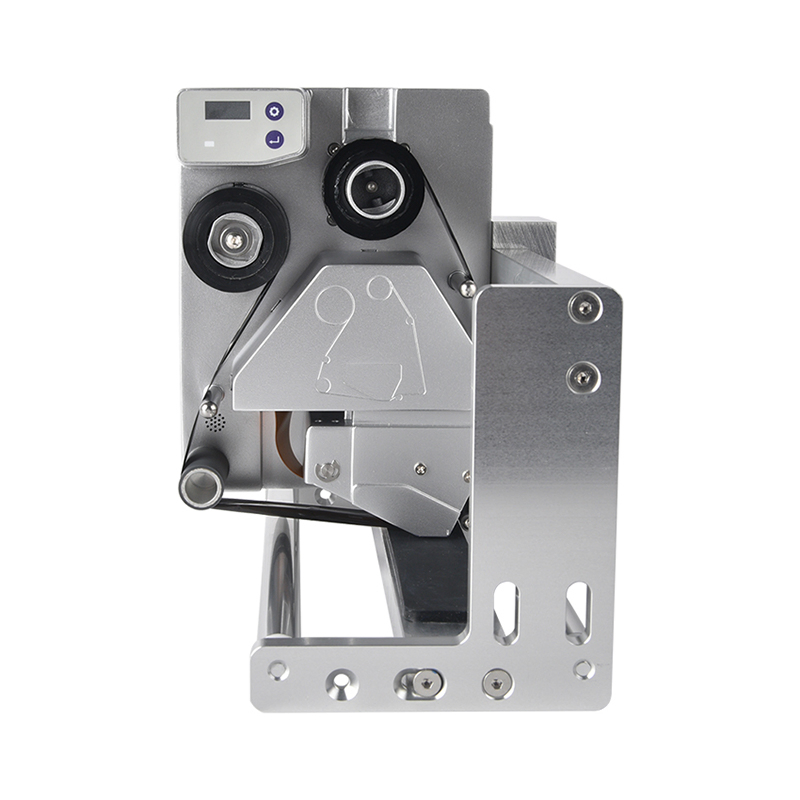

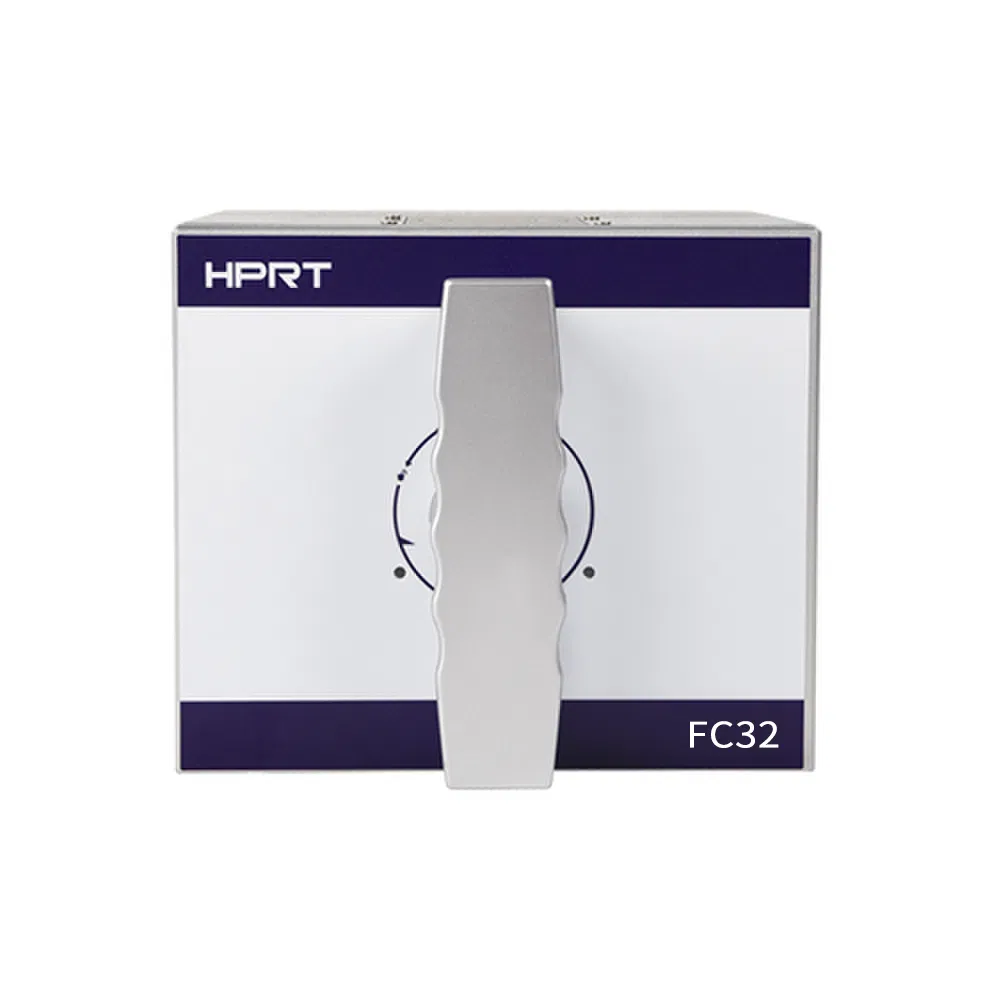

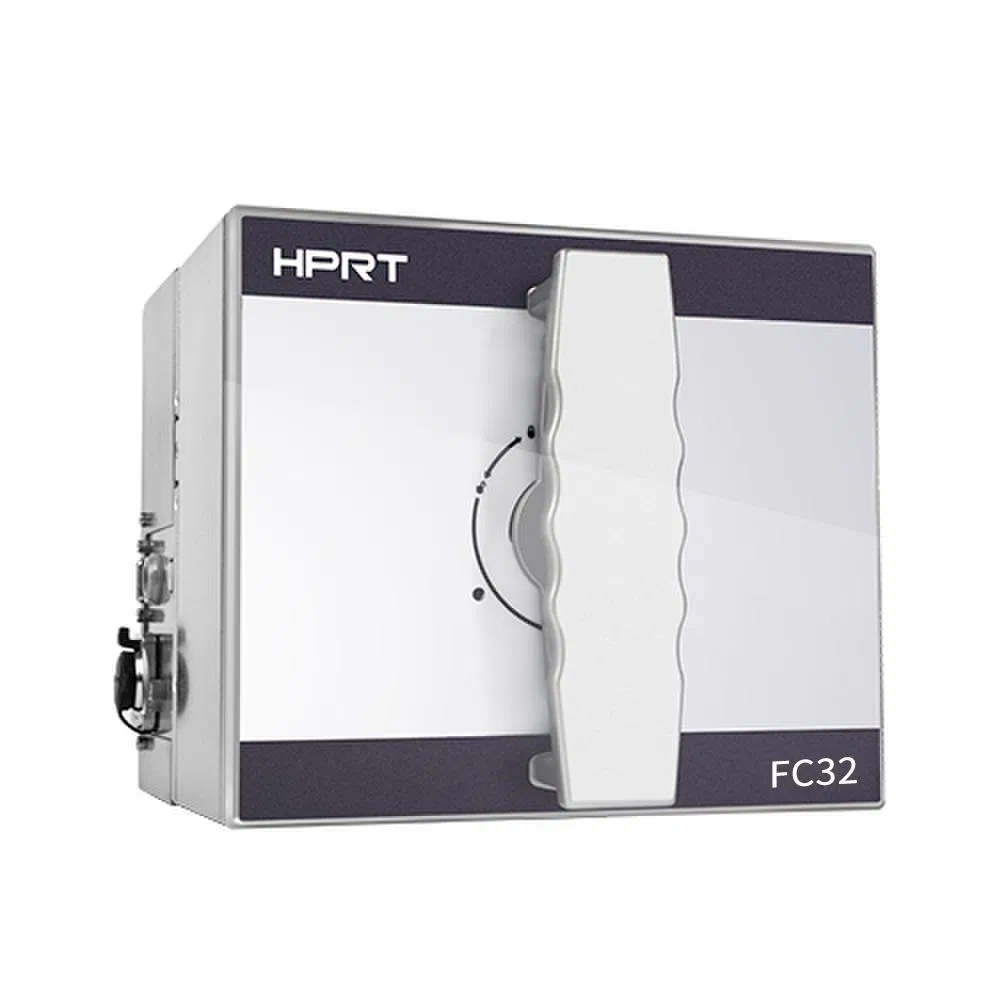

Imago Printer
Imago Printer
| Structure | All-metal structure |
| Printing Method | Thermal Transfer Printing |
| Resolution | 300dpi (12 dots/mm) |
| Printing Speed | 40-600mm/s |
| Printing Width | 32mm |
| Print Area | 32mm*100mm (Continuous) |
| CPU | 32-bit RSIC |
| Flash Memory | 8MB (minimum) |
| Dynamic Memory | 16MB (minimum) |
| Real-time Clock | STD (Battery Lifespan: min 3 years) |
| Sensors | Ribbon Tension, Thermal Head Position, Cover Open, TPH Over Temperature, Ribbon Break Detection |
| Soft Package Material | PVDC, PET, PE, NY, CPP, OPP, BOPP, BOPET, BOPA, CPP, PE, VMPET, VMCPP and composite films |

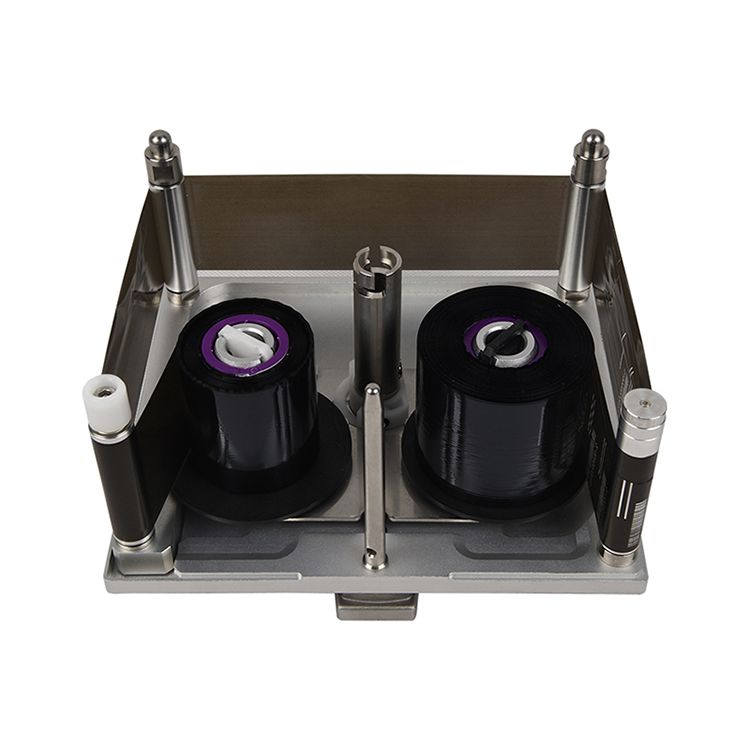

| Ribbon Loading | 1" mandrel with a maximum length of 1100 meters |
| Ribbon Type | Wax / Resin-based; Width: 20 mm to 55 mm |
| Ribbon Saving | Interlaced, radial, multiple print signals, digital ribbon saving, ribbon back modes |
| Air Pressure Supply | Max. 6 bar/90 psi |
| Interface | USB 2.0, USB Host, Serial Port (RS232), Ethernet (RJ-45) |
| Power Supply | AC90V-264V, 47/63 Hz; 150 VA |
| Machine Weight | Printer: < 8 kg; Controller: < 5 kg |
| Warranty | Printer: 3 years; Controller: 3 years; Thermal head: 6 months/50 KM |
