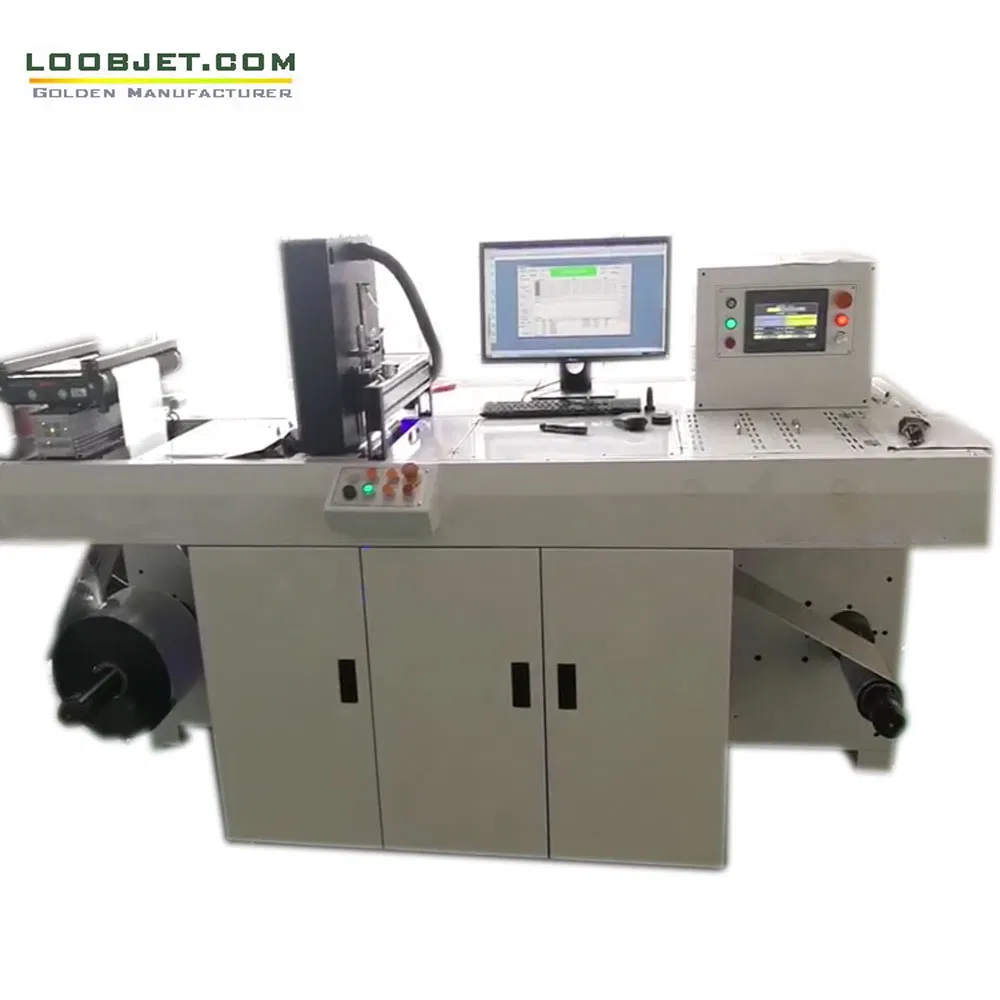

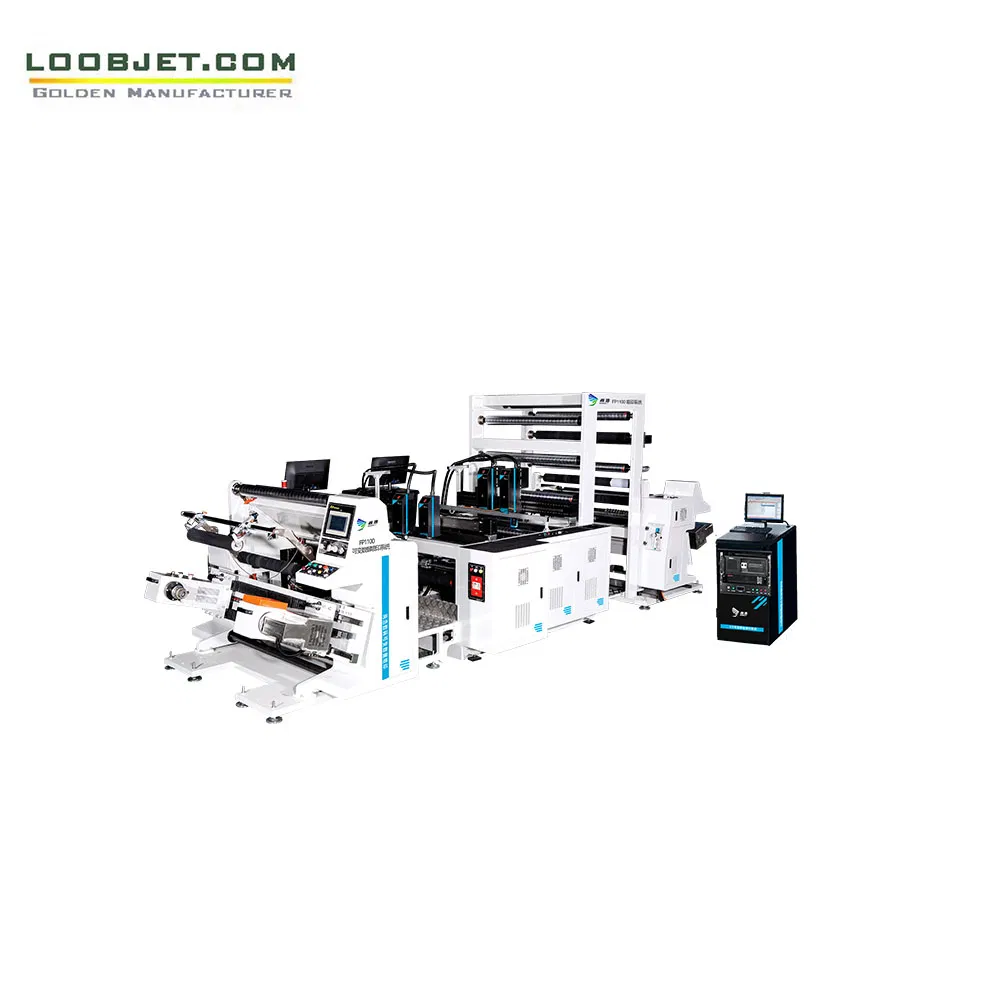

Apparel Hang Tag Digital Code Printer

Customization:	Available
Type:	Ink Jet
Plate:	Variable Data

Send Inquiry

Product Description

📊

Technical Specifications

Model

HSJET

Structure

Inkjet Printing

Color

Single-Colour

Application

Packing and Printing

Interface

RS232

Printing Speed

100m/Min

Resolution

150-600dpi

System Support

Windows

Power

AC 90V-240V/50-60Hz

Ink Solution

Porous, Semi-Porous, Non-Porous

💡

Product Introduction

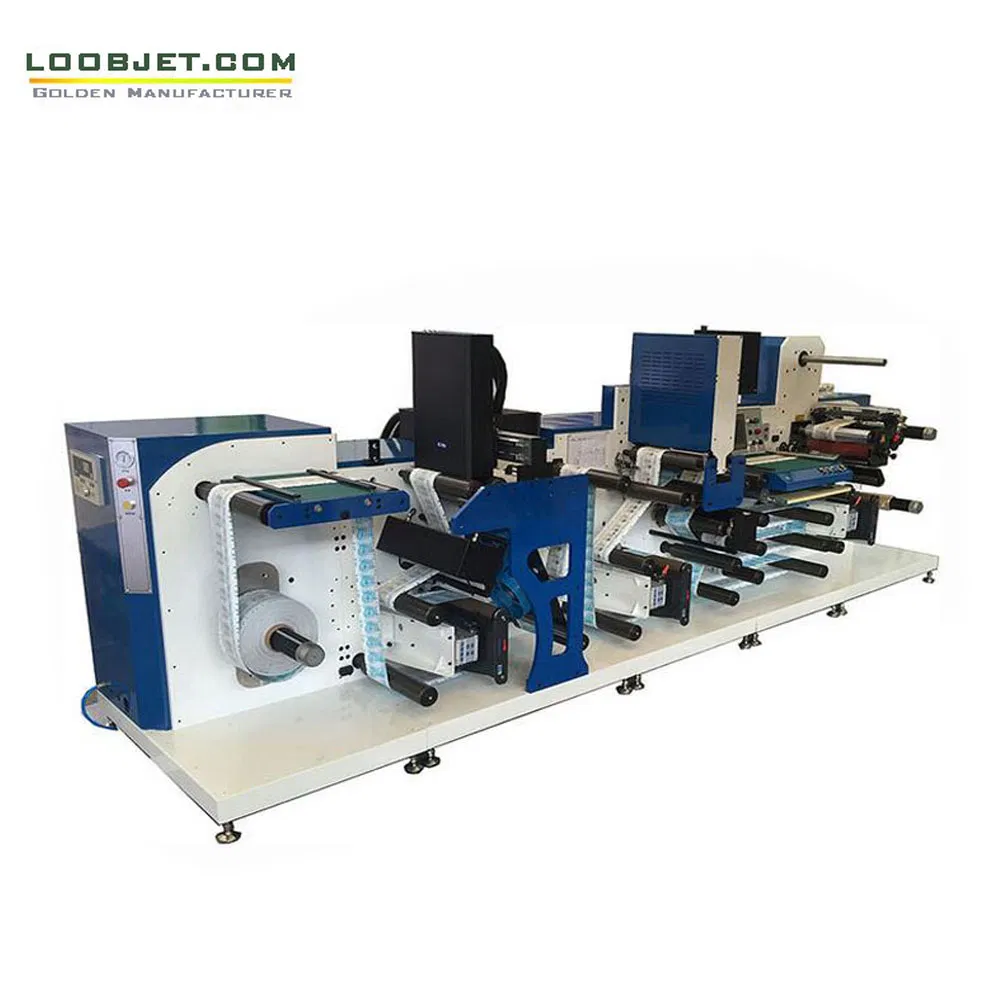

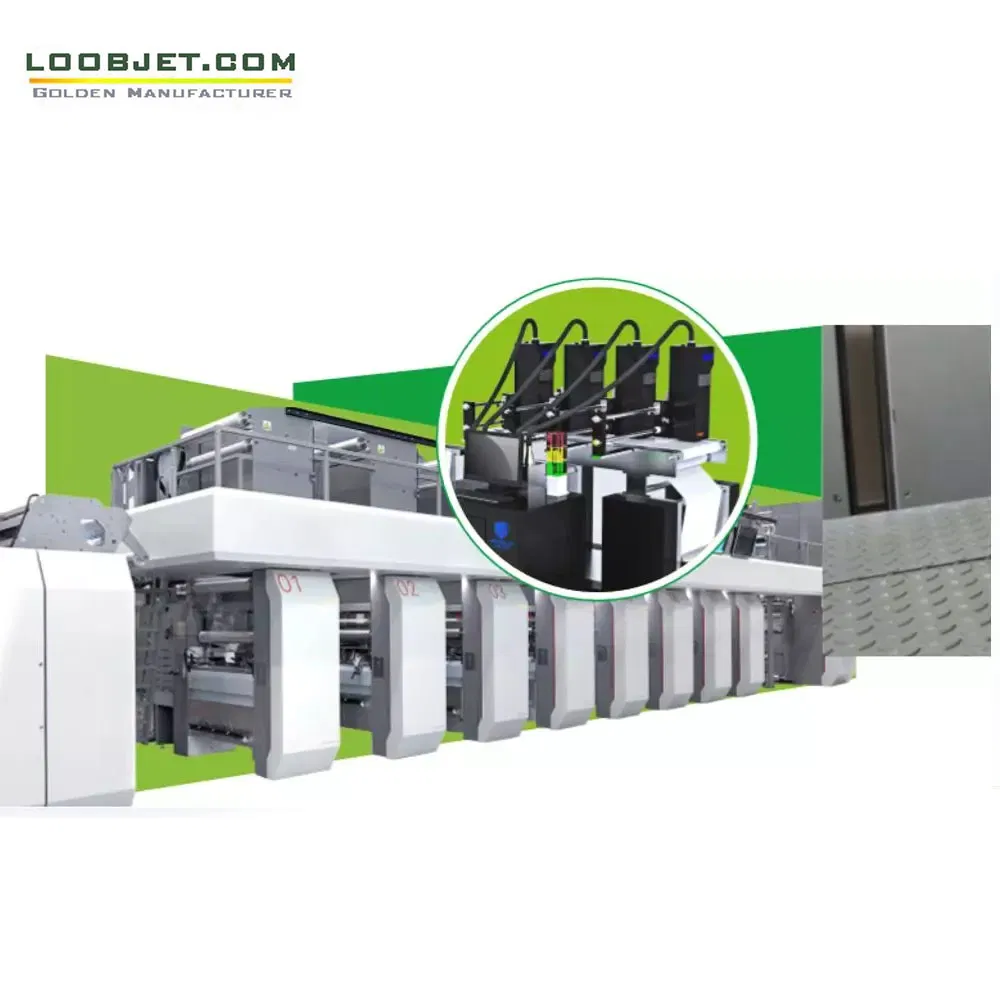

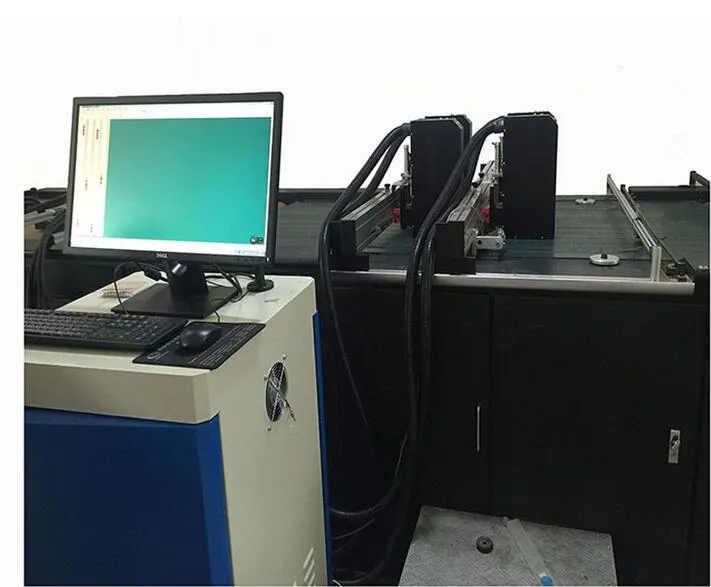

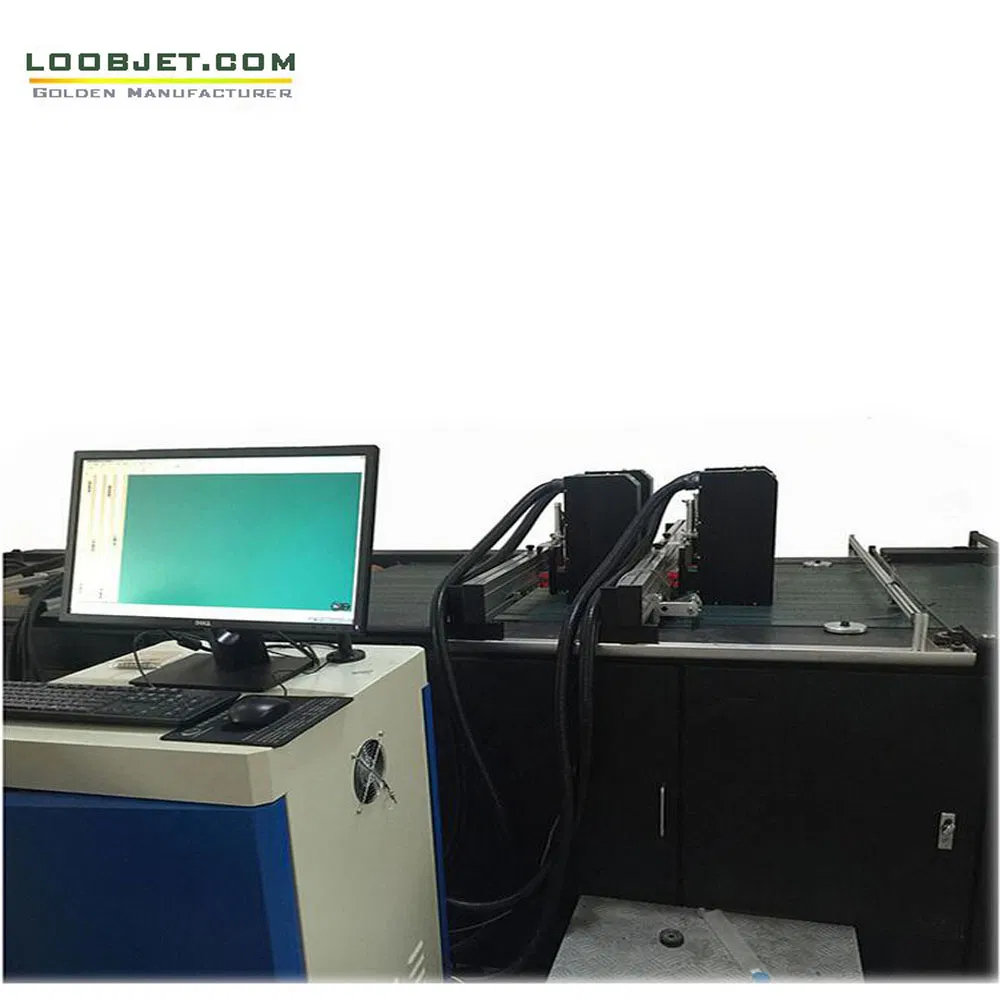

UV inkjet printer label press

This UV DOD inkjet system adopts industrial piezoelectric on-demand technology, significantly enhancing production speed and print quality. Equipped with high-resolution and high-speed industrial print heads, it meets rigorous demands for mailings, barcodes, bills, packages, and marking applications.

Suitable for web printing, sheet-fed, and both online/offline target printing. The modular design allows for easy integration into existing transport systems, creating more value-added opportunities.

🛠️

System Details

🔹 Nozzle Type: Ricoh GEN5 / Kyocera 108 / Konica 1024i industrial piezoelectric nozzles.
🔹 Service Life: More than 3 years (10 billion printing cycles).
🔹 Print Width: 54 / 72 / 108 mm (Expandable 1 ~ 24 groups with seamless joint).
🔹 Linear Speed: 70 ~ 180 m/min.
🔹 Ink Compatibility: Environmentally friendly UV or water-based inks.

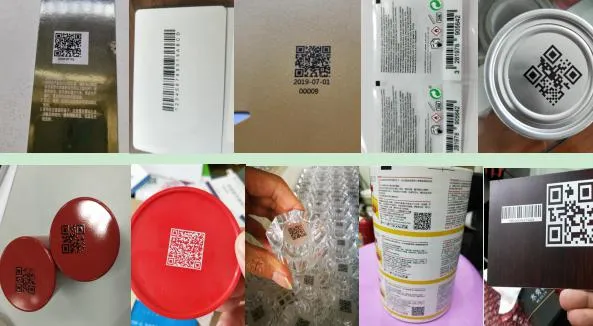

🔹 Materials: Paper, plastics, PVC, PP, PE film, and more.

🖥️

Control Software

The Printer Control Software (PCS) provides a user-friendly interface to monitor printer status, set jetting waveforms, and manage temperature for each print head. Features include database checking, DPI settings, and motor speed control.

Variable Data Printing: Supports text, dates, logos, serial numbers, barcodes, and database photo images. Compatible with .CSV, .XLS, .XLSX, .TXT, and PDF files.

📐

Print Head Options

Model	VDG540/VDK720/KY108	Print Head	Ricoh GN5/Konica 1024i/KY
Origin	Japan	Resolution	Up to 600×600 dpi
Single Head Width	54.0mm / 72.0mm / 108mm	Max Width	Seamless Joint up to 24 units
Max Speed	180m/min (600×200dpi)	Method	Piezoelectric ink-jet
Drop Size	5-21PL	Interface	Gigabit Ethernet
Barcode Formats	UPCA, EAN13, CODE128, PDF417, QR, DATAMATRIX, etc.

❓

Frequently Asked Questions

1. What materials are suitable for this UV inkjet printer?

The system is highly versatile and works with all types of paper, plastics, PVC, PP, and PE films.

2. What is the maximum printing speed of the system?

Depending on resolution settings, it can reach speeds up to 180m/min at 600×200dpi.

3. How many print heads can be integrated together?

The modular design supports seamless joint integration of 1 to 24 print head groups to meet your specific width requirements.

4. What type of variable data can the software handle?

Our software supports text, dates, serial numbers, various barcode formats (including QR and PDF417), and database photo images.

5. What is the expected lifespan of the industrial nozzles?

Under normal operating conditions, the industrial piezoelectric nozzles have a service life exceeding 3 years or approximately 10 billion printing cycles.

6. Which operating systems and file formats are supported?

The system runs on Windows 7 and supports various data source files including .CSV, .XLS, .XLSX, .TXT, and PDF.
