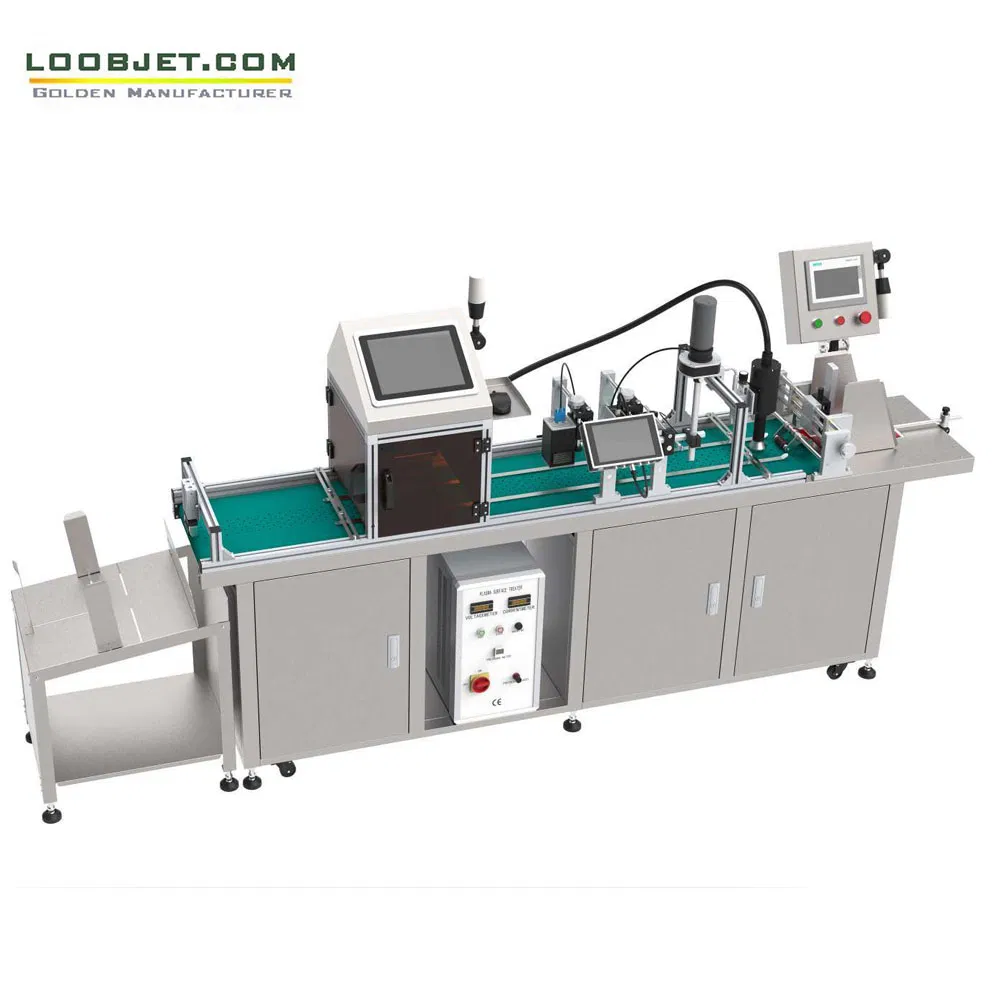

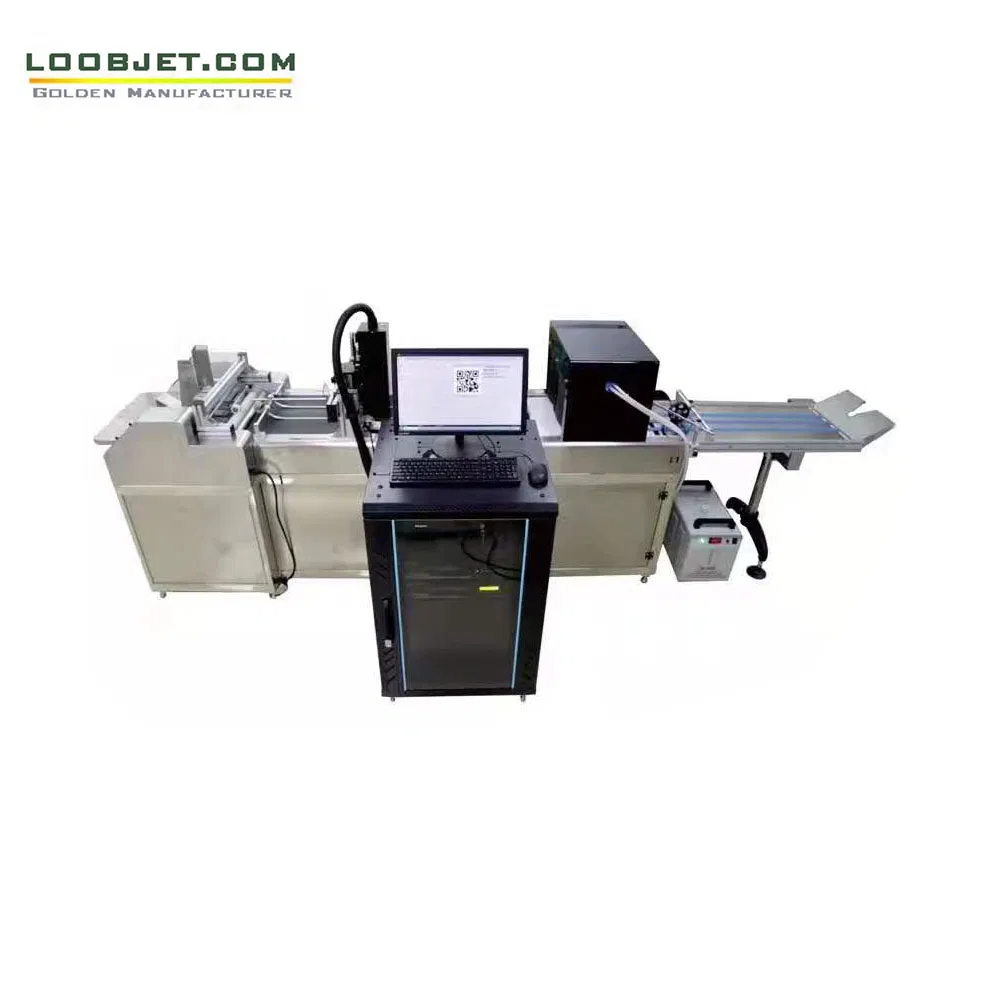

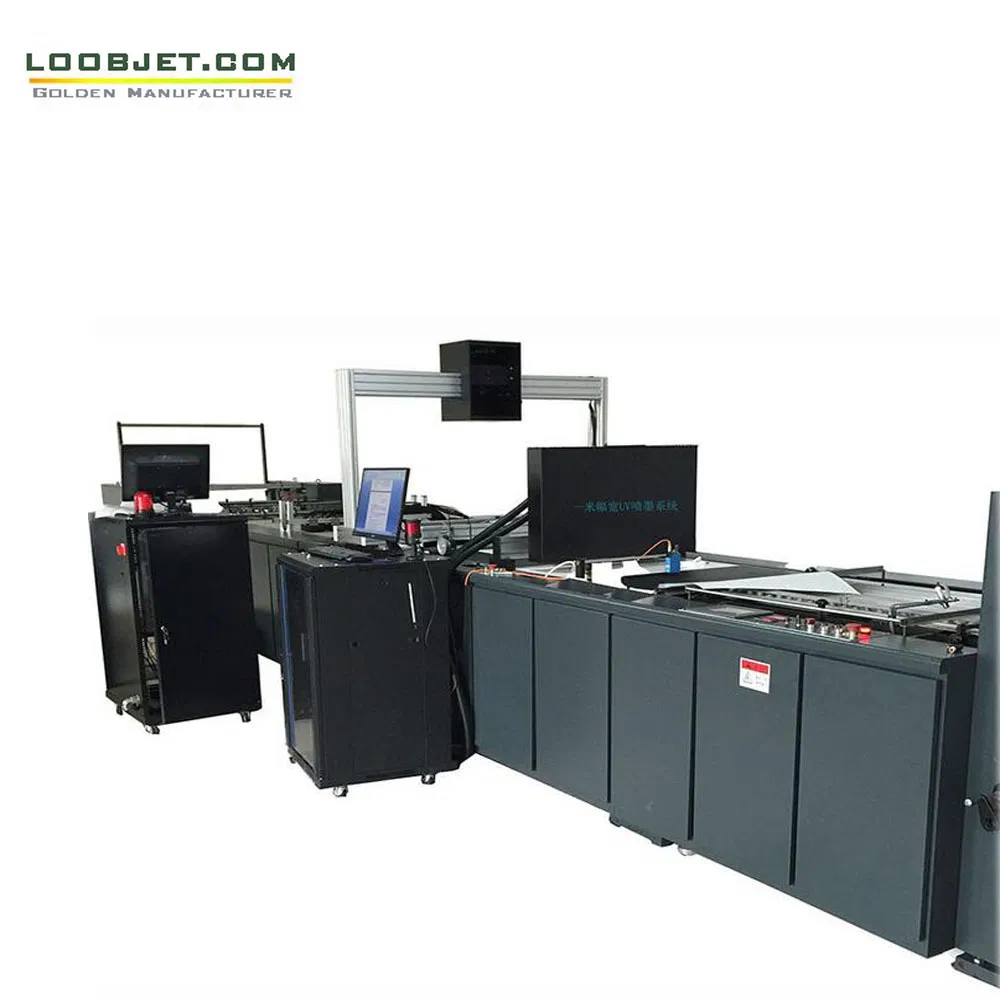

Apparel Hang Tag Printer

Customization:	Available
Plate:	Variable Data
Structure:	Inkjet Printing

📊

Basic Specifications

Model NO.

HSJET

Color & Page

Single-Colour Printing Press

Usage

Paper, Label, Card, Cloths Printer

Automatic Grade

Automatic

Printing Interface

RS232

Printing Speed

100m/Min

System Supported

Windows

Resolution

150-600dpi

Ink Solution

Porous, Semi-Porous, Non-Porous

Languages

English, Japanese, French, German, Spanish, Portuguese

Power

AC 90V-240V/50-60Hz

Origin

China

🚀

Product Introduction

The UV DOD inkjet system adopts industrial piezoelectric on-demand inkjet technology, significantly improving production speed and spray printing quality. Equipped with industrial high-resolution and high-speed DOD piezoelectric print heads, this system meets the increasing and rigorous demands for mailings, barcodes, bills, checks, packages, and marking applications.

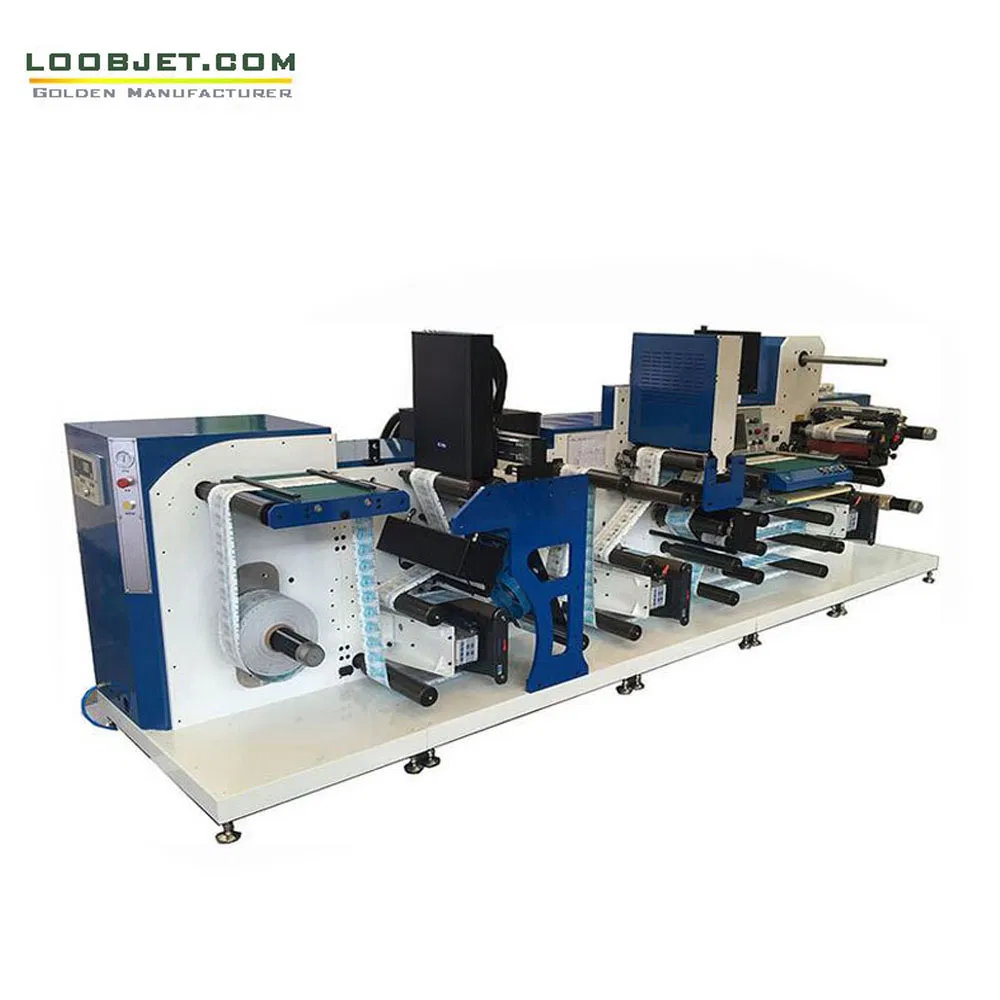

Suitable for web printing, sheet-fed, and both online and offline target printing. Its fully integrated digital inkjet printing system modular design allows for easy integration into existing transport systems.

⚙️

Technical Details

🔹 Nozzle Type: Ricoh GEN5 / Kyocera 108 / Konica 1024i industrial piezoelectric nozzles.
🔹 Lifespan: More than 3 years (10 billion printing times).
🔹 Print Width: Single nozzle 54 / 72 / 108 mm, extendable up to 24 groups with seamless jointing.
🔹 Precision: Physical 600 DPI printing precision.
🔹 Linear Speed: 70 ~ 180 m/min.
🔹 Inks: Imported environmentally friendly UV or water-based inks.
🔹 Materials: Suitable for paper, plastics, PVC/PP/PE film, and more.

💻

Advanced Software Control

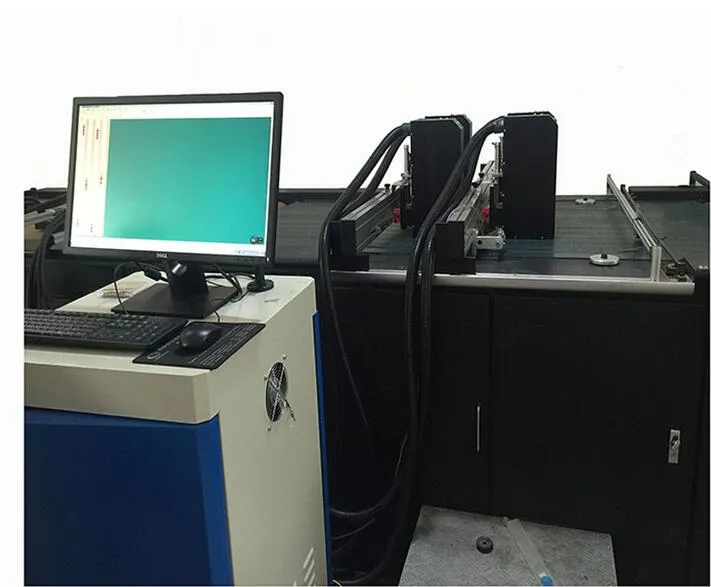

Our Printer Control Software (PCS) offers a user-friendly interface to interactively control the printer, monitor status, and set options such as jetting waveforms and temperature for each print head.

Variable Data Printing

Supports multiple object types: text, dates, times, graphics, logos, serial numbers, barcodes, and database photo images. Compatible with .CSV, .XLS, .XLSX, .TXT, and PDF files.

📋

Print Head Specifications

Model	VDG540/VDK720/KY108	Print Head	Ricoh GN5/Konica 1024i/KY
Resolution	600×600, 400, 300, 200 DPI	Origin	Japan
Single Width	54.0mm / 72.0mm / 108mm	Method	Piezoelectric Ink-jet
Max Speed	180m/min (600×200dpi)	Drop Size	5-21PL
Max Width	Up to 24 Seamless Joints	Port	Gigabit Ethernet
Formats	MS Excel, TXT, PDF, BMP	Barcodes	QR, CODE128, DATAMATRIX, etc.

❓

Frequently Asked Questions

Q1: What materials can this UV inkjet system print on?

The system is highly versatile and suitable for all kinds of paper, plastics, and various films including PVC, PP, and PE.

Q2: What is the maximum printing speed of the HSJET?

The system can reach a maximum linear speed of 180m/min at a resolution of 600×200dpi.

Q3: Does the software support variable data printing?

Yes, our Variable Data Printing Software supports text, serial numbers, barcodes, QR codes, and database images from files like CSV, Excel, and PDF.

Q4: What are the print head options?

Users can choose between Ricoh GEN5 (54mm), Konica 1024i (72mm), or Kyocera (108mm) industrial piezoelectric nozzles based on their specific requirements.

Q5: Is technical support and training provided?

Yes, we provide strong technical support and offer free training to ensure smooth operation and maintenance of the equipment.

Q6: Can multiple print heads be combined?

Absolutely. The modular design supports a seamless joint of 1 to 24 print head groups to expand the printing width as needed.
