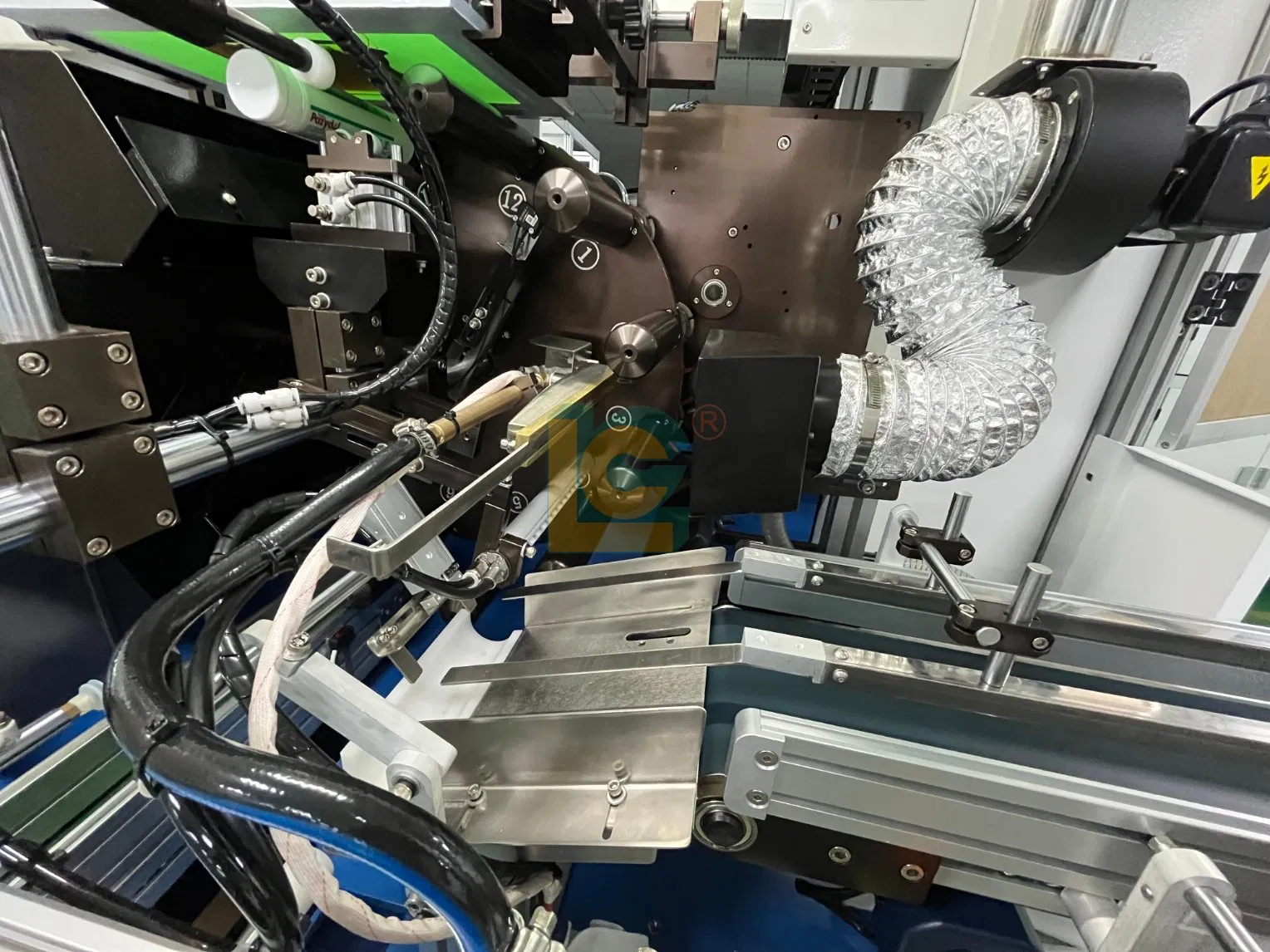

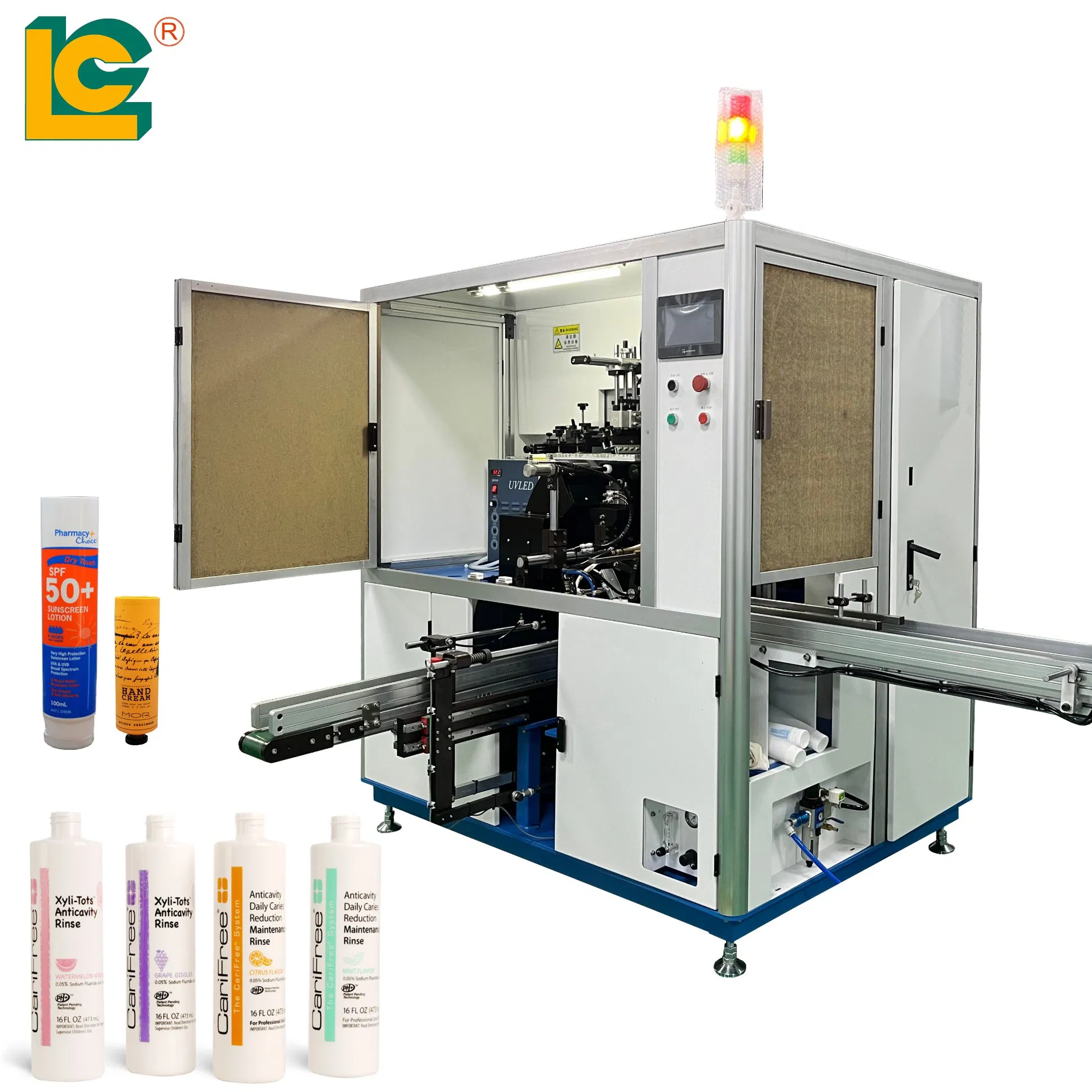

New Condition Automatic Cylindrical Cosmetic Tube Serigraphy Machine PLC Core Components Auto-Feeding Screen Printer
New Condition Automatic Cylindrical Cosmetic Tube Serigraphy Machine PLC Core Components Auto-Feeding Screen Printer
New Condition Automatic Cylindrical Cosmetic Tube Serigraphy Machine PLC Core Components Auto-Feeding Screen Printer
New Condition Automatic Cylindrical Cosmetic Tube Serigraphy Machine PLC Core Components Auto-Feeding Screen Printer
New Condition Automatic Cylindrical Cosmetic Tube Serigraphy Machine PLC Core Components Auto-Feeding Screen Printer
1 / 5
New Condition Automatic Cylindrical Cosmetic Tube Serigraphy Machine PLC Core Components Auto-Feeding Screen Printer
New Condition Automatic Cylindrical Cosmetic Tube Serigraphy Machine PLC Core Components Auto-Feeding Screen Printer
New Condition Automatic Cylindrical Cosmetic Tube Serigraphy Machine PLC Core Components Auto-Feeding Screen Printer
New Condition Automatic Cylindrical Cosmetic Tube Serigraphy Machine PLC Core Components Auto-Feeding Screen Printer
New Condition Automatic Cylindrical Cosmetic Tube Serigraphy Machine PLC Core Components Auto-Feeding Screen Printer

New Condition Automatic Cylindrical Cosmetic Tube Serigraphy Machine PLC Core Components Auto-Feeding Screen Printer

Customization: Available
After-sales Service: 1 Year
Warranty: 1 Year
Send Inquiry

Product Description

📊

Overview & Basic Info

Model NO.
LC-109ST
Type
Automatic Screen Printing Machine
Style
Screen-process Printing Press
Structure
Rotary Printing Press
Color & Page
Multi-Colour Printing Press
Application
Plastic Tube Printing
Key Words
Silk Screen Printing
Service
Free Mend for Three Year
HS Code
8443198000
⚙️

Full Automatic Plastic Bottle Screen Printing Machine

This high-performance system features a UV System and Servo System specifically designed for Lyophilized and Centrifugal Tube Printing.

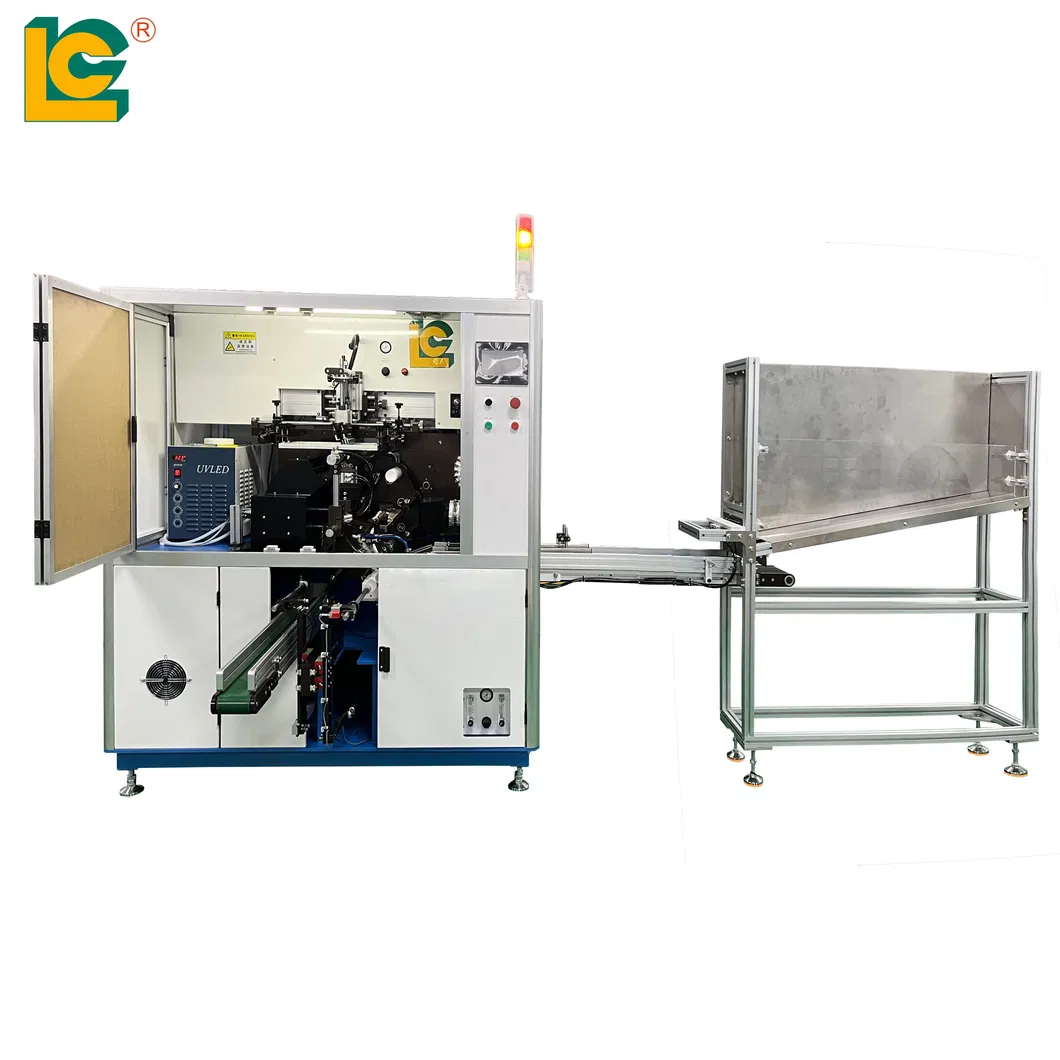

Automatic Cylindrical Screen Printer
Model NumberLC-109ST
Max printing speed3600 pcs/hour
Printing area220 mm x 170 mm
Height for bottle20 mm < height < 200 mm
Diameter for bottle10 mm < diameter < 70 mm
UV Lamp Power5 KW
Main machine size1950 mm x 1800 mm x 2200 mm
Machine weight1000 kg / Gross 800-1200kg
Air supply5 to 7 bar
Power supply380 V, 3 phase, 50Hz
💡

Key Advantages

  • Specially design for circular shaped applications such as tubes, caps, and injection molds bottles.
  • Servo optical fiber indexing system for multi-color printing and overprinting.

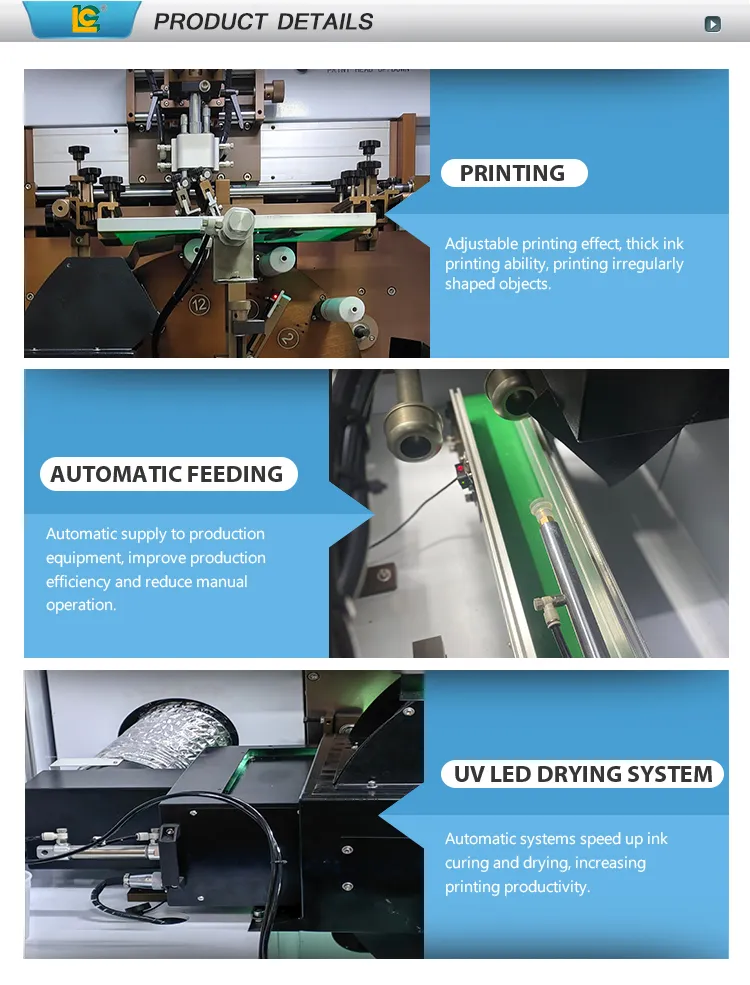

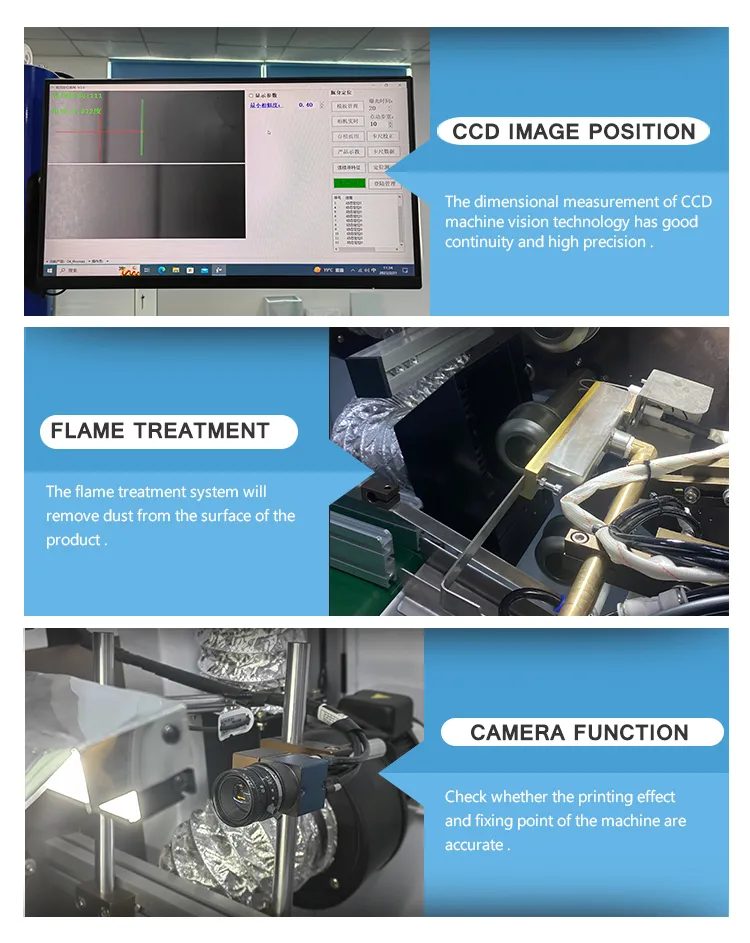

  • Integrates automatic feeding, flame treatment, direction detection, and UV curing.
  • Combined mechanical and pneumatic drive with LED display. Capacity up to 6000pcs/hr.
  • Advanced safety warnings for low pressure and overloading; "no product, no printing" sensors.
  • High-quality Japanese and German electrical components for precision control.
📦

Standard Fittings

  • One set fixture for the product
  • One screen frame
  • One operation manual
🖼️

Printing Samples & Gallery

Sample 1
Sample 2
Sample 3
Sample 4
Sample 5

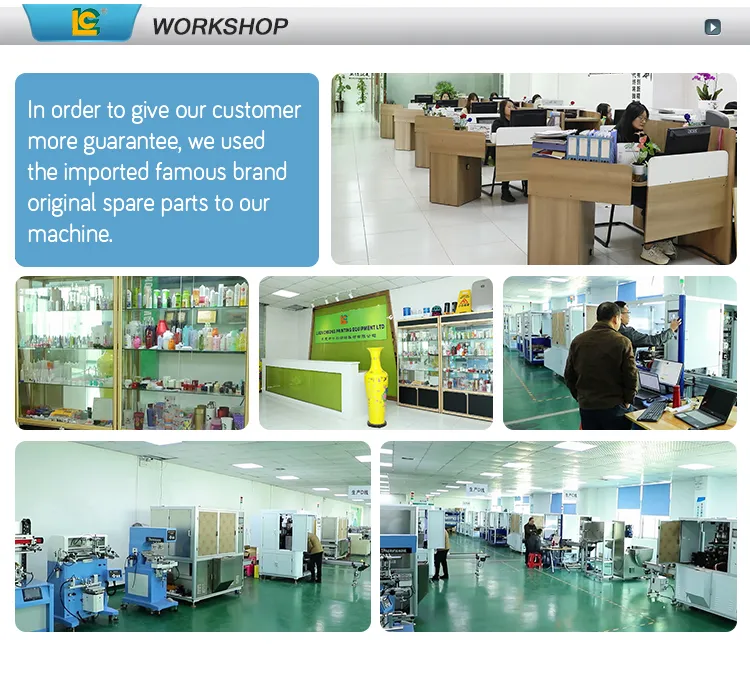

Sample 6
Sample 7
Sample 8
Sample 9
🔍

Applications

Glass Cosmetic Bottle Silk Screen Printing Equipment Lipstick Tube Printer Perfume Bottle Printing Cosmetic Jar Logo Printing Bucket Bottle Cylinder Paper Cup Silk Screen Plastic Container Curve Printer Wine Bottle Screen Printer Soft Tube Printing Disposable Plastic Cup
❓

Frequently Asked Questions (FAQ)

1. What is the maximum production speed of the LC-109ST? The machine offers a maximum printing speed of 3600 pieces per hour, depending on the application and material.
2. What types of containers can this machine handle? It is specially designed for circular shaped applications including plastic tubes, caps, injection molds, cosmetic bottles, and glass jars.
3. Does the system include surface treatment and curing? Yes, the machine integrates a flame treatment system for better ink adhesion and a high-power 5KW UV curing system for immediate drying.
4. What are the diameter and height limitations for bottles? The machine supports bottle heights between 20mm and 200mm, and diameters ranging from 10mm to 70mm.
5. Is it capable of multi-color printing? Yes, thanks to the servo optical fiber indexing system, it is possible to perform high-precision multi-color printing and overprinting.
6. What safety features are included? The machine is equipped with various warning devices for low pressure and overloading, and includes a "no product, no printing" sensor to reduce waste.
