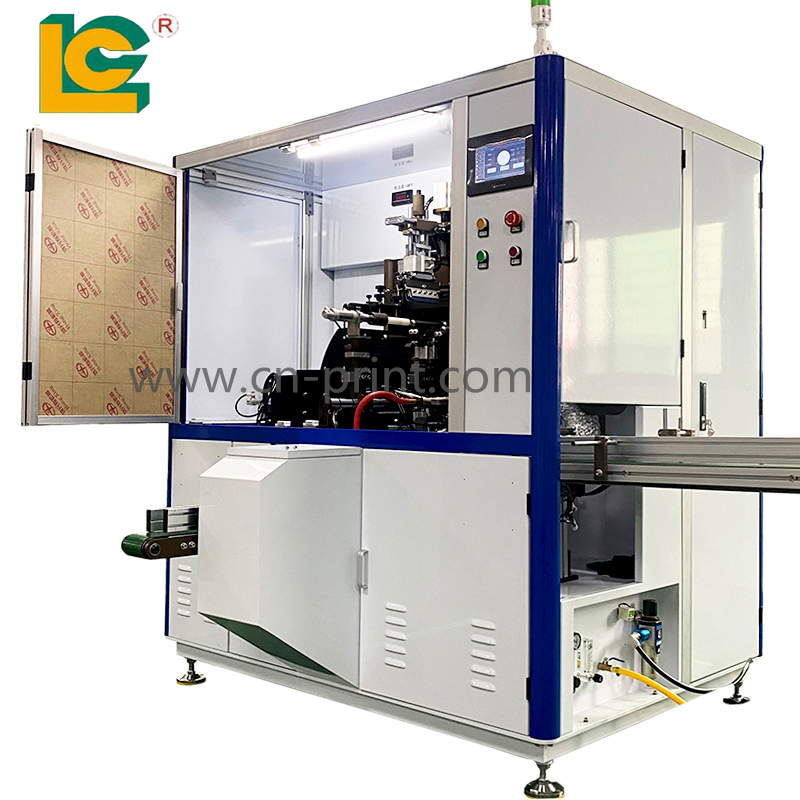

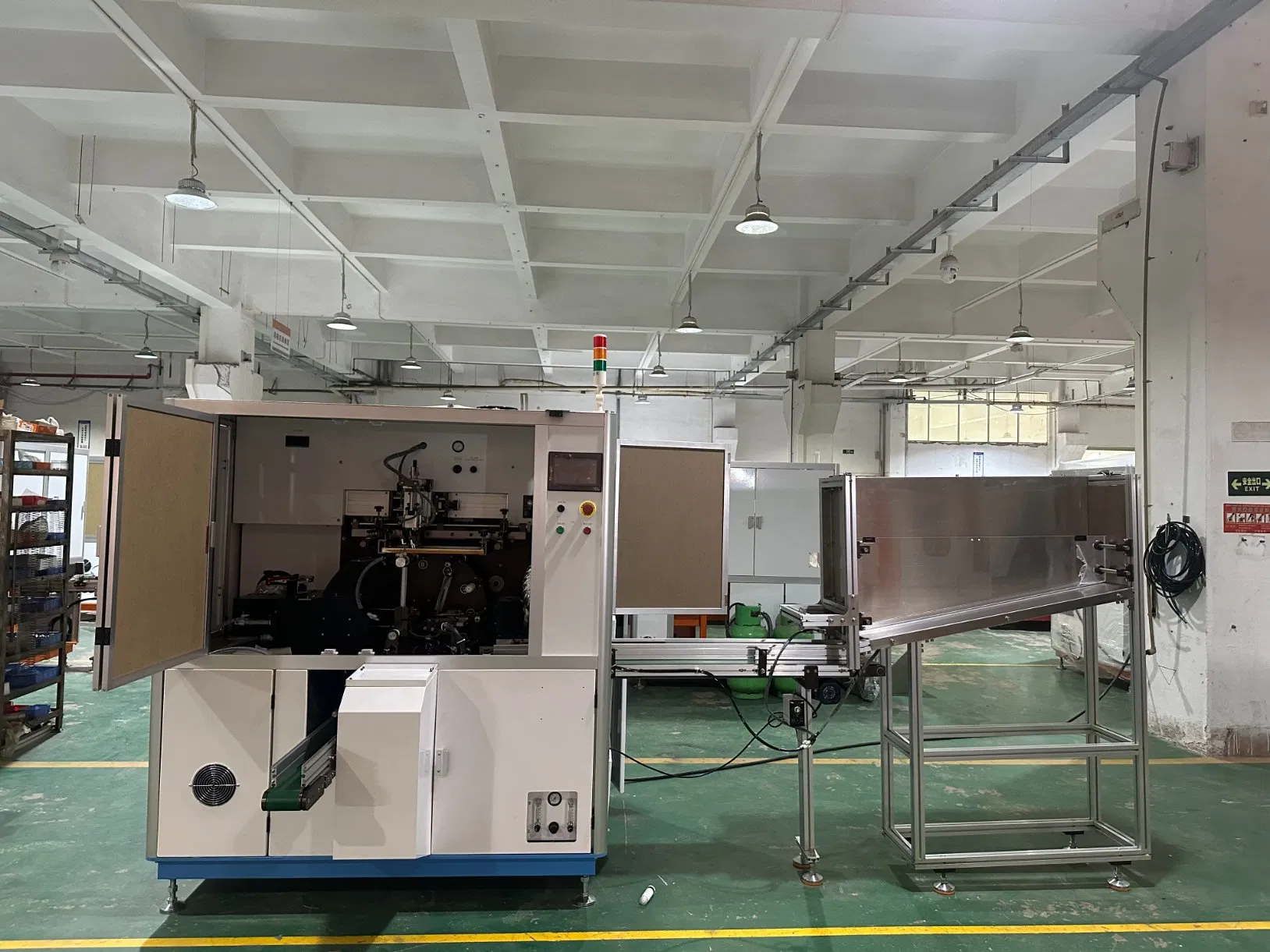

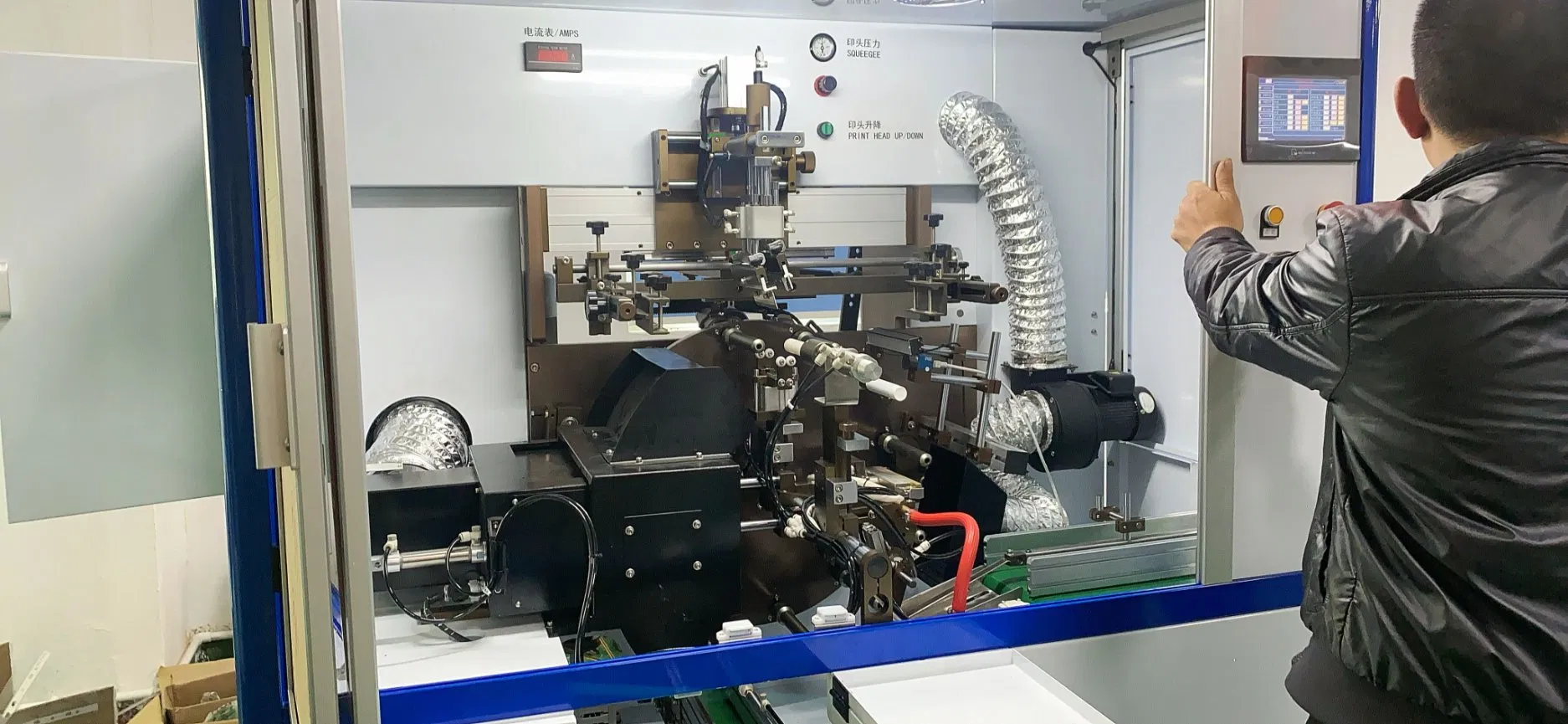

Fully Automatic Multi Color PLC Controlled Silk Screen Printer for Cosmetic Tubes Cylindrical Lip Gloss Printer
Fully Automatic Multi Color PLC Controlled Silk Screen Printer for Cosmetic Tubes Cylindrical Lip Gloss Printer
Fully Automatic Multi Color PLC Controlled Silk Screen Printer for Cosmetic Tubes Cylindrical Lip Gloss Printer
Fully Automatic Multi Color PLC Controlled Silk Screen Printer for Cosmetic Tubes Cylindrical Lip Gloss Printer
Fully Automatic Multi Color PLC Controlled Silk Screen Printer for Cosmetic Tubes Cylindrical Lip Gloss Printer
1 / 5
Fully Automatic Multi Color PLC Controlled Silk Screen Printer for Cosmetic Tubes Cylindrical Lip Gloss Printer
Fully Automatic Multi Color PLC Controlled Silk Screen Printer for Cosmetic Tubes Cylindrical Lip Gloss Printer
Fully Automatic Multi Color PLC Controlled Silk Screen Printer for Cosmetic Tubes Cylindrical Lip Gloss Printer
Fully Automatic Multi Color PLC Controlled Silk Screen Printer for Cosmetic Tubes Cylindrical Lip Gloss Printer
Fully Automatic Multi Color PLC Controlled Silk Screen Printer for Cosmetic Tubes Cylindrical Lip Gloss Printer

Fully Automatic Multi Color PLC Controlled Silk Screen Printer for Cosmetic Tubes Cylindrical Lip Gloss Printer

Customization: Available
After-sales Service: 1 Year
Warranty: 1 Year
Send Inquiry

Product Description

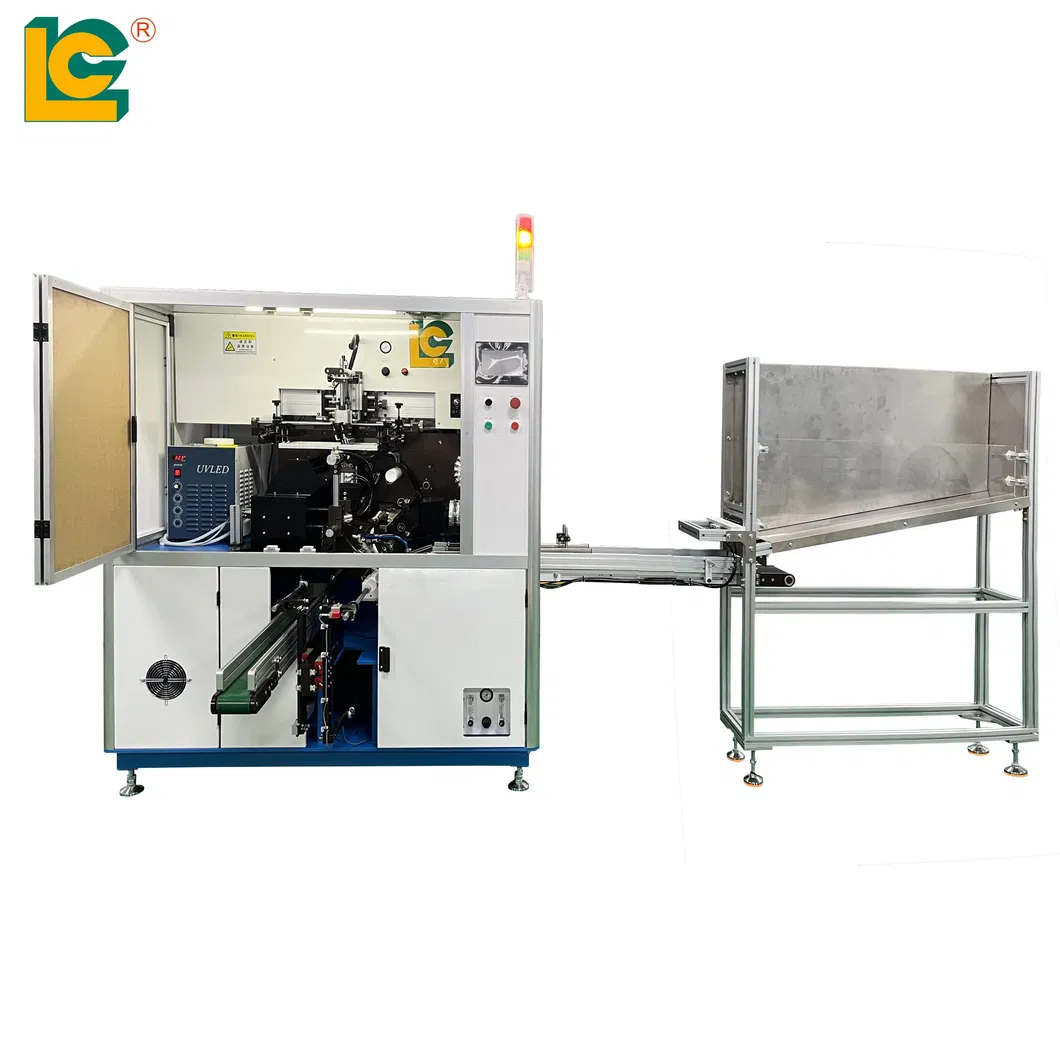

Full Automatic Plastic Bottle Screen Printing Machine

Full Automatic Plastic Bottle Screen Printing Machine with UV System and Servo System

📊

Basic Information

Model NO.LC-109ST
TypeAutomatic Screen Printing Machine
StyleScreen-process Printing Press
StructureRotary Printing Press
Color & PageMulti-Colour Printing Press
ApplicationPlastic Tube Printing
Key WordsSilk Screen Printing
OriginChina(Guangdong)
⚙️

Technical Specifications

Max printing speed 3600 pcs/hour
Printing area 220 mm x 170 mm
Height for bottle 20 mm < height < 200 mm
Diameter for bottle 10 mm < diameter < 70 mm
UV Lamp Power 5 KW
Machine size 1950 mm x 1800 mm x 2200 mm
Machine weight 1000 kg
Air supply 5 to 7 bar
Power supply 380 V, 3 phase, 50Hz
🌟

Product Advantages

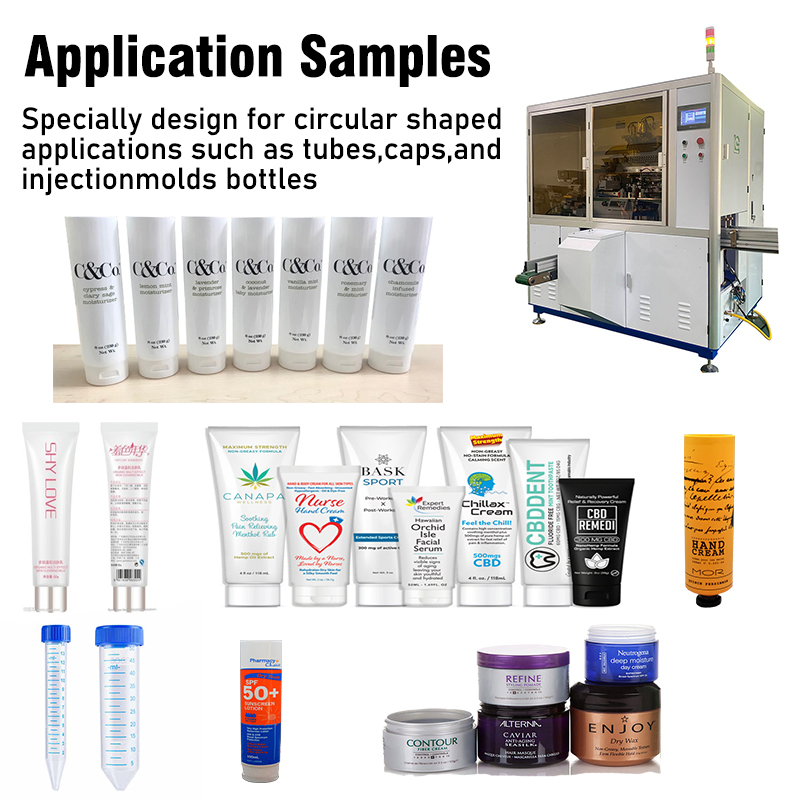

  • Specially designed for circular shaped applications such as tubes, caps, and injection molds bottles.
  • Servo optical fiber indexing system enables multi-colors printing and overprinting.

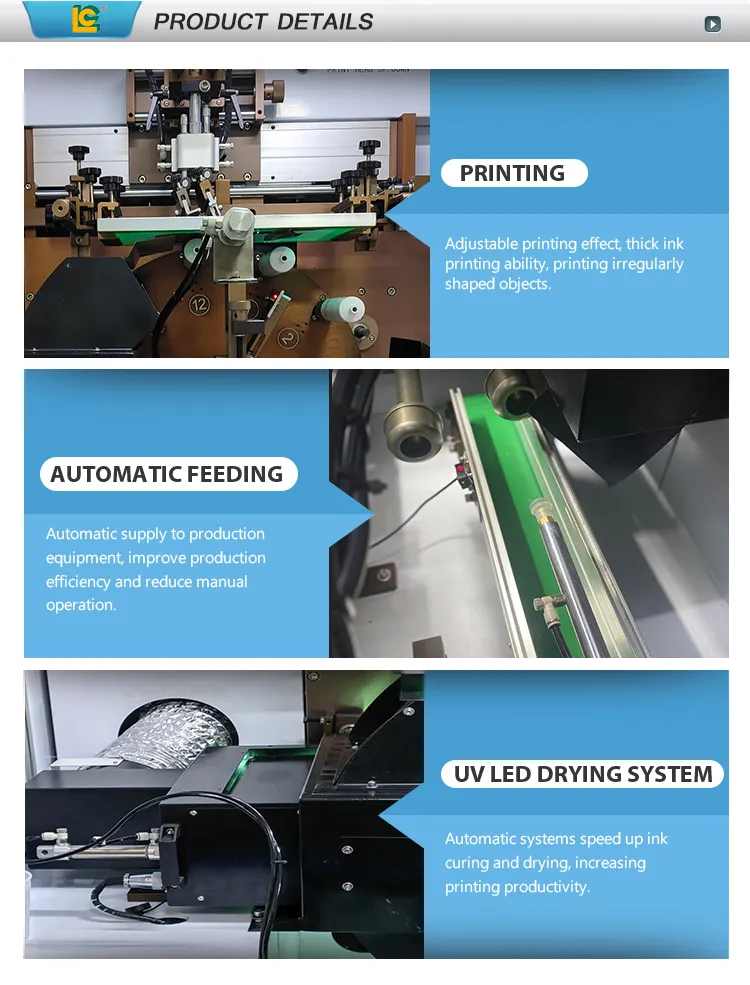

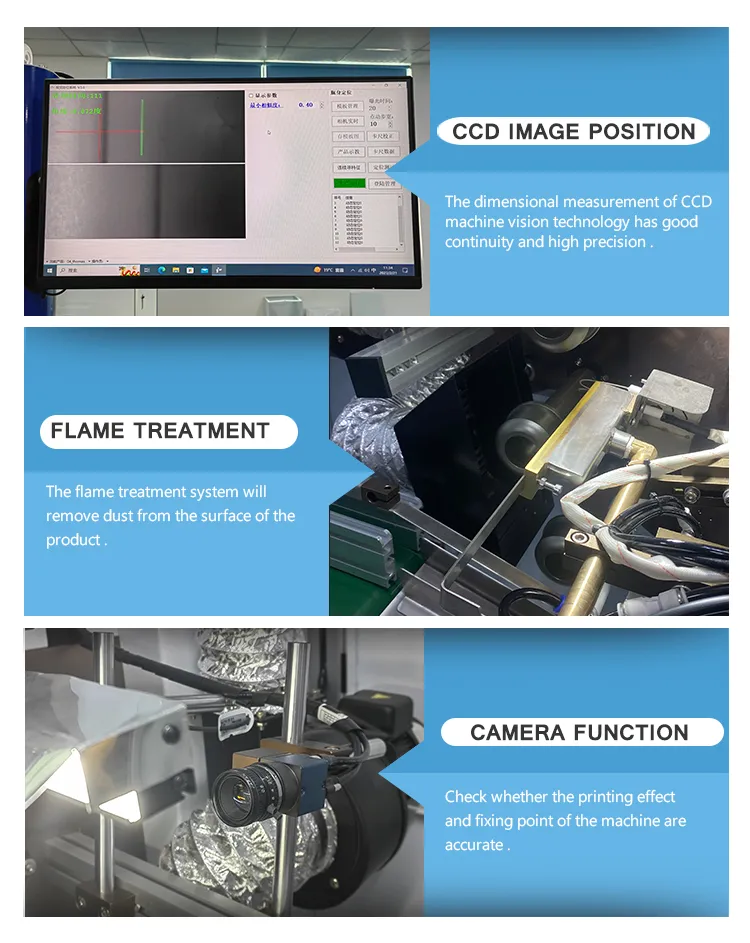

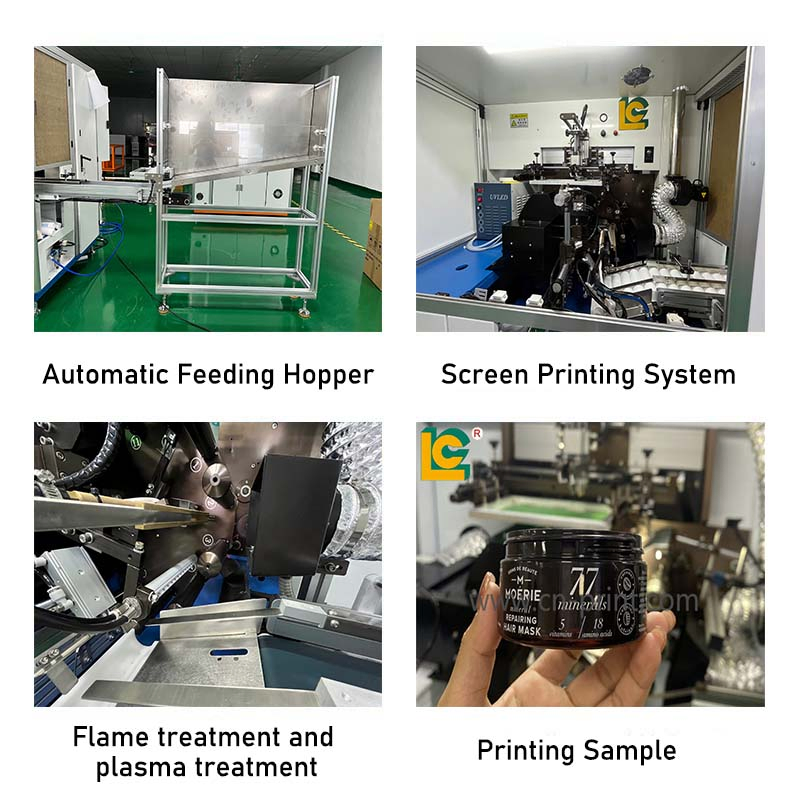

  • Integrates automatic feeding, flame treatment, automatic direction detection, and UV curing system.
  • Combines mechanical and pneumatic drive with LED display for efficient operation.
  • Equipped with warning devices for low pressure and overloading; includes "no product, no printing" sensor.
  • Electrical components and control systems adopted from Japan and Germany for premium quality.
🛠️

Standard Fitting

  • One set fixture for the product
  • One screen frame
  • One operation manual
🖼️

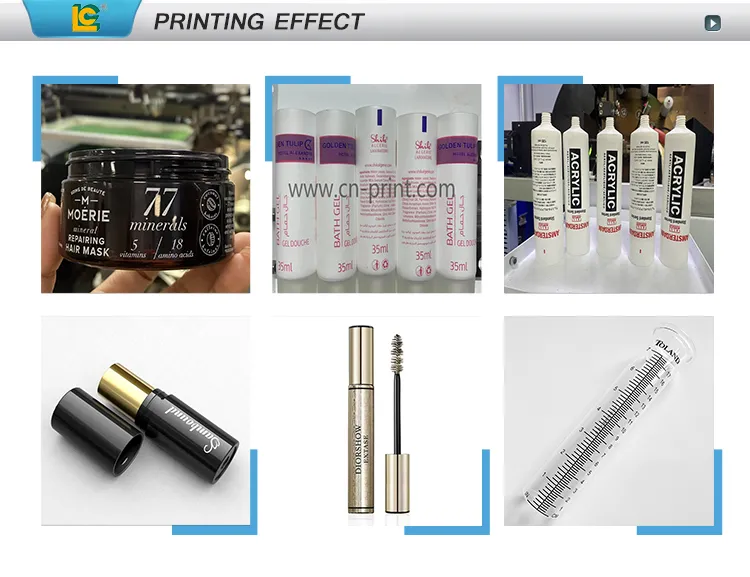

Printing Samples

Printing Sample 1
Printing Sample 2
Printing Sample 3
Printing Sample 4
Printing Sample 5
Printing Sample 6
Printing Sample 7
Printing Sample 8
Printing Sample 9
❓

Frequently Asked Questions

1. What types of products are suitable for this machine?
The LC-109ST is specifically designed for circular shaped applications, including plastic tubes, caps, centrifugal tubes, lyophilized tubes, and various cosmetic bottles.
2. What is the maximum printing speed of the LC-109ST?
The machine features a high-speed capacity, capable of printing up to 3600 pieces per hour, depending on the application and product size.
3. Does the machine support multi-color printing?
Yes, it utilizes a servo optical fiber indexing system, which makes it possible to perform multi-color printing and precise overprinting for complex designs.
4. What integrated features does the system offer?
The machine is a fully integrated system that includes an automatic feeding device, flame treatment for surface preparation, automatic direction detection, and a UV curing system for immediate drying.
5. How does the "no product, no printing" sensor work?
The machine is equipped with advanced sensors that detect the presence of a product. If a slot is empty, the machine will skip the printing cycle for that position, preventing ink waste and keeping the machine clean.
6. What are the size limitations for the bottles?
The machine supports bottles with a diameter between 10 mm and 70 mm, and a height ranging from 20 mm to 200 mm.
