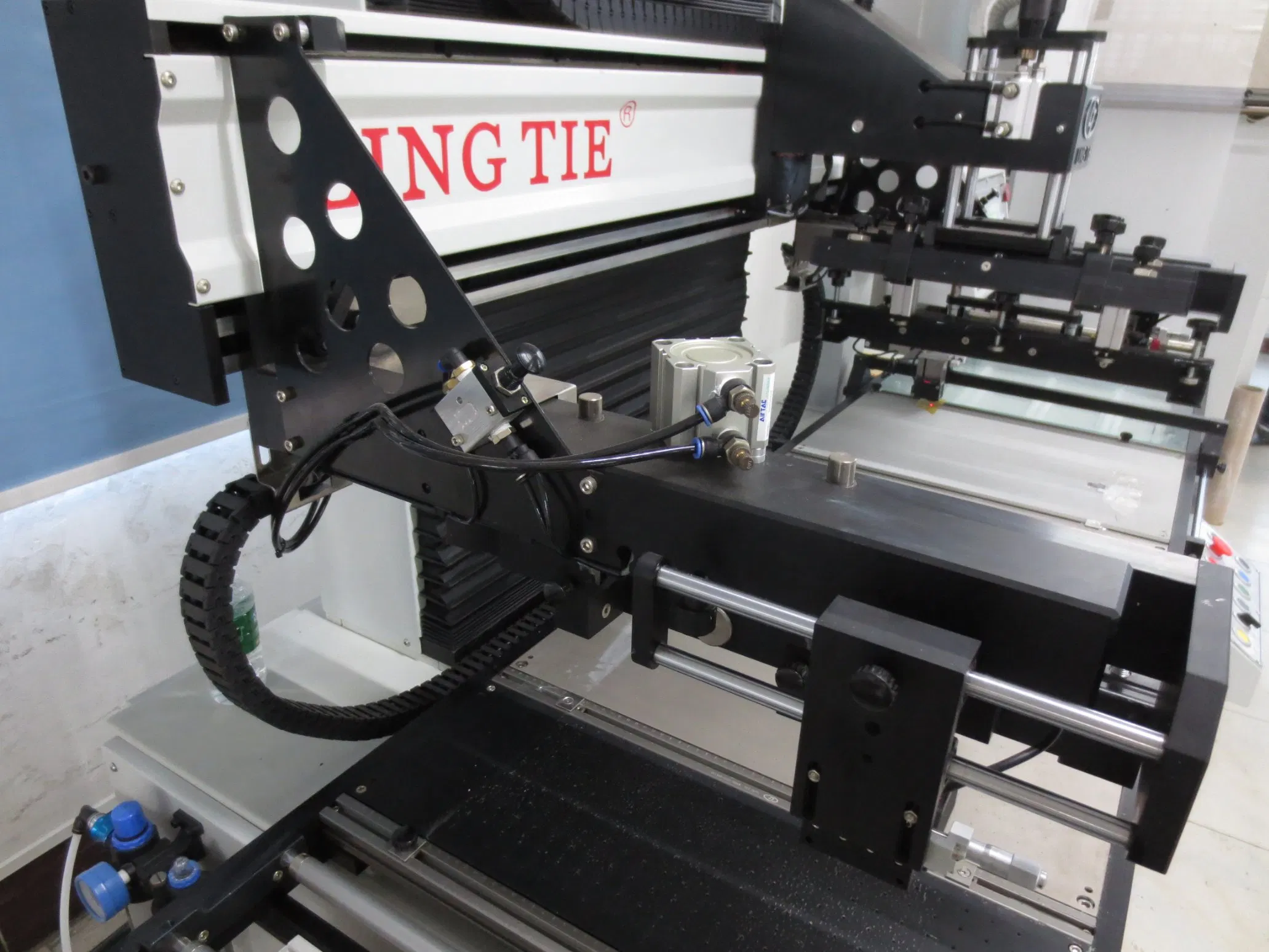

Automatic Reel Screen Printer Machinery

Customization:	Available
Type:	Screen Printing
Style:	Screen Label Printing Machine

Send Inquiry

Product Description

📋

Basic Information

Model NO.

LTA-3040

Structure

Roll to Roll Screen Printing

Color & Page

Multi-Colour Printing Press

Usage

Label Printer, Paper Printer, Card Printer, Cloths Printer, Labels, Stickers, RFID, FPC, IMD, Iml, etc

Automatic Grade

Automatic

Certification

Ce and ISO 9001:2015

Registration Accuracy

+/- 0.01mm

Max Printing Size

(300X400)mm

After-Sales Service

Engineers Available to Service Machinery Overseas

Raw Material Types

Pet, PVC, PE, PV, PP, PC, BOPP, Adhesive Stickers

Transport Package

Wooden Box

Specification

(L7000xW1100xH1900)mm

Production Capacity

30 Sets/Month

HS Code

8443911900

⚙️

Product Description

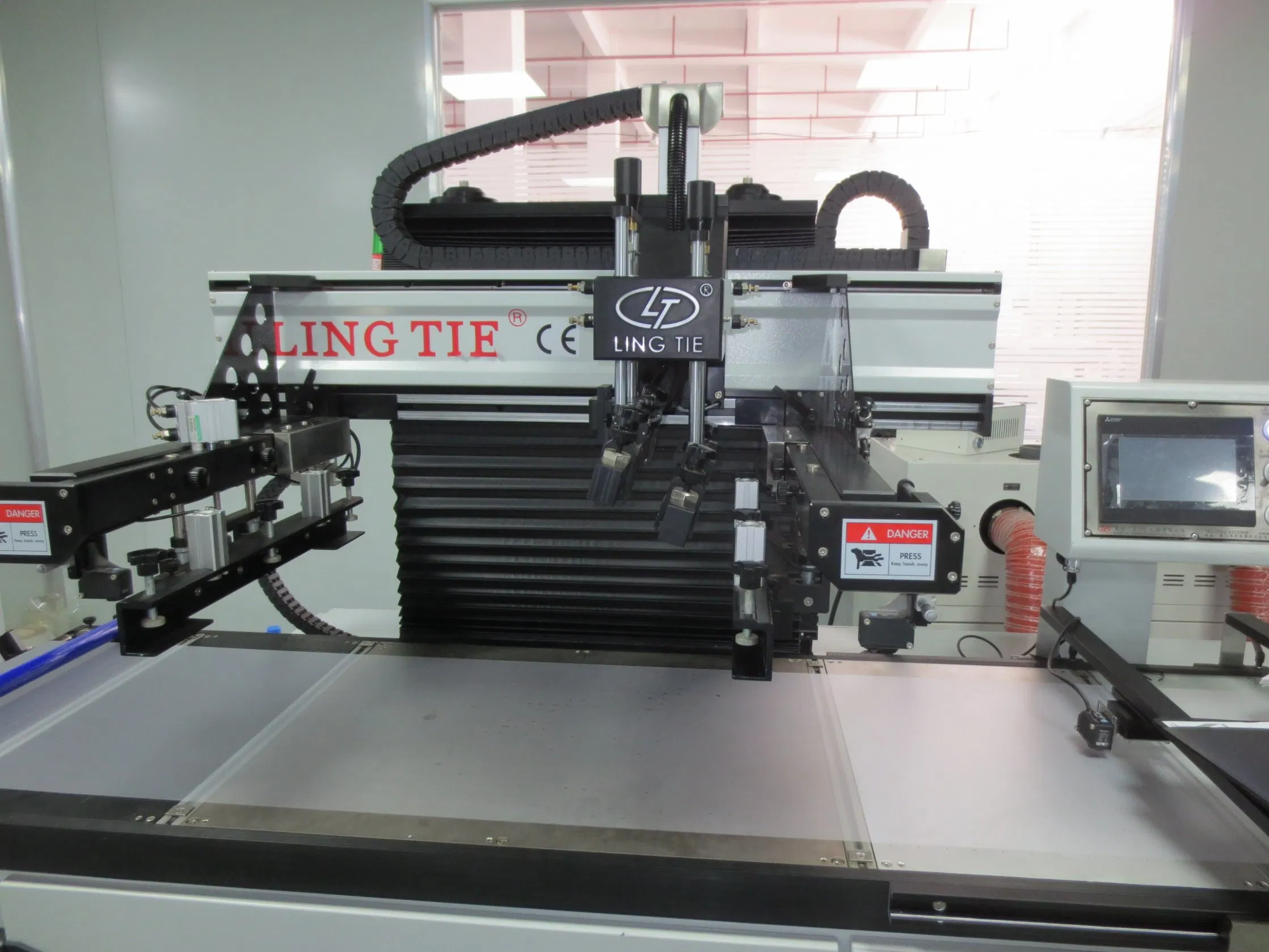

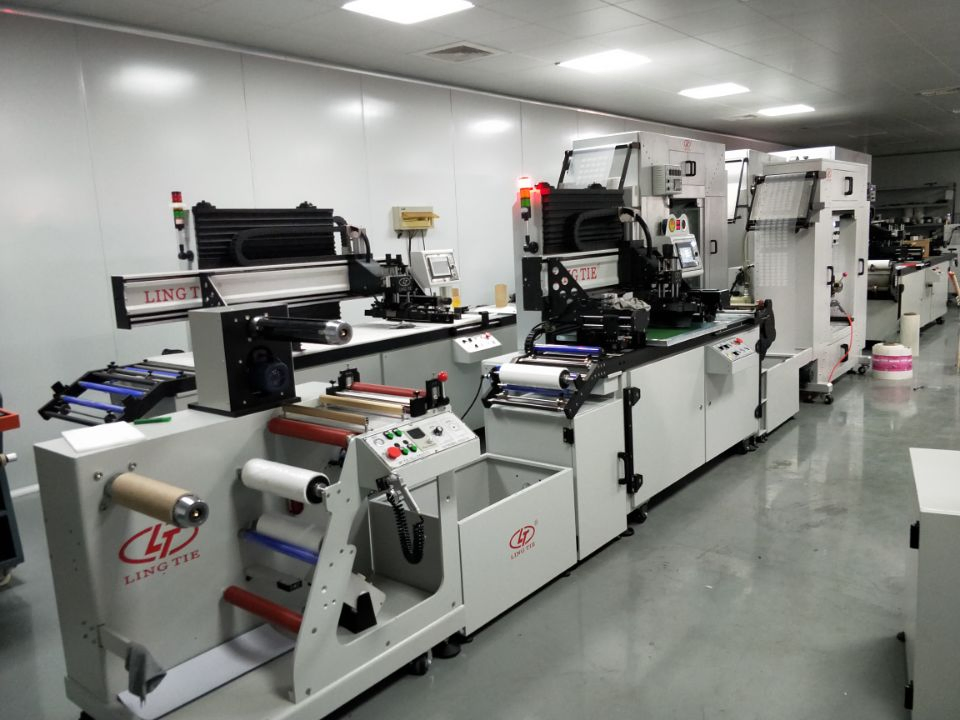

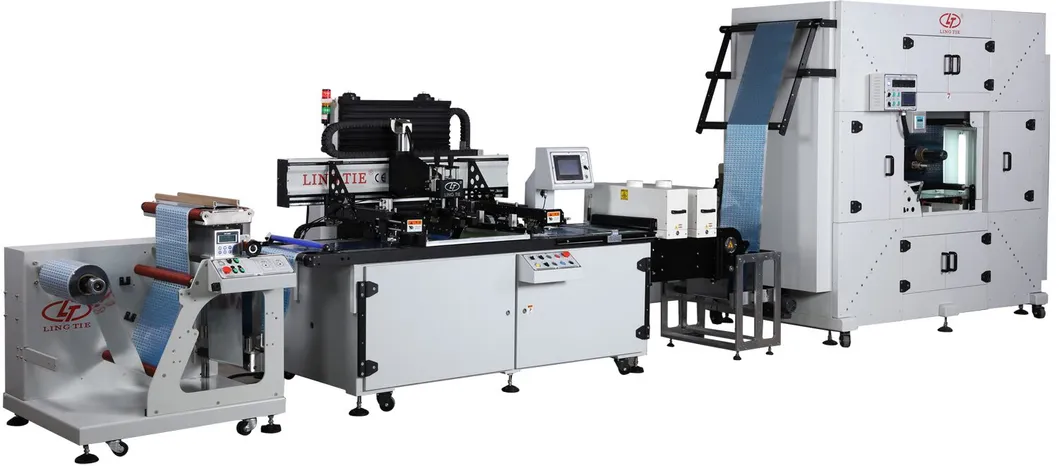

Automatic Reel Screen Printer Machinery

The LTA-3040 roll to roll screen printing machine is a fully automatic production line designed for high-precision applications. With a maximum printing web width of 320mm and a printing area of 300x400mm, it offers exceptional versatility.

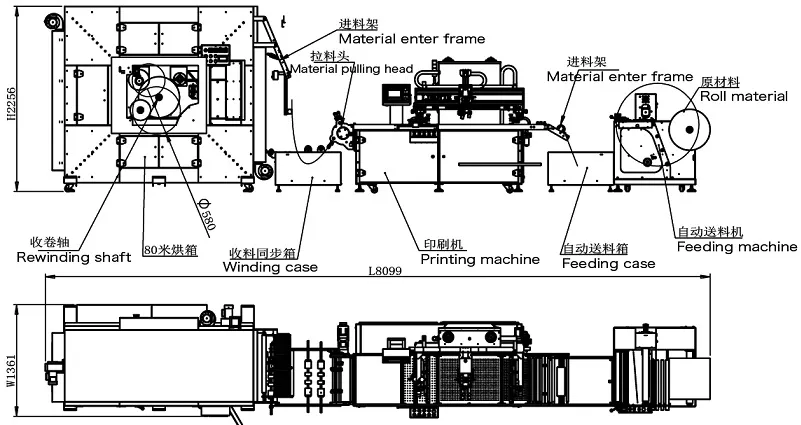

The standard line is composed of a feeding machine, a screen printing unit, and a hot air dryer. For specific industrial needs, a UV dryer and powder machine can be integrated into the system. It features an advanced automatic register system equipped with 3 sensors to ensure superior printing precision for multi-color overprinting.

Versatile Applications:

Heat transfer labels for garment & shoes
Vulcanizing labels for rubber hose & tyres
RFID antenna for smart cards
Water transfer films
In-mould decoration labels (IMD)
Membrane switches
Home appliance panels
Flexible printed circuits (FPC)

📊

Machine Parameters

Model	LTA-3040	LTA-5060	LTA-6080
Max. Printing Size	300x400mm	500x600mm	600x800mm
Printing Speed	0~5000 print/hr.	0~2500 print/hr.	0~2500 print/hr.
Max. Screen Frame Size	600x800mm	800x1000mm	900x1200mm
Registration Accuracy	±0.01mm	±0.01mm	±0.01mm
Max. Substrate Width	320mm	520mm	620mm
Power	220V, 3KW, 15A	220V, 3KW, 15A	220V, 3KW, 15A
Material Thickness	0.02~0.5mm	0.02~0.5mm	0.02~0.5mm
Overall Dimensions	7000x1100x1900mm	8200x1200x2000mm	9000x1350x2200mm

📸

Machine Details & Components

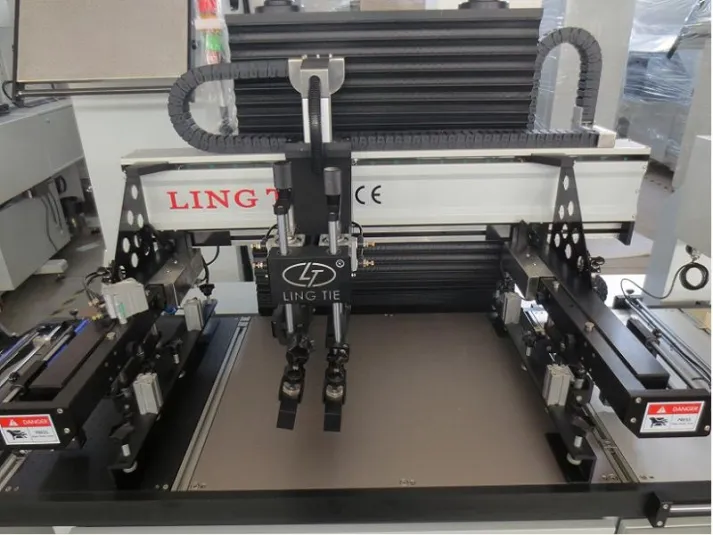

Vacuum table: Fixes PET film during printing with automatic register alignment.

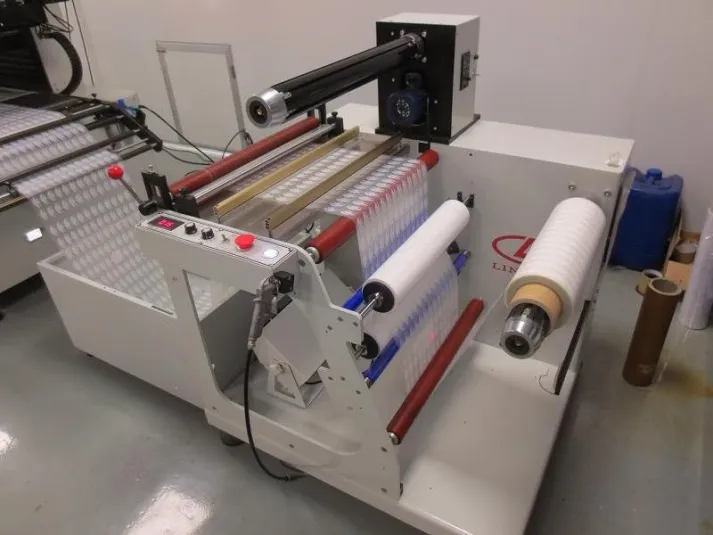

Feeder: Includes dust removal, protective film removal, and electrostatic elimination.

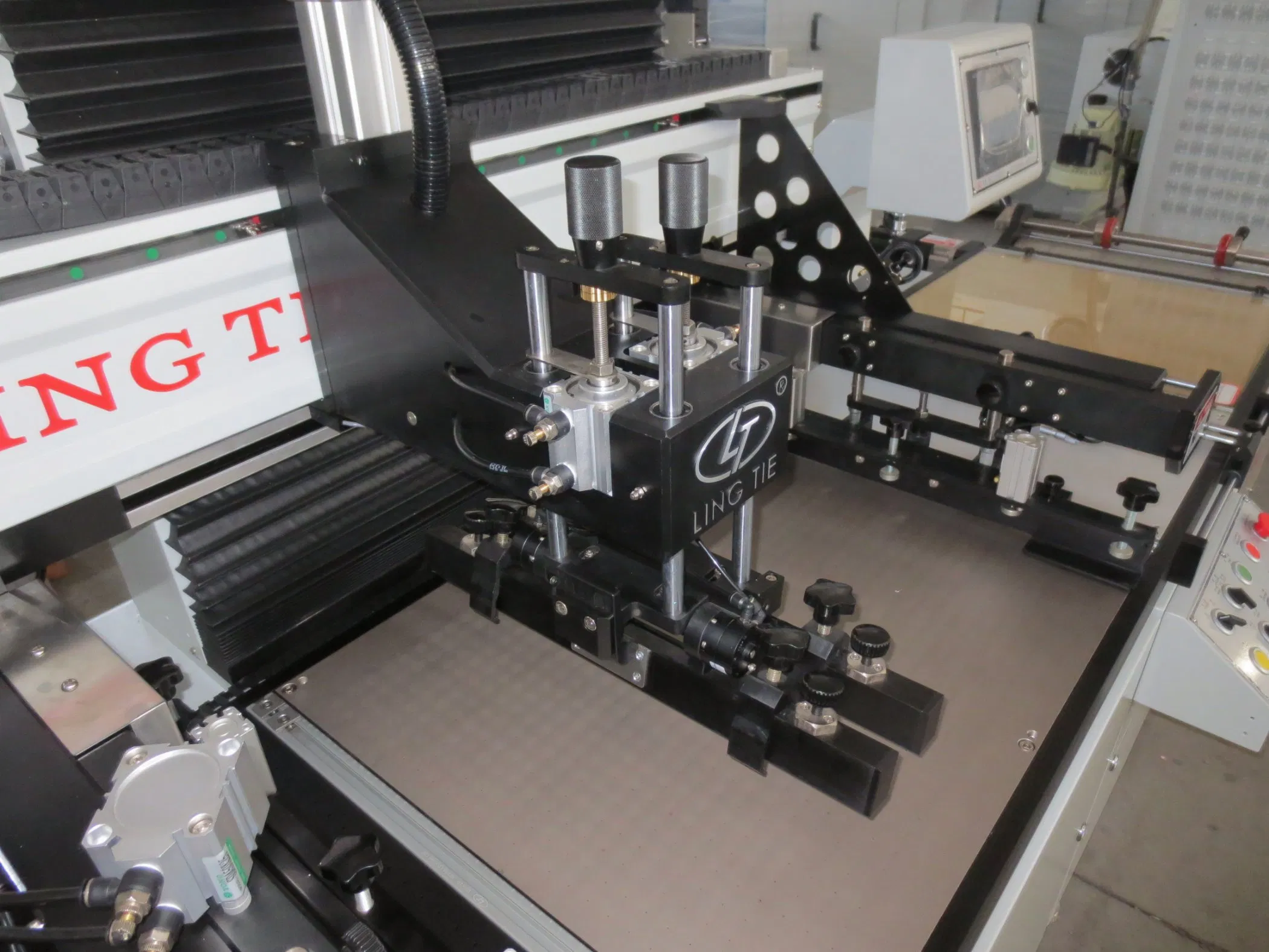

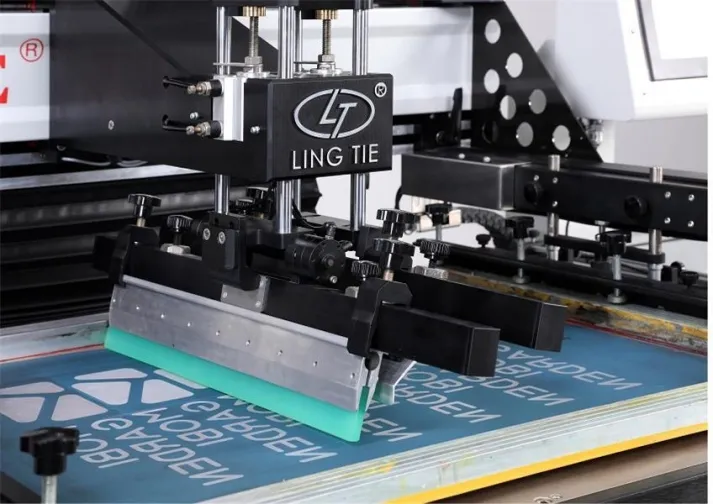

Print Head: High stability design to ensure long-term industrial use.

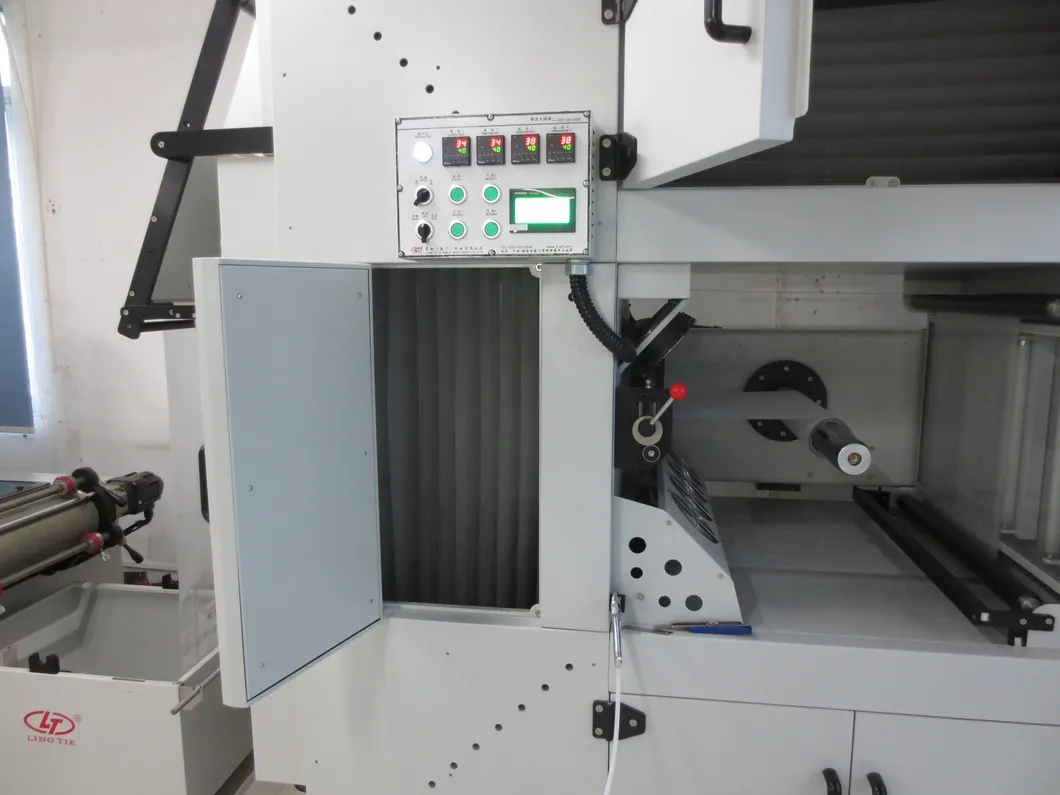

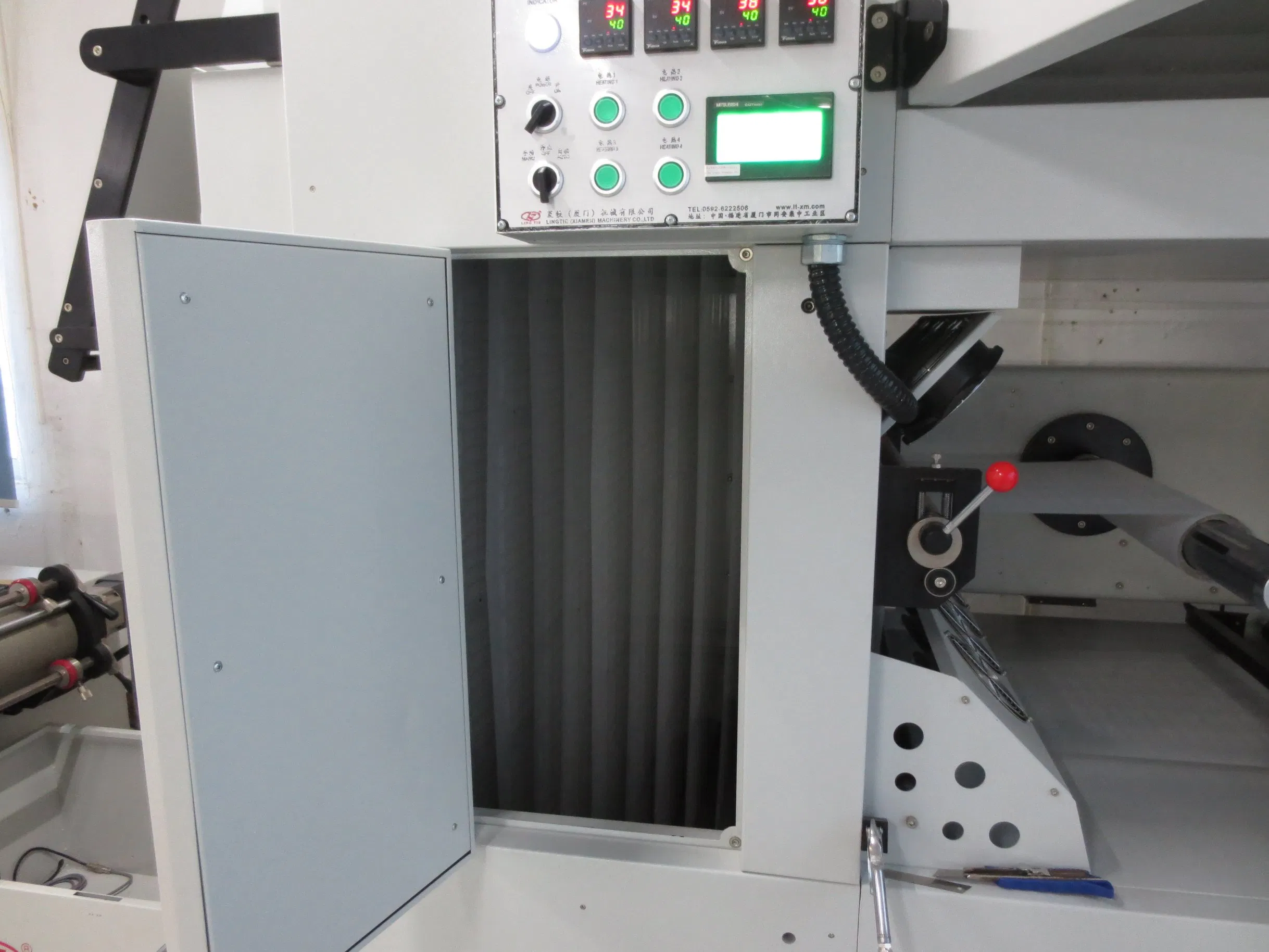

Hot Air Dryer: Available in 30m, 60m, and 80m inner loop options.

🏢

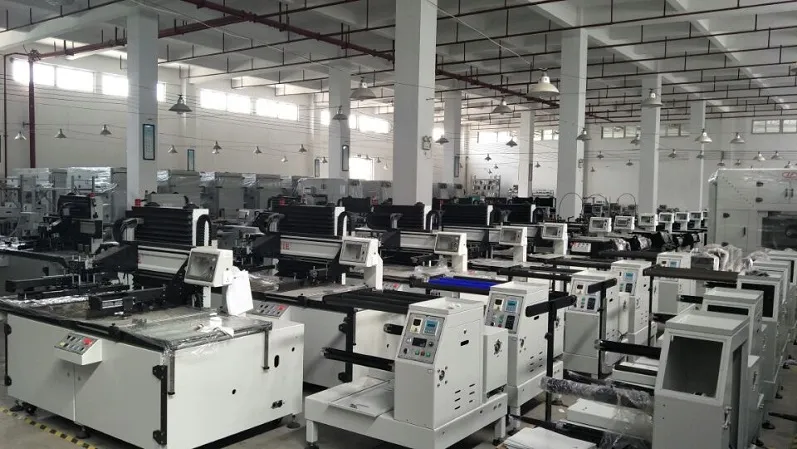

Workshop & Exhibition

Our Team and Customers:

📦

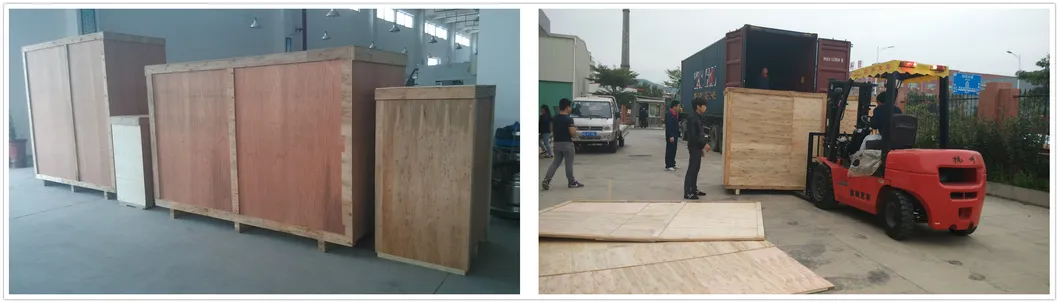

Machine Package

All machinery is securely packed in professional wooden boxes for safe delivery via container shipping.

❓

Frequently Asked Questions

1. What materials can the LTA-3040 print on?

The machine is compatible with a wide range of roll-to-roll materials, including PET, PVC, PE, PV, PP, PC, BOPP, and various adhesive stickers.

2. What is the registration accuracy of this printer?

The machine features an automatic register system with three sensors, achieving a high precision of +/- 0.01mm, making it ideal for multi-color overprinting.

3. Can the production line be customized?

Yes. While the standard line includes a feeder, printer, and hot air dryer, you can add optional units such as a UV dryer or a powder machine based on your specific requirements.

4. What is the maximum printing speed?

The LTA-3040 model can reach a maximum printing speed of up to 5,000 prints per hour, depending on the material and design complexity.

5. What industries typically use this roll-to-roll screen printer?

It is widely used for manufacturing heat transfer labels, RFID antennas, membrane switches, flexible printed circuits (FPC), and in-mould decoration (IMD) labels.

6. How is the machine protected during international shipping?

The machine is packed in a sturdy, export-standard wooden box to ensure protection against impact and moisture during container transport.
