Custom Clothing Labels, Tags, Patches&Apparel Trims Printer

Customization:	Available
Plate:	Variable Data
Structure:	Inkjet Printing

Send Inquiry

Product Description

Basic Specifications

Model NO. HSJET

Printing Type Single-Colour Printing Press

Usage Paper, Label, Card, Cloths Printer

Automatic Grade Automatic

Printing Interface RS232

Printing Speed 100m/Min

Resolution 150-600dpi

System Support Windows

Ink Solution Porous, Semi-Porous & Non-Porous

Power Supply AC 90V-240V/50-60Hz

Certification CE, SGS

Capacity 500 Sets/Year

★

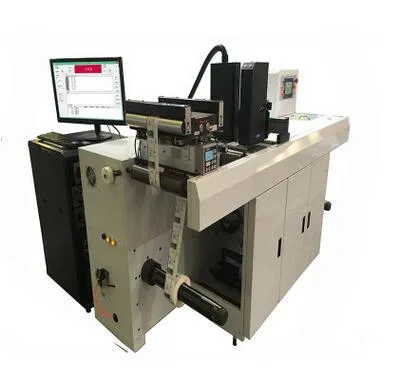

QR Codes Digital Label Press

Introduction: This UV DOD inkjet system adopts industrial piezoelectric on-demand inkjet technology, significantly improving production speed and spray printing quality. Equipped with industrial high-resolution and high-speed DOD piezoelectric print heads, the system meets rigorous demands for mailings, barcodes, bills, checks, packages, and marking applications.

It is suitable for web printing, sheet-fed, and both online and offline target printing. Its modular design allows for easy integration into existing transport systems, creating more value-added opportunities.

⚙

Technical Details

• Nozzle Type: Ricoh GEN5 / Kyocera 108 / Konica 1024i industrial piezoelectric nozzles.
• Nozzle Lifespan: More than 3 years (10 billion printing times).
• Print Width: Single nozzle 54/72/108 mm (expandable up to 24 groups with seamless joint).
• Precision: Physical 600 dpi printing precision.
• Linear Speed: 70 ~ 180 m/min.
• Ink Compatibility: Imported eco-friendly UV or water-based inks.
• Materials: Suitable for paper, plastics, PVC, PP, PE film, etc.

💻

Advanced Software Interface

The Printer Control Software (PCS) offers a user-friendly interface to monitor printer status and set options such as amplitude, pulse width of jetting waveforms, and temperature for each print head.

Variable Data Printing: Supports text, dates, serial numbers, barcodes, and logos. Compatible with .CSV, .XLS, .XLSX, .TXT, and PDF files. Supports multiple languages including English, Spanish, German, French, Portuguese, Russian, and Chinese.

📋

Print Head Comparison

Print Head	Ricoh GN5 / Konica 1024i / KY	Resolution	600×600, 400, 300, 200 dpi
Single Head Width	54.0mm / 72.0mm / 108mm	Max Width	Up to 24 Seamless Joints
Printing Speed	180m/min (600×200dpi) to 75m/min (600×600dpi)	Ink Method	Piezoelectric ink-jet
Drop Size	5-21 PL	System	Windows 7 / Windows 10
Interface Port	Gigabit Ethernet (Real-time printing)	Barcodes	UPC, EAN, CODE128, QR, DATAMATRIX, PDF417
File Format	Excel, TXT, PDF, BMP	Environment	0ºC~30ºC, Humidity: 50~80%

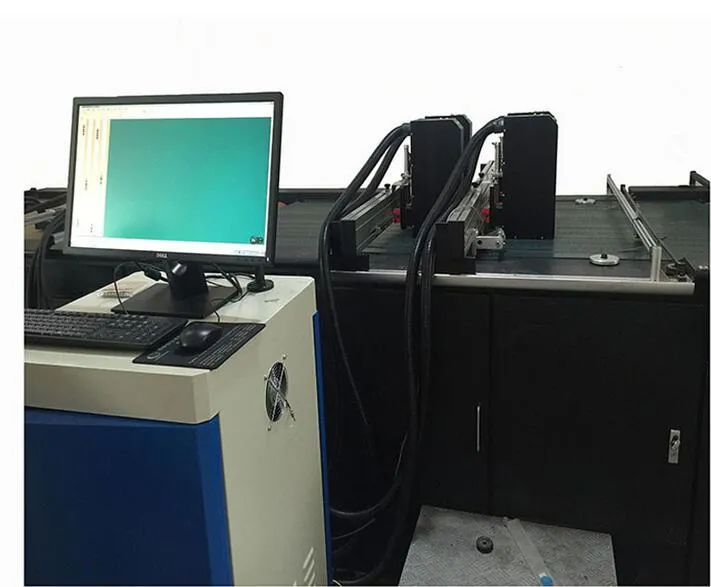

Clothing tag inkjet printing line

Frequently Asked Questions

What materials can this digital press print on?

The system is highly versatile and supports all kinds of paper, plastics, PVC, PP, and PE films, making it ideal for labels, tags, and cards.

What is the maximum printing speed of the system?

Depending on the resolution settings, it can reach a linear speed of up to 180m/min at 600×200dpi.

Does the software support variable data?

Yes, the Variable Data Printing Software supports text, serial numbers, barcodes, QR codes, and database photo images from formats like CSV, Excel, and PDF.

What kind of maintenance do the nozzles require?

The industrial piezoelectric nozzles are designed for longevity, typically lasting more than 3 years or 10 billion printing operations under normal use.

Is the printing ink environmentally friendly?

Yes, we use imported SGS-certified UV or water-based inks that are eco-friendly and suitable for various industrial applications.

Can the printing width be expanded?

Absolutely. The modular design allows for seamless joint integration of 1 to 24 print head groups to meet your specific width requirements.
