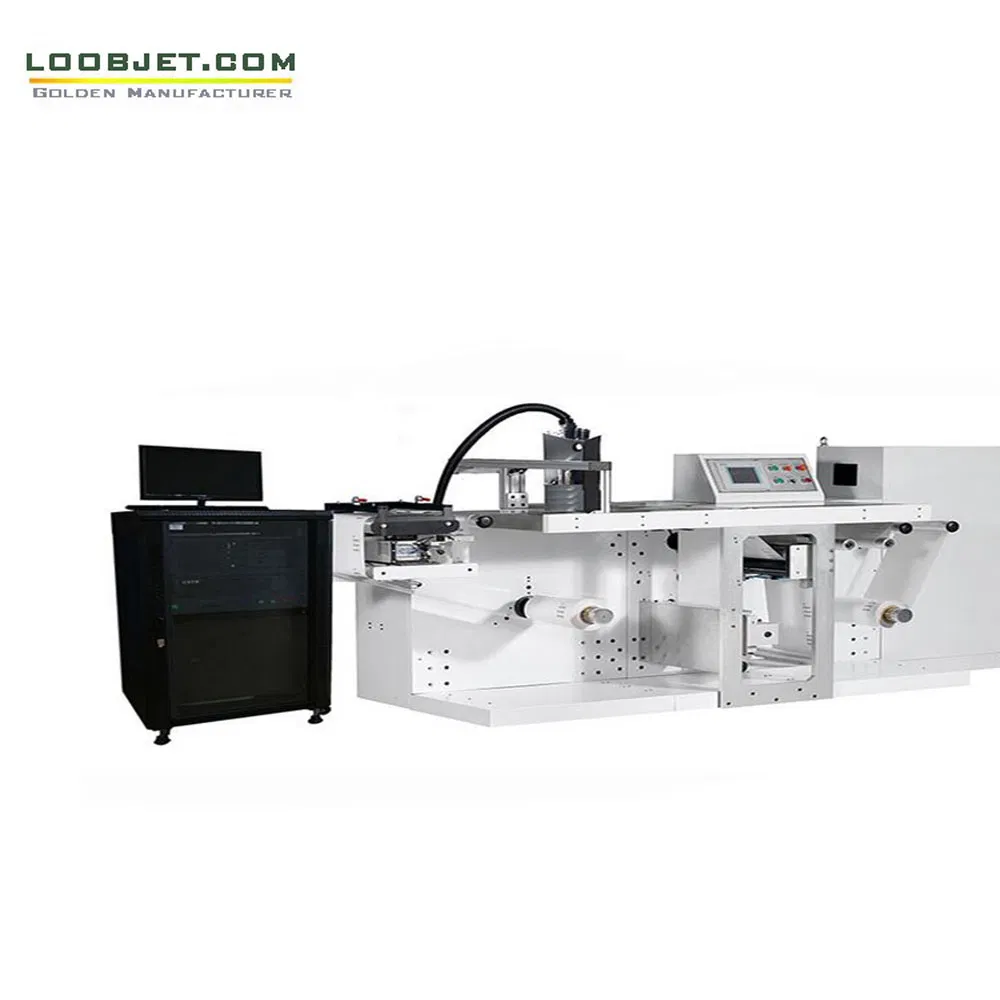

Garment Label Shirt Tags Digital Printer

1 / 5

Garment Label Shirt Tags Digital Printer

Customization:	Available
Type:	Demand for Ink Coding Machine
Usage:	Daily Industrial, Chemical Products, Drug, Food

Send Inquiry

Product Description

📋

Basic Specifications

Model NO.

HSJET

Automatic Grade

Automatic

Principle

Drop on Demand

Application

High Resolution Ink Jet Printer

Working Patterns

On-Line

Supplies

Ink

Languages

English, Japanese, French, German, Spanish, Portuguese

Resolution

150-600dpi

Ink Solution

Porous, Semi-Porous and Non-Porous

Origin

China

🚀

Product Description

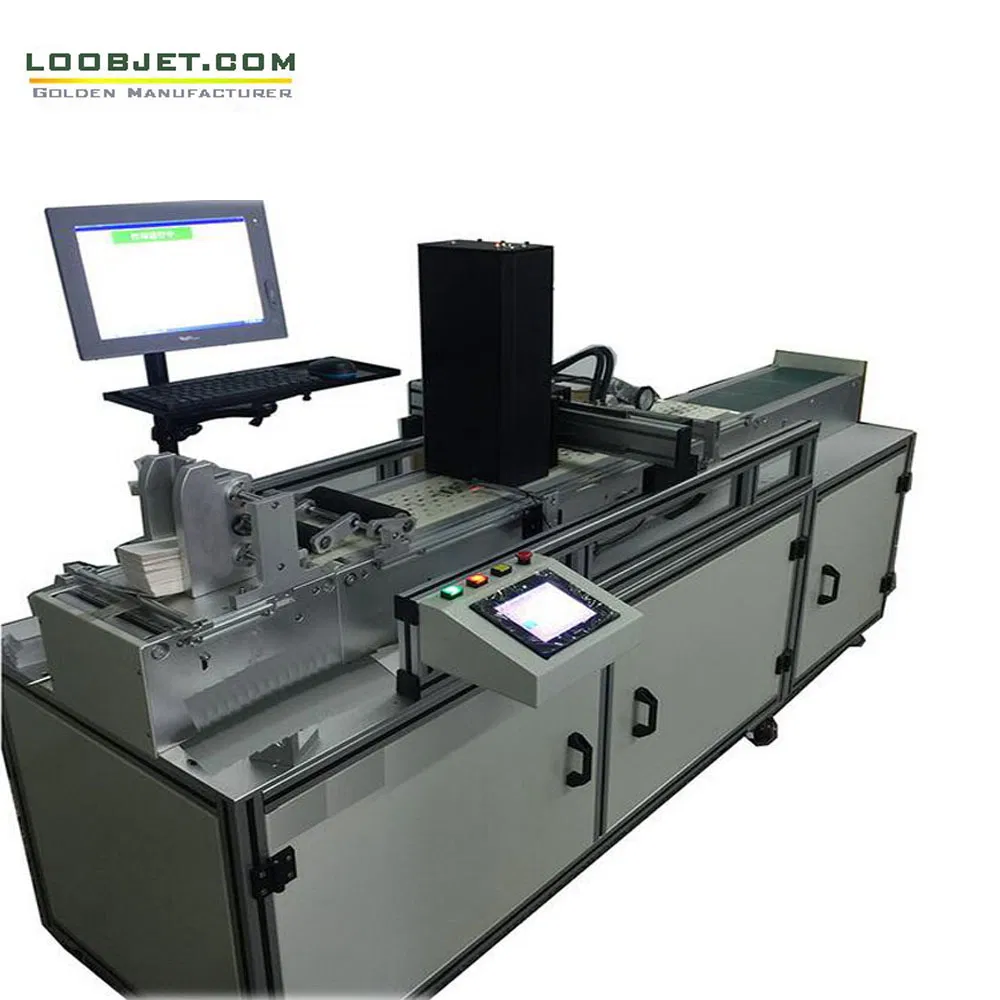

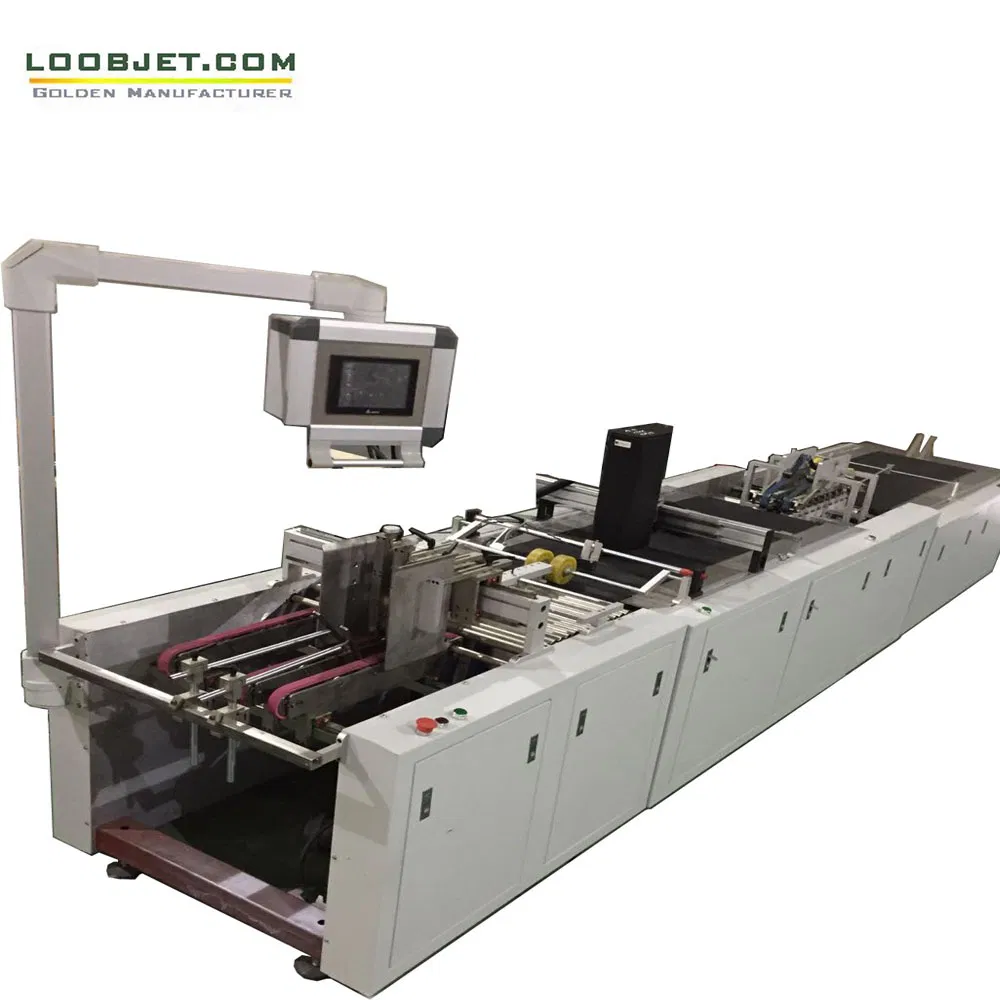

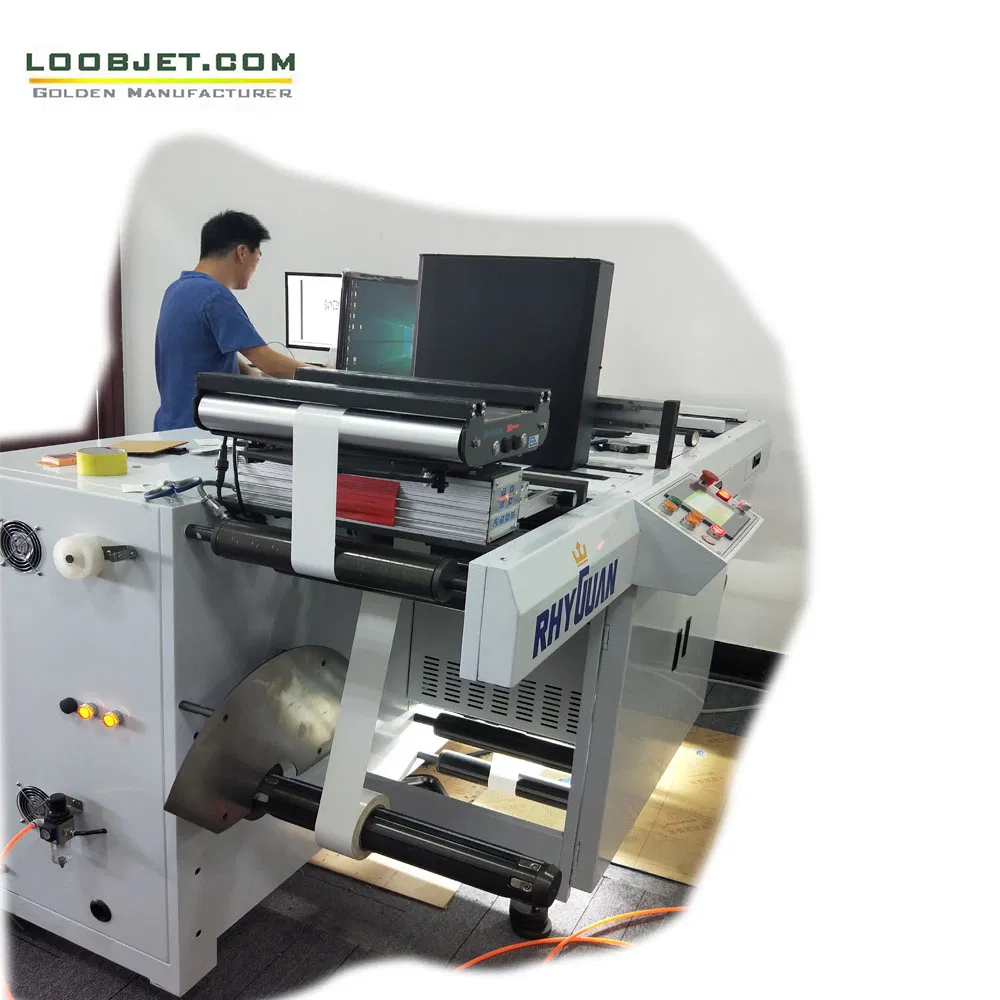

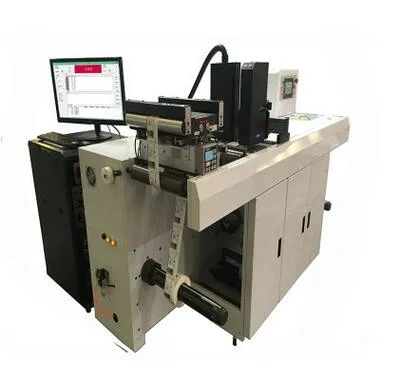

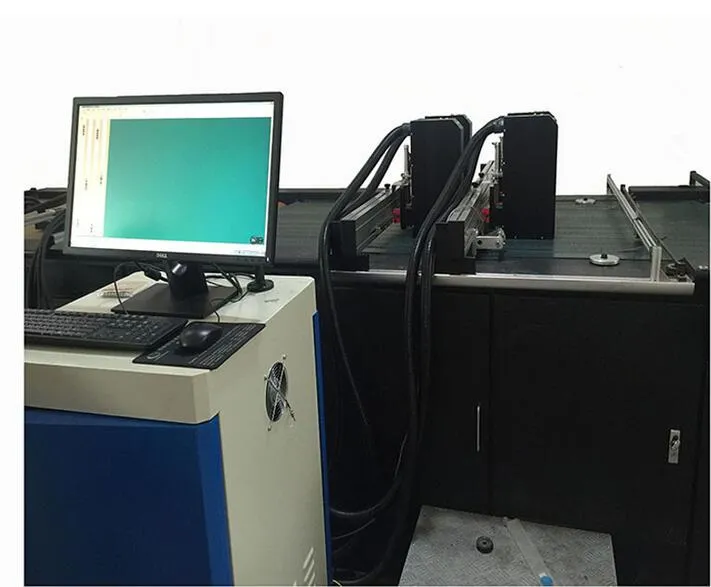

Coding and Marking Piezo DOD Printers

The UV DOD inkjet system adopts industrial piezoelectric on-demand inkjet technology, significantly improving production speed and spray printing quality. Equipped with industrial high-resolution and high-speed DOD piezoelectric print heads, this system meets rigorous demands for mailings, barcodes, bills, checks, packages, and marking applications.

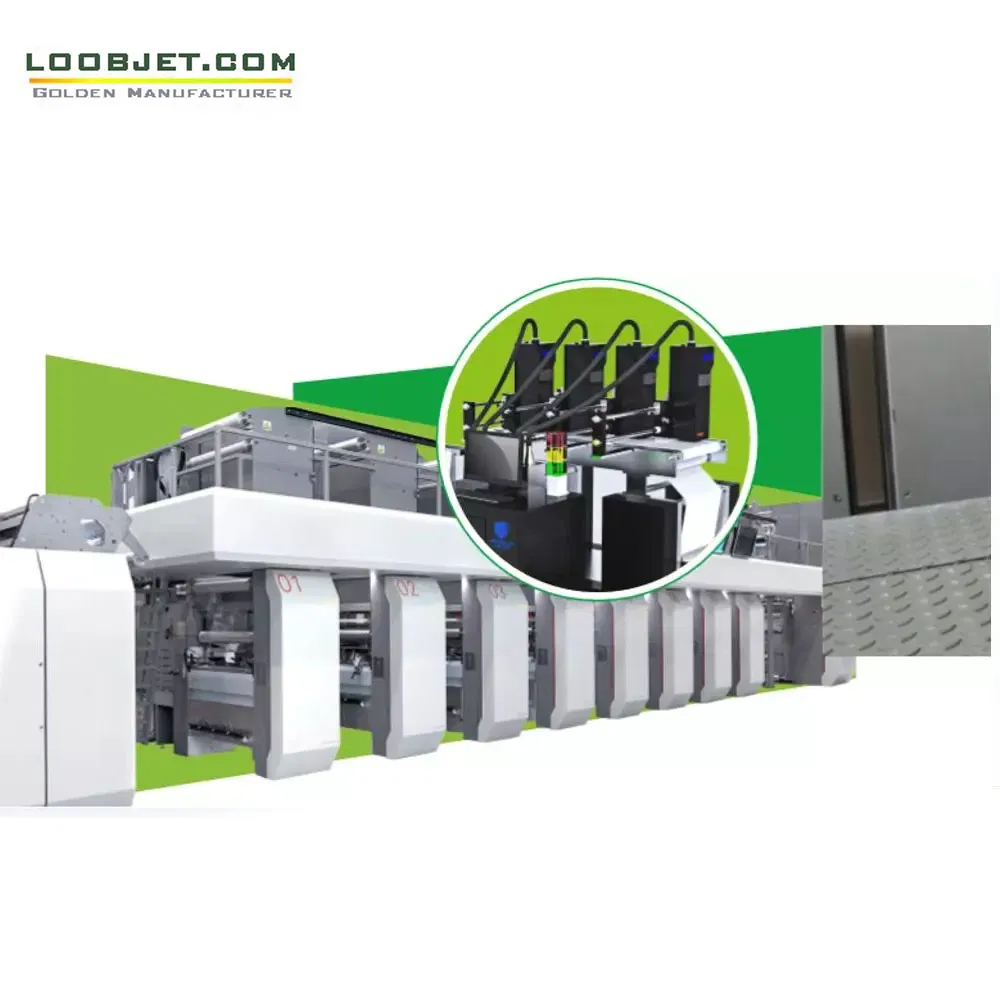

Suitable for web printing, sheet-fed, and both online and offline target printing. Its modular design allows for easy integration into existing transport systems.

🛠️

Technical Details

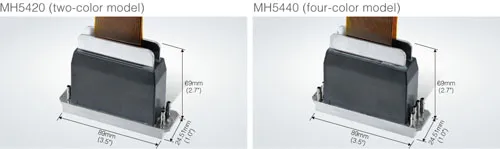

Nozzle Type: Ricoh GEN5 / Kyocera 108 / Konica 1024i industrial piezoelectric nozzle.
Service Life: More than 3 years, 10 billion printing cycles.
Print Width: Single nozzle 54mm / 72mm / 108mm (expandable to 24 groups).
Printing Precision: Physical 600 DPI.
Linear Speed: 70 ~ 180 m/min.

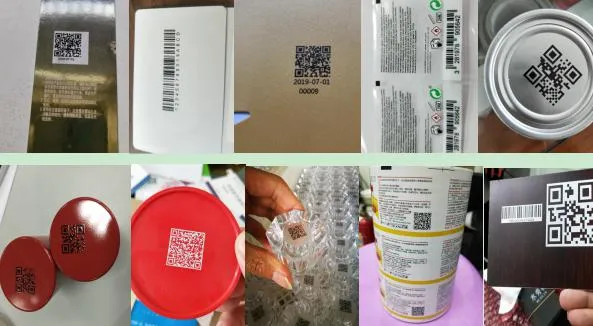

Compatible Materials: Paper, plastics, PVC, PP, PE film, and more.

💻

Advanced Software Control

Our Printer Control Software (PCS) provides a user-friendly interface to control jetting waveforms, temperature, and printer status. Features include:

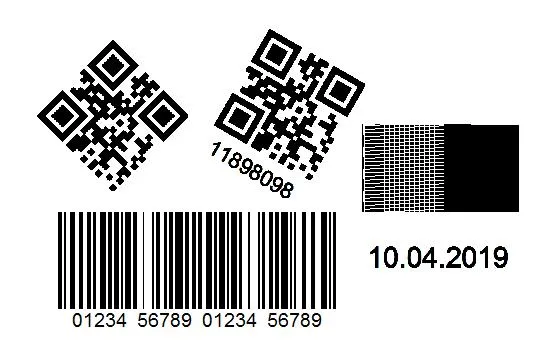

Variable Data Printing (VDP) support for text, dates, logos, and barcodes.
Multiple file formats: .CSV, .XLS, .XLSX, .TXT, and PDF.
Multi-language support: English, Spanish, German, French, Russian, Chinese, etc.

📊

Technical Specifications Table

Print Head	Ricoh GN5 / Konica 1024i / Kyocera	Resolution	600×600, 400, 300, 200 DPI
Head Origin	Japan	Max Speed	180m/min (at 200 DPI)
Single Head Width	54mm / 72mm / 108mm	Ink Type	Original SGS UV Inks
Max Joint Width	Up to 24 heads Seamless Joint	Data Interface	Gigabit Ethernet
OS System	Windows 7	Drop Size	5-21 PL
Supported Barcodes	QR, DATAMATRIX, PDF417, CODE128, EAN13, etc.	Power	AC 200~240V / 50~60Hz

❓

Frequently Asked Questions

1. What materials can this UV DOD inkjet system print on?

The system is highly versatile and can print on a wide range of materials, including various types of paper, plastics, PVC, PP, and PE films, making it ideal for packaging and labeling.

2. What is the typical lifespan of the industrial print heads?

Equipped with Ricoh or Kyocera industrial piezoelectric nozzles, the heads typically last more than 3 years or up to 10 billion printing cycles under proper maintenance.

3. Can the printing width be customized?

Yes, the modular design allows for seamless jointing of multiple print heads (up to 24 groups), enabling a wide variety of printing widths based on your specific requirements.

4. Does the software support variable data printing?

Absolutely. The system supports printing variable text, serial numbers, barcodes, QR codes, and database images from files like Excel (.XLSX), CSV, and PDF.

5. What are the speed capabilities of the HSJET system?

Depending on the resolution settings, the system can reach linear speeds between 70m/min and 180m/min, ensuring high-efficiency production for industrial lines.

6. Is technical training provided for the equipment?

The system is designed for ease of use, and free training is typically provided to ensure your operators can manage the hardware and software effectively.
