🔷 Basic Information
Color & Page
Multi-Colour Printing Press
Usage
Poster Printer, Textile Printer
Automatic Grade
Automatic
Printing Interface
USB 3.0 / LAN
Printing Speed
6-100sqm/H
System Supported
Windows XP/7/10/11
After-Sales Service
Permanent Service
Type
Eco Solvent / Water Base
🖼️ Product Gallery

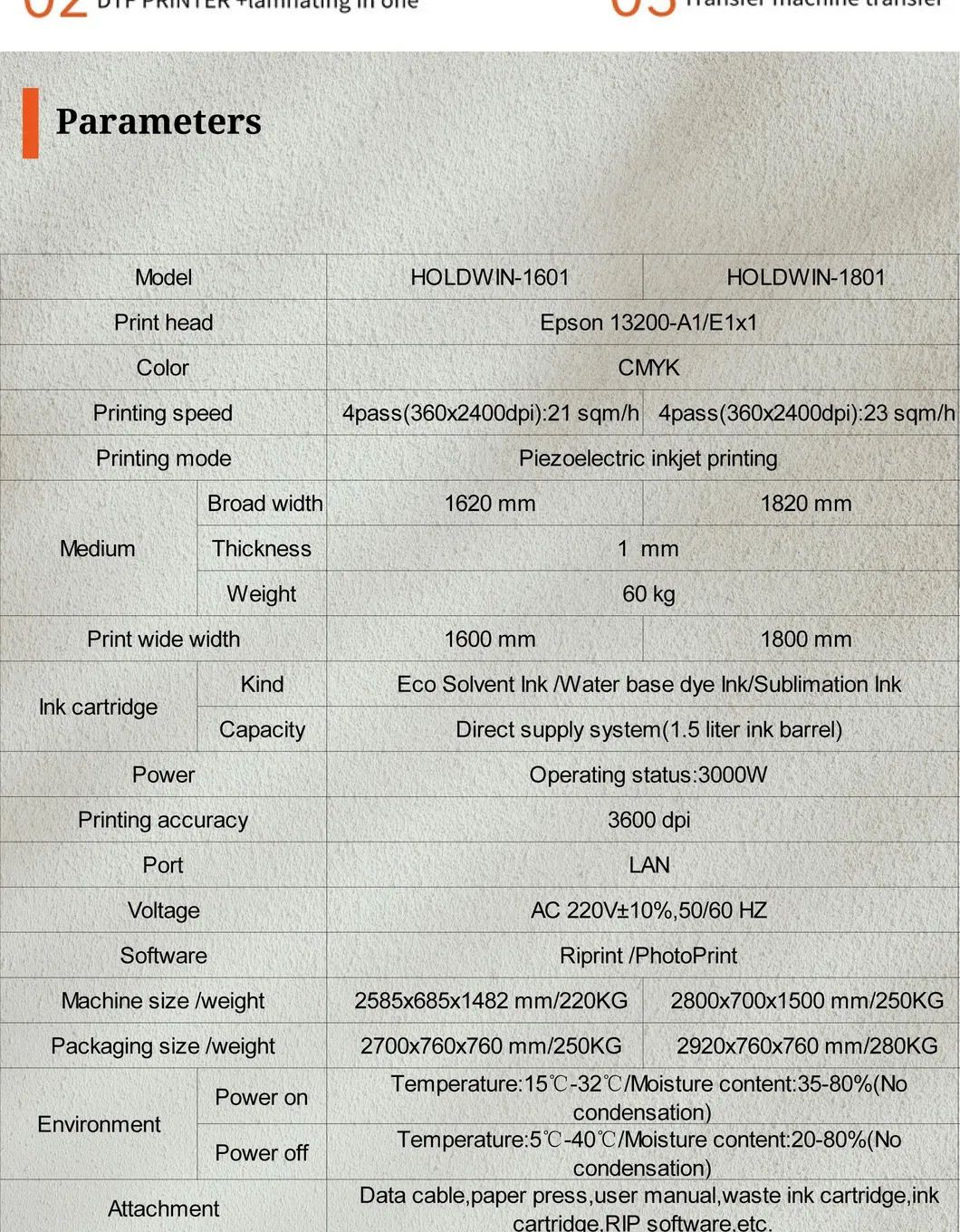

📊 Technical Specifications
| Feature |
Detail |
HOLDWIN-1601 |
HOLDWIN-1801 |
| Print Head |
Type |
I3200-A1/E1 x 1 |
| Color |
Configuration |
CMYK |
| Printing Speed |
4pass (360x2400dpi) |
21 Sqm/H |
23 Sqm/H |
| Medium Width |
Broad Width |
1620 Mm |
1820 Mm |
| Print Width |
Max Area |
1600 Mm |
1800 Mm |
| Ink Cartridge |
Kind |
Eco Solvent / Water Base Dye / Sublimation Ink |
| Power |
Operating |
3000W |
| Accuracy |
Resolution |
3600 Dpi |
| Software |
RIP |
Riprint / PhotoPrint |
| Weight |
Machine/Package |
220KG / 250KG |
250KG / 280KG |
💡 Frequently Asked Questions

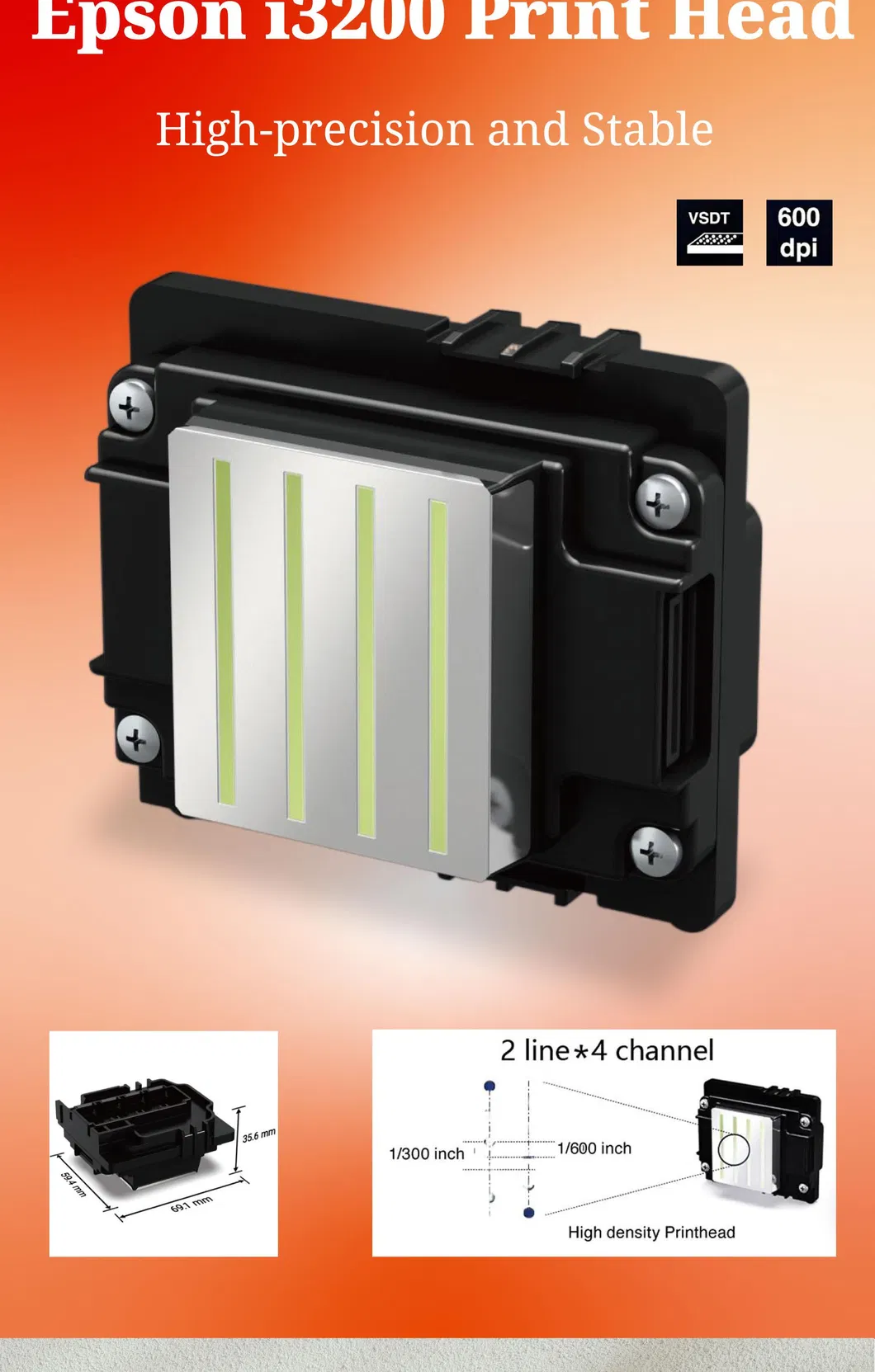

1. What type of print head does the HOLDWIN-1601 use?
The printer is equipped with the high-performance I3200-A1 or E1 print head, ensuring precision and durability for large format digital inkjet printing.
2. What kind of ink is compatible with this printer?
This model is highly versatile and supports Eco Solvent Ink, Water Base Dye Ink, and Sublimation Ink, making it suitable for various media types.
3. What is the maximum printing speed?
The printing speed ranges from 6 to 100 sqm/H depending on the mode. For standard 4-pass printing at 360x2400dpi, the speed is approximately 21 sqm/H.

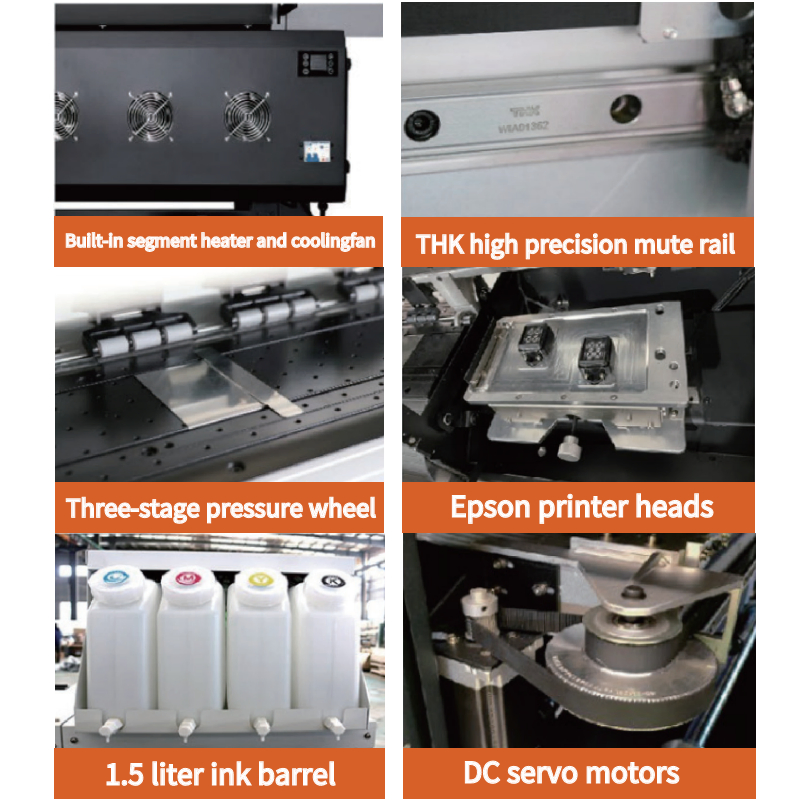

4. Does the printer support automatic operation?
Yes, the printer features an automatic grade system, including automatic feeding and a direct supply ink system with 1.5-liter ink barrels.
5. Which software is recommended for this machine?
The printer is fully compatible with professional RIP software such as Riprint and PhotoPrint, supporting standard digital printing workflows.
6. What are the environmental requirements for operation?
For optimal results, the operating temperature should be between 15ºC-32ºC with a moisture content of 35-80% (no condensation).
