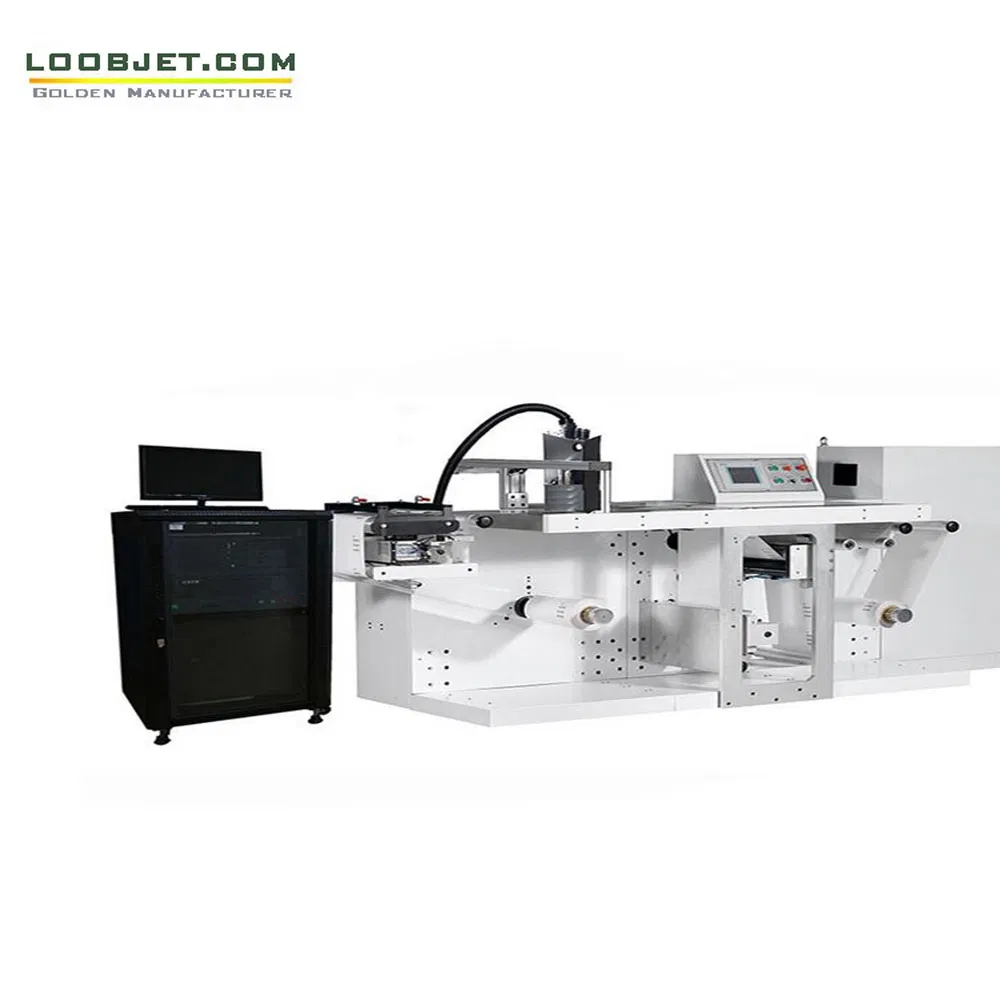

RFID Retail Apparel Cloth Hang Tag Printer

1 / 5

RFID Retail Apparel Cloth Hang Tag Printer

Customization:	Available
Plate:	Variable Data
Structure:	Inkjet Printing

Send Inquiry

Product Description

📋

Basic Specifications

Model NO.

HSJET

Color & Page

Single-Colour Printing Press

Usage

Paper, Label, Card, Cloths Printer

Automatic Grade

Automatic

Printing Interface

RS232

Printing Speed

100m/Min

System Supported

Windows

Resolution

150-600dpi

Power

AC 90V-240V/50-60Hz

Languages

English, Japanese, French, German, Spanish, Portuguese

📦

Packaging & Delivery

Package Size

120.00cm * 40.00cm * 100.00cm

Gross Weight

200.000kg

Transport Package

Box/Pallet

🚀

Product Description

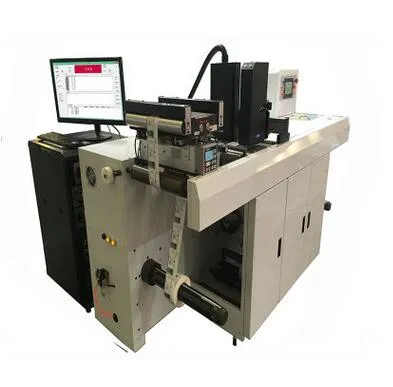

QR Codes Digital Label Press

Introduction

The UV DOD inkjet system adopts industrial piezoelectric on-demand inkjet technology, significantly improving production speed and spray printing quality. Equipped with industrial high-resolution and high-speed DOD piezoelectric print heads, it meets the rigorous demands for mailings, barcodes, bills, checks, packages, and marking applications. It is suitable for web printing, sheet-fed, and both online and offline target printing. Its modular design allows easy integration into existing transport systems.

Technical Details

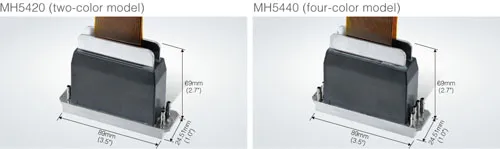

Nozzle type: Ricoh GEN5 / Kyocera 108 / Konica 1024i industrial piezoelectric nozzle.
Nozzle lifespan: Over 3 years or 10 billion printing times.
Single Nozzle width: 54 / 72 / 108 mm based on requirements.
Printing units: 1 ~ 24 groups extendable with seamless joint.
Linear speed: 70 ~ 180 m/min.
Inks: Environmentally friendly UV or water-based inks.
Materials: Paper, plastics, PVC, PP, PE film, etc.

Advanced Control Software

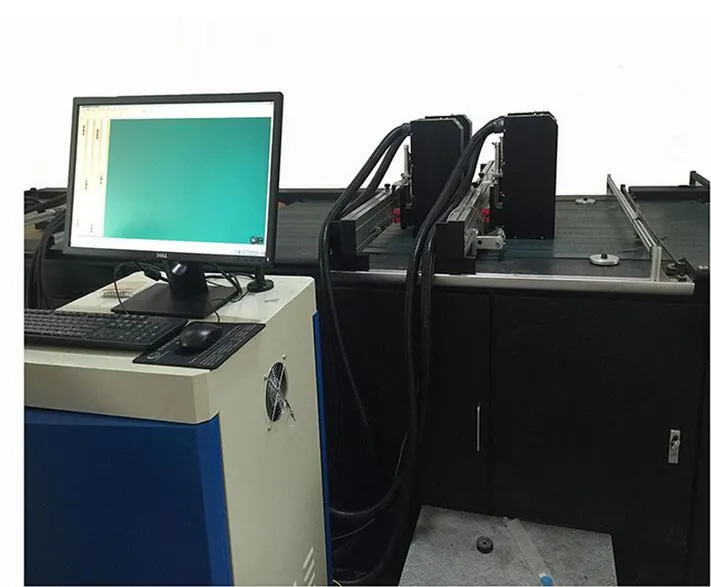

The Printer Control Software (PCS) offers a user-friendly interface to monitor status and set options like jetting waveforms and temperature for each print head. Features include database checking, DPI settings, and motor speed control. The Variable Data Printing Software supports text, dates, logos, serial numbers, barcodes, and database photo images (CSV, XLS, XLSX, TXT, and PDF files).

📊

Technical Parameters

Print Head Option	Ricoh GN5 / Konica 1024i / Kyocera	Resolution	600x600, 400, 300, 200 dpi
Single Head Width	54.0mm / 72.0mm / 108mm	Max Width	Up to 24 Seamless Joints
Printing Speed	180m/min (600x200dpi) / 75m/min (600x600dpi)	Method	Piezoelectric Ink-jet
Inks Type	Original SGS UV Inks	Drop Size	5-21 PL
System	Windows 7 / Gigabit Ethernet	File Formats	MS Excel, TXT, PDF, BMP
Barcodes Supported	UPCA, EAN13, CODE128, QR, DATAMATRIX, PDF417	Environment	0ºC~30ºC, Humidity: 50~80%

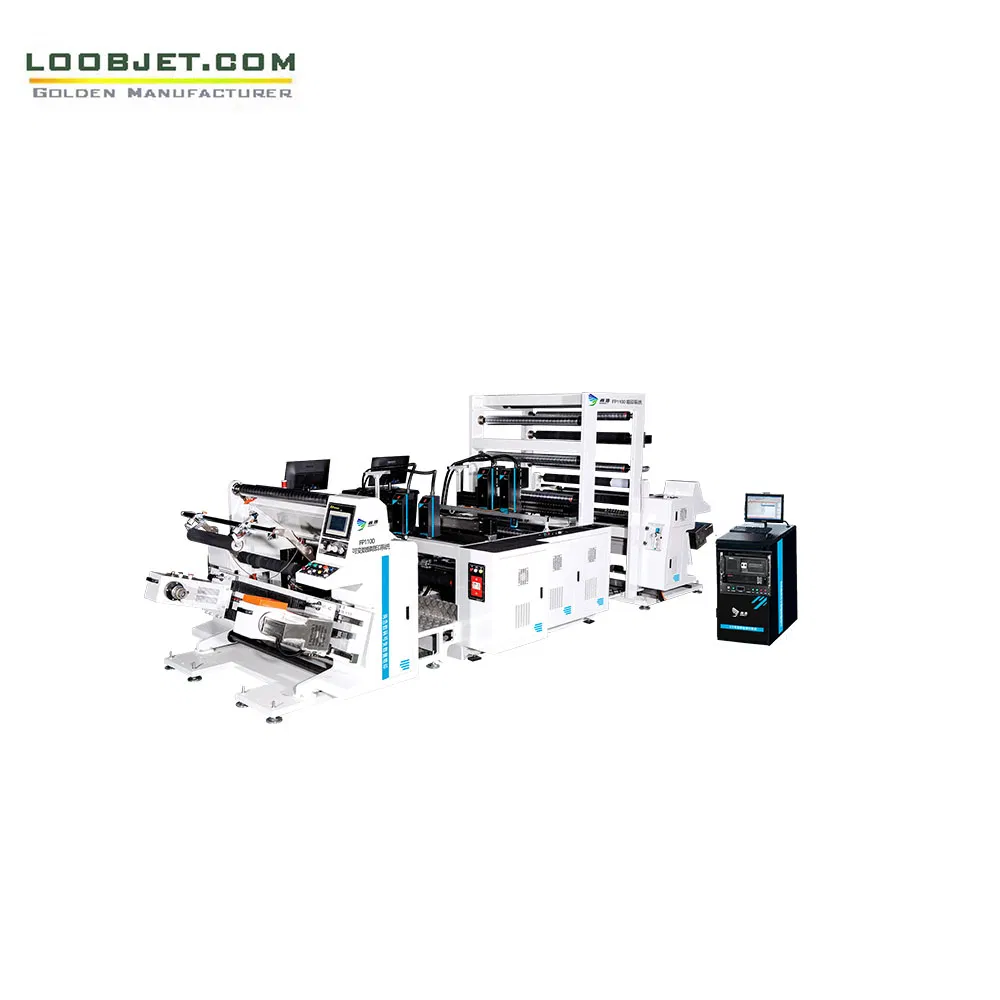

Clothing tag inkjet printing line

❓

Frequently Asked Questions

Q1: What materials can this digital press print on?

It is suitable for a wide range of materials including various types of paper, plastics, PVC, PP, and PE films, as well as clothing tags.

Q2: What is the maximum printing speed of the system?

The system can achieve a linear speed of 70 to 180 m/min, depending on the chosen resolution (e.g., 180m/min at 600x200dpi).

Q3: What types of print heads are available?

You can choose from Ricoh GEN5 (54mm), Kyocera (108mm), or Konica 1024i (72mm) industrial piezoelectric nozzles based on your specific requirements.

Q4: Does the software support variable data printing?

Yes, the software supports variable data such as QR codes, barcodes, serial numbers, dates, times, and database-linked images from CSV, Excel, or PDF files.

Q5: How long do the printing nozzles typically last?

The industrial-grade nozzles have a normal lifespan of more than 3 years or approximately 10 billion printing operations.

Q6: Is the system compatible with multiple languages?

Yes, the control interface supports multiple languages including English, Spanish, German, French, Portuguese, Russian, and Chinese.
