1.8m Large Format Digital Dry Sublimation Textile Printing Machine for Fabric with 4 I3200

Customization: Available
After-sales Service: Permanent Service
Warranty: 1 Year

Product Description

📋

Basic Information

Model NO.
HOLDWIN-1804TX
Style
Digital Printing
Usage
Textile Printer
Print Interface
USB 3.0 / LAN
Ink Size
3.5pl
Print Head
I3200-A1 X 4
Printing Width
1820mm
Machine Weight
550kg
🚀

Product Description & Features

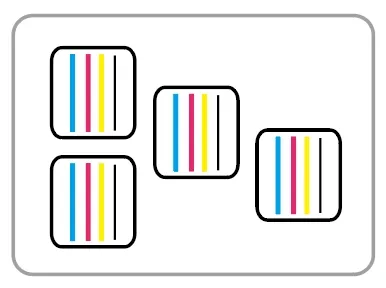

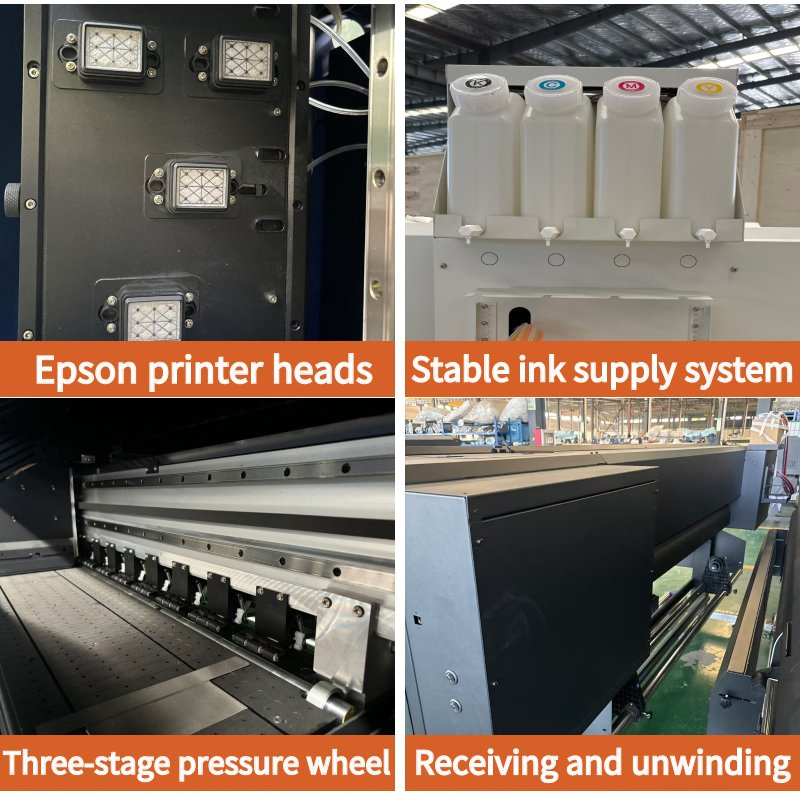

This large format digital dry sublimation textile printing machine adopts advanced board control technology and is equipped with 4 i3200 print heads. Each head features 3200 nozzles and 3.5pl ink droplets, achieving a printing accuracy of up to 3600dpi. The industrial-grade design ensures long-term durability and high-performance output.

Digital Sublimation Textile Printer

Key Features:

  • High-strength appearance mechanism for enhanced stability and reliability during high-speed operation.
  • Innovative warm air structure and silent suction fan significantly reduce operating noise.
  • Equipped with a constant temperature heating system, ensuring the print head performance is unaffected by ambient temperature changes.
  • Multi-point adaptive pressure wheels provide accurate pressure control and smooth paper feeding for continuous, stable printing.

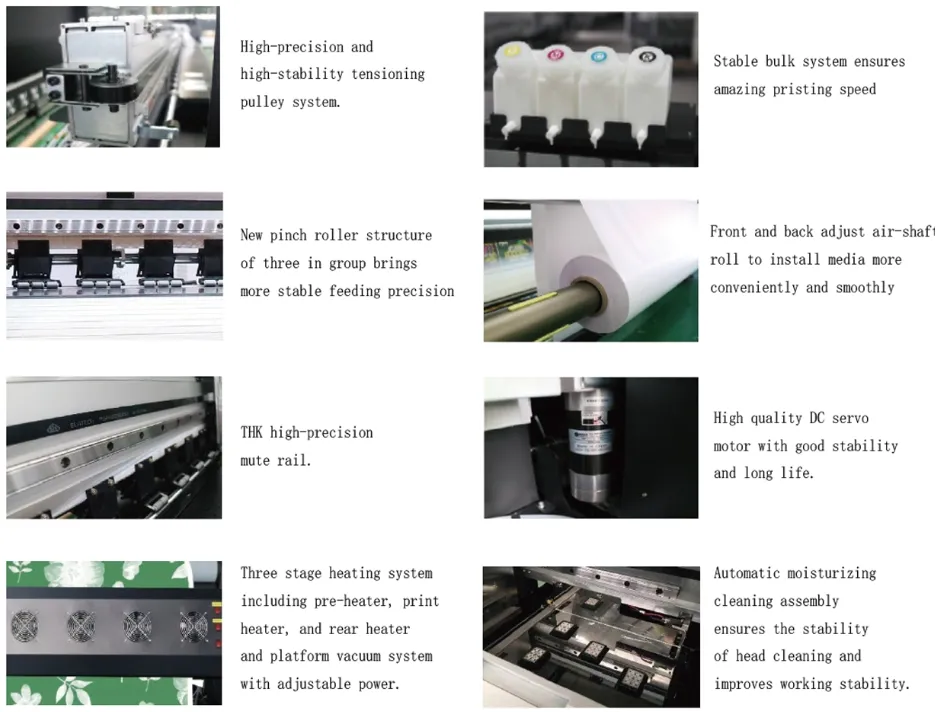

Machine Internal Details
🎨

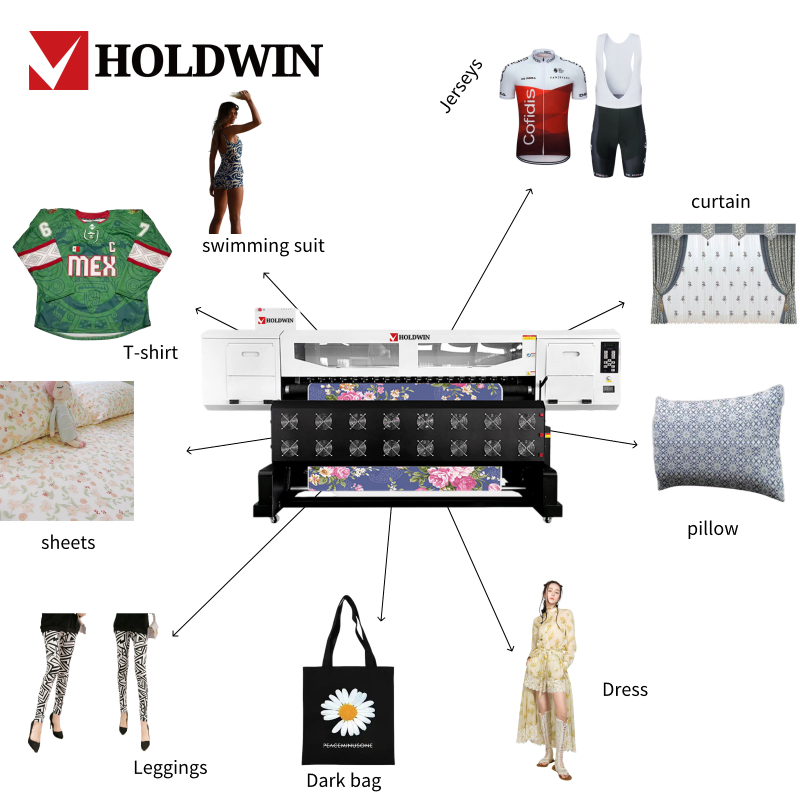

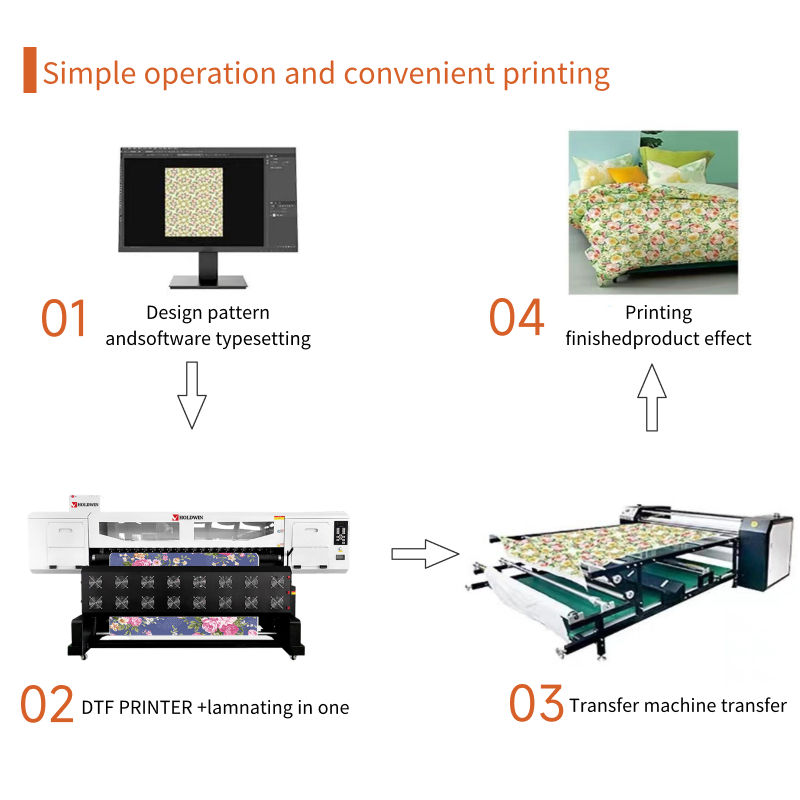

Applications

Printing Applications
📊

Technical Parameters

Specification Details
Model HOLDWIN-1804TX
Print Head I3200-A1 x 4
Printing Technology Piezoelectric Inkjet
Maximum Width ≤ 1820mm
Ink Type Dye Sublimation Ink
Ink Configuration 4 Colors (CMYK) / 6 Colors / 8 Colors Optional
Speed (1pass) 180 sqm/H (360x1200dpi)
Speed (2pass) 120 sqm/H (360x2400dpi)
Speed (4pass) 74 sqm/H (720x1200dpi)
RIP Software Riprint
Interface LAN
Power Supply AC220V±5%, 16A, 50HZ±1
🏭

Manufacturing & Quality

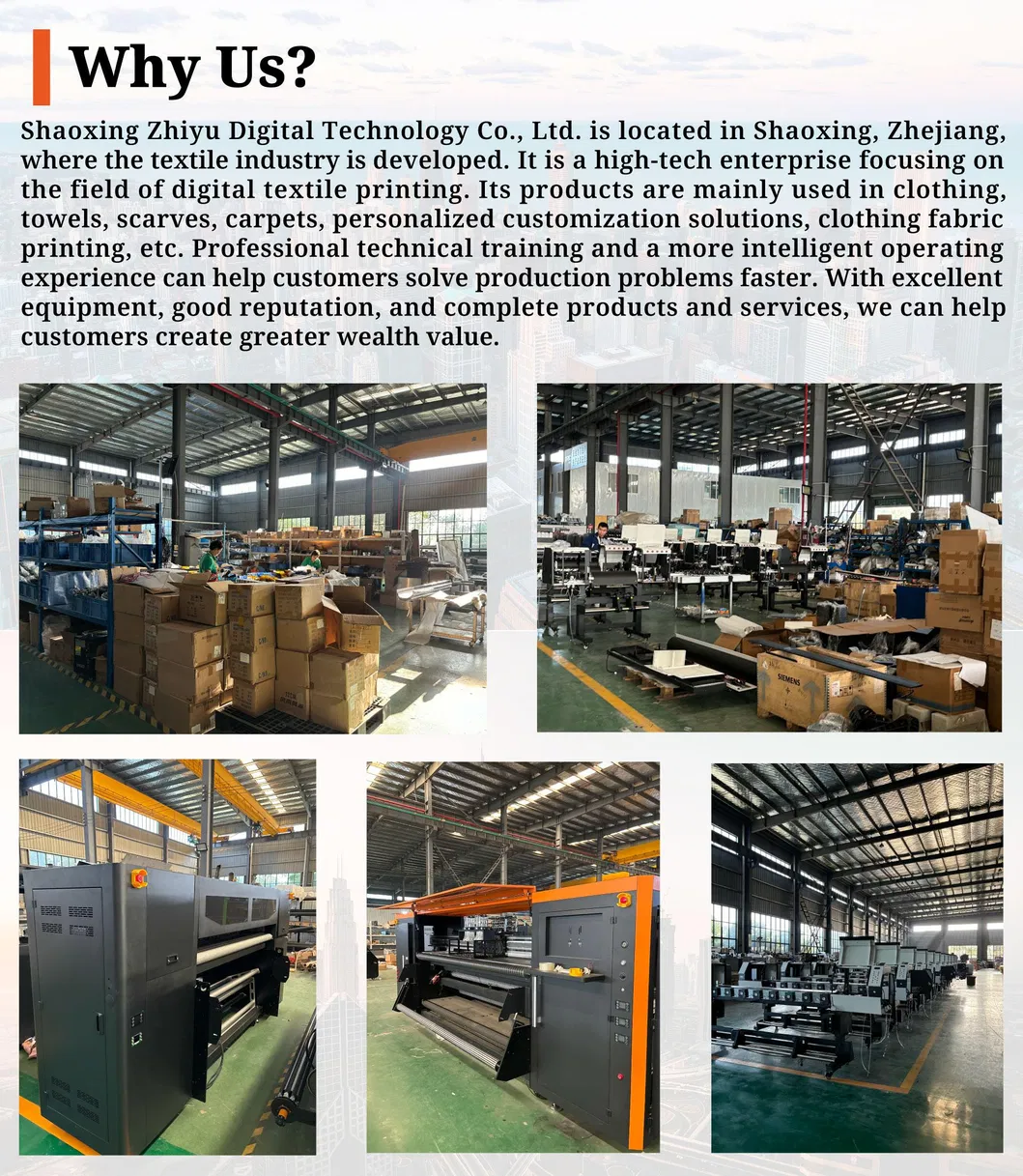

Production Line 1

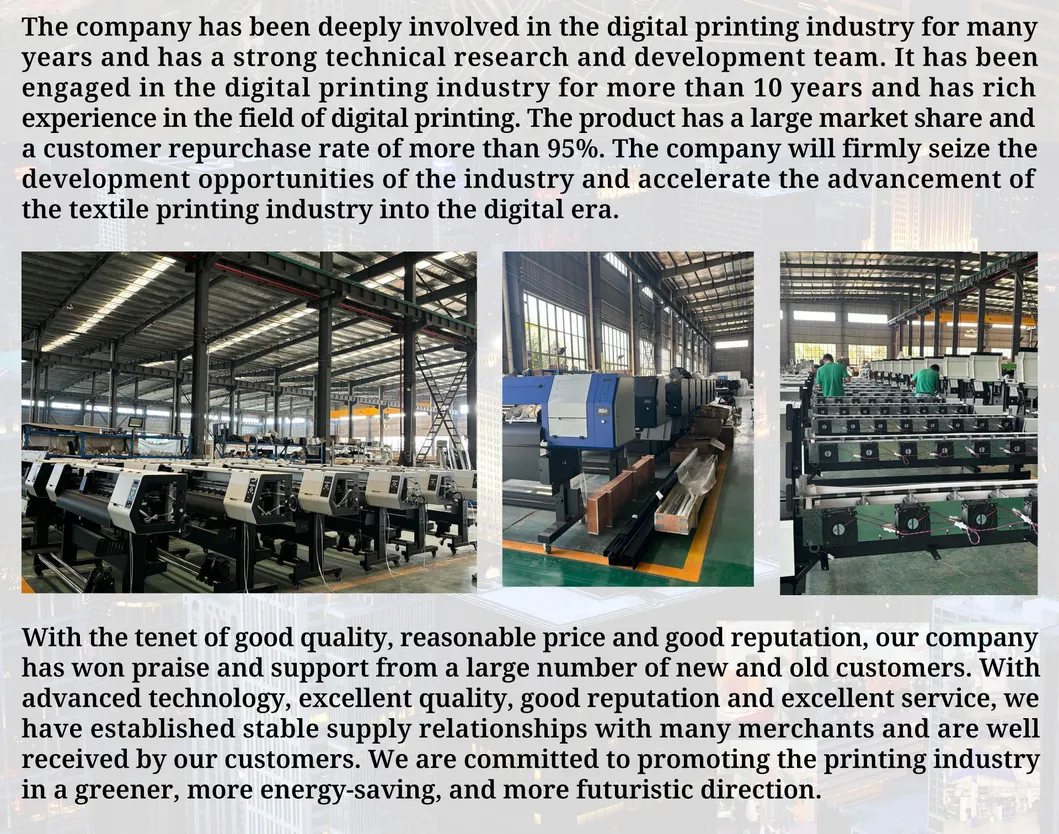

Production Line 2
Assembly Detail
Quality Control
Warehouse 1
Warehouse 2

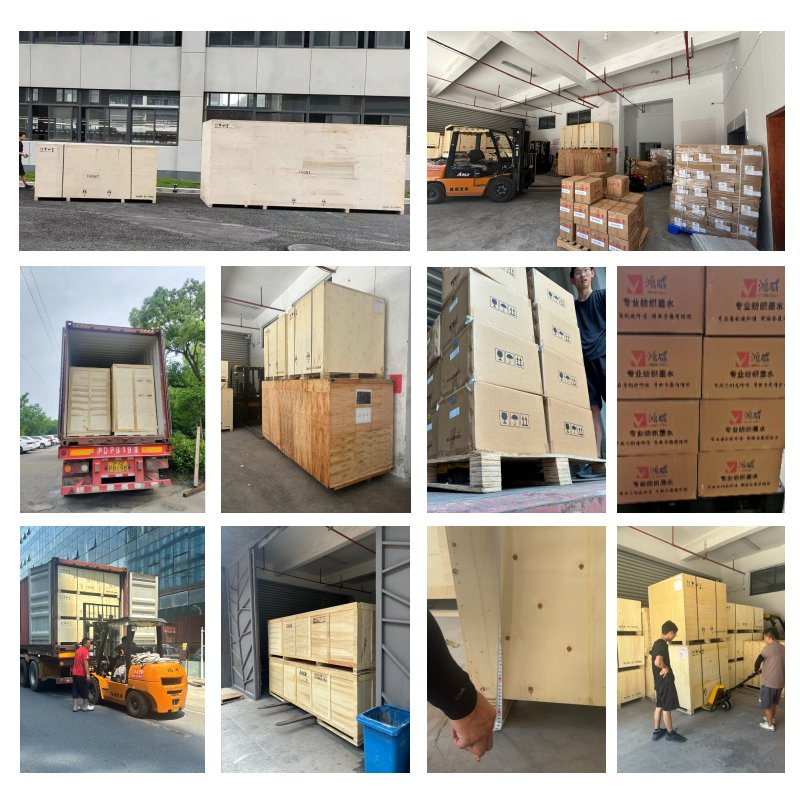

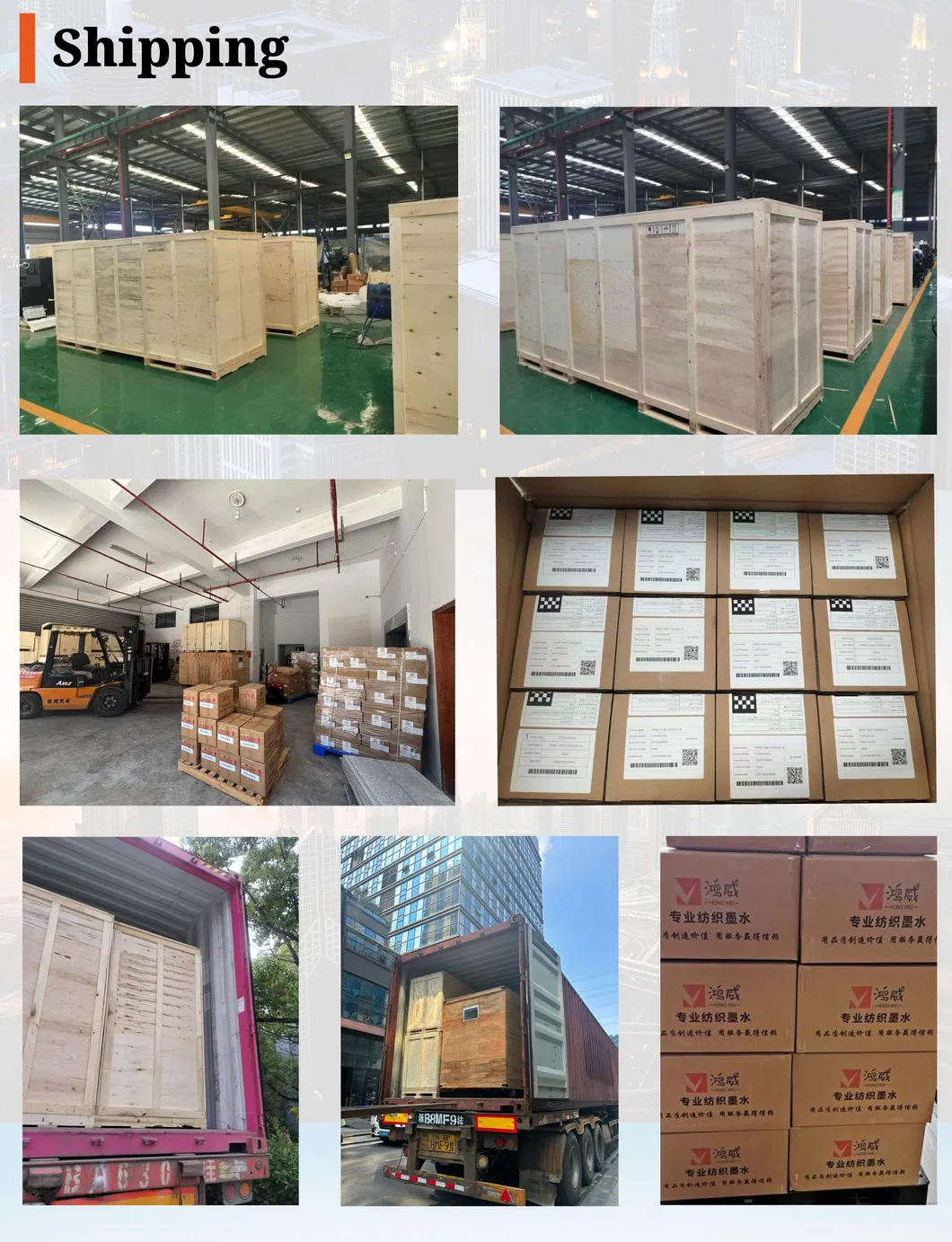

Shipping Preparation
Component Inspection
Finished Product

Frequently Asked Questions

What type of print heads are used in this machine?
The machine is equipped with 4 I3200-A1 industrial-grade print heads, providing high precision and durability.
What is the maximum printing speed?
The maximum speed reaches 180 sqm/H at 1-pass (360x1200dpi) resolution.
Does the machine include a drying system?
Yes, it features an external automatic air and heat integrated dryer to ensure prints are dried quickly and safely.
What is the supported printing width?
The machine supports a maximum printing width of up to 1820mm.
How does the constant temperature heating system benefit the user?
It ensures that the print heads maintain consistent performance regardless of changes in the workshop's ambient temperature.
What kind of ink and media are suitable for this printer?
This printer is designed for Dye Sublimation Ink and is primarily used with Heat Transfer Paper for textile applications.
