Newspaper Magazine Press Printing Machine with Multi Colors Digital Offset Printer
Newspaper Magazine Press Printing Machine with Multi Colors Digital Offset Printer
Newspaper Magazine Press Printing Machine with Multi Colors Digital Offset Printer
Newspaper Magazine Press Printing Machine with Multi Colors Digital Offset Printer
Newspaper Magazine Press Printing Machine with Multi Colors Digital Offset Printer
1 / 5
Newspaper Magazine Press Printing Machine with Multi Colors Digital Offset Printer
Newspaper Magazine Press Printing Machine with Multi Colors Digital Offset Printer
Newspaper Magazine Press Printing Machine with Multi Colors Digital Offset Printer
Newspaper Magazine Press Printing Machine with Multi Colors Digital Offset Printer
Newspaper Magazine Press Printing Machine with Multi Colors Digital Offset Printer

Newspaper Magazine Press Printing Machine with Multi Colors Digital Offset Printer

Customization: Available
After-sales Service: One Year
Warranty: One Year
Send Inquiry

Product Description

Basic Information

Model NO.
ZR462II
Type
Sheetfed Automatically Plane Offset Press
Printing Color
Four-color Machine
Color & Page
Multi-Colour
Usage
Paper Printer, Label Printer, Card Printer
Automatic Grade
Automatic
Printing Speed
8000 sheets/hour
Motor Power
4kw
Max. Sheet Size
620 * 450mm
Min. Sheet Size
260 * 180mm
Max. Print Format
605 * 440mm
Origin
China

Packaging & Delivery

Package Size
465.00cm * 115.00cm * 172.00cm
Gross Weight
3540.000kg
Transport Package
Strong Seaworthy Wooden Cases

Product Description

Banner Four Colors Offset Printing Machine

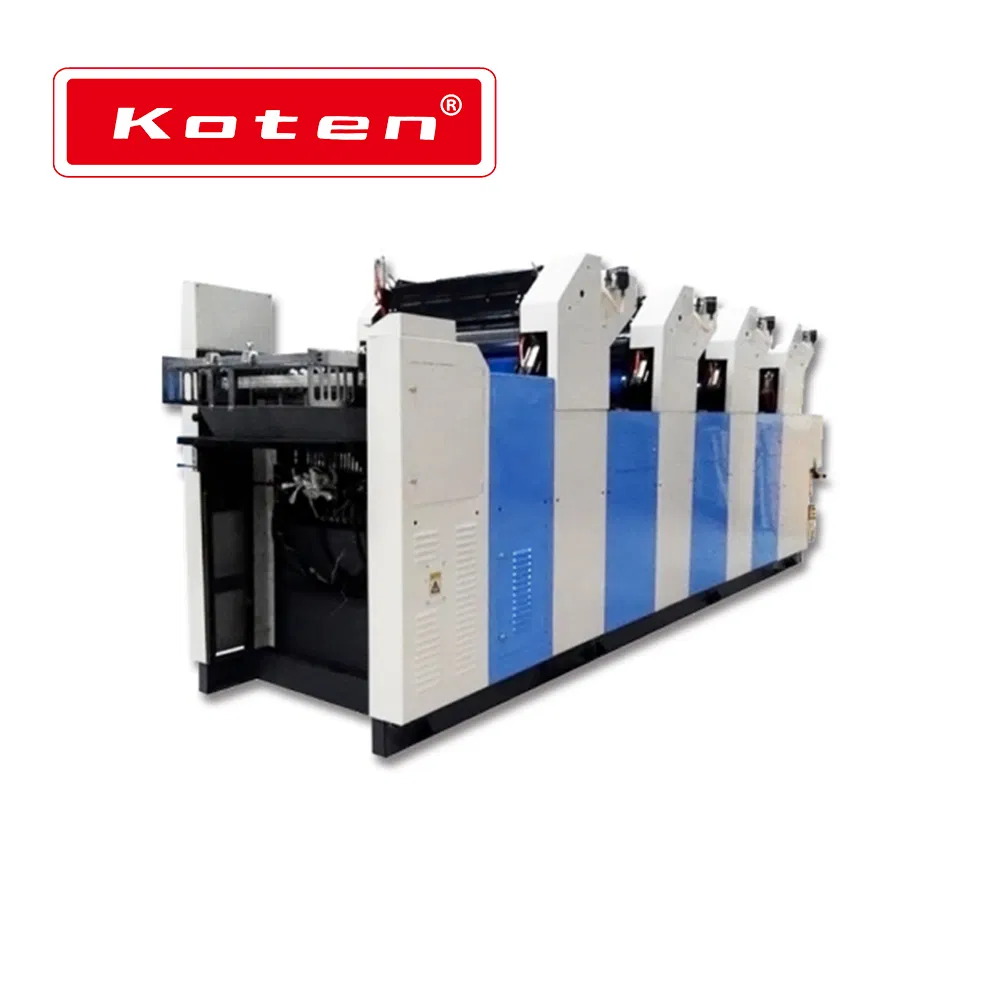

FOUR COLORS OFFSET PRINTING MACHINE ZR462II

Offset press are made with fine workmanship on the basis of high quality. In addition to all the functions, they have improved inking system, more form rollers and vibrating rollers. Uniform ink distribution can ensure high printing quality needed for full printing, make short run color printing simple, easy and smooth, the printed products are more beautiful. So they are economical and practical printing machines.

1
The Rubber roller using three point suspension technology, pneumatic clutch pressure, the pressure will be adjusted well for the accuracy and reliability.
2
External high-precision helical gear driver and walk-way iron cylinder to ensure a stable pressure of the printing and delivery of a smooth rotating.
3
The whole machine use the way of self-lubricating to ensure that all gears and bearings are lubricated simultaneously during operation.
4
Ink supply unit composed by 15 rollers, including 4 different diameter rollers. The system responds quickly with good ink absorption function.
5
Professional high-quality and reliable feeding system ensure the paper feeding smoothly and accurately. Semi-automatic version loading.
6
Function of synchronization hydropower: when the speed of host-run version changes, the motor of lubricating also changes speed simultaneously.
Separator

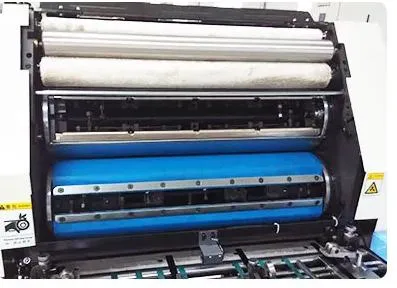

Detail 1

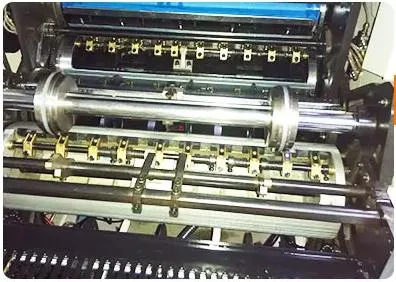

Detail 2
Detail 3

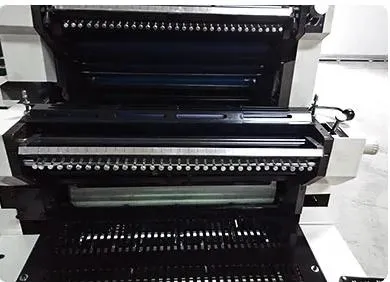

Detail 4
Specs Header
ModelZR462II
Max. sheet size620 * 450mm
Min. sheet size260 * 180mm
Max. print format605 * 440mm
Plate size620 * 485 * 0.15mm
Blanket size616 * 505 * 1.95mm
Paper Thickness200-300gsm (or 28-250gsm)
Max. speed2000-9000 sheets/hour
Speed adjustmentFrequency converter
Inking rollers14pcs per unit (3 forme)
Power supply380v/50Hz
Main motor4kw
Machine dimension4350(L) * 1040(W) * 1460(H)mm
Net weight3200kg
Separator Machine View Separator
Feature Detail 1

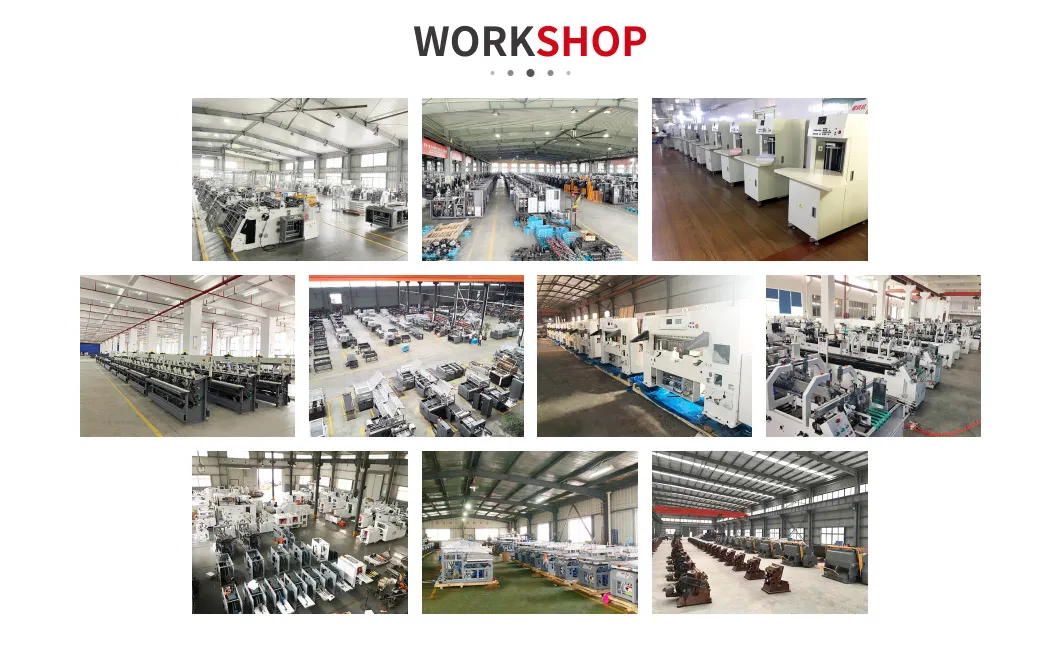

Feature Detail 2
Feature Detail 3
Feature Detail 4
Feature Detail 5
Feature Detail 6
Feature Detail 7
Feature Detail 8
Feature Detail 9
Feature Detail 10

Frequently Asked Questions

What is the maximum printing speed of the ZR462II?
The machine can reach a maximum speed of 8,000 to 9,000 sheets per hour, depending on the paper type and printing requirements.
What types of materials can this offset press print on?
It is a versatile printer suitable for paper, labels, and cards, supporting paper thicknesses ranging from 28gsm up to 300gsm.
How does the inking system ensure high-quality results?
The system features 15 rollers, including 4 different diameter rollers per unit, ensuring uniform ink distribution and quick response for clear mesh work and small text.
Is the machine easy to maintain?
Yes, the machine utilizes a self-lubricating system that ensures all gears and bearings are lubricated automatically during operation, reducing manual maintenance needs.
What are the power requirements for installation?
The ZR462II requires a 380V/50Hz power supply, with a main motor power of 4kw and an air pump motor of 1.5kw.
What is the maximum sheet size supported?
The maximum sheet size is 620 * 450mm, with a maximum printing format of 605 * 440mm.
