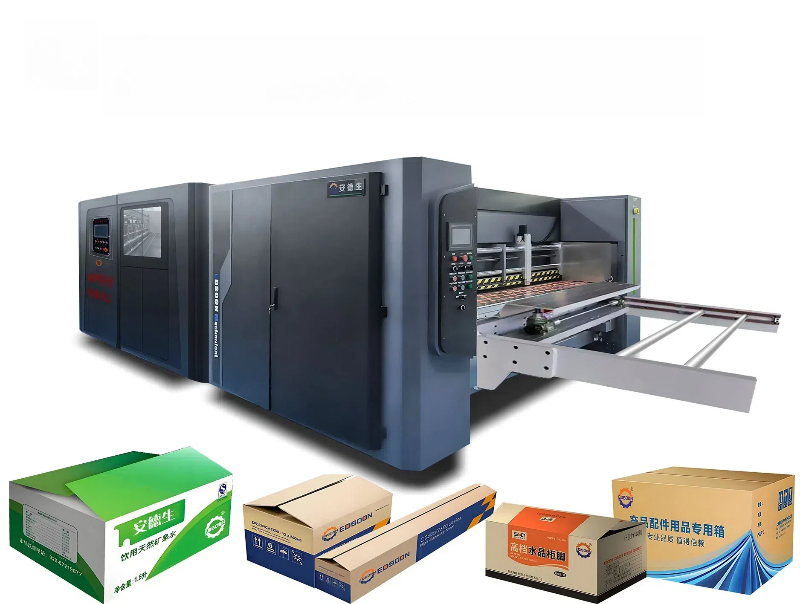

Imago Printer
Imago Printer
| Model | EDS-2500 |
| Printhead quantity | 3-5 pcs |
| Print width | 900-2500mm |
| Printhead model | HP A3 (300mm) |
| Printing platform | Vacuum adsorption type |
| Feeding width | 2500mm |
| Material feeding method | Servo leading edge feeding |
| Ink color | CMYK |
| Printing accuracy | 1200x300, 1200x600, 1200x1200DPI |
| Print mode | Single Pass Printing |
| Inkjet technology | Thermal foaming |
| Ink type | Water-based ink |
| Ink capacity | 5000 ml |
| Printing speed | 20-40m/minute |
| Print height | 0-20mm |
| Ink supply system | Siphon type |
| Environment requirements | Normal temperature 15-35 degrees Celsius |
| Machine weight | 5000 KG |
| Machine size | 3590x3550X1750mm |
| Interface | Ethernet interface |
| Power requirements | 380VAC, 50HZ |
