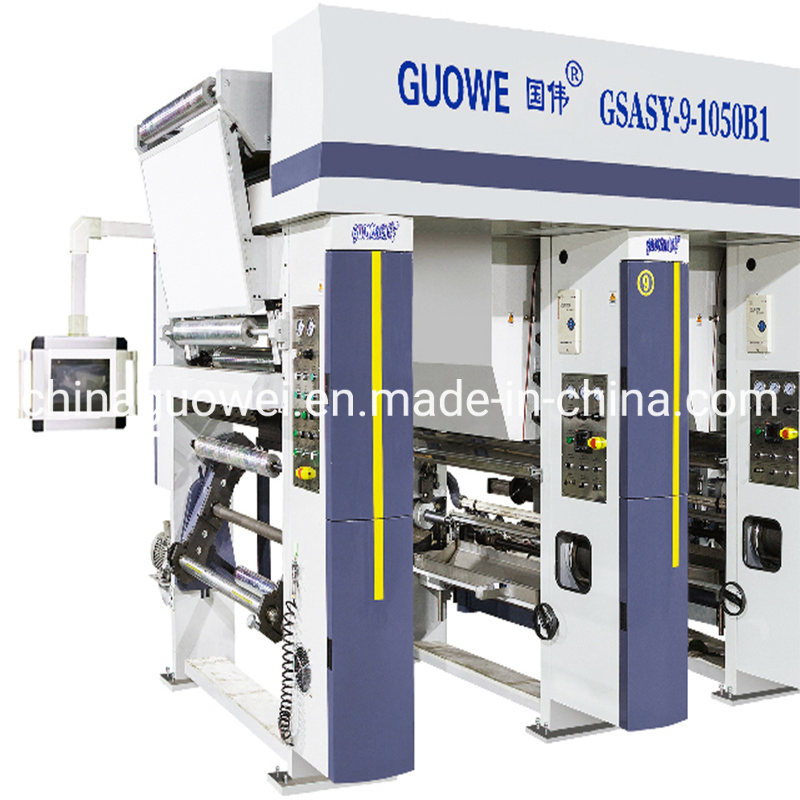

Guowei Gwasy-B1 Three Motor System Digital Rotogravure Printing Machinery

1 / 5

Guowei Gwasy-B1 Three Motor System Digital Rotogravure Printing Machinery

Customization:	Available
Certification:	CE
Condition:	NEW

Send Inquiry

Product Description

GWASY-B1 Three Motor System Digital Rotogravure Printing Machinery

📋 Basic Information

Model NO.

GWASY-B1

Applicable Material

Film, Paper

Usage

Plastic Film, Paper, Alu Foil

Automatic Grade

Automatic

Color & Page

Multi-Colour Printing Press

Structure

Rotary Printing Press

Type

Digital Printer

Drying Method

Electric, Steam, or Oil Heating

Voltage

220V/380V

Plate Type

Gravure

Printing Colors

1-8 Colors

HS Code

8443170001

Production Capacity

20 sets/Month

🚀 Application and Features

1. Unwind and Rewind Built-in double location with double arm and double station. Flatulence axis loading and unloading, unwinding double magnetic powder and rewinding double torque motor. Features fast, safe, and reliable automatic cutting for high-speed non-stop material changes.

2. Printing System Vertical register system ensures high precision and less waste. Doctor blade operates with double-axis, driven by an independent motor.

3. Dry Oven Patented technology low consumption oven. High wind pressure, high efficiency, and energy-saving system with several return air roads to maximize energy savings.

4. Control System Equipped with Siemens PLC control, YASKAWA frequency converter, and a three-motor tension control system. Key components are sourced from imported premium brands.

📊 Main Technical Parameters

Model	GWASY-600B1	GWASY-800B1	GWASY-1000B1	GWASY-1200B1
Printing colors	8 (Customizable)
Cylinder Diameter	100-320mm
Max Printing Width	600mm	800mm	1000mm	1200mm
Unwind/Rewind Dia.	600mm
Machine Speed	180m/min
Max Printing Speed	160m/min
Register Precision	±0.1mm
Total Power	100kw	120kw	130kw	140kw
Machine Weight	15000KG	16000KG	17000KG	18000KG

⚙️ Detailed Technical Specifications

Unwind Unit

Dual station turret with inching rotation
Magnet powder brake and vector frequency motor traction
Auto tension controller and floating roller adjustment
Inflatable shaft support on rolling bearings

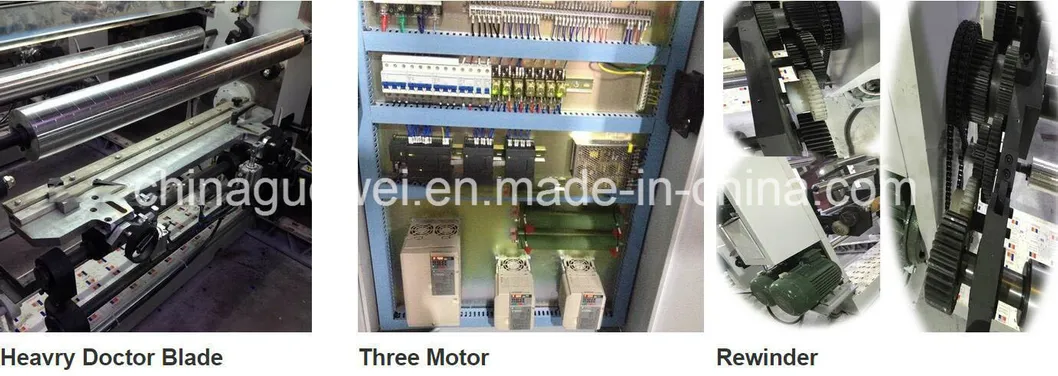

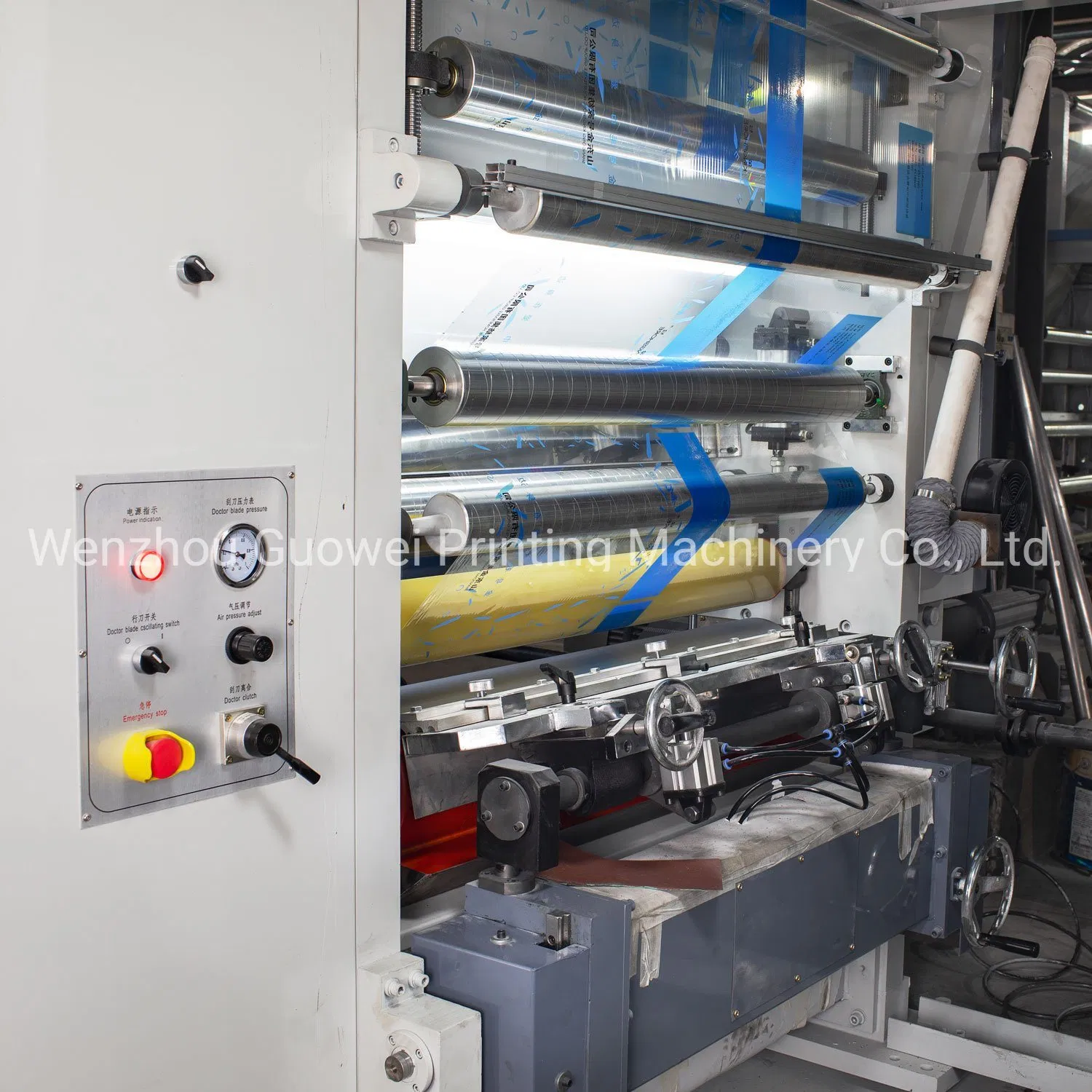

Printing Pressure & Doctor Blade

Double cylinder pneumatic roller (PU rubber)
Shaftless pneumatic cylinder installation
Double blade knife rest with three-range adjustment
Independent motor-driven doctor blade movement (±5mm)

Drying Structure

Independent monochromatic group drying system
Closed oven with secondary air utilization for energy efficiency
Continuous constant temperature intelligent control
Centralized waste gas discharging pipeline

🖼️ Product Visuals

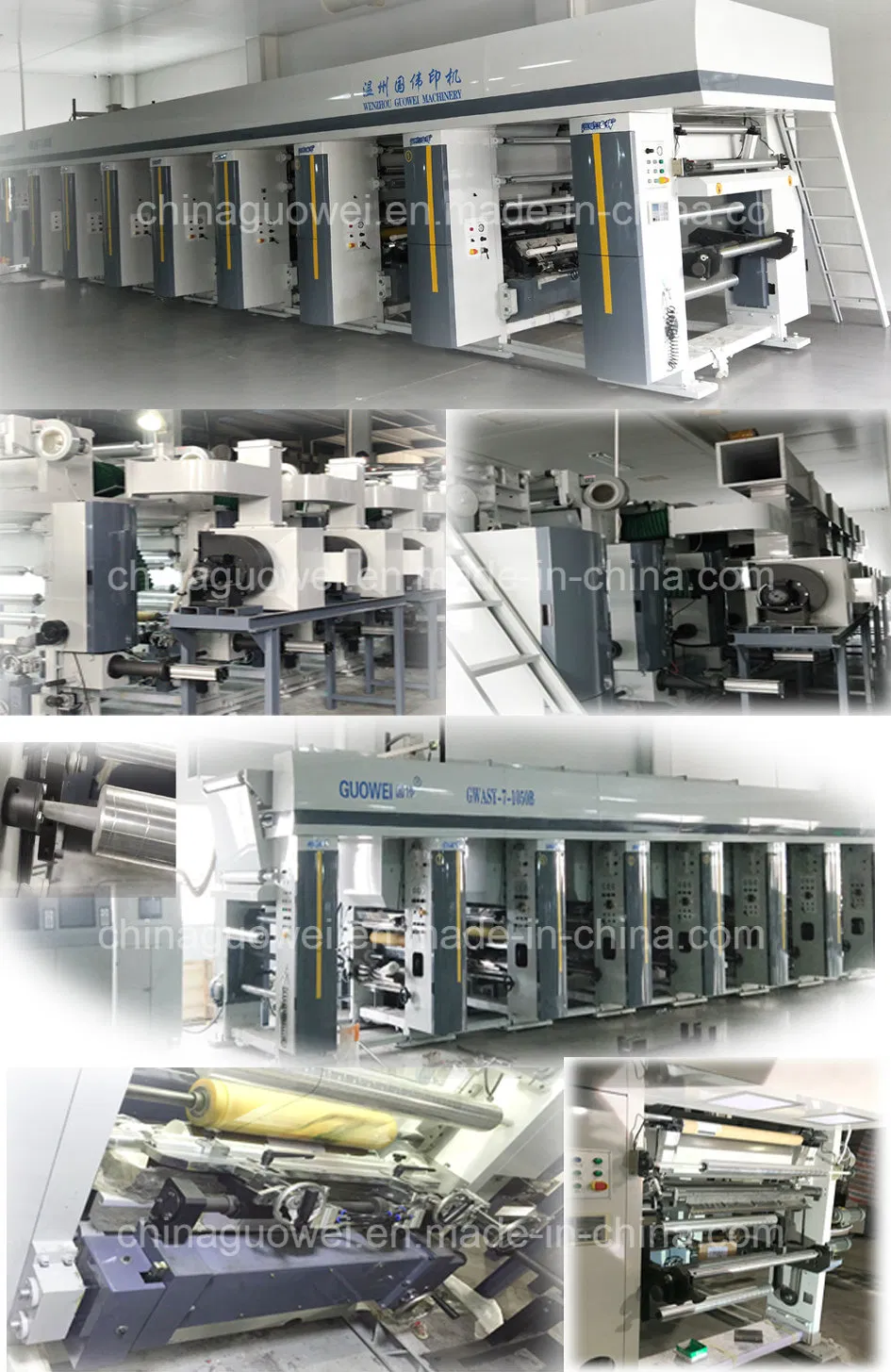

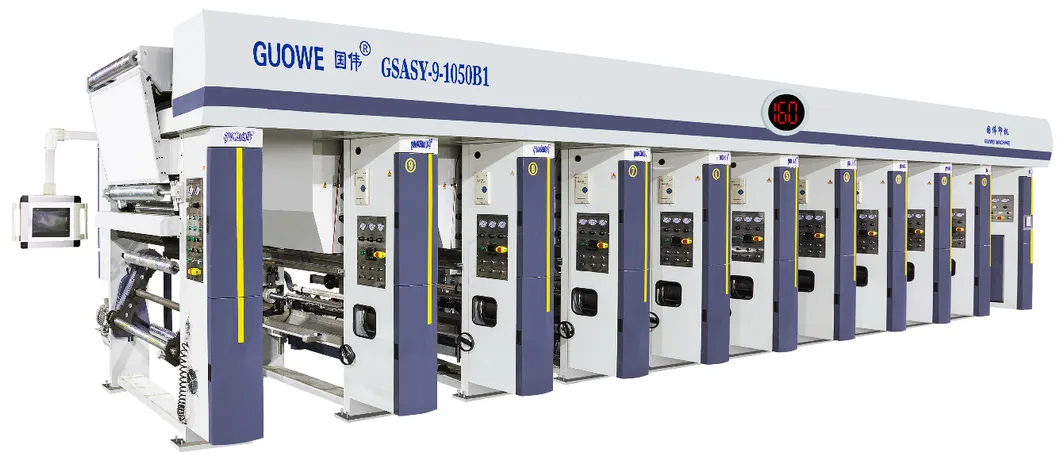

Digital Rotogravure Printing Machinery Overview

❓ Frequently Asked Questions

What materials is this printing machinery suitable for?

This machine is designed for printing on various materials including plastic film, paper, and aluminum foil.

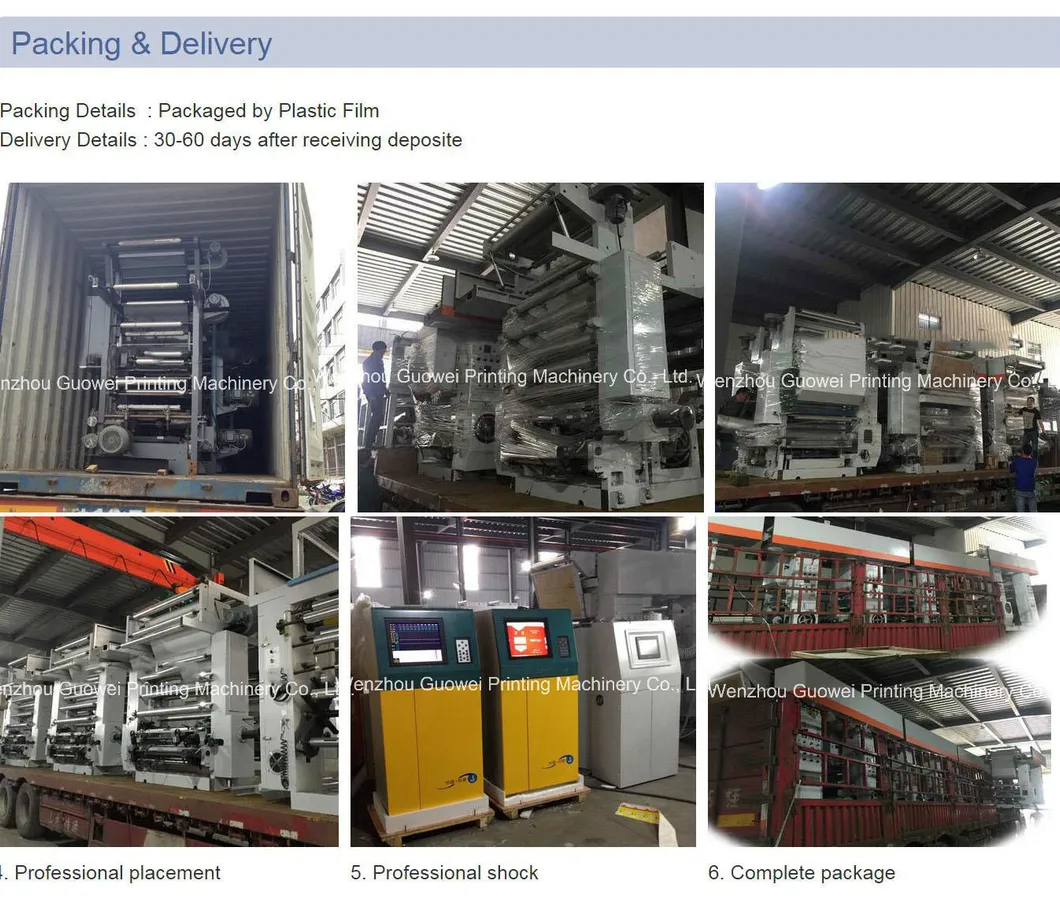

What are the packaging and delivery details?

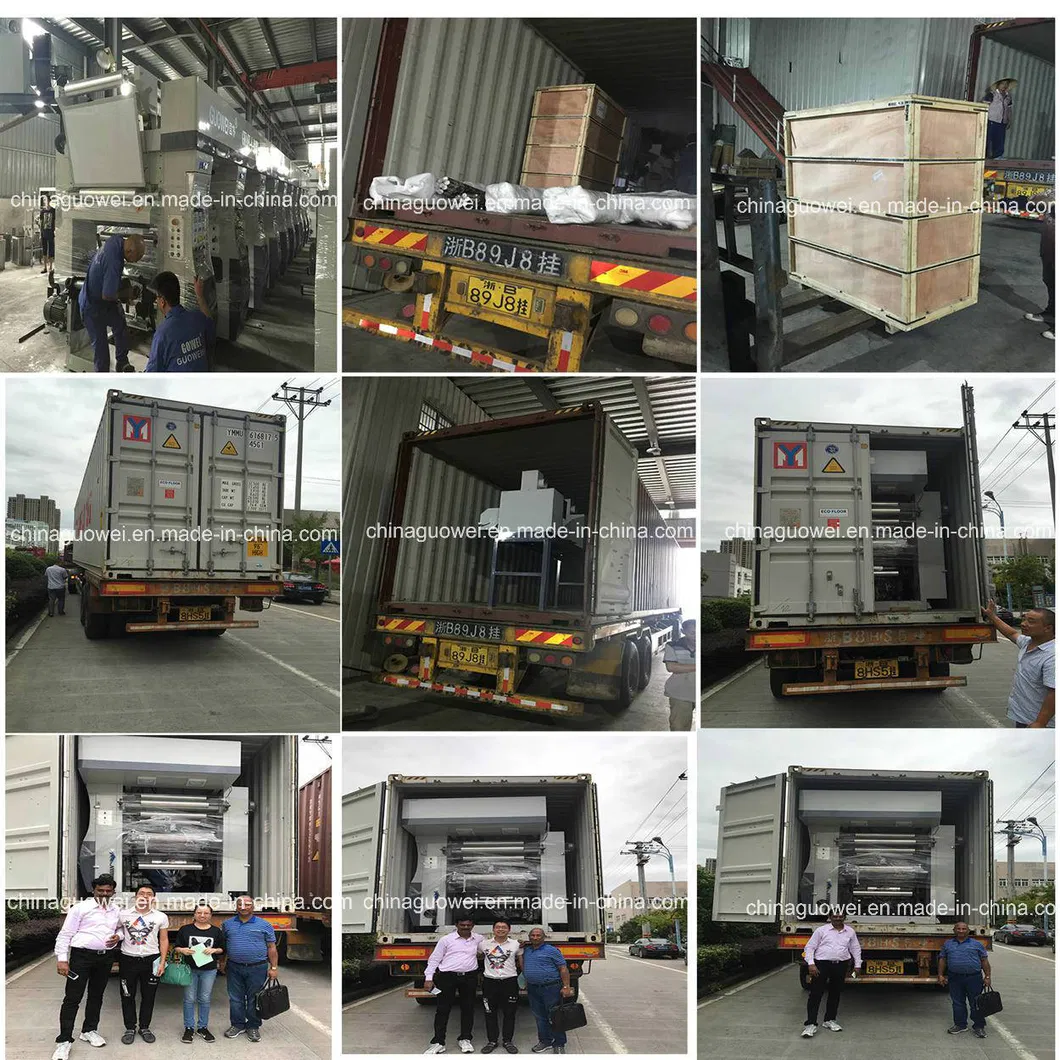

The machinery is packaged using wooden pallets or plastic film. Delivery typically takes between 30 to 60 days.

What is the printing speed and precision?

The machine offers a maximum printing speed of 160m/min with a register precision of ±0.1mm.

Is technical support or installation available overseas?

Yes, engineers are available to service and install machinery overseas. Buyers are responsible for travel expenses, visa costs, accommodation, and a daily salary for the engineer.

How long is the warranty period for this machine?

All machines come with a one-year guarantee, which starts from the date the installation is completed.

What heating methods are supported for drying?

The machine supports multiple drying methods including electric heating, steam heating, and oil heating.
