Desktop Zd220t/Zd888t Thermal Transfer Barcode Sticker Label Printer for Zebra

Customization: Available
Usage: Barcode Printer
Type: Thermal Printer

Product Description

Basic Specifications

Model NO.
ZD220T
Printing Method
Thermal Transfer & Direct Thermal
Max. Resolution
203dpi
Print Speed
4 IPS (102mm/S)
Interface
USB, RS-232, Parallel, Ethernet
Max. Paper Size
104mm
Memory
128MB FLASH, 128MB SDRAM
Enclosure
ABS Plastic
Bar Code
1D and 2D Bar Code support
Supply Paper Mode
Automatic

Product Features

Easy to UseConnects via USB, Serial, or Ethernet. Compatible with media rolls of 1-inch core, max diameter of 5 inches, and max width of 4.25 inches.
Dual Printing TechnologySupports Thermal Transfer (requires ribbon) and Direct Thermal (no ribbon required) for maximum flexibility.
Dependable PerformanceBest-in-class print speed, improved efficiency, and high-quality durable printing results.
Durable BuildFeatures a wear-resistant printing head designed for high-speed operation and long-term reliability.

Technical Specifications

Media Characteristics
Media TypeReel or folding paper, label paper, tag materials, receipt paper, wristband.
Media Width1.00 in (25.4 mm) to 4.4 in (112 mm)
Media LengthMax 991 mm
Media Thickness0.003 - 0.007 in (0.08 - 0.18 mm)
Ribbon Characteristics
Ribbon Length74M or 300M options
Ribbon Width1.33 in to 4.3 in (33.8 mm to 110 mm)
Ribbon Ratio1:1 or 1:4
Core Inner Diameter0.5 in (12.7 mm) or 1 in (25.4 mm)

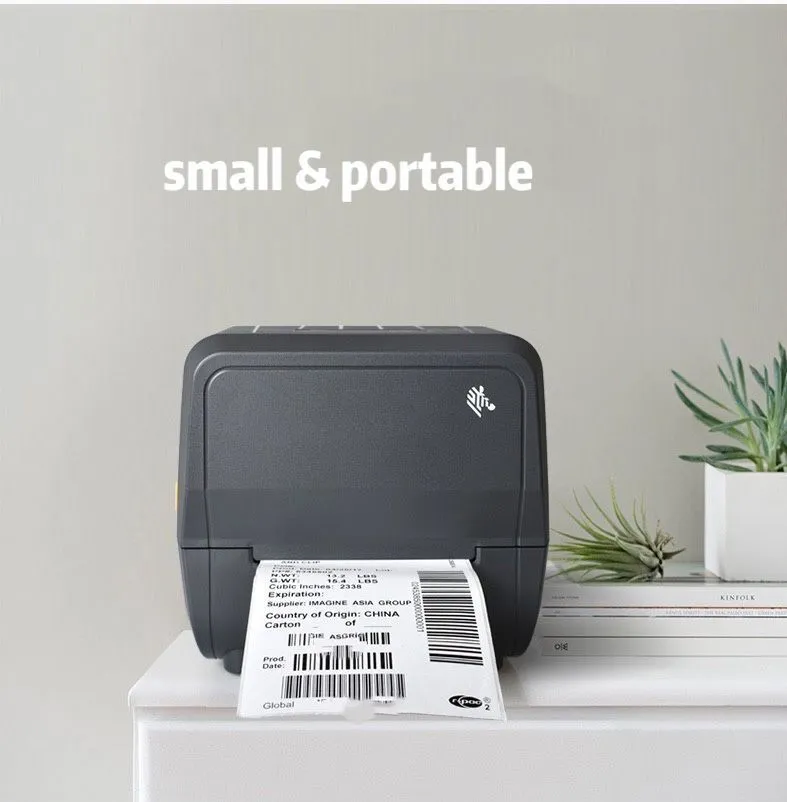

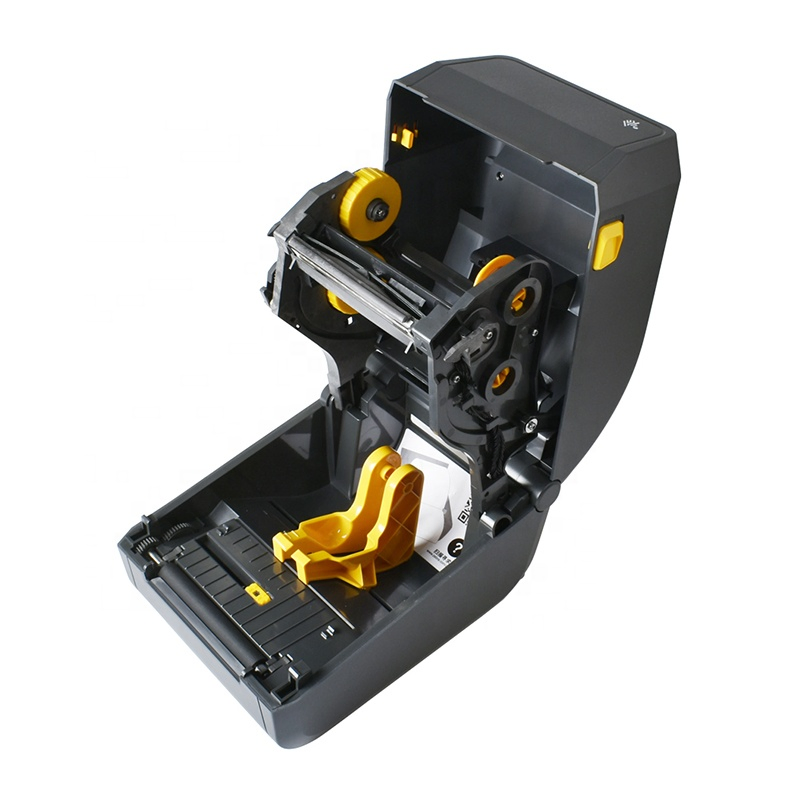

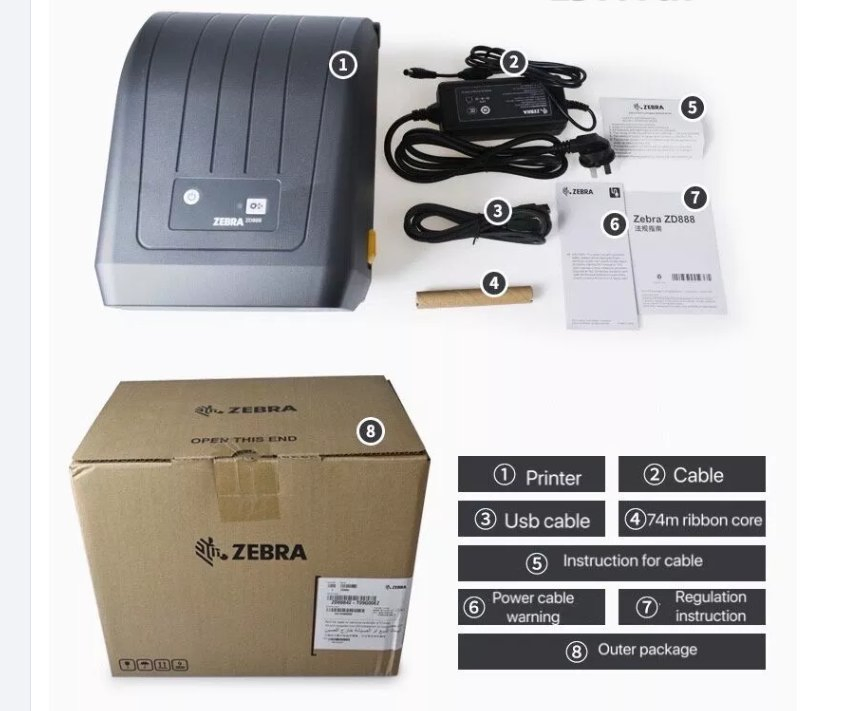

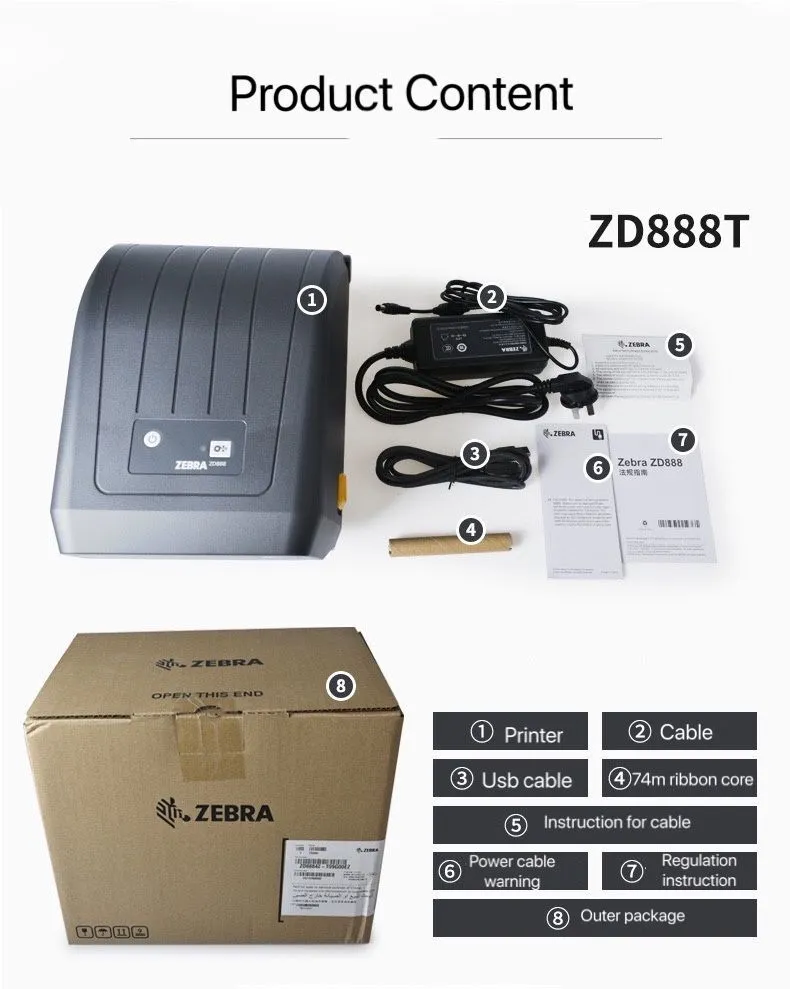

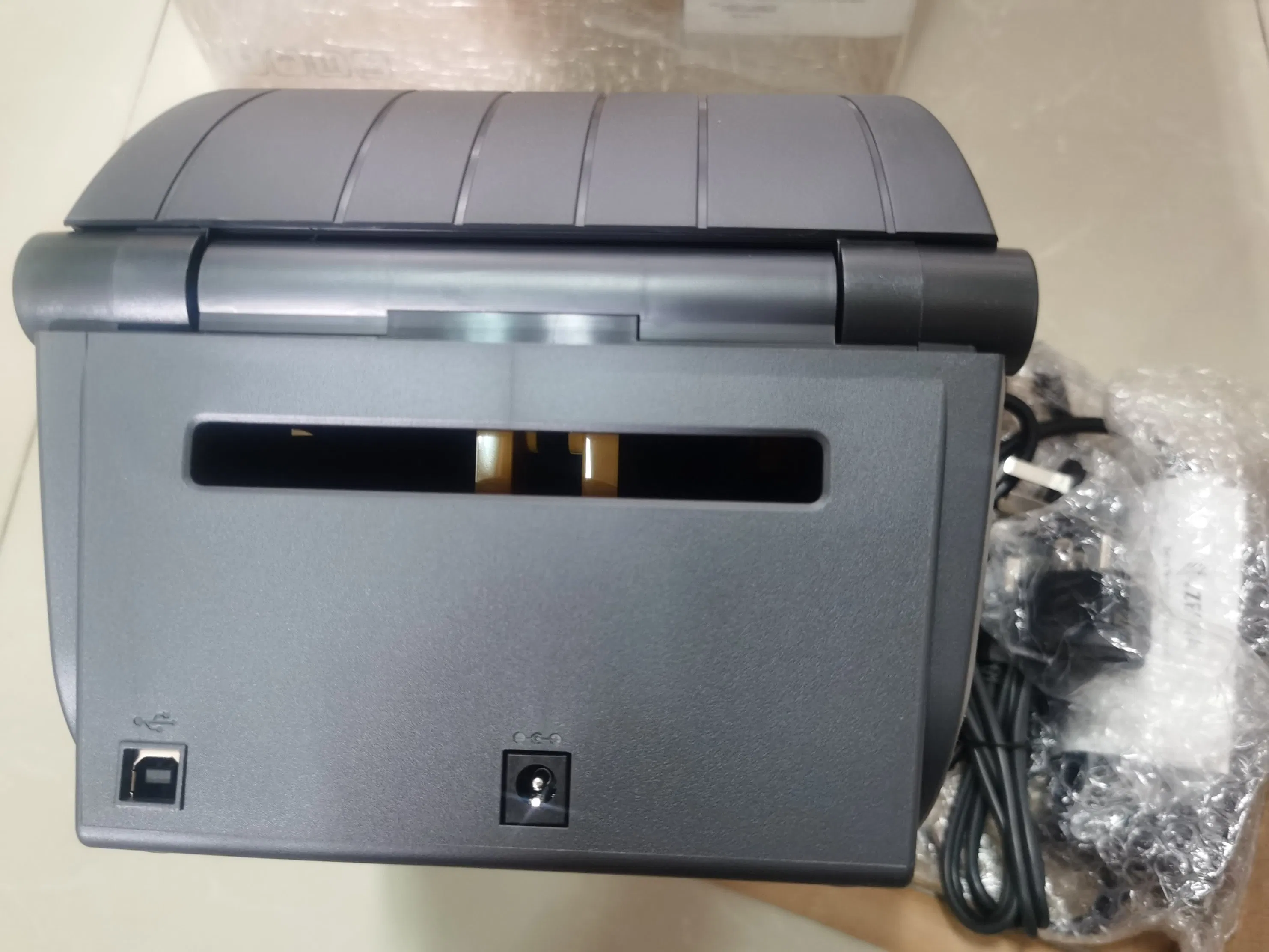

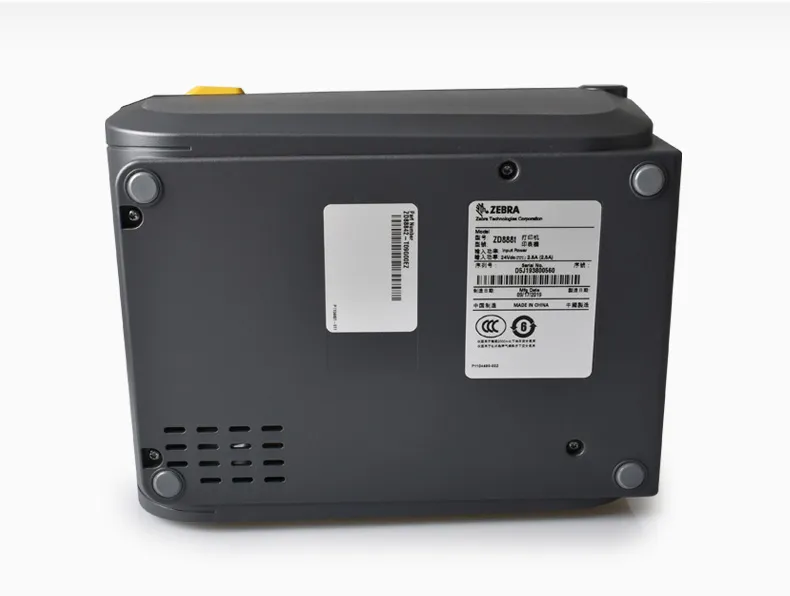

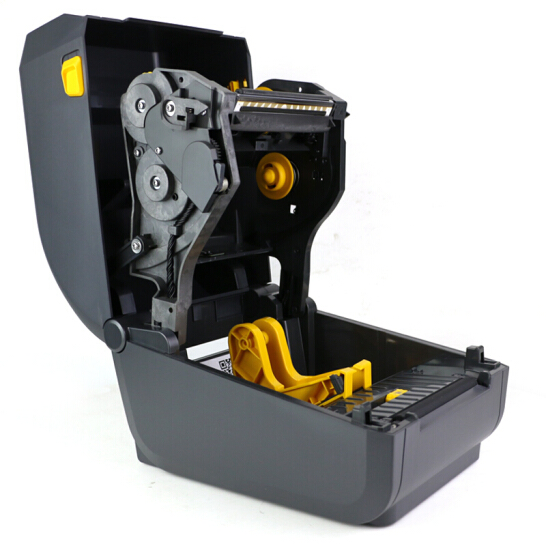

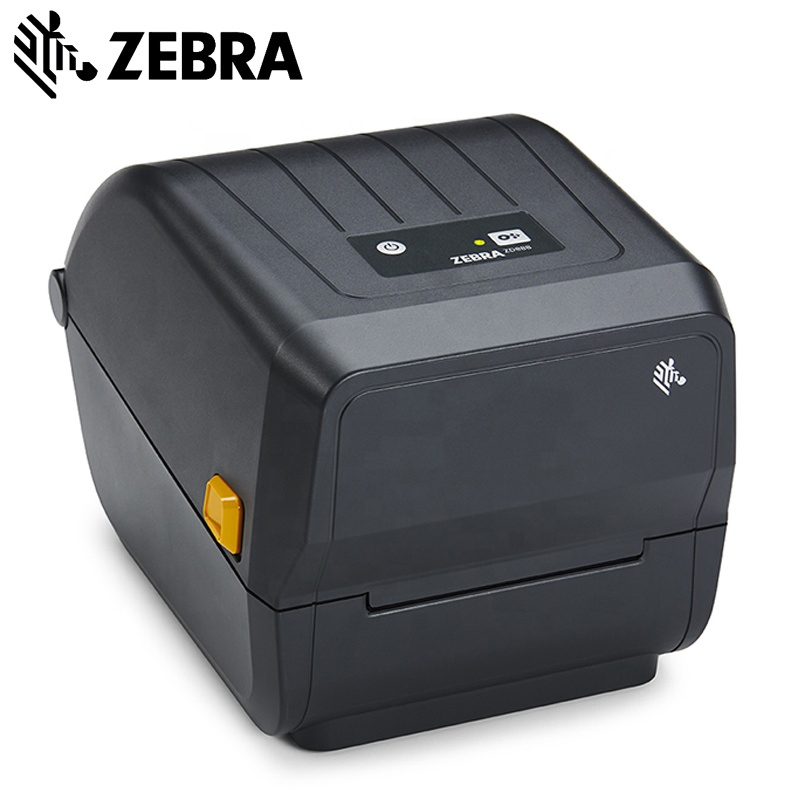

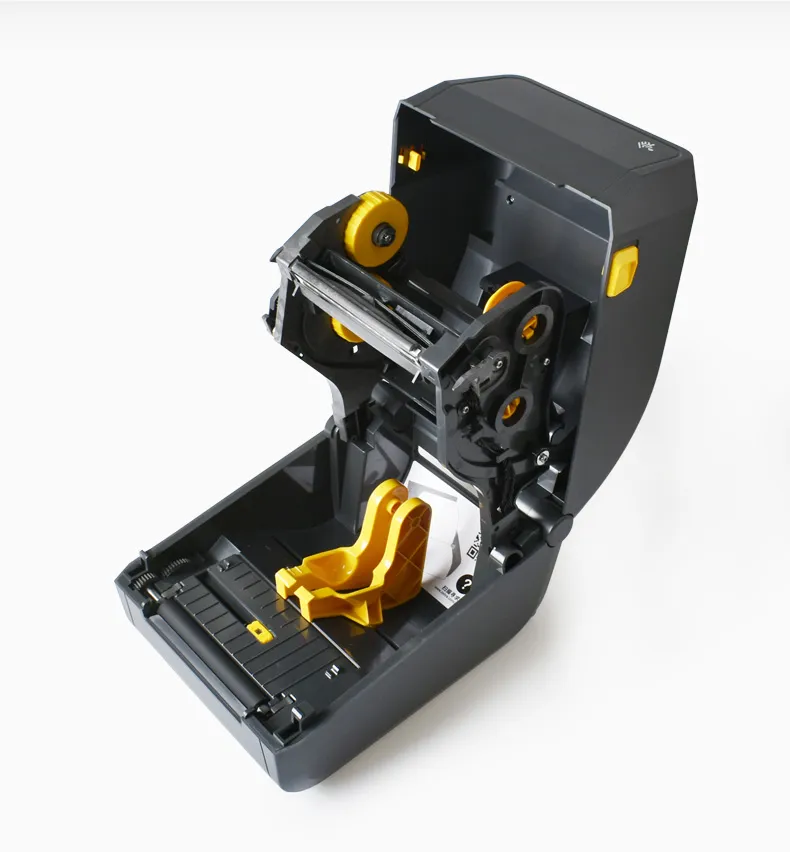

Product Showcase

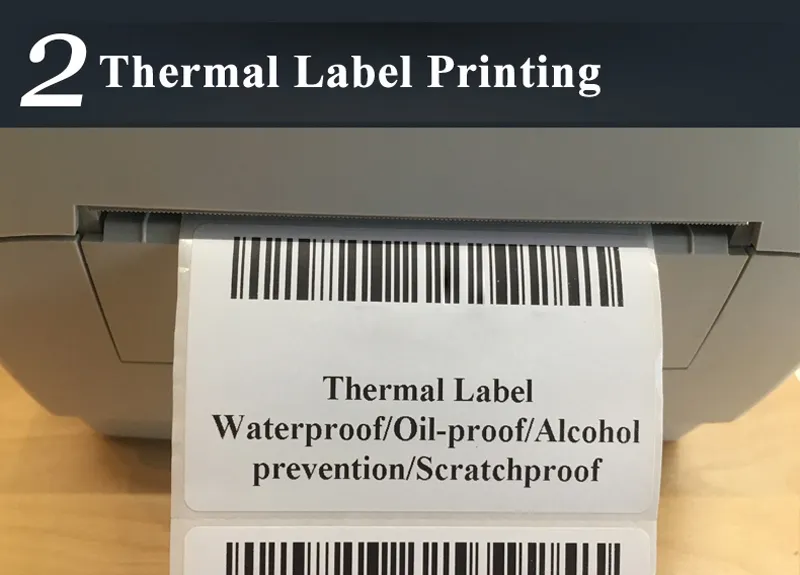

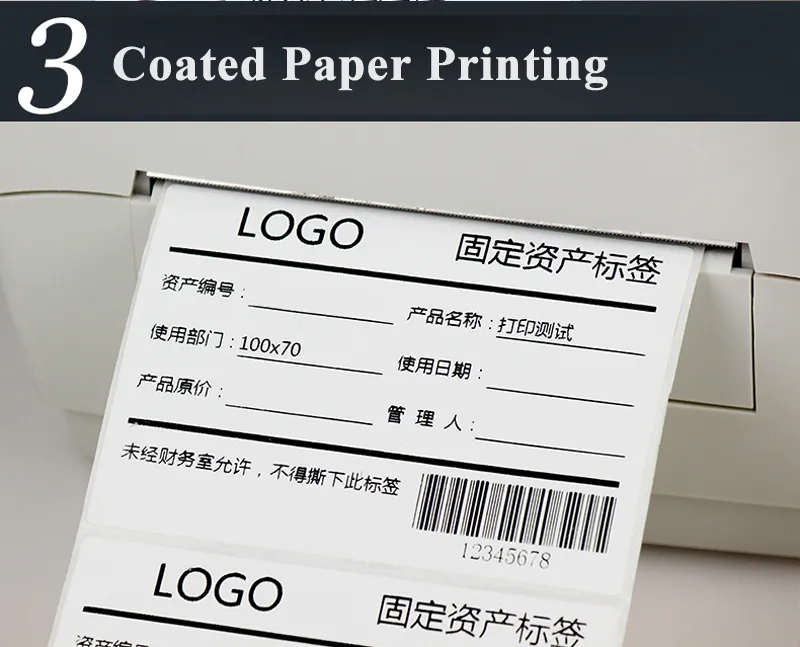

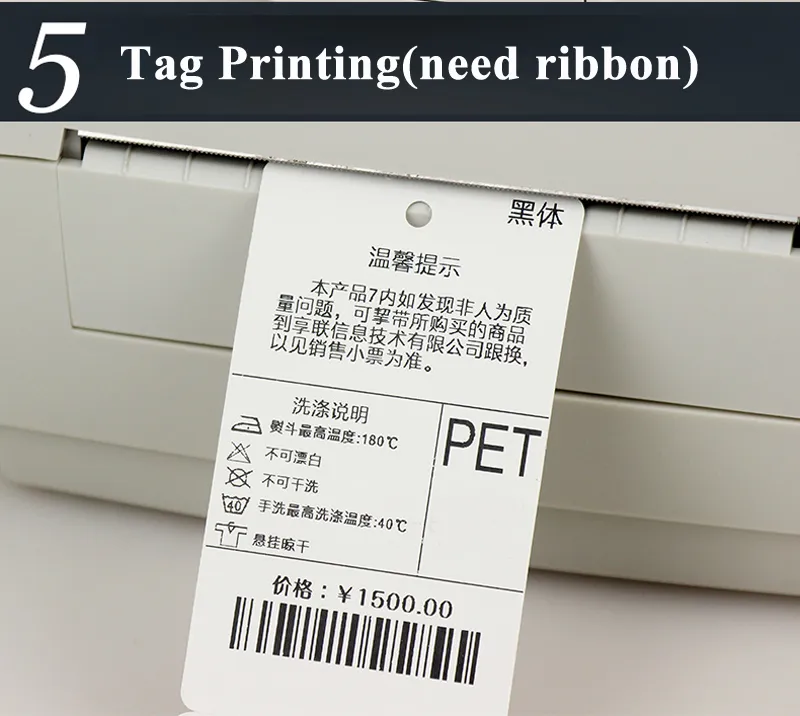

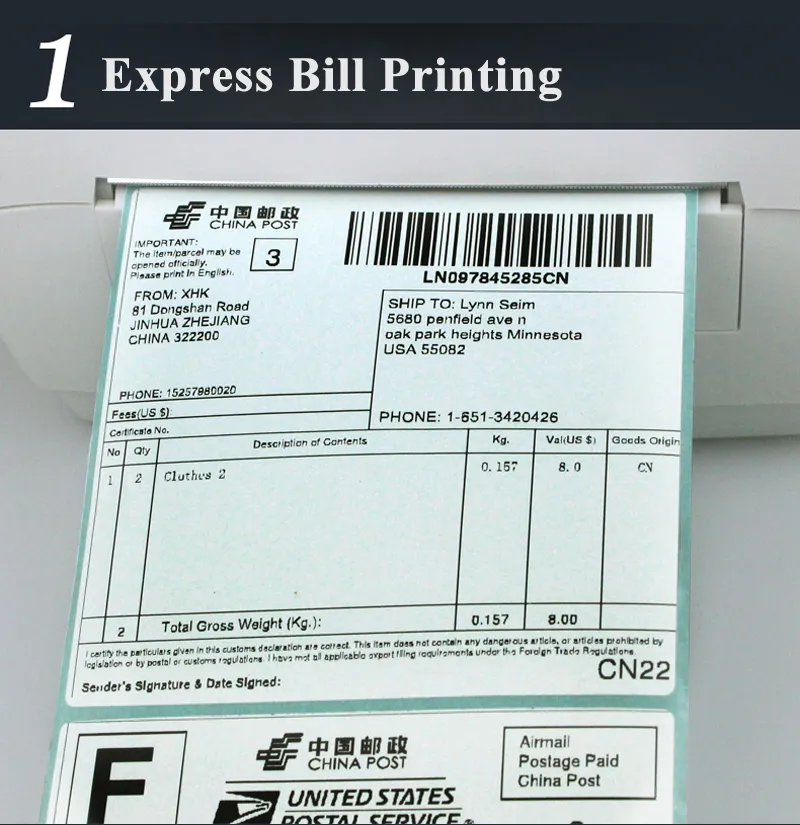

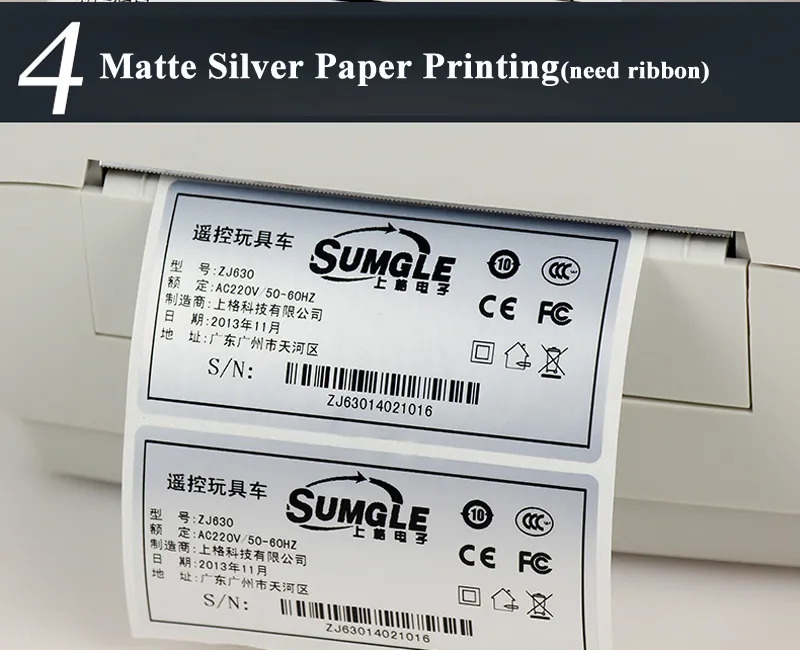

Printing Results

Frequently Asked Questions

What printing methods does the ZD220T support?
It supports both Thermal Transfer (using a ribbon) and Direct Thermal (no ribbon required) printing methods.
What is the maximum printing speed of this model?
The printer can reach speeds up to 4 inches per second (102mm/s), ensuring efficient operation for high-volume tasks.
What connectivity options are available?
The ZD220T comes with USB connectivity as standard, with options for RS-232 Serial, Parallel, and Ethernet interfaces.
Does it support 2D barcodes like QR codes?
Yes, it is fully capable of printing both 1D and 2D barcodes, including QR codes and Code 128.
What is the maximum resolution for label printing?
The printer offers a maximum resolution of 203dpi (8 dots/mm), which is ideal for standard barcode and text labels.
Can this printer do automatic two-sided printing?
No, this model does not support automatic two-sided printing. It is designed for standard single-sided label and tag production.
