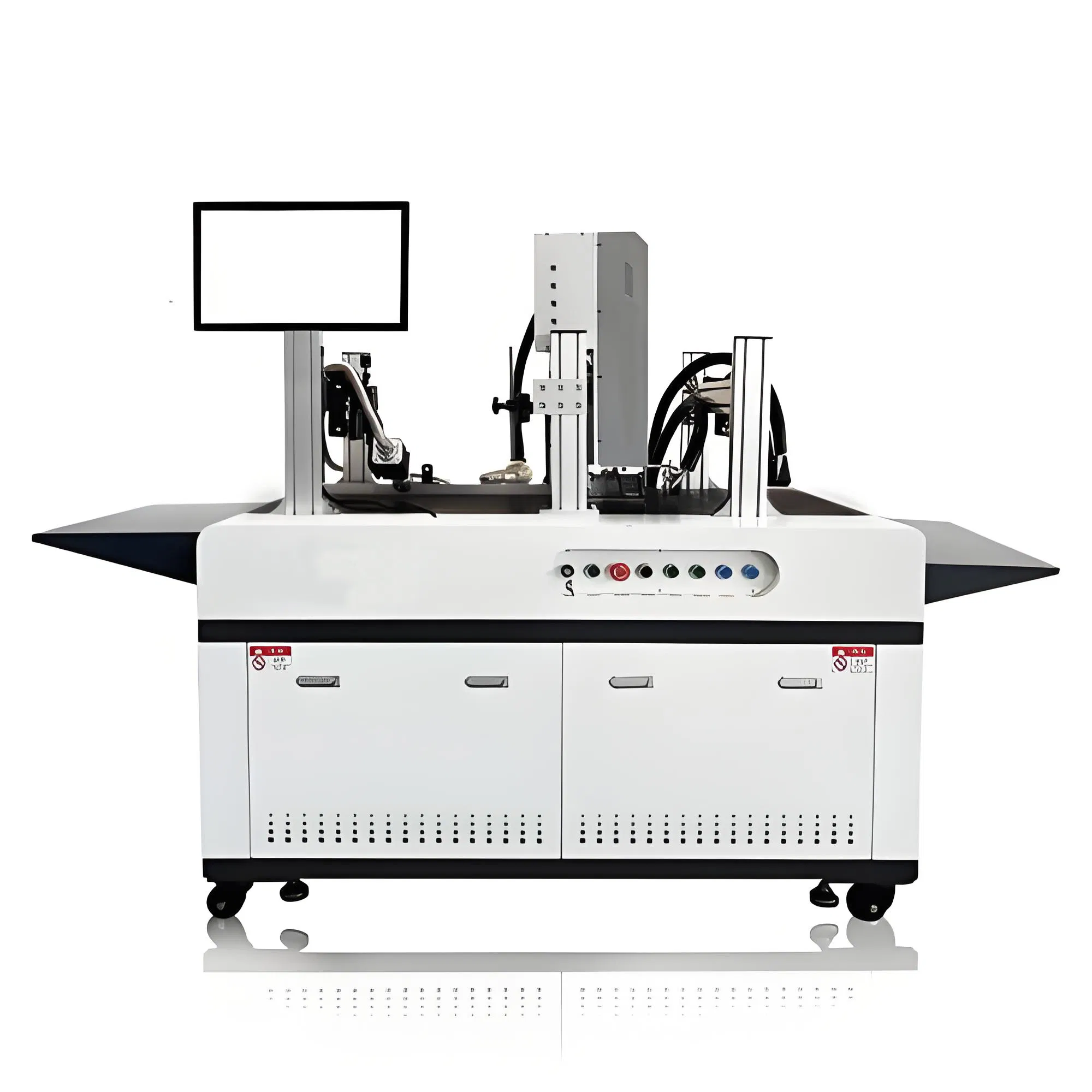

Advanced Digital Printing System with High-Speed Single Pass Capability

1 / 5

Advanced Digital Printing System with High-Speed Single Pass Capability

Customization:	Available
After-sales Service:	Lifelong Maintenance
Warranty:	One Year

Send Inquiry

Product Description

Basic Information

Model NO.:HX-501-UV

Plate:Lithography Printing

Structure:Platen Press

Color & Page:Multi-Colour Printing Press

Usage:Paper, Label, Card, Cloths Printer

Automatic Grade:Semi-Automatic

Printing Interface:USB3.0

Print Head:1 PC

Max Print Width:27.1mm/33mm

Print Accuracy:600 Dpi

Power Supply:AC 220V, 50 Hz, 2500W

Origin:China

Packaging & Delivery

📦

Package Size: 160.00cm * 100.00cm * 165.00cm

Gross Weight: 380.000kg

Transport Package: Exported Plywood

Product Description

Advanced Digital Printing System with High-Speed Single Pass Capability

Each print head covers an effective width of 33mm. To meet broader printing demands, multiple heads can be seamlessly spliced together. These heads boast cutting-edge micro-piezoelectric technology.

🚀 Applications

Expertly crafted for non-absorbent materials, this print head excels in industry packaging applications such as plastic cups, lunch-boxes, and egg cartons.

⚙️ Key Configurations

• Print head: 1 PC
• Software: MainTop

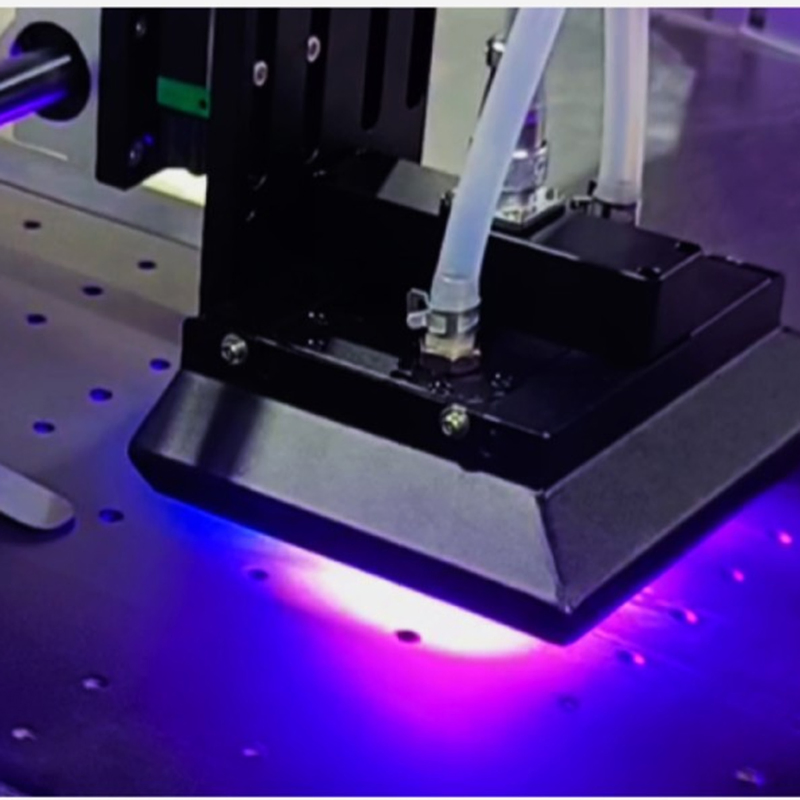

• Ink type: Eco-friendly UV ink

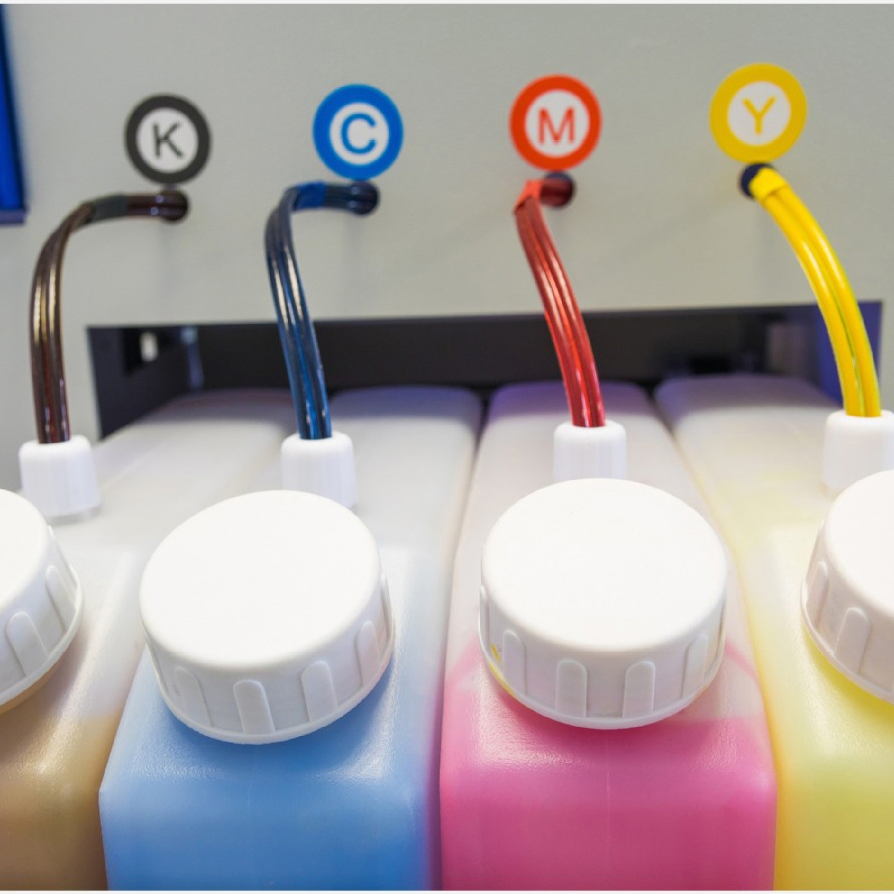

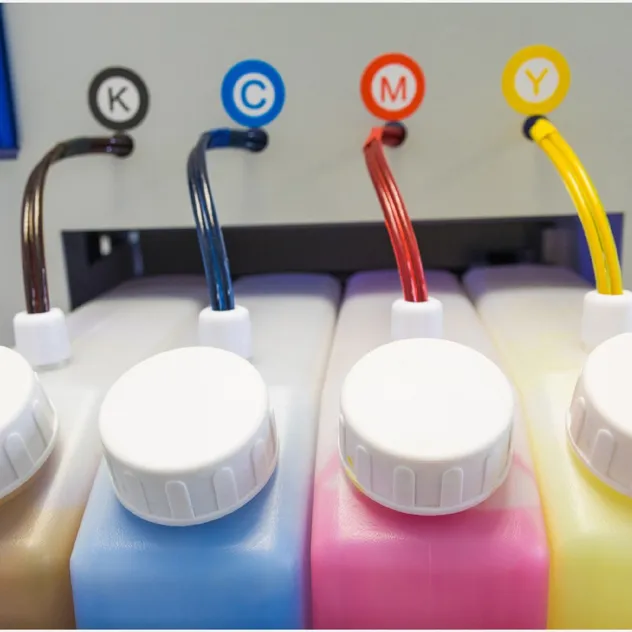

• Ink supply: Circular ink supply
• Color profile: CMYK

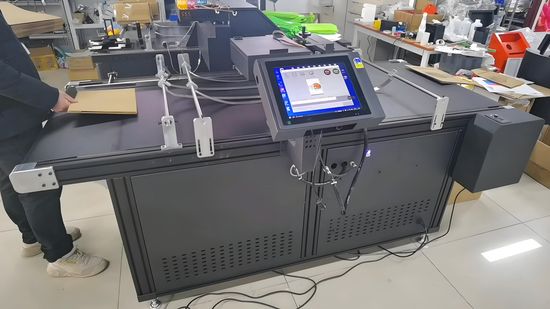

Product Operation Video

Printing Parameters

✅ Print head numbers: 1 pc
✅ Feed length: 0 - 400 mm
✅ Max print width: 27.1mm / 33 mm

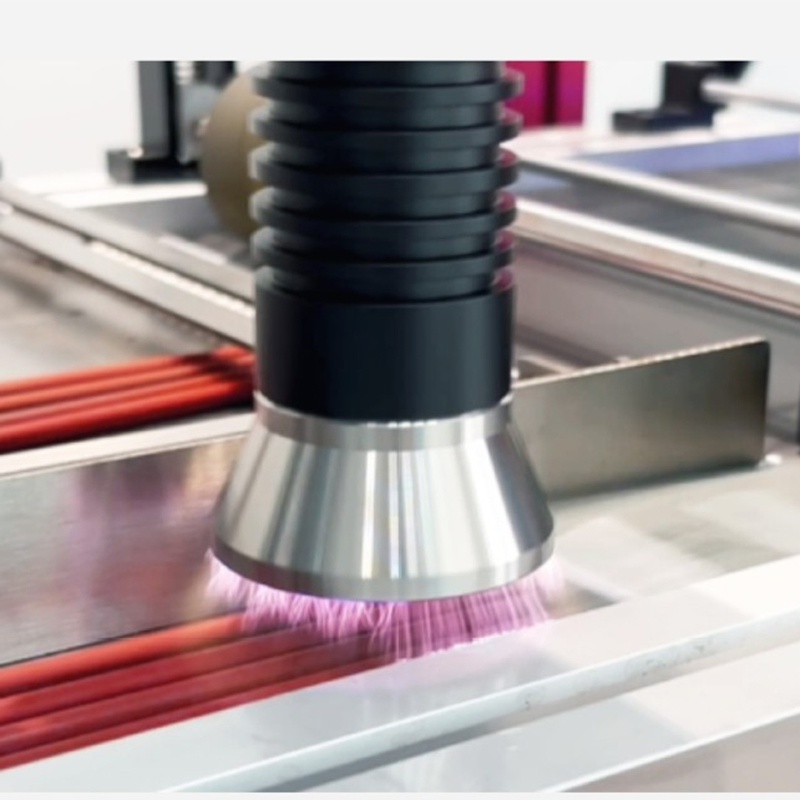

✅ Surface treatment: Plasma
✅ Print accuracy: 600 dpi
✅ Print speed: 0 - 20 m / min

Technical Specifications

Model	HX-501-UV	HX-502-UV	HX-503-UV
Software	MainTop	MainTop	MainTop
Print head numbers	1 pc	2 pcs	3 pcs
Max print width	27.1mm / 33 mm	54mm	54mm / 108mm
Print speed	0 - 20 m / min	0 - 30 m / min	0 - 40 m / min
Print media	Plastic Cups, Egg Cartons	Plastic Cups, Egg Cartons	Plastic Cups, Egg Cartons
Power supply	220V, 50HZ, 2500W	220V, 50HZ, 4000W	220V, 50HZ, 5000W

Key Functions

💡

1. Switch easily between friction feeding and vacuum suction.
2. Automatic continuous feeding system for stable production.
3. Smart counting and stacking to save labor and time.
4. Automatic deskew system to prevent misalignment.

After Sales Service

🛡️

Standard Warranty: 12 months coverage.

🛠️

Global Support: 24/7 technical support and spare parts.

🎓

Training: On-site or remote operation training.

Professional Manufacturing

With over 15 years of expertise, our manufacturing facility is ISO 9001 and CE certified. We export reliable machinery to over 50 countries, backed by R&D innovation and rigorous quality control.
