High-Speed Online Web Label Printing Inkjet System

Customization:	Available
Type:	Demand for Ink Coding Machine
Usage:	Daily Industrial, Chemical Products, Drug, Food

Send Inquiry

Product Description

Basic Specifications

Model NO.

UV540

Automatic Grade

Automatic

Principle

Drop on Demand

Application

High Resolution Ink Jet Printer

Working Patterns

On-Line

Supplies

Ink

Joint Type

Multi Print Head Seamless Joint

Ink Solution

Porous, Semi-Porous and Non-Porous

Languages

English, Japanese, French, German, Spanish, Portuguese

Resolution

150-600dpi

Power

AC 90V-240V/50-60Hz

Tech Support

Strong Support Available

Origin

China

HS Code

8443322100

Product Description

High-Speed Online Web Label Printing Inkjet System

Introduction: This UV DOD inkjet system adopts industrial piezoelectric on-demand inkjet technology, significantly improving production speed and spray printing quality. Equipped with industrial high-resolution and high-speed DOD piezoelectric print heads, it meets rigorous demands for mailings, barcodes, bills, checks, packages, and marking. It is suitable for web printing, sheet-fed, and both online and offline target printing.

Technical Details:

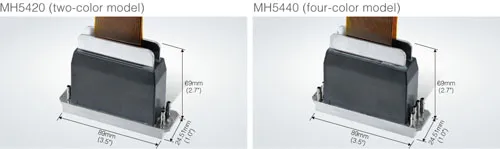

• Nozzle type: Ricoh GEN5 / Kyocera 108 / Konica 1024i industrial piezoelectric nozzle.
• Nozzle Lifespan: More than 3 years (10 billion printing times).
• Single Nozzle Width: 54 / 72 / 108 mm based on requirements.
• Scalability: 1 ~ 24 groups can be extended with seamless joints.
• Precision: Physics 600 dpi printing precision.
• Speed: 70 ~ 180 m/min linear speed.
• Inks: Environmentally friendly UV or water-based inks.

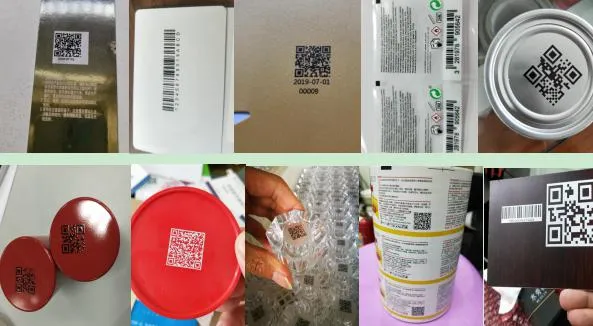

• Materials: Suitable for paper, plastics, PVC/PP/PE film, and more.

Advanced Software Control:
Our Printer Control Software (PCS) offers a user-friendly interface to monitor printer status and set options like jetting waveforms and temperatures. The system supports Variable Data Printing (VDP) for text, dates, times, graphics, logos, serial numbers, barcodes, and database photo images. It supports data sources including .CSV, .XLS, .XLSX, .TXT, and PDF files.

Technical Parameters

Model	VDG540 / VDK720 / KY108	Print Head	Ricoh GEN5 / Konica 1024i / Kyocera
Resolution	600×600, 400, 300, 200 dpi	Single Head Width	54.0mm / 72.0mm / 108mm
Printing Speed	180m/min (600×200dpi) \| 130m/min (600×300dpi) \| 100m/min (600×400dpi) \| 75m/min (600×600dpi)
Max Width	54/72/108mm × 24 Seamless Joint	Drop Size	5-21 PL
Ink Type	Original SGS UV Inks	System	Windows 7 / Gigabit Ethernet
Barcodes	UPCA, EAN13, CODE128, PDF417, QR, DATAMATRIX, etc.	File Formats	MS Excel, TXT, PDF, BMP

Frequently Asked Questions

Q: What is the maximum printing speed of this system? A: The system can reach a maximum linear speed of up to 180 m/min at a resolution of 600x200 dpi.

Q: Which print head options are available? A: You can choose between Ricoh GEN5 (54mm), Kyocera (108mm), or Konica 1024i (72mm) industrial piezoelectric nozzles based on your material and resolution requirements.

Q: What types of materials can be printed on? A: The system is highly versatile and suitable for all kinds of paper, plastics, and films such as PVC, PP, and PE.

Q: Does the software support variable data printing? A: Yes, the Variable Data Printing Software supports text, dates, serial numbers, barcodes, QR codes, and database photo images from CSV, Excel, or PDF files.

Q: Can multiple print heads be combined for wider printing? A: Yes, the system supports seamless jointing of up to 24 groups of print heads to extend the total printing width.

Q: What is the expected lifespan of the industrial nozzles? A: Under normal operating conditions, the industrial piezoelectric nozzles have a lifespan of more than 3 years or approximately 10 billion printing cycles.
