Imago Printer
Imago Printer
| Model NO. | BY-HF02-500UV | Type | Continuous Jet Type Coding Machine |
| Usage | Daily Industrial, Chemical Products, Drug, Food | Automatic Grade | Automatic |
| Classification | High Resolution Ink Jet Printer | Working Patterns | On-Line |
| Product Name | Feeding and UV Inkjet Printing System | Material | Stainless Steel/Painted Carbon Steel |
| Feature | High Speed, Stable, Wide Application | Production Capacity | 70 sets/Year |
FEEDING AND UV INKJET PRINTING SYSTEM

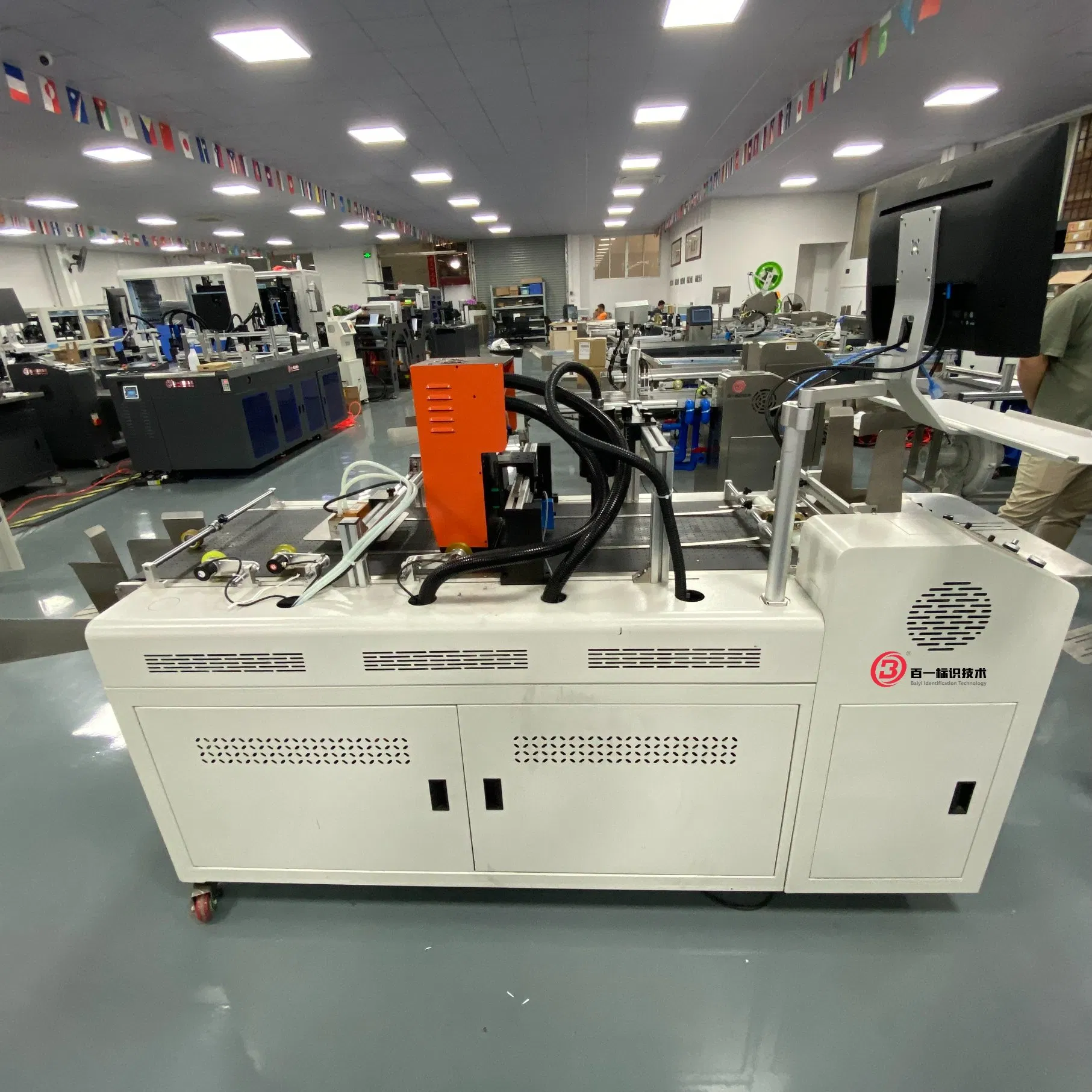

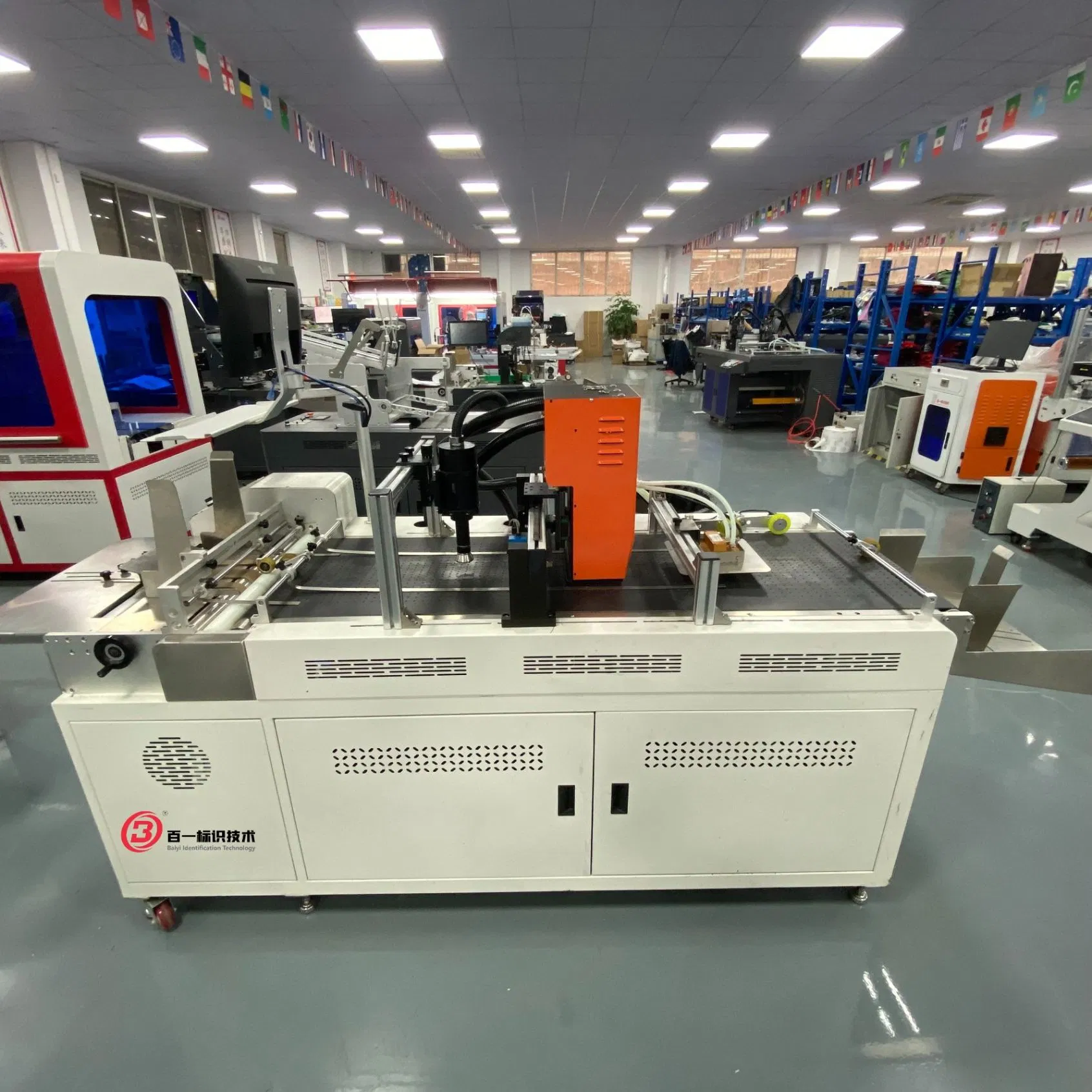

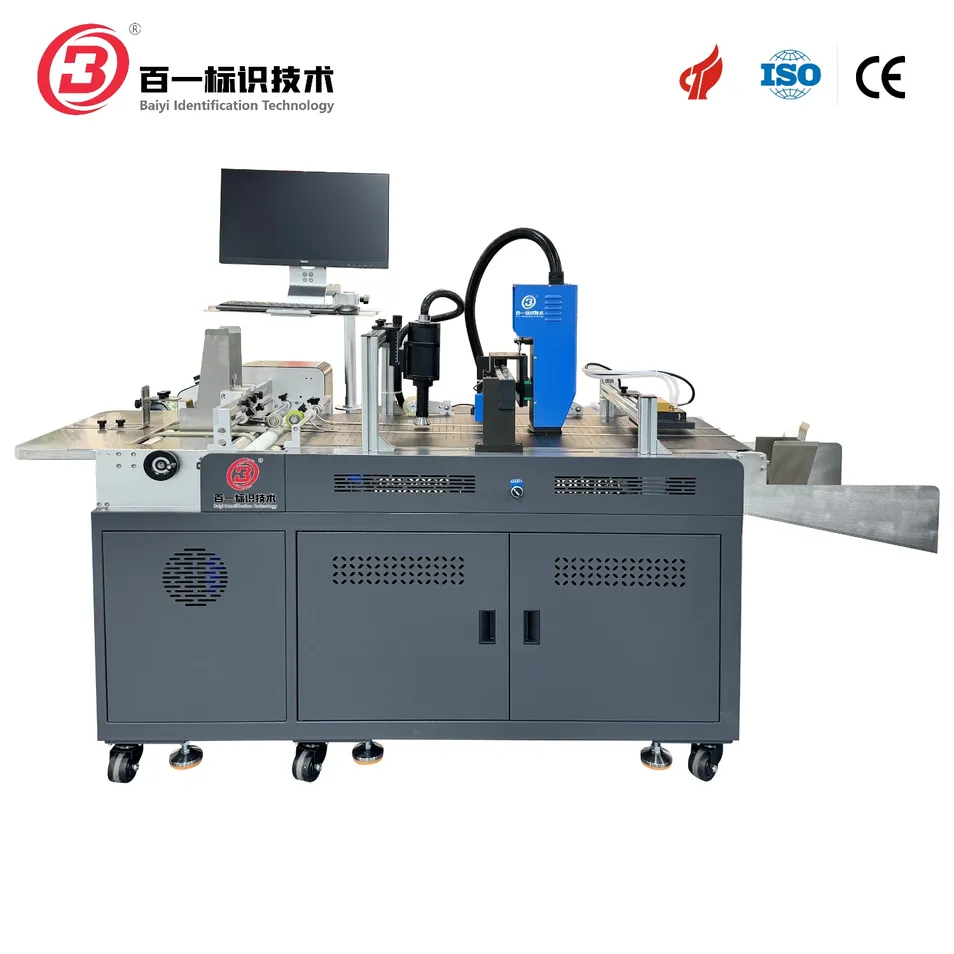

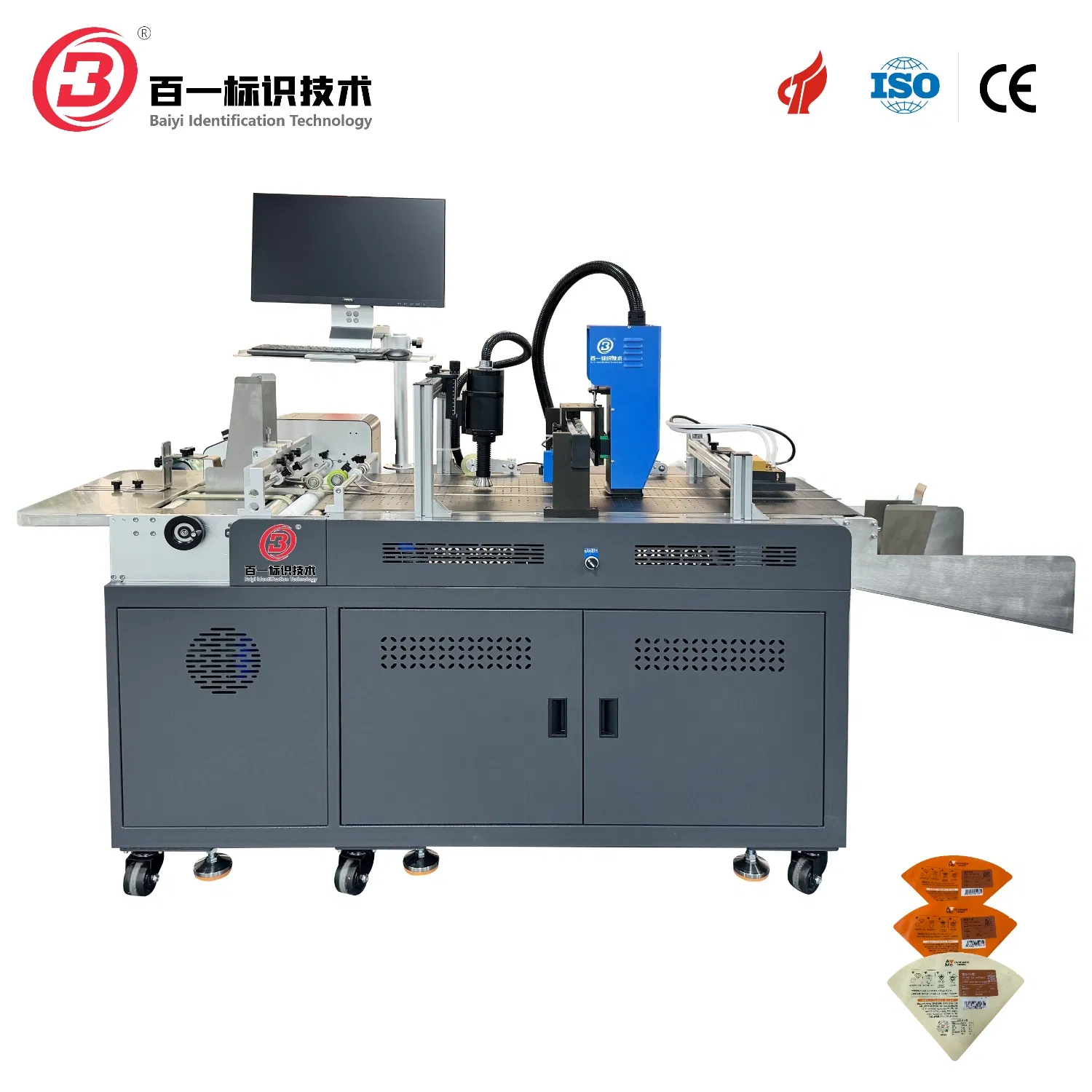

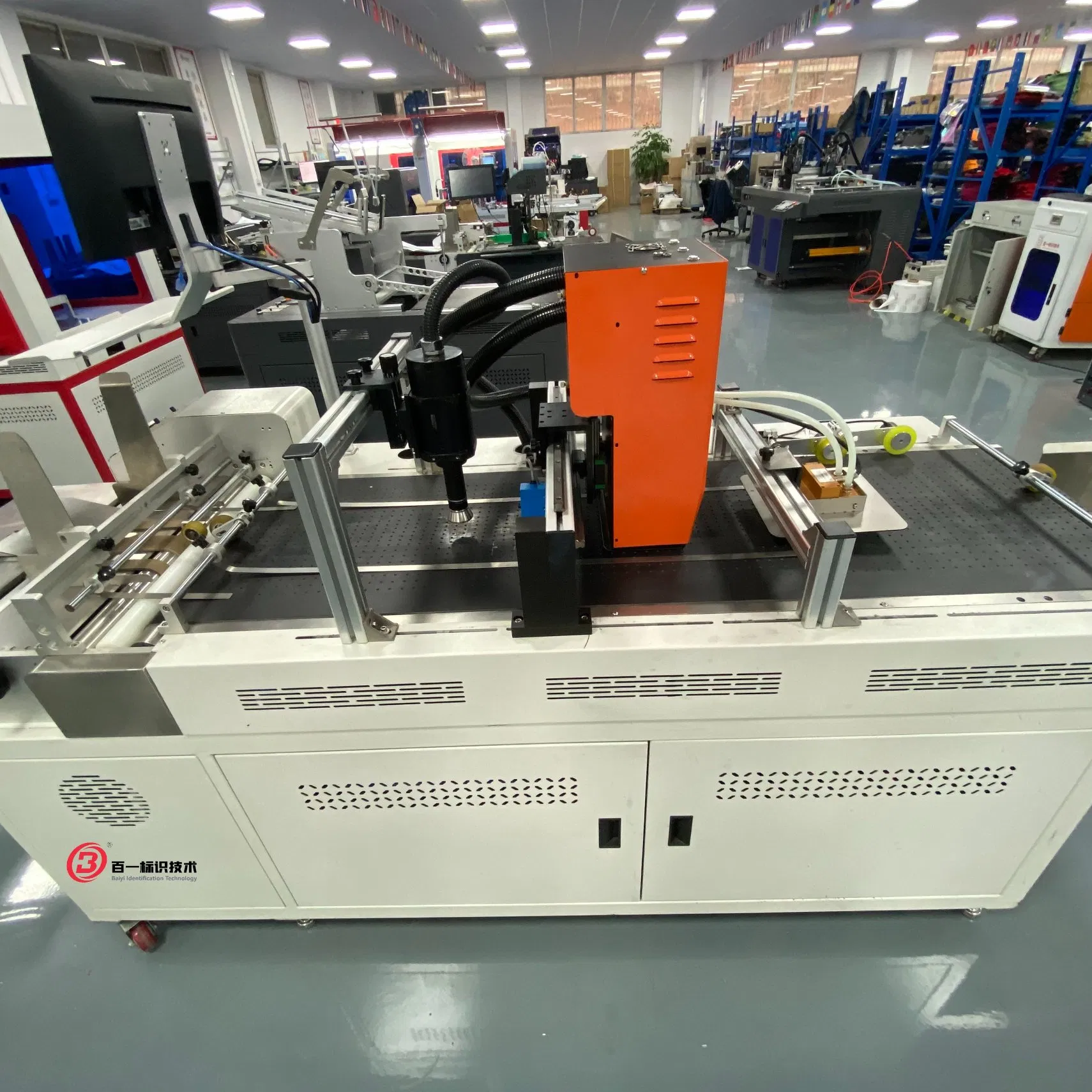

This integrated friction feeding and UV inkjet printing system represents a complete production line solution combining automatic feeding, plasma surface treatment, industrial UV inkjet printing, and UV curing technology into one streamlined workflow.
Engineered for high-speed industrial applications, this all-in-one printing system features intelligent feeding modules with adjustable friction power, precision conveyor platform, and optional advanced functions including double detection, automatic labeling, and rejection systems.

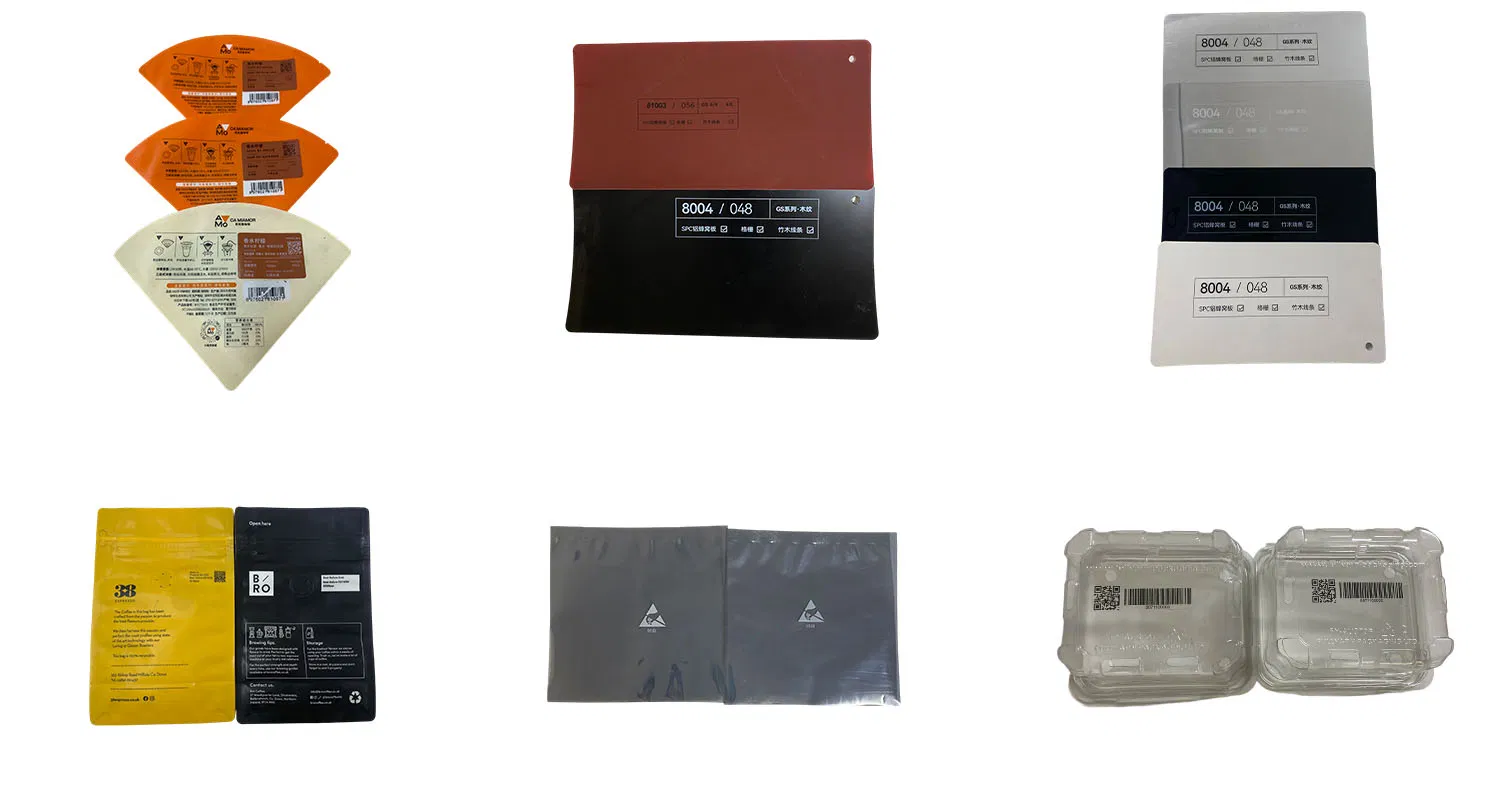

Available in three configuration types—standard friction feeding for carton boxes and plastic bags, intelligent static friction feeding for lightweight and soft materials, and high-speed feeding for maximum throughput—this versatile UV printing machine accommodates diverse production requirements.
| Dimension | 4300 * 920 * 830 MM | Voltage | 220VAC, 50HZ |
| Efficiency | 0-300 Pcs/Min | Weight | About 450 Kg |
| Power | About 4.5 KW | Conveyor Speed | 0-70 M/Min (Adjustable) |
| Product Size | (60-400)*(60-480)*(0.1-3)mm | Print Width | 54mm (1 head) / 100mm (2 heads) |

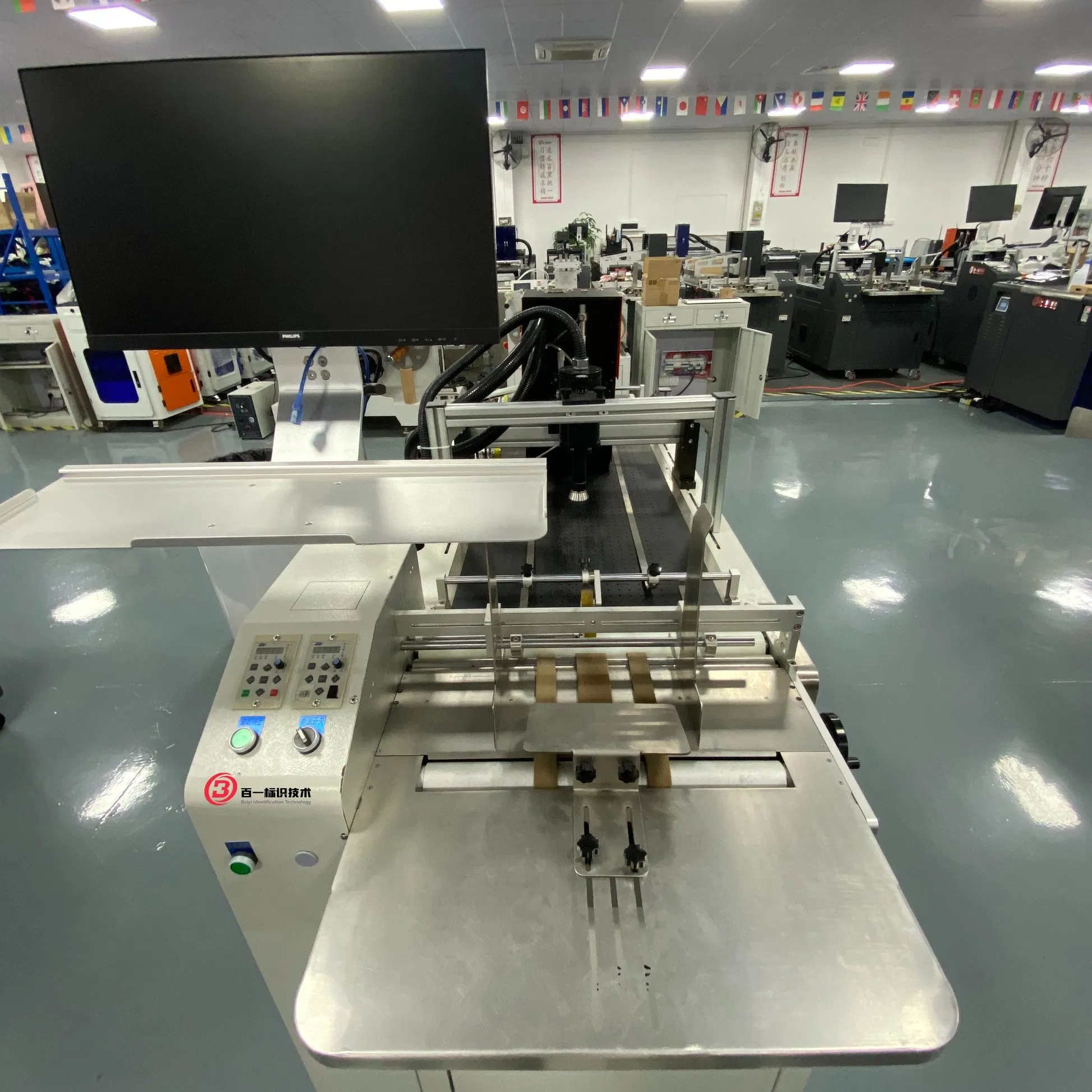

Method: Multi-friction belt, down-out feeding; Adjustment: Handle, symmetric adjustment; Vacuum: Large flow vacuum pump; Collection: Collection tray; Conveyor size: 2000*500MM.

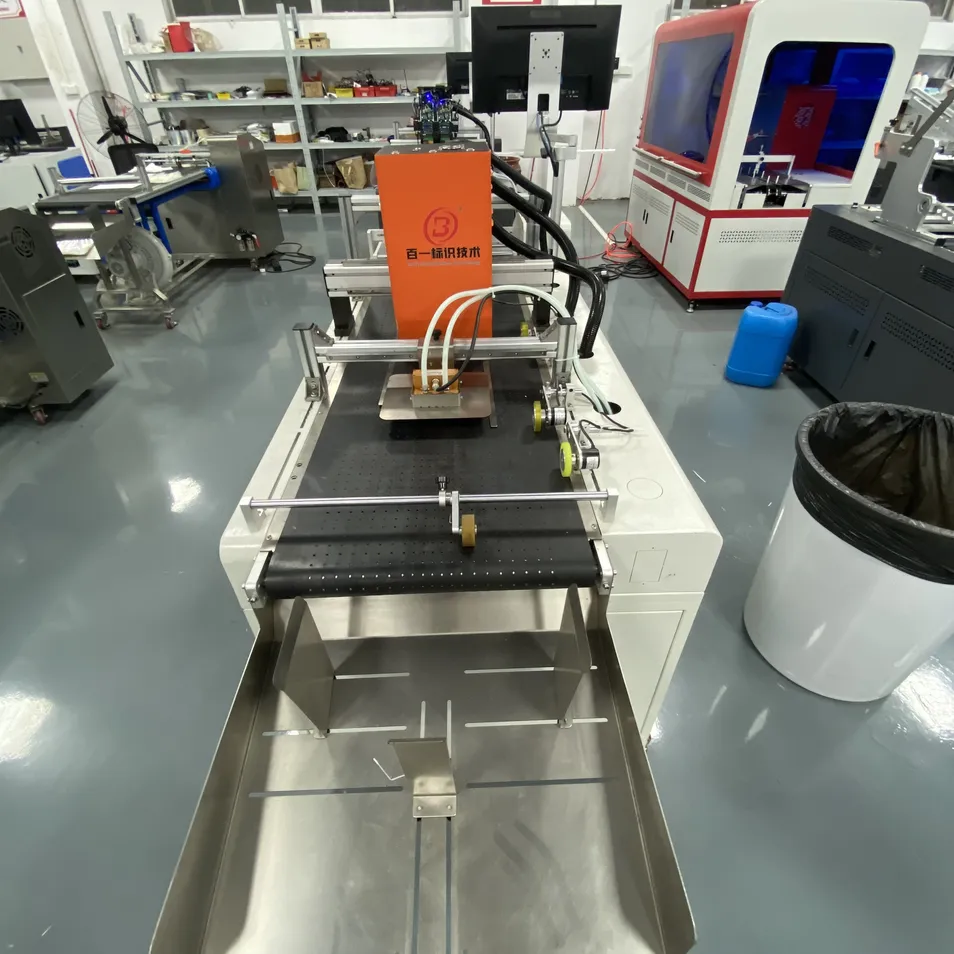

Embedded UV inkjet printing system with Industrial PC; High accurate negative pressure and ink road controlling system; Compatible with Ricoh, Seiko, Toshiba nozzles; High performance plasma and UV curing light.
