UV DOD Digital Inkjet Printer
Systems Composition

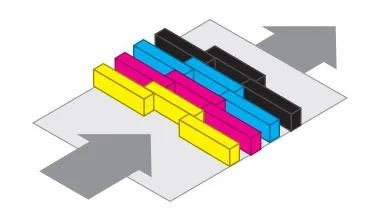

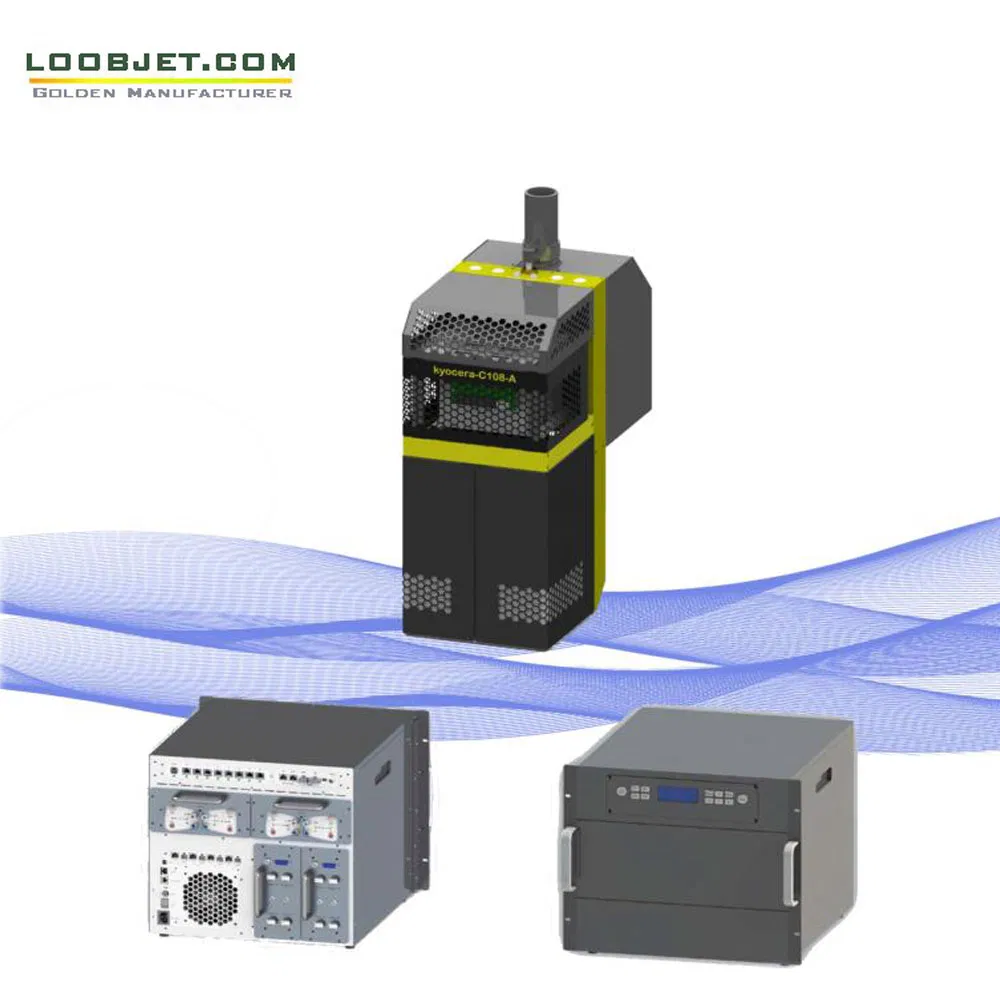

The printing system of Kyocera PH is an industrial level digital four-color printing engine system, mainly used for the packaging and printing industry. It is equipped with 12 pieces of industrial-level Kyocera PH. Kyocera nozzles can print at high speed with high precision (4 colors 600 * 1200dpi), and the maximum printing speed can reach 50m/min.
Features of the System

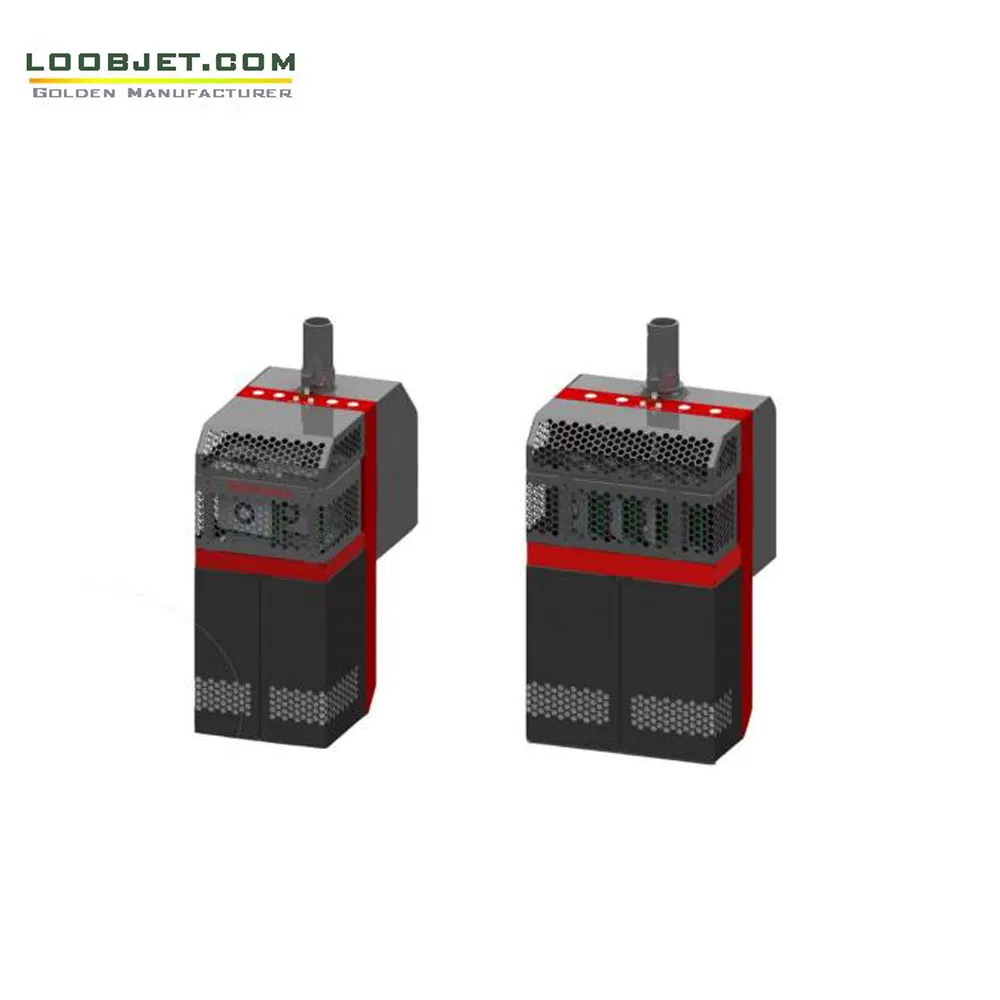

1High resolution: 12 pics industrial grade Kyocera PH, UV/water-based nozzles (324mm width), precision reaches 600 * 1200dpi.
2High speed: Industrial single pass non-contact printing technology, speed up to 50m / min at 600dpi.
3Width: Maximum printing width of 324mm.
4Versatility: Suitable for paper/adhesive labels without pre-coating. Supports variable barcodes, 2D barcodes, and image printing.
5Color Support: CMYK four colors, or more customized spot colors accepted.
6Efficiency: Average preparation time less than 1 minute; seamless changing of rolls or content.
7Software: Powerful intelligent RIP, image processing, and data transmission for easy proofing and color correction.
8Simple Operation: Direct computer printing without traditional plate-making or color matching.
9Auto Processing: Automatic ink and air supply balance. Intelligent system maintains negative pressure during power loss.
10Industrial Reliability: Designed for 24/7 production with durable piezoelectric nozzles.
PH Parameters
Ink Drop
3.5pl, 7pl, 11pl, 14pl (adjustable)
Printing Control & Other Technical Parameters
| Parameter |
Specification |
| Ink type | UV/water base ink |
| Ink colors | CMYK (Expandable to Orange, Purple, White, or Spot colors) |
| Curing type | Drying module or quick drying ink |
| Power | AC220V 50 / 60Hz |
| Air supply | 6-8 PA, clean and dry |
| Platform | Single-fed or roll-fed |
| Material Weight | 60-250g/m2 |
| Material type | Ordinary paper, offset paper, adhesive labels |
Frequently Asked Questions (FAQ)
1. What is the maximum printing speed and resolution of the KY320?
The system can reach a maximum printing speed of 50m/min at a high precision resolution of 600 * 1200dpi.
2. What types of materials can this printer handle?
It is designed for a wide variety of materials including ordinary paper, offset paper, adhesive labels, and cloths, with a material weight range of 60-250g/m2.
3. Does it support variable data and barcode printing?
Yes, the system fully supports various variable barcodes, 2D barcodes, and complete variable image printing without the need for plate making.
4. What are the ink and color options available?
The standard configuration supports CMYK + White + Varnish. It can be expanded to include spot colors such as orange and purple. It is compatible with both UV and water-based inks.
5. Is the printer suitable for 24/7 industrial production?
Absolutely. The whole series is designed for 24/7 continuous production mode, utilizing durable Kyocera industrial grade piezoelectric nozzles.
6. What are the PC requirements for running the control software?
It requires a high-performance PC with an i7 processor, 8GB RAM, 2TB hard disk, 2GB independent graphics card, and a Windows 64-bit operating system.
