High Speed UV Digital Full Color Printing System

Customization:	Available
Color & Page:	Multi-Colour Printing Press
Usage:	Paper Printer, Label Printer, Card Printer, Cloths Printer

Send Inquiry

Product Description

Basic Specifications

Model NO.

VDG330

Automatic Grade

Automatic

Printing Interface

USB3.0

System Supported

Windowsxp32

Color Support

Cmyk+W+V

Overprint

+-0.05mm

Max.Web Dia.

600mm

Material Weight

60-250G/M2

Total Power

45kw

Gross Weight

1500kgs

Origin

China

HS Code

8443322100

Packaging & Delivery

Package Size

250.00cm * 150.00cm * 120.00cm

Package Gross Weight

400.000kg

Transport Package

Wooden Cases

Production Capacity

100sets/Year

Product Description

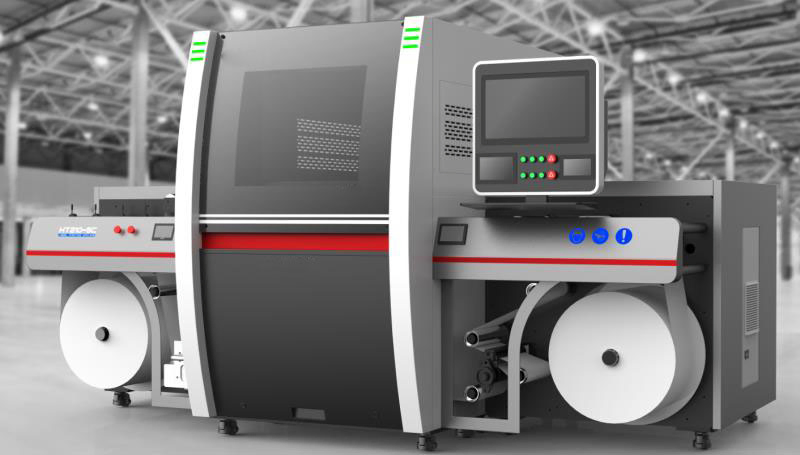

High Speed UV Digital Full Color Printing System

⚙️

Highly Flexible Feeding System

Feeding unit for inkjet digital printing system, with high flexibility, suitable for all materials for 80-330mm wide label printing: film (PET, BOPP, PE, BOPA), label stock (PE label), pre-pressed materials (PET, ALU, PE), paper, among others.

🚀

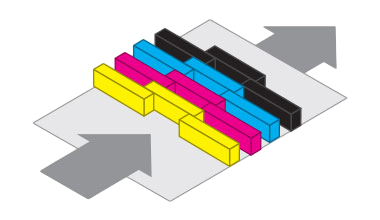

Stable and High-speed Printing Unit

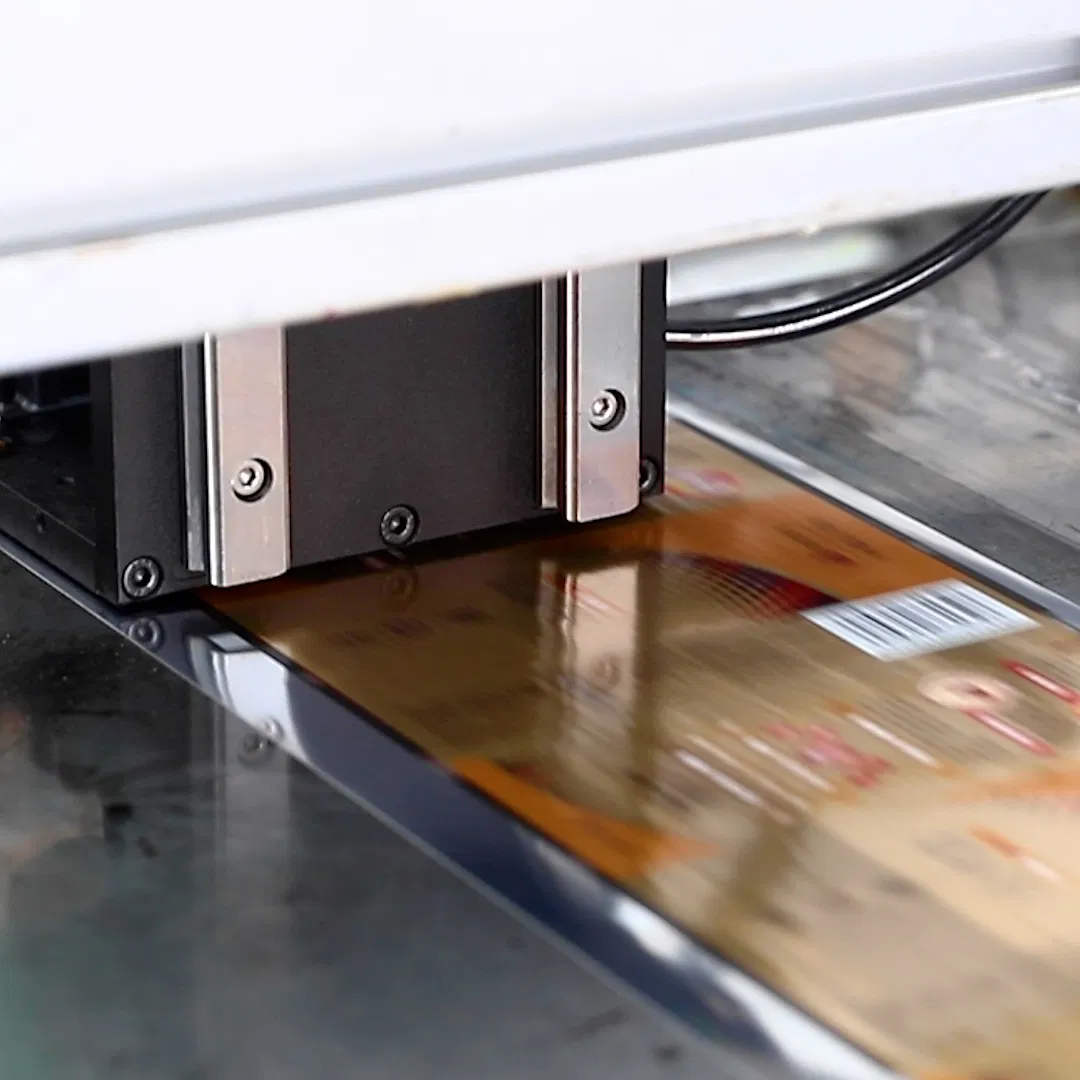

Imported high-precision industrial print head has higher fire ignition frequency and service life, resolution up to 600 X 1200 dpi. The patch tracking electronic eye achieves accurate secondary surprint, comprehensively solving registration problems.

💧

High Quality UV Eco-friendly Ink

Excellent ink formula ensures stability and environmental protection. Broad color gamut UV ink with vivid colors restores Pantone database colors accurately via the Agfa color management system.

💻

AGFA APOGEE Workflow System

The fully integrated AGFA Apogee prepress workflow system ensures the highest level of reliability while making equipment operation easier and more efficient for production.

🔄

Automatic Winding System

Effectively prevents substrate shifting, ensuring orderliness and achieving non-stop production for a long time. The high linkage system maximizes automated production.

☀️

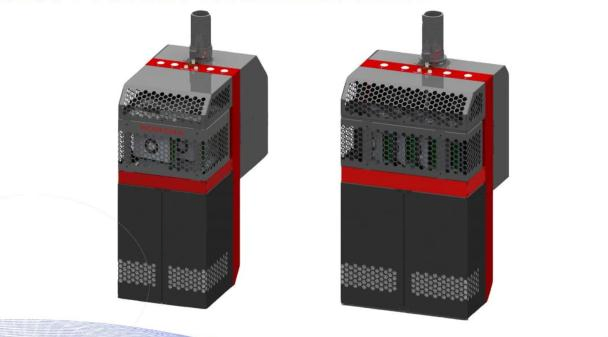

Unique Multiple Curing Technology

LED cold light curing unit for energy saving. Each color group is equipped with a curing module, allowing ink droplets to attach quickly without spreading before the main curing system completes the process.

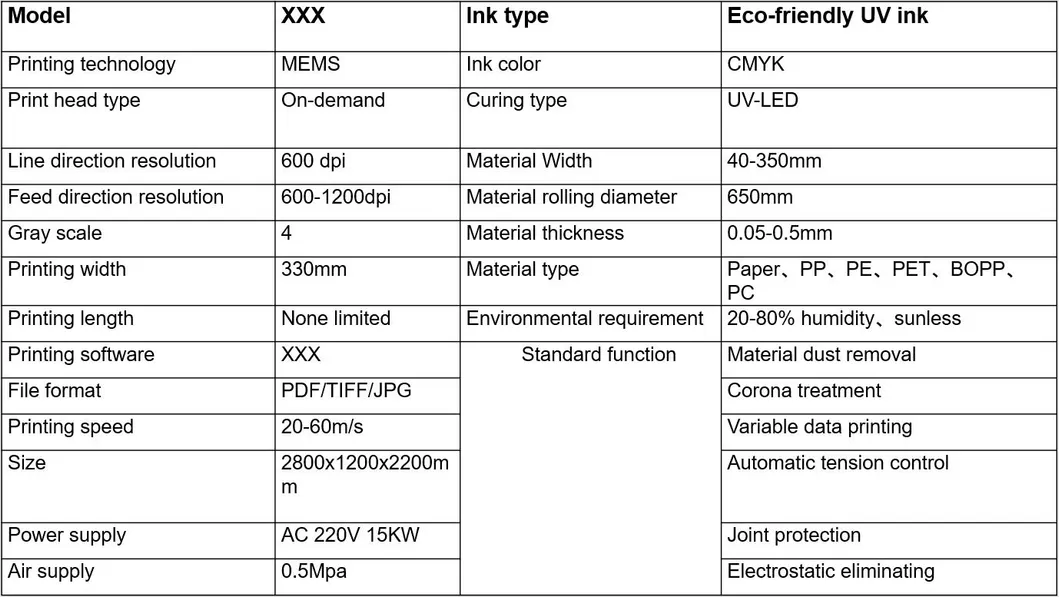

High Speed UV Digital Full Color Printing System Overview

Frequently Asked Questions

What types of materials can the VDG330 print on?

The system is highly flexible and supports a wide range of materials including films (PET, BOPP, PE, BOPA), label stock, pre-pressed materials (ALU, PE), and various types of paper.

What is the maximum printing resolution of this system?

The VDG330 utilizes high-precision industrial print heads that can achieve a resolution of up to 600 X 1200 dpi, ensuring excellent print quality.

Does the machine support multi-color printing?

Yes, it supports CMYK + White + Varnish (Cmyk+W+V), allowing for full-color printing with special effects and white ink layering.

How does the curing system work?

The machine uses a unique multiple curing technology with LED cold light units. Each color group has its own curing module to fix ink droplets immediately, followed by a main curing system for complete drying.

What workflow software is included?

The system is equipped with the AGFA APOGEE prepress workflow system, which is fully integrated to provide high reliability and ease of operation.

Is the system capable of continuous production?

Yes, the automatic winding and unwinding system is designed to prevent substrate shifting and support non-stop, automated production for extended periods.
