Inkjet Imagine High Speed Inkjet Printing System

Customization:	Available
Plate:	Variable
Structure:	Non-Contact

Send Inquiry

Product Description

Basic Specifications

Model NO.

KY320

Color & Page

Multi-Colour Printing Press

Usage

Paper, Label, Card, Cloths Printer

Automatic Grade

Automatic

Printing Interface

USB3.0

Printing Speed

50m/Min

System Supported

Windowsxp32

Color Support

Cmyk+W+V

Overprint

+-0.05mm

Max.Web Dia.

600mm

Material Weight

60-250G/M2

Total Power

45kw

Gross Weight

3000kgs

Origin

China

HS Code

8443322100

Capacity

100sets/Year

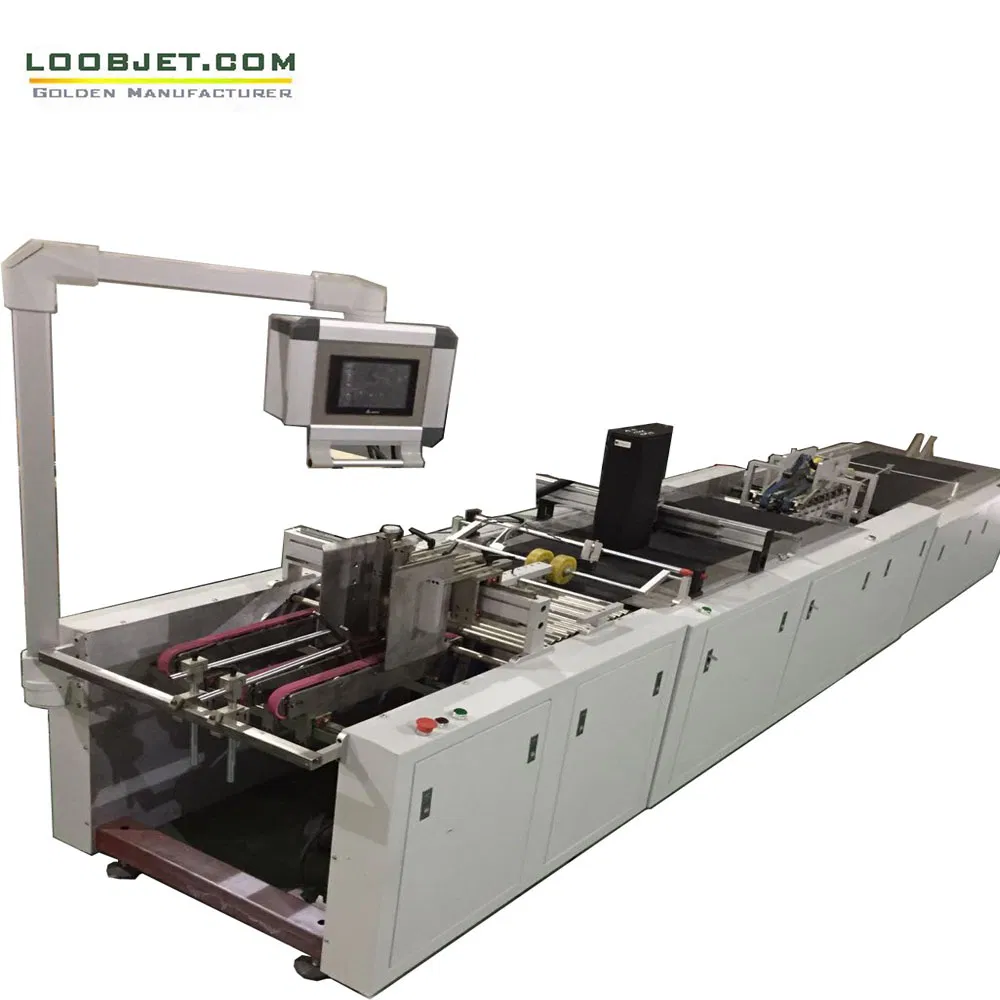

UV DOD Digital Inkjet Printer Overview

Systems Composition

The printing system of Kyocera PH is an industrial level digital four-color printing engine system, mainly used for the packaging and printing industry. It is equipped with 12 industrial-level Kyocera print heads. The Kyocera nozzle can print at high speed with high precision (4 colors 600 * 1200dpi), reaching a maximum printing speed of 50m / min.

Key Features of the System

★

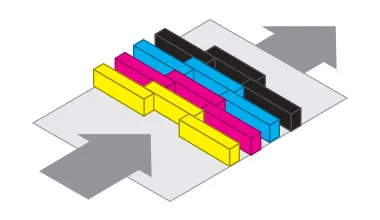

High Resolution: 12 industrial grade Kyocera PH, UV/water-based nozzles (324mm width) reaching 600 * 1200dpi precision.

★

High Speed: Industrial single pass non-contact technology, speeds up to 50m / min (600dpi).

★

Material Versatility: Suitable for paper, adhesive labels, and variable barcodes/2D barcode printing without pre-coating.

★

Color Support: Standard CMYK four colors, with options for customized spot colors.

★

Efficient Operation: Average preparation time less than 1 minute; supports seamless roll changing.

★

Intelligent Processing: Automatic ink and air supply balance; negative pressure maintained during sudden power loss.

★

Industrial Durability: Designed for 24/7 production environments using piezoelectric nozzles.

Technical Specifications

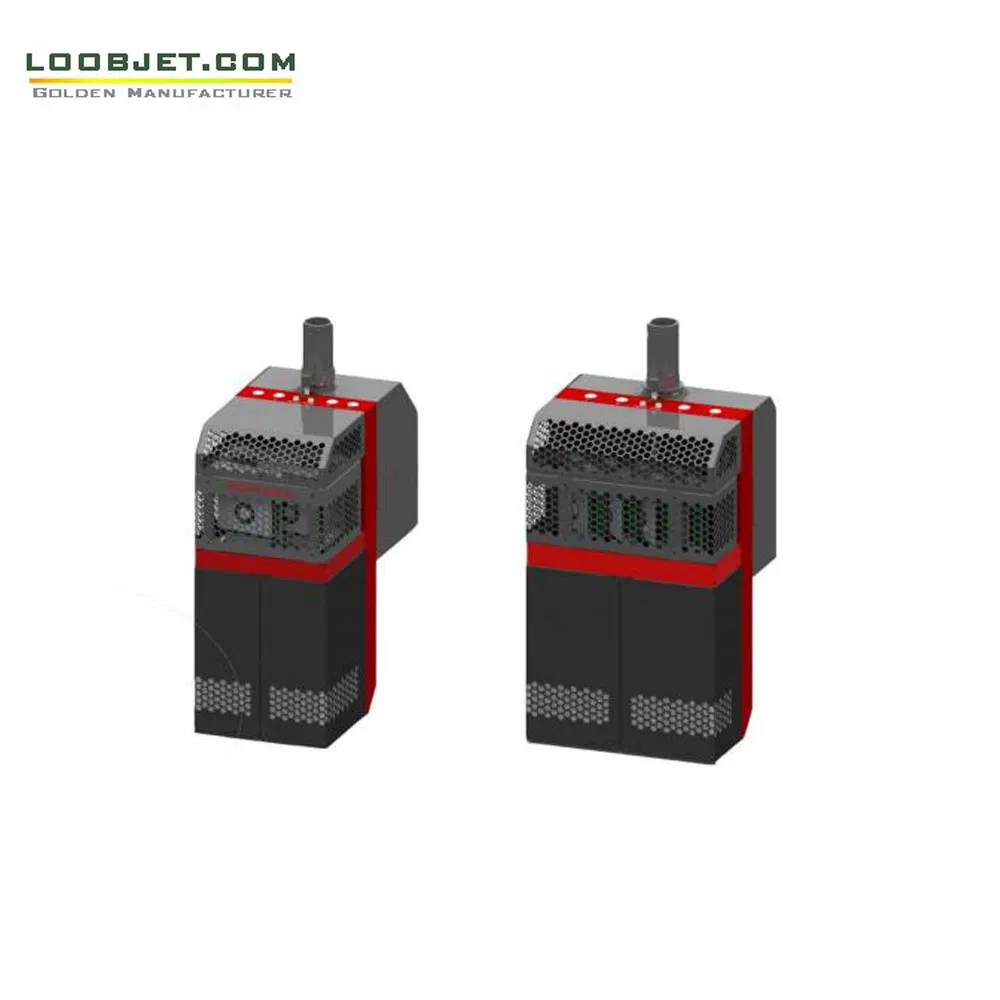

Print Head (PH) Parameters:

Nozzle Model: Kyocera (2656 nozzles)
Printing width of unit nozzle: 108mm
Ink drop size: 3.5pl, 7pl, 11pl, 14pl (adjustable)
Grayscale: 8 levels
Nozzle Frequency: 35kHz - 40KHz

Parameter Item	Details
Ink type	UV/water base ink
Ink color	CMYK (Expandable to Orange, Purple, White, or Spot color)
Curing type	Drying module or quick drying ink
Power requirements	AC220V 50 / 60Hz
Air supply requirements	6-8 PA, clean or dry
Materials weight	60-250g/m2
Materials type	Ordinary paper, offset paper, adhesive labels

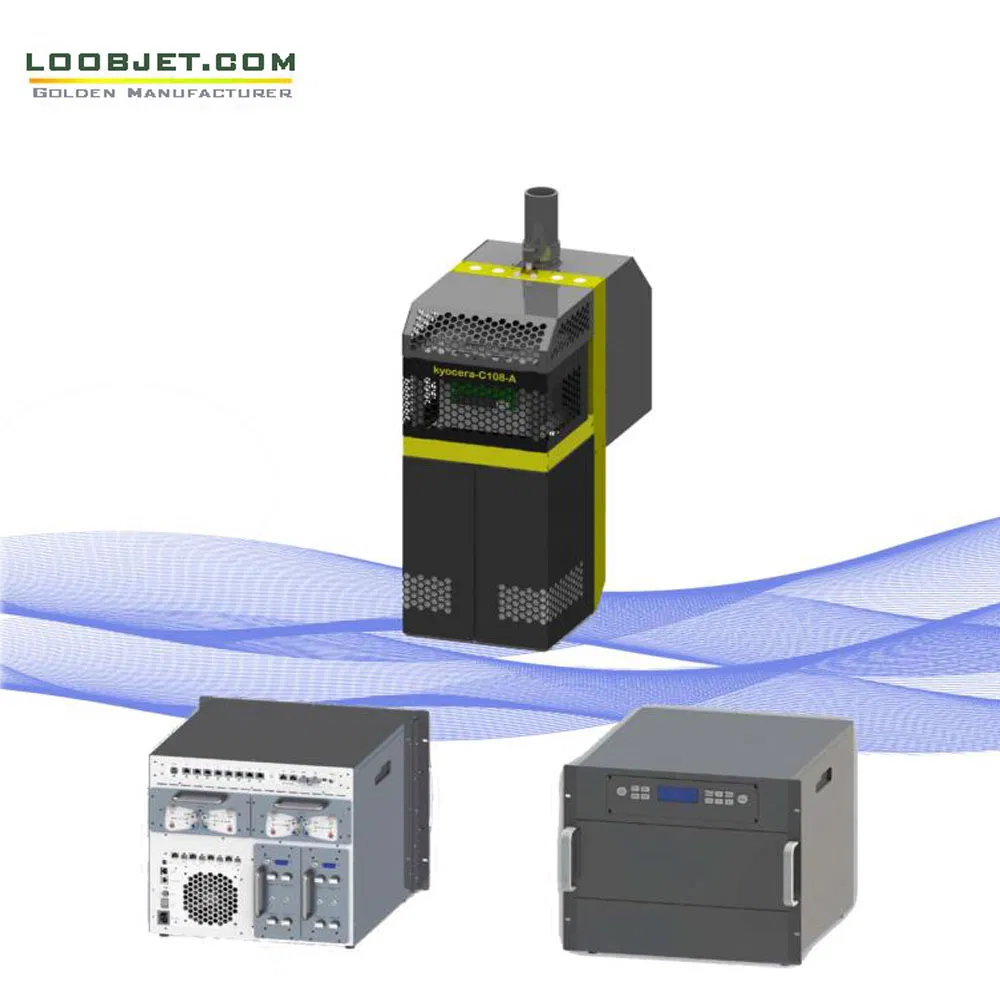

Control System & Interface

The system utilizes high-performance software supporting variable data and graphic output. It includes 4 color printing units, USB3.0/Optical fiber data transmission, and is powered by an i7 processor system with 8GB RAM and 2TB storage for high-speed data handling.

Frequently Asked Questions (FAQ)

What is the maximum printing speed of the KY320?

The KY320 can reach a maximum printing speed of 50 meters per minute at a resolution of 600dpi.

What types of materials can this digital inkjet printer handle?

It is designed for a wide range of materials, including ordinary paper, adhesive labels, card materials, and cloths, with a weight range of 60-250g/m2.

Does the material require pre-coating before printing?

No, the system is designed to print high-quality patterns directly on all kinds of paper and adhesive labels without the need for pre-coating.

What kind of print heads are used in this system?

The system is equipped with industrial-grade Kyocera piezoelectric nozzles, known for their high precision and long working life in 24/7 production modes.

Is the printing system capable of handling variable data?

Yes, the software fully supports variable barcodes, 2D barcodes, and complete variable image printing for personalized production.

What happens to the ink supply system during a sudden power loss?

The intelligent ink supply system maintains negative pressure even during power loss, ensuring the system remains stable and can resume working quickly once power is restored.
