High Speed Color Monochrome Inkjet Printing System

1 / 4

High Speed Color Monochrome Inkjet Printing System

Customization:	Available
Plate:	Variable
Structure:	Non-Contact

Send Inquiry

Product Description

Basic Specifications

Model NO.

KY320

Color & Page

Multi-Colour Printing Press

Usage

Paper, Label, Card, Cloths Printer

Automatic Grade

Automatic

Printing Interface

USB3.0

Printing Speed

50m/Min

System Supported

Windowsxp32

Color Support

Cmyk+W+V

Overprint

+-0.05mm

Max.Web Dia.

600mm

Material Weight

60-250G/M2

Total Power

45kw

Gross Weight

3000kgs

Transport Package

Wooden Cases

Specification

3200*1800*800mm

Origin

China

HS Code

8443322100

Production Capacity

100sets/Year

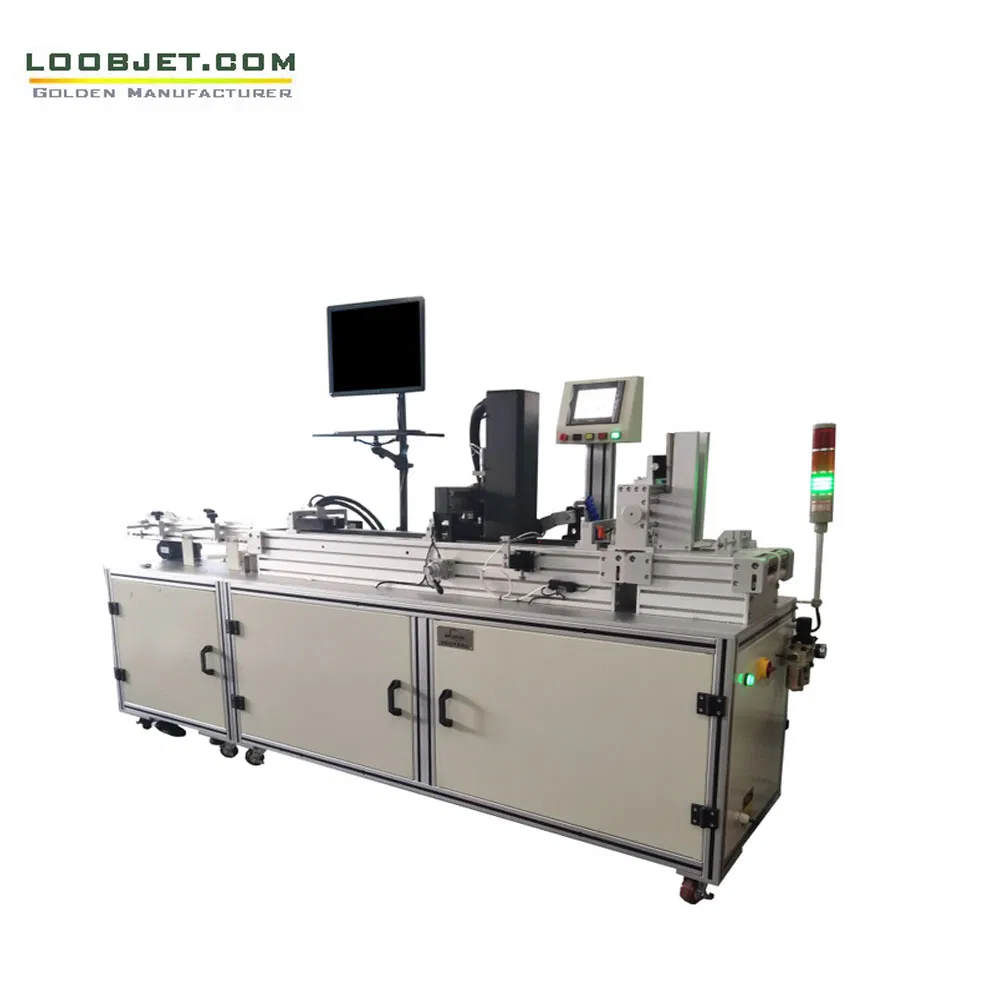

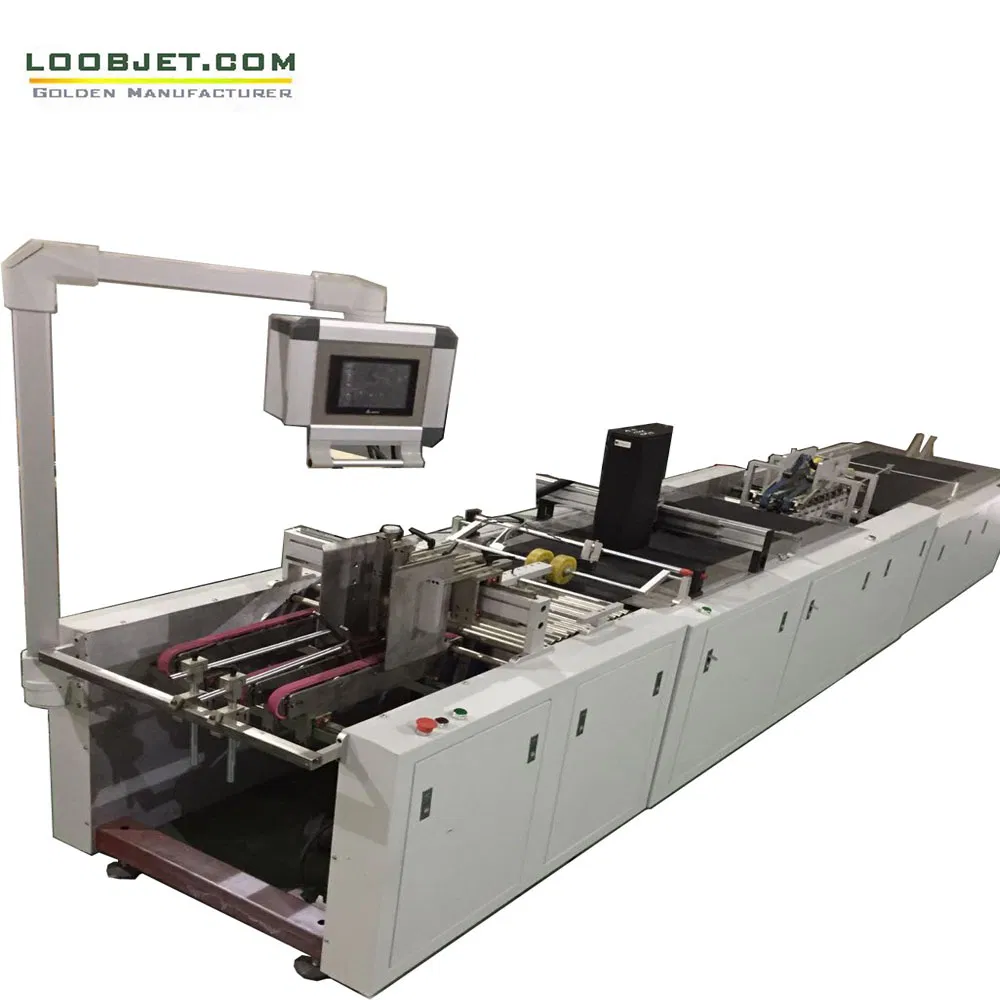

UV DOD Digital Inkjet Printer

Systems Composition: The printing system of Kyocera PH is an industrial level digital four-color printing engine system, mainly used for packaging and printing industry, which is equipped with 12 pics industrial levels Kyocera PH. Kyocera nozzle can print at high speed with high precision, 4 colors 600 * 1200dpi, and the maximum printing speed can be reach 50m / min.

System Features

✔

High Resolution: 12 pics industrial grade Kyocera PH, printing precision reaches 600 * 1200dpi.

✔

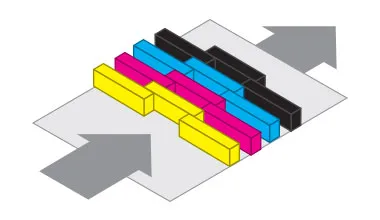

High Speed: Single pass non-contact printing technology, speed up to 50m / min.

✔

Printing Width: Maximum printing width of 324mm.

✔

Versatile Materials: Suitable for paper, adhesive labels, and variable barcodes/2D codes.

✔

Color Support: CMYK four colors, or customized spot colors.

✔

Efficient Operation: Preparation time less than 1 minute; seamless roll changing.

✔

Intelligent Software: Equipped with powerful Rip, image processing, and data transmission.

✔

Automatic Processing: Automatic ink supply and air supply balance with negative pressure maintenance.

Technical Specifications

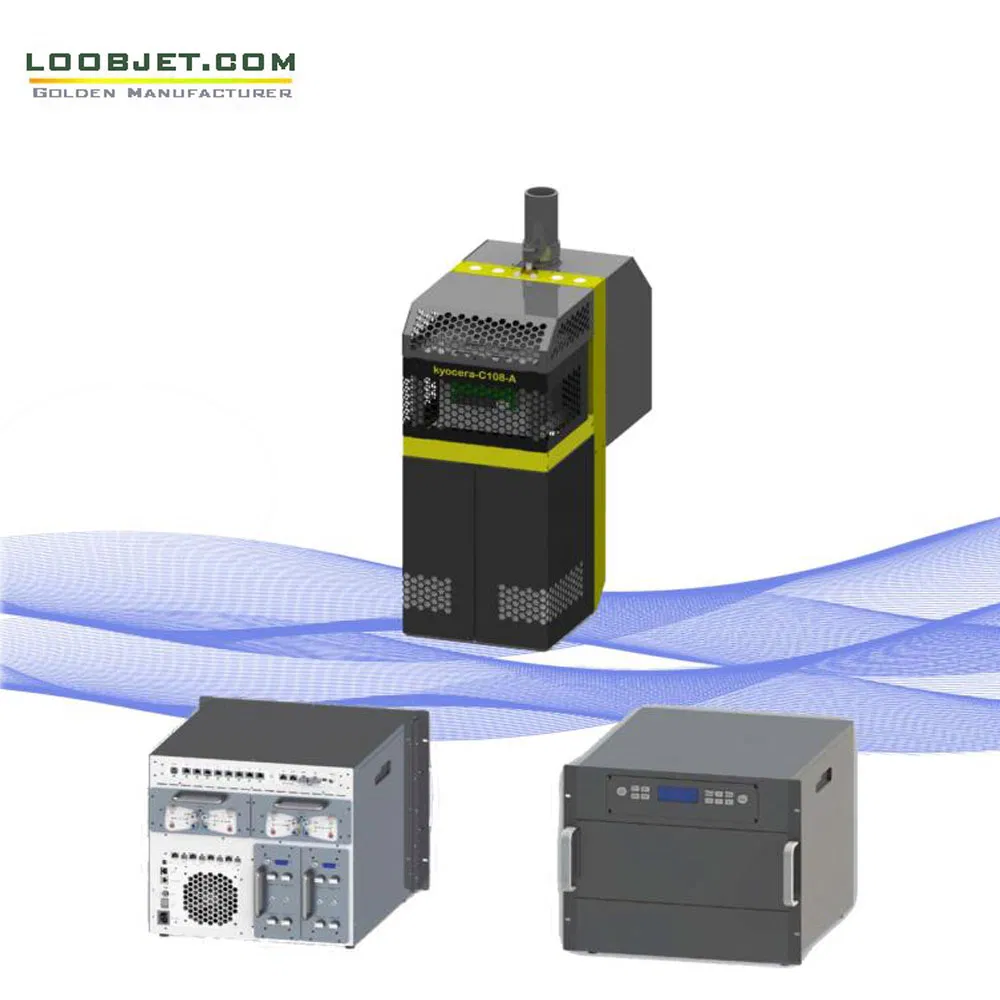

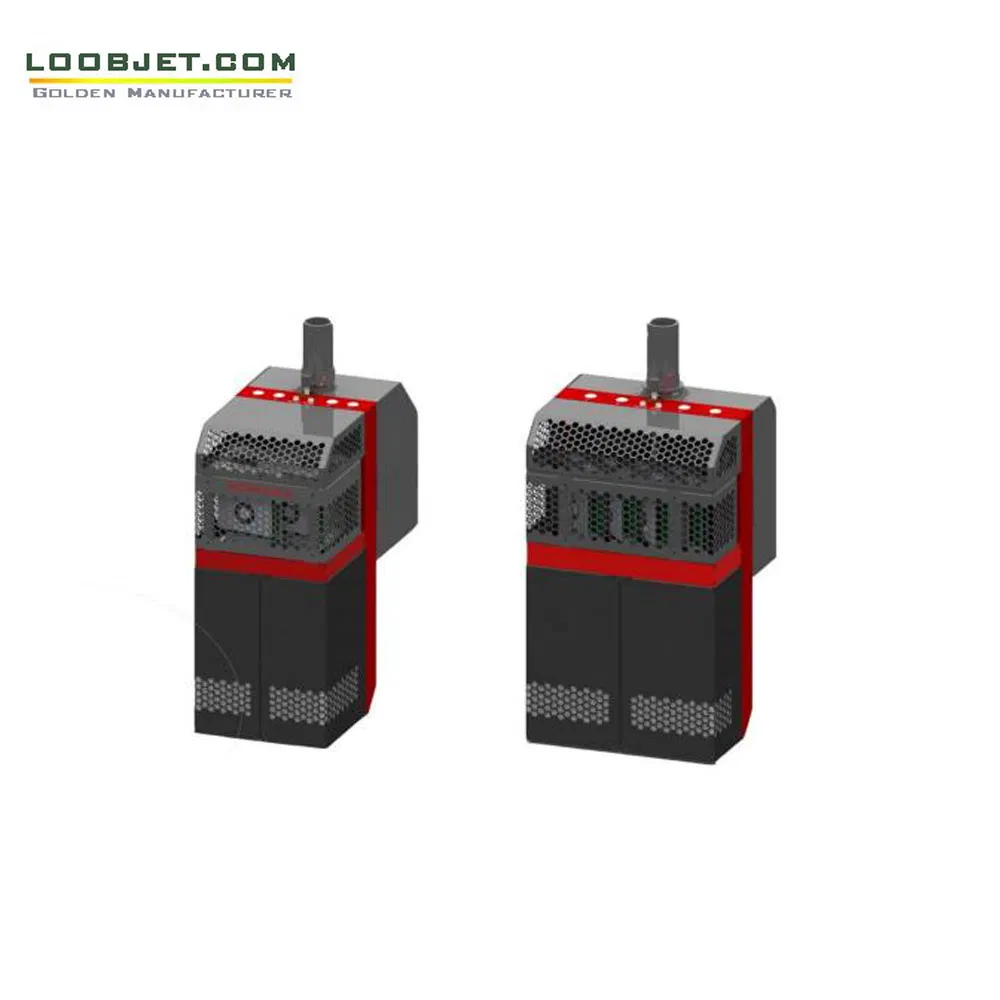

PH Parameters:

Nozzle model: Kyocera
Printing width: 108mm per unit
Number of nozzles: 2656
Density: 600dpi
Ink drop: 3.5pl - 14pl adjustable
Grayscale: 8 levels
Frequency: Max 40KHz
Driving voltage: 24 ±1V

Ink type	UV/water base ink
Ink color	CMYK + Orange, Purple, White or Spot color
Curing type	Drying module or quick drying ink
Power requirements	AC220V 50 / 60Hz
Air supply	6-8 PA, clean or dry
Materials weight	60-250g/m2
Materials type	Ordinary paper, offset paper, adhesive labels

Frequently Asked Questions

What is the maximum printing speed of the KY320?

The system utilizes industrial single-pass technology to reach a maximum printing speed of 50 meters per minute at 600dpi resolution.

What types of materials can this printer handle?

It is designed for a wide variety of materials including ordinary paper, offset paper, adhesive labels, cardstock, and cloths with weights ranging from 60-250g/m2.

Does the printer support variable data printing?

Yes, the software supports various variable barcodes, 2D barcodes, and complete variable image printing without the need for traditional plate making.

What is the printing resolution and color configuration?

The printer offers high precision up to 600 * 1200dpi. The standard configuration is CMYK four colors, which can be expanded to include white, varnish, or customized spot colors.

How does the automatic ink supply system work during power loss?

The intelligent ink supply system maintains negative pressure even during sudden power loss, ensuring the system can resume working quickly once power is restored.

What are the computer requirements for the control system?

The system requires a high-performance PC equipped with an i7 processor, 8GB RAM, 2TB hard disk, and a 2GB independent graphics card running Windows 7 64-bit.
