Compact UV Printing System with Intelligent Feeding - Inkjet Printer

Customization:	Available
After-sales Service:	Overseas Engineering Team Technical Support
Warranty:	1 Year

📦 Basic Information

Model NO.

BY-HF02-500UV

Type

Continuous Jet Type Coding Machine

Usage

Daily Industrial, Chemical Products, Drug, Food

Automatic Grade

Automatic

Classification

High Resolution Ink Jet Printer

Working Patterns

On-Line

Material

Stainless Steel/Painted Carbon Steel

Feature

High Speed, Stable, Wide Application

📝 Product Description

⚙️

FEEDING AND UV INKJET PRINTING SYSTEM
This integrated friction feeding and UV inkjet printing system represents a complete production line solution combining automatic feeding, plasma surface treatment, industrial UV inkjet printing, and UV curing technology into one streamlined workflow.

Engineered for high-speed industrial applications, this all-in-one printing system features intelligent feeding modules with adjustable friction power, precision conveyor platform, and optional advanced functions including double detection, automatic labeling, and rejection systems.

Available in three configuration types—standard friction feeding for carton boxes and plastic bags, intelligent static friction feeding for lightweight materials, and high-speed feeding for maximum throughput—this versatile machine accommodates diverse production requirements.

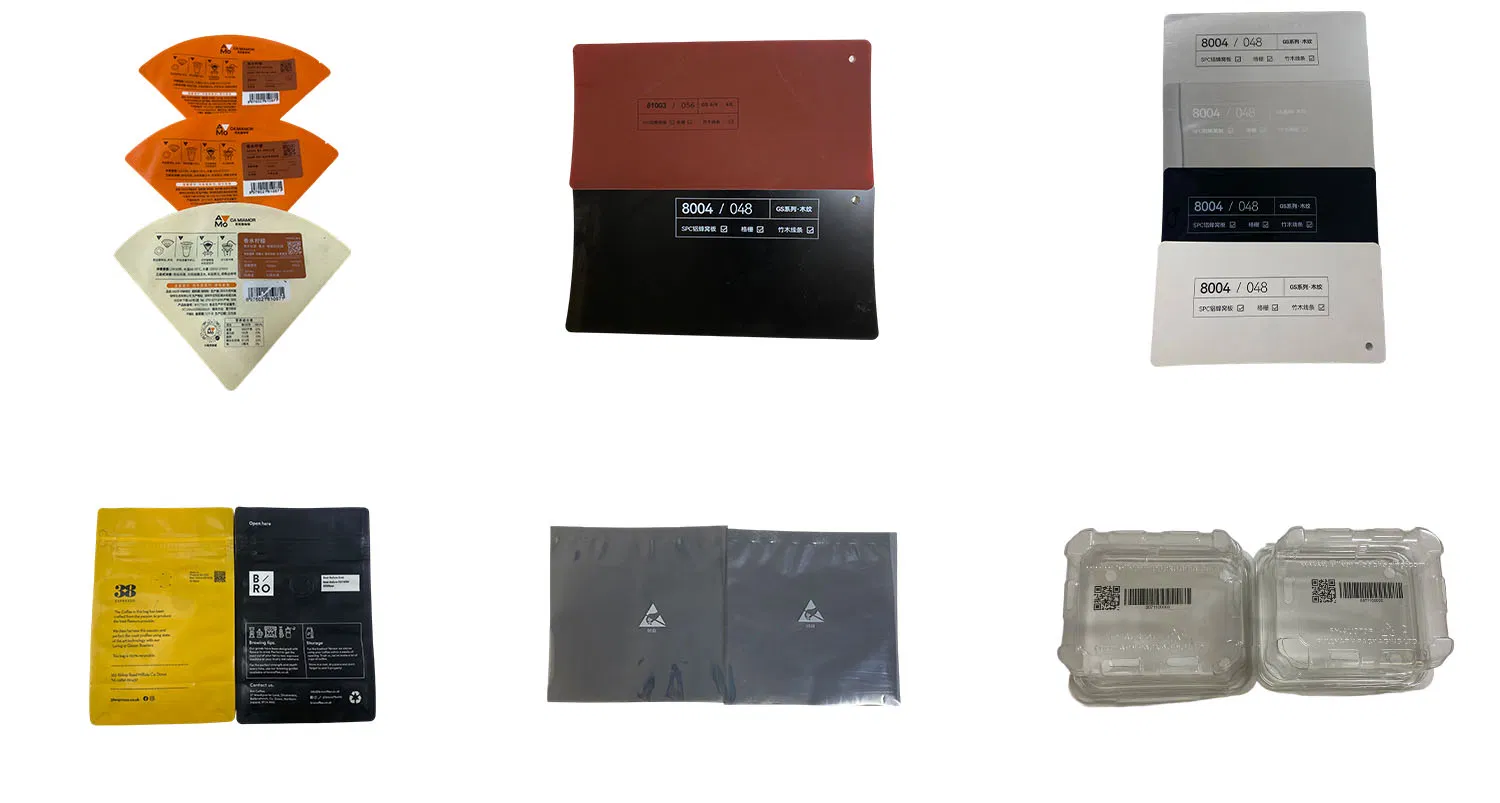

🚀 Main Applications

Carton Box & Packaging Printing: Variable data, batch codes, and branding on corrugated boxes.
Label Production: High-speed printing on adhesive labels and product tags.
Plastic Bag Decoration: Custom printing on poly mailers and flexible packaging.
Lightweight Material Printing: Handles thin paper, soft films, and static-prone materials.
Manufacturing & Logistics: Batch coding, serialization, and barcode printing for quality control.

📊 Technical Parameters

Parameter	Specification	Parameter	Specification
Dimension	4300920830MM	Voltage	220VAC, 50HZ
Weight	About 450Kg	Power	About 4.5KW
Efficiency	0-300 Pcs/Min	Conveyor Speed	0-70M/Min (Adjustable)
Product Size	(60-400)(60-480)(0.1-3)mm	Motor	Frequency or Brushless DC
Print Width	54mm - 100mm	Body Material	Stainless Steel / Painted Carbon Steel

📷 Detailed Photos

🔹

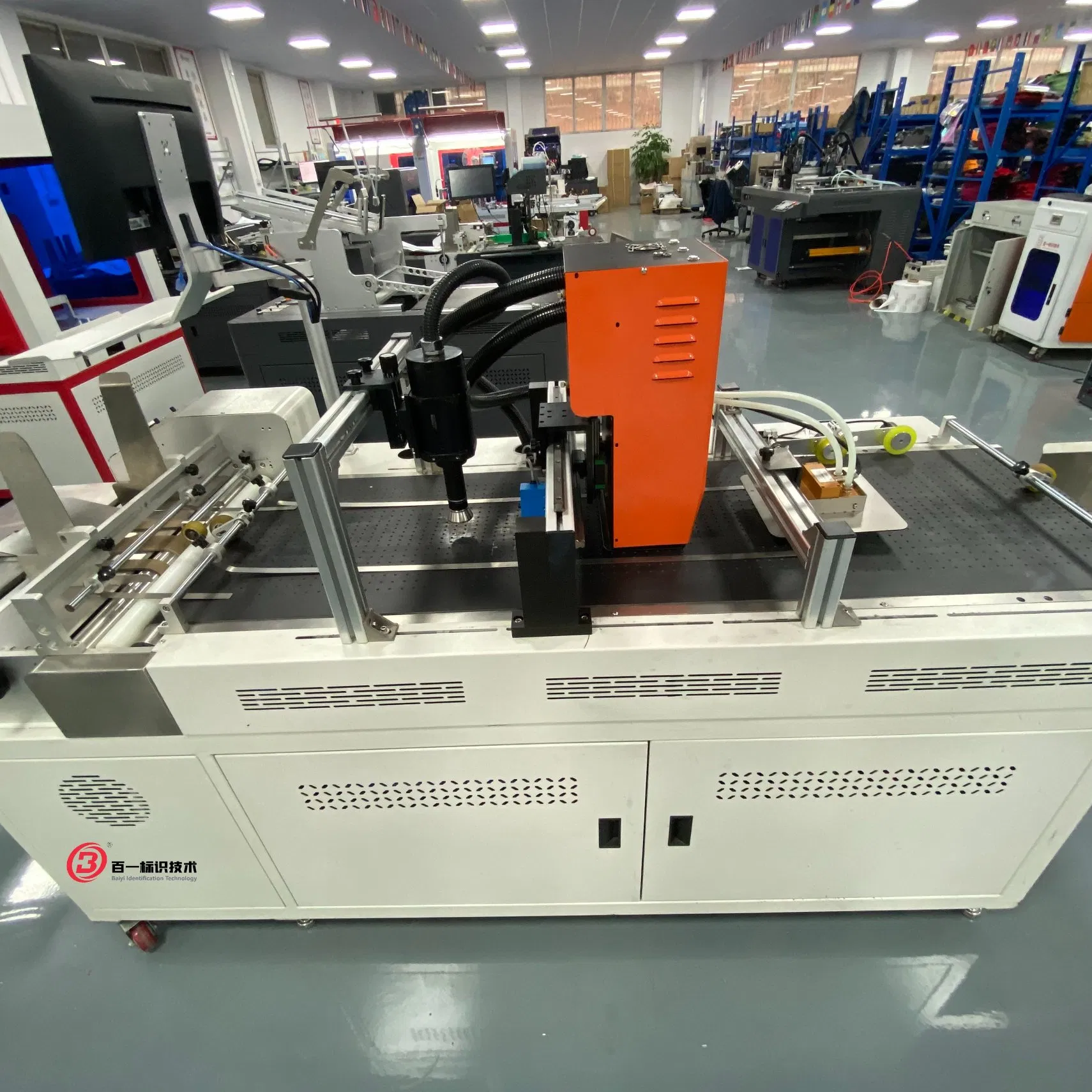

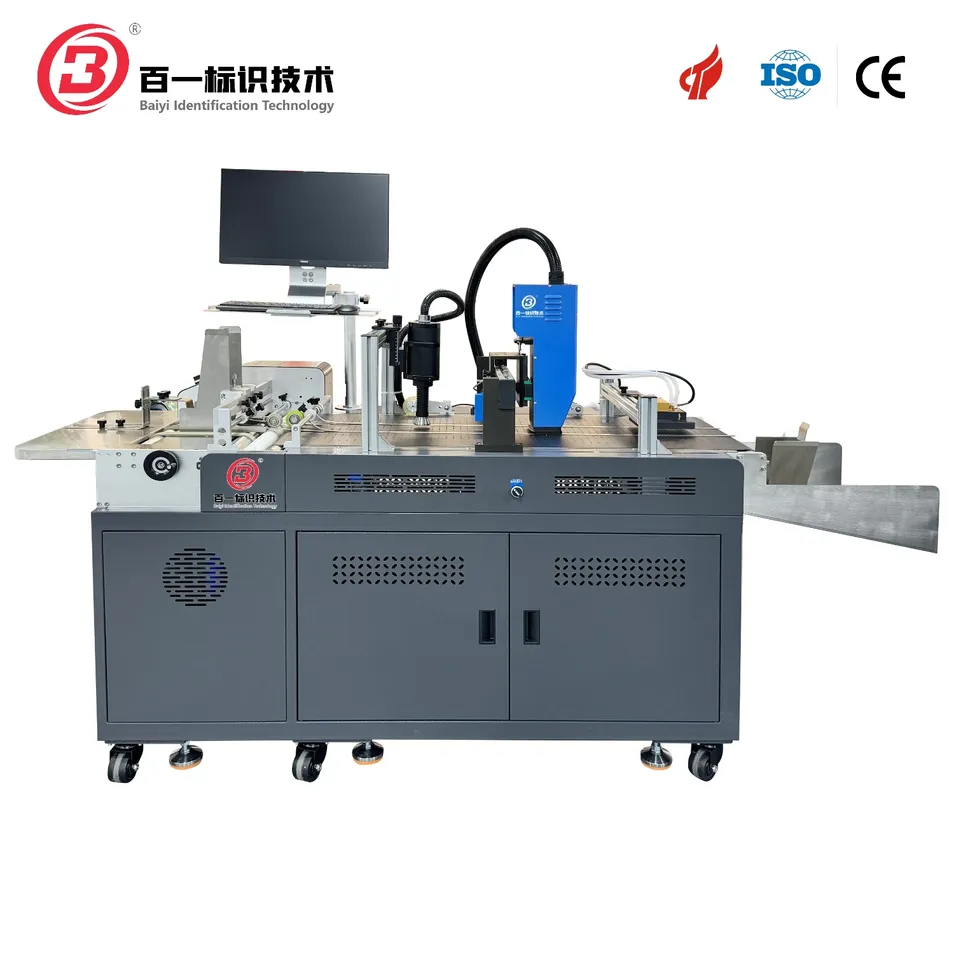

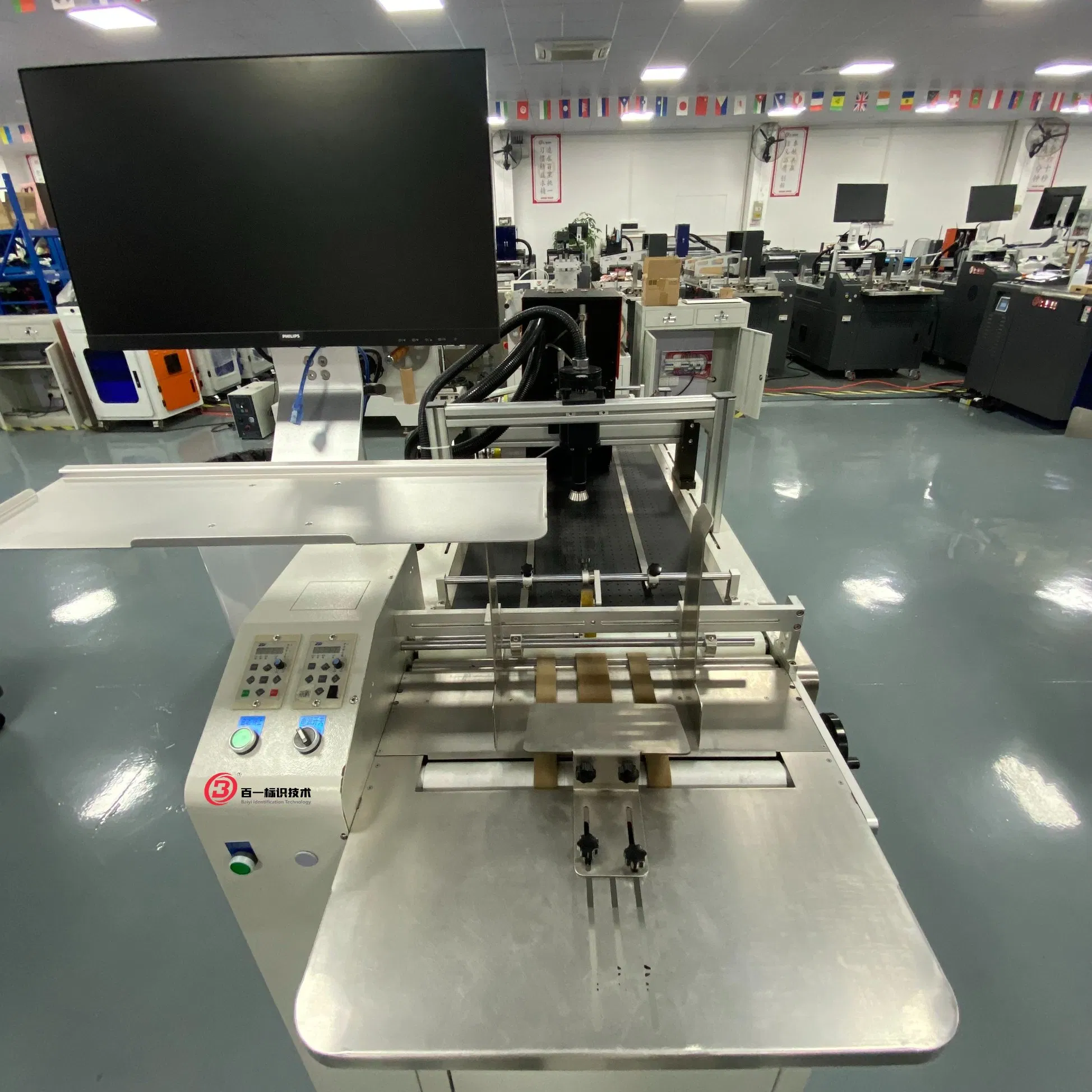

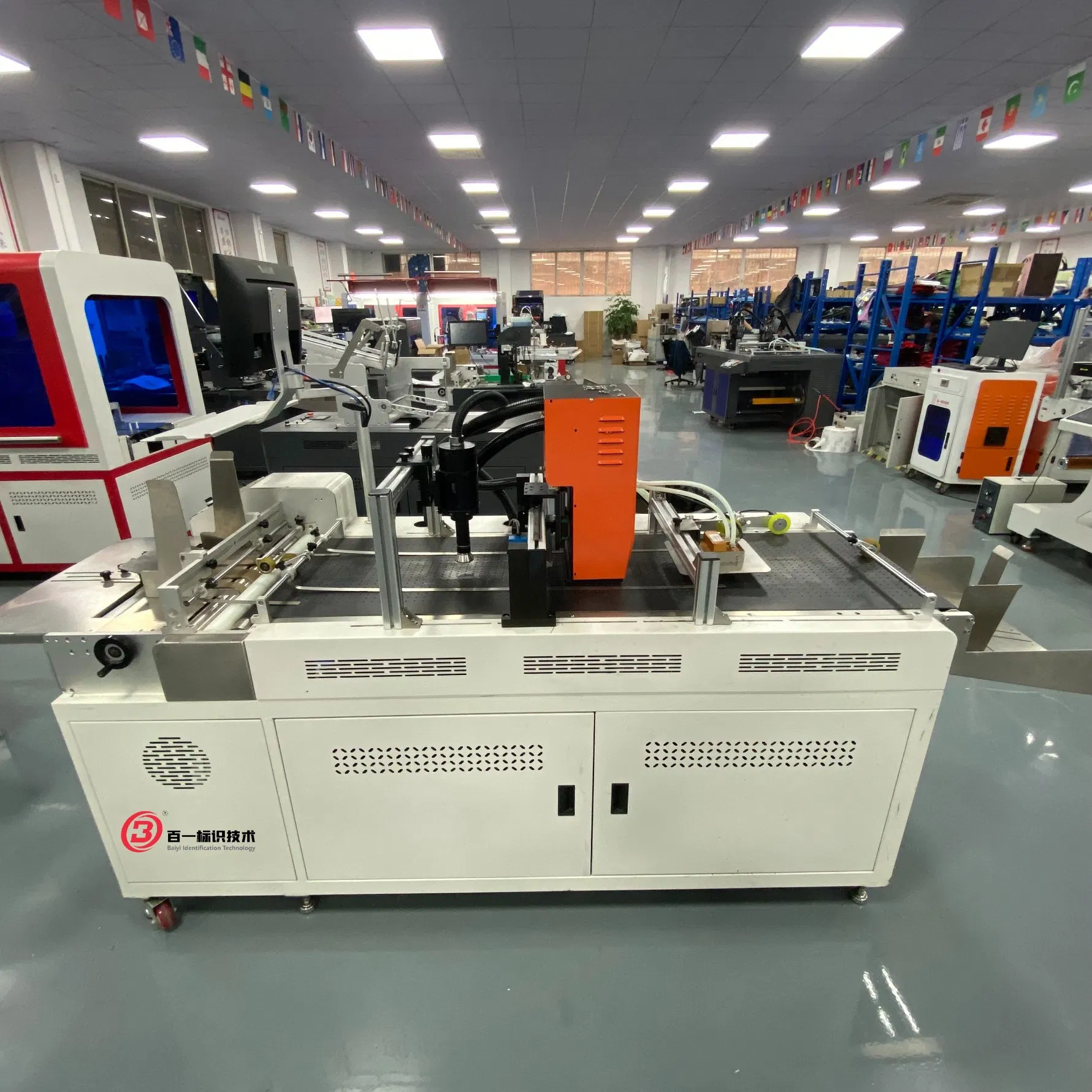

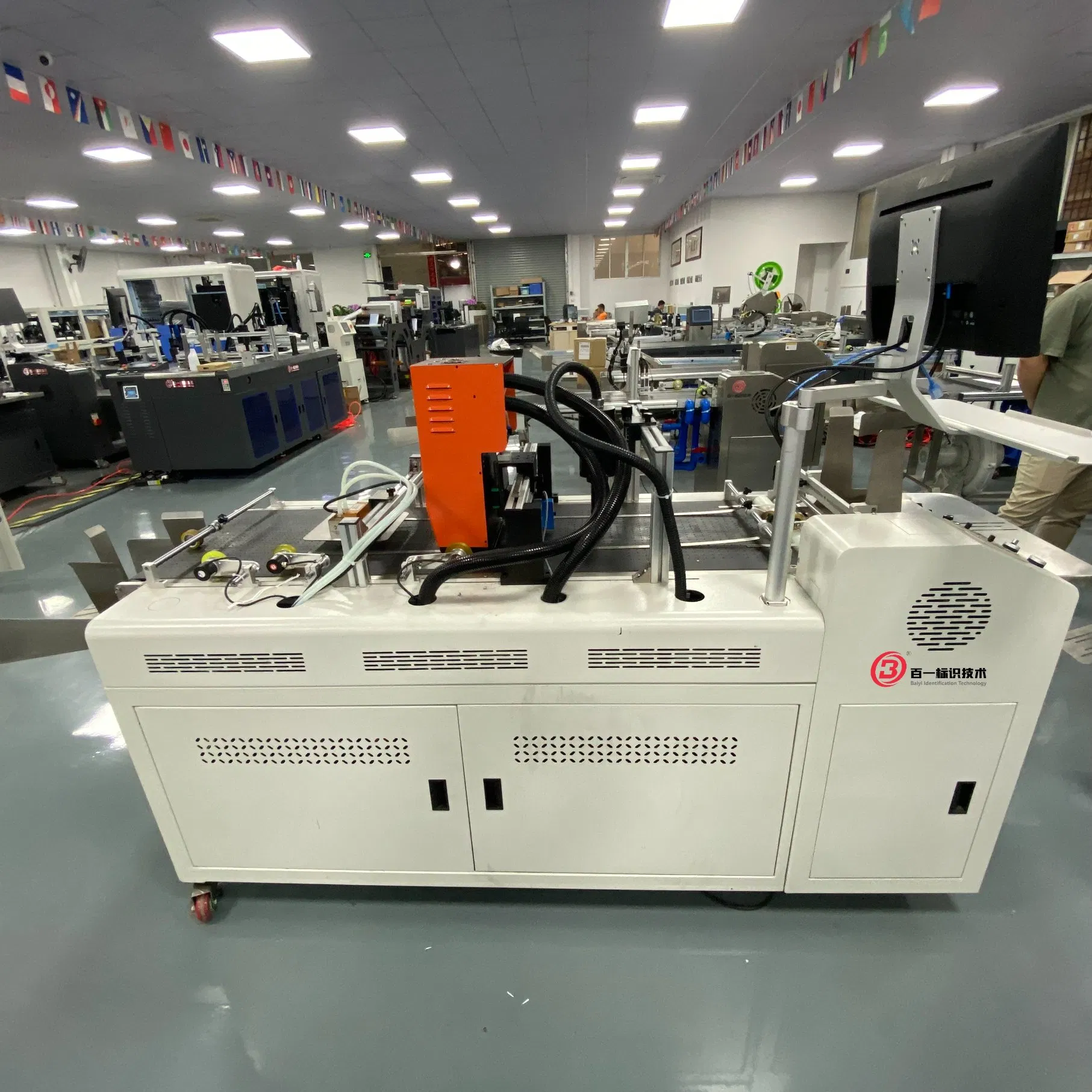

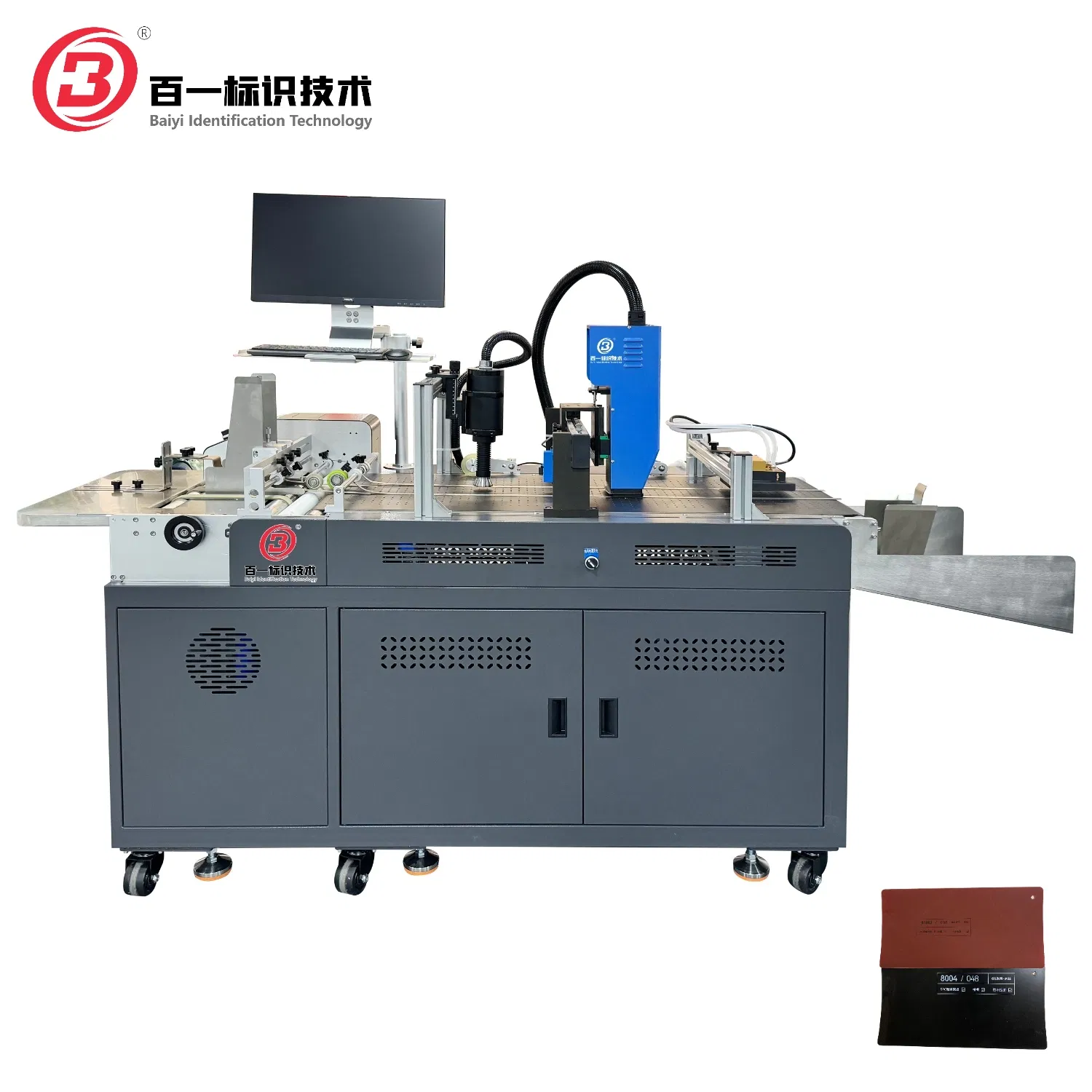

INTEGRATED ALL-IN-ONE PRODUCTION LINE
Complete workflow combining friction feeding system, plasma treatment, UV inkjet printer, and UV curing in one streamlined machine.

🔹

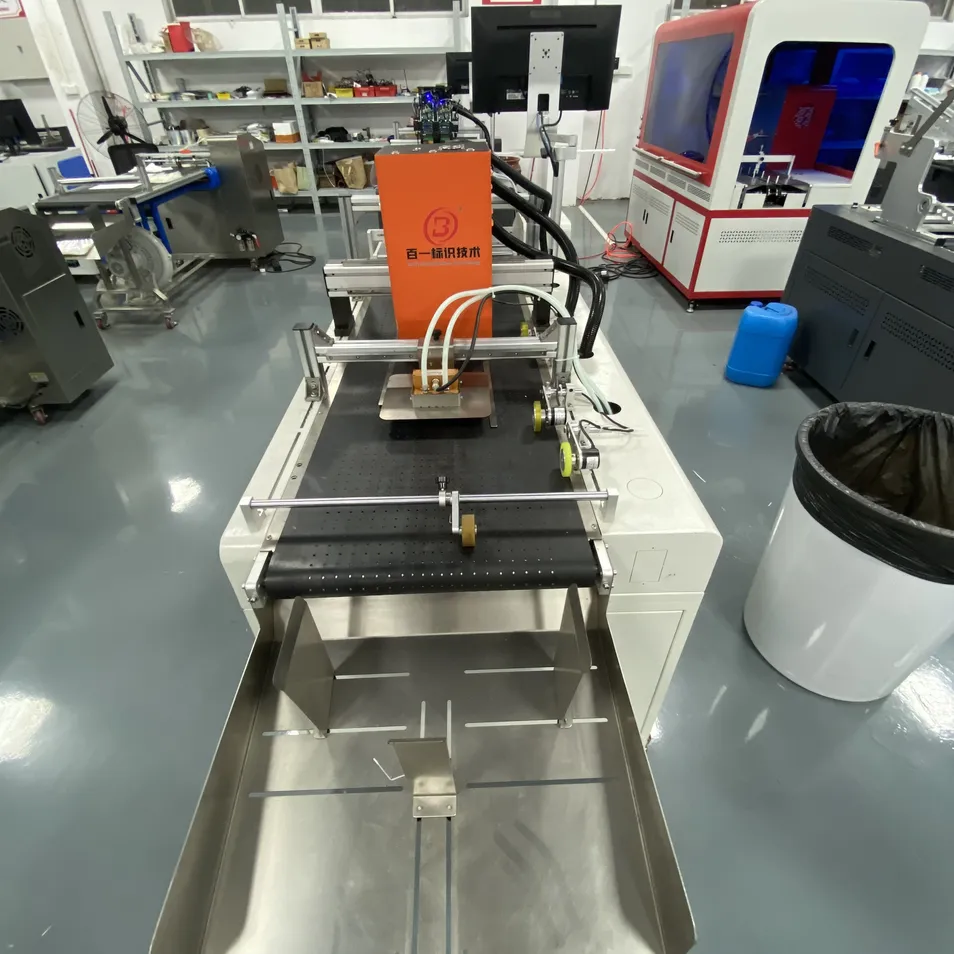

UV INKJET PRINTING AND CURING SYSTEM
Equipped with Ricoh G5/G6 printheads. The UV curing lamp instantly solidifies ink upon exposure for immediate drying and durable results.
