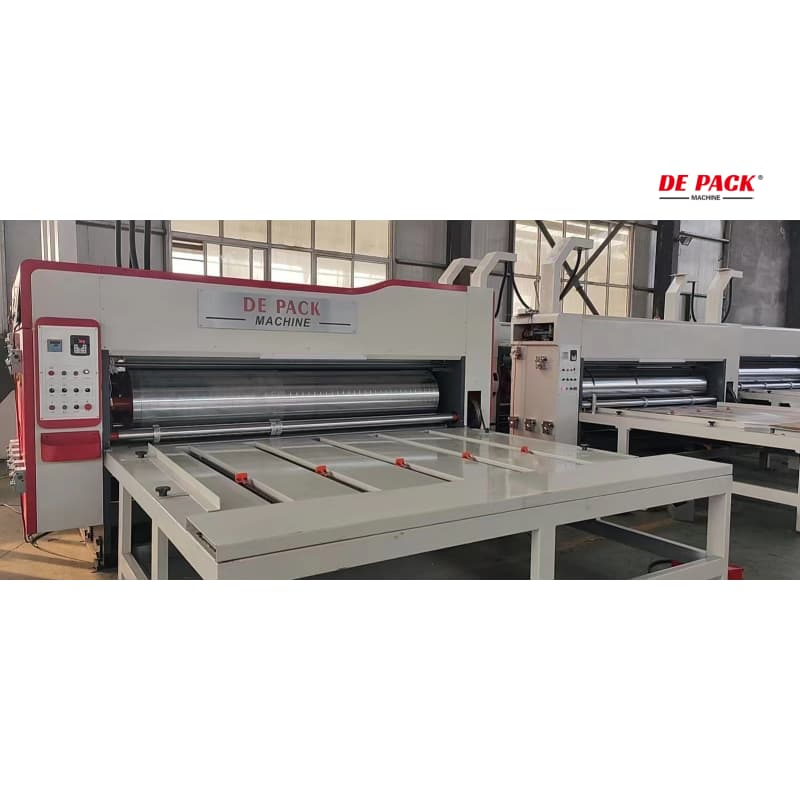

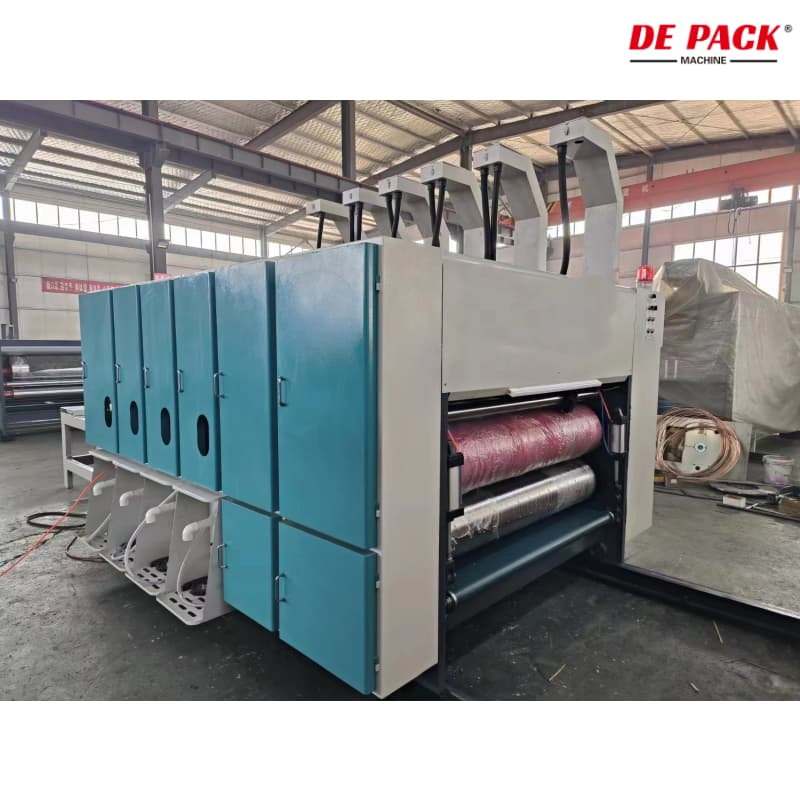

High-Speed Chain Feeder Printing System for Industrial Use

1 / 5

High-Speed Chain Feeder Printing System for Industrial Use

Customization:	Available
Warranty:	1 Year, 1year
Certification:	CE

Send Inquiry

Product Description

📋 Basic Information

Model NO.

DP-1428

Application

Machinery & Hardware, Pre Printed Carton

Driven Type

Electric

Type

Carton Packaging Machinery, Ink Jet

Automatic Grade

Automatic

Printing Page

Single Faced

Printing Color

6 Colors

Anilox Roller

Ceramic Anilox Roller

Dryer

UV & IR

Printing Speed

150m/MIN

Weight

15000 Kg

Power Supply

30kw

📦 Packaging & Delivery

Package Size

6000.00cm * 3000.00cm * 2500.00cm

Package Gross Weight

2000.000kg

Transport Package

Plastic Film

⚙️ Product Description

This innovative machine embraces a sophisticated chain feeding system with bilateral side lay positioning, ensuring precision in paper feeding like never before. Each unit of this advanced machine boasts electric separation and combination, pneumatic locking, and pneumatic lift plate features. It also includes automatic ink distribution and a pneumatic brake fission positioning for seamless operation.

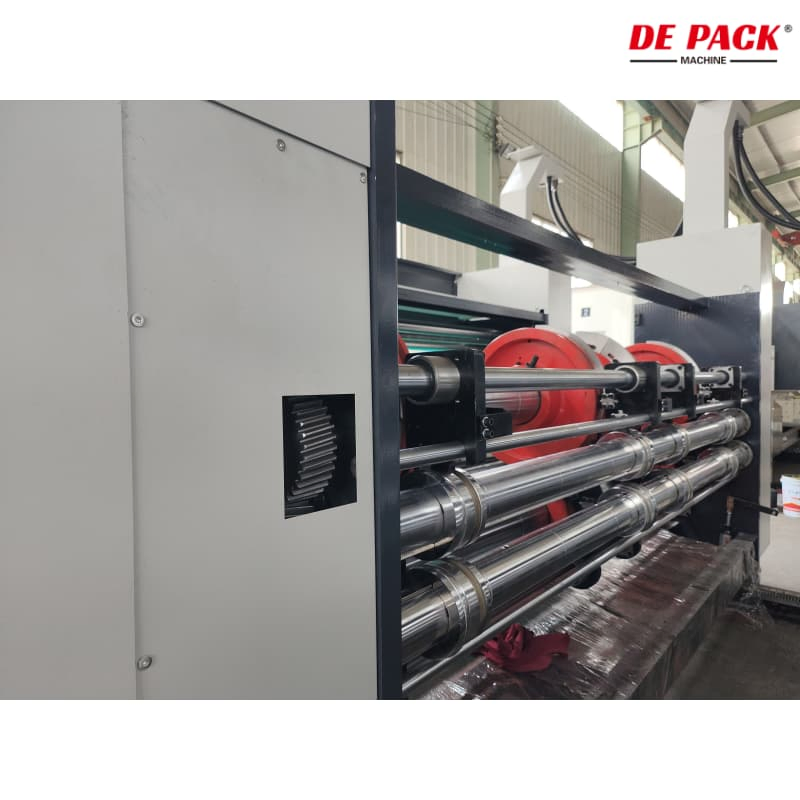

The print and slotting system features a robust planetary gear structure, offering electric 360-degree adjustment with a clear digital display for impeccable precision. The lubrication system employs dual oil pumps with automatic spray and circulating oil supply, maintaining optimal oil balance and significantly enhancing operational accuracy and machine longevity. Crafted from 45# steel, the machine's gears feature a helical design, complemented by high-frequency quenching for superior durability.

📊 Technical Specifications

Printing Paper	A.B.C, A/B, B/C and A/B/C type corrugated paperboard (max interval 11mm)
Width of machine inside	2200mm	2600mm	2800mm
Max. paper size	900x2000mm	1200×2400mm	1400x2600mm
Max. printing size	900×1800mm	1200×2200mm	1400×2400mm
Design speed	60pcs/min	60pcs/min	60pcs/min
Economic speed	40-50pcs/min	40-50pcs/min	40-50pcs/min
Slotting precision	±1.5mm	±1.5mm	±1.5mm

💎 Product Advantages

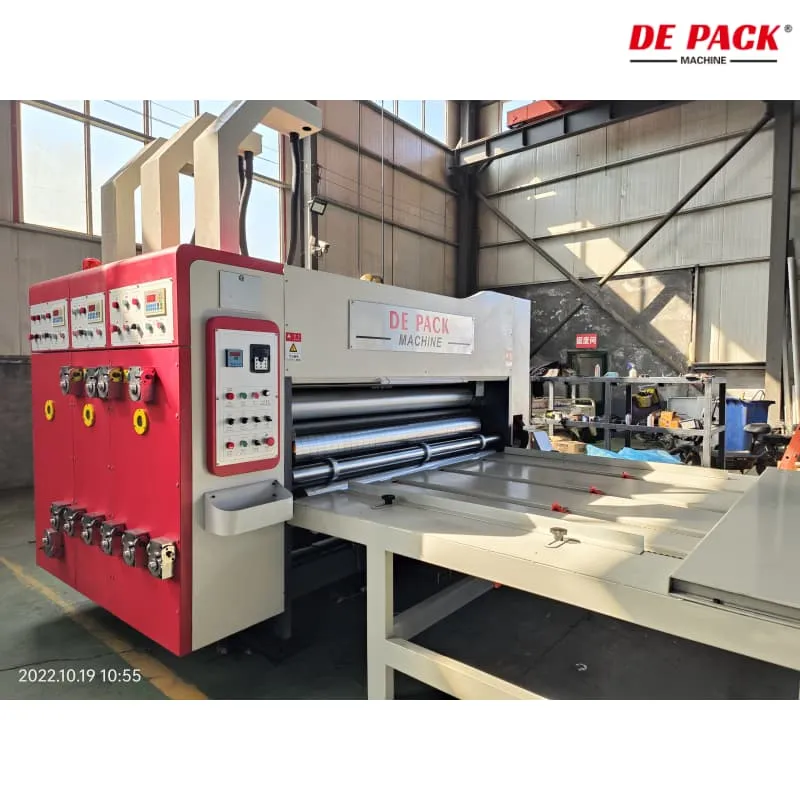

Feeding Unit

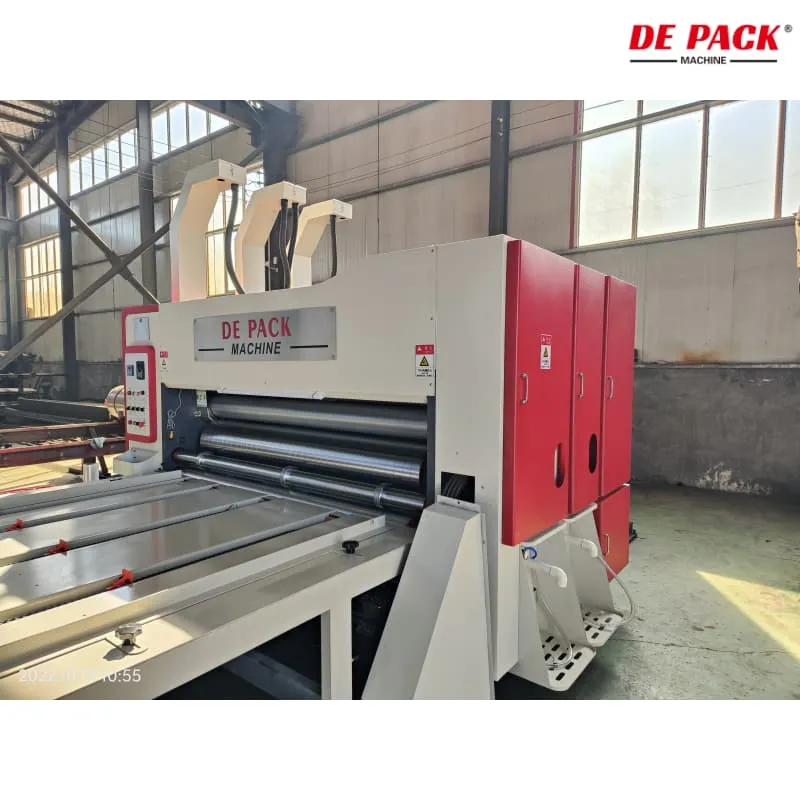

Printing Unit

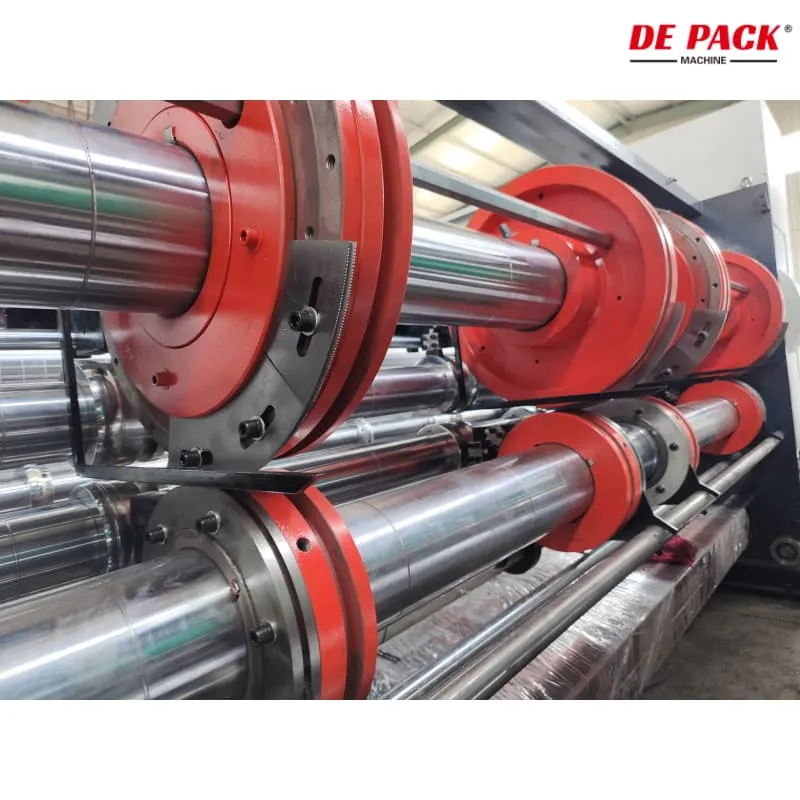

Slotting Unit

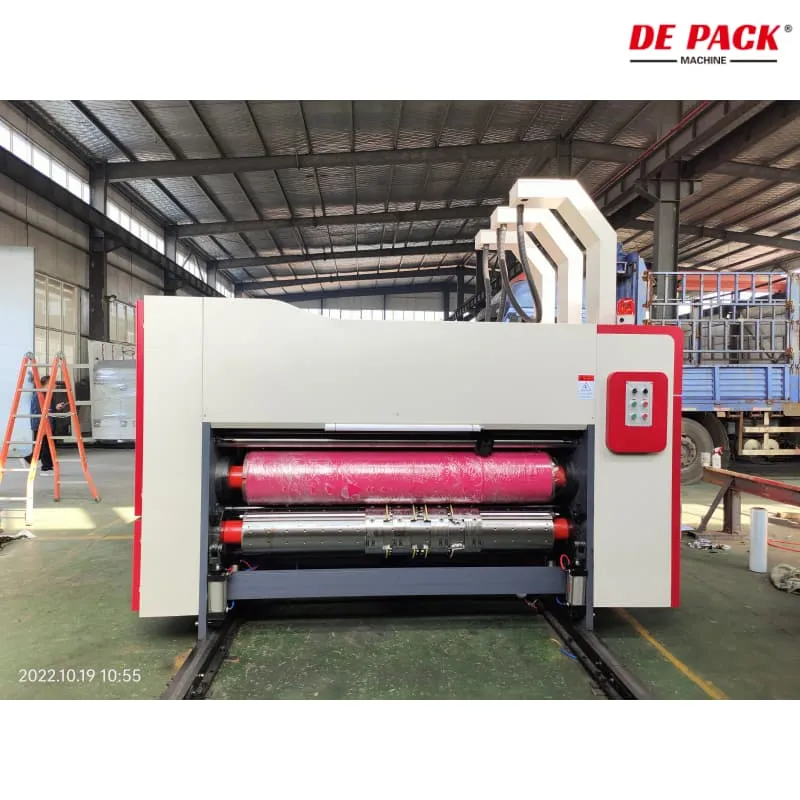

Die Cutting Unit

🚀 Functions & Characteristics

● The machine's transmission uses a cross slide block structure and free key connection, eliminating link clearance.

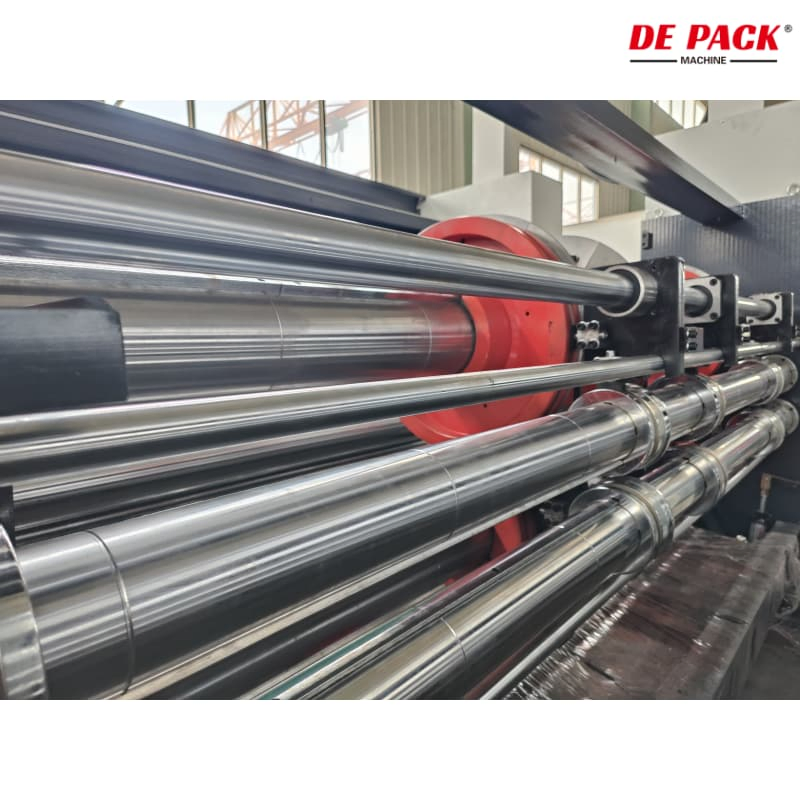

● Shafts and rollers undergo meticulous grinding and hard chromium plating for enhanced durability.

● Electrical components feature world-renowned brands like Siemens for unrivaled reliability.

● High-quality machine bearings ensure long-term performance and stability.

● Slotting unit features electric digital 360° adjustment for effortless stop and start adjustments.

● Equipped with pneumatic combined control, counting functions, and alarm systems for user convenience.

🔥 Hot Products

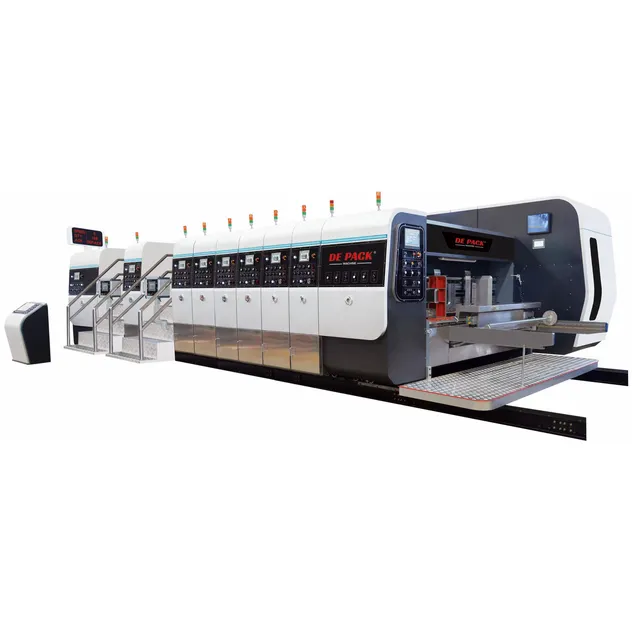

High Definition Printing Machine

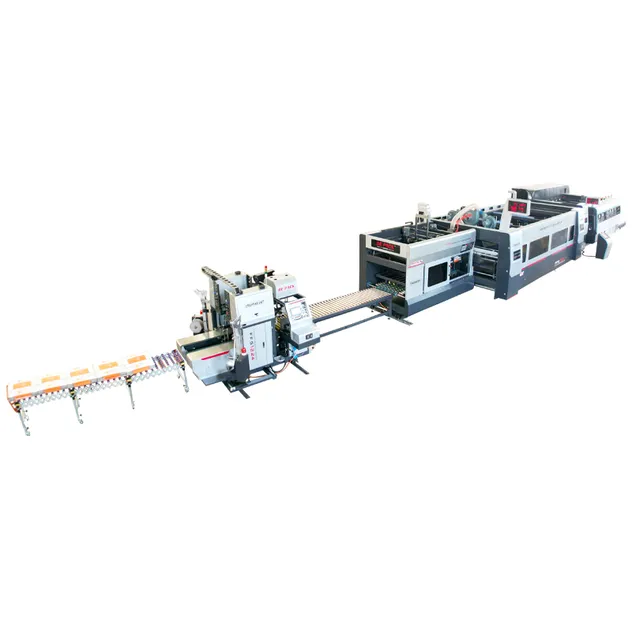

Flexo Folder Gluer

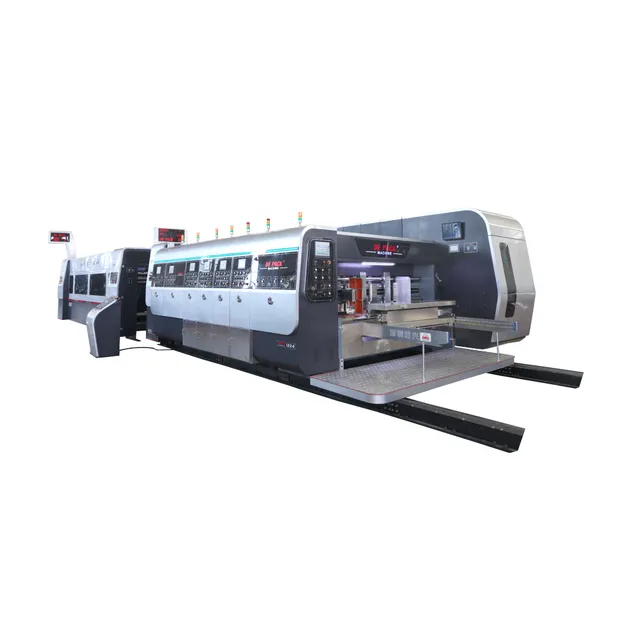

Fully Suction High-End Printing Machine

❓ Frequently Asked Questions

1. What types of corrugated paperboard can this machine process?

The system is compatible with A, B, C, A/B, B/C, and A/B/C type corrugated paperboard, with a maximum thickness interval of 11mm.

2. What is the maximum printing speed of the DP-1428?

The machine has a design speed of 60 pieces per minute, with an optimal economic operating speed ranging between 40-50 pieces per minute.

3. How does the machine ensure high printing precision?

It utilizes a planetary gear structure with electric 360-degree adjustment and a digital display, ensuring impeccable precision during the printing and slotting process.

4. What kind of electrical components are used in this system?

We use high-quality international brands such as Siemens for electrical components to ensure maximum reliability and performance.

5. How is the machine lubricated for long-term use?

The machine features a dual oil pump system with automatic spray and circulating oil supply, which maintains optimal oil balance and extends the machine's lifespan.

6. Is the feeding system adjustable for different paper sizes?

Yes, the sophisticated chain feeding system includes bilateral side lay positioning, allowing for precise and flexible paper feeding across various dimensions.
