High Speed Industrial Inkjet System Monochrome Variable Data Printing

Customization:	Available
Plate:	Variable Data
Structure:	Inkjet Printing

Send Inquiry

Product Description

📋

Basic Specifications

Model NO.

UVJET

Color & Page

Single-Colour Printing Press

Usage

Paper, Label, Card, Cloths Printer

Automatic Grade

Automatic

Printing Interface

RS232

Printing Speed

100m/Min

System Supported

Windows

Resolution

150-600dpi

Ink Solution

Porous, Semi-Porous and Non-Porous

Languages

English, Japanese, French, German, Spanish, Portuguese

Power

AC 90V-240V/50-60Hz

Production Capacity

500 Sets/Year

🚀

Product Overview

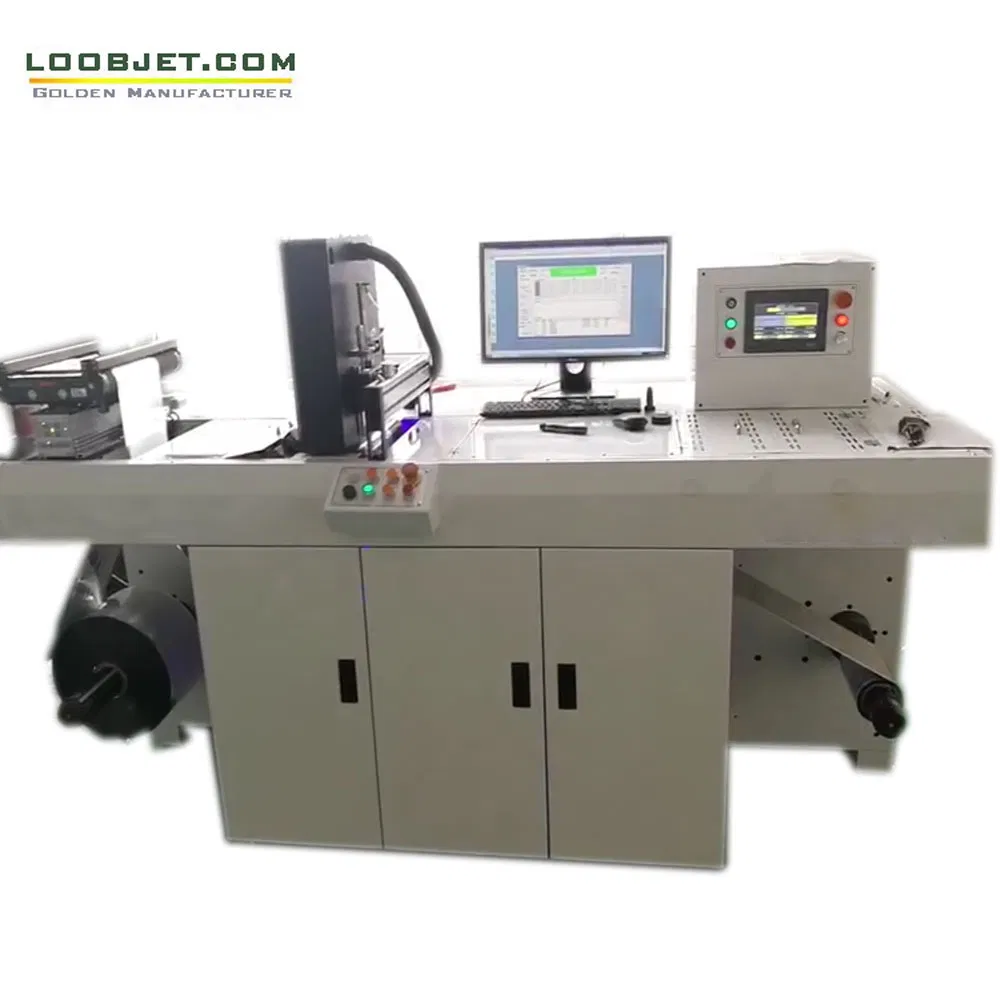

Clothing tag inkjet printing line

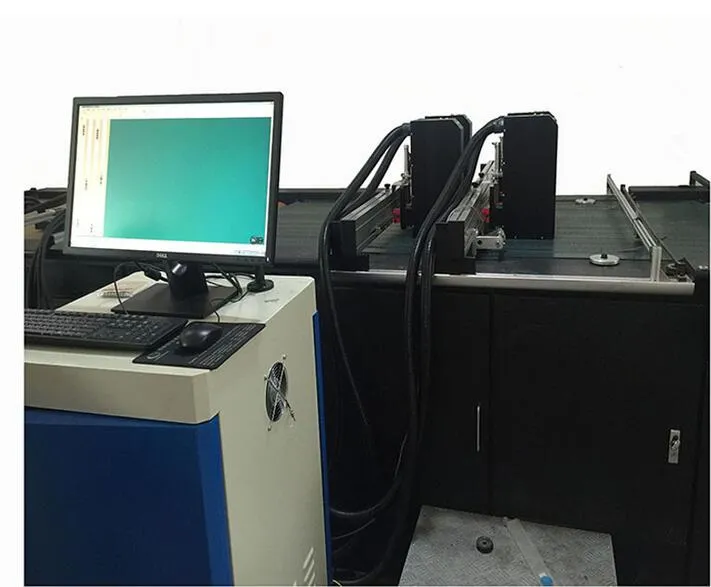

The UV DOD inkjet system adopts industrial piezoelectric on-demand inkjet technology, significantly improving production speed and print quality. Equipped with high-resolution and high-speed DOD piezoelectric print heads, it meets rigorous demands for mailings, barcodes, bills, checks, packages, and marking applications.

This modular system is suitable for web printing, sheet-fed, and both online and offline target printing. Its design allows for easy integration into existing transport systems to create value-added opportunities.

⚙️

Technical Details

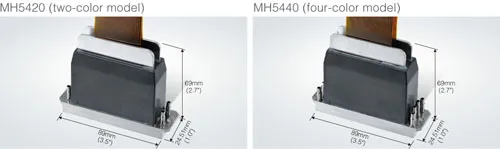

🔹 Nozzle Type: Ricoh GEN5 / Kyocera 108 / Konica 1024i industrial piezoelectric nozzles.
🔹 Nozzle Lifespan: More than 3 years (approx. 10 billion printing times).
🔹 Print Width: Single nozzle 54/72/108 mm (customizable).
🔹 Scalability: 1 to 24 groups can be extended with seamless jointing.
🔹 Precision: Physical 600 dpi printing precision.
🔹 Linear Speed: 70 ~ 180 m/min.
🔹 Ink Compatibility: Environmentally friendly UV or water-based inks.
🔹 Materials: Suitable for paper, plastics, PVC, PP, PE film, and more.

💻

Advanced Control Software

The Printer Control Software (PCS) provides a user-friendly interface to monitor printer status and set options such as jetting waveforms and temperature for each print head. Features include database checking, DPI settings, and motor speed control.

Variable Data Printing (VDP) Support:

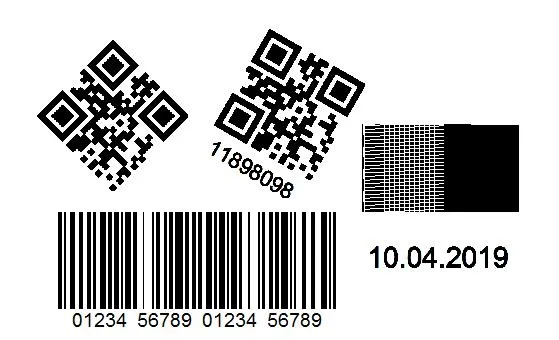

Supports text, dates, times, graphics, logos, serial numbers, and barcodes.
Compatible with Windows Fonts and database photo images.
Data source support: .CSV, .XLS, .XLSX, .TXT, and PDF files.
Multi-language support: English, Spanish, German, French, Portuguese, Russian, and Chinese.

📊

Print Head Comparison

Model	VDG540 / VDK720 / KY108	Print Head	Ricoh GEN5 / Konica 1024i / Kyocera
Resolution	600×600, 400, 300, 200 dpi	Drop Size	5-21 PL
Single Head Width	54.0mm / 72.0mm / 108mm	Max Width	Up to 24 heads Seamless Joint
Printing Speed	180m/min (200dpi) \| 130m/min (300dpi) \| 100m/min (400dpi) \| 75m/min (600dpi)
Barcodes	UPCA, EAN13, CODE128, PDF417, QR, DATAMATRIX, etc.
System	Windows 7/10	Port	Gigabit Ethernet
