Full Color High Speed Books Inkjet Digital Printing System

Customization:	Available
After-sales Service:	Online Support
Warranty:	12 Month

Send Inquiry

Product Description

Basic Information

Model NO.

VDG108

Plate

Variable Data

Structure

Inkjet Printing

Color & Page

Single-Colour Printing Press

Usage

Paper, Label, Card, Cloths Printer

Automatic Grade

Automatic

Printing Interface

RS232

Printing Speed

100m/Min

System Supported

Windows

Resolution

150-600dpi

Ink Solution

Porous, Semi-Porous and Non-Porous

Languages

English, Japanese, French, German, Spanish, Portuguese

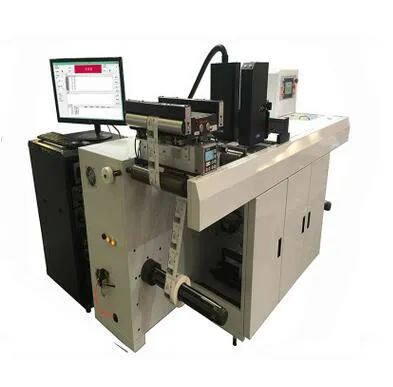

Product Overview

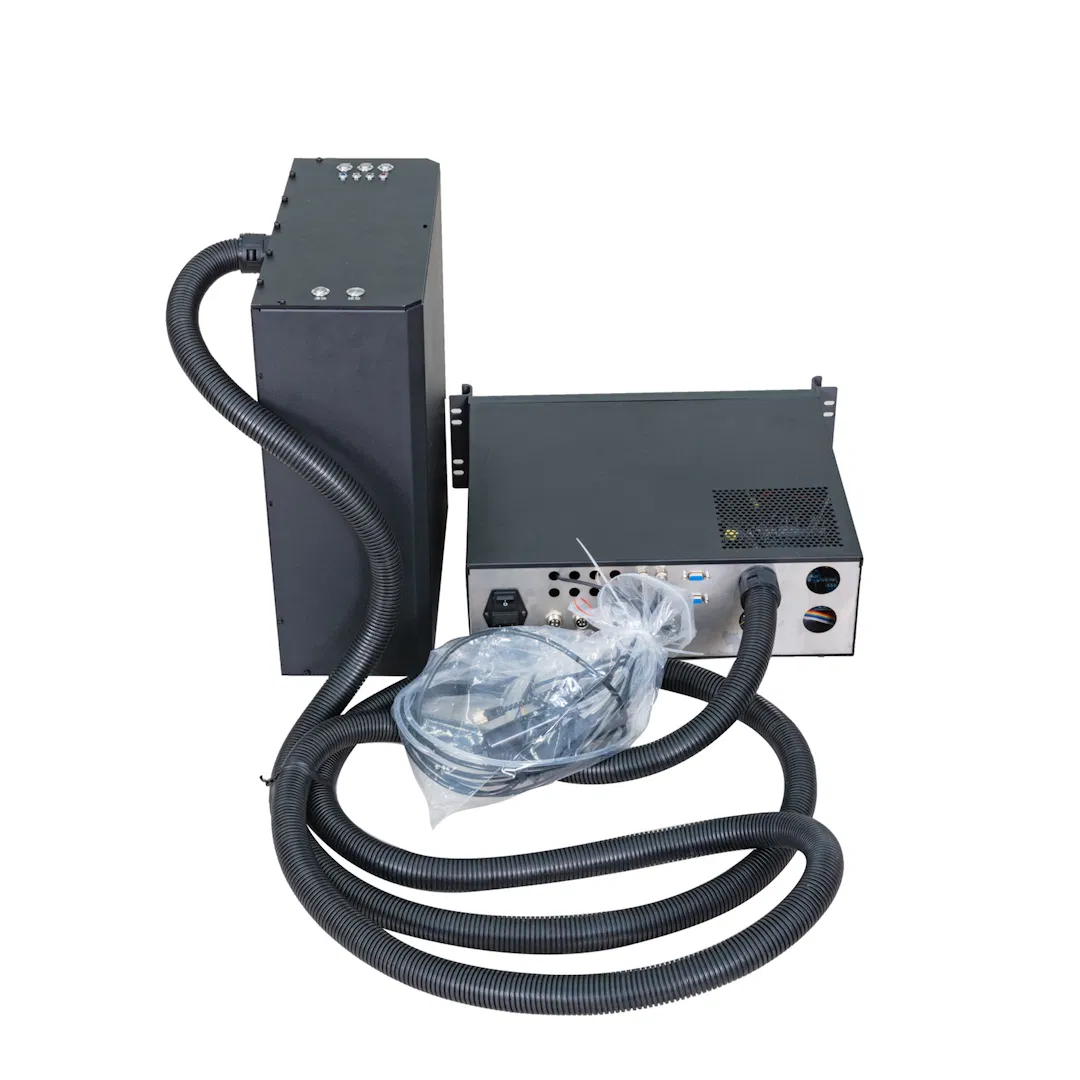

The UV DOD inkjet system adopts industrial piezoelectric on-demand inkjet technology, significantly improving production speed and spray printing quality. Equipped with industrial high-resolution and high-speed DOD piezoelectric print heads, it meets rigorous demands for mailings, barcodes, bills, checks, packages, and marking applications.

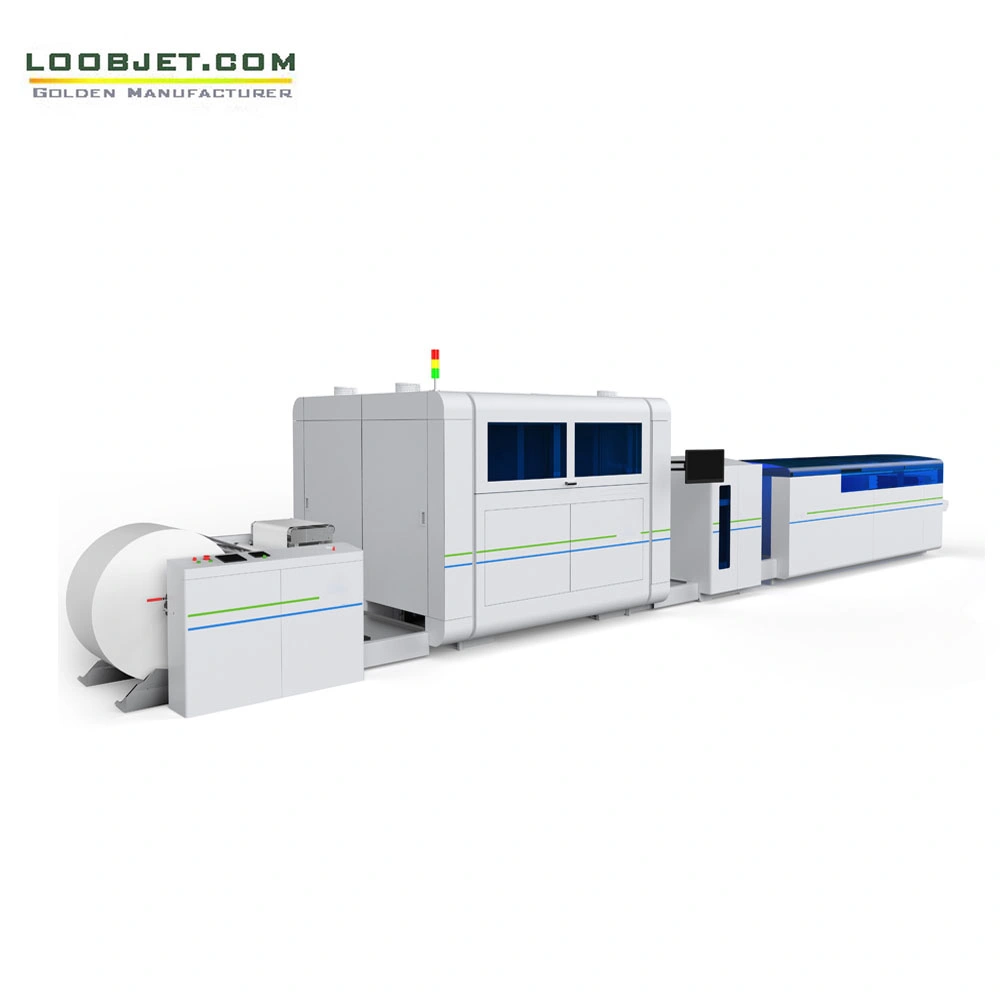

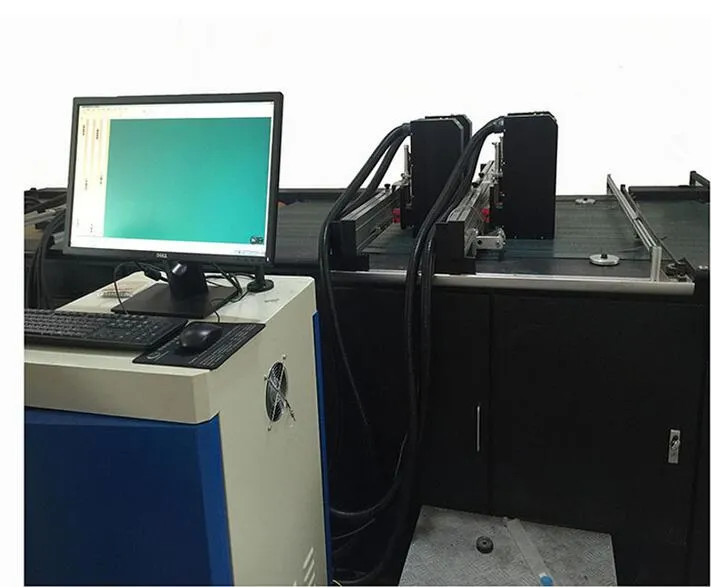

This fully integrated digital inkjet printing system is suitable for web printing, sheet-fed, and both online and offline target printing. Its modular design allows for easy integration into existing transport systems, creating more value-added opportunities.

Technical Specifications

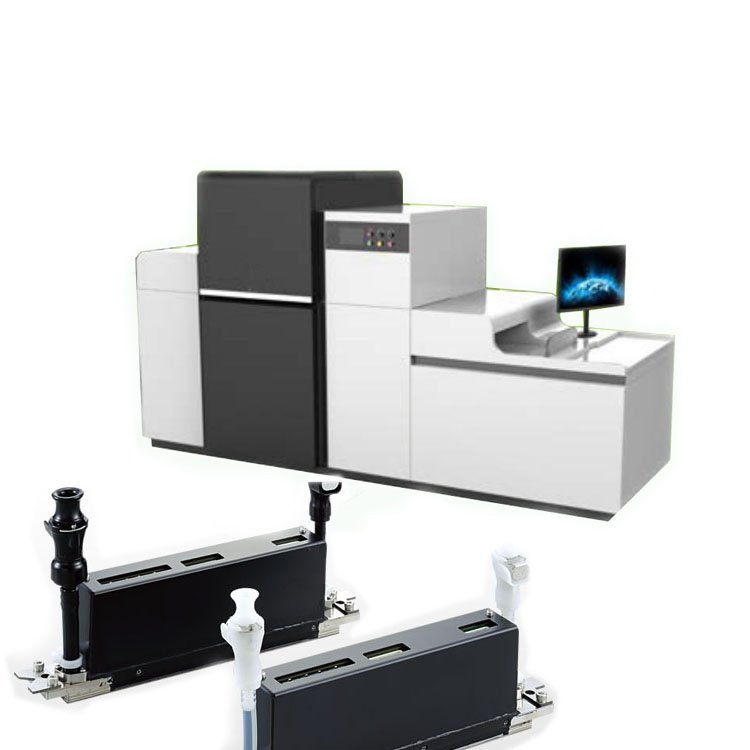

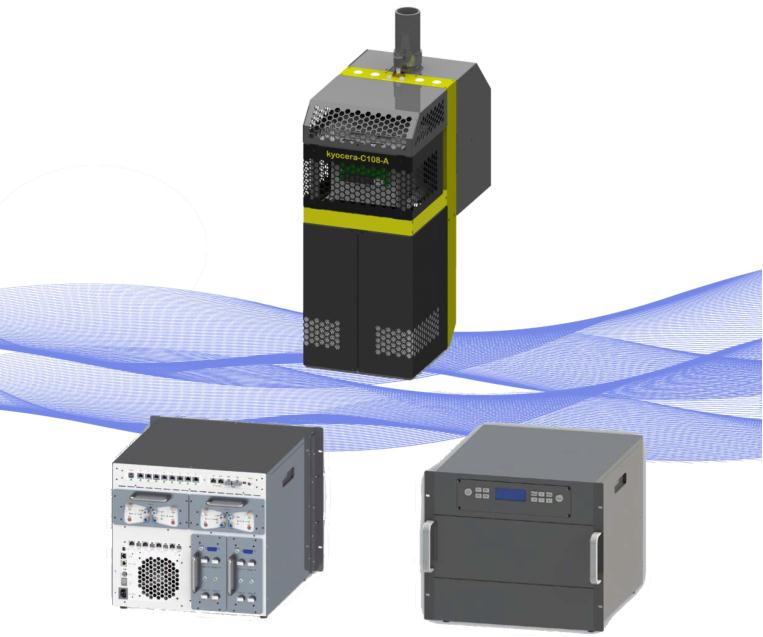

Nozzle Type: Ricoh GEN5 / Kyocera 108 / Konica 1024i industrial piezoelectric nozzle
Nozzle Lifespan: More than 3 years (10 billion printing times)
Print Width: Single nozzle 54/72/108 mm (extendable up to 24 groups)
Precision: Physics 600 dpi printing precision
Linear Speed: 70 ~ 180 m/min
Ink Compatibility: Environmentally friendly UV or water-based inks
Materials: Paper, plastics, PVC, PP, PE film, and more

Model	VDG540 / VDK720 / KY108	Print Head	Ricoh GN5 / Konica 1024i / KY
Resolution	600×600, 400, 300, 200 dpi	Drop Size	5-21 PL
Max Speed	180m/min (600×200dpi) / 75m/min (600×600dpi)	Method	Piezoelectric ink-jet
System	Windows 7	Interface	Gigabit Ethernet (Real-time printing)
Barcodes	UPCA, EAN13, CODE128, QR, DATAMATRIX, PDF417, etc.	File Formats	MS Excel, TXT, PDF, BMP

Advanced Control Software

The Printer Control Software (PCS) provides a user-friendly interface to control the printer, monitor status, and adjust settings like jetting waveforms and head temperature. Key features include:

Variable Data Printing: Supports text, dates, logos, serial numbers, and database photo images.
Data Integration: Load source files including .CSV, .XLS, .XLSX, .TXT, and PDF.
Multi-Language Support: English, Spanish, German, French, Portuguese, Russian, and Chinese.

Packaging & Delivery

Package Size

550.00cm * 150.00cm * 120.00cm

Gross Weight

5000.000kg

Transport Package

Box/Pallet

Frequently Asked Questions

What types of materials can this printer handle?

The system is highly versatile and suitable for all kinds of paper, plastics, PVC, PP, and PE films, making it ideal for labels, cards, and packaging.

What is the maximum printing speed of the system?

The printing speed varies based on resolution. It can reach up to 180m/min at 600×200dpi and maintains a steady 75m/min at the highest 600×600dpi precision.

Does the software support variable data printing?

Yes, the included software supports variable text, dates, serial numbers, barcodes, QR codes, and database-linked images from CSV, Excel, or PDF files.

What print heads are compatible with this system?

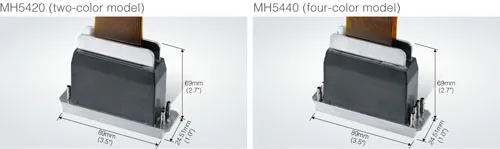

The system supports industrial-grade piezoelectric nozzles including Ricoh GEN5 (54mm), Konica 1024i (72mm), and Kyocera (108mm) based on your specific requirements.

Is the printing system easy to integrate?

Absolutely. Thanks to its modular design, it can be easily integrated into existing transport systems for both online and offline target printing.

What is the expected lifespan of the print nozzles?

Under normal operating conditions, the industrial piezoelectric nozzles have a lifespan of more than 3 years, capable of approximately 10 billion printing cycles.
