High Speed Dod Inkjet Printing and UV Coating Systems

Customization:	Available
Plate:	Variable
Structure:	Non-Contact

Send Inquiry

Product Description

Basic Specifications

Model NO.

KY320

Color & Page

Multi-Colour Printing Press

Usage

Paper, Label, Card, Cloths Printer

Automatic Grade

Automatic

Printing Interface

USB3.0

Printing Speed

50m/Min

System Supported

Windowsxp32

Color Support

Cmyk+W+V

Overprint

+-0.05mm

Max.Web Dia.

600mm

Material Weight

60-250G/M2

Total Power

45kw

Gross Weight

3000kgs

Transport Package

Wooden Cases

Specification

3200*1800*800mm

Origin

China

HS Code

8443322100

Production Capacity

100sets/Year

UV DOD Digital Inkjet Printer

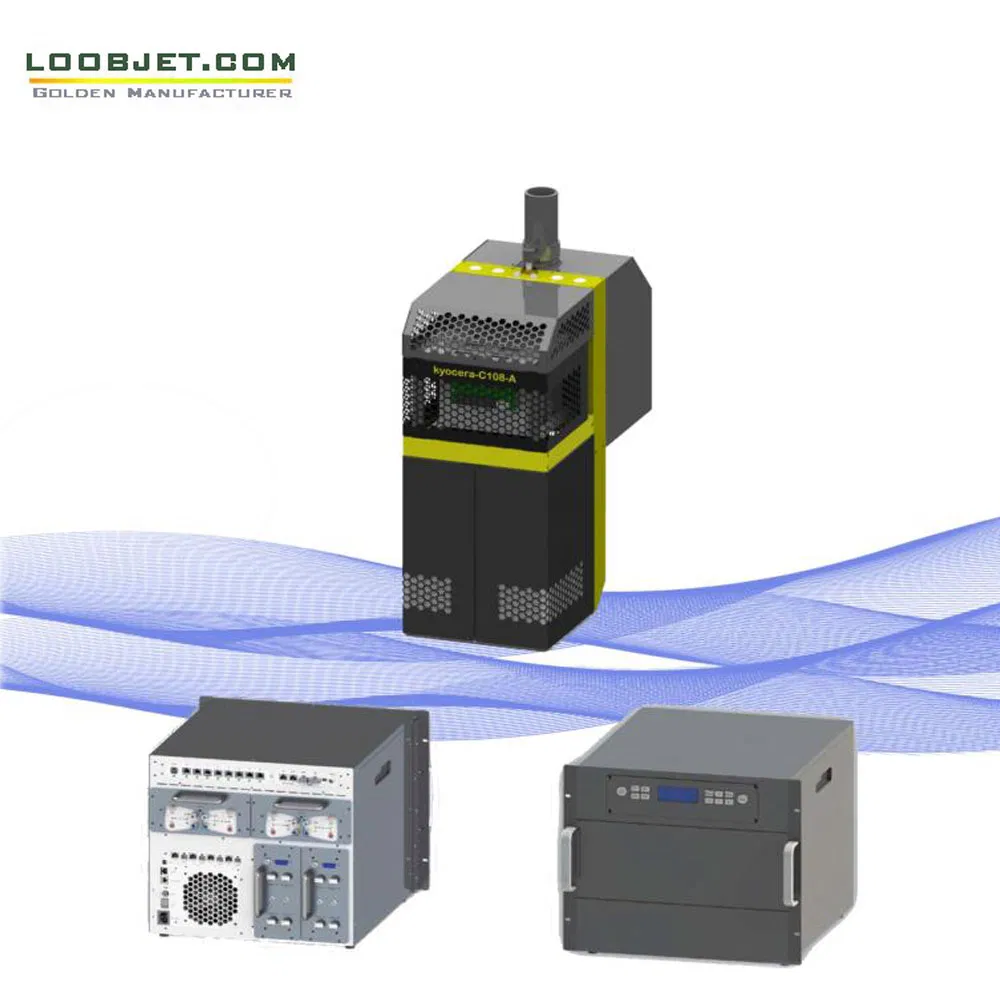

Systems Composition

The printing system of Kyocera PH is an industrial level digital four-color printing engine system, it mainly used for packaging and printing industry, which is equipped with 12 pics industrial levels Kyocera PH. Kyocera nozzle can print at high speed with high precision, 4 colors 600 * 1200dpi, and the maximum printing speed can be reach 50m / min.

System Features

🎯

High Resolution
12 pics industrial grade Kyocera PH, printing precision reaches 600 * 1200dpi.

⚡

High Speed

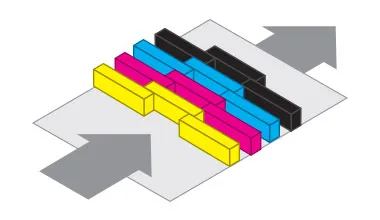

Single pass non-contact technology, speed up to 50m / min (600dpi).

📏

Printing Width
Maximum printing width of 324mm for versatile applications.

📄

Material Versatility
Supports paper, adhesive labels, and variable 2D barcode/image printing.

🎨

Color Support
CMYK four colors, or more customized spot colors accepted.

💻

Intelligent Software
Equipped with powerful Rip, image processing, and data transmission.

Operational Excellence: The system features an average preparation time of less than 1 minute, seamless changing rolls, and an automatic ink/air supply balance. Designed for 24/7 industrial production with durable Kyocera piezoelectric nozzles.

Technical Specifications

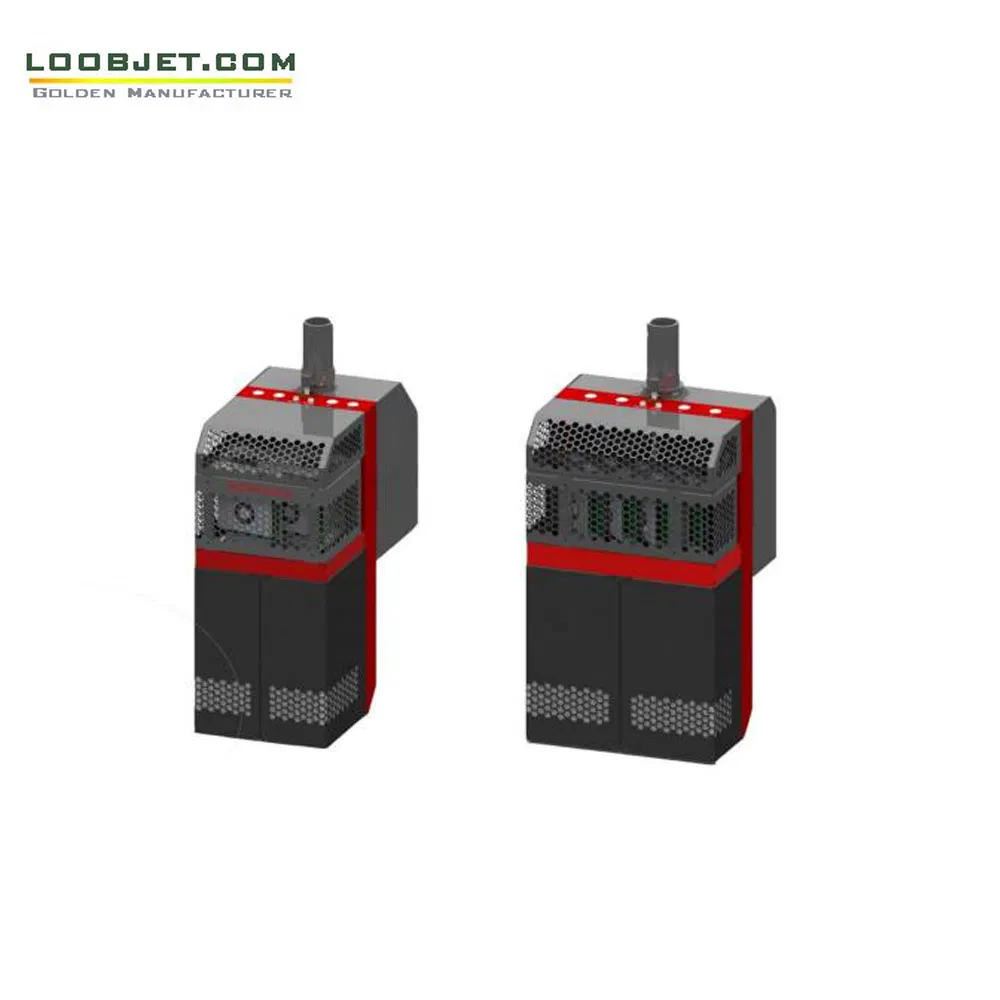

PH Parameters

Nozzle Model	Kyocera
Printing Width (Unit)	108mm
Number of Nozzles	2656
Single Nozzle Density	600dpi
Ink Drop Size	3.5pl, 7pl, 11pl, 14pl (Adjustable)
Grayscale Supports	8 levels
Nozzle Frequency	35kHz - 40KHz
Driving Voltage	24 ±1V

Control System

Printing Software	Variable data or graphic output software
Dot Control	Supports CMYK two bit dot Rip
Interface Type	USB3.0 and Optical Fiber
PC Specs	i7 Processor, 8G RAM, 2TB HDD, 2G GPU, Win7 64bit

Other Technical Data

Ink Type	UV / Water base ink
Ink Color	CMYK + Orange, Purple, White or Spot colors
Curing Type	Drying module or quick drying ink
Power Requirements	AC220V 50 / 60Hz
Materials Type	Ordinary paper, offset paper, adhesive labels

UV DOD Digital Inkjet Printer

Frequently Asked Questions

What is the maximum printing speed of the KY320?

The KY320 can reach a maximum printing speed of 50 meters per minute at a resolution of 600dpi.

Which printheads are used in this digital printer?

The system is equipped with 12 industrial-grade Kyocera piezoelectric printheads, known for high precision and durability.

What types of materials can be printed?

It is suitable for a wide variety of materials including ordinary paper, offset paper, adhesive labels, cardstock, and cloths without the need for pre-coating.

Does the system support variable data printing?

Yes, it fully supports variable barcodes, 2D barcodes (QR codes), and complete variable image printing for customized packaging.

What are the ink and color options?

The standard configuration supports CMYK four colors, but it can be expanded to include White (W), Varnish (V), or other customized spot colors.

Is the printer suitable for continuous industrial production?

Absolutely. The entire series is designed for 24/7 production modes, featuring automatic ink supply and negative pressure systems to ensure reliability.
