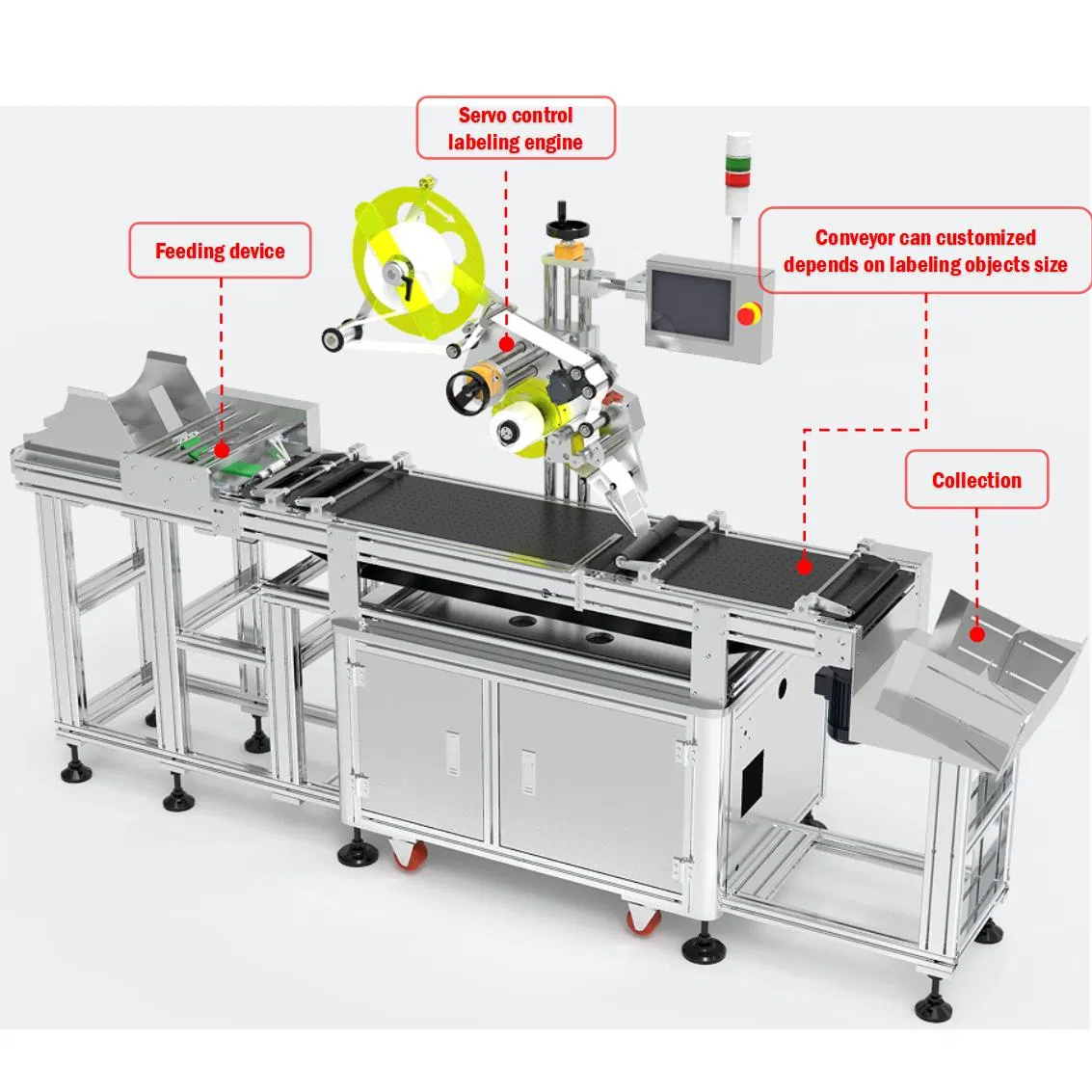

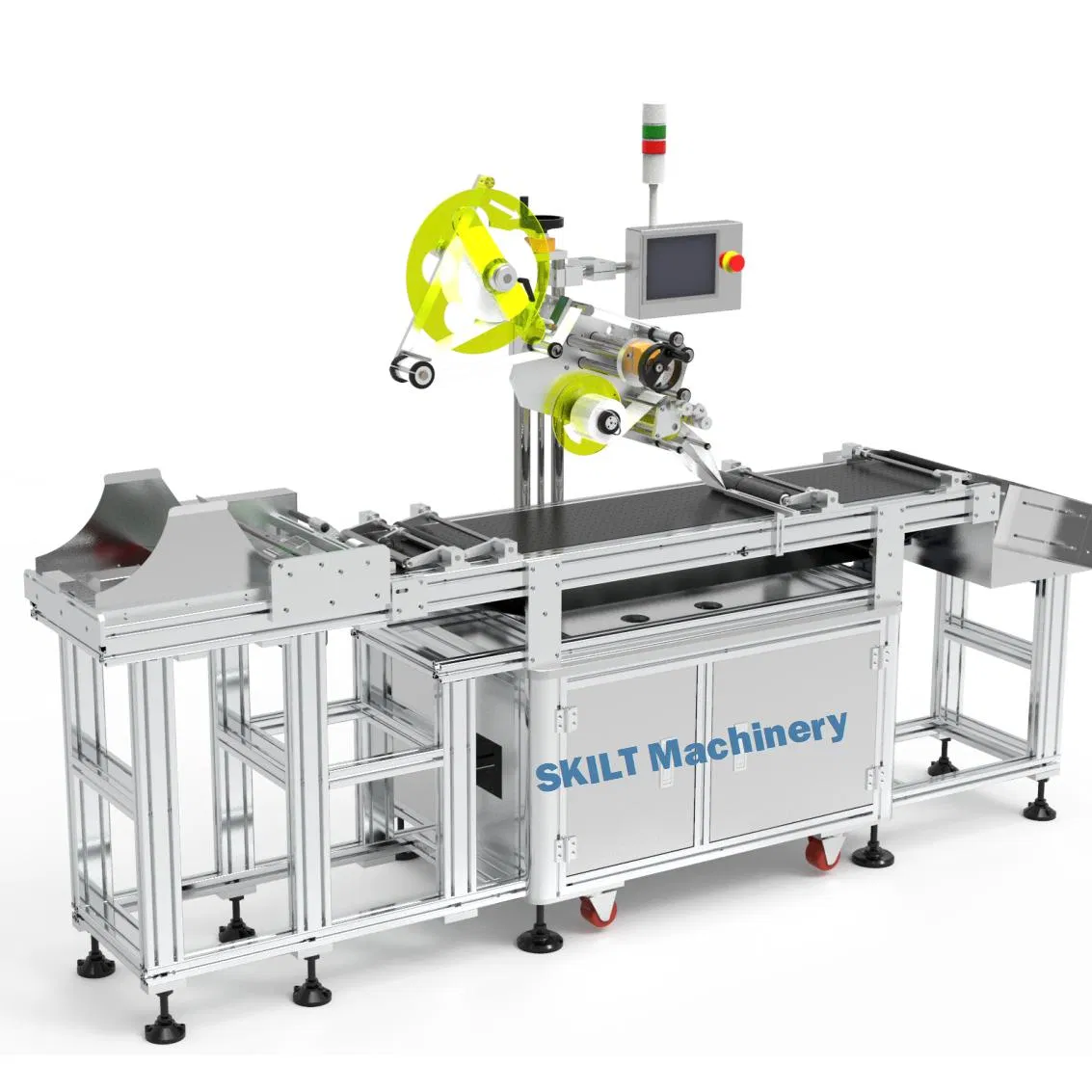

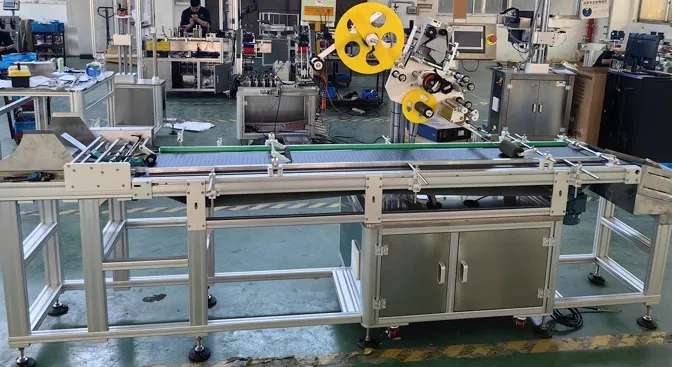

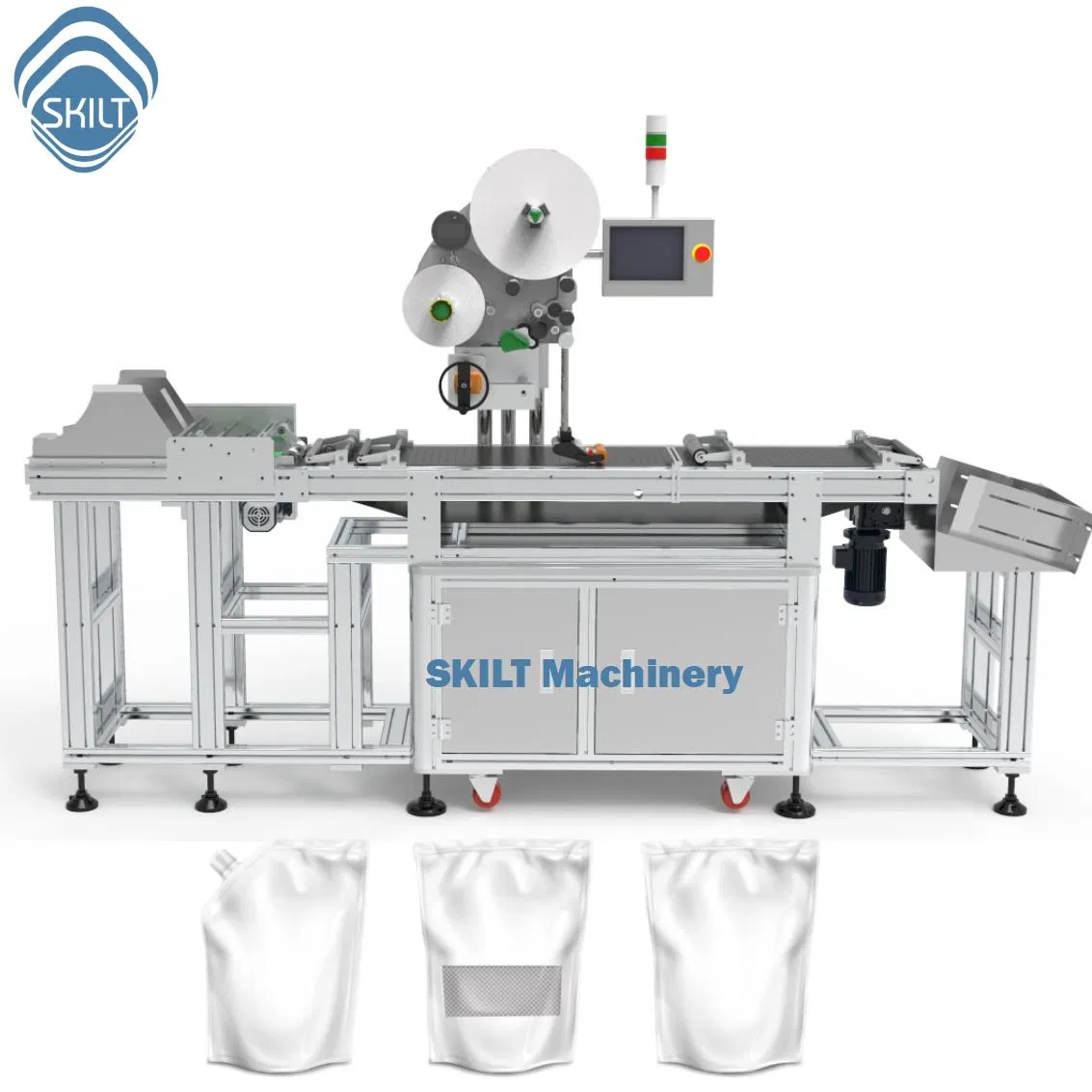

High-Speed Top Side Labeling Machine System for Pouch Bags

Customization:	Available
After-sales Service:	24-Hour Instant Response, on-Site Installation
Warranty:	2 Years

i

Basic Information

Model NO.PM-DPM-A

Automatic GradeAutomatic

TypeSticker Labeling Machine

Driven TypeElectric

ClassificationPlane Labeling Machine

Driver MotorServo Motor & German Novexx

Label MaterialSelf Adhesive Labeling Machine

Printer DeviceThermal Transfer Coding Machine

Application: Cosmetics, Drinks, Cleaning, Detergent, Skin Care Products, Hair Care Products, Oil, Tea, Vegetable, Fruit, Fish, Meat, Snack, Rice, Flour, Seasoning, Dairy Products

★

Product Specification

Capacity:50-200pcs/min

Application:Empty bag, unshaped box, etc.

Labeling position:Top surface

Machine size:2300x1040x1335mm

Control:Servo & German Novexx optional

Voltage:110V/220V/380V

⚙

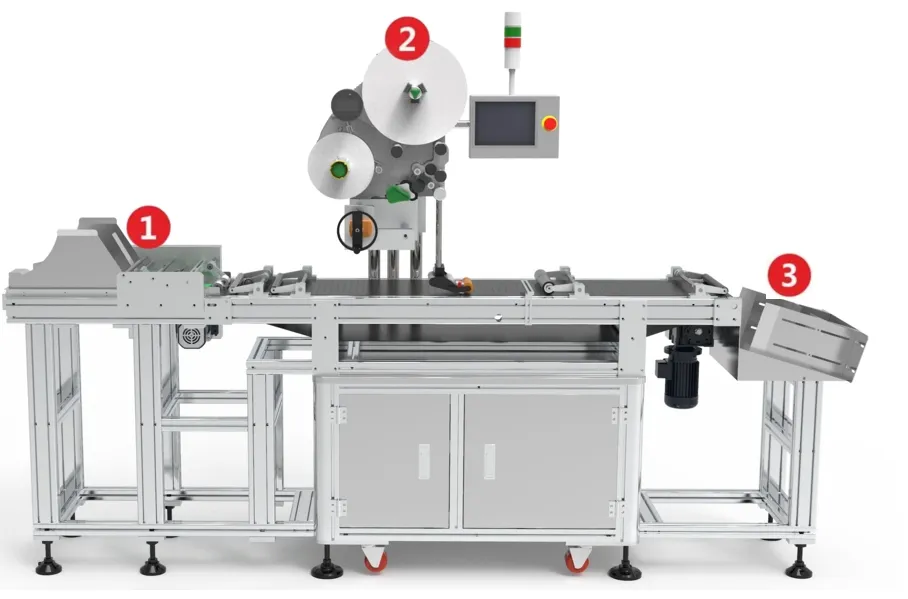

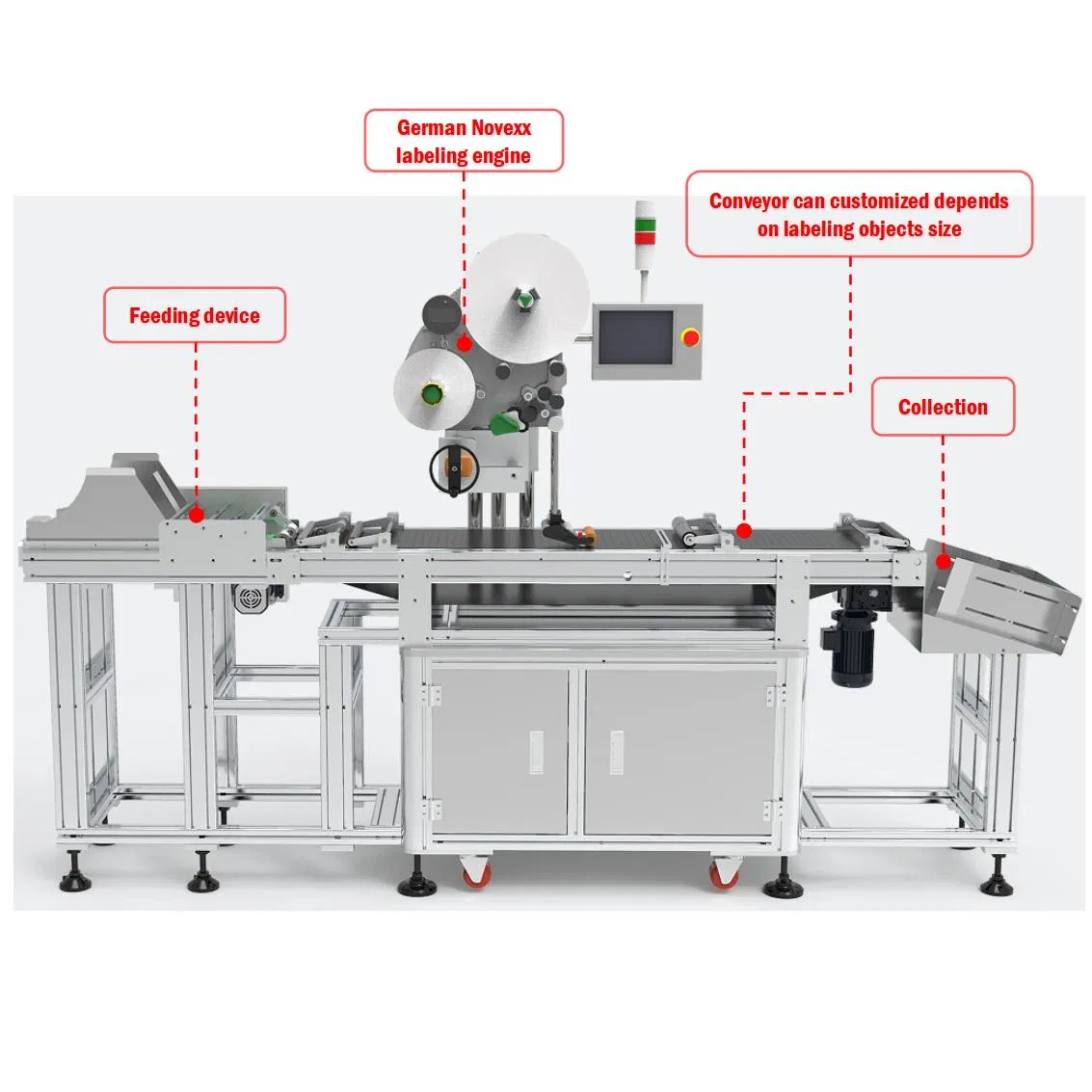

Paging & Labeling Working Process

01

Feeding: Worker feeds bags into device; bags delivered for labeling.

02

Labeling: Sensor checks bag, signals PLC, which sends label signal.

03

Collection: Collection hopper, Back-flow, Fish scale available.

Visual Inspection (optional): Camera compares label position; unqualified tags rejected.

RFID Detection (optional): Checks RFID chip; unscannable tags rejected.

◈

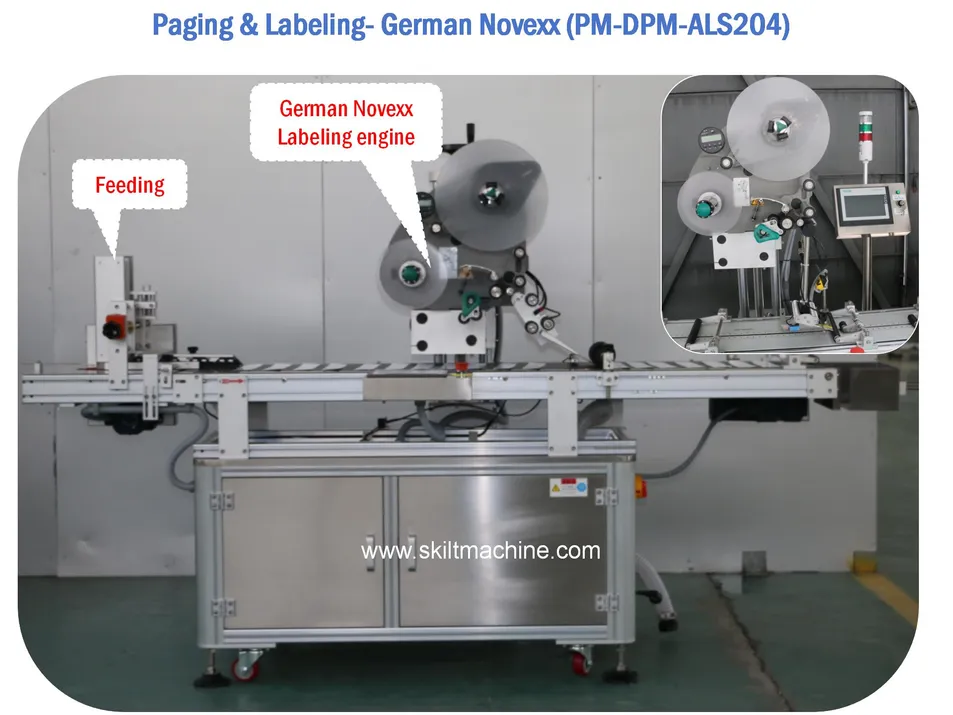

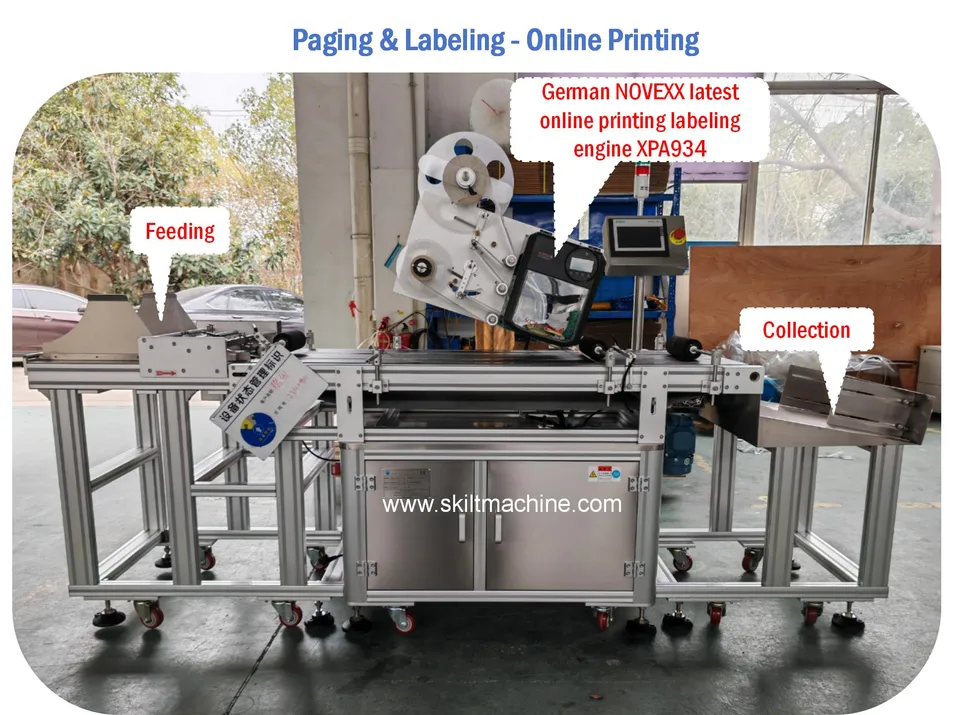

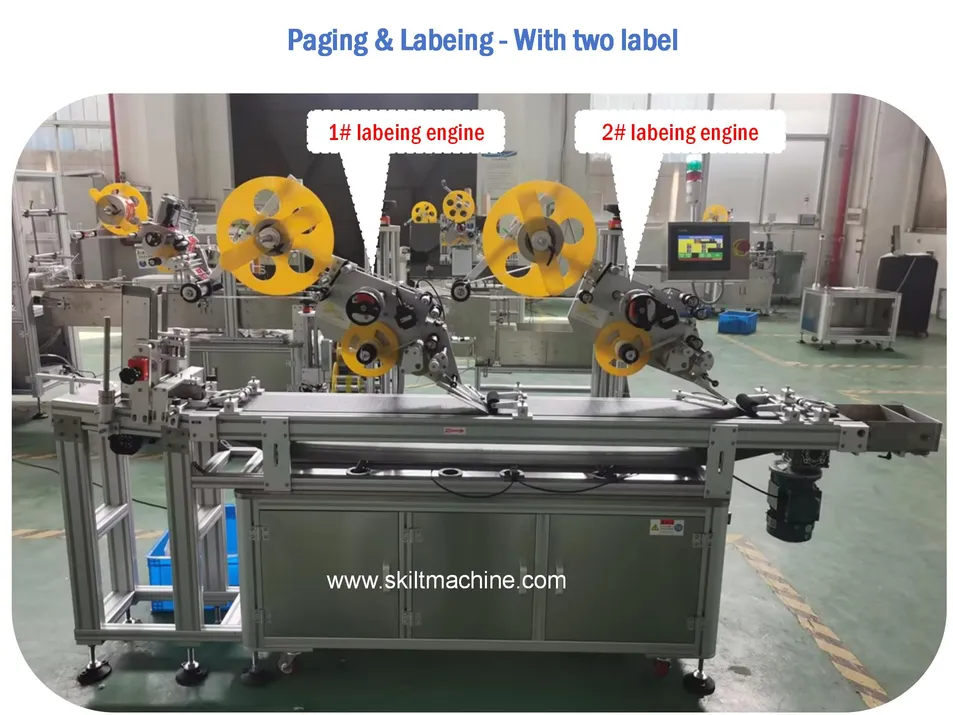

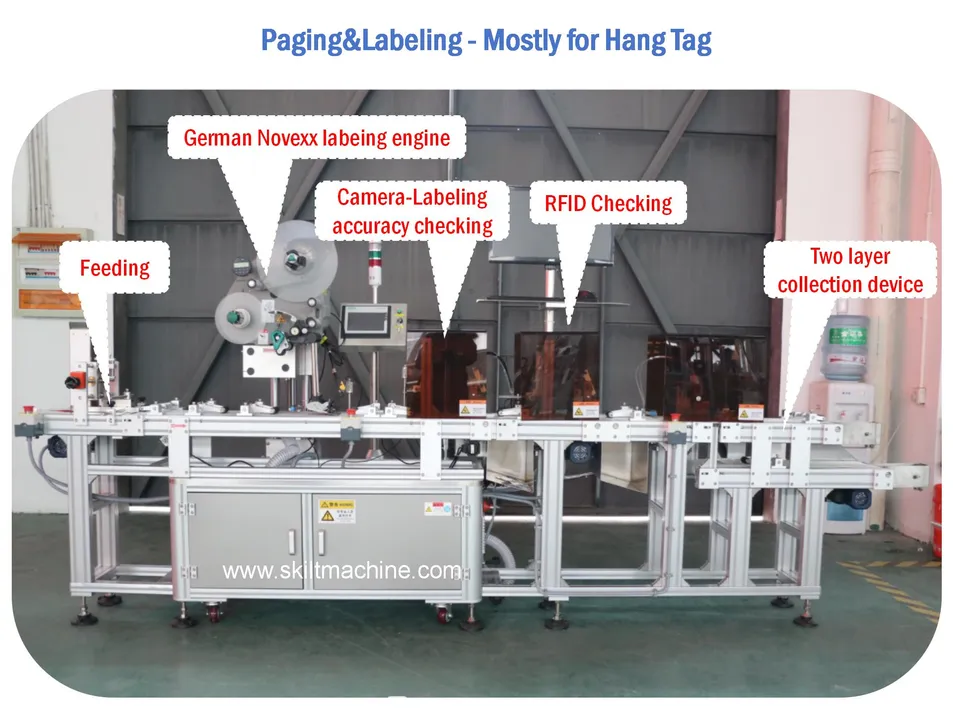

Other Paging & Labeling Options

✔

Technical Specifications

No	Name	Brand
1	HMI (Touch screen)	SIEMENS
2	PLC	SIEMENS
3	Servo motor and driver	Panasonic & NOVEXX ALS204
4	Sensor (check bottle)	Japan KEYENCE
5	Sensor (check label)	German LEUZE
6	Inverter	DELTA
7	Visual camera (optional)	Baumer
8	Paging motor	German JSCC
9	Conveyor motor	Switzerland ABB

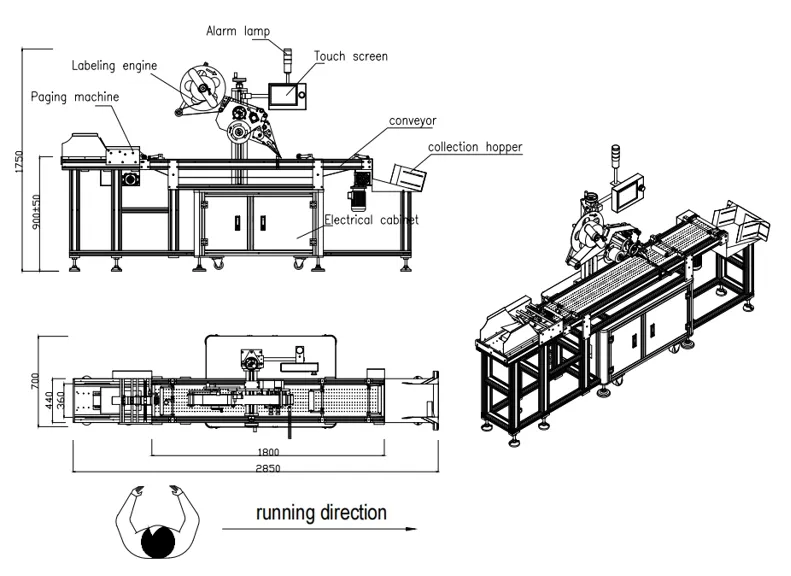

* Custom configurations available. CAD drawings available upon inquiry.

✉

After Sales Service

Warranty12 months or 2,000 hours.

ExtendedOptional up to 36 months.

Support24/7 technical assistance.

TrainingOn-site or remote options.

✈

Why Choose Us

1. 25 years' industry insight, mastering diverse applications;

2. Merging mechanical automation with IoT and vision tech for intelligent solutions;

3. Equipment validated in 180+ countries, ensuring high reliability;

4. Support flexible customization for unique needs;

5. Localized support ensures efficient communication and timely service.

?

Frequently Asked Questions

Q: What's the lead time for orders? A: Standard models ship in 7–10 days post-payment; custom units need 25–35 days, project-dependent.

Q: What is the main business focus? A: We specialize in self-adhesive and hot melt glue labeling, plus label supply and automation solutions.

Q: Can I request a customized size? A: Absolutely! We provide design drawings for your approval and our R&D team offers tailored designs.

Q: What documents do you provide for export? A: We provide a full export package including Commercial Invoice, Packing List, Bill of Lading, and COC.

Q: Does the machine support intelligent detection? A: Yes, optional functions include online printing, visual inspection with camera systems, and RFID detection.

Q: How do I place an order? A: Contact us via email or phone for a quote, and once details are finalized, confirm with a Purchase Order (PO).
