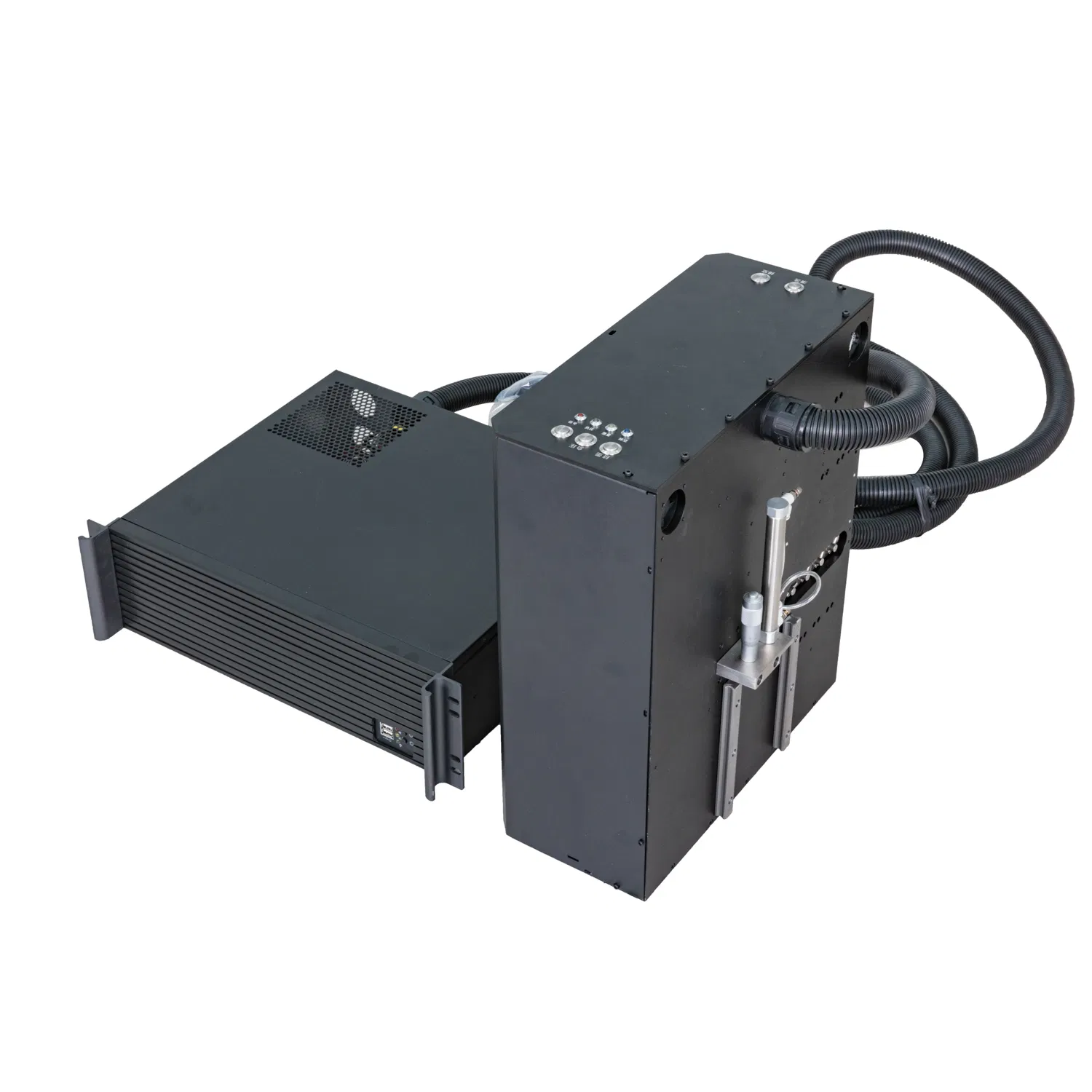

High-Speed Personalization Coding System for Scratch Cards

Customization:	Available
Plate:	Variable Data
Structure:	Inkjet Printing

i

Basic Specifications

Model NO.

HSJET

Color & Page

Single-Colour Printing Press

Usage

Paper, Label, Card, Cloths Printer

Automatic Grade

Automatic

Printing Interface

RS232 / Gigabit Ethernet

Printing Speed

100m/Min

System Supported

Windows

Resolution

150-600dpi

Ink Solution

Porous, Semi-Porous and Non-Porous

Languages

English, Japanese, French, German, Spanish, Portuguese

Power

AC 90V-240V/50-60Hz

Certification

CE, SGS

P

Product Description

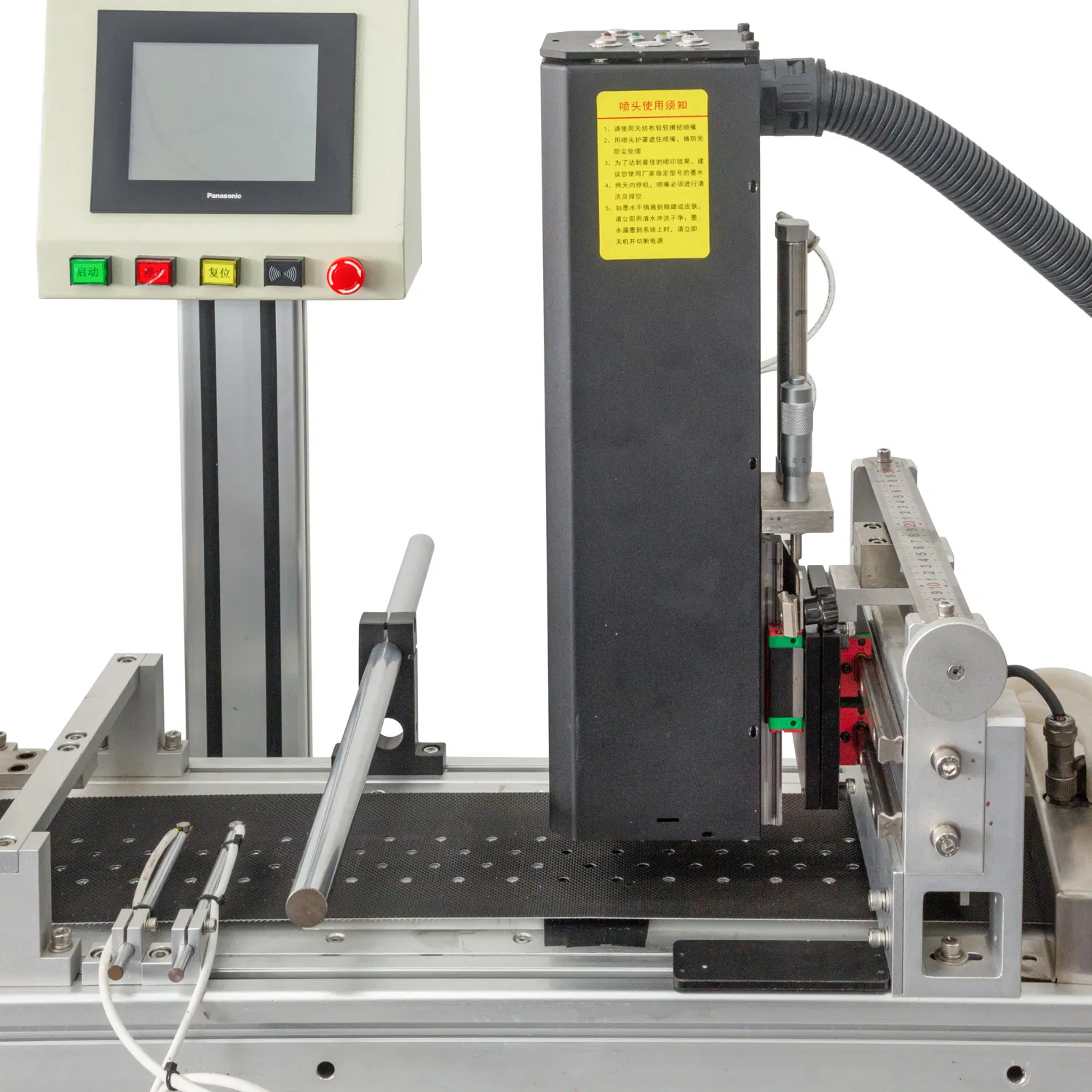

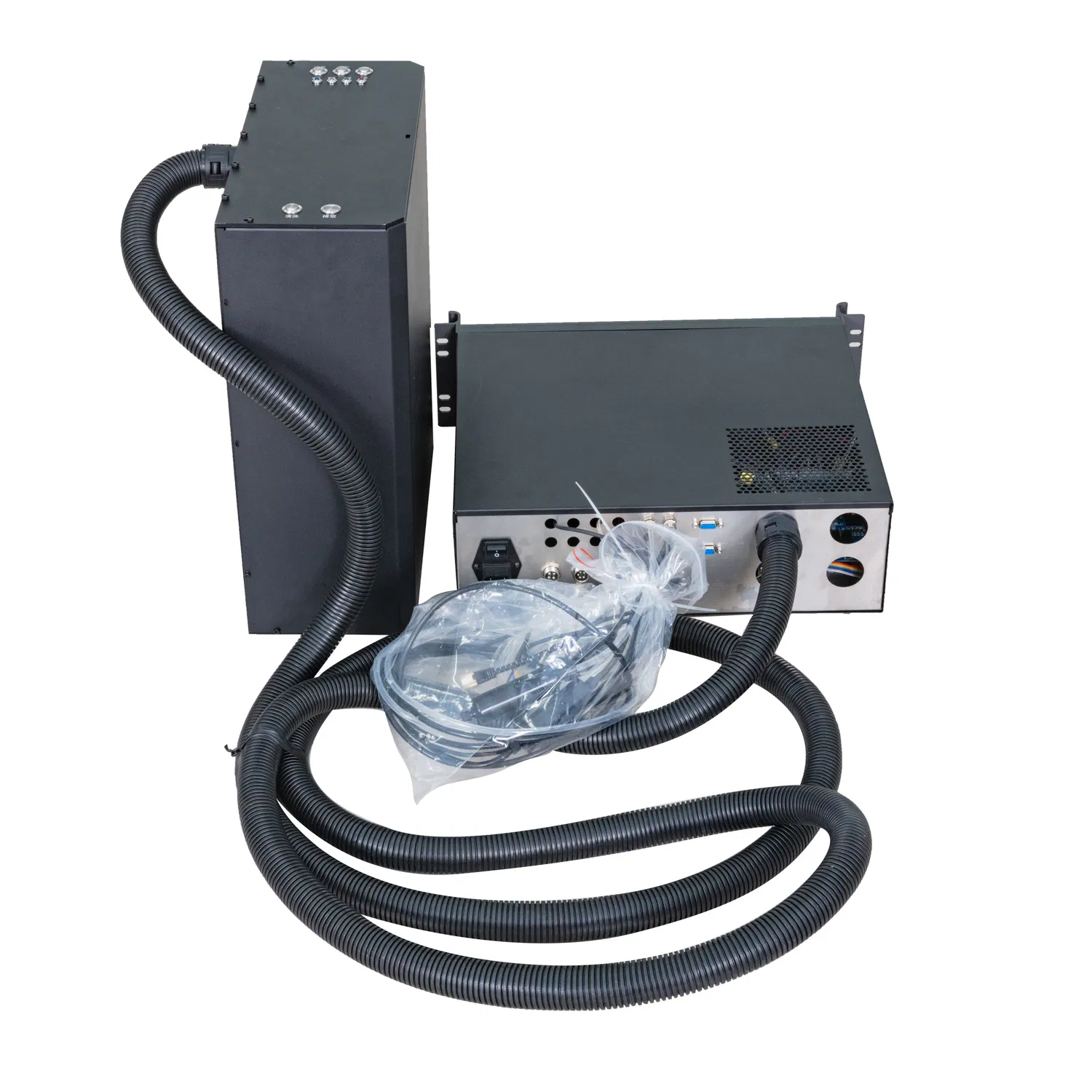

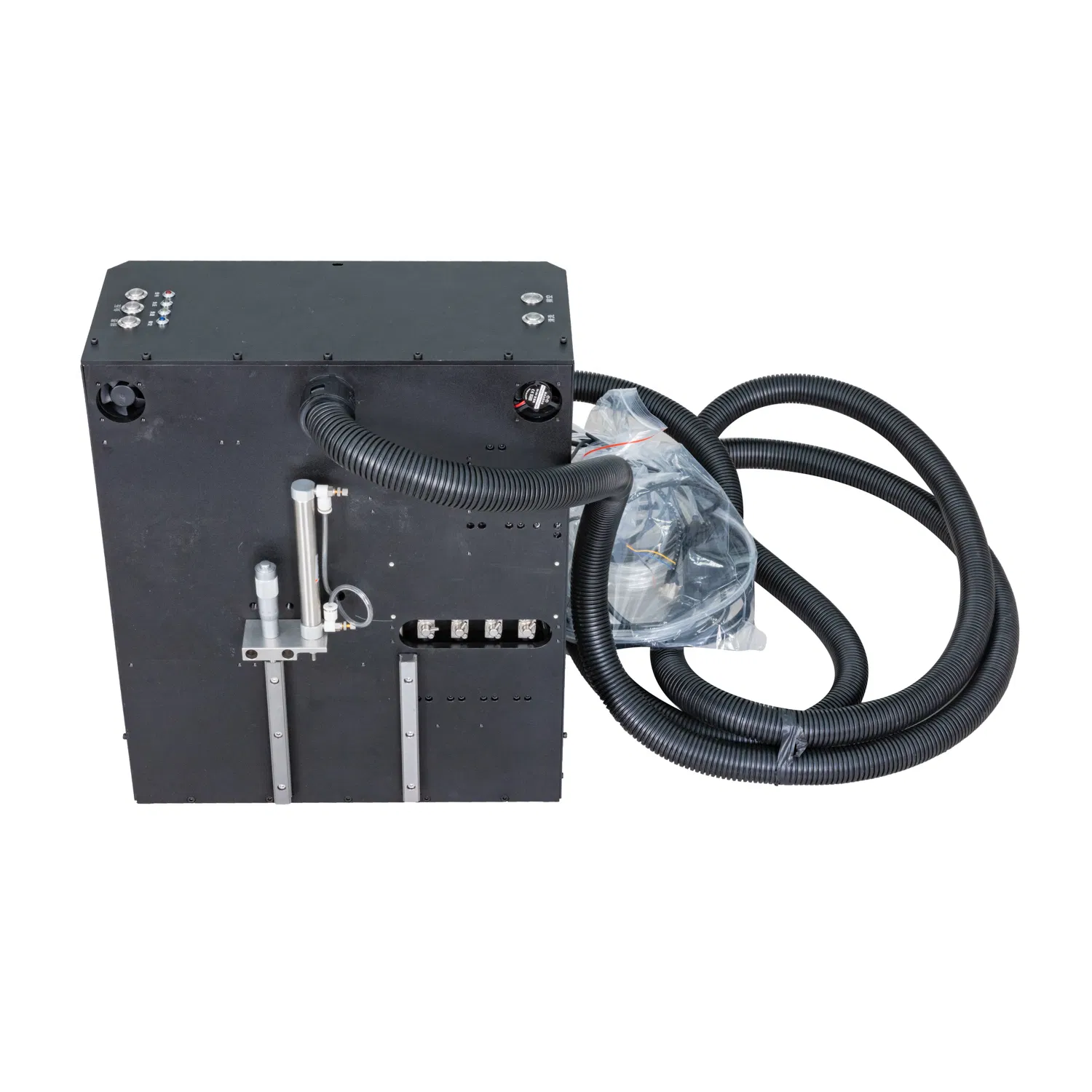

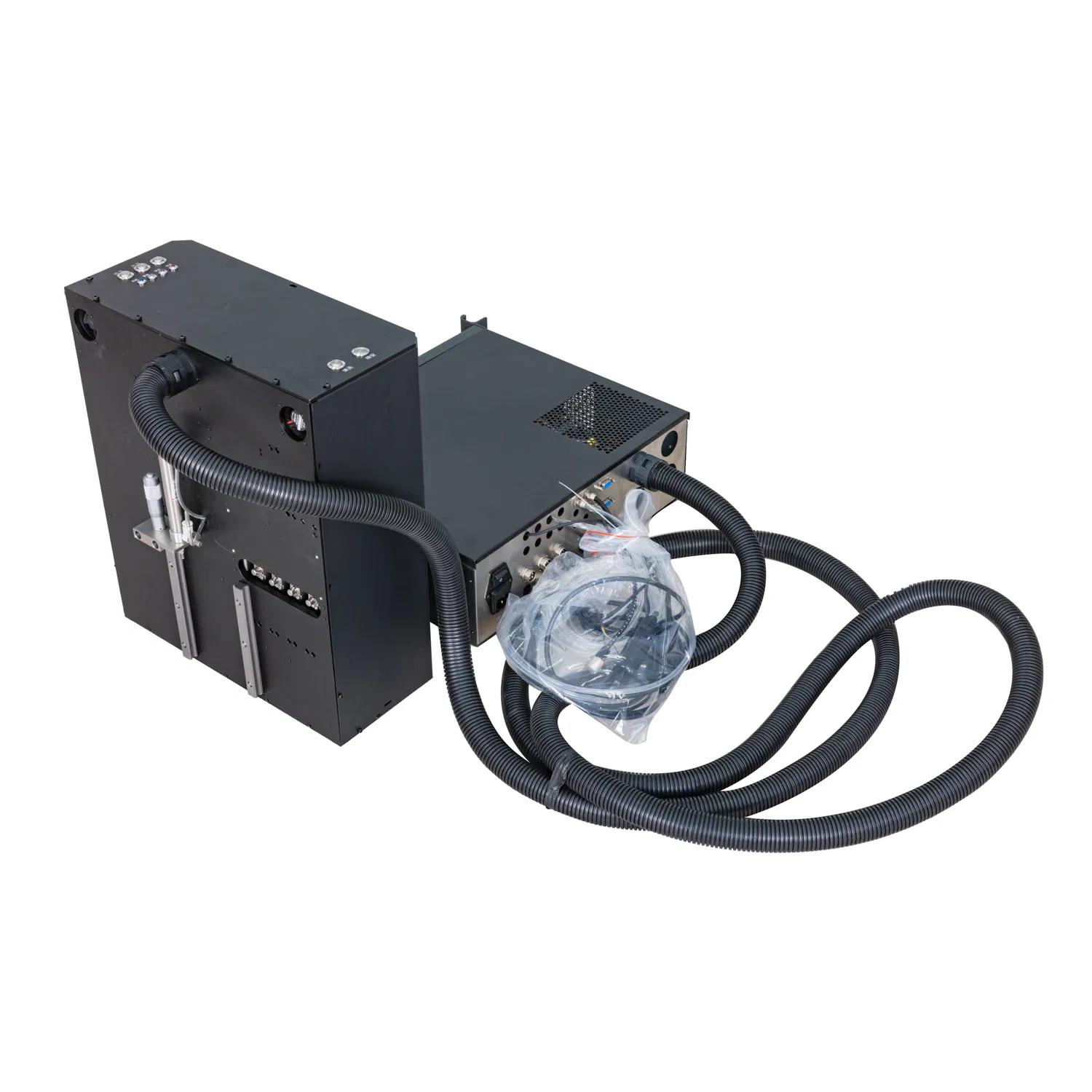

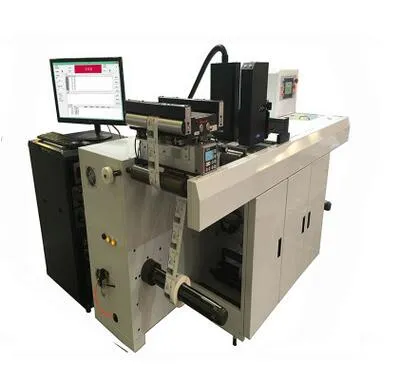

Coding System for Scratch Cards

The UV DOD inkjet system adopts industrial piezoelectric on-demand inkjet technology, significantly improving production speed and spray printing quality. Equipped with industrial high-resolution and high-speed DOD piezoelectric print heads, it meets the rigorous demands for mailings, barcodes, bills, checks, packages, and marking applications.

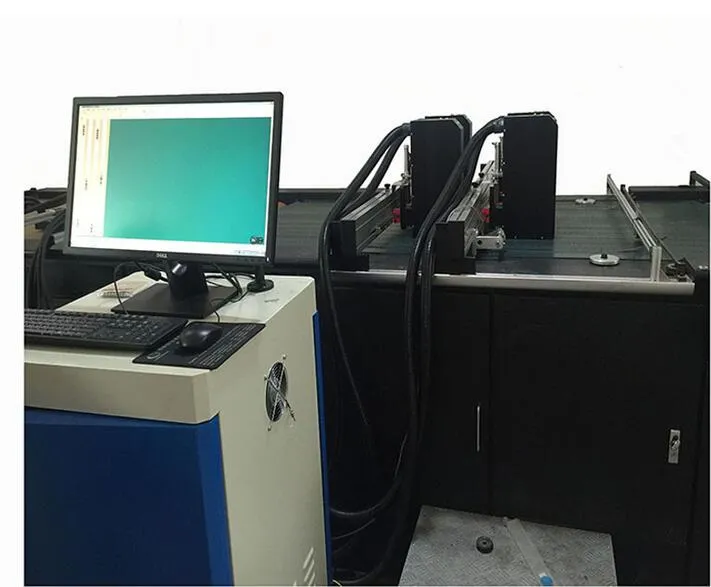

This system is suitable for web printing, sheet-fed, and both online and offline target printing. As a fully integrated digital inkjet printing system, its modular design allows for easy integration into existing transport systems, creating more value-added opportunities.

T

Technical Details

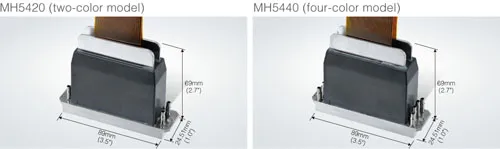

Nozzle Type: Ricoh GEN5 / Kyocera 108 / Konica 1024i industrial piezoelectric nozzle
Nozzle Lifespan: More than 3 years (10 billion printing times)
Print Width: 54 / 72 / 108 mm (Expandable up to 24 groups with seamless joint)
Precision: Physics 600 dpi printing precision
Linear Speed: 70 ~ 180 m/min
Inks: Environmentally friendly UV or water-based inks
Materials: Paper, plastics, PVC/PP/PE film, and more

S

Advanced Control Software

The Printer Control Software (PCS) offers a user-friendly interface to control the printer, monitor status, and set options such as jetting waveforms and temperature for each print head.

Variable Data Printing: Supports text, dates, times, graphics, logos, serial numbers, barcodes, and database photo images. Compatible with .CSV, .XLS, .XLSX, .TXT, and PDF files.

L

Technical Specifications

Model	VDG540 / VDK720 / KY108	Print Head	Ricoh GN5 / Konica 1024i / KY
Resolution	600×600, 400, 300, 200 dpi	Drop Size	5-21 PL
Printing Speed	Up to 180m/min (600×200dpi)	Max Width	Up to 108mm x 24 Seamless Joint
Barcodes	QR, DATAMATRIX, PDF417, CODE128, EAN13, etc.	File Formats	MS Excel, TXT, PDF, BMP
Environment	0ºC~30ºC, Humidity: 50~80%	Port	Gigabit Ethernet

?

Frequently Asked Questions

What materials can this coding system print on?

The system is highly versatile and suitable for all kinds of paper, plastics, PVC, PP, and PE films, making it ideal for cards, labels, and packaging.

What is the maximum printing speed of the system?

The system can reach a linear speed of up to 180 meters per minute at a resolution of 600x200 dpi.

Does the software support variable data printing?

Yes, our Variable Data Printing Software supports several types of objects including text, dates, serial numbers, barcodes, QR codes, and database images.

What types of ink are used in this printer?

The system supports imported environmentally friendly UV inks or water-based inks, suitable for both porous and non-porous materials.

Can multiple print heads be joined together?

Yes, the modular design allows for 1 to 24 groups of print heads to be extended with a seamless joint for wider printing requirements.

What languages does the system support?

The software supports multiple languages including English, Spanish, German, French, Portuguese, Russian, and Chinese.
