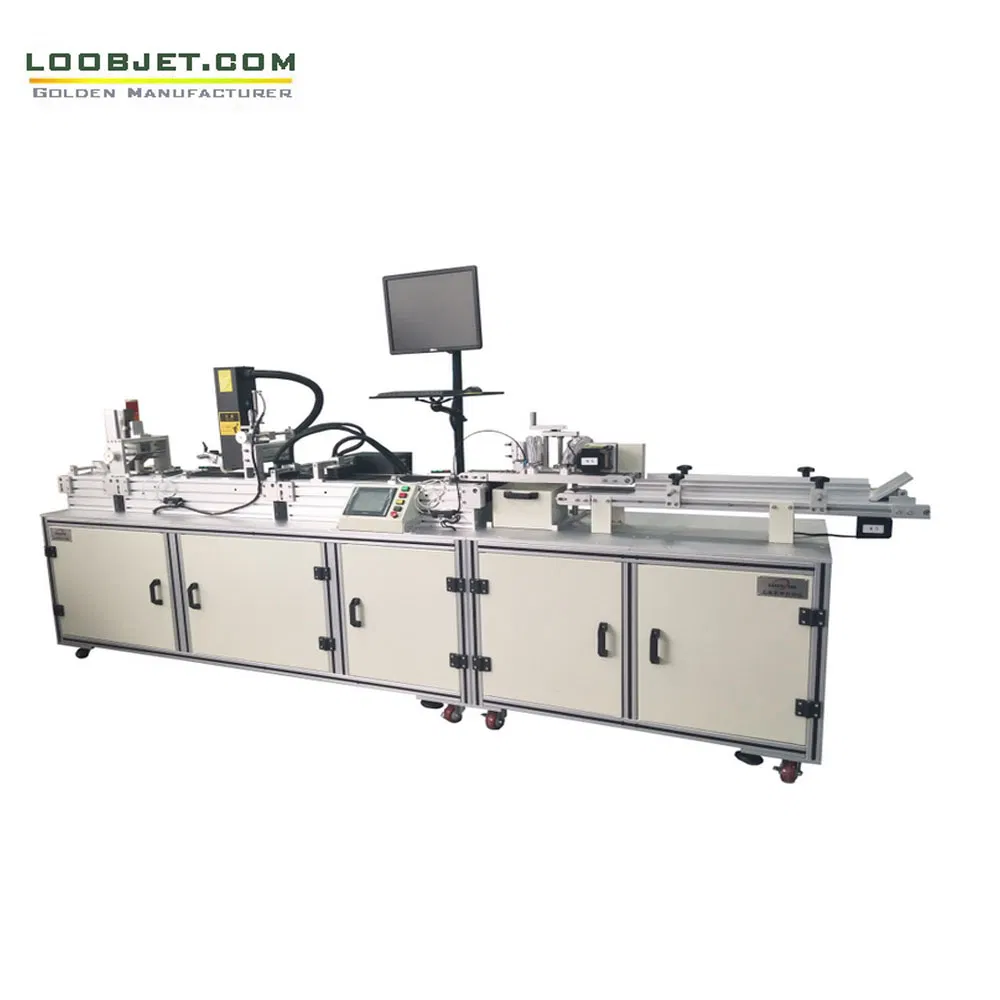

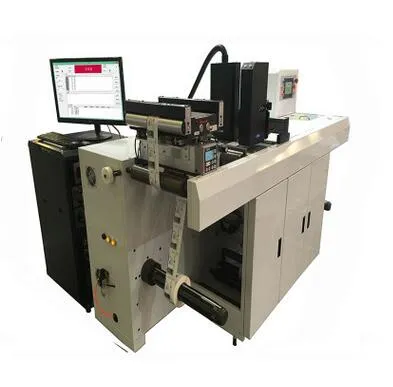

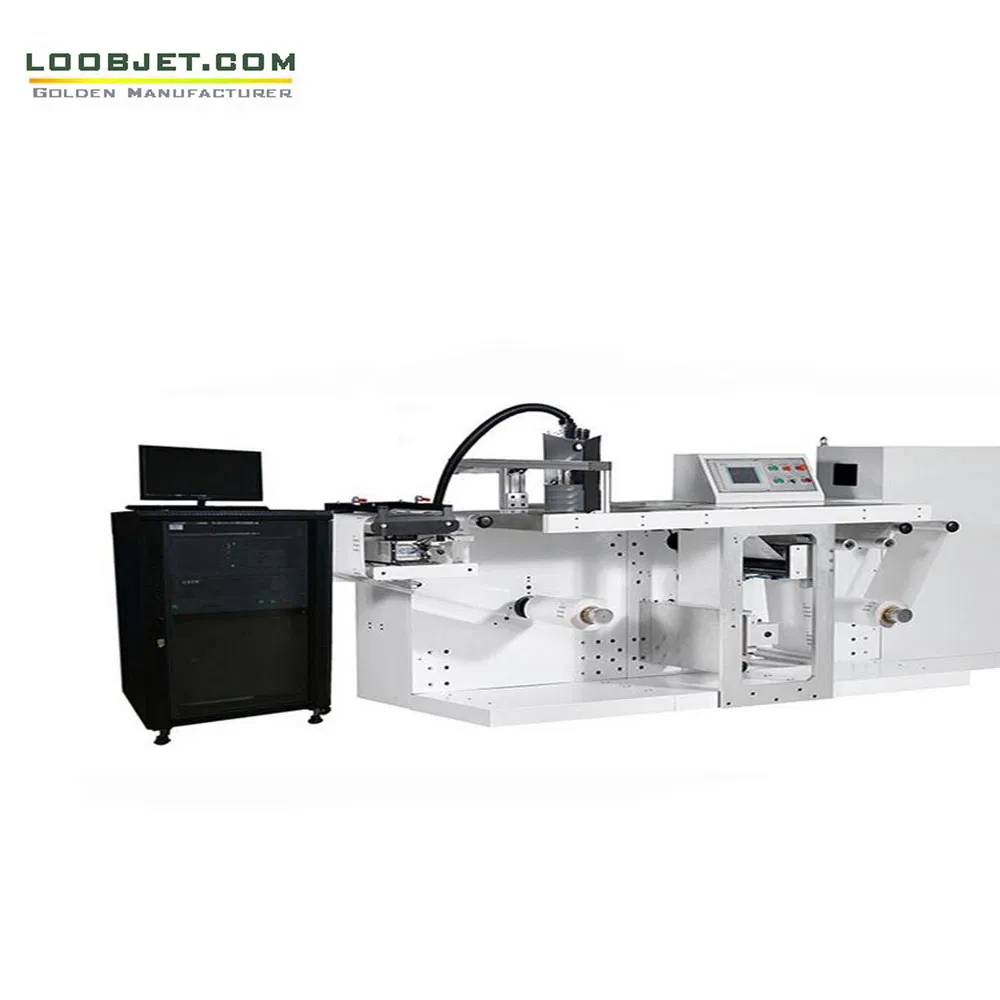

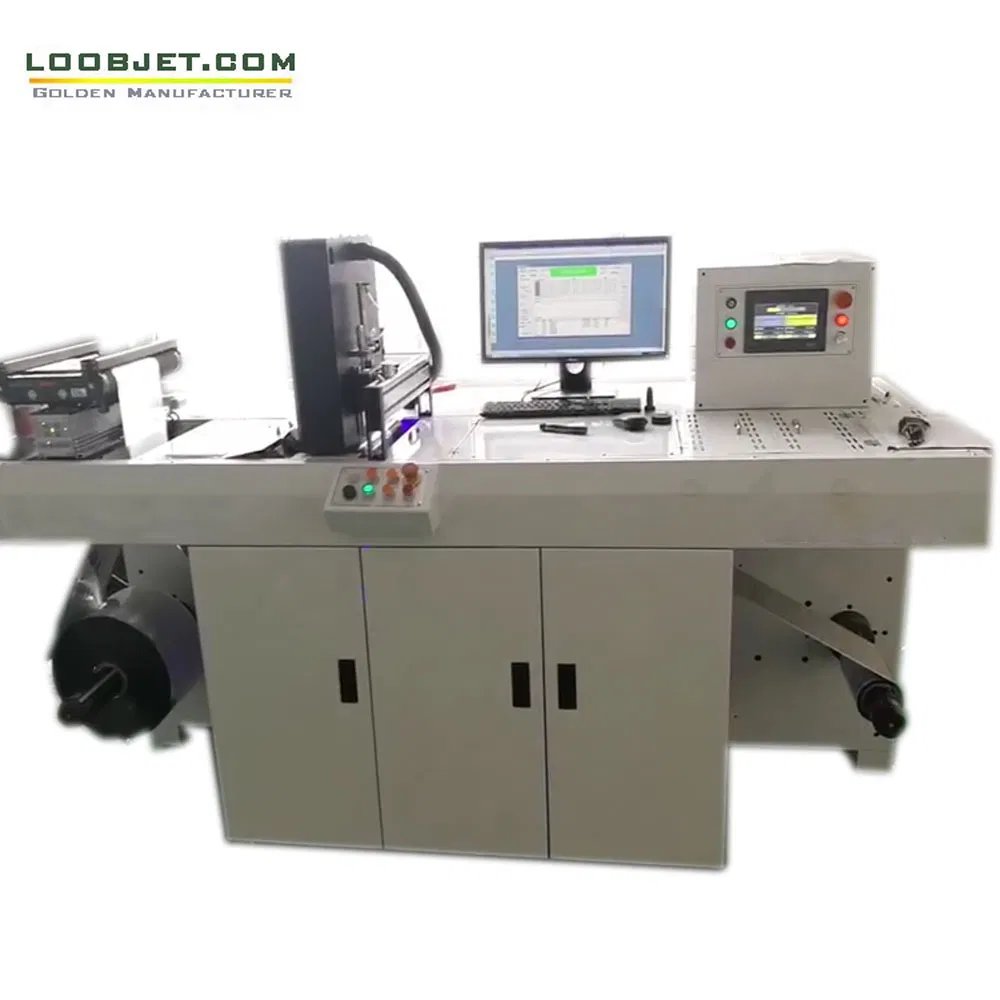

The UV DOD inkjet system adopts industrial piezoelectric on-demand inkjet technology, significantly improving production speed and spray printing quality. Equipped with industrial high-resolution and high-speed DOD piezoelectric print heads, it meets the rigorous demands for applications such as mailings, barcodes, bills, checks, packages, and marking.

This system is suitable for web printing, sheet-fed, and both online and offline target printing. As a fully integrated digital inkjet printing system, its modular design allows for easy integration into existing transport systems, creating more value-added opportunities.

• Equipment: UVJET System

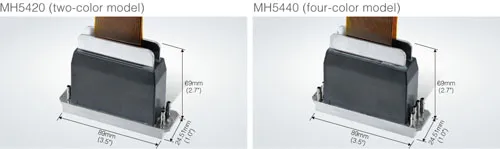

• Nozzle Type: Ricoh GEN5 / Kyocera 108 / Konica 1024i industrial piezoelectric nozzles
• Nozzle Lifespan: More than 3 years (10 billion printing times)
• Print Width: 54 / 72 / 108 mm (Single nozzle, customizable)
• Scalability: 1 ~ 24 groups can be extended with seamless joints
• Precision: Physical 600 dpi printing precision
• Linear Speed: 70 ~ 180 m/min
• Inks: Environmentally friendly UV or water-based inks
• Materials: Suitable for paper, plastics, PVC/PP/PE film, and more

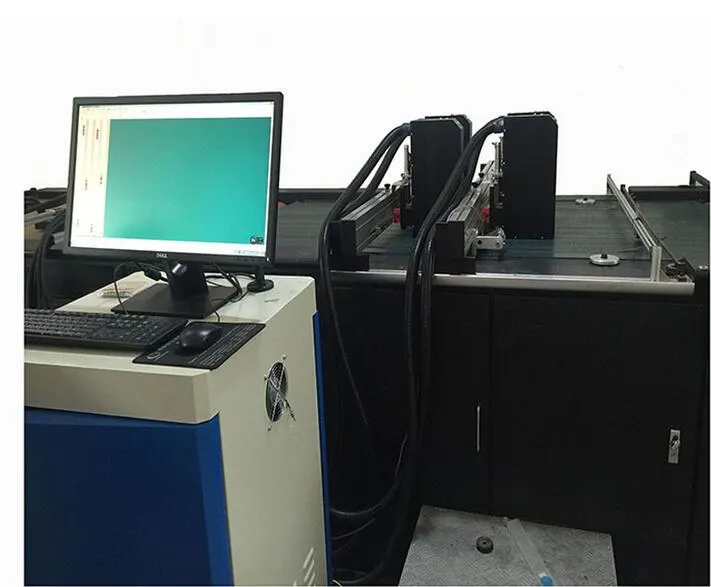

The Printer Control Software (PCS) is designed for scanning inkjet printing. It offers a user-friendly interface to control the printer interactively, monitor status, and set options such as jetting waveforms and print head temperatures.

Variable Data Printing: Supports text, dates, times, graphics, logos, serial numbers, barcodes, and database photo images. Compatible with .CSV, .XLS, .XLSX, .TXT, and PDF files.
