High Speed Steel Sheet Marking and Coding System

1 / 5

High Speed Steel Sheet Marking and Coding System

Customization:	Available
After-sales Service:	Online Support
Warranty:	12month

Send Inquiry

Product Description

Basic Specifications

Plate

Variable

Structure

Non-Contact

Color & Page

Multi-Colour Printing Press

Usage

Paper, Label, Card, Cloths Printer

Automatic Grade

Automatic

Printing Interface

USB3.0

Printing Speed

50m/Min

System Supported

Windowsxp32

Color Support

Cmyk+W+V

Overprint

+-0.05mm

Max.Web Dia.

600mm

Material Weight

60-250G/M2

Total Power

45kw

Gross Weight

1000kgs

HS Code

8443322100

Production Capacity

100sets/Year

Product Overview

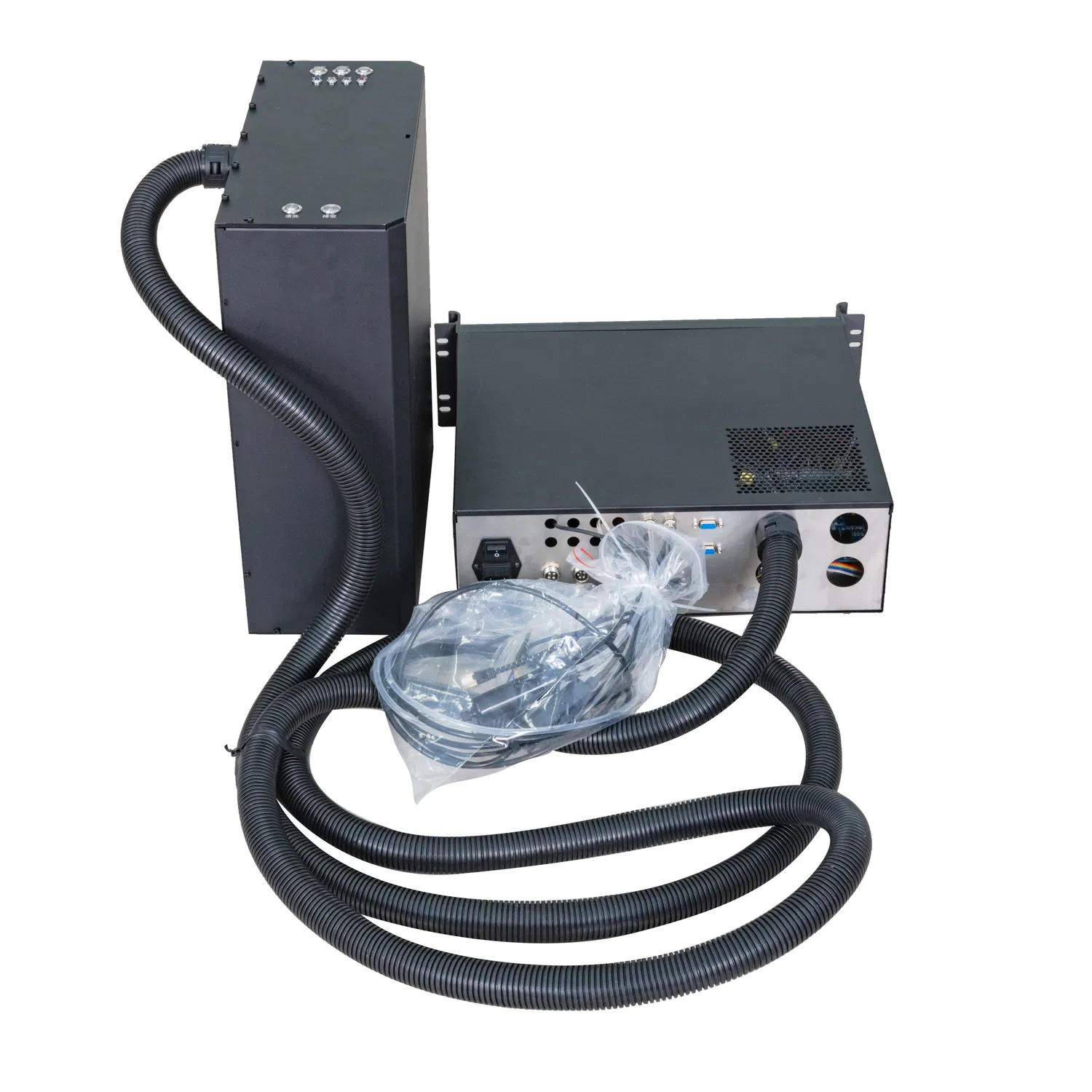

High Speed Steel Sheet Marking And Coding System

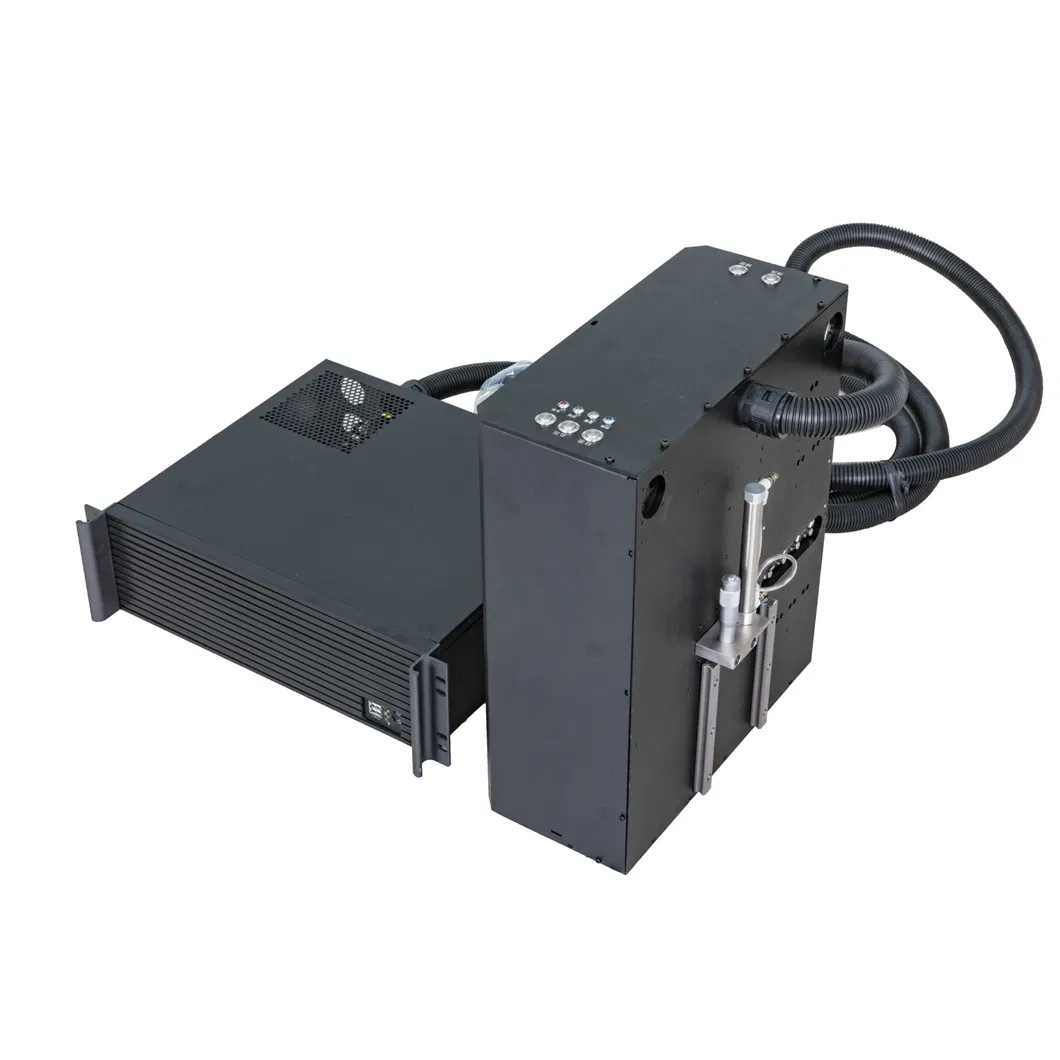

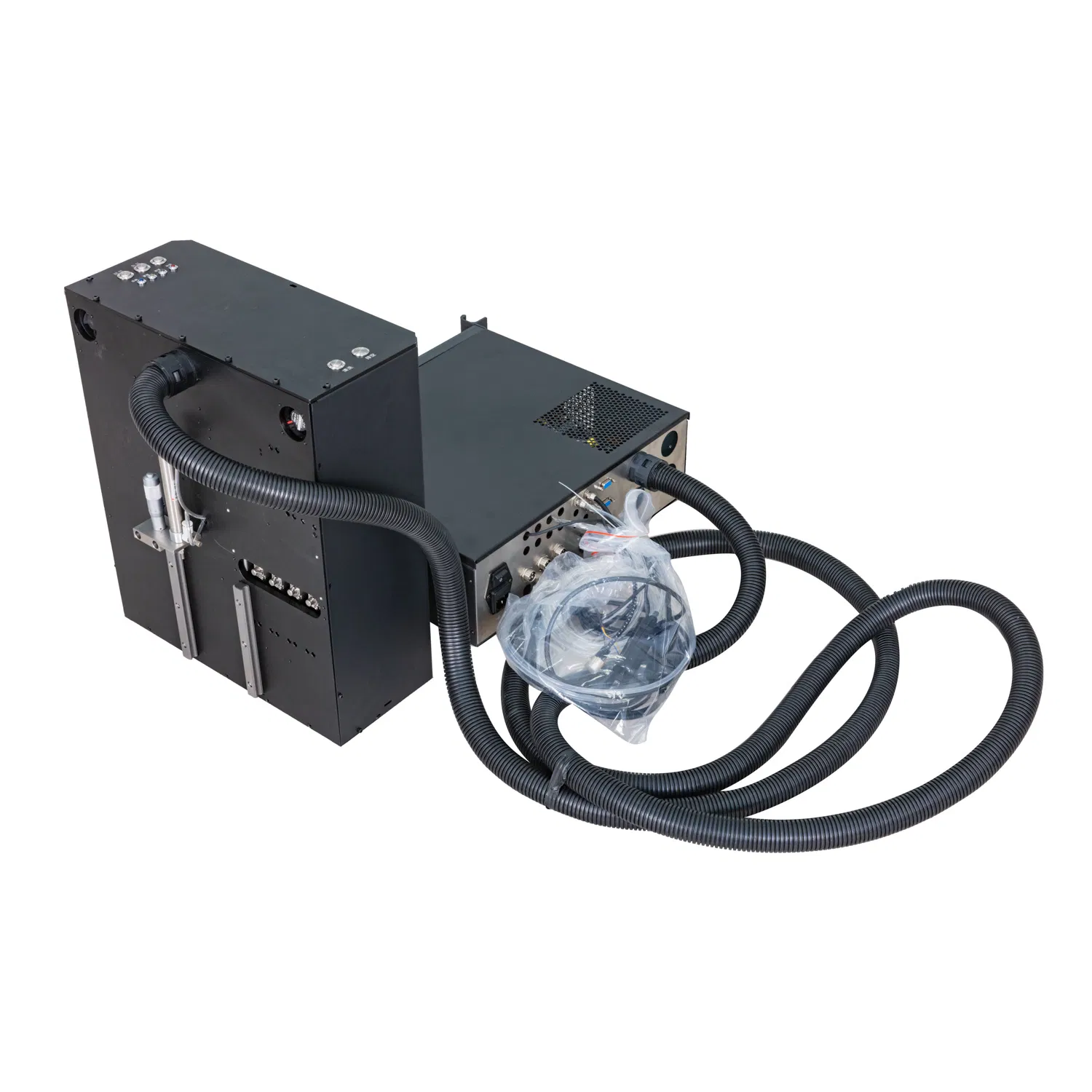

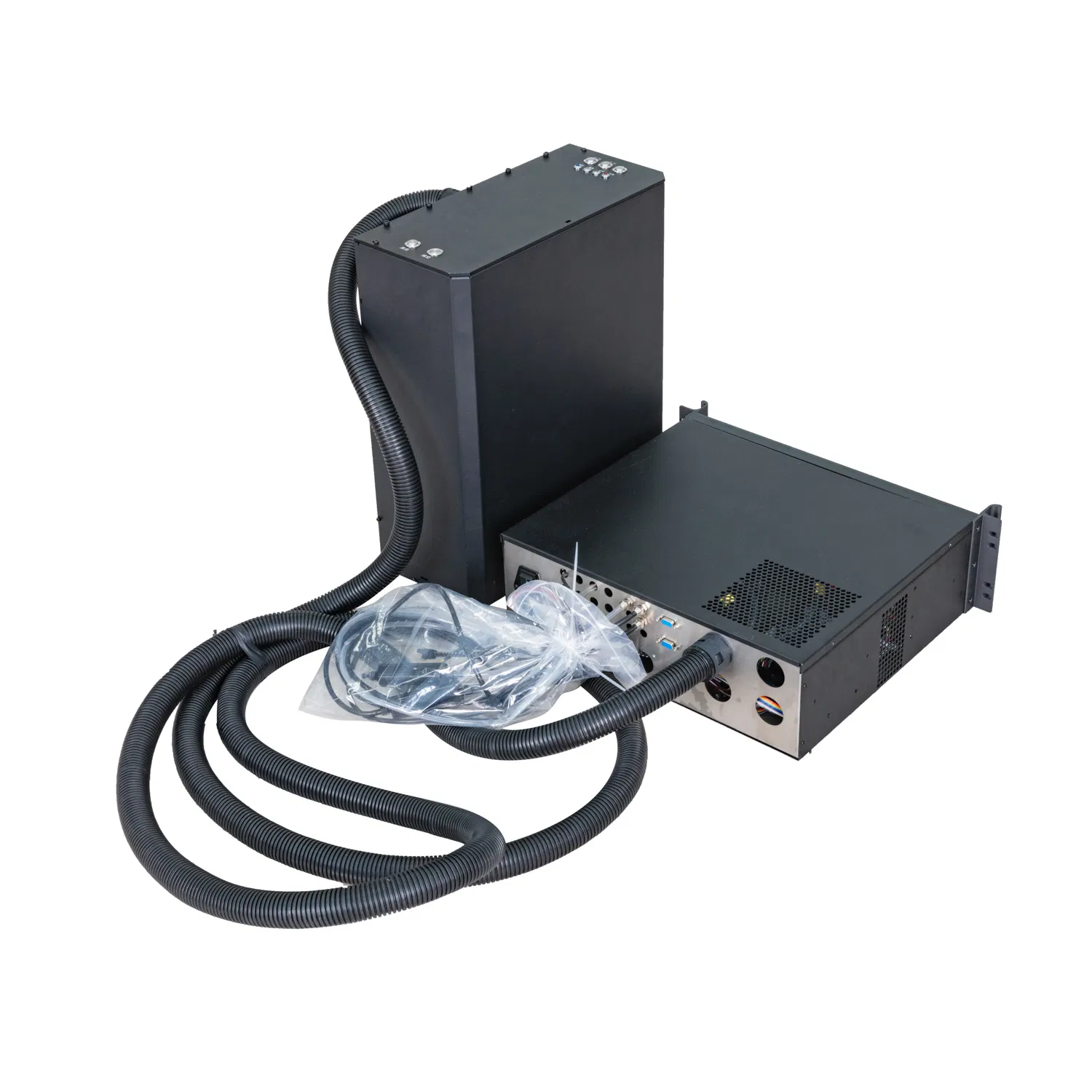

The printing system of Kyocera/Ri-G5 PH is an industrial level digital four-color printing engine system, mainly used for the packaging and printing industry. Equipped with industrial-level Kyocera PH, it can print at high speed with high precision (600 * 1200dpi), reaching speeds up to 50m/min.

Key Features of the System

High Resolution: Industrial grade Kyocera or Ri-G5 PH, printing precision reaches 600 * 1200dpi.

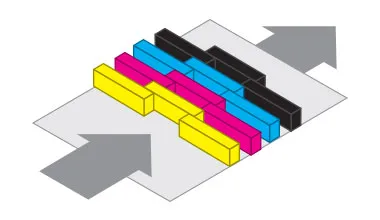

High Speed: Single pass non-contact technology, speeds up to 50m/min.

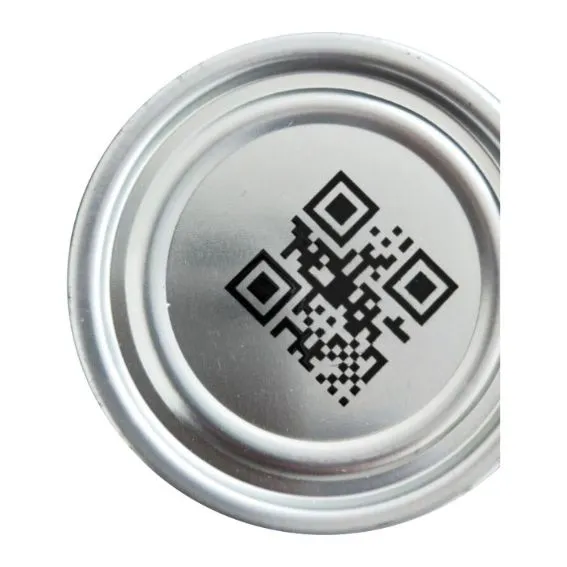

Versatile Materials: Suitable for paper, adhesive labels, and variable barcodes/2D codes without pre-coating.

Efficient Operation: Average preparation time less than 1 minute; supports seamless roll changing.

Intelligent Software: Equipped with powerful Rip and image processing for easy color correction.

Industrial Reliability: Designed for 24/7 production with durable piezoelectric nozzles.

Technical Specifications

Ink Type	UV / Water base ink
Ink Color	CMYK (Yellow, Magenta, Blue, Black); Expandable to Orange, Purple, White or Spot colors
Curing Type	Drying module or quick drying ink
Power Requirements	AC220V 50 / 60Hz
Air Supply	6-8 PA, clean and dry
Printing Platform	Single-fed or Roll-fed
Material Weight	60-250g/m2
Material Type	Ordinary paper, offset paper, adhesive labels

Frequently Asked Questions

1. What is the maximum printing speed of this system?

The system can reach a maximum printing speed of 50 meters per minute at a resolution of 600dpi.

2. What types of materials can be printed?

It is suitable for a wide variety of materials including ordinary paper, offset paper, and adhesive labels with weights ranging from 60 to 250g/m2.

3. Does the material require any pre-coating?

No, high-quality patterns can be printed directly on all supported materials without the need for pre-coating.

4. What colors are supported by the printing engine?

The standard configuration supports CMYK four colors. It can also be expanded to include white, varnish, or other customized spot colors.

5. What is the maximum printing width?

The system supports a maximum printing width of 324mm, utilizing industrial-grade nozzle modules.

6. Is the system capable of 24/7 industrial production?

Yes, the entire series is designed for 24/7 continuous operation, using durable industrial components and piezoelectric nozzles to meet high-demand requirements.
