Imago Printer Imago Printer

High Speed UV Piezo Digital Full Color Printing System

Customization: Available
After-sales Service: Online Support
Warranty: 12month

Product Description

📋

Basic Information

Model NO.
VDG330
Plate
Variable
Structure
Non-Contact
Color & Page
Multi-Colour Printing Press
Usage
Paper, Label, Card, Cloths Printer
Automatic Grade
Automatic
Printing Interface
USB3.0
Printing Speed
50m/Min
System Supported
Windowsxp32
Color Support
CMYK+W+V
Overprint
+-0.05mm
Max.Web Dia.
600mm
Material Weight
60-250G/M2
Total Power
45kw
Gross Weight
1500kgs
Origin
China
HS Code
8443322100
Production Capacity
100sets/Year
📦

Packaging & Delivery

Package Size
250.00cm * 150.00cm * 120.00cm
Package Gross Weight
400.000kg
Transport Package
Wooden Cases
Specification
2200*800*800mm
🚀

Product Description

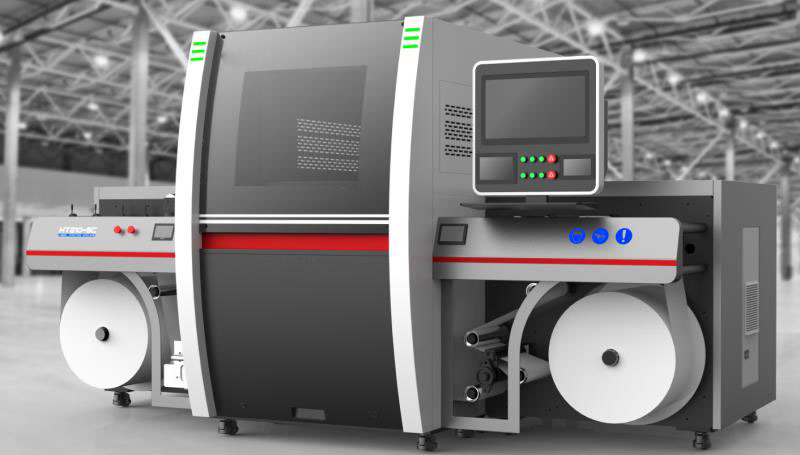

High Speed UV Digital Full Color Printing System
1
Highly Flexible Feeding System

Feeding unit for inkjet digital printing system, with high flexibility, suitable for all materials for 80-330mm wide label printing: film (PET, BOPP, PE, BOPA), label stock (PE label), pre-pressed materials (PET, ALU, PE), paper, among others.

2

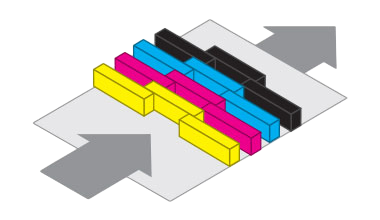

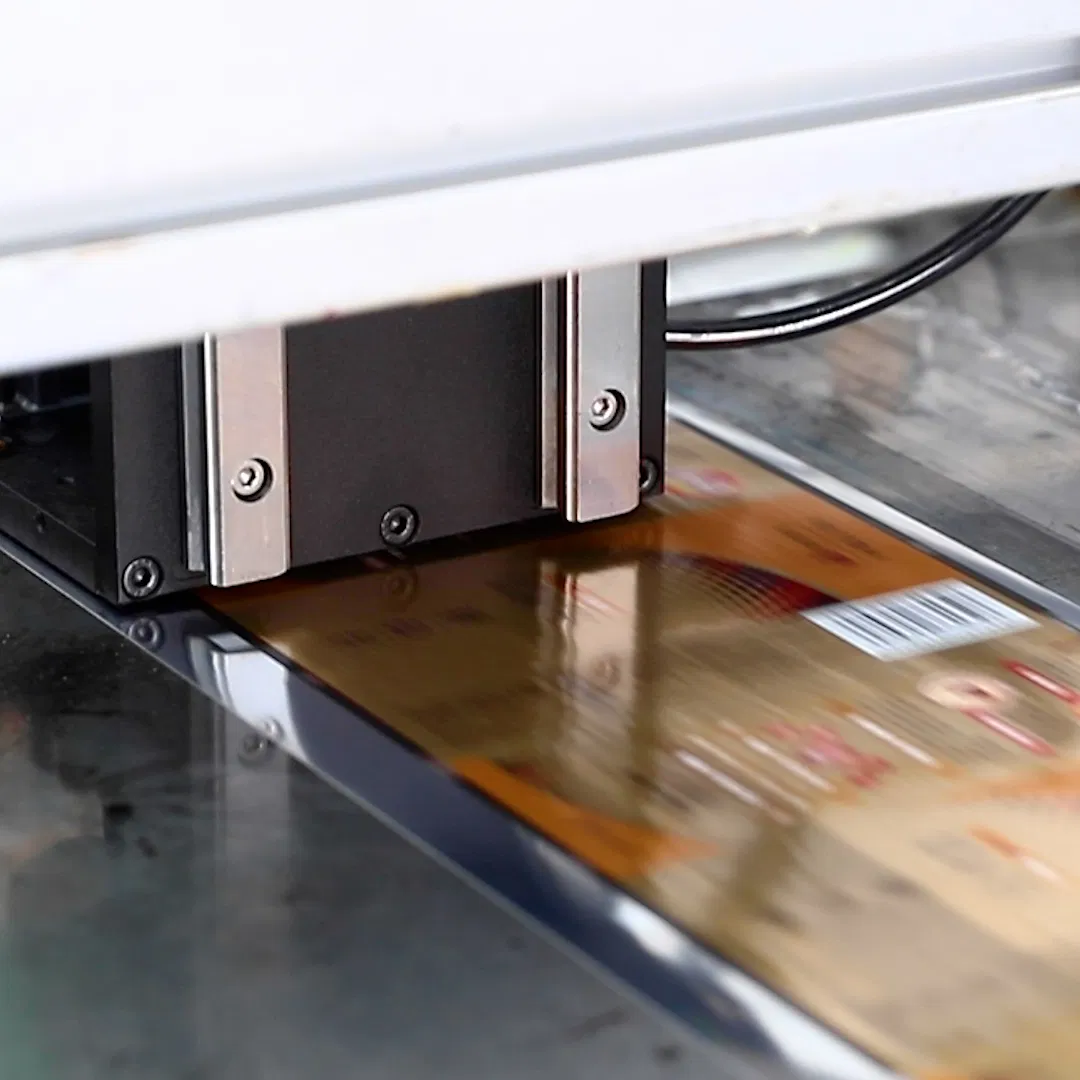

Stable and High-Speed Printing Unit

Imported high-precision industrial print head has higher fire ignition frequency and service life, resolution up to 600 X 1200 dpi. The patch tracking electronic eye achieves accurate secondary surprint, comprehensively solving registration problems.

3
High Quality UV Eco-friendly Ink

Broad color gamut UV ink with vivid colors. Using the Agfa color management system, it accurately restores Pantone database colors while ensuring environmental protection and excellent stability.

4
AGFA APOGEE Workflow Software System

The fully integrated AGFA Apogee prepress workflow system ensures the highest level of reliability while making equipment operation easier and more efficient for production.

5
Automatic Winding and Unwinding System

Effectively prevents substrate shifting and ensures orderliness. The high linkage winding system is fully automated to maximize non-stop production for long periods.

6
Unique Multiple Curing Technology

LED cold light curing units provide energy saving and high efficiency. Each color group is equipped with a curing module, allowing ink droplets to attach accurately without spreading.

Frequently Asked Questions

What is the maximum printing speed of the VDG330?
The system supports a high-speed production capacity of up to 50 meters per minute.
What colors can this digital press print?
It supports a multi-color configuration including CMYK + White (W) + Varnish (V) for versatile printing effects.
Which materials are compatible with the feeding system?
It is suitable for materials ranging from 80-330mm wide, including various films (PET, BOPP, PE), label stock, paper, and pre-pressed materials.
What is the printing resolution of the industrial print heads?
The system utilizes high-precision industrial print heads capable of achieving resolutions up to 600 x 1200 dpi.
How does the curing system work?
It uses LED cold light curing technology. Each color group has its own curing module to fix ink droplets instantly, followed by a main curing system for a complete finish.
What software controls the prepress workflow?
The system is powered by the AGFA APOGEE prepress workflow software, ensuring reliability and ease of operation.
