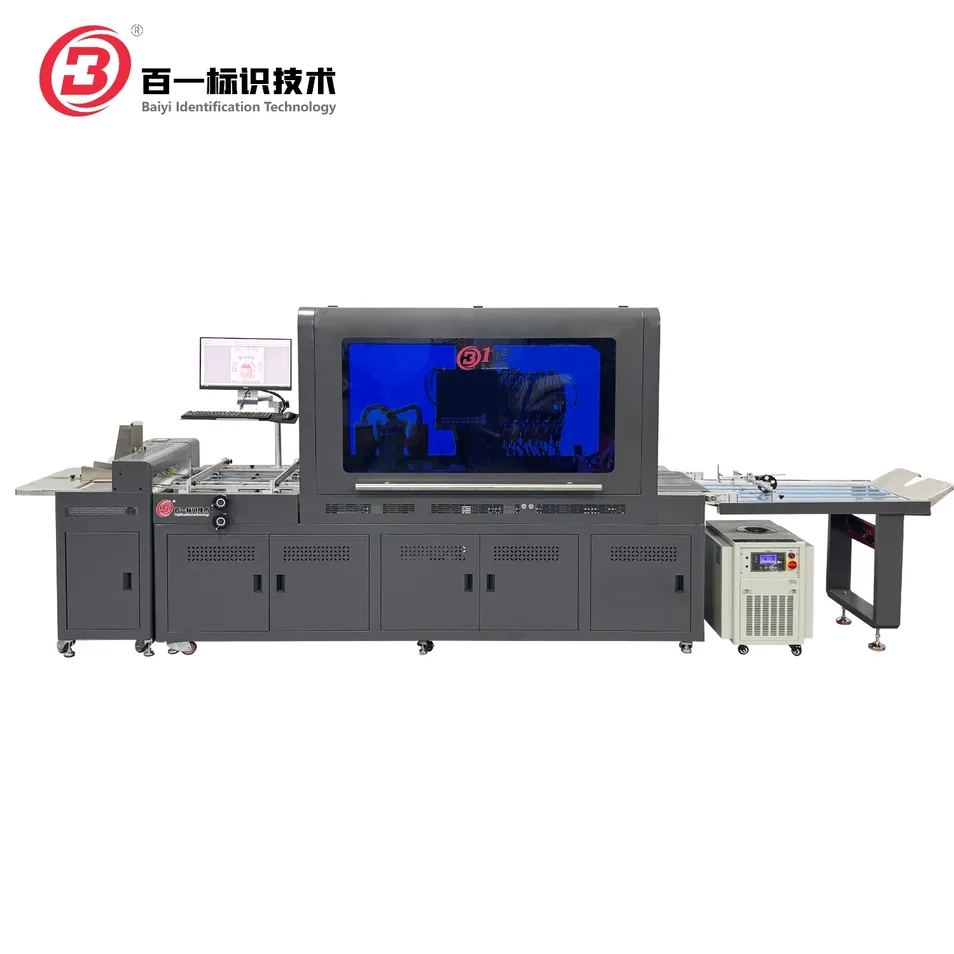

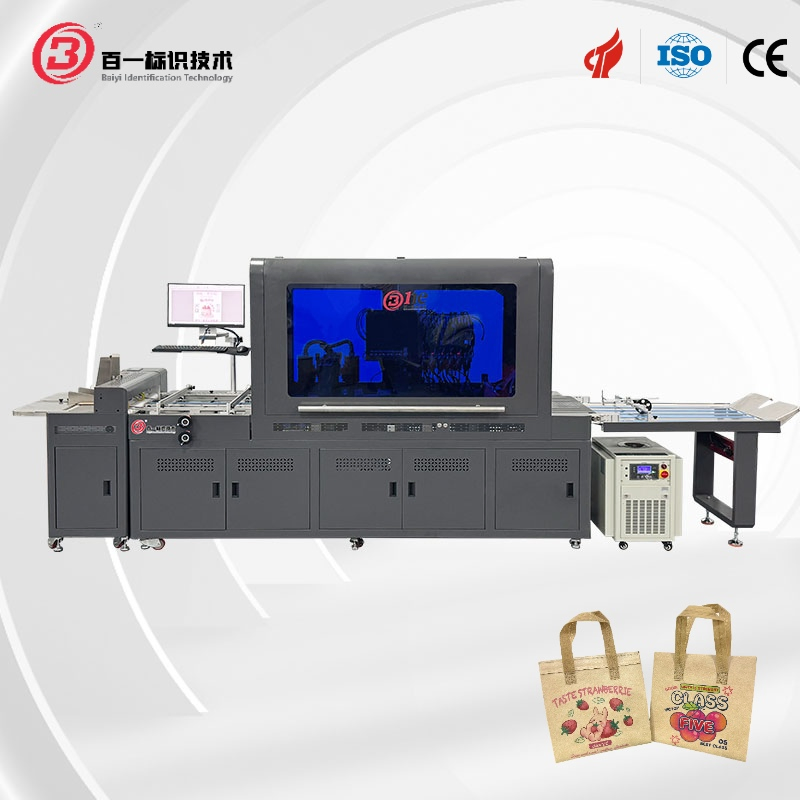

UV Inkjet Printing System for Small Batch Flexible Packaging

📋

Basic Information

Model NO.

BY-HF02-800C-UV

Structure

Digital Printing

Color & Page

Multi-Colour Printing Press

Usage

Paper, Label, Card, Cloths Printer

Automatic Grade

Automatic

Product Name

Digital Printing Machine

Material

Painted Carbon Steel

Feature

Stable, High Speed, Easy Operation

🚀

Product Description

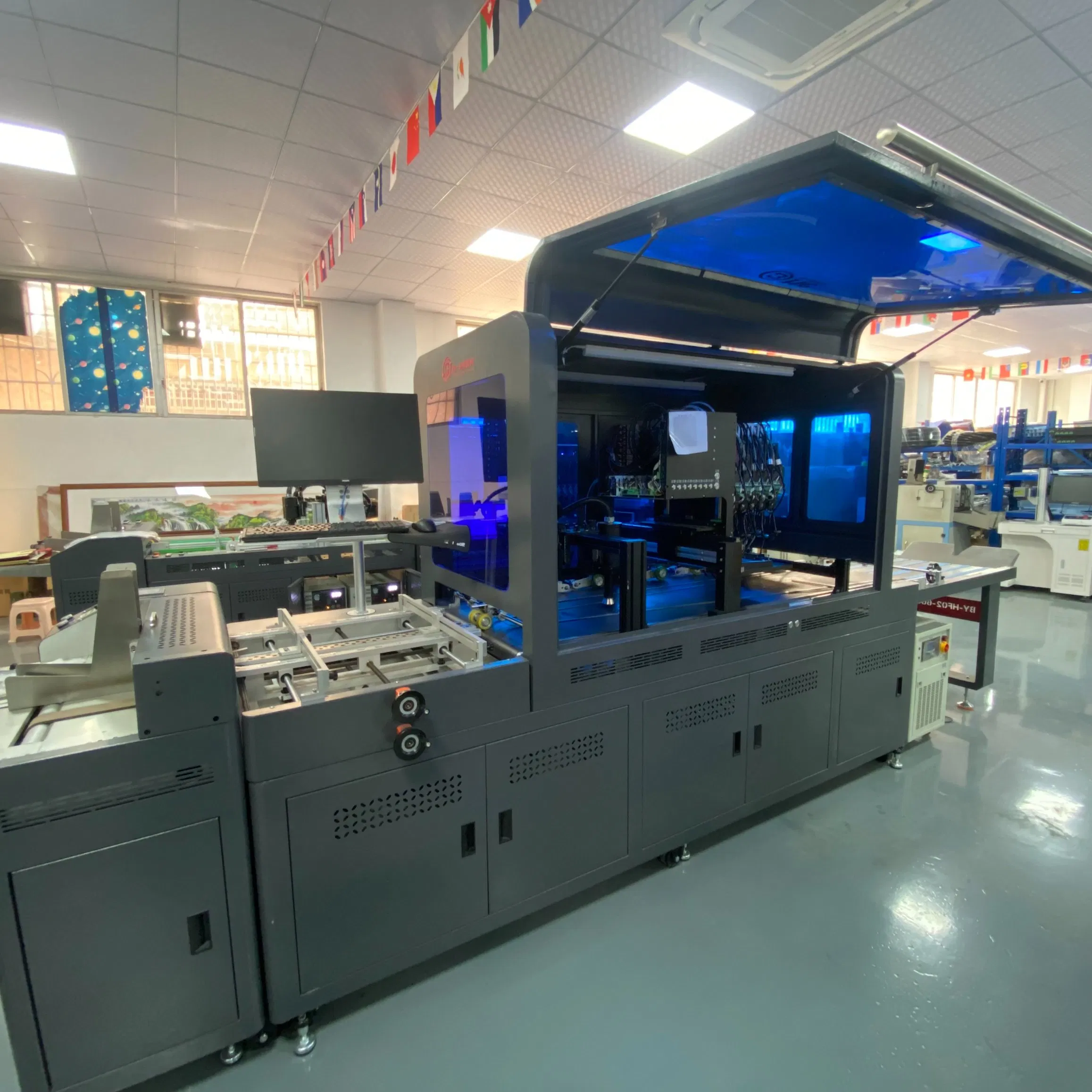

DIGITAL PRINTING MACHINE

This advanced UV digital printing machine is specifically engineered for high-precision printing on coated non-woven bags and diverse substrate materials.

Featuring professional-grade Ricoh G5/G6 printing heads with exceptional 20mm working height capacity, this customized digital printing system delivers outstanding full color CMYK printing with 100mm printing width coverage.

The integrated automated workflow combines auto-feeding technology, intelligent rectification device, plasma surface treatment, dual-stage UV curing system, and auto-collection conveyor to ensure consistent high-quality results.

🎯

Applications

Non-Woven Bag Printing
Coated shopping bags, promotional tote bags, reusable bags.

Packaging Materials
Coated paper bags, cardboard packaging, paper boxes.

Plastic Products
Lunch boxes, food containers, film substrates, PVC materials.

Metal & Wood
Wooden boxes, metal sheets, aluminum products, tin containers.

⚙️

Technical Parameters

Technical Specifications
Printing Head	Ricoh G5/G6
Quantity Of Printing Head	8 Pcs
Printing Color	CMYK
Printing Width	100MM
Resolution	360DPI
Printing Speed	15M/Min
Power / Voltage	6.5Kw / 220VAC, 50HZ
Efficiency	60-120 Pcs/Min

📸

Detailed Photos

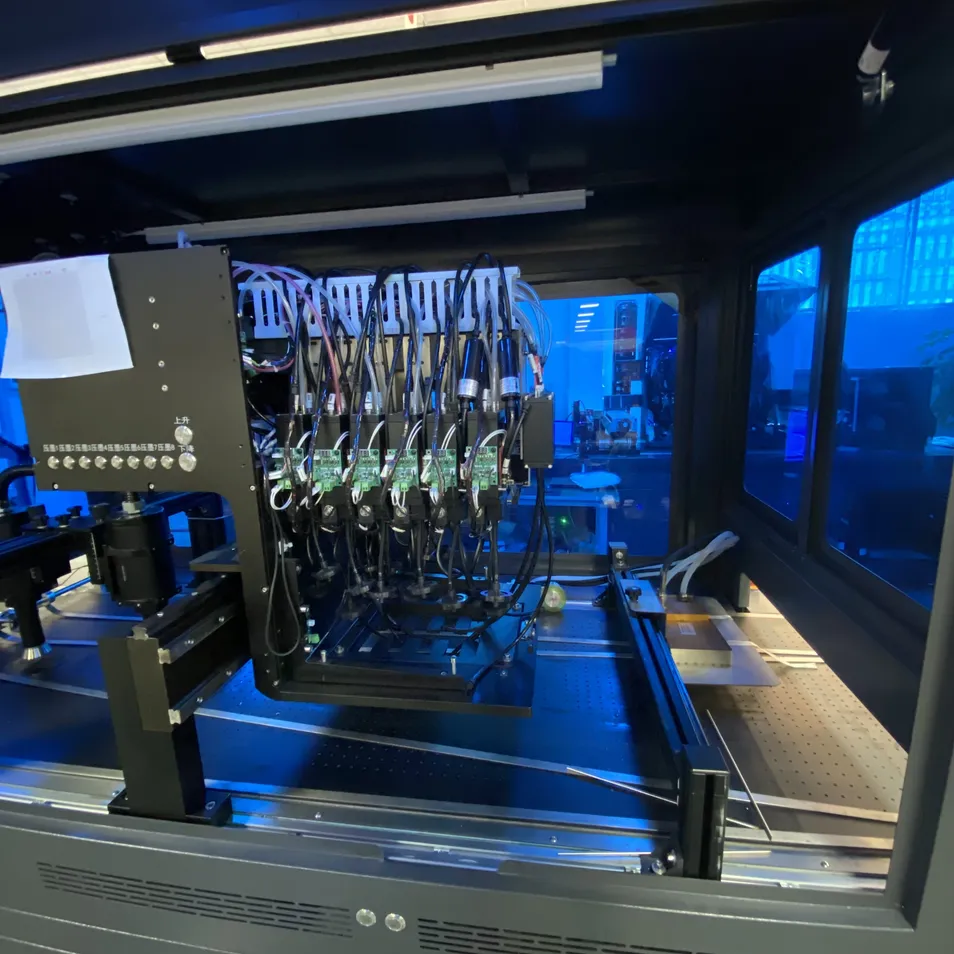

Ricoh G5/G6 Printing Head

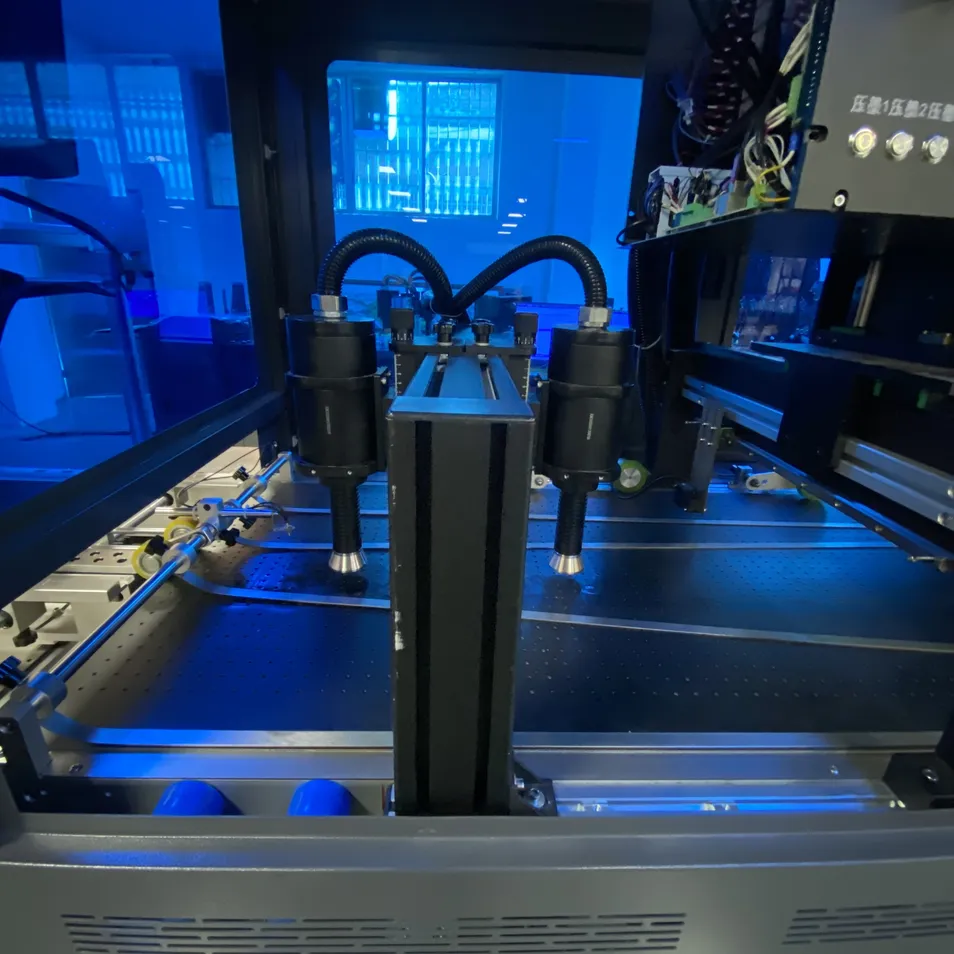

Auto-Rectify & Plasma Device

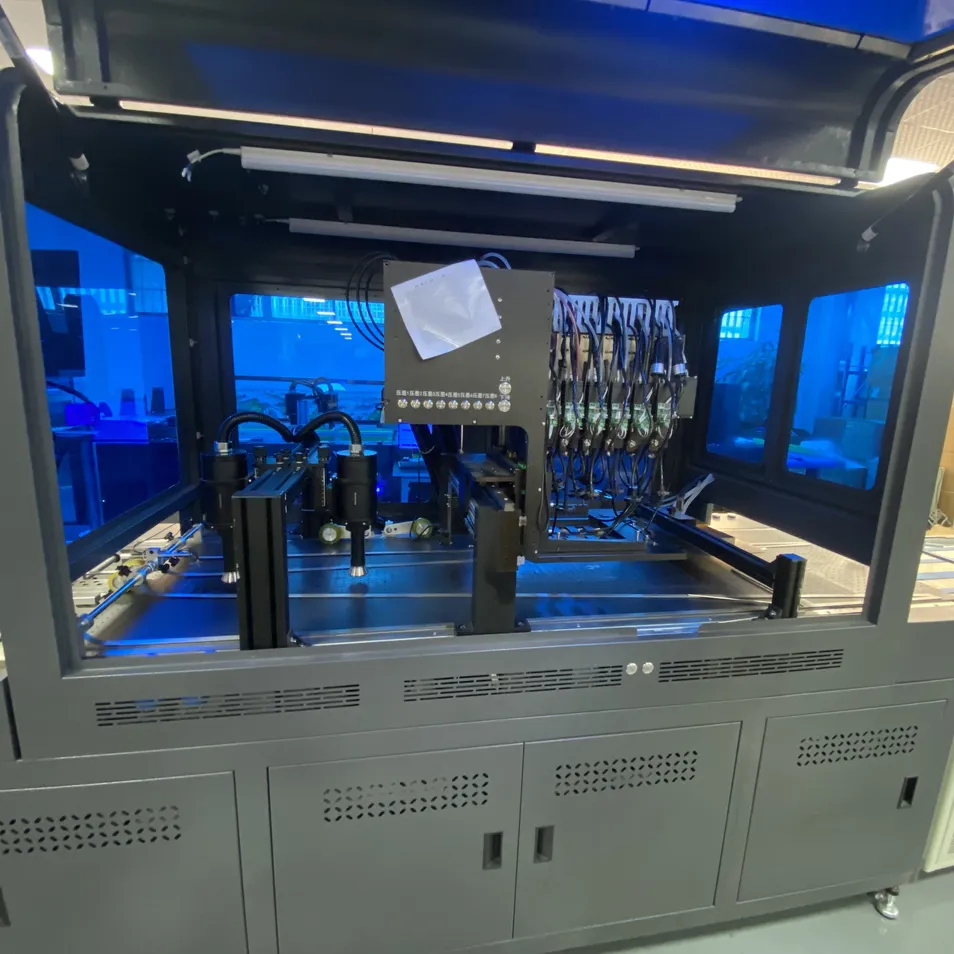

100MM Printing Width Coverage

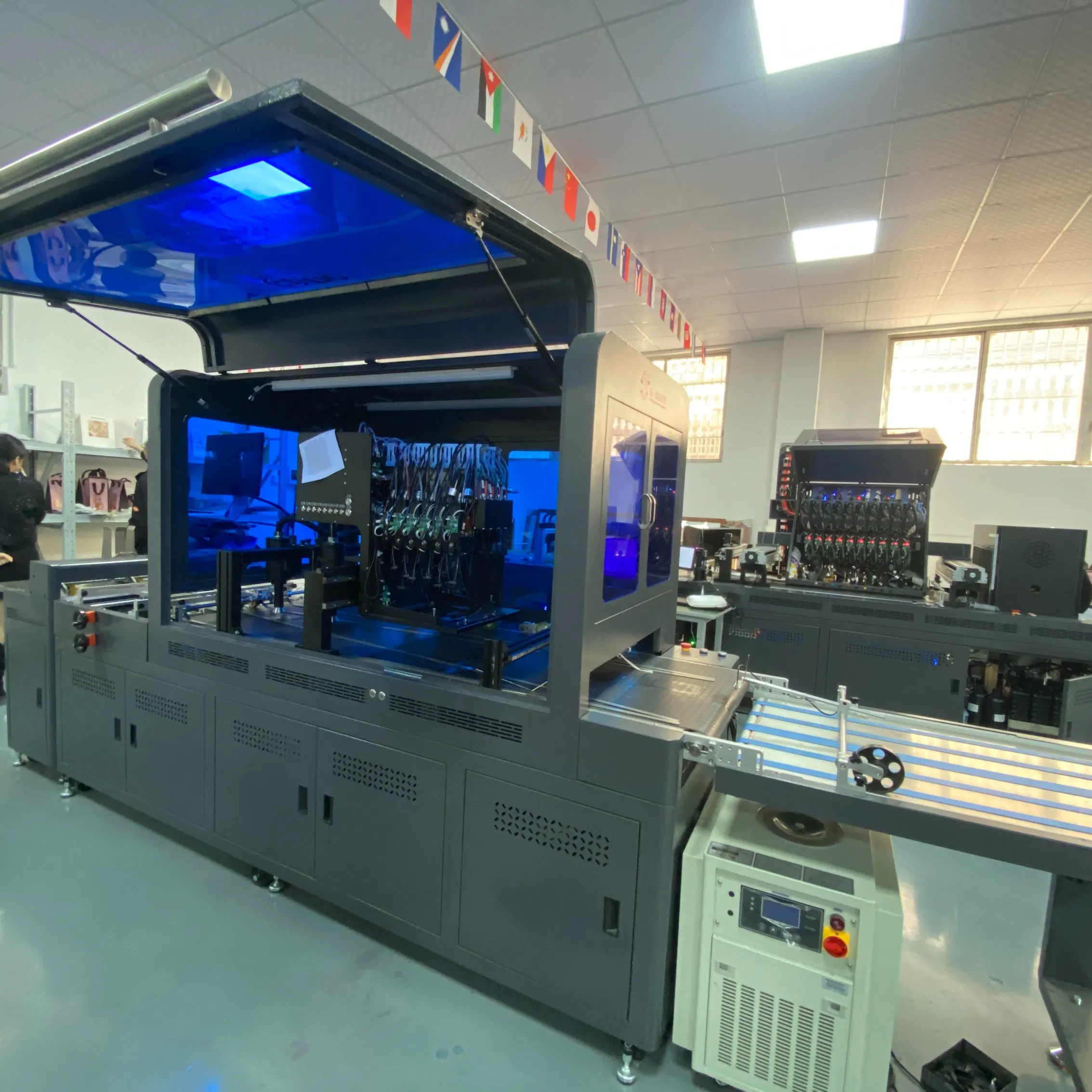

Integrated Automated Workflow

🛠️

System Configuration

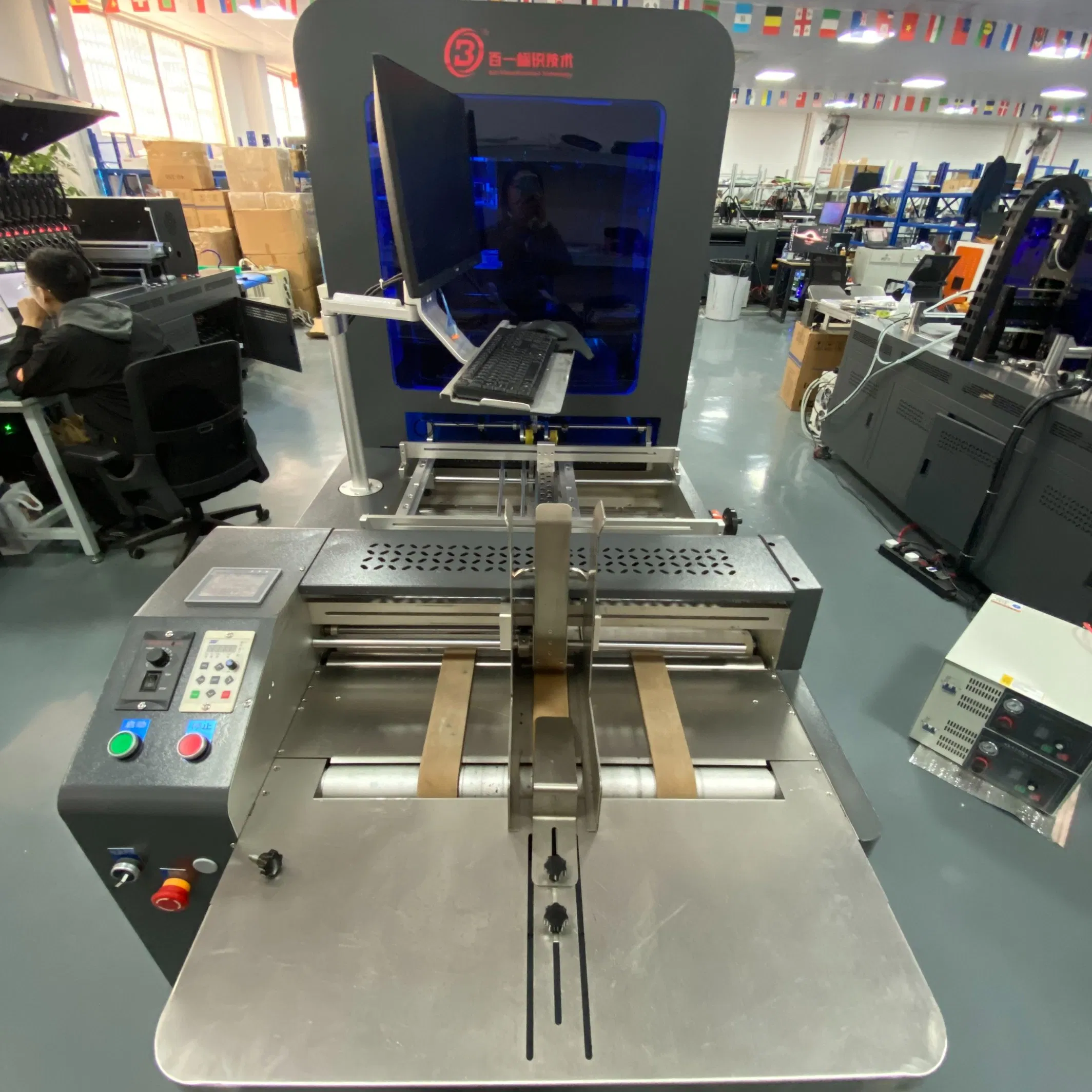

1. Feeding Platform System

Feeding way: Multi-friction belt, down-out
Friction belt adjustment: Independent electric adjustment
Auto-Rectify: Adopt cross-ball for product position correction
Vacuum: Adopts double big flow vacuum pump
Conveyor specification: 2000 * 600MM

2. UV Digital Printing System

Inner embedded printing system, industrial controlling & HMI all in one
Printing nozzle up and down with electric and anti-collision design
Circulating ink supply system
Standard configuration: 8pcs Ricoh G5/G6 heads, full color CMYK

❓

FAQ

What materials can this machine print on?

The machine is versatile and can print on water-absorbent materials like paper and non-woven fabrics, as well as non-absorbent materials including plastic, wood, glass, and metal.

What is the advantage of Ricoh G5/G6 printing heads?

These professional-grade heads support an extended 20mm working height, making them ideal for printing on non-flat, three-dimensional, or curved surfaces with high precision.

What is the production efficiency of the machine?

The efficiency typically ranges from 60 to 120 pieces per minute, depending on the specific size of the product being printed.

Does the system include surface treatment?

Yes, it features plasma technology that treats the substrate surface to enhance ink adhesion while removing dust and impurities, significantly reducing defect rates.

What are the lead time and payment terms?

Lead time varies from 2 to 30 working days based on configuration. Payment is typically 50% upon order confirmation and the balance before shipment via TT.

What is the warranty period for this equipment?

The machine comes with a standard one-year warranty after delivery, excluding wearable parts.
